Sayfa 4-65 - Isuzu EPC

4-65 — REAR LEAF SPRING (#117666) — 261 parça

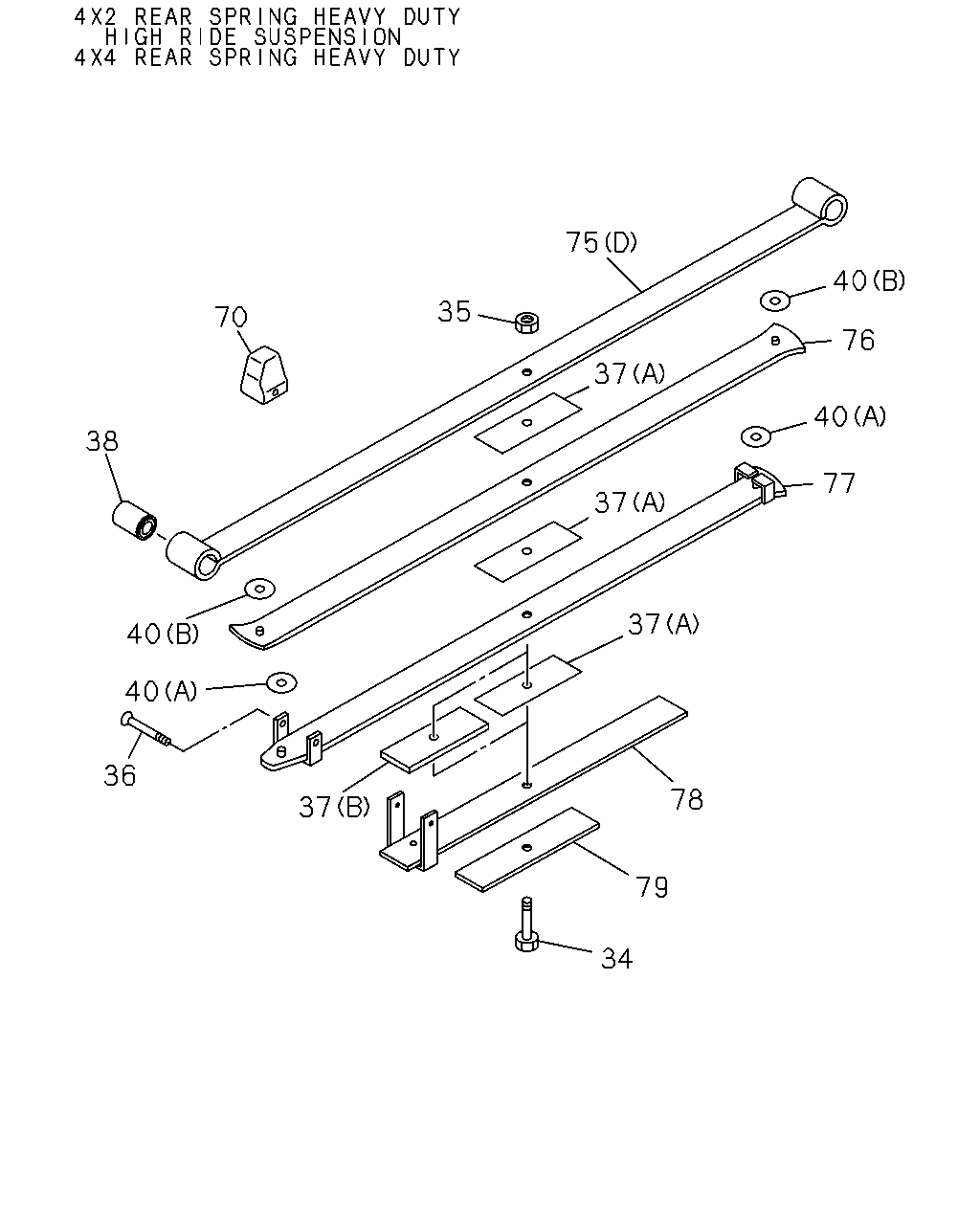

35 75 37 37 37 37 79 78 77 40 76 40 70 38 40 36 37 40 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: C = 8-98201-545-2, 98201545	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: D = 8-98215-683-0, 98215683, F = 8-98218-551-0, 98218551, I = 8-98282-589-1, 98282589, K = 8-98282-593-1, 98282593	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-584-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: D = 8-98215-683-0, 98215683, F = 8-98218-551-0, 98218551, I = 8-98282-589-1, 98282589, K = 8-98282-593-1, 98282593	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: C = 8-98201-545-2, 98201545	8-98210-428-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-429-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98215-684-0, 98215684, J = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98215-683-0, 98215683, I = 8-98282-589-1, 98282589	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-430-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-551-0, 98218551, K = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-552-0, 98218552, L = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-431-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98215-884-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-421-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-432-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98215-882-0	01	1	-

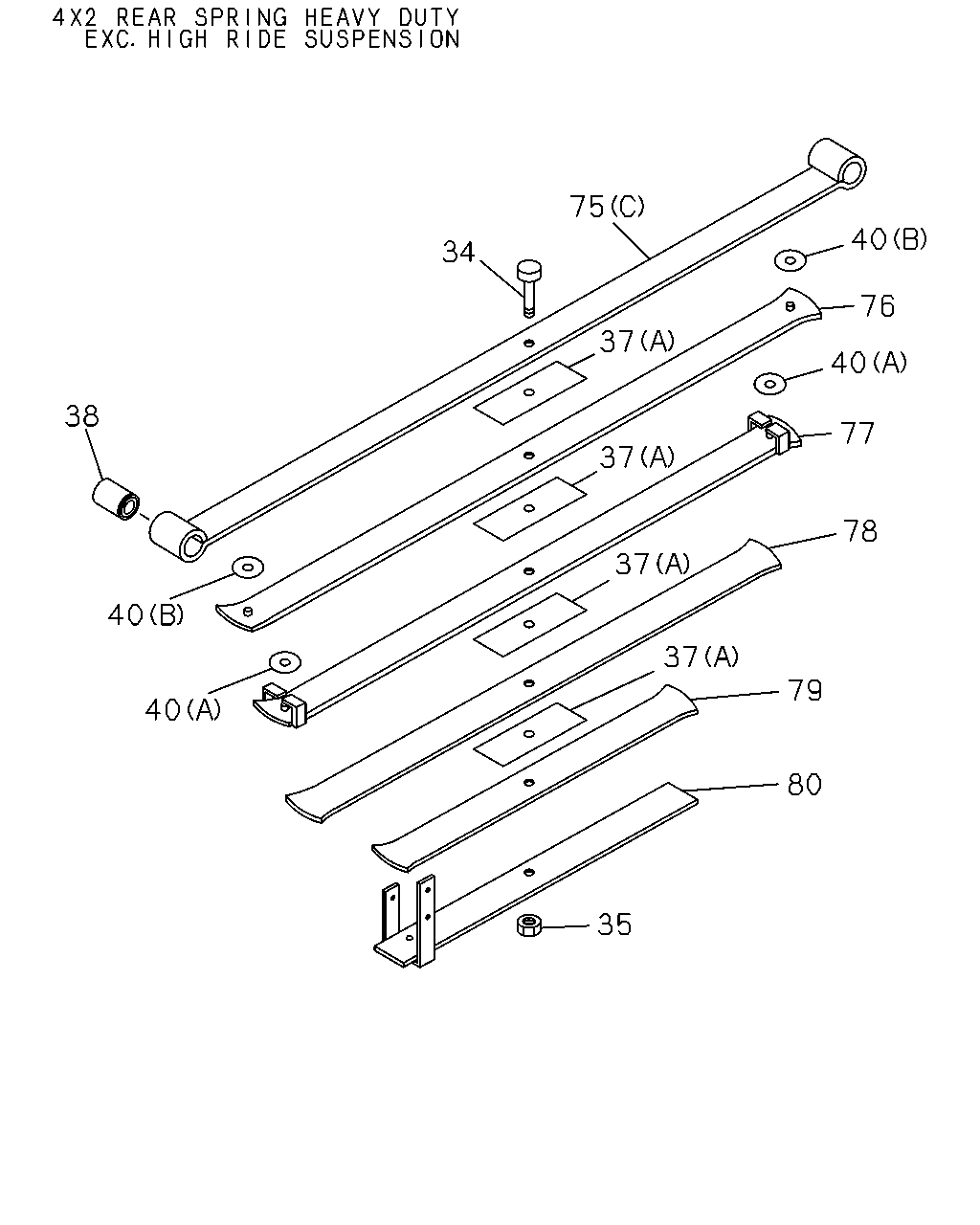

75 34 37 37 37 37 79 78 77 40 76 40 38 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: C = 8-98201-545-2, 98201545	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: C = 8-98201-545-2, 98201545	8-98210-428-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-429-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98215-684-0, 98215684, J = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98215-683-0, 98215683, I = 8-98282-589-1, 98282589	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-430-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-551-0, 98218551, K = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-552-0, 98218552, L = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-431-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98215-884-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-421-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-432-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98215-882-0	01	1	-

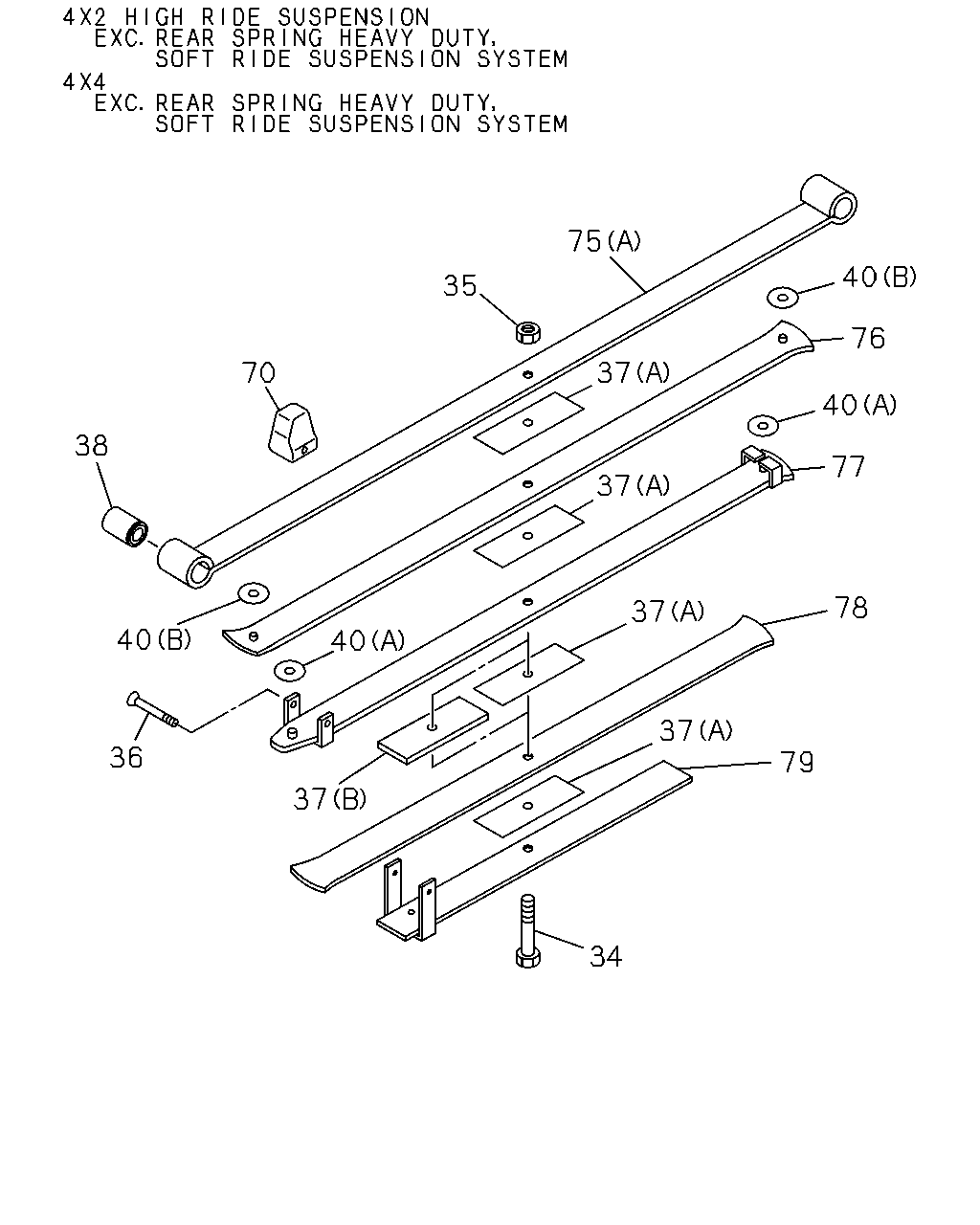

38 40 40 34 75 37 37 37 37 79 80 78 77 40 76 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: C = 8-98201-545-2, 98201545	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: C = 8-98201-545-2, 98201545	8-98210-428-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-429-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98215-684-0, 98215684, J = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98215-683-0, 98215683, I = 8-98282-589-1, 98282589	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-430-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-551-0, 98218551, K = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-552-0, 98218552, L = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-431-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98215-884-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-421-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-432-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98215-882-0	01	1	-
80	07.505 SPRING; LEAF,NO 6,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-427-1	01	1	-

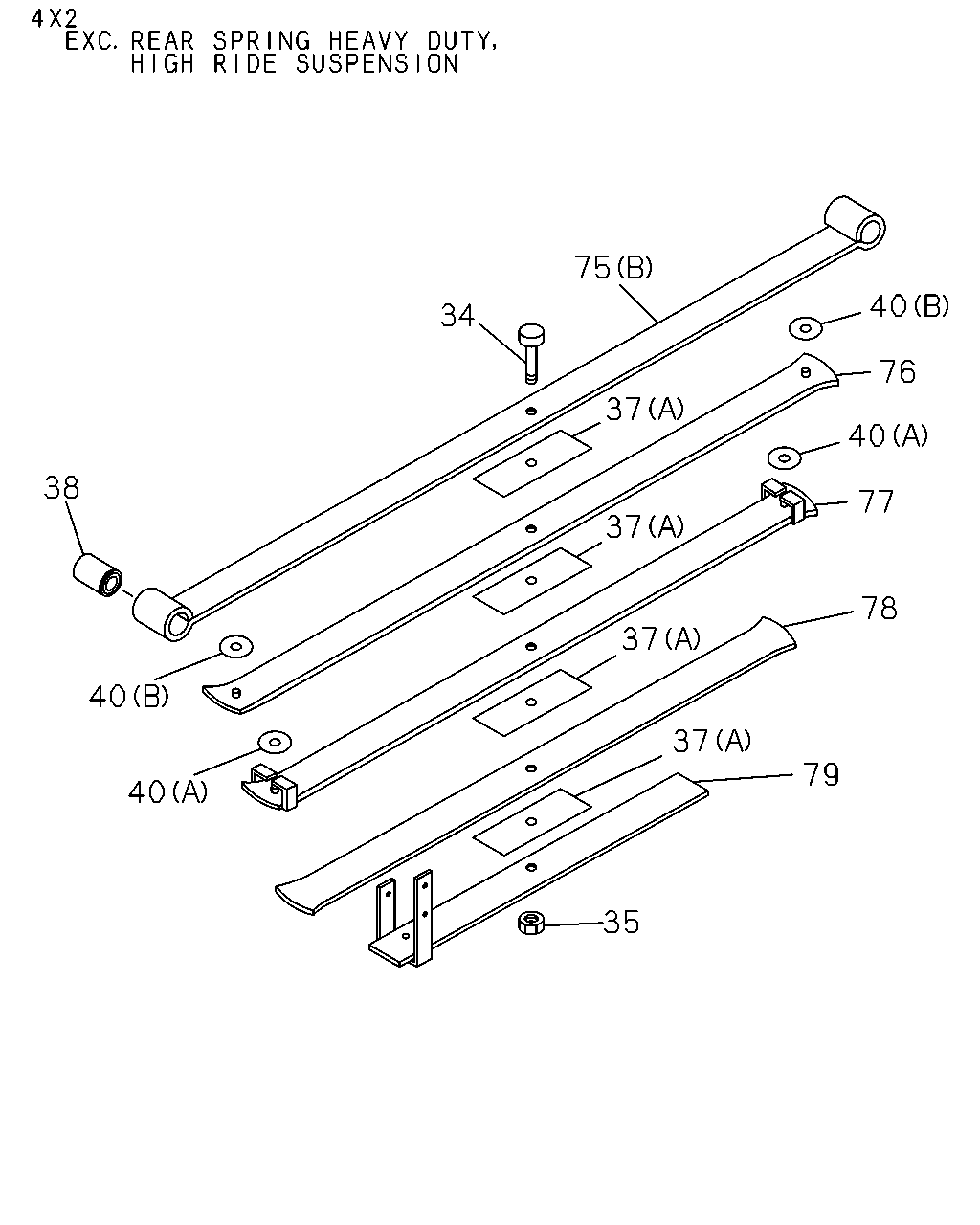

77 40 76 40 37 37 75 35 70 38 40 40 36 37 34 79 78 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: C = 8-98201-545-2, 98201545	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97945-821-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR ASM PART: D = 8-98215-683-0, 98215683, F = 8-98218-551-0, 98218551, I = 8-98282-589-1, 98282589, K = 8-98282-593-1, 98282593	8-98161-948-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-97947-171-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-584-0	02	1	-
70	07.505 RUBBER; LEAF SPR,RR ASM PART: D = 8-98215-683-0, 98215683, F = 8-98218-551-0, 98218551, I = 8-98282-589-1, 98282589, K = 8-98282-593-1, 98282593	8-98170-912-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: C = 8-98201-545-2, 98201545	8-98210-428-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-429-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98215-684-0, 98215684, J = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98215-683-0, 98215683, I = 8-98282-589-1, 98282589	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-430-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-551-0, 98218551, K = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-552-0, 98218552, L = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-431-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98215-884-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-450-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-421-2	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-426-0	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-432-1	01	1	-
79	07.505 SPRING; LEAF,NO 5,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98215-882-0	01	1	-

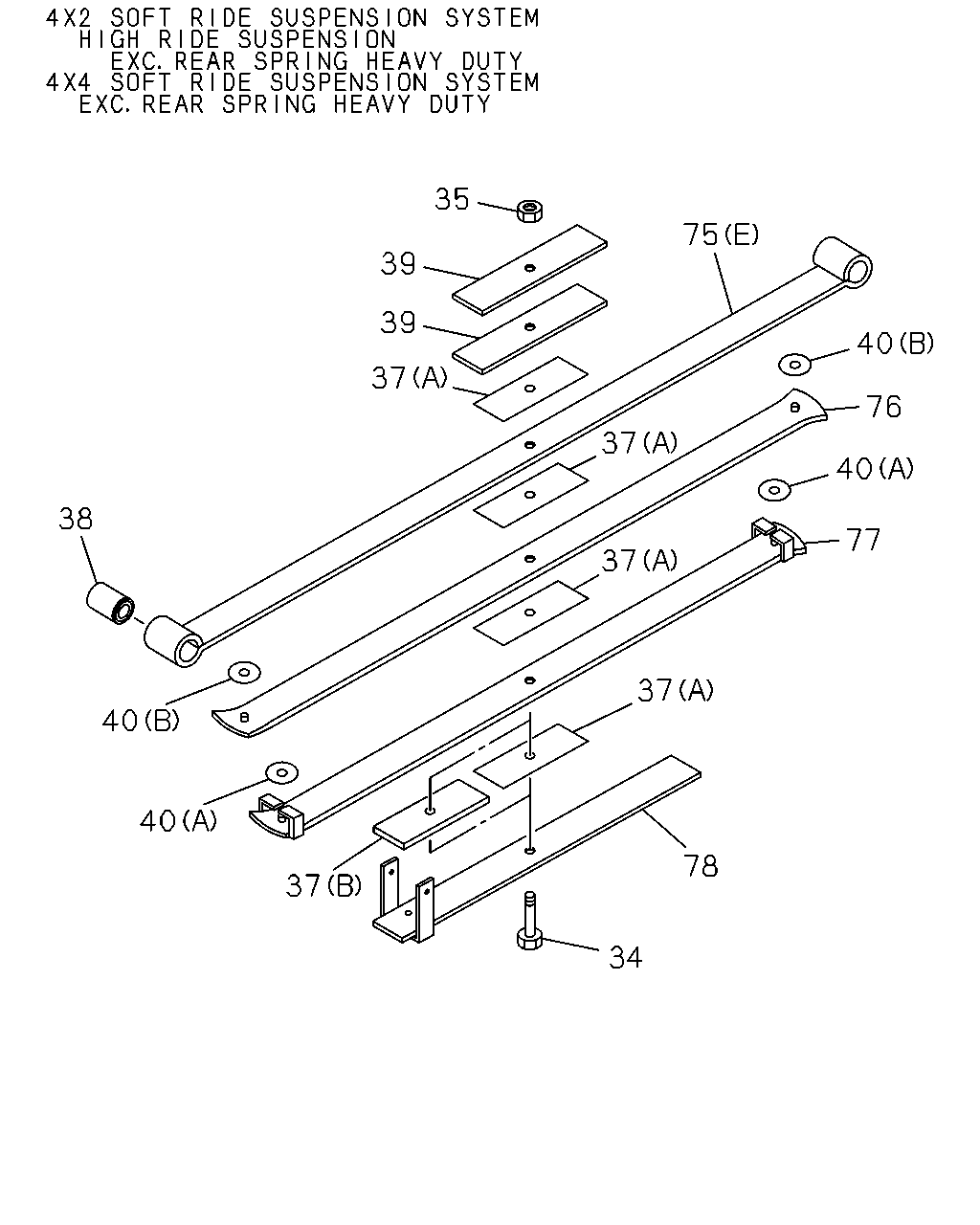

77 40 76 40 75 35 39 39 37 38 40 40 37 34 78 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-98201-544-2, 98201544	8-97304-264-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X60 ASM PART: C = 8-98201-545-2, 98201545	8-97947-194-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X62 ASM PART: A = 8-98201-543-3, 98201543	8-97947-234-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98161-928-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98161-929-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	1-09400-055-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-97947-195-0	04	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98161-302-0	02	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556	8-98161-302-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684	8-98161-302-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98161-302-0	03	1	-1504
37	07.518 SPACER; CENTER,LEAF SPR,RR (B) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98288-935-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545	8-98296-471-0	04	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98296-472-0	03	1	1505-
37	07.518 SPACER; CENTER,LEAF SPR,RR (A) ASM PART: I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98296-472-0	02	1	1505-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-98201-543-3, 98201543, B = 8-98201-544-2, 98201544, C = 8-98201-545-2, 98201545, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-97947-171-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98161-304-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97360-246-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-98201-544-2, 98201544, D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-218-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-583-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-98201-543-3, 98201543, C = 8-98201-545-2, 98201545, F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, H = 8-98218-556-0, 98218556, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594, M = 8-98282-595-1, 98282595	8-98218-584-0	02	1	-
75	07.505 SPRING; LEAF,NO 1,RR (D) ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-446-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (E) ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-97947-451-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (A) ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-953-1	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: A = 8-98201-543-3, 98201543	8-98210-417-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (C) ASM PART: B = 8-98201-544-2, 98201544	8-98210-422-0	01	1	-
75	07.505 SPRING; LEAF,NO 1,RR (B) ASM PART: C = 8-98201-545-2, 98201545	8-98210-428-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-97947-447-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-418-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-423-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-429-1	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98218-574-0	01	1	-
76	07.505 SPRING; LEAF,NO 2,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-578-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: E = 8-98215-684-0, 98215684, J = 8-98282-590-1, 98282590	8-97947-448-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: D = 8-98215-683-0, 98215683, I = 8-98282-589-1, 98282589	8-98174-370-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-419-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-424-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-430-1	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: F = 8-98218-551-0, 98218551, K = 8-98282-593-1, 98282593	8-98218-575-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: G = 8-98218-552-0, 98218552, L = 8-98282-594-1, 98282594	8-98218-577-0	01	1	-
77	07.505 SPRING; LEAF,NO 3,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98218-579-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: F = 8-98218-551-0, 98218551, G = 8-98218-552-0, 98218552, K = 8-98282-593-1, 98282593, L = 8-98282-594-1, 98282594	8-98193-957-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: A = 8-98201-543-3, 98201543	8-98210-420-1	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: B = 8-98201-544-2, 98201544	8-98210-425-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: C = 8-98201-545-2, 98201545	8-98210-431-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: D = 8-98215-683-0, 98215683, E = 8-98215-684-0, 98215684, I = 8-98282-589-1, 98282589, J = 8-98282-590-1, 98282590	8-98215-883-0	01	1	-
78	07.505 SPRING; LEAF,NO 4,RR ASM PART: H = 8-98218-556-0, 98218556, M = 8-98282-595-1, 98282595	8-98215-884-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
