Isuzu WW
▶
TRUCKS
▶
GXZ
▶
11462 - GXZ CNG(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#117663) — 55 parça
◀

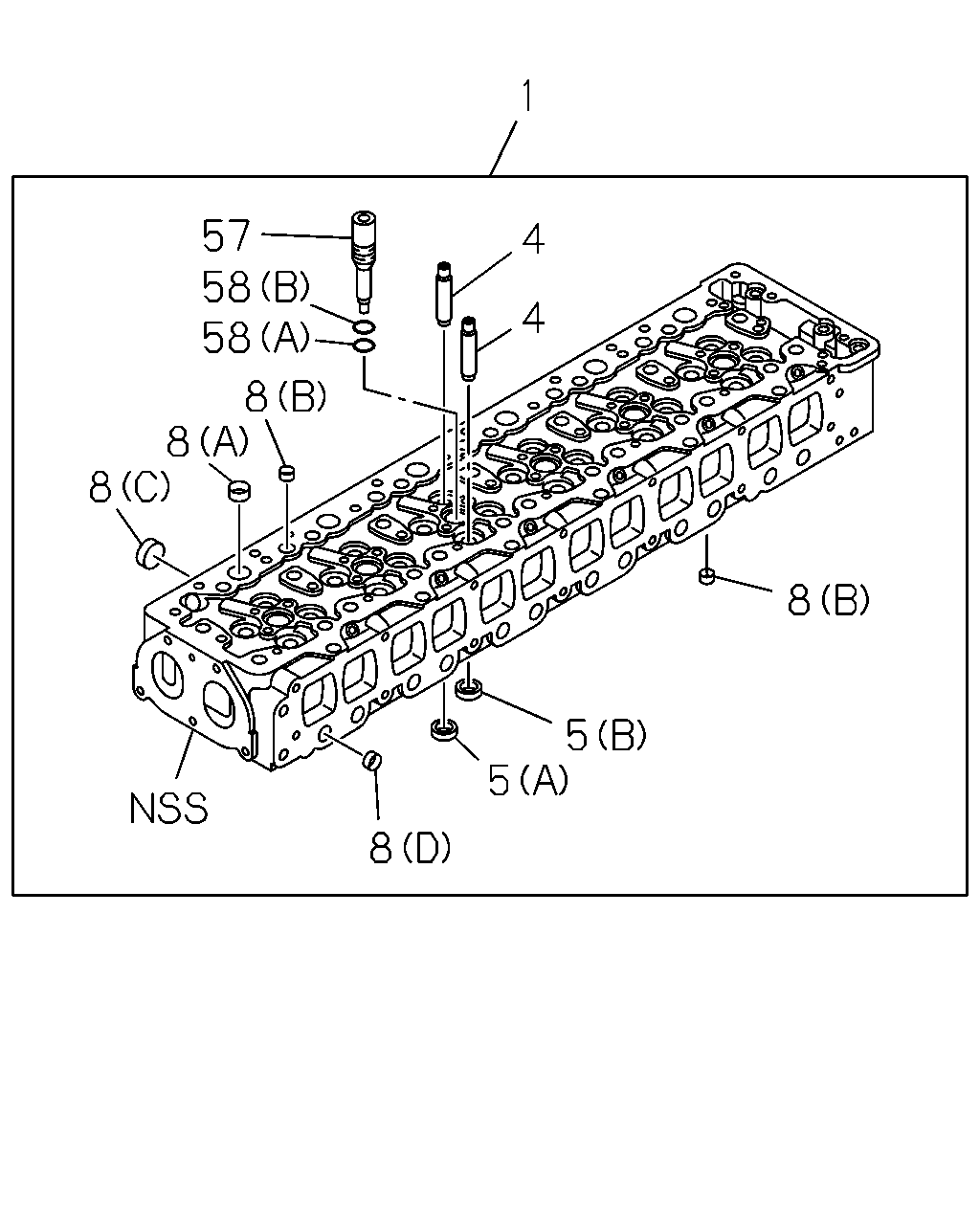

[011A] COMPONENT (11 parça)

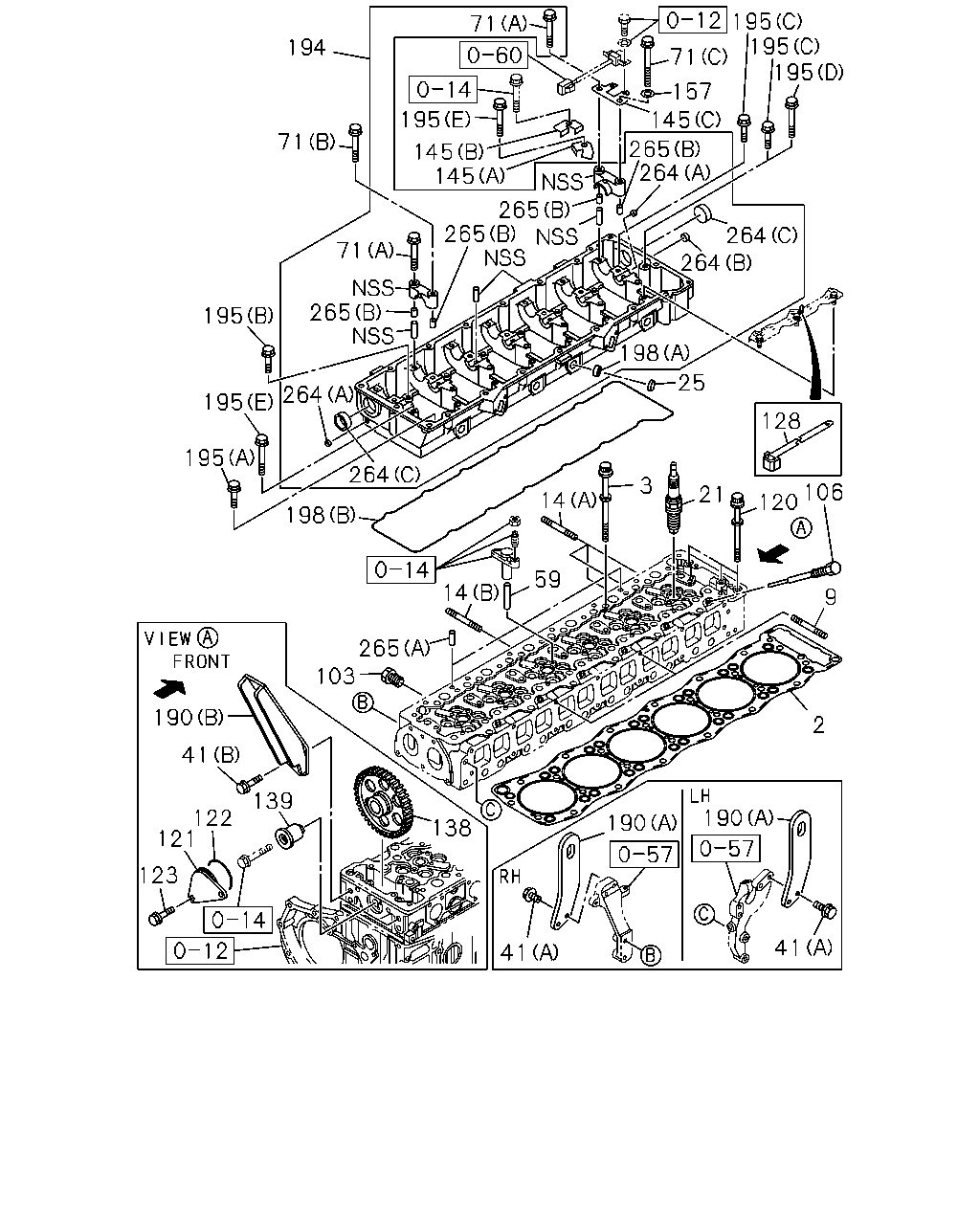

[011A] HEAD AND GASKET (44 parça)
▶
1
57
4
58
8
58
8
8
4
8
5
8
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98194-630-0
01
1
1204-
4
GUIDE; VLV
L=57
8-97376-719-2
24
1
1204-
5
SEAT; VLV INSERT
(B) INLET
1-11715-124-0
12
1
1204-
5
SEAT; VLV INSERT
(A) EXHAUST
8-98196-036-0
12
1
1204-
8
CUP; SEALING,WATER JACKET
(A) OD=25
1-09600-016-0
06
1
1204-
8
CUP; SEALING,WATER JACKET
(B) OD=18
5-11219-008-0
12
1
1204-
8
CUP; SEALING,WATER JACKET
(C) OD=36
5-11219-018-0
06
1
1204-
8
CUP; SEALING,WATER JACKET
(D) OD=20
9-11129-128-0
12
1
1204-
57
SLEEVE; NOZZLE HOLDER
8-98196-037-0
06
1
1204-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) LOWER ID=30.9 BLACK
8-97233-126-0
06
1
1204-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) UPPER ID=30.9 WHITE
8-98041-585-0
06
1
1204-
195
265
265
145
145
195
71
265
264
264
264
198
25
128
106
120
21
3
14
194
71
71
265
195
195
195
264
264
198
14
59
265
103
190
41
139
122
121
123
138
41
190
190
41
2
9
195
195
157
145
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11141-292-2
01
1
1204-
3
BOLT; CYL HD TO BLOCK
M15X161
1-09070-160-1
26
1
1204-
9
STUD; INL MANIF
M10X110 L=125
1-09302-001-0
02
1
1204-
14
STUD; EXH MANIF
(A) M10X135 L=150
1-09302-159-0
03
1
1204-
14
STUD; EXH MANIF
(B) M10X77 L=92
1-09302-176-0
15
1
1204-
21
PLUG; SPARK
8-98222-918-1
06
1
1204-1306
21
PLUG; SPARK
8-98248-054-0
06
1
1307-
25
PLUG; CYL HD
8-98216-534-0
06
1
1204-
41
BOLT; ENG HANGER
(A) M12X30 FLANGE
0-28151-230-0
04
1
1204-
41
BOLT; ENG HANGER
(B) M12X40 FLANGE
0-28751-240-0
04
1
1204-
59
GUIDE; BRIDGE
8-97603-036-0
12
1
1204-
71
BOLT; CAM BRKT
(A) M10X60 FLANGE
0-28151-060-0
07
1
1204-
71
BOLT; CAM BRKT
(B) M10X120 FLANGE
0-28156-012-0
07
1
1204-
71
BOLT; CAM BRKT
(C) M10X125
9-09804-207-0
01
1
1204-
103
PLUG; HD
M14
8-94399-225-0
01
1
1204-
106
PLUG; GLOW PLUG HOLE
8-94392-236-0
06
1
1204-
120
BOLT; CYL HD TO HSG
M10X122 FLANGE W/PL WASHER
1-09070-060-0
03
1
1204-
121
COVER; IDLE GEAR,CYL HD
8-97603-803-0
01
1
1204-
122
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98020-344-0
01
1
1204-
123
BOLT; COVER
M8X16 FLANGE THA
0-28050-816-0
02
1
1204-
128
CLIP; BAND,HARNESS
8-98216-405-0
06
1
1204-
138
GEAR; IDLE
Z=64
8-97603-256-2
01
1
1204-
139
SHAFT; IDLE GEAR
8-97603-054-0
01
1
1204-
145
BRACKET
(A)
8-98216-403-0
01
1
1204-
145
BRACKET
(B)
8-98216-404-0
01
1
1204-
145
BRACKET
(C)
8-98216-418-0
01
1
1204-
157
WASHER; CAM BRKT
ID=10.5 OD=22 THA
0-91614-610-0
01
1
1204-
190
HANGER; ENG
(A)
8-97603-797-2
02
1
1204-
190
HANGER; ENG
(B)
8-97606-737-0
02
1
1204-
194
CARRIER; CAM SHAFT
8-97613-257-2
01
1
1204-1307
194
CARRIER; CAM SHAFT
8-98192-430-1
01
1
1308-
195
BOLT; CARRIER
(A) M8X45 FLANGE THA
0-28050-845-0
07
1
1204-
195
BOLT; CARRIER
(B) M10X35 FLANGE
0-28151-035-0
06
1
1204-
195
BOLT; CARRIER
(C) M10X50 FLANGE THA
0-28151-050-0
01
1
1204-1307
195
BOLT; CARRIER
(C) M10X50 FLANGE THA
0-28151-050-0
03
1
1308-
195
BOLT; CARRIER
(D) M10X110 FLANGE
0-28156-011-0
02
1
1204-1307
195
BOLT; CARRIER
(E) M10X85 FLANGE
8-94397-359-1
07
1
1204-
198
GASKET; CAM CARRIER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=30
1-09639-034-0
06
1
1204-
198
GASKET; CAM CARRIER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-97609-580-0
01
1
1204-
264
CUP; SEALING
(A) OD=12.3
5-09600-013-0
02
1
1204-
264
CUP; SEALING
(B) OD=18
5-11219-008-0
01
1
1204-
264
CUP; SEALING
(C) OD=45
8-97351-451-0
02
1
1204-
265
PIN; CAM CARRIER SET
(B) OD=4 L=12
1-09740-032-0
14
1
1204-
265
PIN; CAM CARRIER SET
(A) OD=8 L=16
9-08150-816-0
02
1
1204-
