Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#117656) — 353 parça

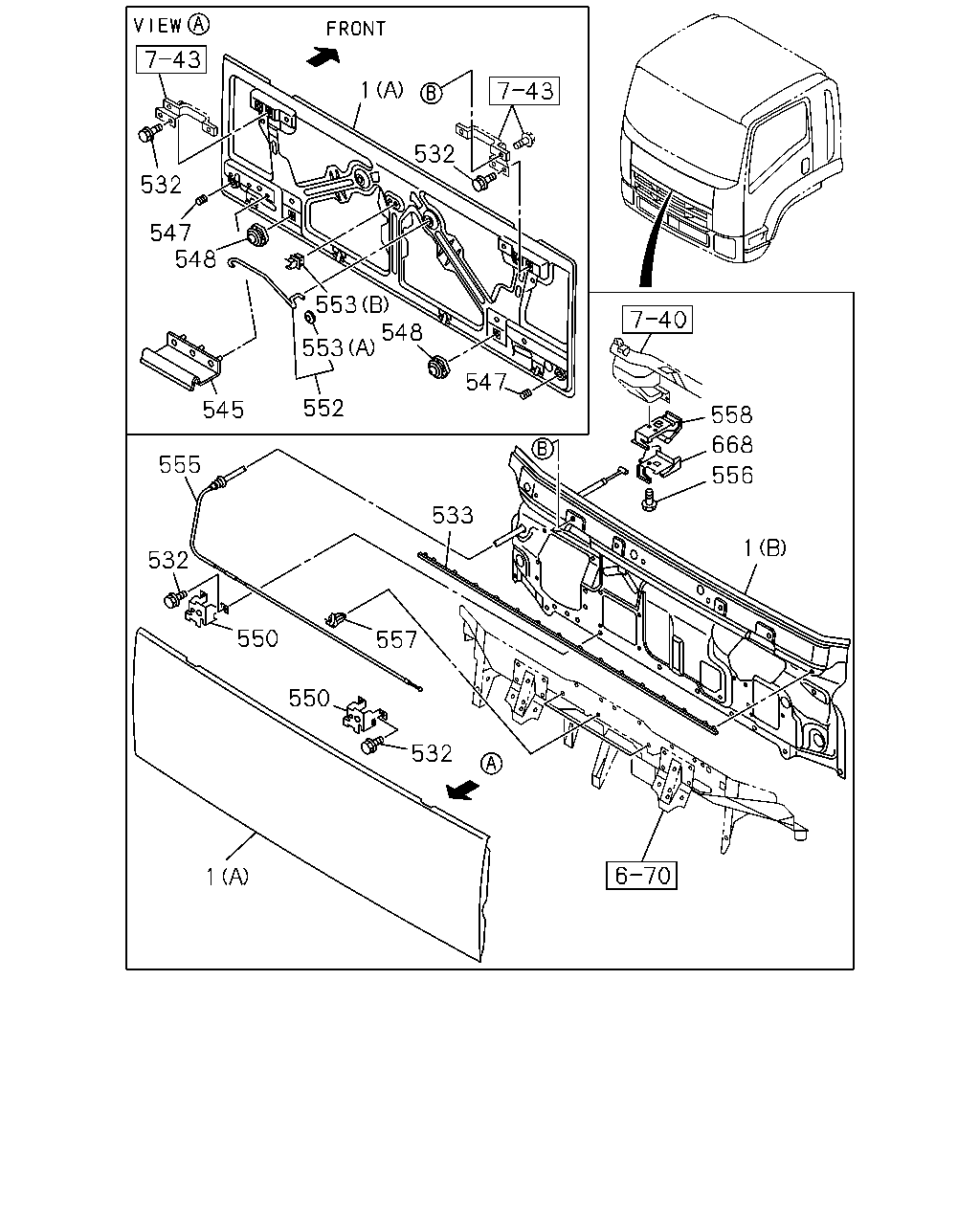

1 532 547 553 553 548 547 558 556 668 552 545 555 532 533 557 550 550 532 1 1 548 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL ASM; FRT (B)	8-97585-960-9	01	1	1304-	●	●
1	PANEL ASM; FRT (A)	8-98030-234-4	01	1	1304-	●	●
532	BOLT; FRT PANEL M8X20 FLANGE	0-28650-820-0	08	1	1304-	●	●
533	SEAL; FRT PANEL	8-98096-289-0	01	1	1304-	●	●
545	SEAL; FRT LID	8-98123-265-0	01	1	1304-	●	●
547	RUBBER; CUSHION OD=22 L=29	8-94324-556-2	02	1	1304-	●	●
548	STRIKER; FRT LID PANEL	8-98068-145-1	02	1	1304-	●	●
550	LOCK ASM; FRT LID	8-98036-569-2	02	1	1304-	●	●
552	STAY; FRT LID	8-98089-838-0	01	1	1304-	●	●
553	CLIP; STAY (B)	8-97031-428-0	01	1	1304-	●	●
553	CLIP; STAY (A)	8-98071-399-0	01	1	1304-	●	●
555	CABLE; FRT LID	8-98036-574-1	01	1	1304-	●	●
556	BOLT; CABLE M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
557	CLIP; CABLE ID=4.8	8-94128-483-0	03	1	1304-	●	●
558	LEVER; FRT LID	1-79338-007-1	01	1	1304-	●	●
668	COVER; LEVER,FRT LID	8-98076-339-1	01	1	1304-	●	●

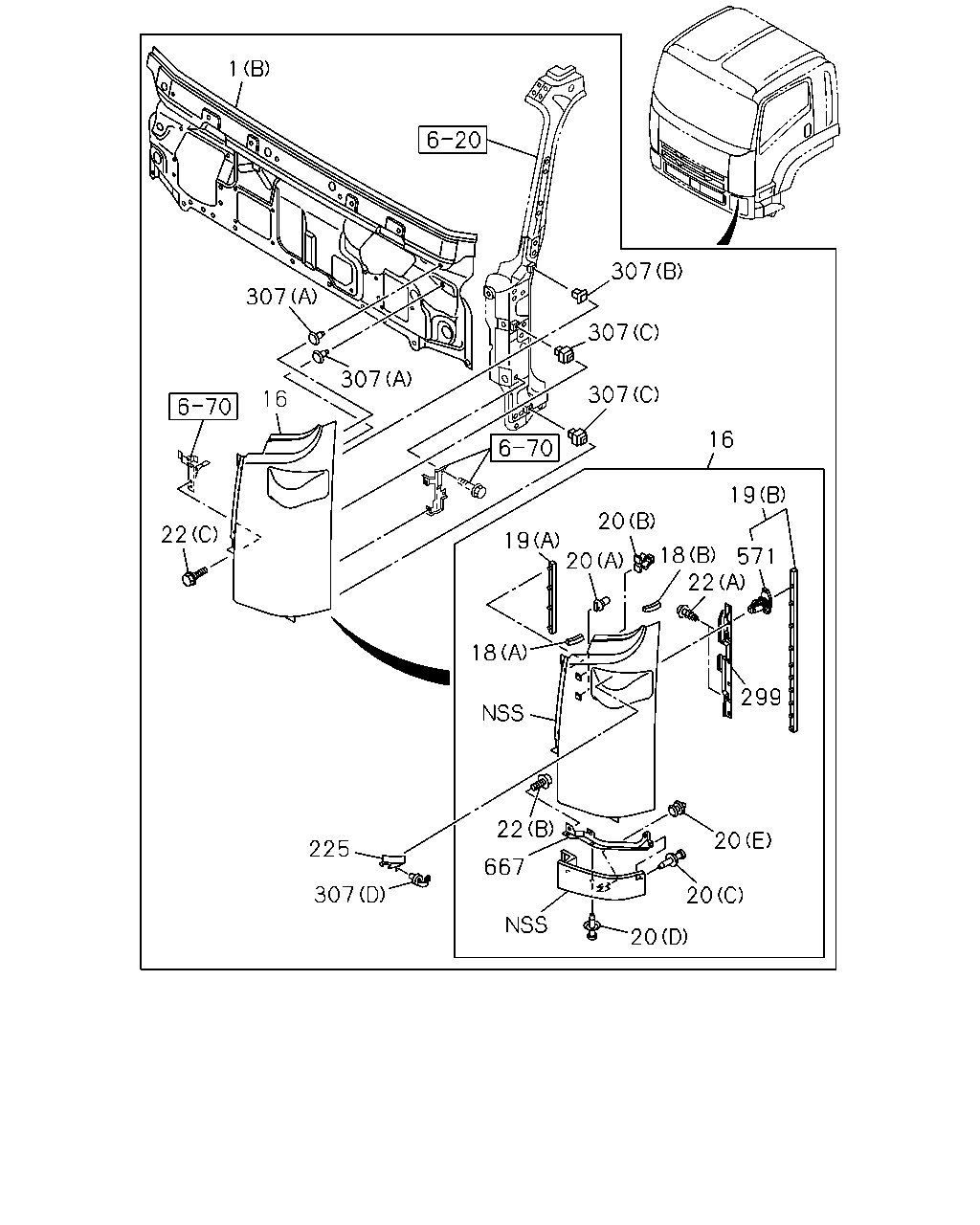

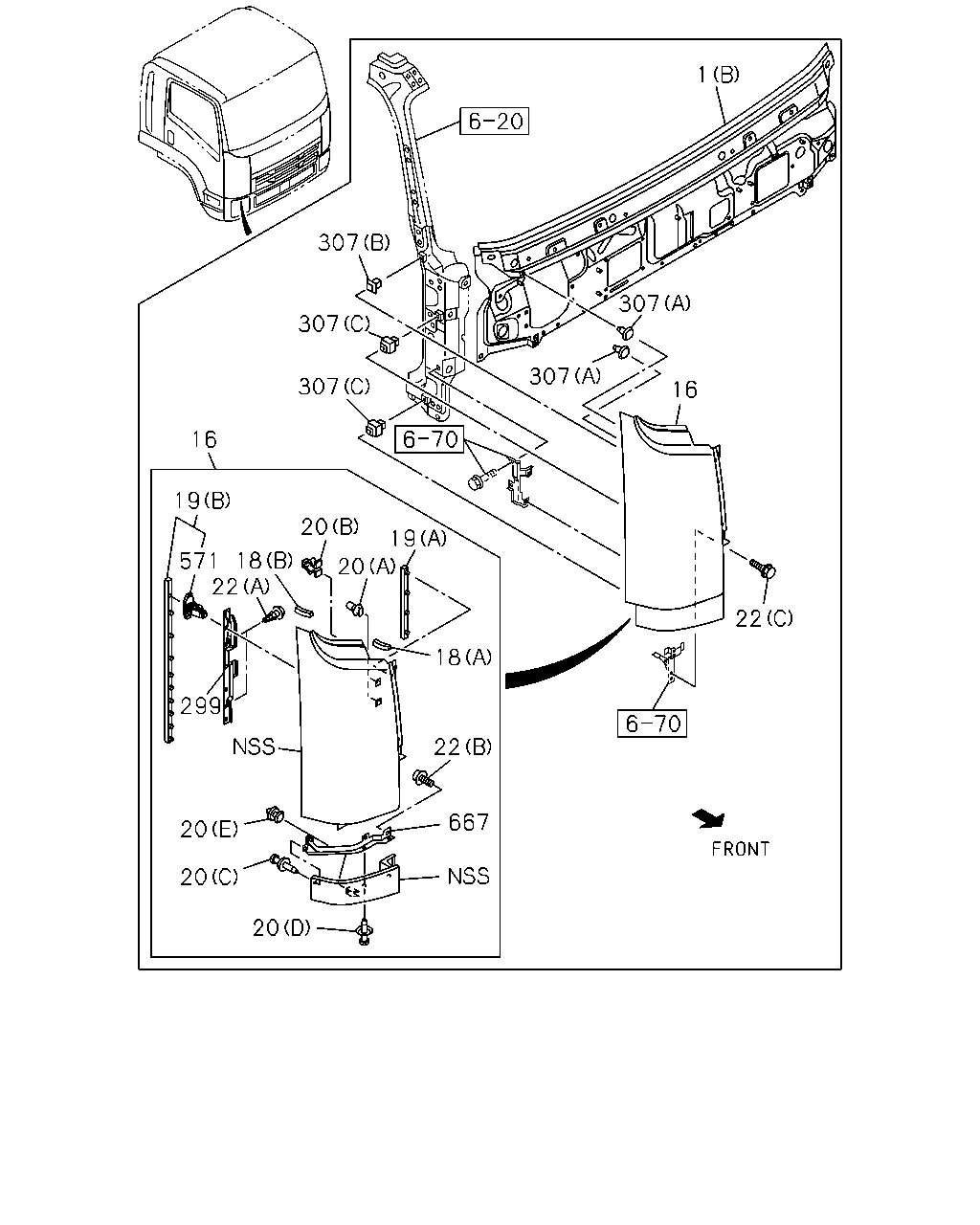

19 16 307 307 307 1 307 307 22 225 307 22 667 20 20 20 299 22 571 18 20 20 19 18 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL ASM; FRT (B)	8-97585-960-9	01	1	1304-	●	●
1	PANEL ASM; FRT (A)	8-98030-234-4	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> GREEN	8-97423-765-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> GREEN	8-97423-767-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> WHITE	8-97413-088-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> WHITE	8-97421-836-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED	8-97418-360-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> RED	8-97421-834-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BEIGE	8-97418-361-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> BEIGE	8-97421-839-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE	8-97418-362-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> BLUE	8-97421-840-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> YELLOW	8-97418-363-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> YELLOW	8-97421-838-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED	8-97418-365-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> RED	8-97421-835-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97413-087-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. CAB ALL PAINTING<TFD> WHITE	8-97421-820-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> WHITE	8-97413-086-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> WHITE	8-97421-828-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97418-354-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) EXC. CAB ALL PAINTING<TFD> RED	8-97421-818-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> RED	8-97421-121-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> RED	8-97421-826-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97418-359-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) EXC. CAB ALL PAINTING<TFD> RED	8-97421-819-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> RED	8-97421-126-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> RED	8-97421-827-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97418-357-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) EXC. CAB ALL PAINTING<TFD> YELLOW	8-97421-822-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> YELLOW	8-97421-124-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> YELLOW	8-97421-830-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97418-356-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. CAB ALL PAINTING<TFD> BLUE	8-97421-824-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> BLUE	8-97421-123-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> BLUE	8-97421-832-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97418-355-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) EXC. CAB ALL PAINTING<TFD> BEIGE	8-97421-823-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> BEIGE	8-97421-122-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> BEIGE	8-97421-831-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN	8-97423-764-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) EXC. CAB ALL PAINTING<TFD> GREEN	8-97423-766-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> GREEN	8-97423-883-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> GREEN	8-97423-884-0	01	1	1304-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98038-608-0	01	1	1304-1309	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98038-608-0	01	1	1304-1309	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98038-608-0	01	1	1310-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98038-608-0	01	1	1310-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98043-511-1	01	1	1304-1309	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98043-511-1	01	1	1304-1309	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98043-511-1	01	1	1310-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98043-511-1	01	1	1310-	●	●
19	SEAL; FRT SIDE PANEL (A)	8-98036-580-0	01	1	1304-	●	●
19	SEAL; FRT SIDE PANEL (B)	8-98041-358-2	01	1	1304-	●	●
19	SEAL; FRT SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98036-581-0	01	1	1304-1309	●	●
19	SEAL; FRT SIDE PANEL (A)	8-98036-581-0	01	1	1310-	●	●
19	SEAL; FRT SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98041-359-2	01	1	1304-1309	●	●
19	SEAL; FRT SIDE PANEL (B)	8-98041-359-2	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) D8X13.5	1-09987-248-1	02	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (D) D8X13.5	1-09987-248-1	02	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (D) D8X13.5	1-09987-248-1	02	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (D) D8X13.5	1-09987-248-1	02	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-97013-997-0	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (C)	8-97013-997-0	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (C)	8-97013-997-0	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (C)	8-97013-997-0	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-97410-739-0	02	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-0	02	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-97410-740-2	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-2	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) H=15.3	8-97804-778-0	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (E) H=15.3	8-97804-778-0	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (E) H=15.3	8-97804-778-0	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (E) H=15.3	8-97804-778-0	01	1	1310-	●	●
22	SCREW; FRT PANEL SIDE (C) BOLT M6X16 FLANGE	8-98061-108-0	06	1	1304-1505	●	●
22	SCREW; FRT PANEL SIDE (C) BOLT M6X16 FLANGE	8-98314-627-0	06	1	1506-	●	●
22	SCREW; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1304-1309	●	●
22	SCREW; FRT PANEL SIDE (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1304-1309	●	●
22	SCREW; FRT PANEL SIDE (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1310-	●	●
22	SCREW; FRT PANEL SIDE (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1310-	●	●
22	SCREW; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1304-1309	●	●
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1304-1309	●	●
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1310-	●	●
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1310-	●	●
225	COVER; SIDE,FRT MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98041-431-1	01	1	1304-	●	●
299	COVER; FRT PANEL SIDE	8-98034-813-1	01	1	1304-	●	●
299	COVER; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98034-814-1	01	1	1304-1309	●	●
299	COVER; FRT PANEL SIDE	8-98034-814-1	01	1	1310-	●	●
307	GROMMET; FRT PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-97410-738-0	02	1	1304-1309	●	●
307	GROMMET; FRT PANEL (B)	8-97410-738-0	02	1	1310-	●	●
307	GROMMET; FRT PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98021-300-1	04	1	1304-1309	●	●
307	GROMMET; FRT PANEL (C)	8-98021-300-1	04	1	1310-	●	●
307	GROMMET; FRT PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) OD=20	8-98034-363-1	04	1	1304-1309	●	●
307	GROMMET; FRT PANEL (A) OD=20	8-98034-363-1	04	1	1310-	●	●
307	GROMMET; FRT PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98028-743-0	01	1	1304-	●	●
571	CLIP; SEAL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> NATURAL	8-98027-457-0	10	1	1304-1309	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1304-1309	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1310-	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1310-	●	●
667	STAY; EXT,SIDE PANEL	8-98054-091-1	01	1	1304-	●	●
667	STAY; EXT,SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98054-092-1	01	1	1304-1309	●	●
667	STAY; EXT,SIDE PANEL	8-98054-092-1	01	1	1310-	●	●

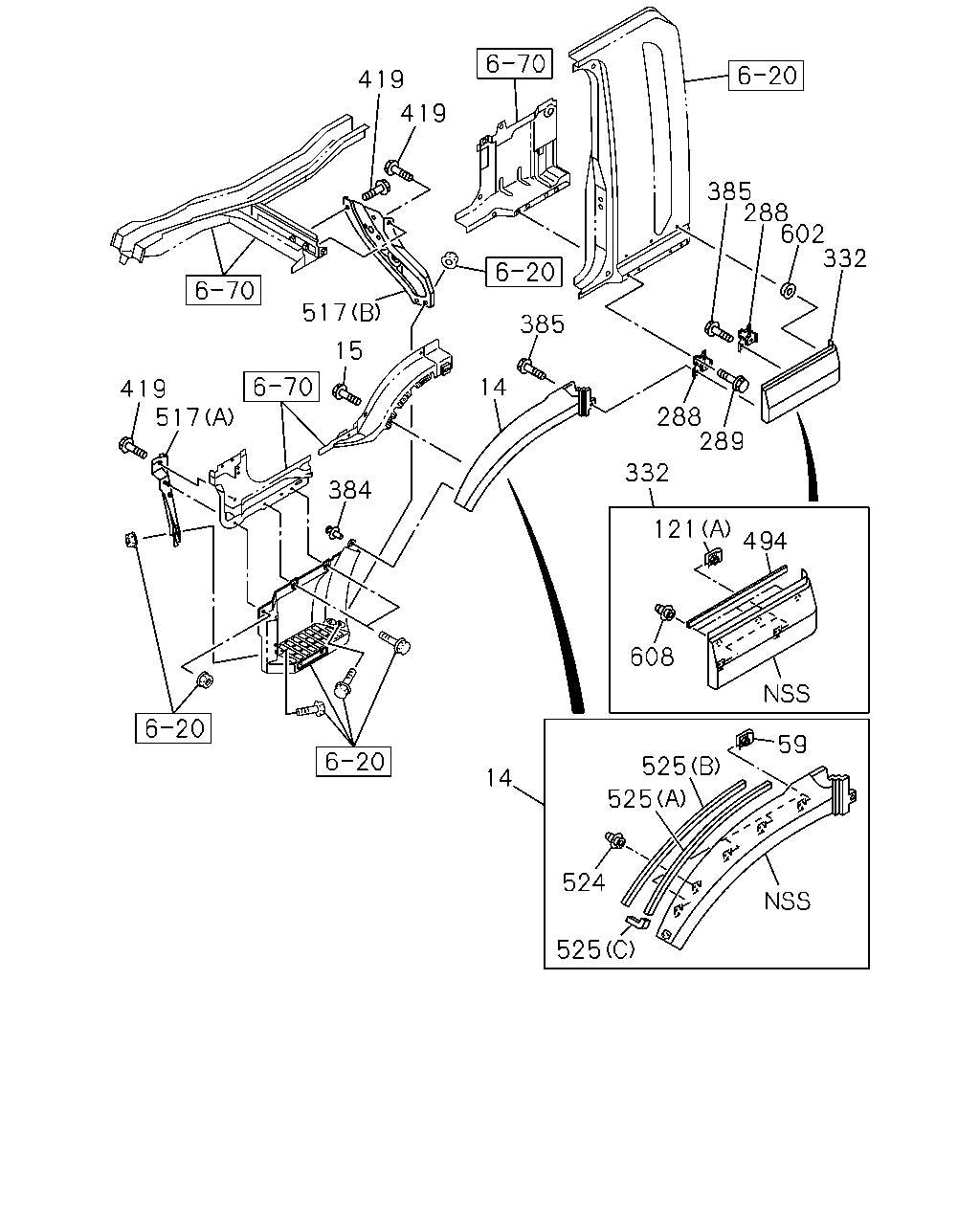

419 517 384 15 14 525 524 525 525 59 608 121 494 332 289 288 332 602 288 385 385 14 517 419 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	FENDER; FRT BLACK	8-98041-399-3	01	1	1304-	●	●
14	FENDER; FRT BLACK	8-98041-398-3	01	1	1304-	●	●
15	BOLT; FENDER M6X20 W/PL WASHER	8-98059-504-0	06	1	1304-	●	●
59	GROMMET; SCREW	8-94279-723-0	08	1	1304-	●	●
59	GROMMET; SCREW EXC. CAB ALL PAINTING<TFD>	8-94279-723-0	02	1	1304-	●	●
59	GROMMET; SCREW BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD>	8-94279-723-0	02	1	1304-	●	●
121	GROMMET; FENDER (C) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1304-	●	●
121	GROMMET; FENDER EXC. CAB ALL PAINTING<TFD> (A)	8-94279-723-0	04	1	1304-	●	●
121	GROMMET; FENDER CAB ALL PAINTING<TFD> (A)	8-94279-723-0	04	1	1304-	●	●
121	GROMMET; FENDER (D) OD=8.3	8-94279-989-0	12	1	1304-	●	●
121	GROMMET; FENDER (B) H=15	8-94463-268-1	04	1	1304-	●	●
121	GROMMET; FENDER (E)	8-98073-421-0	01	1	1304-	●	●
121	GROMMET; FENDER (E)	8-98073-420-0	01	1	1304-	●	●
288	BRACKET; FENDER SKIRT	8-98059-770-1	04	1	1304-	●	●
289	BOLT; FENDER SKIRT BRKT M6X16 FLANGE	0-28650-616-0	08	1	1304-	●	●
332	FENDER; RR BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97407-507-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97407-506-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97411-310-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97411-304-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97411-313-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97411-307-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97411-314-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97411-308-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97413-612-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97413-602-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97411-311-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97411-305-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN	8-97423-769-2	01	1	1304-	●	●
332	FENDER; RR BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN	8-97423-768-2	01	1	1304-	●	●
332	FENDER; RR EXC. CAB ALL PAINTING<TFD>	8-98038-435-2	01	1	1304-	●	●
332	FENDER; RR EXC. CAB ALL PAINTING<TFD>	8-98038-434-2	01	1	1304-	●	●
384	CLIP; FENDER LWR D8X13.5	1-09987-248-1	02	1	1304-	●	●
385	SCREW; FENDER LWR M6X20 W/PL WASHER	8-98059-504-0	04	1	1304-	●	●
419	BOLT; STEP M8X20 FLANGE	0-28650-820-0	08	1	1304-	●	●
494	FINISHER; FENDER EXC. CAB ALL PAINTING<TFD>	8-98072-723-0	01	1	1304-	●	●
494	FINISHER; FENDER CAB ALL PAINTING<TFD>	8-98072-723-0	01	1	1304-	●	●
494	FINISHER; FENDER EXC. CAB ALL PAINTING<TFD>	8-98041-172-1	01	1	1304-	●	●
494	FINISHER; FENDER CAB ALL PAINTING<TFD>	8-98041-172-1	01	1	1304-	●	●
517	SUPPORT; STEP PANEL (A)	8-98037-336-1	01	1	1304-	●	●
517	SUPPORT; STEP PANEL (B)	8-98037-351-2	01	1	1304-	●	●
517	SUPPORT; STEP PANEL (A)	8-98037-335-1	01	1	1304-	●	●
517	SUPPORT; STEP PANEL (B)	8-98037-350-2	01	1	1304-	●	●
524	CLIP; FENDER COVER OD=7.9 BLACK	8-94279-974-1	02	1	1304-	●	●
525	SEAL; FENDER (A)	8-98061-760-0	02	1	1304-	●	●
525	SEAL; FENDER (B)	8-98061-761-0	02	1	1304-	●	●
525	SEAL; FENDER (C)	8-98061-762-0	02	1	1304-	●	●
602	RETAINER; COVER ID=5.4 OD=6.8	8-98241-984-0	06	1	1304-	●	●
608	CLIP EXC. CAB ALL PAINTING<TFD> D5.4X8	1-09983-154-0	06	1	1304-	●	●
608	CLIP CAB ALL PAINTING<TFD> D5.4X8	1-09983-154-0	06	1	1304-	●	●

1 307 16 22 307 307 307 307 19 18 20 20 18 22 571 19 16 22 667 20 299 20 20

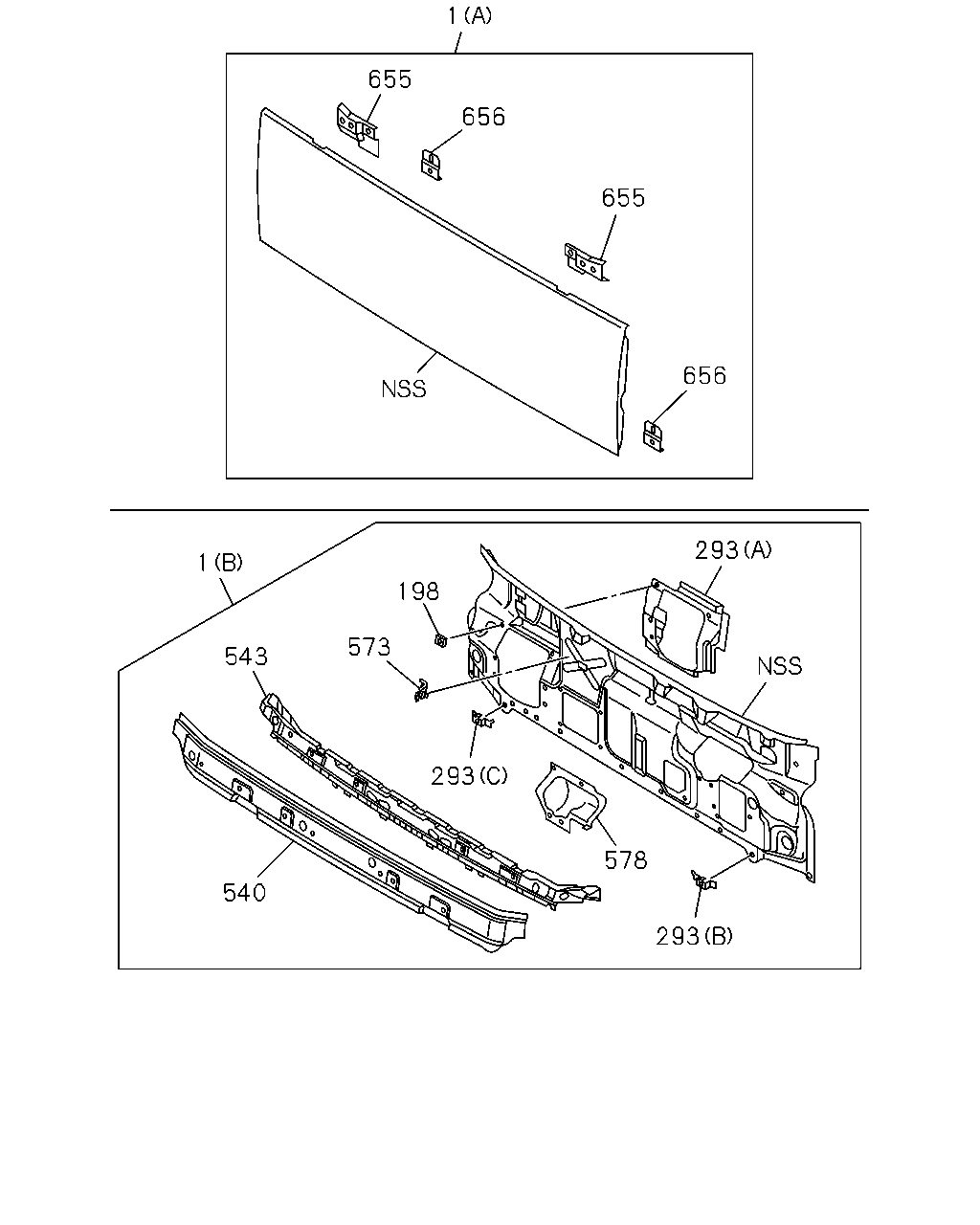

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL ASM; FRT (B)	8-97585-960-9	01	1	1304-	●	●
1	PANEL ASM; FRT (A)	8-98030-234-4	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> GREEN	8-97423-765-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> GREEN	8-97423-767-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> WHITE	8-97413-088-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> WHITE	8-97421-836-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED	8-97418-360-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> RED	8-97421-834-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BEIGE	8-97418-361-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> BEIGE	8-97421-839-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE	8-97418-362-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> BLUE	8-97421-840-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> YELLOW	8-97418-363-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> YELLOW	8-97421-838-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED	8-97418-365-2	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> RED	8-97421-835-0	01	1	1310-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97413-087-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. CAB ALL PAINTING<TFD> WHITE	8-97421-820-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> WHITE	8-97413-086-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> WHITE	8-97421-828-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97418-354-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) EXC. CAB ALL PAINTING<TFD> RED	8-97421-818-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> RED	8-97421-121-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> RED	8-97421-826-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97418-359-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) EXC. CAB ALL PAINTING<TFD> RED	8-97421-819-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> RED	8-97421-126-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> RED	8-97421-827-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97418-357-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) EXC. CAB ALL PAINTING<TFD> YELLOW	8-97421-822-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> YELLOW	8-97421-124-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> YELLOW	8-97421-830-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97418-356-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. CAB ALL PAINTING<TFD> BLUE	8-97421-824-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> BLUE	8-97421-123-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> BLUE	8-97421-832-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97418-355-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) EXC. CAB ALL PAINTING<TFD> BEIGE	8-97421-823-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> BEIGE	8-97421-122-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> BEIGE	8-97421-831-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN	8-97423-764-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) EXC. CAB ALL PAINTING<TFD> GREEN	8-97423-766-0	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> GREEN	8-97423-883-2	01	1	1304-	●	●
16	PANEL; FRONT,SIDE BODY COLOR TOLL GREEN(543) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> GREEN	8-97423-884-0	01	1	1304-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98038-608-0	01	1	1304-1309	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98038-608-0	01	1	1304-1309	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98038-608-0	01	1	1310-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (B)	8-98038-608-0	01	1	1310-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98043-511-1	01	1	1304-1309	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98043-511-1	01	1	1304-1309	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98043-511-1	01	1	1310-	●	●
18	SEAL; A-POST UPR,FRT SIDE PANEL (A)	8-98043-511-1	01	1	1310-	●	●
19	SEAL; FRT SIDE PANEL (A)	8-98036-580-0	01	1	1304-	●	●
19	SEAL; FRT SIDE PANEL (B)	8-98041-358-2	01	1	1304-	●	●
19	SEAL; FRT SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98036-581-0	01	1	1304-1309	●	●
19	SEAL; FRT SIDE PANEL (A)	8-98036-581-0	01	1	1310-	●	●
19	SEAL; FRT SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98041-359-2	01	1	1304-1309	●	●
19	SEAL; FRT SIDE PANEL (B)	8-98041-359-2	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) D8X13.5	1-09987-248-1	02	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (D) D8X13.5	1-09987-248-1	02	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (D) D8X13.5	1-09987-248-1	02	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (D) D8X13.5	1-09987-248-1	02	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-97013-997-0	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (C)	8-97013-997-0	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (C)	8-97013-997-0	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (C)	8-97013-997-0	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-97410-739-0	02	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-0	02	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (A)	8-97410-739-1	02	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-97410-740-2	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-2	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (B)	8-97410-740-3	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) H=15.3	8-97804-778-0	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (E) H=15.3	8-97804-778-0	01	1	1304-1309	●	●
20	CLIP; FRT PANEL SIDE (E) H=15.3	8-97804-778-0	01	1	1310-	●	●
20	CLIP; FRT PANEL SIDE (E) H=15.3	8-97804-778-0	01	1	1310-	●	●
22	SCREW; FRT PANEL SIDE (C) BOLT M6X16 FLANGE	8-98061-108-0	06	1	1304-1505	●	●
22	SCREW; FRT PANEL SIDE (C) BOLT M6X16 FLANGE	8-98314-627-0	06	1	1506-	●	●
22	SCREW; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1304-1309	●	●
22	SCREW; FRT PANEL SIDE (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1304-1309	●	●
22	SCREW; FRT PANEL SIDE (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1310-	●	●
22	SCREW; FRT PANEL SIDE (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1310-	●	●
22	SCREW; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1304-1309	●	●
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1304-1309	●	●
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1310-	●	●
22	SCREW; FRT PANEL SIDE (A) M4X10 TAPPING W/PL WASHER	0-74360-410-0	03	1	1310-	●	●
299	COVER; FRT PANEL SIDE	8-98034-813-1	01	1	1304-	●	●
299	COVER; FRT PANEL SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98034-814-1	01	1	1304-1309	●	●
299	COVER; FRT PANEL SIDE	8-98034-814-1	01	1	1310-	●	●
307	GROMMET; FRT PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-97410-738-0	02	1	1304-1309	●	●
307	GROMMET; FRT PANEL (B)	8-97410-738-0	02	1	1310-	●	●
307	GROMMET; FRT PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98021-300-1	04	1	1304-1309	●	●
307	GROMMET; FRT PANEL (C)	8-98021-300-1	04	1	1310-	●	●
307	GROMMET; FRT PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) OD=20	8-98034-363-1	04	1	1304-1309	●	●
307	GROMMET; FRT PANEL (A) OD=20	8-98034-363-1	04	1	1310-	●	●
307	GROMMET; FRT PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98028-743-0	01	1	1304-	●	●
571	CLIP; SEAL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> NATURAL	8-98027-457-0	10	1	1304-1309	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1304-1309	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1310-	●	●
571	CLIP; SEAL NATURAL	8-98027-457-0	10	1	1310-	●	●
667	STAY; EXT,SIDE PANEL	8-98054-091-1	01	1	1304-	●	●
667	STAY; EXT,SIDE PANEL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98054-092-1	01	1	1304-1309	●	●
667	STAY; EXT,SIDE PANEL	8-98054-092-1	01	1	1310-	●	●

535 659 59 666 658 666 664 665 520 659 546 546 226 535 472 534 121 121 121 121 472 121 226 78 472 534

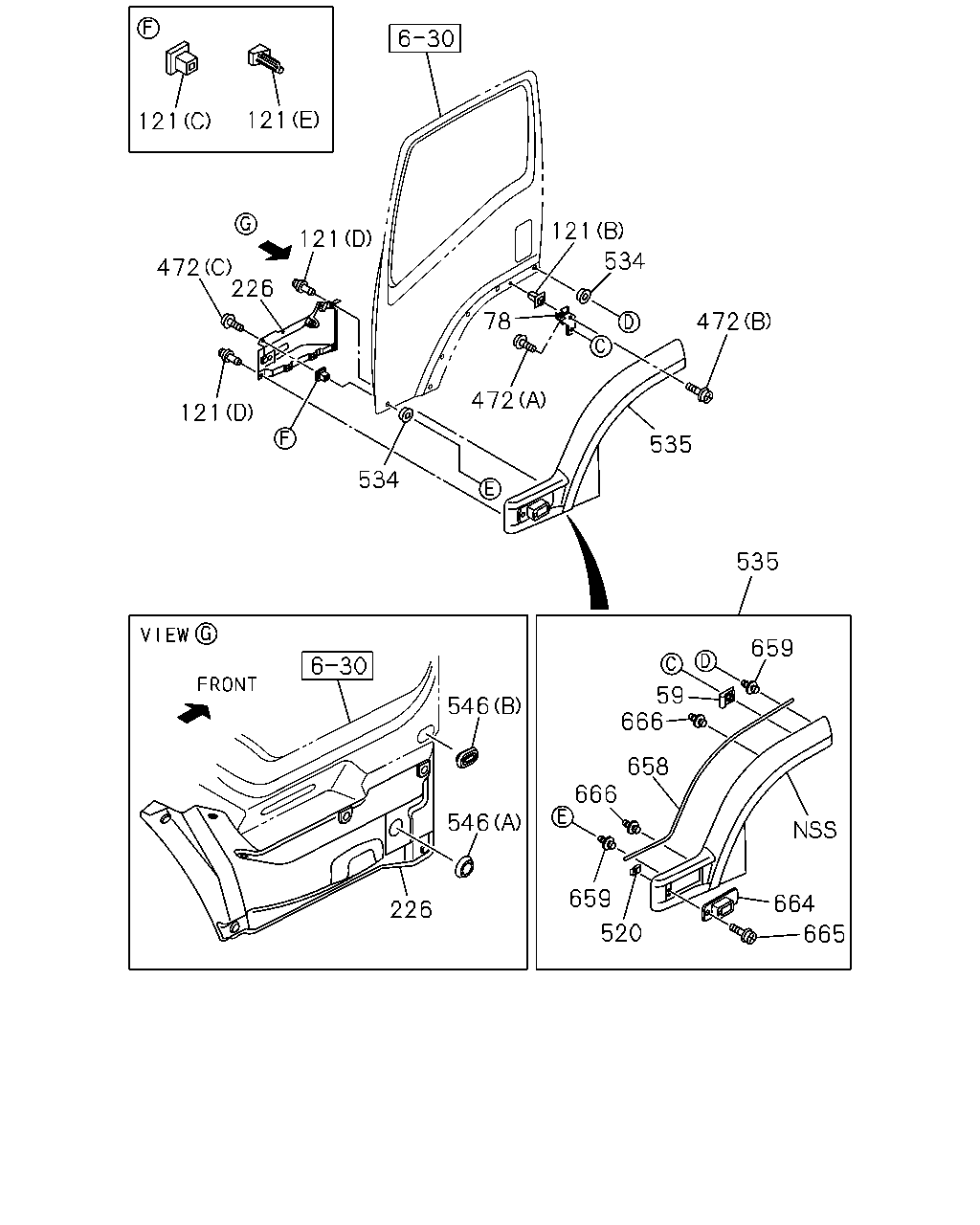

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	GROMMET; SCREW	8-94279-723-0	08	1	1304-	●	●
59	GROMMET; SCREW EXC. CAB ALL PAINTING<TFD>	8-94279-723-0	02	1	1304-	●	●
59	GROMMET; SCREW BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD>	8-94279-723-0	02	1	1304-	●	●
78	BRACKET; FENDER	8-98041-166-1	01	1	1304-	●	●
78	BRACKET; FENDER	8-98041-165-1	01	1	1304-	●	●
121	GROMMET; FENDER (C) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1304-	●	●
121	GROMMET; FENDER EXC. CAB ALL PAINTING<TFD> (A)	8-94279-723-0	04	1	1304-	●	●
121	GROMMET; FENDER CAB ALL PAINTING<TFD> (A)	8-94279-723-0	04	1	1304-	●	●
121	GROMMET; FENDER (D) OD=8.3	8-94279-989-0	12	1	1304-	●	●
121	GROMMET; FENDER (B) H=15	8-94463-268-1	04	1	1304-	●	●
121	GROMMET; FENDER (E)	8-98073-421-0	01	1	1304-	●	●
121	GROMMET; FENDER (E)	8-98073-420-0	01	1	1304-	●	●
226	PROTECTOR; FRT	8-98037-715-2	01	1	1304-	●	●
226	PROTECTOR; FRT	8-98037-714-2	01	1	1304-	●	●
472	SCREW; FENDER TO CAB (A) M6X18 TAPPING	8-98059-505-0	02	1	1304-	●	●
472	SCREW; FENDER TO CAB (C) M5X16	8-98090-737-0	08	1	1304-	●	●
472	SCREW; FENDER TO CAB (B) M5X12	8-98093-669-0	04	1	1304-	●	●
520	NUT; FENDER EXC. CAB ALL PAINTING<TFD>	8-94279-501-0	02	1	1304-	●	●
520	NUT; FENDER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD>	8-94279-501-0	02	1	1304-	●	●
534	FASTENER ID=5.4 OD=6.8	8-98241-984-0	12	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97415-394-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97415-393-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97418-323-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97418-309-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97418-371-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97418-368-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97418-369-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97418-366-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97418-329-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97418-315-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97418-328-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97418-314-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN	8-97423-771-1	01	1	1304-	●	●
535	FENDER; BLISTER BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN	8-97423-770-1	01	1	1304-	●	●
535	FENDER; BLISTER EXC. CAB ALL PAINTING<TFD>	8-98166-375-0	01	1	1304-	●	●
535	FENDER; BLISTER EXC. CAB ALL PAINTING<TFD>	8-98166-374-0	01	1	1304-	●	●
546	PLUG; DUMMY HOLE (A) OD=38	8-94159-507-0	02	1	1304-	●	●
546	PLUG; DUMMY HOLE (B)	8-94430-184-1	02	1	1304-	●	●
658	FINISHER; BLISTER FENDER EXC. CAB ALL PAINTING<TFD>	8-98041-169-3	01	1	1304-	●	●
658	FINISHER; BLISTER FENDER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD>	8-98041-169-3	01	1	1304-	●	●
658	FINISHER; BLISTER FENDER EXC. CAB ALL PAINTING<TFD>	8-98041-168-3	01	1	1304-	●	●
658	FINISHER; BLISTER FENDER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD>	8-98041-168-3	01	1	1304-	●	●
659	CLIP; FENDER EXC. CAB ALL PAINTING<TFD> D5.4X8	1-09983-154-0	08	1	1304-	●	●
659	CLIP; FENDER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> D5.4X8	1-09983-154-0	08	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97421-597-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE	8-97421-469-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97421-637-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED	8-97421-471-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97421-481-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED	8-97421-477-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97421-479-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW	8-97421-475-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97421-626-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE	8-97421-615-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97421-640-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE	8-97421-473-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN	8-97423-785-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN	8-97423-784-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN EXC. CAB ALL PAINTING<TFD>	8-98075-507-0	01	1	1304-	●	●
664	BASE; DOOR,SIDE TURN EXC. CAB ALL PAINTING<TFD>	8-98075-506-0	01	1	1304-	●	●
665	SCREW; FENDER EXC. CAB ALL PAINTING<TFD> M6X20 W/PL WASHER	0-36210-620-0	02	1	1304-	●	●
665	SCREW; FENDER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> M6X20 W/PL WASHER	0-36210-620-0	02	1	1304-	●	●
666	CLIP; BLISTER FENDER EXC. CAB ALL PAINTING<TFD>	8-98071-178-0	04	1	1304-	●	●
666	CLIP; BLISTER FENDER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD>	8-98071-178-0	04	1	1304-	●	●

293 578 293 573 198 1 543 540 293 656 655 656 655 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL ASM; FRT (B)	8-97585-960-9	01	1	1304-	●	●
1	PANEL ASM; FRT (A)	8-98030-234-4	01	1	1304-	●	●
198	NUT; PANEL M6	9-09114-086-0	02	1	1304-	●	●
293	BRACKET; PANEL (A)	8-97586-007-3	01	1	1304-	●	●
293	BRACKET; PANEL (B)	8-98008-124-1	01	1	1304-	●	●
293	BRACKET; PANEL (C)	8-98008-126-1	01	1	1304-	●	●
540	PANEL; FRONT,OUTER	8-97585-966-2	01	1	1304-	●	●
543	CLOSING; FRT MTG RAIL	8-97585-990-4	01	1	1304-	●	●
573	BRACKET; SUPPORT	8-98017-700-2	01	1	1304-	●	●
578	COVER; WIPER MOTOR	8-97586-018-3	01	1	1304-	●	●
655	PATCH; HINGE	8-98031-263-0	01	1	1304-	●	●
655	PATCH; HINGE	8-98031-264-0	01	1	1304-	●	●
656	PATCH; STRIKER	8-98031-265-0	02	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
