2-05 — CLUTCH PIPING (#117652) — 46 parça

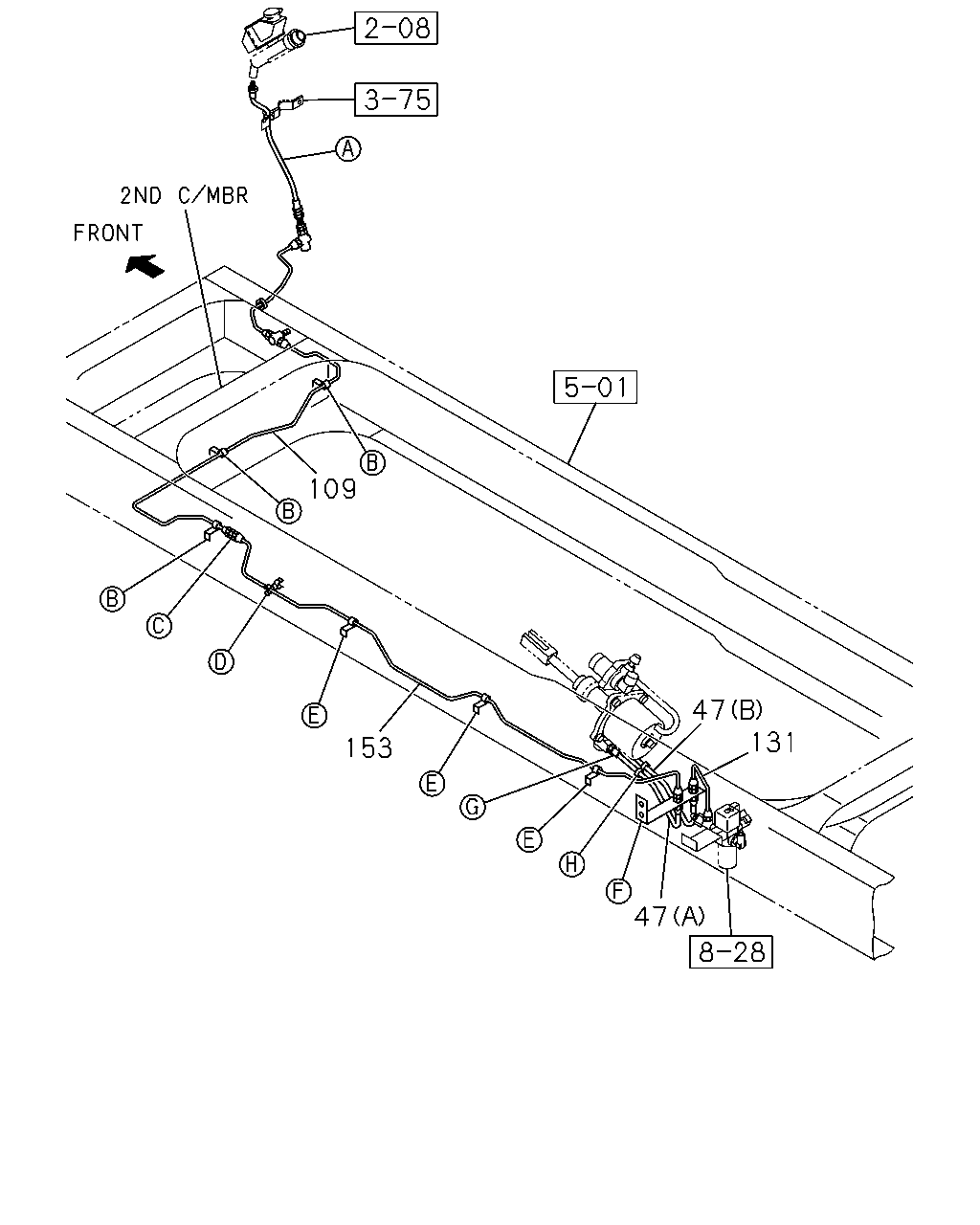

çizim 342729
131 47 47 153 109
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09363-720-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09364-329-0 01 1 1304-
109 PIPE; AIR,UNION TO UNION
L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1304-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1304-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1304-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1304-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1304-

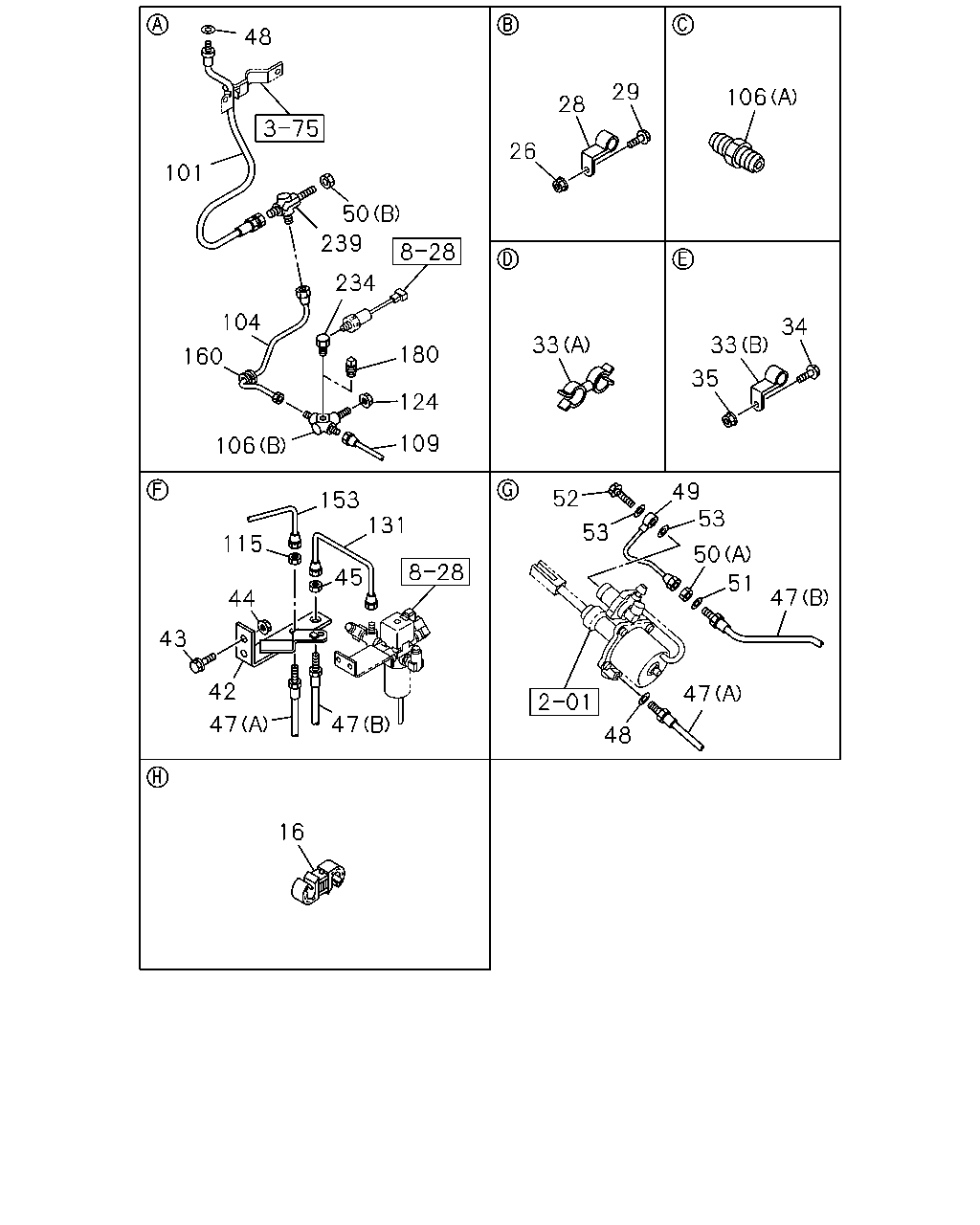

çizim 344918
48 101 50 239 234 180 124 109 106 160 104 153 131 45 47 47 42 43 44 115 16 29 28 26 33 52 53 49 53 50 51 47 47 48 106 34 33 35
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1304-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 1304-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 1304-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1304-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 1304-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1304-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1304-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1304-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT 8-98099-521-1 01 1 1304-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1304-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1304-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09363-720-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09364-329-0 01 1 1304-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1304-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1304-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232 		1-49124-795-0 01 1 1304-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1304-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1304-
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1304-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1304-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1304-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1304-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1304-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
106 UNION; OIL PIPE
(B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1304-
109 PIPE; AIR,UNION TO UNION
L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1304-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1304-
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1304-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1304-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1304-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1304-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1304-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1304-
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 1304-
239 UNION; CLU HOSE 8-98107-850-0 01 1 1304-
