◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51474 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#117650) — 216 parça

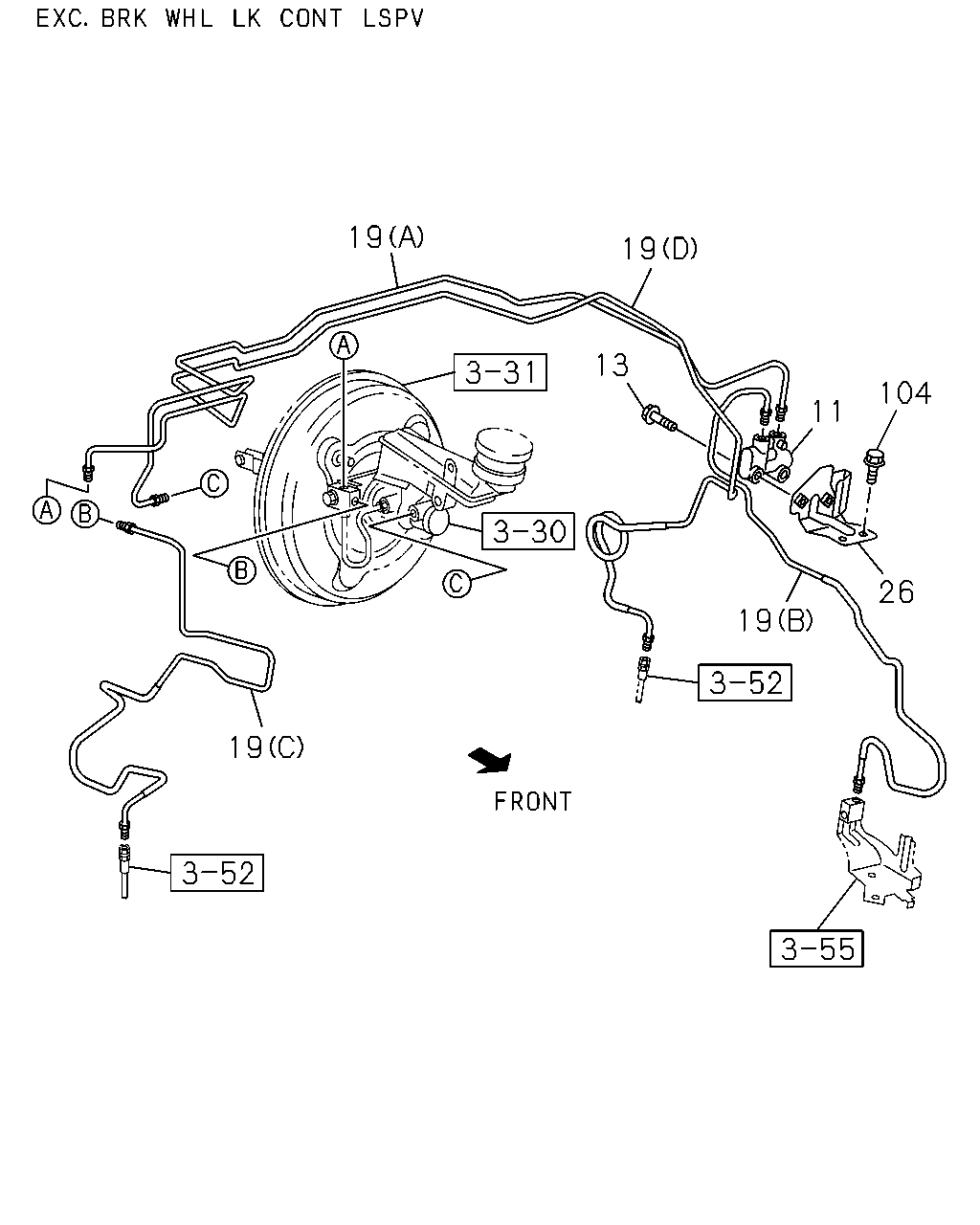

çizim 343143
19 19 13 11 104 19 19 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 1304- ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) 		8-98099-730-0 01 1 1304- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-98099-730-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-942-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-942-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98099-734-3 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) 		8-98099-736-2 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-776-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-776-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98099-760-2 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98099-761-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (M) 		8-98099-766-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) 		8-98099-718-4 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (B) 		8-98099-721-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98099-717-4 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (H) 		8-98099-744-2 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98099-744-2 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98159-938-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98099-727-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98099-727-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-98099-725-4 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-98099-725-4 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-713-2 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98209-485-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (C) 		8-98192-378-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (H) 		8-98155-582-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (H) 		8-98155-582-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98155-584-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) 		8-98099-738-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) 		8-98099-739-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-731-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) 		8-98099-732-0 01 1 1304- ● ● ● ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 		8-98101-970-1 01 1 1304- ● ● ● ● ●
104 04.730 BOLT; BRKT TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1304- ● ● ● ● ●

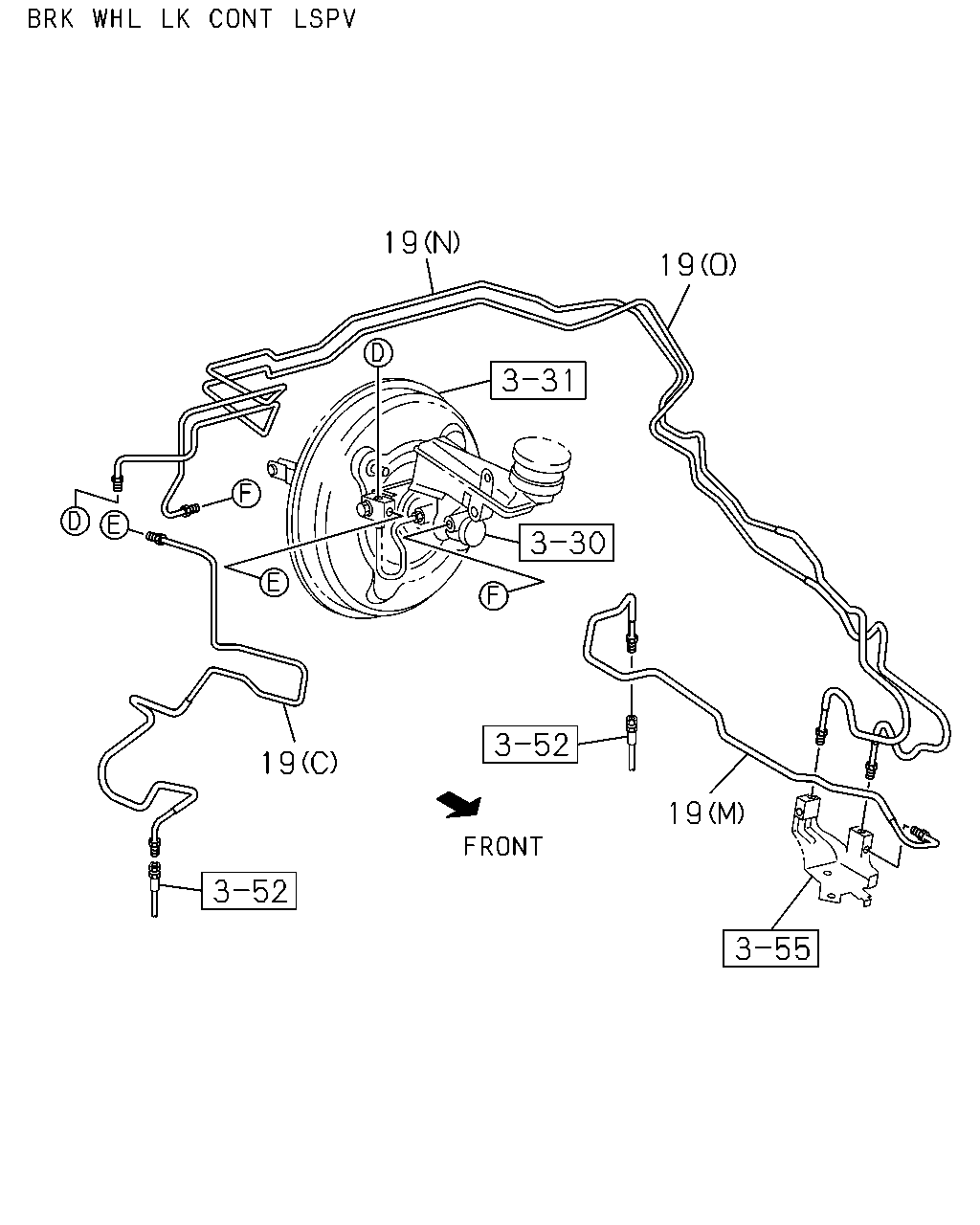

çizim 343150
19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) 		8-98099-730-0 01 1 1304- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-98099-730-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-942-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-942-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98099-734-3 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) 		8-98099-736-2 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-776-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-776-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98099-760-2 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98099-761-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (M) 		8-98099-766-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) 		8-98099-718-4 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (B) 		8-98099-721-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98099-717-4 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (H) 		8-98099-744-2 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98099-744-2 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98159-938-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98099-727-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98099-727-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-98099-725-4 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-98099-725-4 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-713-2 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98209-485-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (C) 		8-98192-378-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (H) 		8-98155-582-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (H) 		8-98155-582-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98155-584-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) 		8-98099-738-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) 		8-98099-739-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-731-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) 		8-98099-732-0 01 1 1304- ● ● ● ● ●

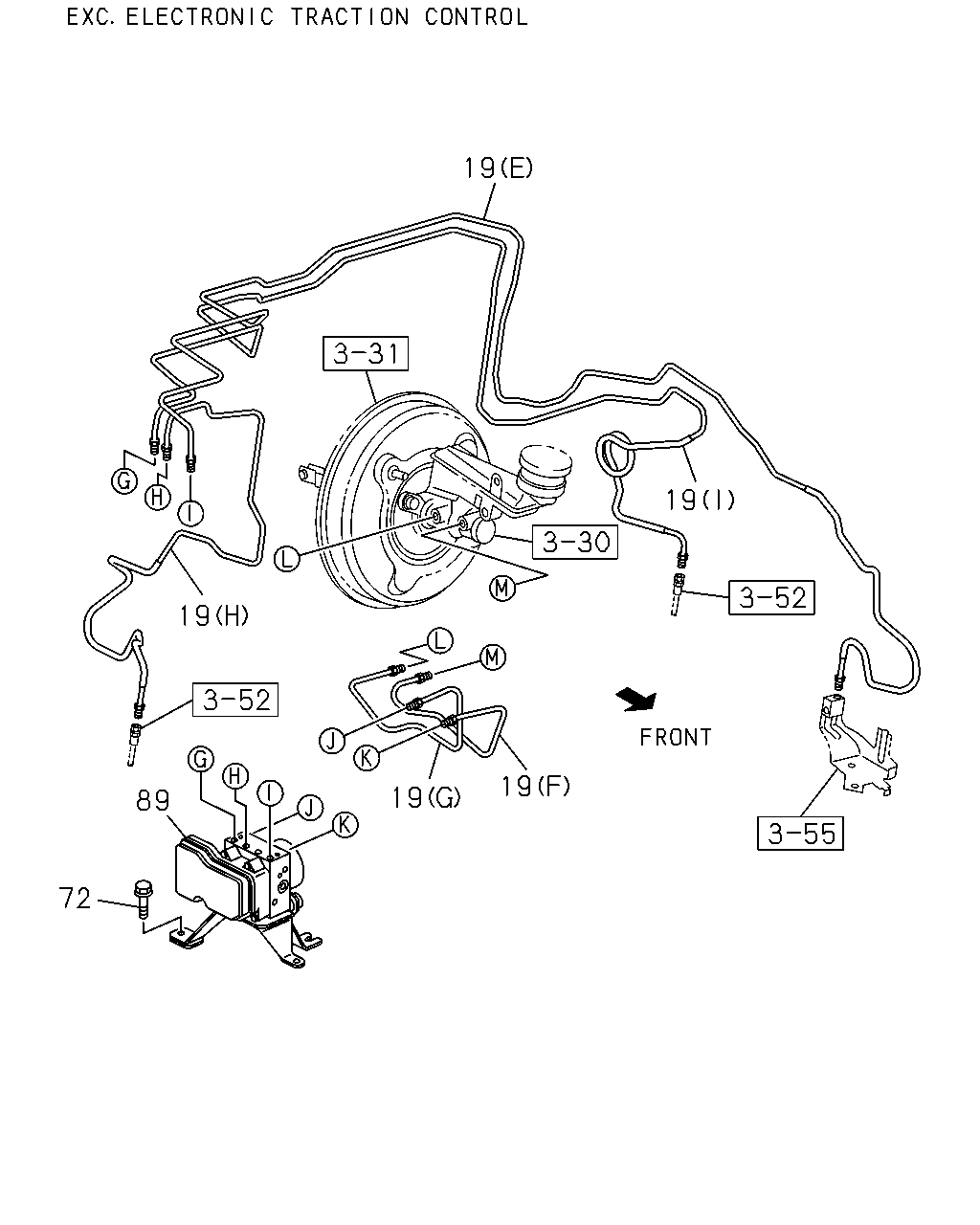

çizim 343188
19 19 19 89 72 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) 		8-98099-730-0 01 1 1304- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-98099-730-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-942-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-942-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98099-734-3 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) 		8-98099-736-2 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-776-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-776-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98099-760-2 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98099-761-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (M) 		8-98099-766-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) 		8-98099-718-4 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (B) 		8-98099-721-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98099-717-4 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (H) 		8-98099-744-2 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98099-744-2 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98159-938-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98099-727-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98099-727-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-98099-725-4 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-98099-725-4 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-713-2 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98209-485-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (C) 		8-98192-378-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (H) 		8-98155-582-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (H) 		8-98155-582-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98155-584-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) 		8-98099-738-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) 		8-98099-739-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-731-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) 		8-98099-732-0 01 1 1304- ● ● ● ● ●
72 04.686 BOLT; BRKT TO BODY
02.343 M6X16 FLANGE 		0-28650-616-0 03 1 1304- ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 1304- ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG(LS0) 		8-98232-478-0 01 1 1304- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-478-0 01 1 1304- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-478-0 01 1 1304- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-464-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-464-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98285-163-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98285-163-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> ,HIGH RIDE SUSPENSION(7YC) 		8-98232-465-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98232-465-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> ,HIGH RIDE SUSPENSION(7YC) 		8-98285-164-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98285-164-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-479-0 01 1 1304- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-479-0 01 1 1304- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-466-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-466-0 01 1 1304-1508 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98285-165-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98285-165-0 01 1 1509- ● ●

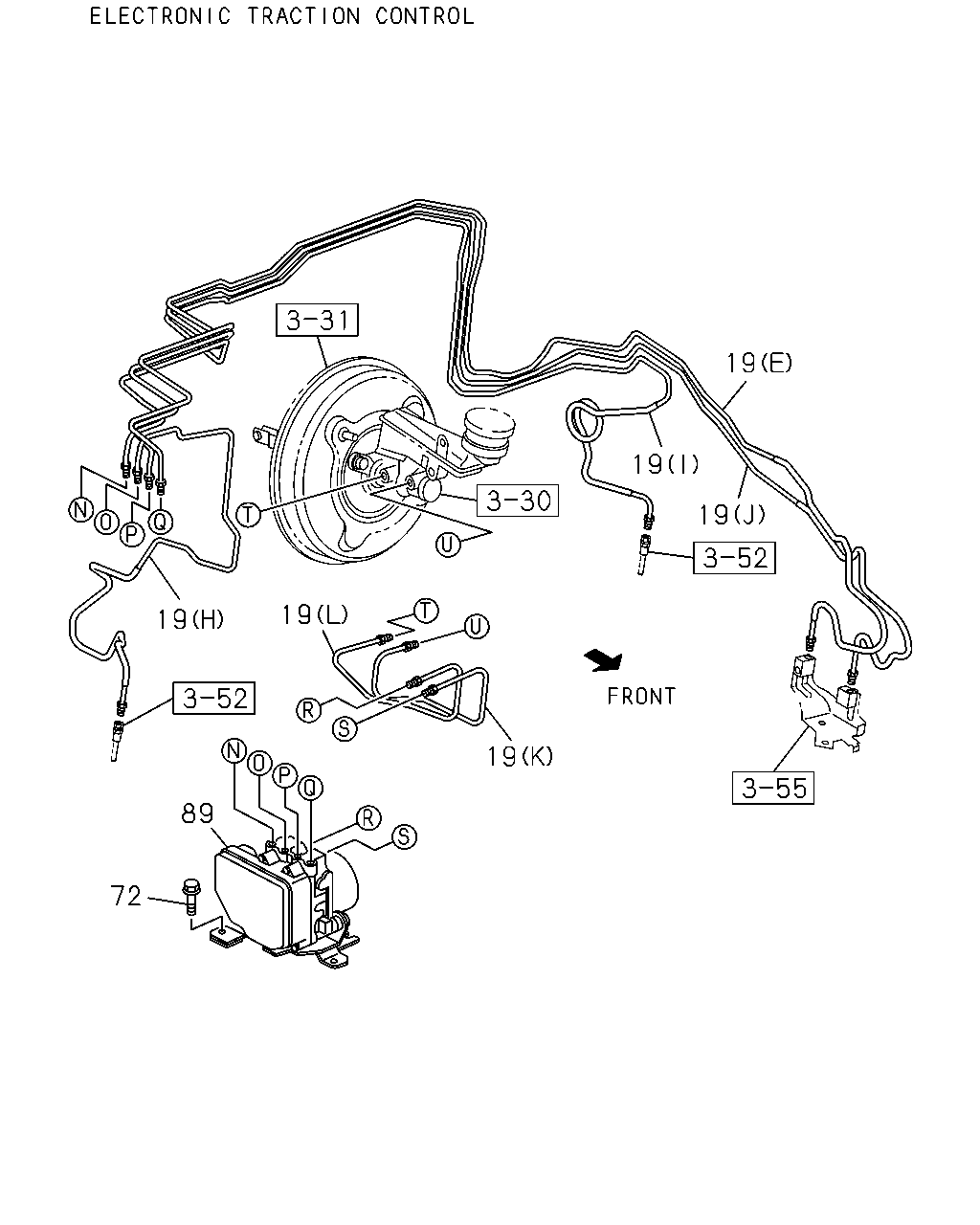

çizim 343208
19 72 89 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
(E) 		8-98099-730-0 01 1 1304- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-98099-730-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-942-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-942-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98099-734-3 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) 		8-98099-736-2 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-776-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) 		8-98099-776-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (O) 		8-98099-760-2 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) 		8-98099-761-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (M) 		8-98099-766-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) 		8-98099-718-4 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (B) 		8-98099-721-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98099-717-4 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (H) 		8-98099-744-2 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (H) 		8-98099-744-2 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-98159-938-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (I) 		8-98159-938-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98099-727-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98099-727-1 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-98099-725-4 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-98099-725-4 01 1 1304- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (C) 		8-98099-713-2 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98209-485-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (C) 		8-98192-378-0 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) (H) 		8-98155-582-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (H) 		8-98155-582-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-98155-584-1 01 1 1304- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (K) 		8-98099-738-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (L) 		8-98099-739-0 01 1 1304- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) 		8-98099-731-0 01 1 1304- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) 		8-98099-732-0 01 1 1304- ● ● ● ● ●
72 04.686 BOLT; BRKT TO BODY
02.343 M6X16 FLANGE 		0-28650-616-0 03 1 1304- ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 1304- ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG(LS0) 		8-98232-478-0 01 1 1304- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-478-0 01 1 1304- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-478-0 01 1 1304- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-464-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-464-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98285-163-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98285-163-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> ,HIGH RIDE SUSPENSION(7YC) 		8-98232-465-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98232-465-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> ,HIGH RIDE SUSPENSION(7YC) 		8-98285-164-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION(7YC) 		8-98285-164-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-479-0 01 1 1304- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-479-0 01 1 1304- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-466-0 01 1 1304-1508 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98232-466-0 01 1 1304-1508 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98285-165-0 01 1 1509- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98285-165-0 01 1 1509- ● ●

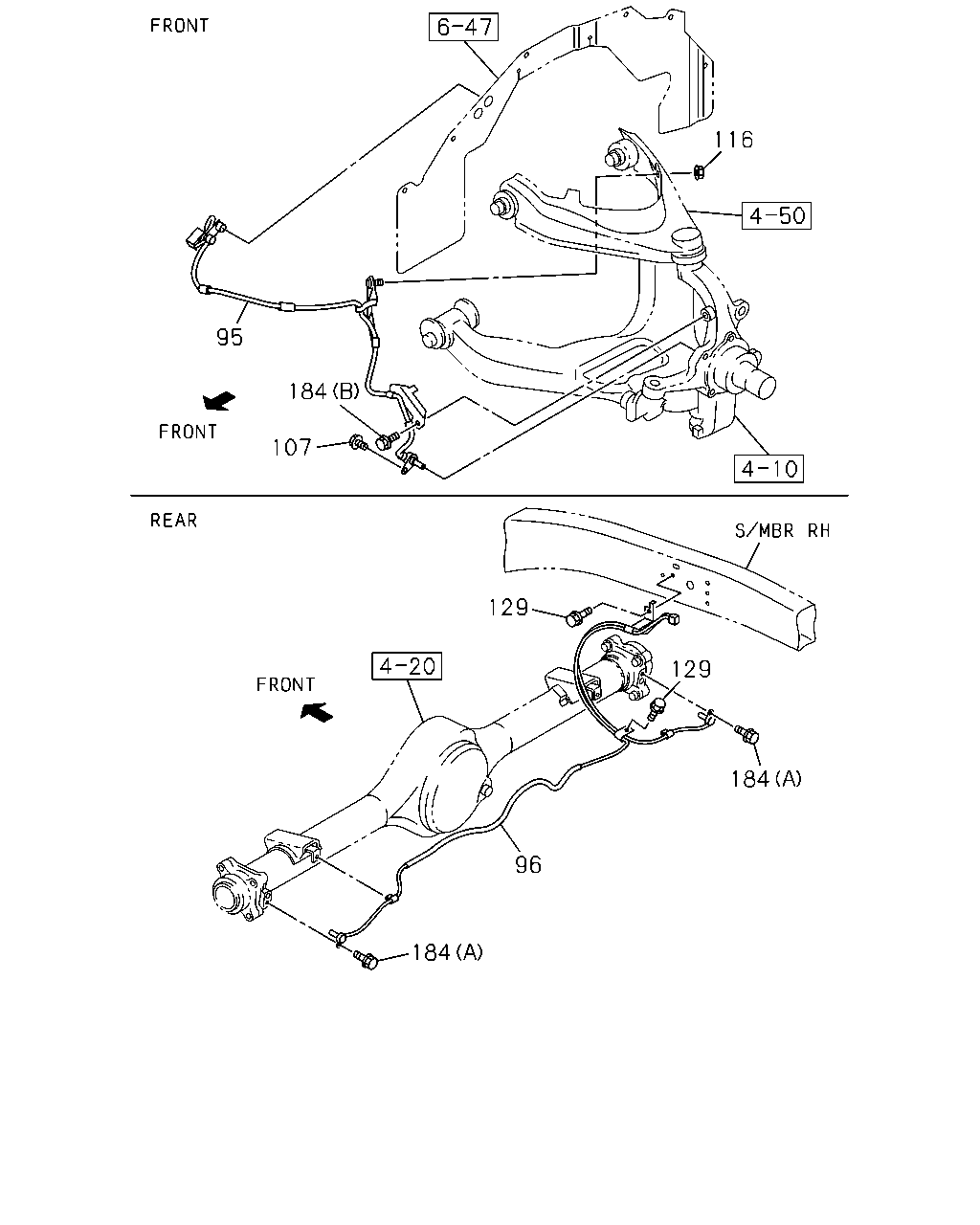

çizim 343209
116 95 184 107 129 129 184 96 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
95 04.710 SENSOR; SPD,FRT WHEEL 8-98052-117-1 01 1 1304-1509 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-117-1 01 1 1304-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL 8-98292-430-0 01 1 1510- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98292-430-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL 8-98052-118-1 01 1 1304-1509 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-118-1 01 1 1304-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL 8-98292-431-0 01 1 1510- ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98292-431-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-119-1 01 1 1304-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-119-1 01 1 1304-1509 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98292-432-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98292-432-0 01 1 1510- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-120-1 01 1 1304-1509 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-120-1 01 1 1304-1509 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98292-433-0 01 1 1510- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98292-433-0 01 1 1510- ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL 8-98052-121-1 01 1 1304- ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98052-121-1 01 1 1304- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98052-122-1 01 1 1304- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98052-122-1 01 1 1304- ● ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1304-1509 ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1304-1509 ● ● ● ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1510- ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1510- ● ● ● ● ●
116 04.686 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ● ● ● ● ●
129 04.710 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1304- ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1304- ● ● ● ● ●
184 04.681 BOLT; CLIP
02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1304- ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 1304- ● ● ● ● ●
184 04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1304-1509 ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1304-1509 ● ● ● ● ●
184 04.681 BOLT; CLIP
03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1510- ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1510- ● ● ● ● ●

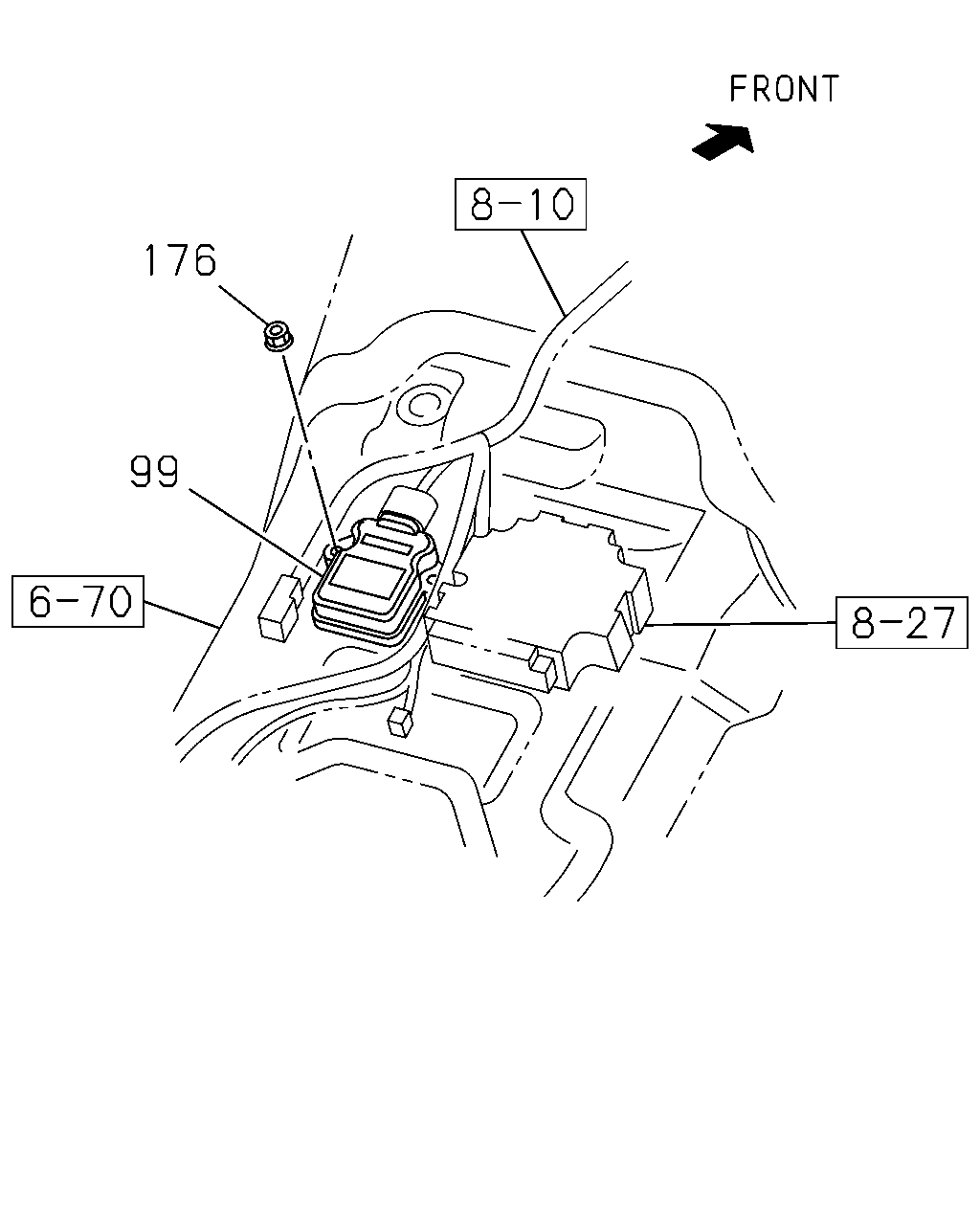

çizim 345618
176 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 04.710 SENSOR; DECELERATION 8-98052-116-1 01 1 1304- ●
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 		8-98052-116-1 01 1 1304- ● ● ● ● ●
176 04.730 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ●
176 04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> 01.062 M6 FLANGE 		0-91180-106-0 02 1 1304- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
