Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#117646) — 30 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[840A] OTHER PARTS (5 parça)

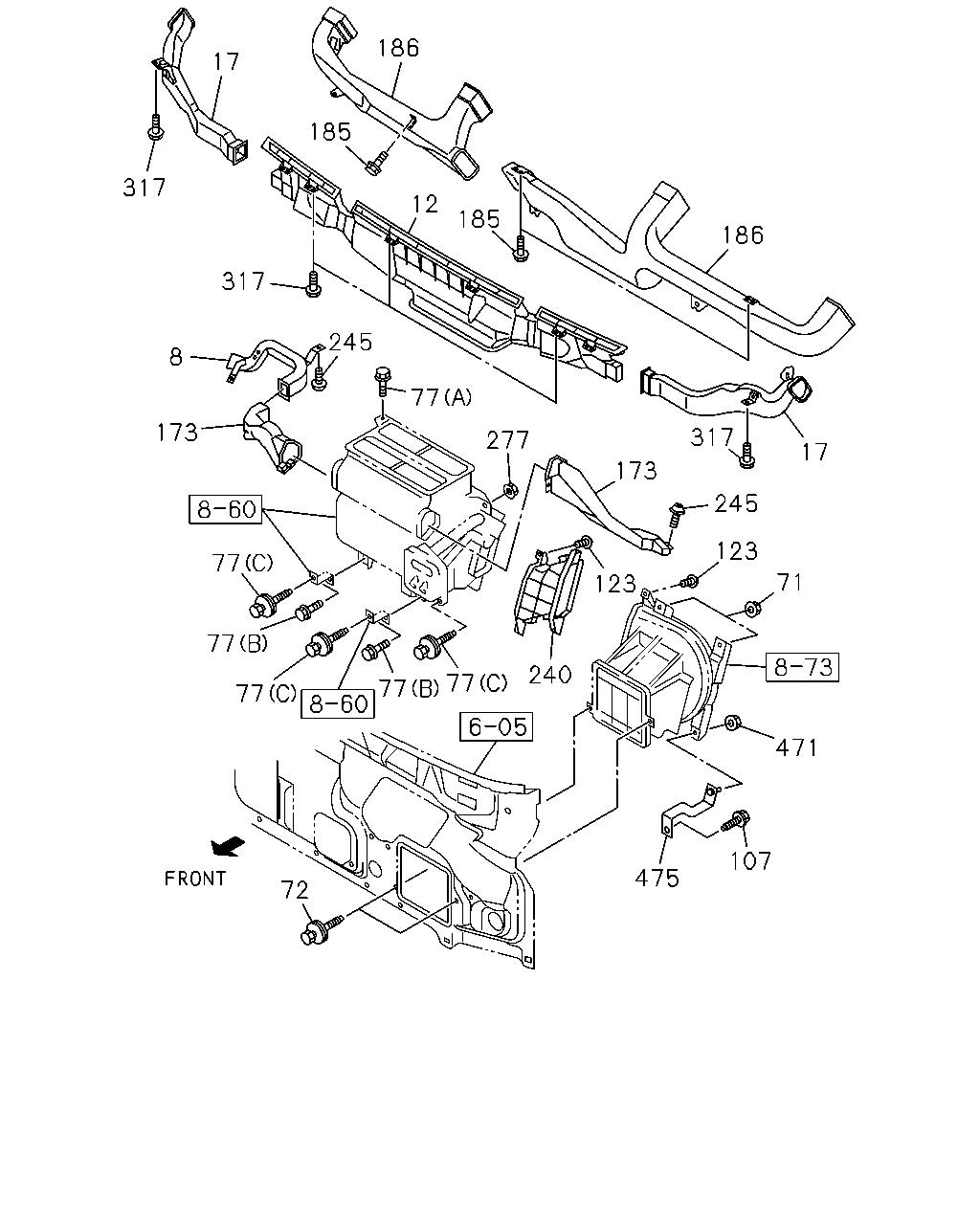

[840A] DUCT (25 parça)
▶
407
223
50
476
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
50
VALVE ASM; HTR
THA
8-97925-112-0
01
1
1302-
●
●
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1302-
●
●
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1302-
●
●
407
JOINT; HOSE
8-98041-758-0
01
1
1302-
●
●
476
SCREW; VALVE
M5X16 HEX SOCKET
8-98062-675-0
01
1
1302-
●
●
186
186
17
317
277
77
77
77
77
77
77
71
72
173
8
317
317
17
12
185
185
173
245
240
123
123
471
107
475
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
DUCT; HTR AIR,DRIVER FOOT
8-97585-499-1
01
1
1302-1410
●
●
8
DUCT; HTR AIR,DRIVER FOOT
8-98290-098-0
01
1
1411-
●
●
12
NOZZLE; DEFROSTER
8-98040-009-3
01
1
1302-
●
●
17
NOZZLE; DEFROSTER,SIDE
8-98040-018-1
01
1
1302-
●
●
17
NOZZLE; DEFROSTER,SIDE
8-98040-013-1
01
1
1302-
●
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE THA
0-91180-106-0
02
1
1302-
●
●
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1302-
●
●
77
BOLT; HTR UNIT
(A) M6X16 FLANGE THA
0-28650-616-0
01
1
1302-
●
●
77
BOLT; HTR UNIT
(B) M6X20 FLANGE THA
0-28650-620-0
02
1
1302-
●
●
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1302-
●
●
107
BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1302-
●
●
123
SCREW; DUCT
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1302-
●
●
173
DUCT; FOOT,HTR
8-97585-506-2
01
1
1302-
●
●
173
DUCT; FOOT,HTR
8-98036-922-2
01
1
1302-1410
●
●
173
DUCT; FOOT,HTR
8-98290-097-0
01
1
1411-
●
●
185
SCREW; VENT DUCT
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1302-
●
●
186
DUCT; VENTILATOR
8-97585-489-4
01
1
1302-
●
●
186
DUCT; VENTILATOR
8-98174-737-0
01
1
1302-
●
●
240
DUCT; AIR,HTR
8-98041-402-1
01
1
1302-
●
●
245
CLIP; FOOT DUCT
8-98056-059-0
03
1
1302-
●
●
277
NUT; HTR
M6 FLANGE THA
0-91180-106-0
01
1
1302-
●
●
317
SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1302-
●
●
317
SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1302-
●
●
471
NUT; BLOWER
M6 FLANGE THA
0-91180-106-0
01
1
1302-
●
●
475
BRACKET; BLOWER
8-98043-500-1
01
1
1302-
●
●
