Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#117642) — 178 parça

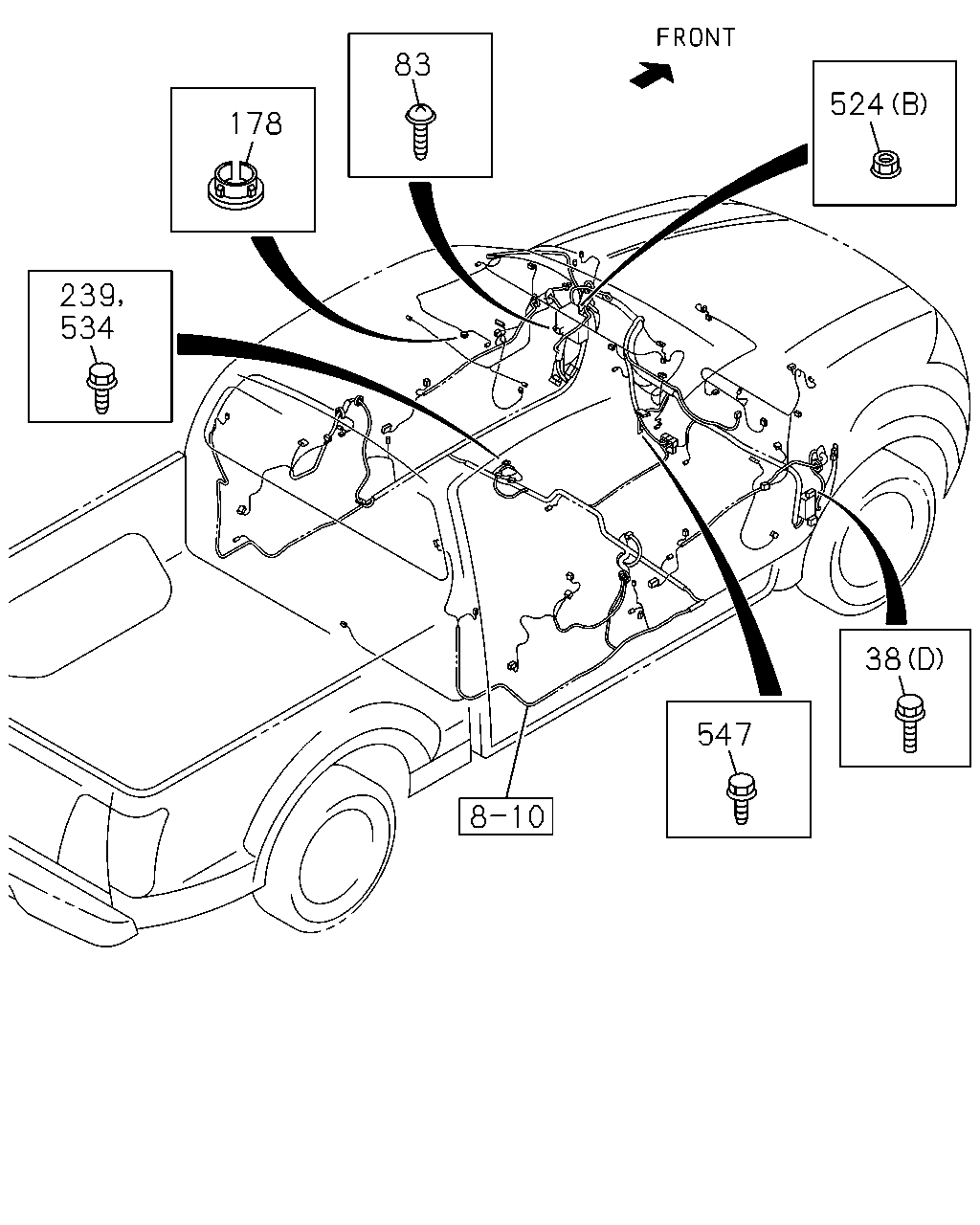

534 239 178 83 524 38 547

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 04.338 (E) M8X20 FLANGE	0-28050-820-0	02	1	1304-	●	●	●	●	●
83	02.483 SCREW; HARNESS 16.549 M5X25 TAPPING W/PL WASHER	0-74360-525-0	01	1	1304-	●	●	●	●	●
178	02.559 GROMMET; HARNESS 09.647	8-97027-381-0	01	1	1304-	●	●	●	●	●
239	02.559 BOLT; GRAND 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	1304-1501	●	●	●	●	●
239	02.559 BOLT; GRAND 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/PL WASHER	8-98164-836-0	03	1	1502-	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312	●	●	●	●	●
239	02.559 BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312	●	●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312	●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312			●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501	●	●	●	●	●
239	02.559 BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501	●	●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501	●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501			●
239	02.559 BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●	●	●	●
239	02.559 BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-			●
524	02.559 NUT; HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1304-	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●	●	●	●
534	02.480 BOLT; EARTH 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	04	1	1304-1501			●
534	02.480 BOLT; EARTH 02.559 M6X14 W/PL WASHER	8-98164-836-0	04	1	1502-			●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1304-1501	●	●		●	●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1304-1501			●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●	●		●	●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-			●

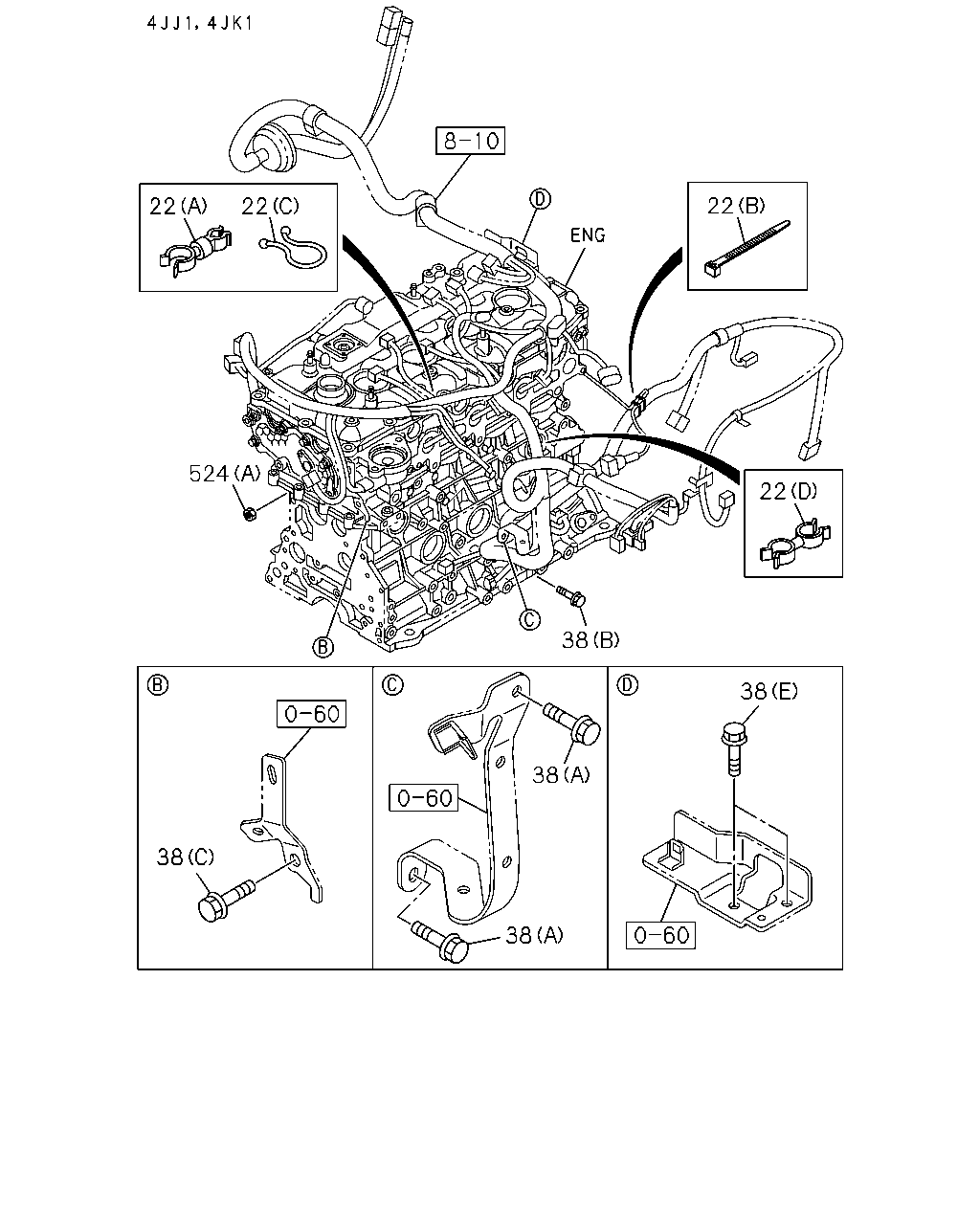

22 22 22 22 38 524 38 38 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	02.559 CLIP; ENG HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42) 09.663 (C) ID=15	1-09709-003-0	01	1	1304-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42) 09.663 (C) ID=15	1-09709-003-0	01	1	1304-		●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) 09.663 (C) ID=15	1-09709-003-0	01	1	1304-			●
22	02.559 CLIP; ENG HARNESS 4JK1-TCY ENG(RDX) 16.716 (B) L=129.5	8-94368-493-0	02	1	1304-	●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) (A) ID=11.8 & 7.5	8-98212-982-0	01	1	1304-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) ID=7.5 & 7.5	8-98212-981-0	01	1	1304-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS A/T 5 SPEED-AISIN(MA1) EURO1 SPECIFICATION<NT1> (D) ID=7.5 & 7.5	8-98212-981-0	01	1	1304-		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 04.338 (E) M8X20 FLANGE	0-28050-820-0	02	1	1304-	●	●	●	●	●
524	02.559 NUT; HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1304-	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●	●	●	●

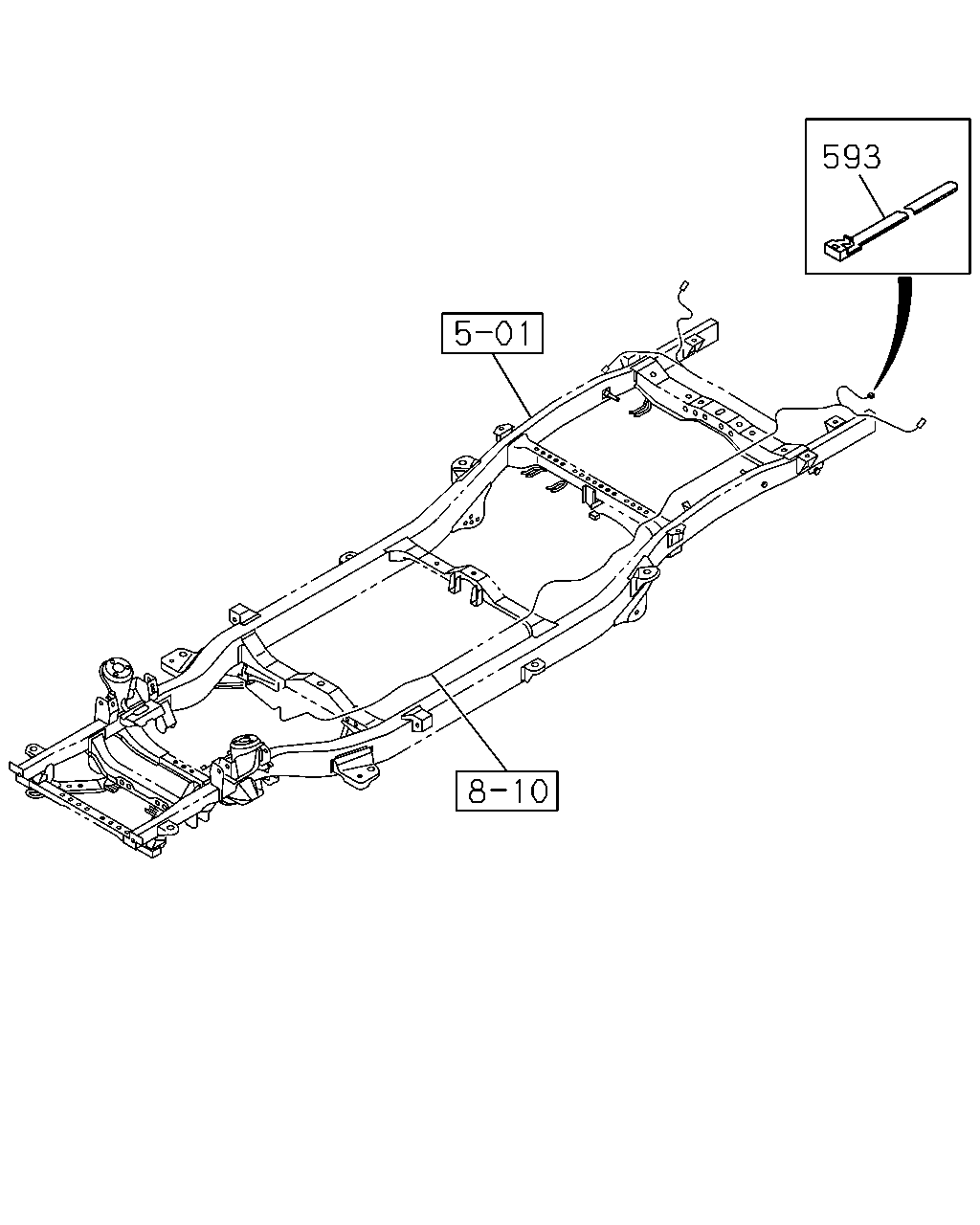

593

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	593	02.559 CLIP REAR BODY DELETE(8HH) L=250	5-09707-030-1	01	1	1304-	●	●	●	●	●

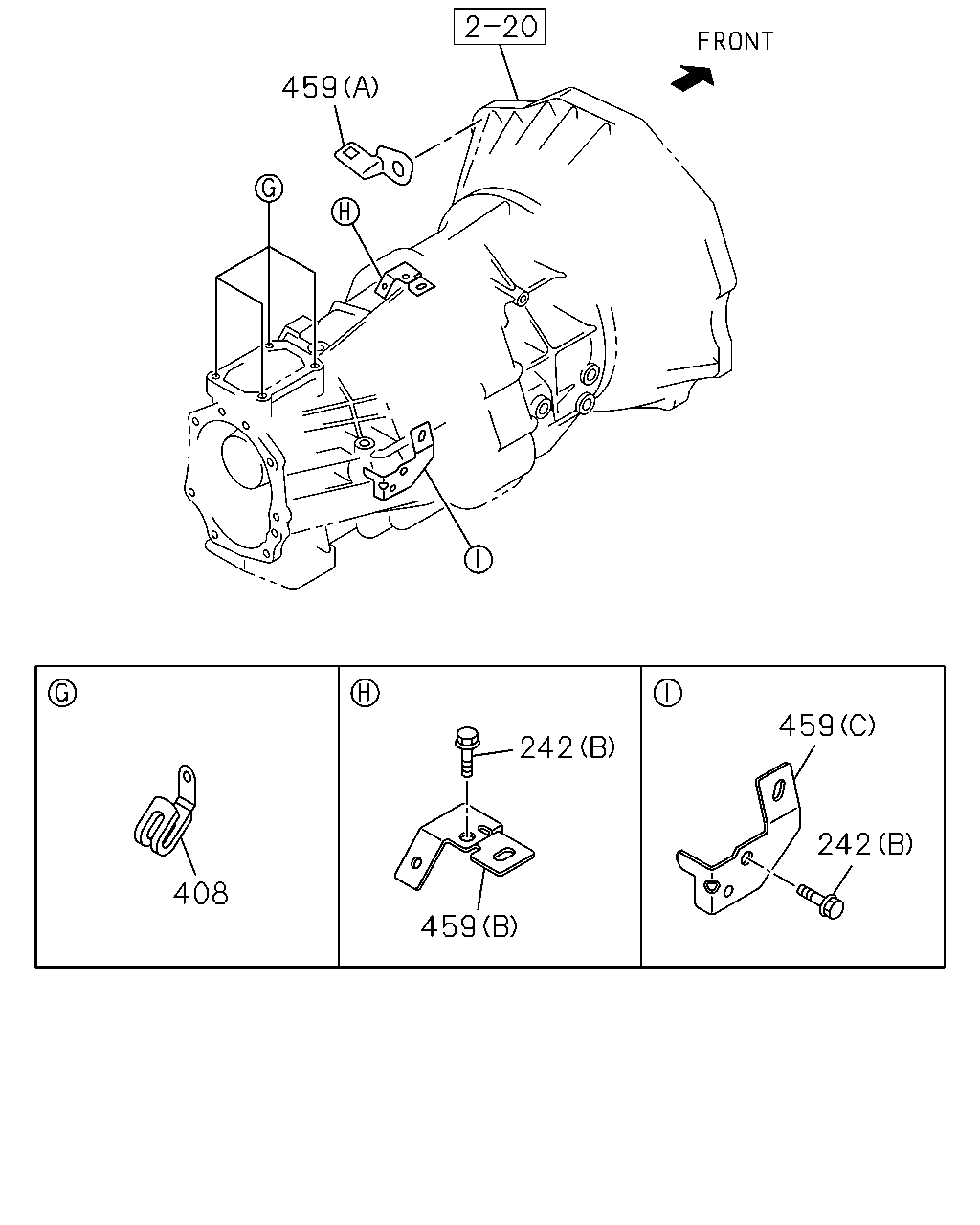

459 242 459 242 459 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE	0-28050-812-0	03	1	1304-1503	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
242	02.483 BOLT; BRKT,HARNESS 4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 03.895 (B) M8X16 FLANGE	8-98076-109-0	01	1	1304-	●	●		●	●
242	02.483 BOLT; BRKT,HARNESS M/T AISIN 6 SPEED(RNU) 03.895 (B) M8X16 FLANGE	8-98076-109-0	01	1	1304-	●	●		●	●
408	02.559 CLIP; TRANS HARNESS M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	1304-	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA5 SPEED 5S(RSQ) (A)	8-98050-882-0	01	1	1304-	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A)	8-98050-882-0	01	1	1304-		●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H(MWQ) (A)	8-98050-882-0	01	1	1304-			●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 04.686 (C)	8-98206-131-0	01	1	1304-	●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T AISIN 6 SPEED(RNU) 04.686 (B)	8-98159-956-0	01	1	1304-	●	●		●	●

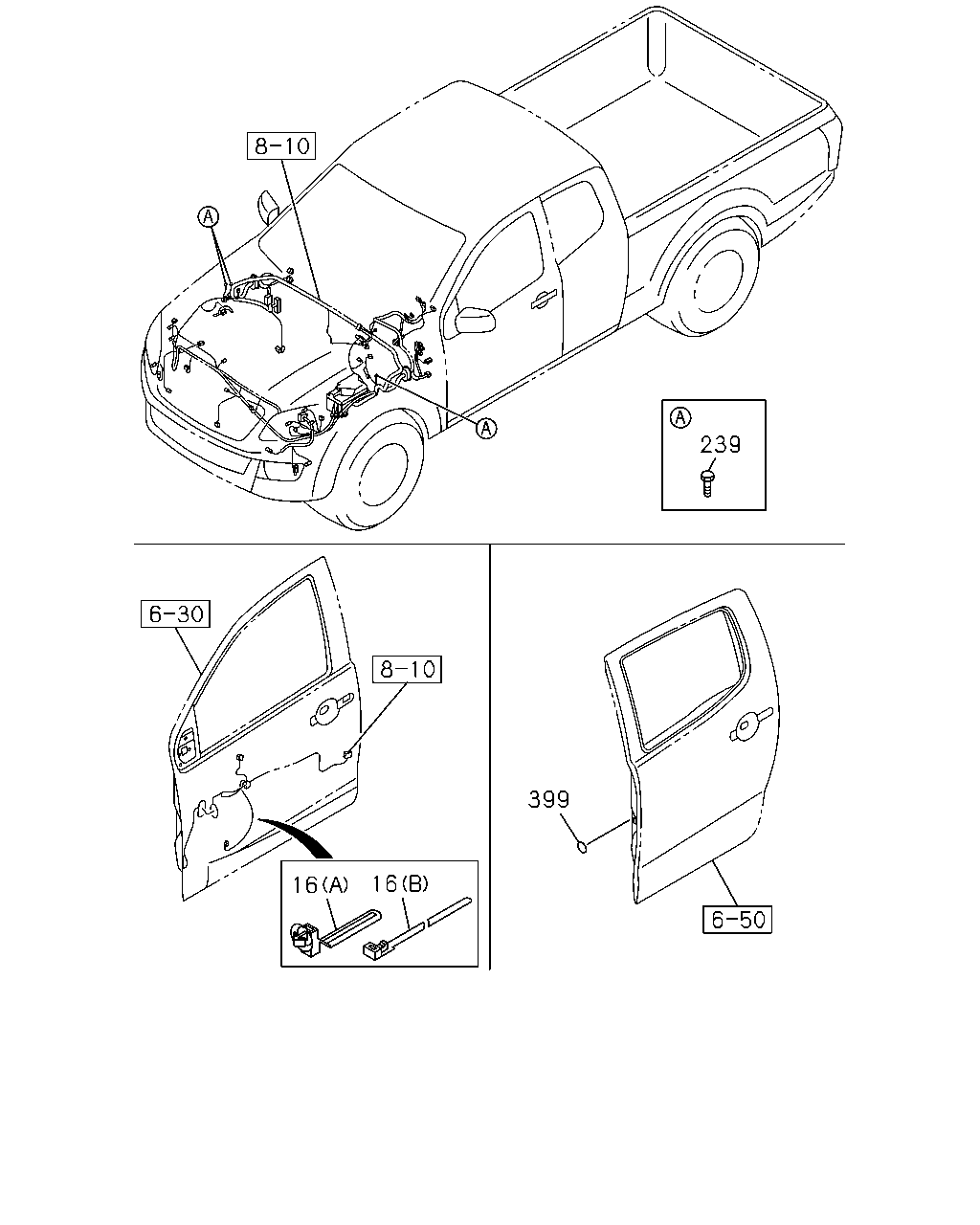

239 16 16 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 03.162 (D) L=140	5-09707-031-1	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 02.313 (C) ID=18 L=44	8-97367-985-1	02	1	1304-	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1304-	●	●		●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1304-		●	●		●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1304-		●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1304-		●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1304-	●	●		●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1304-		●	●		●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1304-		●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1304-		●	●		●
239	02.559 BOLT; GRAND 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	1304-1501	●	●	●	●	●
239	02.559 BOLT; GRAND 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M6X14 W/PL WASHER	8-98164-836-0	03	1	1502-	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312	●	●	●	●	●
239	02.559 BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312	●	●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312	●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1304-1312			●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501	●	●	●	●	●
239	02.559 BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501	●	●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501	●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1401-1501			●
239	02.559 BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●	●	●	●
239	02.559 BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ ANTI THEFT<7KY> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND FRONT SEAT SPLIT BENCH<AM6>,FRONT SEATBUCKET POWER ASSIST<AQ9>,FRONT SEAT B UCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOT E CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-			●
239	02.559 BOLT; GRAND AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-			●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 16.064 OD=44 BLACK	5-76777-037-0	02	1	1304-		●			●

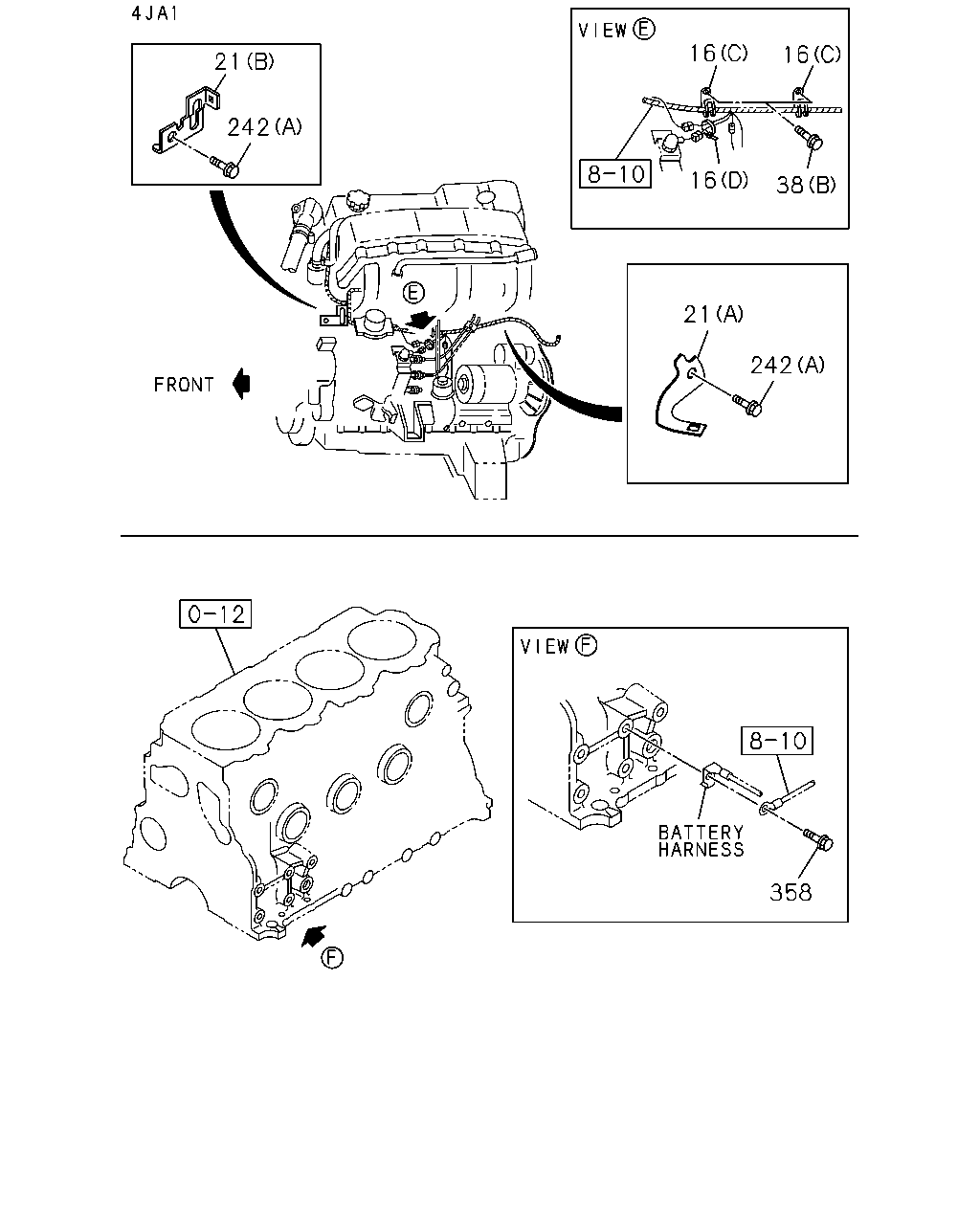

21 242 16 16 16 21 242 38 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 03.162 (D) L=140	5-09707-031-1	01	1	1304-	●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 02.313 (C) ID=18 L=44	8-97367-985-1	02	1	1304-	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1304-	●	●		●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1304-		●	●		●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1304-		●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1304-		●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1304-	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & RO OF(AY0) ISRAEL EQUIPMENT(2G1) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1304-	●	●		●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1304-		●	●		●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1304-		●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FO LDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK<AP5>, REMOTECONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1304-		●	●		●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (B)	8-97249-918-1	01	1	1304-	●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (A)	8-98179-923-0	01	1	1304-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 04.338 (E) M8X20 FLANGE	0-28050-820-0	02	1	1304-	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE	0-28050-812-0	03	1	1304-1503	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
242	02.483 BOLT; BRKT,HARNESS 4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 03.895 (B) M8X16 FLANGE	8-98076-109-0	01	1	1304-	●	●		●	●
242	02.483 BOLT; BRKT,HARNESS M/T AISIN 6 SPEED(RNU) 03.895 (B) M8X16 FLANGE	8-98076-109-0	01	1	1304-	●	●		●	●
358	02.480 BOLT; EARTH 4JA1-T ENG(LP0) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
