◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11527 - FVR(MALAYSIA) 280PS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#117641) — 214 parça

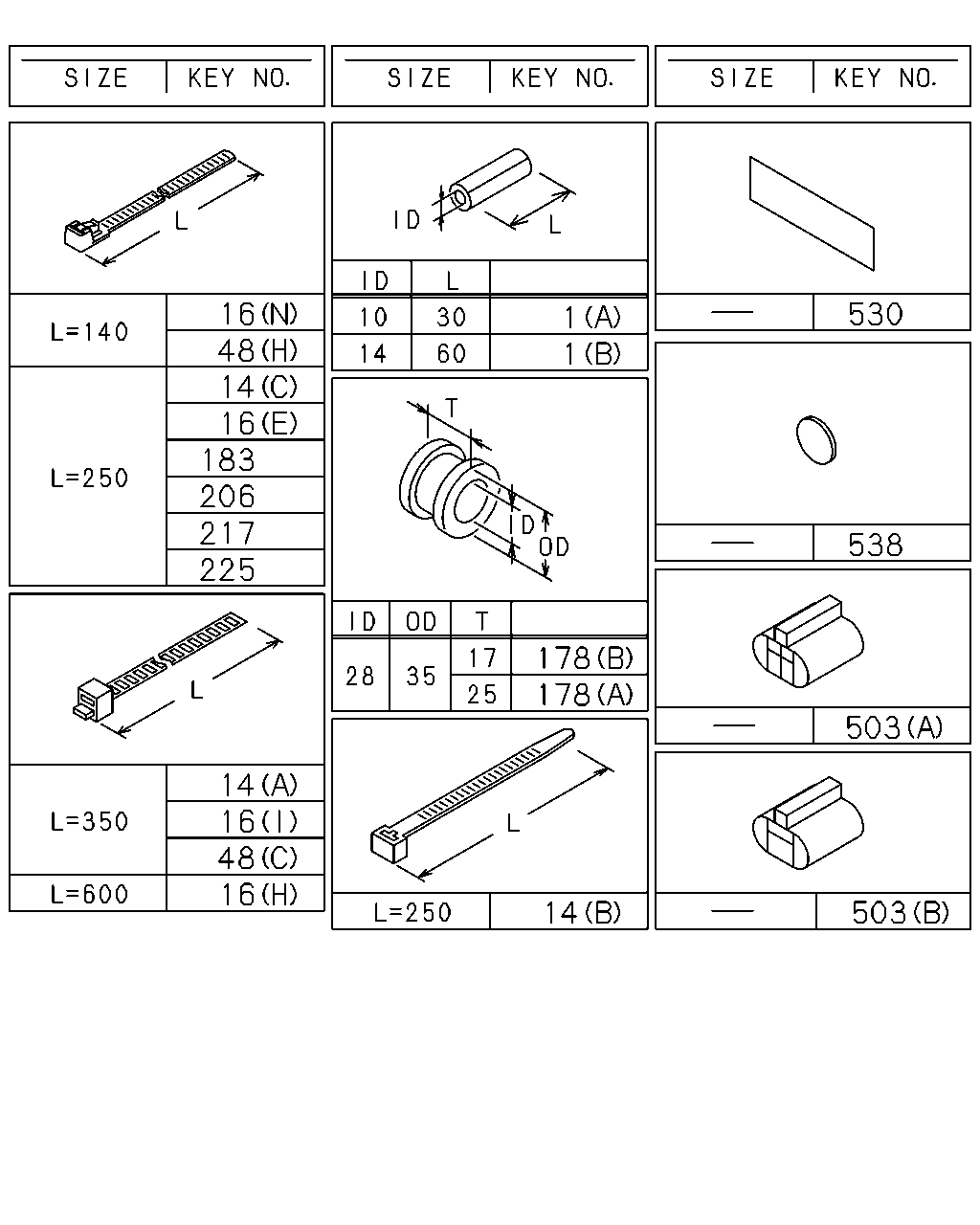

çizim 344303
16 48 16 14 225 217 206 183 16 14 48 16 14 178 178 1 1 530 538 503 503
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1304-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1304-
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 1304-
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1304-
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> (C) L=250 		1-09707-126-0 02 1 1304-
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(L) ID=15 H=30 L=30 		1-09700-832-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 1304-
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (K) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=16 		0-95235-025-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=16 		0-95325-025-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) L=140 		5-09707-031-1 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=16X2 L=50 		0-95325-586-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 12 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=14.5 L=40 		1-09701-014-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=33 L=83 		1-09701-291-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(J) OD=9 H=13.5 		1-09709-180-0 01 1 1304-
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 07 1 1304-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1304-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1304-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1304-
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (B) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1304-
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 1304-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1304-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1304-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 08 1 1304-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1304-
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1304-
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1306-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1304-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1304-

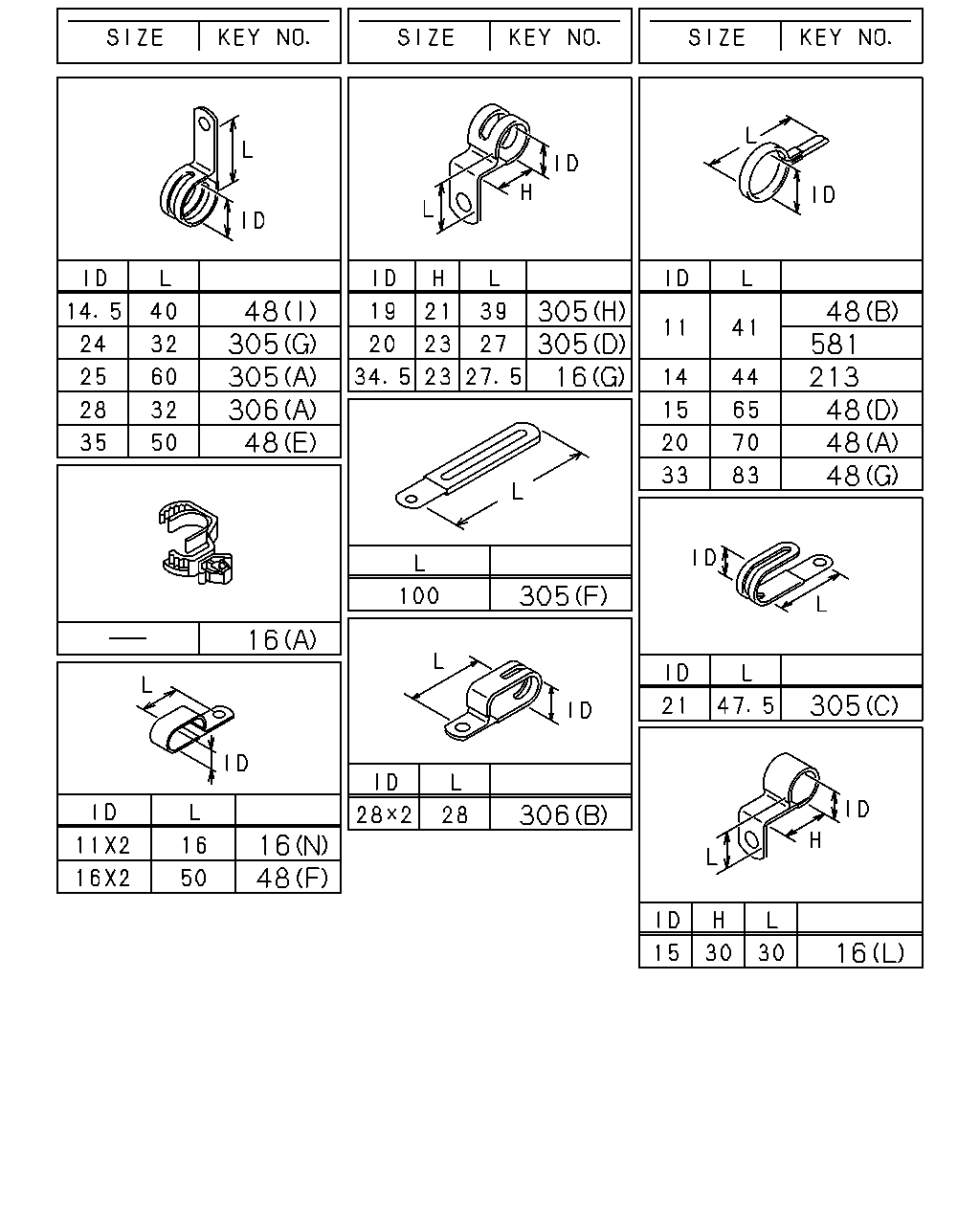

çizim 344305
48 306 305 305 305 305 305 48 48 581 48 213 48 305 16 306 16 48 16 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(L) ID=15 H=30 L=30 		1-09700-832-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 1304-
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (K) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=16 		0-95235-025-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=16 		0-95325-025-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) L=140 		5-09707-031-1 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=16X2 L=50 		0-95325-586-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 12 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=14.5 L=40 		1-09701-014-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=33 L=83 		1-09701-291-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(J) OD=9 H=13.5 		1-09709-180-0 01 1 1304-
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 07 1 1304-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1304-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
305 CLIP; ENG HARNESS
(E) ID=16 L=40 		0-95235-576-0 01 1 1304-
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1304-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 1304-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
305 CLIP; ENG HARNESS
(H) ID=19 L=39 H=21 		1-09700-972-1 01 1 1304-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1304-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1304-
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1304-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1304-
581 CLIP; HARNESS,REAR SUSP
ANTI LOCK BRAKE<JE5> ID=11 L=41 		1-09700-403-0 01 1 1304-

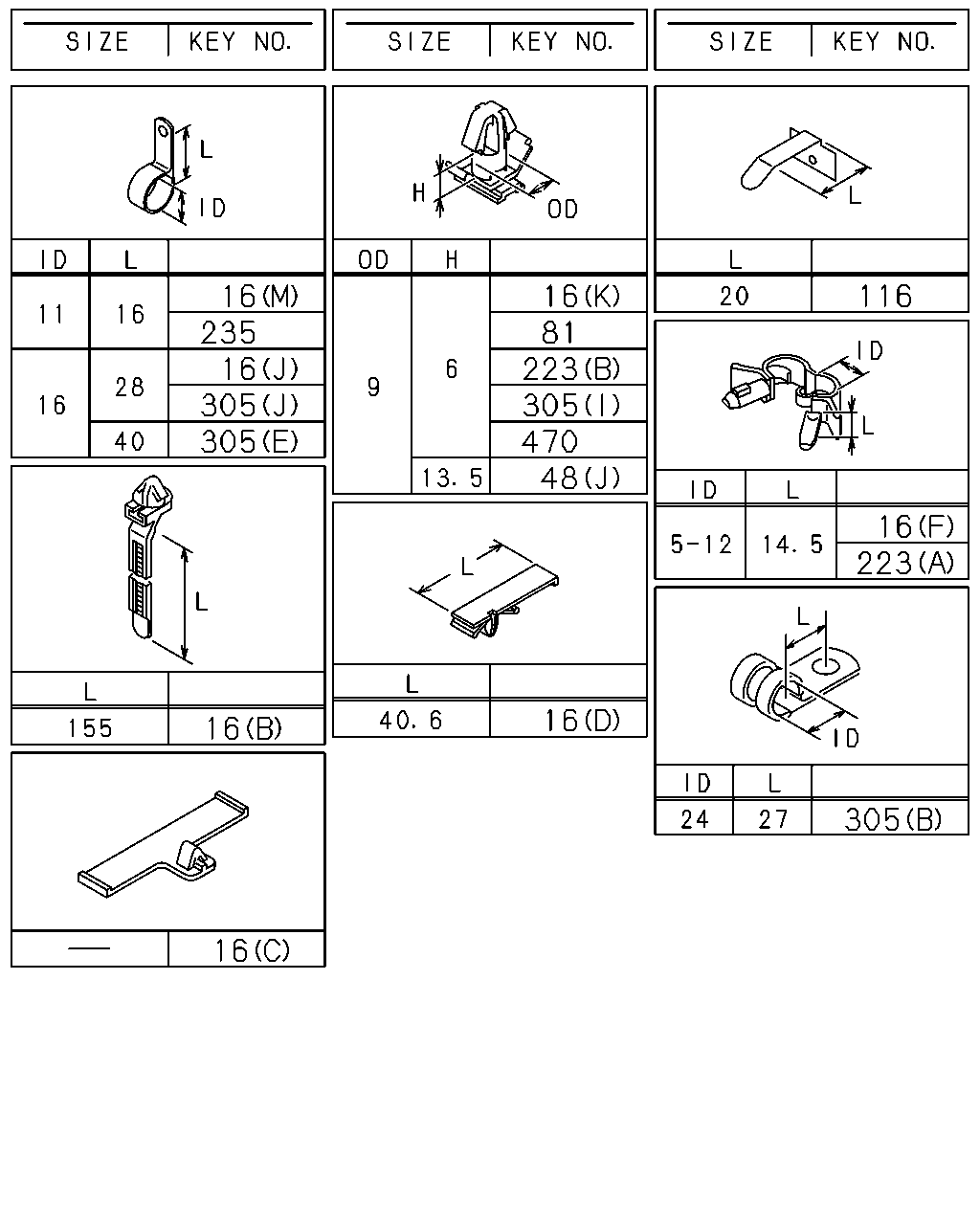

çizim 344319
16 16 116 81 235 223 16 305 305 470 305 48 223 16 305 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
16 CLIP; HARNESS
(L) ID=15 H=30 L=30 		1-09700-832-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1304-
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 1304-
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 02 1 1304-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1304-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1304-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1304-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1304-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1304-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (K) OD=9 H=6 		1-09709-178-0 01 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=16 		0-95235-025-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=16 		0-95325-025-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=5-12 L=14.5 		1-09987-221-0 02 1 1304-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) L=140 		5-09707-031-1 01 1 1304-
48 CLIP; FRAME HARNESS
(F) ID=16X2 L=50 		0-95325-586-0 01 1 1304-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1304-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 12 1 1304-
48 CLIP; FRAME HARNESS
(I) ID=14.5 L=40 		1-09701-014-0 01 1 1304-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1304-
48 CLIP; FRAME HARNESS
(G) ID=33 L=83 		1-09701-291-0 01 1 1304-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 01 1 1304-
48 CLIP; FRAME HARNESS
(J) OD=9 H=13.5 		1-09709-180-0 01 1 1304-
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 1304-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 07 1 1304-
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1304-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1304-
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 1304-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1304-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1304-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> ID=11 L=16 		0-95235-025-0 02 1 1304-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1304-
305 CLIP; ENG HARNESS
(E) ID=16 L=40 		0-95235-576-0 01 1 1304-
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1304-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 1304-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
305 CLIP; ENG HARNESS
(H) ID=19 L=39 H=21 		1-09700-972-1 01 1 1304-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1304-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1304-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1304-
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1304-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1304-

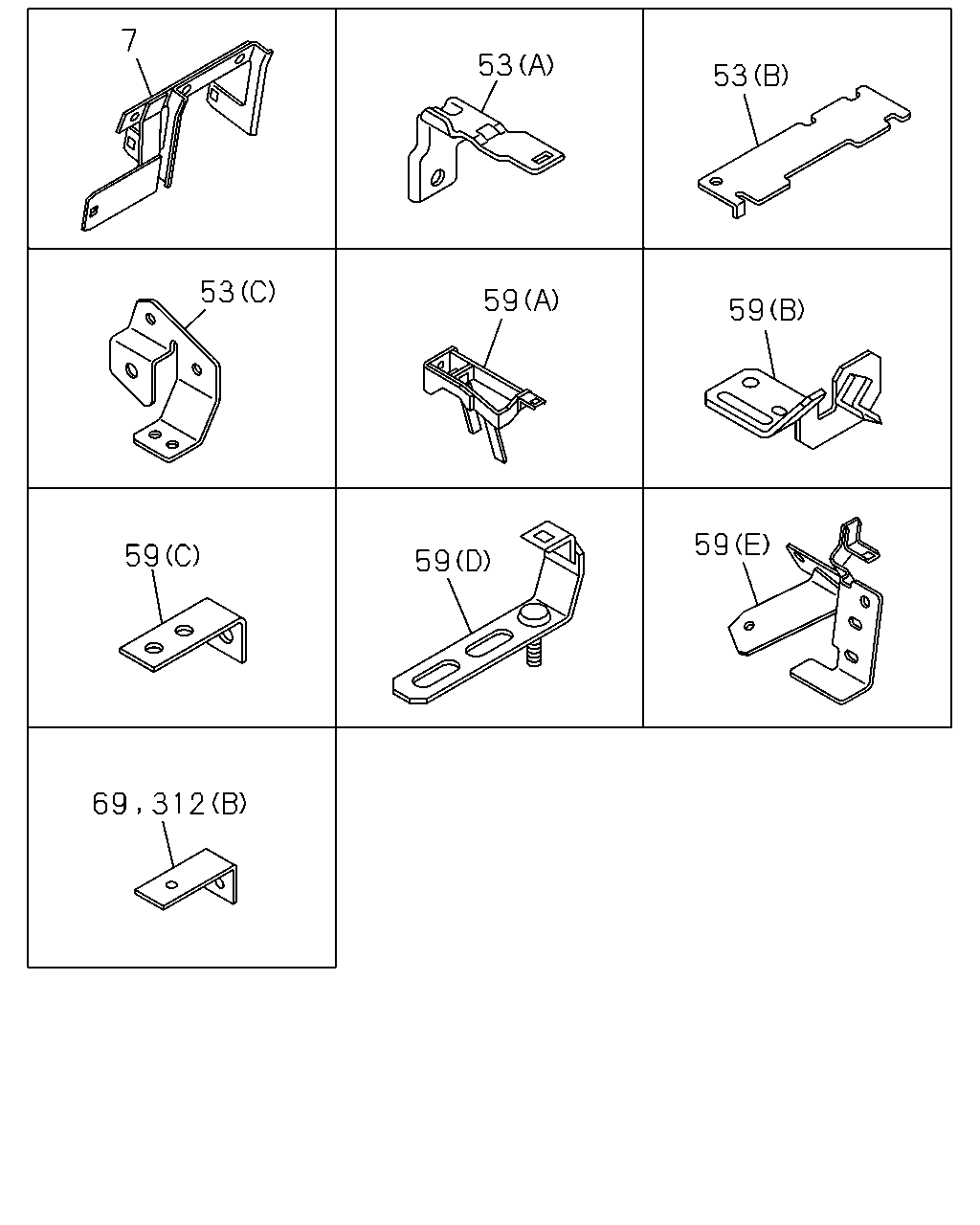

çizim 344441
7 53 53 53 59 59 59 59 59 69 312
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1304-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1304-
53 BRACKET; HARNESS
(B) 		8-98127-093-0 01 1 1304-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 1304-
59 BRACKET; FRAME HARNESS
(C) L=62 		1-21464-170-2 01 1 1304-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1304-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1304-1502
59 BRACKET; FRAME HARNESS
(B) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(D) 		8-98047-730-0 02 1 1304-
59 BRACKET; FRAME HARNESS
(E) 		8-98107-611-0 01 1 1304-
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1304-

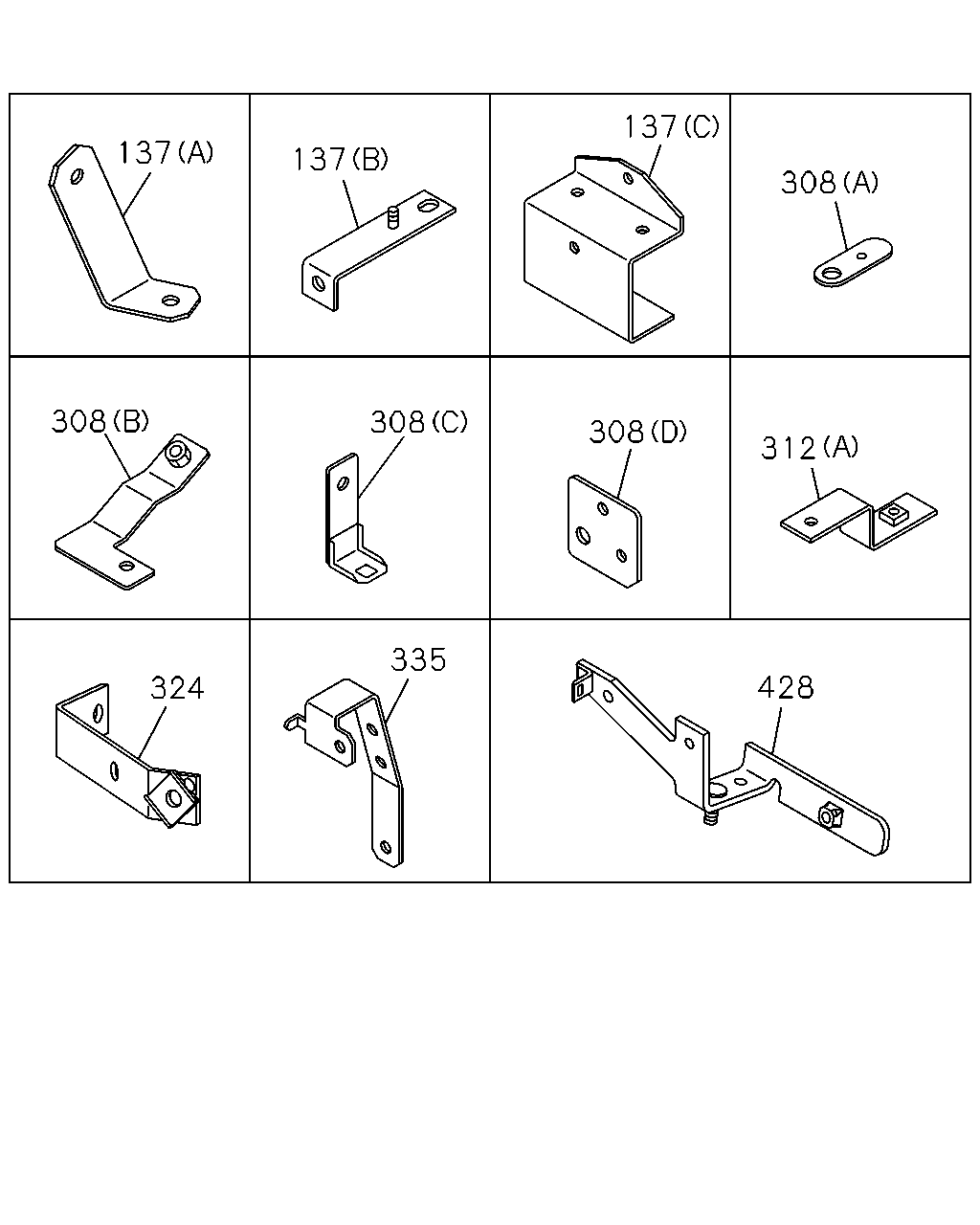

çizim 344482
137 137 137 308 308 308 308 312 324 335 428
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1304-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1304-
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (C) 		8-97609-797-1 02 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98032-178-0 01 1 1304-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98075-824-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1304-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1304-
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		8-98210-921-1 01 1 1304-
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		8-98210-922-1 01 1 1304-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1304-
428 BRACKET 8-98212-082-1 01 1 1304-

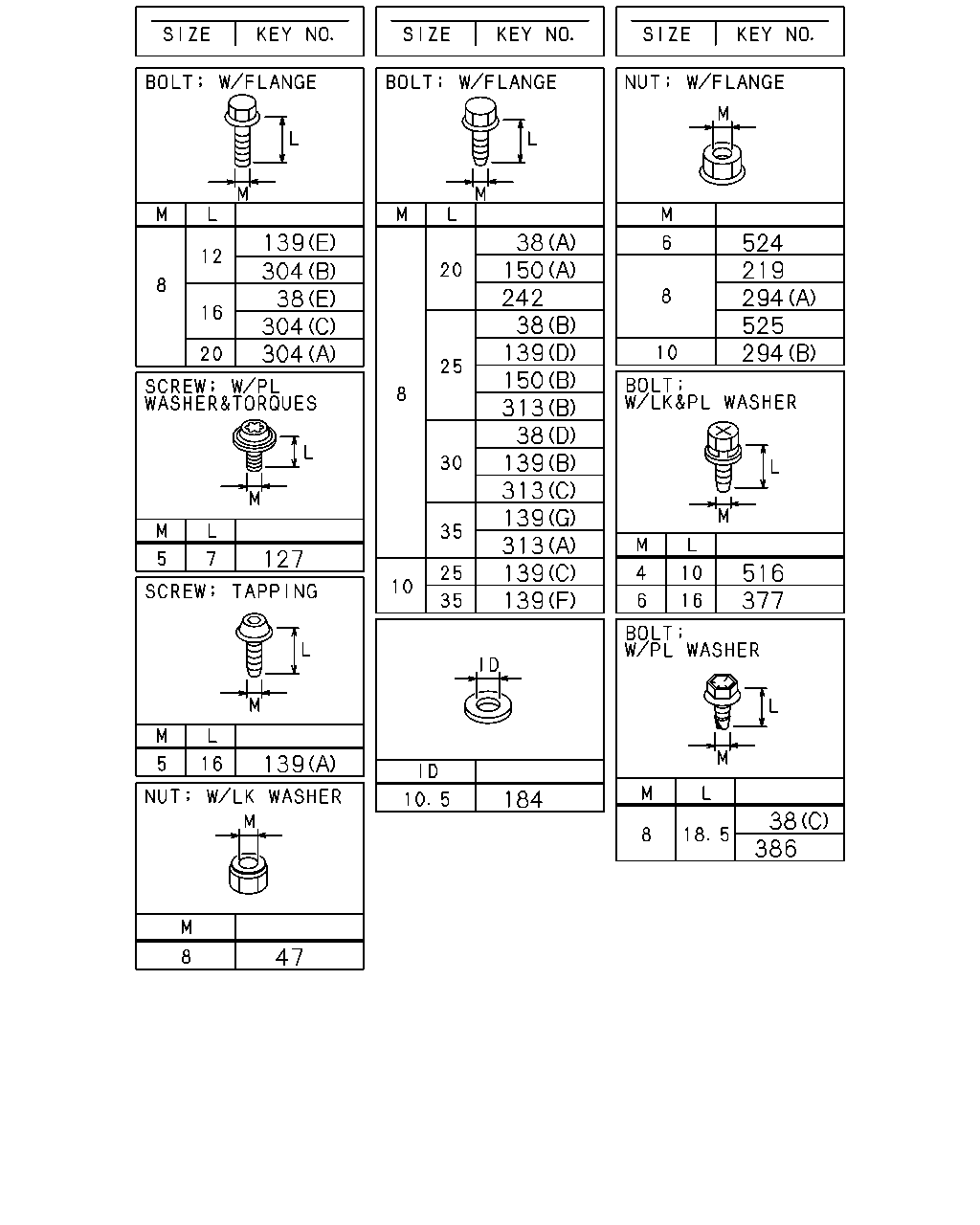

çizim 344523
139 38 304 304 304 127 139 47 242 150 38 150 139 313 139 139 139 313 38 313 139 184 524 294 219 525 294 516 377 38 386 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE 		0-28050-816-0 02 1 1304-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1304-
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE 		0-28650-830-0 02 1 1304-
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1304-
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1304-
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1304-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1304-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1304-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
139 BOLT; BRKT
(G) M8X35 FLANGE 		0-28650-835-0 01 1 1304-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1304-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1304-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1304-
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1304-
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1304-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304-
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1304-
150 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1304-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1304-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1304-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1304-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1304-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 1304-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1304-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1304-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1304-
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 1304-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1304-
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 04 1 1304-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1304-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1304-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1304-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
313 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1304-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1304-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1304-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1304-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1304-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1304-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
