8-28 — CHASSIS ELECTRICAL (#117640) — 95 parça

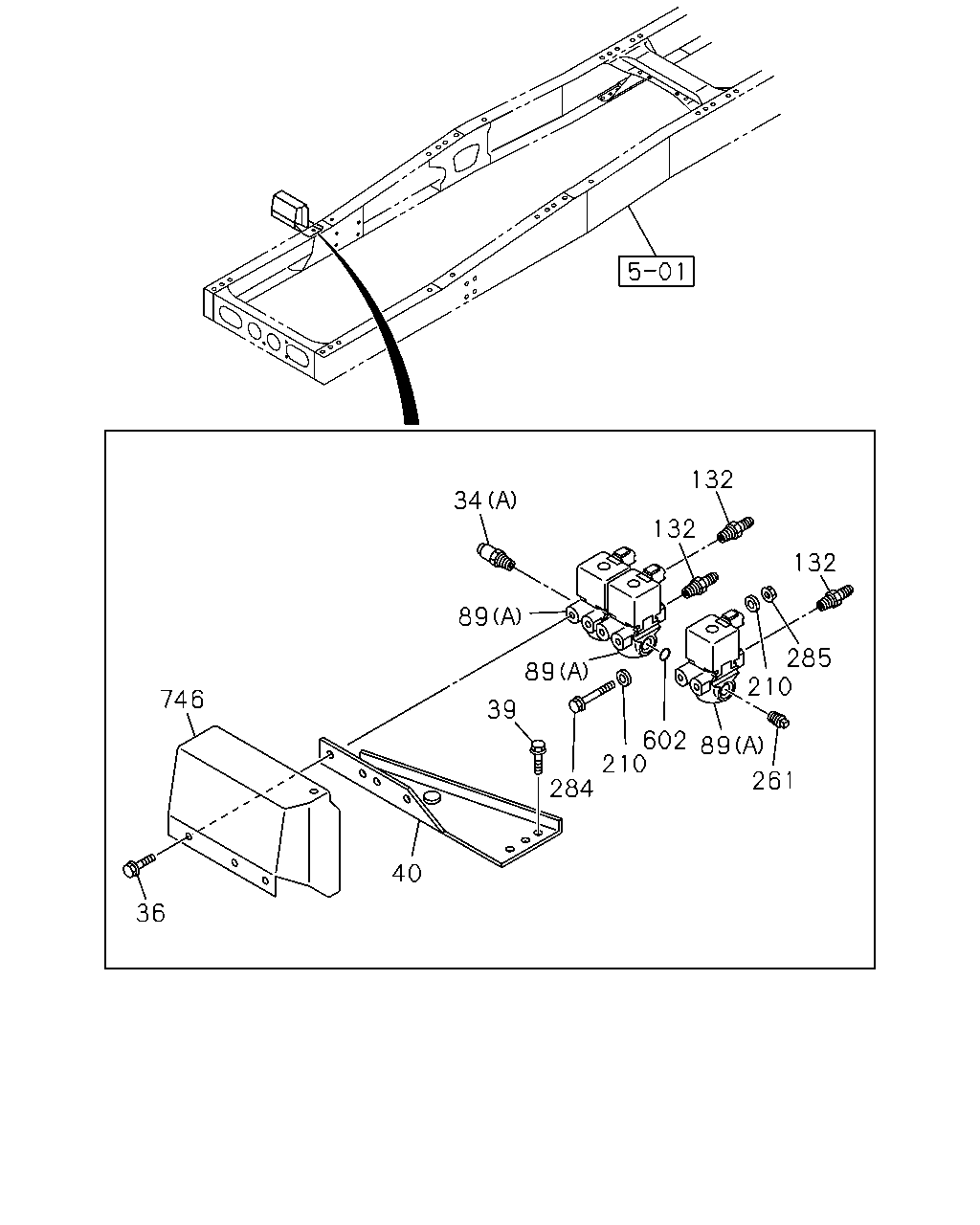

746 34 89 36 40 39 284 132 132 132 285 210 89 261 602 210 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1304-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1304-		●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
39	BOLT; BRKT,MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
40	BRACKET; MAG VLV	8-98100-335-0	01	1	1304-	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	03	1	1304-	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-871-2	01	1	1304-		●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR(BDM) (A)	1-82563-871-2	01	1	1304-	●
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1304-	●	●
132	CONNECTOR; OUTLET,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1304-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1304-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1304-		●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1304-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1304-	●	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	02	1	1304-	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M6X50 FLANGE	0-28050-650-0	01	1	1304-		●
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	1304-	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	1304-	●	●
285	NUT; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE	0-91180-106-0	01	1	1304-		●
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	1304-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1304-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1304-		●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1304-	●
746	COVER; NOISE,MAG VLV	8-98096-340-0	01	1	1304-	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●

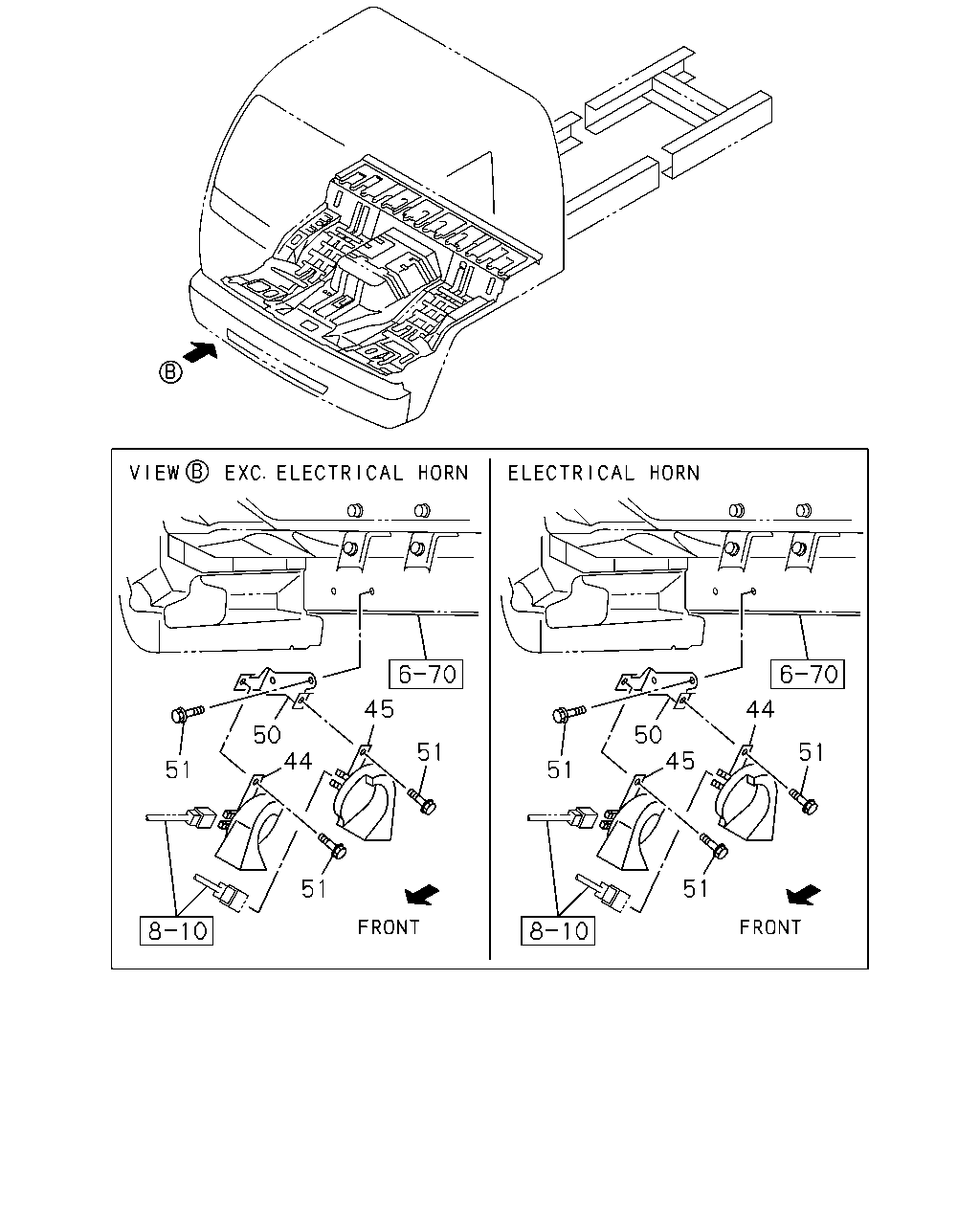

51 51 51 44 50 45 51 45 50 44 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7>	8-97611-677-2	01	1	1304-	●	●
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-022-0	01	1	1304-	●	●
45	HORN; LOW NOTE ELECTRICAL HORN<WB7>	8-97611-676-2	01	1	1304-	●	●
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7>	8-98022-023-0	01	1	1304-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1304-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1304-	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●

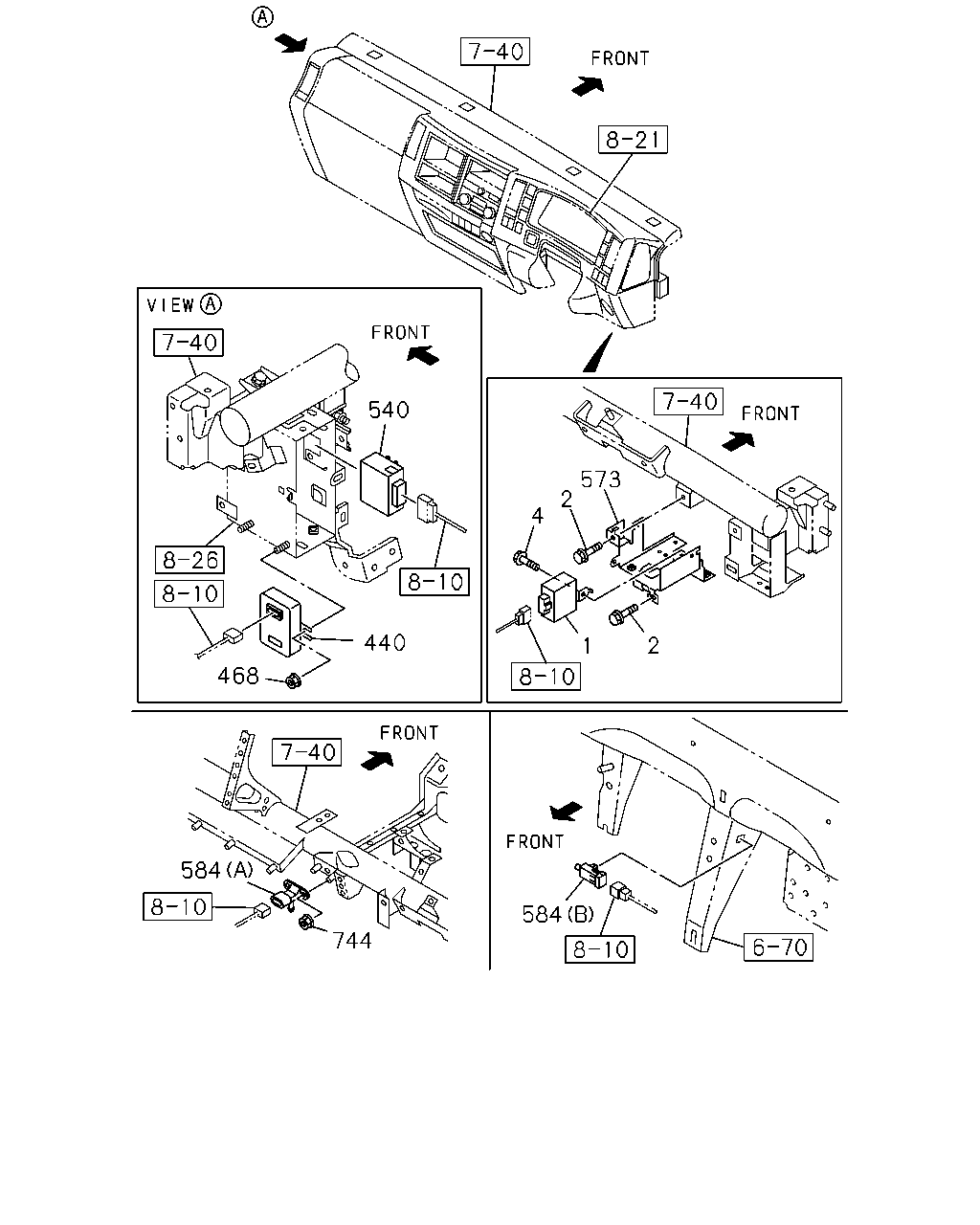

468 440 540 584 744 584 1 2 4 2 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1304-		●
1	UNIT; FLASHER	8-97613-970-1	01	1	1304-	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA)	1-81510-701-0	01	1	1305-	●
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91180-106-0	02	1	1305-	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1304-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1304-	●	●
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	1304-	●	●
584	SENSOR; PRESSURE (B)	8-98214-375-0	01	1	1304-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1304-	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●

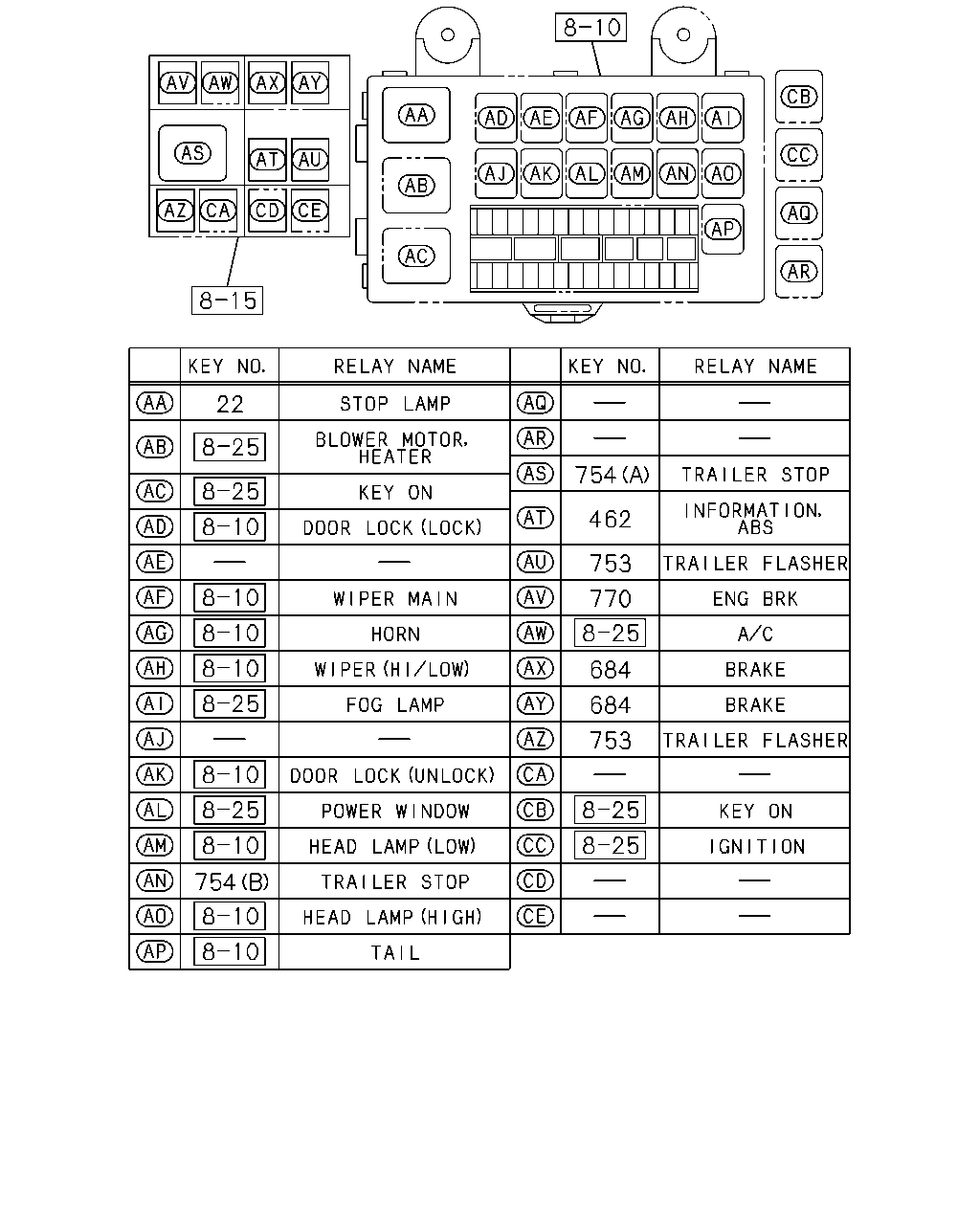

22 754 754 462 753 770 684 684 753

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-	●	●
462	RELAY; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1304-	●	●
753	RELAY; TRAILER FLASHER ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1304-	●
754	RELAY; TRAILER STOP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-	●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●

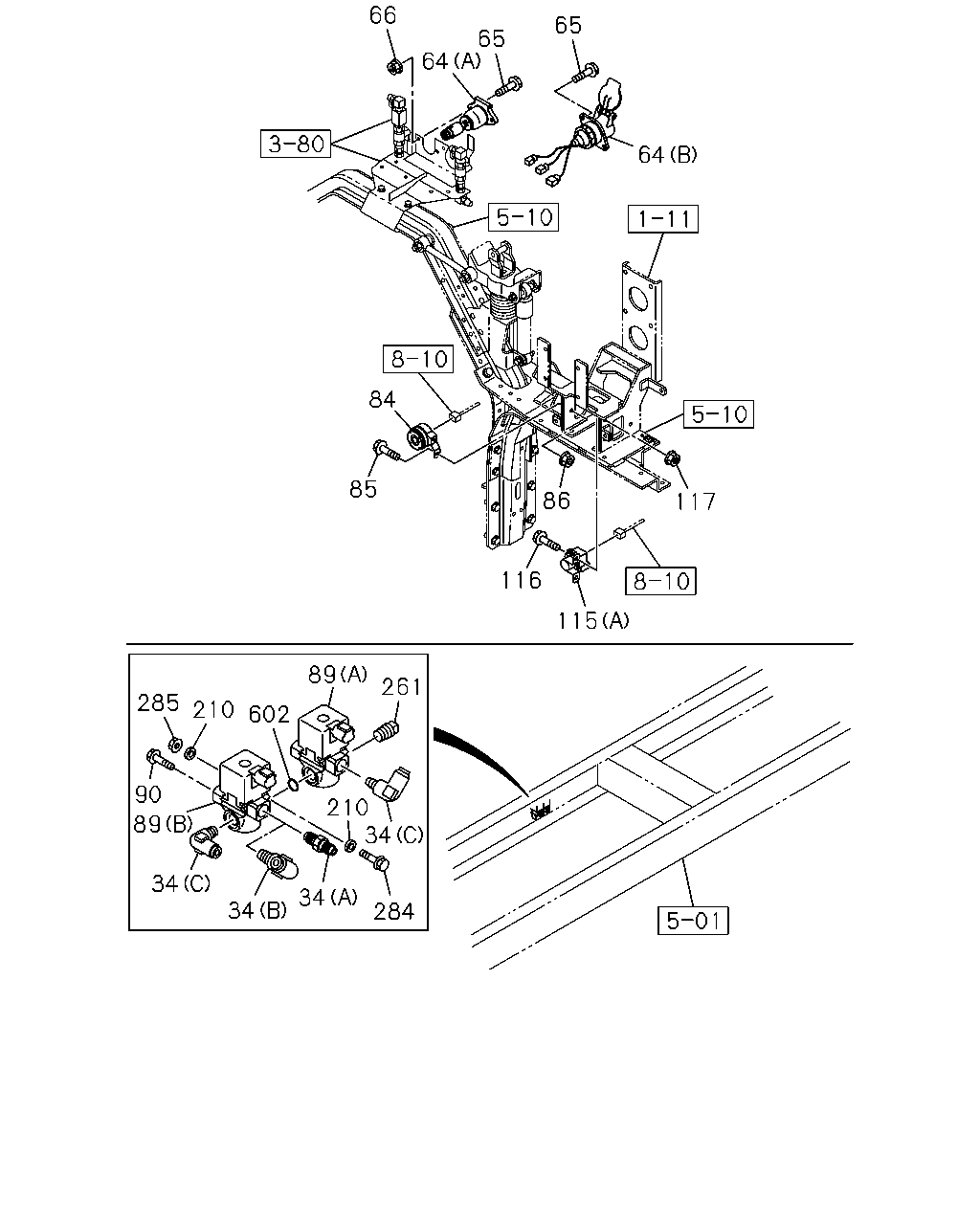

66 64 65 65 64 84 85 86 117 116 115 285 210 602 89 261 90 89 34 34 210 34 34 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1304-	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1304-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1304-		●
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	1304-	●
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) L=860	8-98172-008-0	01	1	1304-	●
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-	●
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1304-	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1304-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	03	1	1304-	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-871-2	01	1	1304-		●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR(BDM) (A)	1-82563-871-2	01	1	1304-	●
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1304-	●	●
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1304-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1304-1308	●	●
116	BOLT; RELAY FIX M8X25 FLANGE	0-28650-825-0	02	1	1309-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1304-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1304-		●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1304-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1304-	●	●
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	02	1	1304-	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M6X50 FLANGE	0-28050-650-0	01	1	1304-		●
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	1304-	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	1304-	●	●
285	NUT; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE	0-91180-106-0	01	1	1304-		●
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	1304-	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1304-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1304-		●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1304-	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●

531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1304-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1304-	●	●
