Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

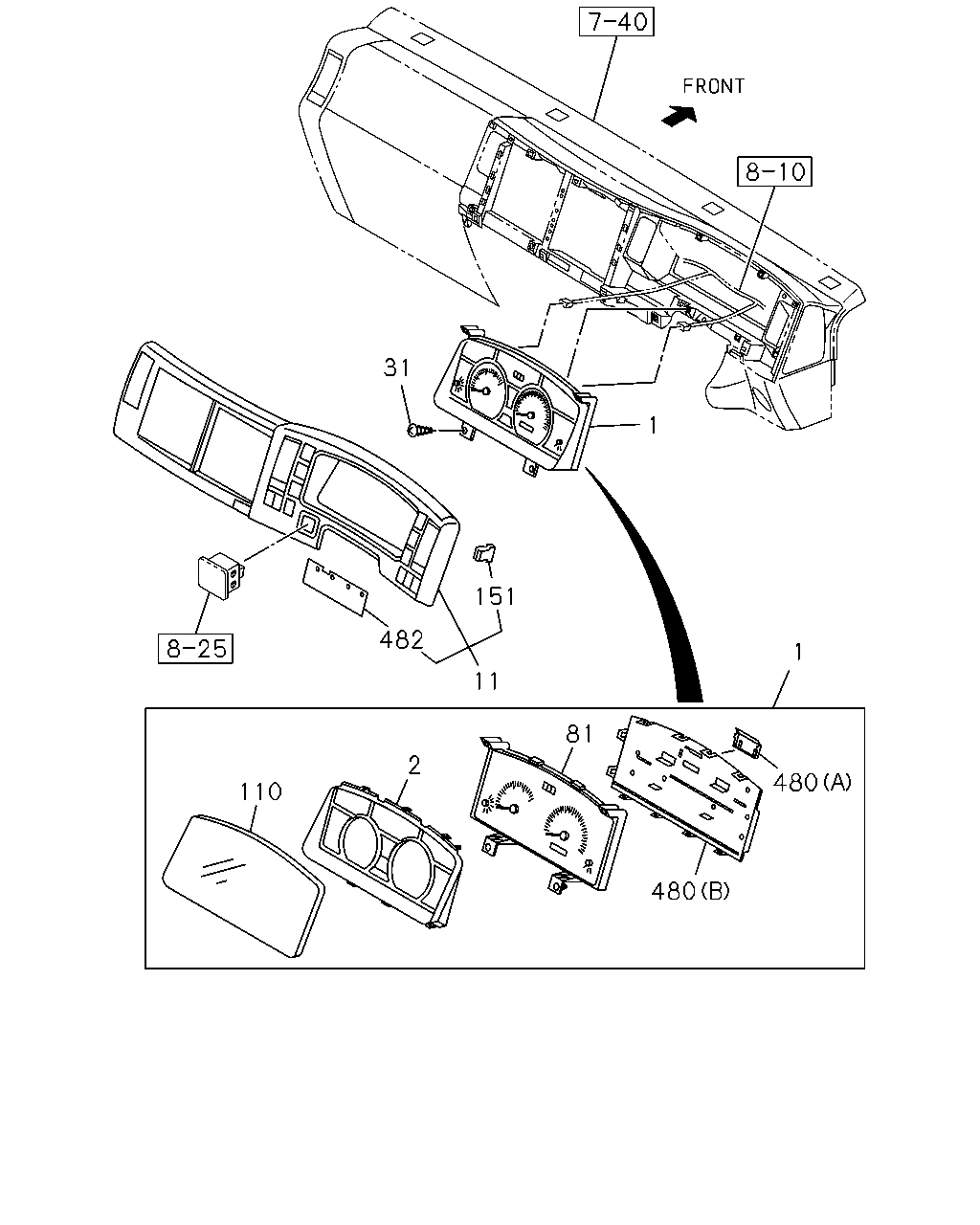

8-21 — METER ASM
(#117628) — 13 parça
Tümü
A - FGZ5MX
B - GGZ5MX
1
31
151
11
482
480
480
81
2
110
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY>
8-98179-479-2
01
1
1302-
●
●
1
METER COMPL; CLUSTER
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98179-478-2
01
1
1302-
●
●
2
PANEL; CLUSTER
8-98054-432-0
01
1
1302-
●
●
11
CLUSTER ASM; METER
THA
8-97926-378-2
01
1
1302-
●
●
31
SCREW; METER,INST PANEL
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1302-
●
●
81
METER SUB ASM
MULTI INFORMATION DISPLAY<7NY>
8-98179-487-0
01
1
1302-
●
●
81
METER SUB ASM
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98179-486-0
01
1
1302-
●
●
110
GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY>
8-98054-642-0
01
1
1302-
●
●
110
GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98054-431-0
01
1
1302-
●
●
151
CLIP; METER CLUSTER
THA
8-97926-387-0
13
1
1302-
●
●
480
COVER; METER
(B) BLACK
8-98054-433-0
01
1
1302-
●
●
480
COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION
8-98054-881-0
01
1
1302-
●
●
482
SEAL; CLUSTER METER
THA
8-97926-388-0
01
1
1302-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
