Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#117627) — 64 parça
Tümü
A - GGZ5MX
B - FGZ5MX
◀
[825A] REAR AXLE SIDE (5 parça)
[825A] SWITCH NO.2 (19 parça)
[825A] SWITCH NO.3 (9 parça)
[825A] RELAY;CAB HARNESS (10 parça)
[825A] SWITCH NO.4 (4 parça)
[825A] SWITCH NO.1 (12 parça)
[825A] RELAY;FRAME HARNESS (4 parça)
[825A] OTHER PARTS (1 parça)
▶

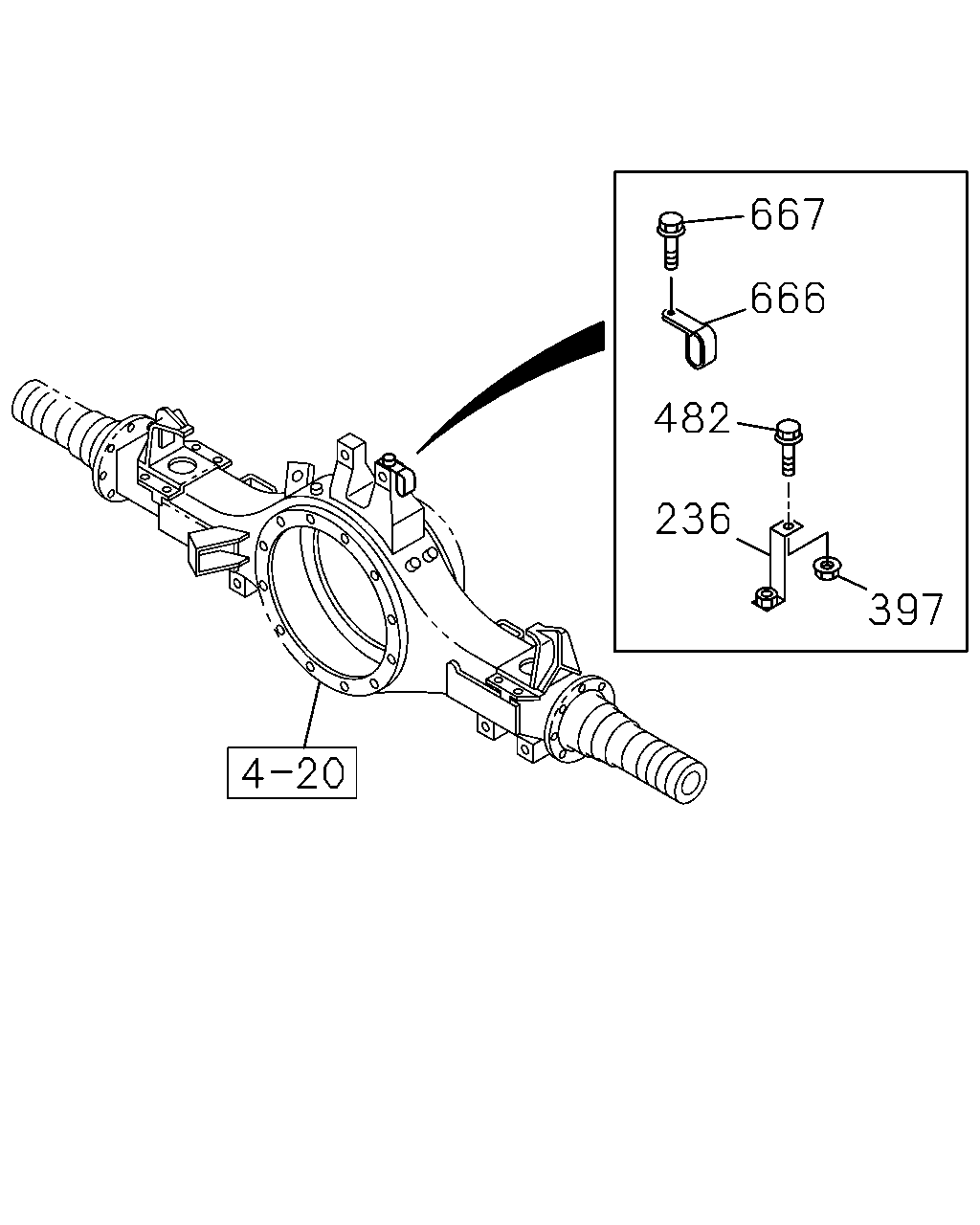

667
666
482
236
397
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
236
BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM<BFA>
1-47476-200-0
02
1
1302-
●
397
NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA
0-91180-108-0
02
1
1302-
●
482
BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X30 FLANGE THA
0-28650-830-0
02
1
1302-
●
666
CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM<BFA> ID=22X11 L=20
1-09700-871-0
04
1
1302-
●
667
BOLT; CLIP
ANTILOCK BRAKE SYSTEM<BFA> M8X20 FLANGE THA
0-28650-820-0
04
1
1302-
●

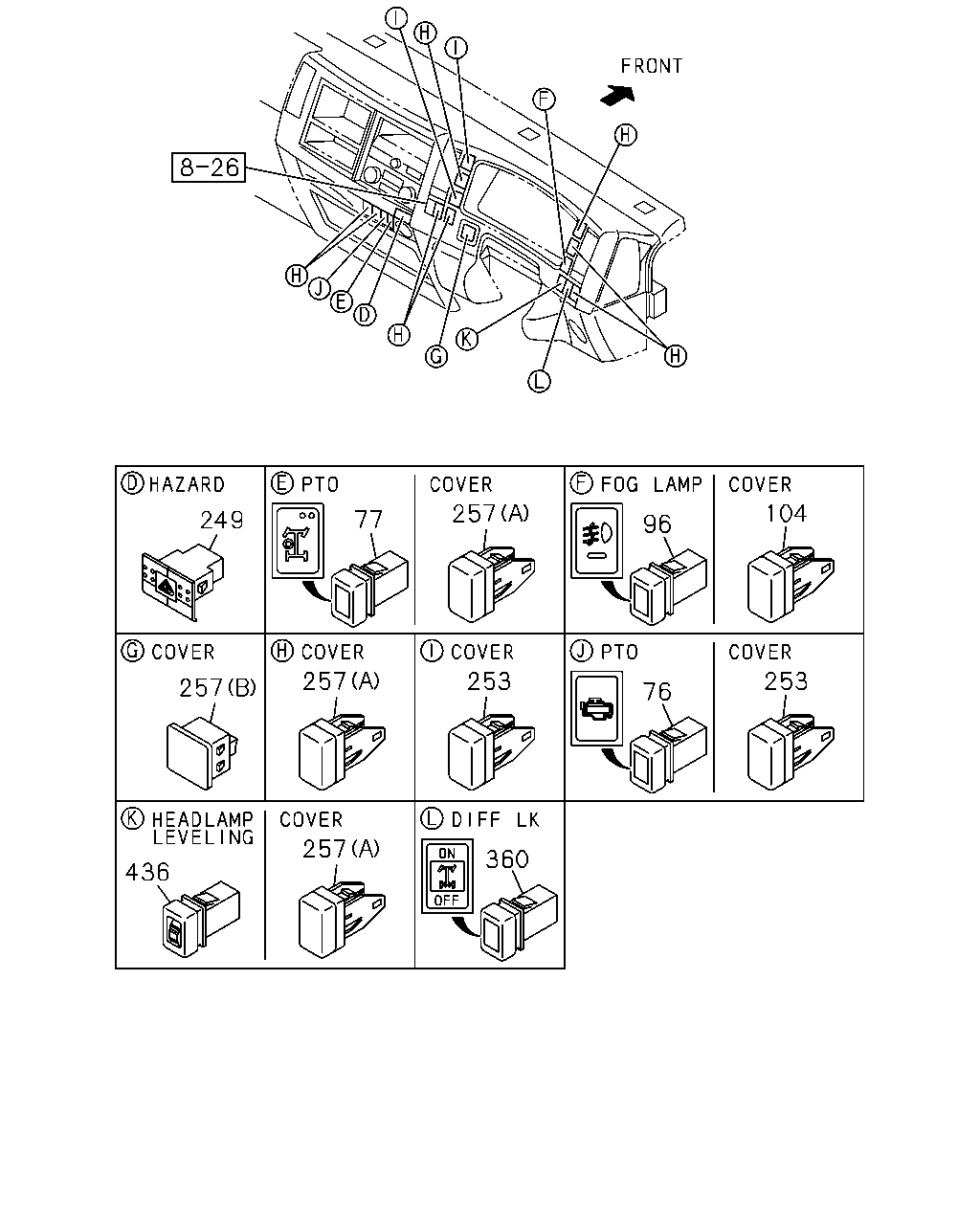

249
77
257
96
104
257
257
253
76
253
436
257
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
76
SWITCH ASM; PTO
ENGINE REAR PTO<SV1>
8-98114-764-1
01
1
1302-
●
77
SWITCH; PTO
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5>
8-97615-488-2
01
1
1302-
●
77
SWITCH; PTO
PTO ZF TRANS RR<BDM>
8-97615-488-2
01
1
1302-
●
96
SWITCH; FOG LAMP
FOG LAMP<T96> THA
8-97387-031-4
01
1
1302-
●
●
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
1302-
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
1302-1306
●
●
249
SWITCH; HAZARD
THA
8-97948-258-0
01
1
1307-
●
●
253
COVER; SW HOLE
EXC. ENGINE REAR PTO<SV1>
8-98025-954-1
01
1
1302-
●
253
COVER; SW HOLE
8-98025-954-1
01
1
1302-
●
253
COVER; SW HOLE
8-98025-954-1
02
1
1302-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
07
1
1302-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1302-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
1302-
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1302-
●
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)
8-98025-954-1
01
1
1302-
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM> (A)
8-98025-954-1
01
1
1302-
●
360
SWITCH ASM; DIFF LK
8-97613-964-0
01
1
1302-1306
●
●
360
SWITCH ASM; DIFF LK
THA
8-97948-269-0
01
1
1307-
●
●
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-97386-981-2
01
1
1302-
●
●

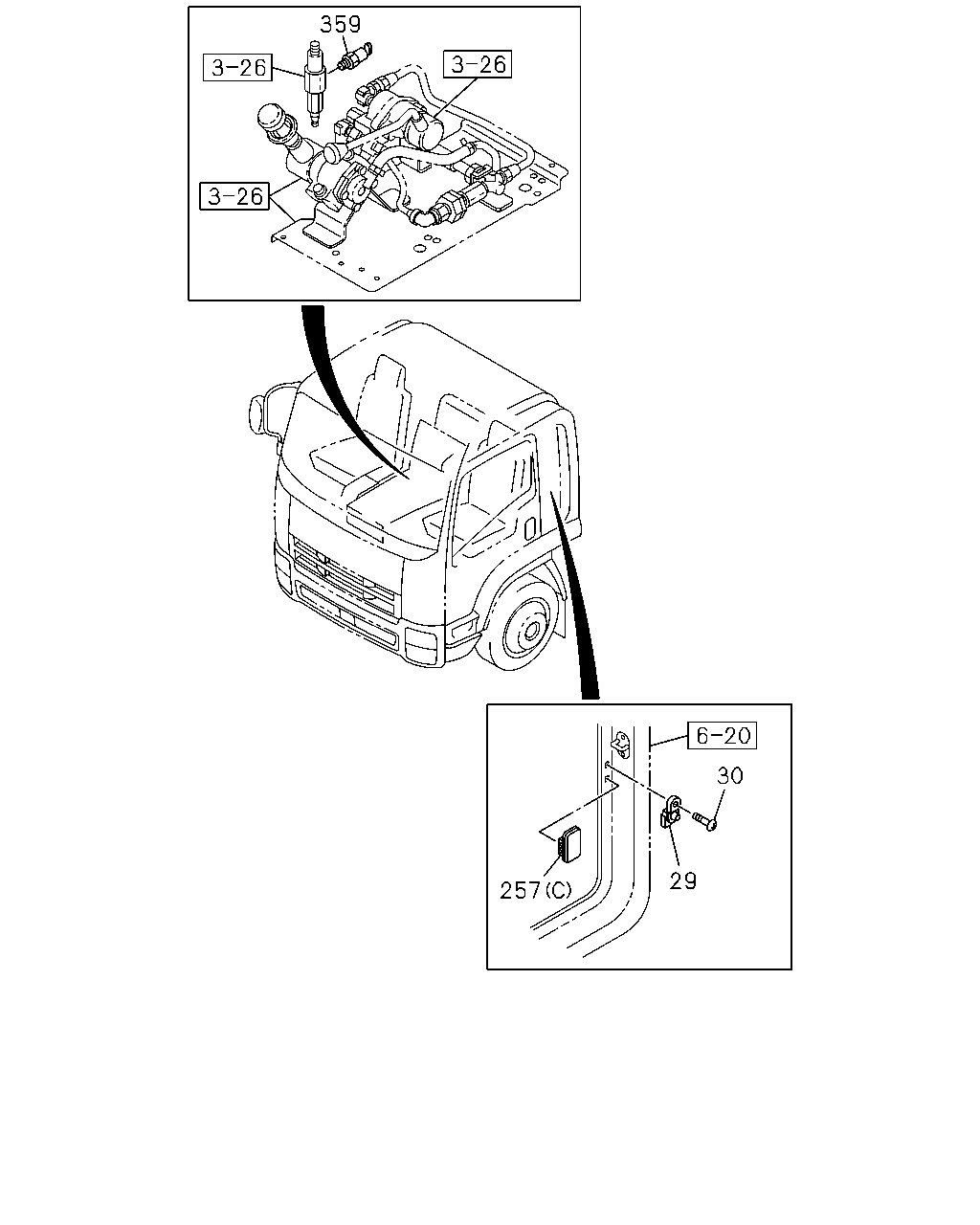

359
29
30
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1302-
●
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1302-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
07
1
1302-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1302-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
1302-
●
●
257
COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)
8-98025-954-1
01
1
1302-
●
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> (A)
8-98025-954-1
01
1
1302-
●
257
COVER; HOLE,SW
EXC. PTO ZF TRANS RR<BDM> (A)
8-98025-954-1
01
1
1302-
●
359
SWITCH; TRAILER BRAKE
STAMP 0.3
8-98010-857-0
01
1
1302-
●

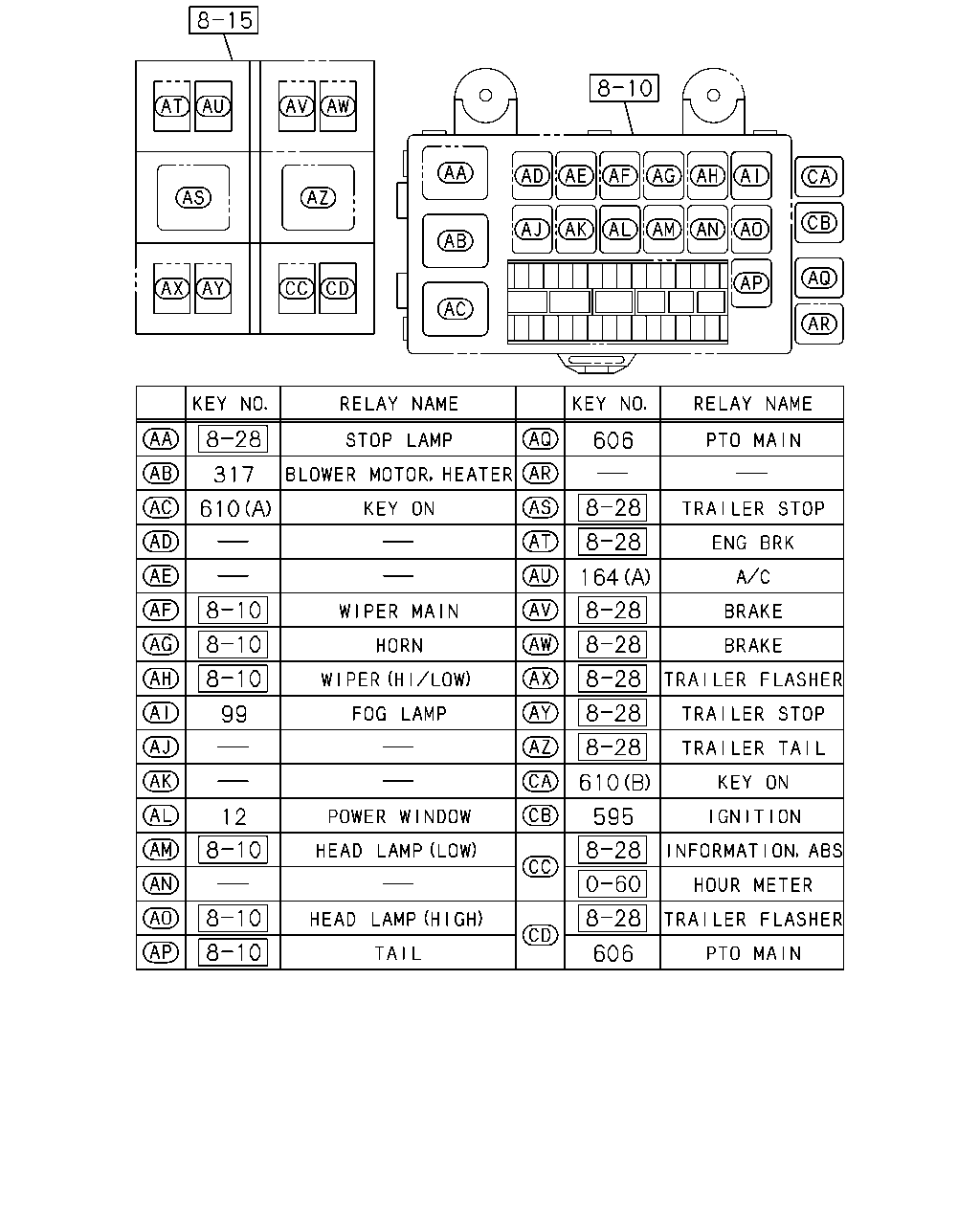

317
606
610
99
12
164
610
595
606
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
RELAY; POWER WINDOW
24V 10A MATSUSHITA
8-97173-035-1
01
1
1302-
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A MATSUSHITA
8-97173-035-1
01
1
1302-
●
●
164
RELAY; A/C COMPRESSOR
(A) 24V 10A MATSUSHITA
8-97173-035-1
01
1
1302-
●
●
164
RELAY; A/C COMPRESSOR
(B) 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1302-
●
●
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1302-
●
●
595
RELAY; IGNITION
24V 10A MATSUSHITA
8-97173-035-1
01
1
1302-
●
●
606
RELAY; PTO MAIN
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5> 24V 10A MATSUSHITA
8-97173-035-1
02
1
1302-
●
606
RELAY; PTO MAIN
PTO ZF TRANS RR<BDM> 24V 10A MATSUSHITA
8-97173-035-1
02
1
1302-
●
610
RELAY; KEY ON
(B) 24V 10A MATSUSHITA
8-97173-035-1
01
1
1302-
●
●
610
RELAY; KEY ON
(A) 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1302-
●
●

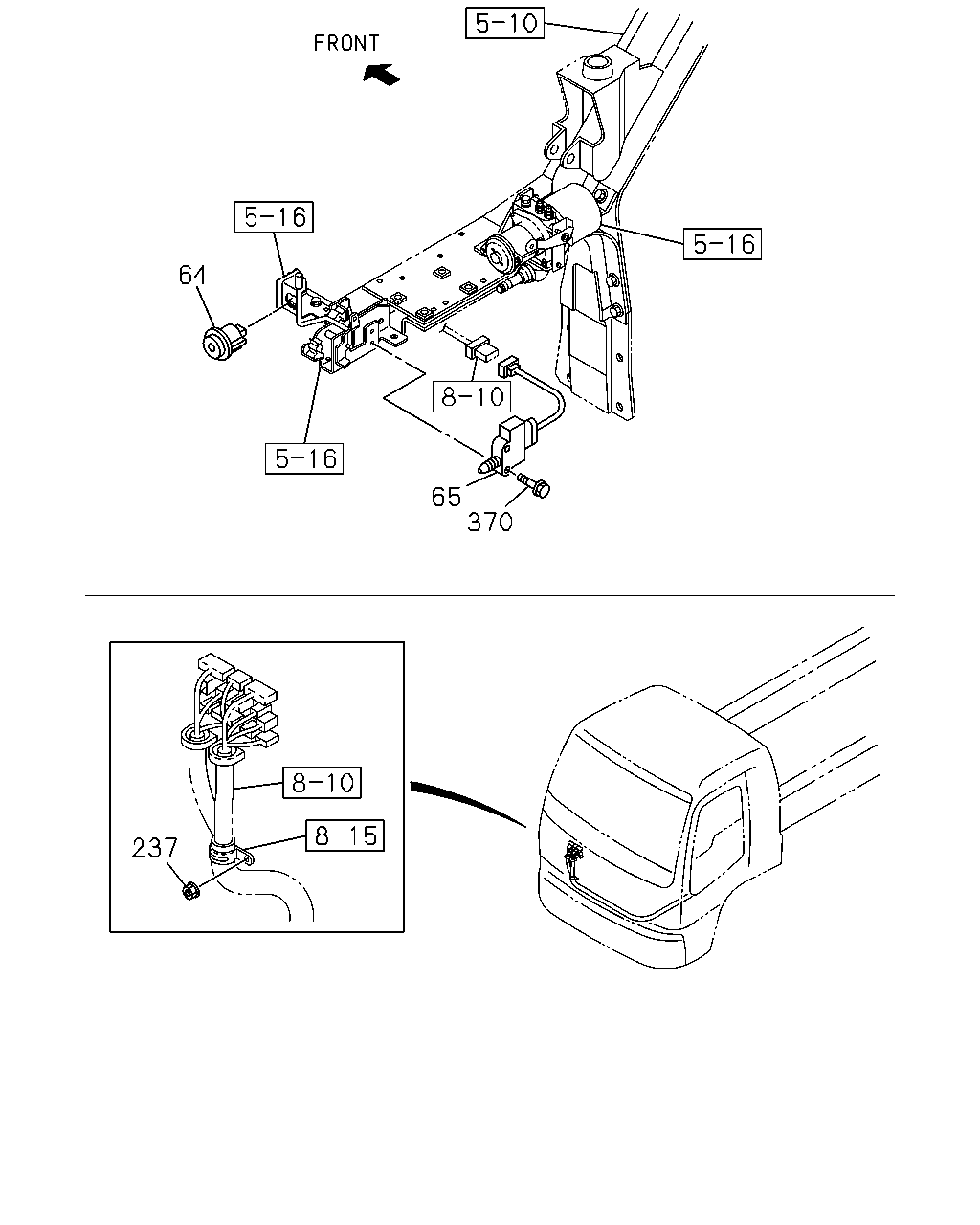

64
65
370
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
64
SWITCH; CAB TILT MAIN
AUTO CAB TILT<WV2>
1-82380-173-2
01
1
1302-
●
●
65
SWITCH; CAB TILT LK
AUTO CAB TILT<WV2> STAMP NO
1-82380-172-1
01
1
1302-
●
●
237
NUT
M8 FLANGE THA
0-91180-108-0
04
1
1302-
●
●
370
BOLT; SW
AUTO CAB TILT<WV2> M6X30 FLANGE THA
0-28650-630-0
02
1
1302-
●
●

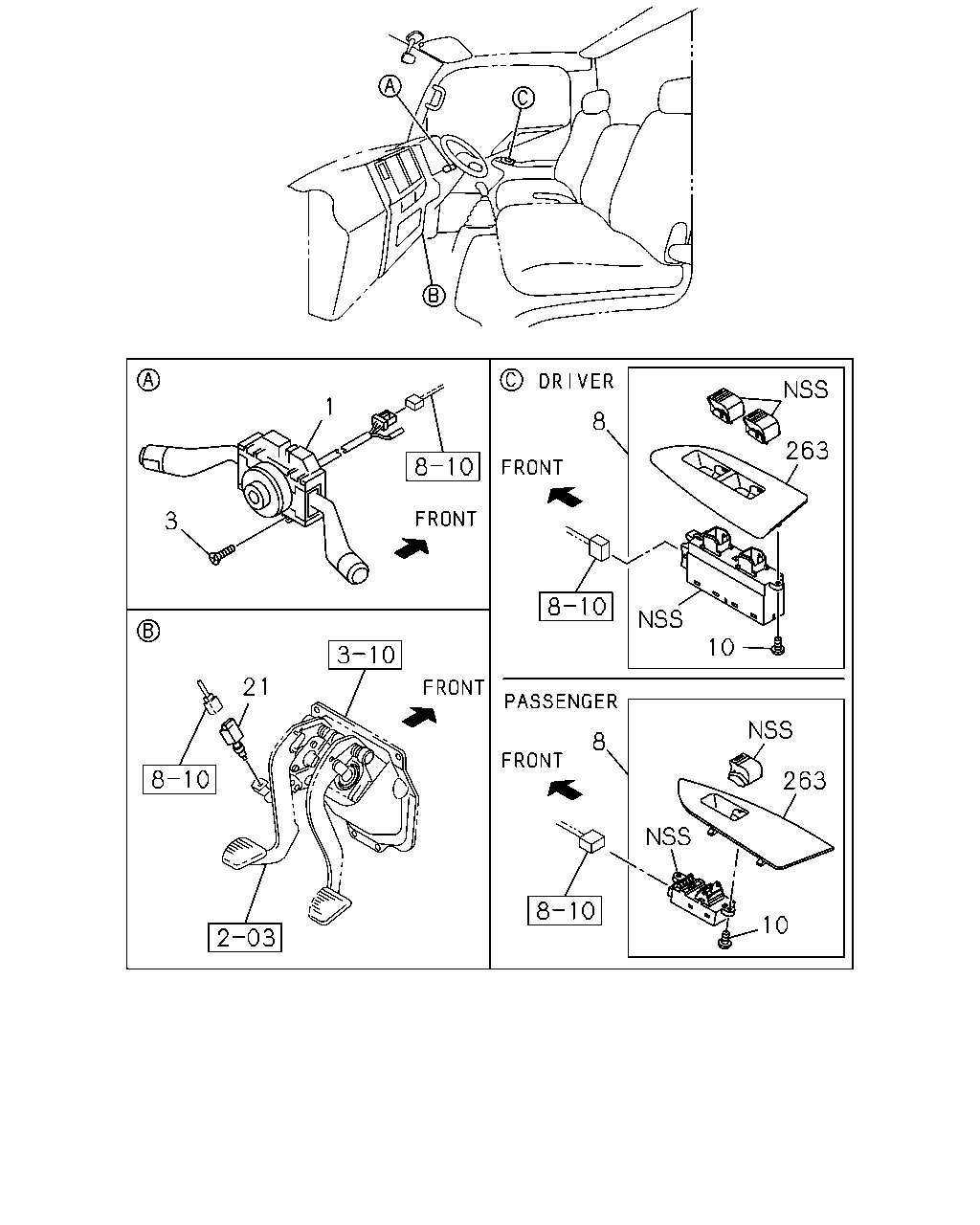

1
3
21
8
8
263
10
263
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
8-98060-302-1
01
1
1302-1310
●
●
1
SWITCH; COMB
8-98243-704-0
01
1
1311-
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1302-
●
●
8
SWITCH; POWER WINDOW
PASSENGER THA
8-97387-034-2
01
1
1302-
●
8
SWITCH; POWER WINDOW
DRIVER
8-98159-543-0
01
1
1302-
●
10
SCREW; POWER WINDOW SW
THA
8-98153-865-0
03
1
1302-
●
21
SWITCH; CLU
PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5>
8-94337-761-0
01
1
1302-
●
21
SWITCH; CLU
PTO ZF TRANS RR<BDM>
8-94337-761-0
01
1
1302-
●
21
SWITCH; CLU
EXC. PTO ZF TRANS RR<BDM>,TRANSMISSION SIDE PTO WO/LEVER<SH5>
8-97358-248-0
01
1
1302-
●
21
SWITCH; CLU
EXC. PTO ZF TRANS RR<BDM>
8-97358-248-0
01
1
1302-
●
263
COVER; SW
DRIVER
8-98153-836-0
01
1
1302-
●
263
COVER; SW
PASSENGER THA
8-98153-841-0
01
1
1302-
●
524
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
164
RELAY; A/C COMPRESSOR
(A) 24V 10A MATSUSHITA
8-97173-035-1
01
1
1302-
●
●
164
RELAY; A/C COMPRESSOR
(B) 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
1302-
●
●
524
RELAY; LAMP
WORKING LAMP 24V 30A JIDECO
8-97238-540-0
01
1
1302-1402
●
524
RELAY; LAMP
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
●

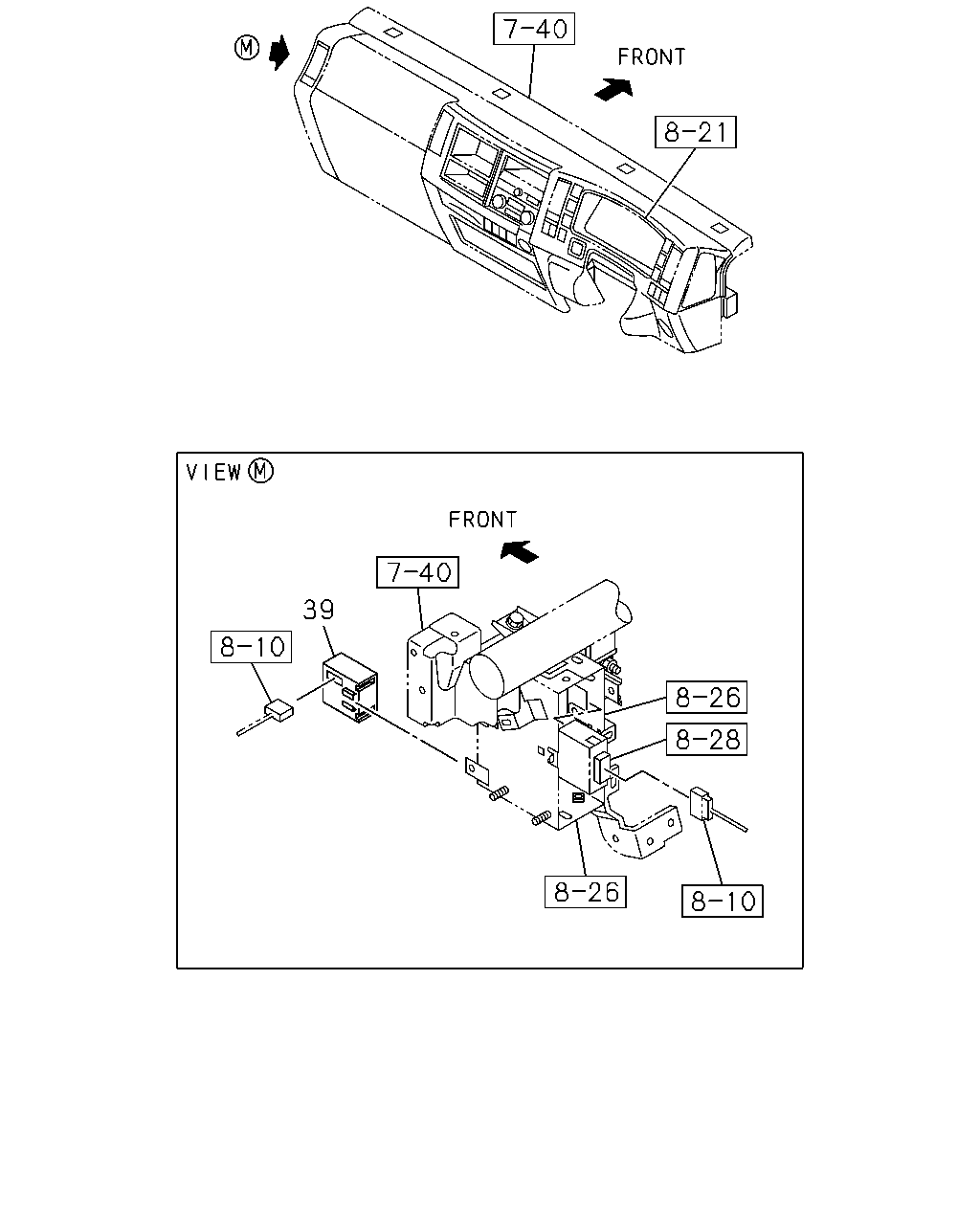

39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
RELAY; DOOR LK
8-98060-789-0
01
1
1302-
●
