◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51477 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#117625) — 40 parça
çizim 344379
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1304- ● ● ● ●

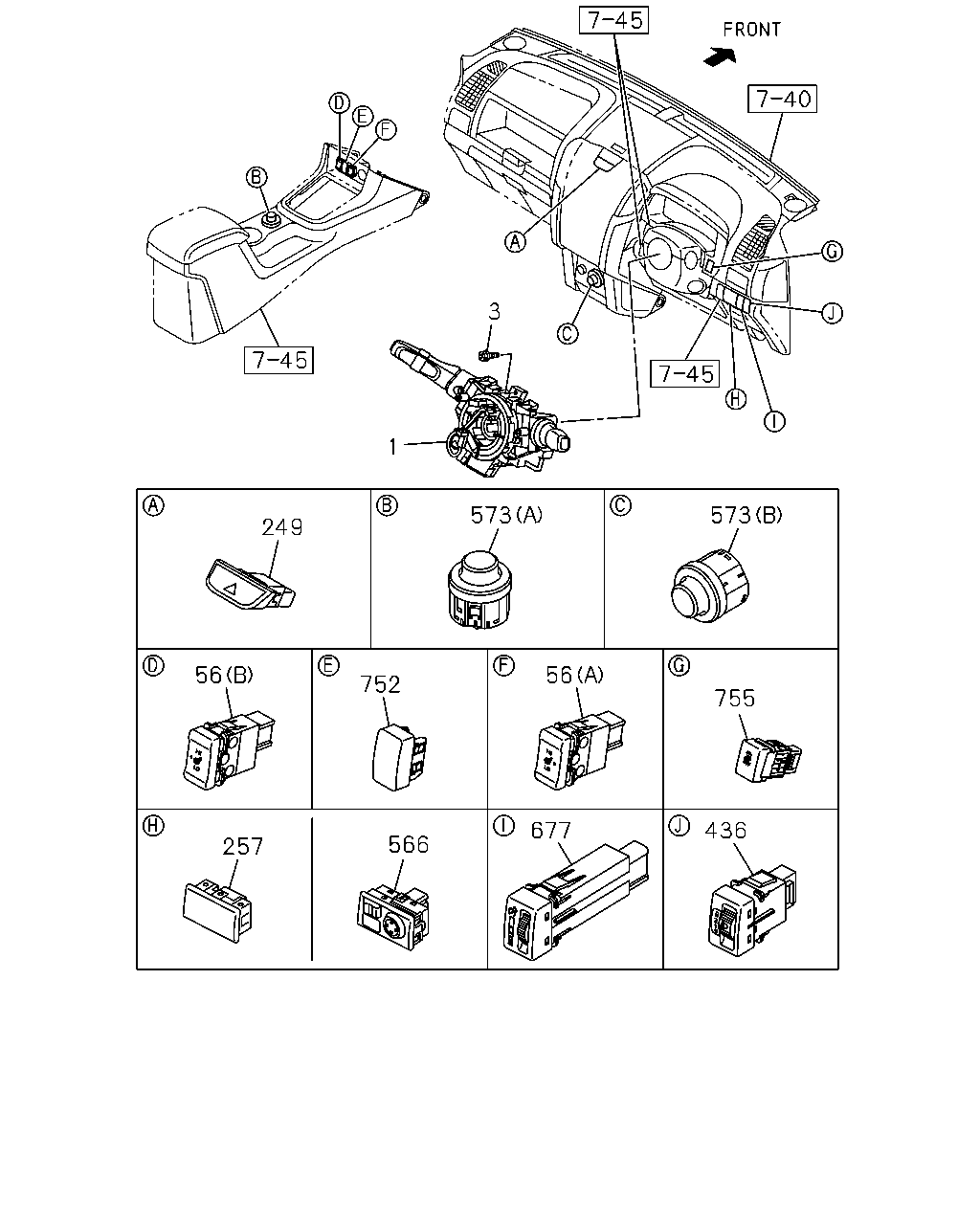

çizim 344401
3 1 249 573 573 755 56 752 566 677 436 257 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98194-150-1 01 1 1304- ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-143-1 01 1 1304- ● ● ● ●
1 02.895 SWITCH; COMB 8-98194-143-1 01 1 1304- ● ●
3 02.897 SCREW; COMB SW
09.744 M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1304- ● ● ● ● ● ●
56 08.840 SWITCH; SEAT HTR
HEATER FRT SEAT<KA1> (A) 		8-98147-380-1 01 1 1304- ● ● ● ●
56 08.840 SWITCH; SEAT HTR
HEATER FRT SEAT<KA1> (B) 		8-98158-214-1 01 1 1304- ● ● ● ●
249 02.485 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1304- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
DOOR MIRROR<RT9> 		8-98106-389-2 01 1 1304- ● ● ● ●
257 16.081 COVER; HOLE,SW 8-98106-389-2 01 1 1304- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98187-211-1 01 1 1304- ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98187-212-1 01 1 1304- ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-98187-212-1 01 1 1304- ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98058-078-1 01 1 1304- ● ● ● ●
573 09.755 SWITCH; 4WD
FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1304- ●
573 09.755 SWITCH; 4WD
(A) 		8-98065-836-2 01 1 1304- ●
573 09.755 SWITCH; 4WD
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1304- ●
573 09.755 SWITCH; 4WD
EXC. FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1304- ●
573 09.755 SWITCH; 4WD
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1304- ●
677 02.485 SWITCH; ILLUMINATION 8-98058-084-2 01 1 1304- ● ● ● ● ● ●
752 08.840 COVER; SEAT HTR
HEATER FRT SEAT<KA1> 		8-98141-215-1 01 1 1304- ● ● ● ●
755 03.883 SWITCH; ESC OFF 8-98058-081-1 01 1 1304- ● ● ● ● ● ●
çizim 344444
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1304- ● ● ● ●

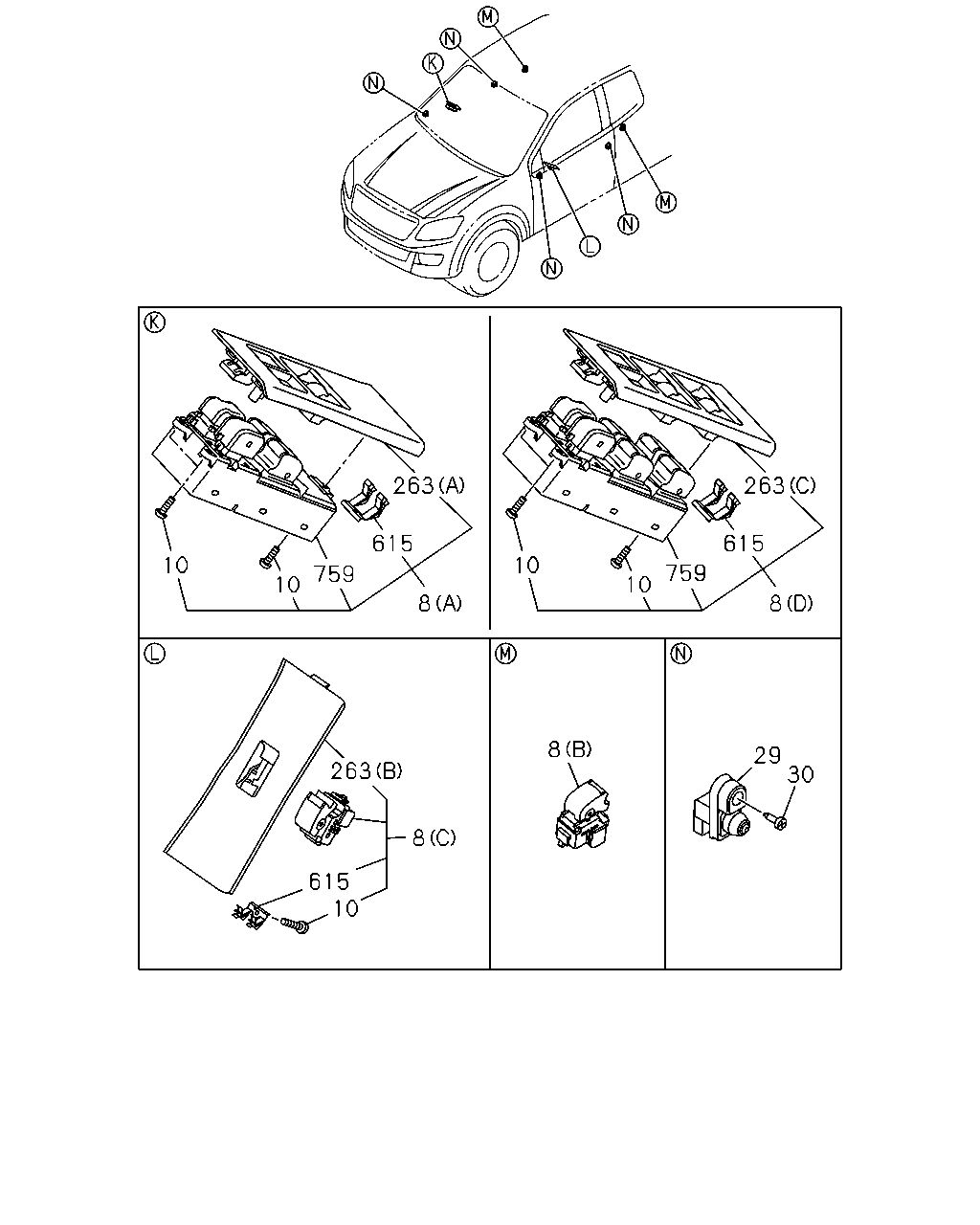

çizim 344511
10 10 759 615 263 8 263 615 10 8 8 29 30 10 10 759 615 263 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (C) BLACK 		8-97416-810-0 01 1 1304- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK 		8-97416-734-0 01 1 1304- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK 		8-97416-975-0 01 1 1304- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (B) BLACK 		8-97417-004-0 02 1 1304- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-450-0 03 1 1304- ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-450-0 01 1 1304- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1304- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1304- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1304- ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1304- ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ> (B) 		8-98192-247-0 01 1 1304- ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ> (A) 		8-98192-243-0 01 1 1304- ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ> (C) 		8-98192-244-0 01 1 1304- ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-268-0 01 1 1304- ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-268-0 01 1 1304- ● ● ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-249-0 01 1 1304- ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-251-0 01 1 1304- ● ●
