◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#11762) — 18 parça

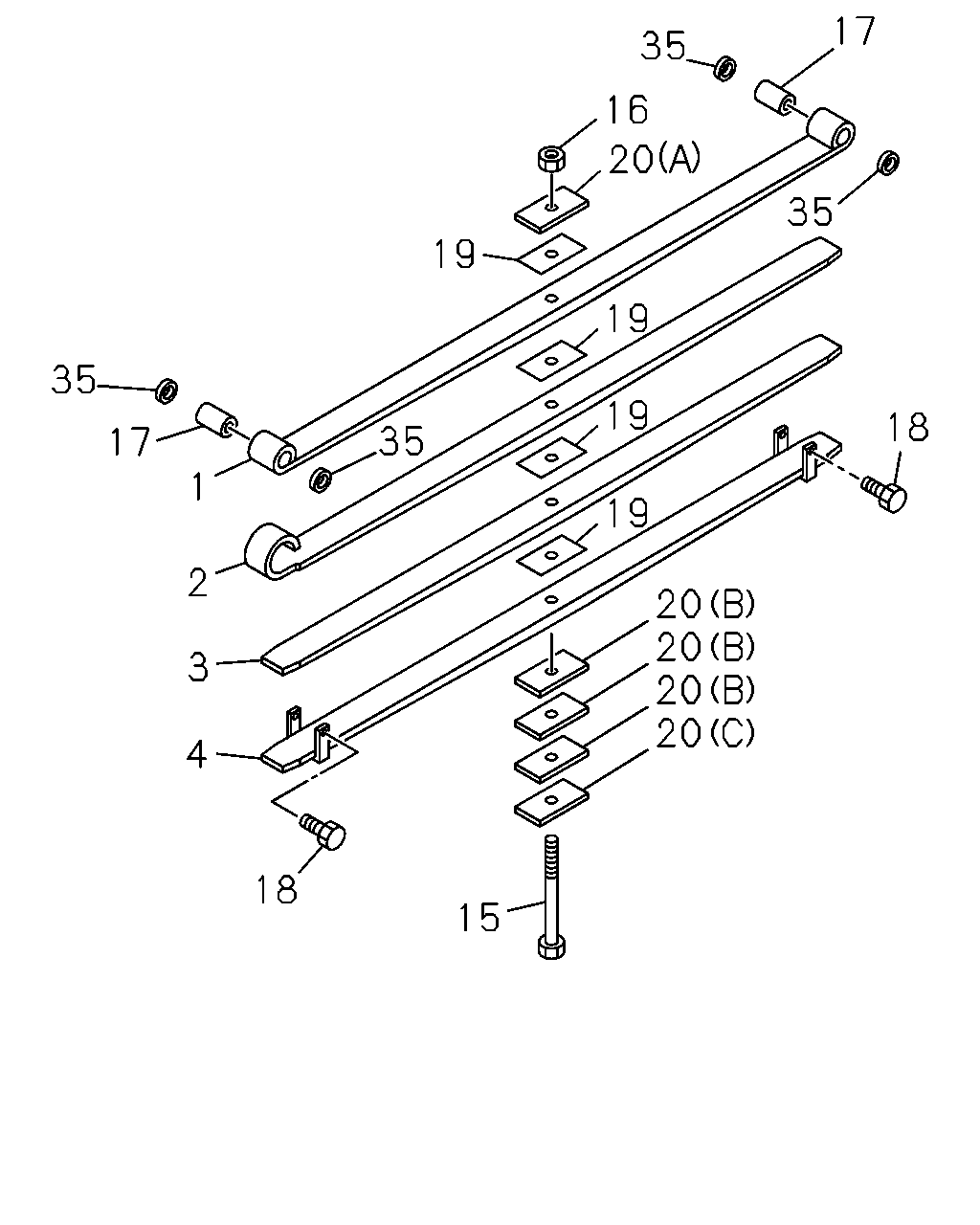

çizim 75530
17 35 16 20 35 19 19 35 17 19 18 35 1 19 2 20 20 20 20 3 4 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-597-0 		1-51131-597-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51130-801-0 		1-51131-801-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-597-0 		1-51132-597-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51130-801-0 		1-51132-801-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-597-0 		1-51133-597-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51130-801-0 		1-51133-801-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
W/CLIP ASM PART: A = 1-51130-597-0 		1-51134-597-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
W/CLIP ASM PART: B = 1-51130-801-0 		1-51134-801-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150 ASM PART: A = 1-51130-597-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=155 ASM PART: B = 1-51130-801-0 		1-51156-336-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-597-0, B = 1-51130-801-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-597-0, B = 1-51130-801-0 		1-51351-036-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-597-0, B = 1-51130-801-0 		1-09000-328-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-597-0, B = 1-51130-801-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: A = 1-51130-597-0, B = 1-51130-801-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 1-51130-597-0, B = 1-51130-801-0 		1-51177-114-0 03 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: A = 1-51130-597-0 		1-51177-161-0 01 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-597-0, B = 1-51130-801-0 		1-51177-321-0 04 1 -
