Sayfa 8-15 - Isuzu EPC

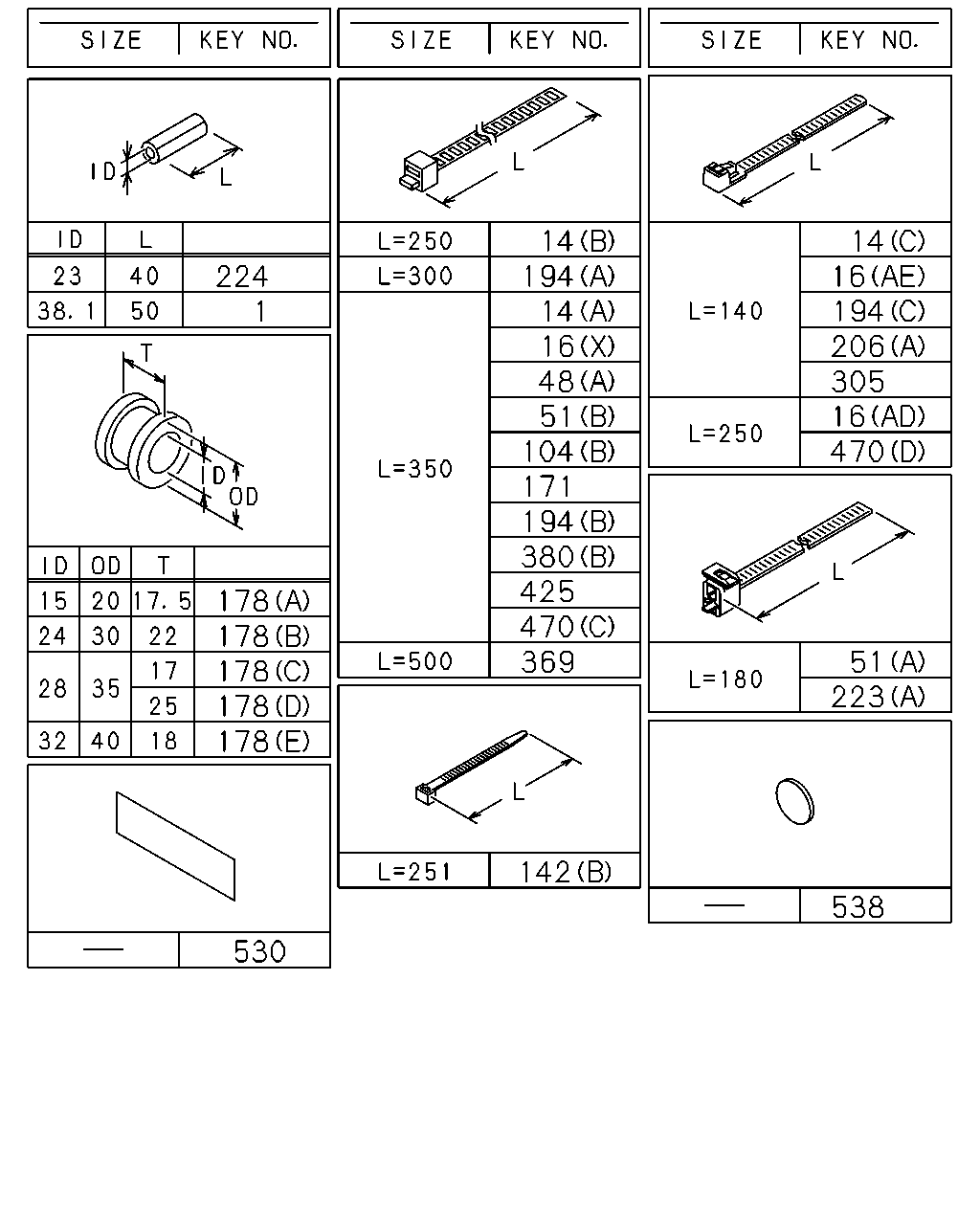

8-15 — FIXING PARTS; WIRING HARNESS (#117619) — 440 parça

224 1 178 178 178 178 178 530 14 194 14 16 48 51 104 171 194 380 425 470 369 142 14 16 194 206 305 16 470 51 223 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1304-
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=250	1-09707-126-0	02	1	1304-
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	04	1	1304-
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) L=140	5-09707-031-1	01	1	1304-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250	5-09707-030-1	04	1	1304-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AO) ID=11 L=28	0-95235-055-0	01	1	1304-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1304-
16	CLIP; HARNESS (I) ID=11 L=24	0-95235-045-0	01	1	1304-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (R) ID=16 L=28	0-95235-556-0	01	1	1304-
16	CLIP; HARNESS (G) ID=12 H=24 L=20	1-09700-605-0	01	1	1304-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) SINGAPORE EQUIPMENT(WQ3) (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-
16	CLIP; HARNESS (J) ID=35 L=33	1-09700-945-0	01	1	1304-
16	CLIP; HARNESS (L) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) SINGAPORE EQUIPMENT(WQ3) (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (N) ID=18 L=40	1-09701-111-0	01	1	1304-
16	CLIP; HARNESS (P) ID=16 L=50	1-09701-158-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (D) W/SPONGE RUBBER	1-09709-150-0	01	1	1304-
16	CLIP; HARNESS (E) ID=10 & 15	1-09709-279-1	01	1	1304-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	04	1	1304-1311
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1312-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1304-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS (Q) ID=18 L=48	9-09917-429-0	01	1	1304-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AK) L=175	1-09707-176-1	01	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	01	1	1304-1311
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1312-
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	04	1	1304-1311
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	03	1	1312-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AL) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AL) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AN) ID=11 L=60	0-95235-096-0	02	1	1304-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=60	0-95235-596-0	02	1	1304-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1304-
48	CLIP; FRAME HARNESS (B) ID=13-18 L=22	1-09709-292-0	01	1	1304-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1304-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1304-1410
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13-18 L=18	1-09709-291-0	01	1	1304-1410
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-
142	CLIP; HARNESS,ENG (A) L=170.3	8-97209-720-0	01	1	1304-
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1304-
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	02	1	1304-
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1304-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	1304-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1304-
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	02	1	1304-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1304-
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25	1-09332-011-1	03	1	1304-
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1304-
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1304-
194	CLIP; BAND (C) L=140	5-09707-031-1	02	1	1304-
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1304-
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1304-
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1304-
223	CLIP; AIR TANK HARNESS (B) ID=11 L=58	9-09917-135-2	01	1	1304-
224	SLEEVE; RUBBER,HARNESS ID=23 OD=27 L=40	1-09337-015-0	01	1	1304-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1304-
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1304-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1304-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	1304-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) L=350	1-09707-183-0	04	1	1304-
470	CLIP; HARNESS,LICENSE LAMP (D) L=250	5-09707-030-1	04	1	1304-1309
470	CLIP; HARNESS,LICENSE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250	5-09707-030-1	04	1	1310-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41	1-09700-403-0	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6	1-09709-178-0	01	1	1304-
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1304-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1304-

16 16 16 16 16 16 16 16 16 104 16 16 16 48 16 16 373 16 16 16 306 16 380 16 470 16 213 16 16 213 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250	5-09707-030-1	04	1	1304-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AO) ID=11 L=28	0-95235-055-0	01	1	1304-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1304-
16	CLIP; HARNESS (I) ID=11 L=24	0-95235-045-0	01	1	1304-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (R) ID=16 L=28	0-95235-556-0	01	1	1304-
16	CLIP; HARNESS (G) ID=12 H=24 L=20	1-09700-605-0	01	1	1304-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) SINGAPORE EQUIPMENT(WQ3) (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-
16	CLIP; HARNESS (J) ID=35 L=33	1-09700-945-0	01	1	1304-
16	CLIP; HARNESS (L) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) SINGAPORE EQUIPMENT(WQ3) (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (N) ID=18 L=40	1-09701-111-0	01	1	1304-
16	CLIP; HARNESS (P) ID=16 L=50	1-09701-158-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (D) W/SPONGE RUBBER	1-09709-150-0	01	1	1304-
16	CLIP; HARNESS (E) ID=10 & 15	1-09709-279-1	01	1	1304-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	04	1	1304-1311
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1312-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1304-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS (Q) ID=18 L=48	9-09917-429-0	01	1	1304-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AK) L=175	1-09707-176-1	01	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	01	1	1304-1311
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1312-
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	04	1	1304-1311
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	03	1	1312-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AL) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AL) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AN) ID=11 L=60	0-95235-096-0	02	1	1304-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=60	0-95235-596-0	02	1	1304-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1304-
48	CLIP; FRAME HARNESS (B) ID=13-18 L=22	1-09709-292-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-
213	CLIP; END CROSS HARNESS (C) ID=20 L=50	9-09917-430-0	04	1	1304-1309
213	CLIP; END CROSS HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=20 L=50	9-09917-430-0	04	1	1310-
213	CLIP; END CROSS HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=13-18 L=18	1-09709-291-0	01	1	1304-
213	CLIP; END CROSS HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) ID=14 L=44	9-09917-427-0	02	1	1304-
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1304-
223	CLIP; AIR TANK HARNESS (B) ID=11 L=58	9-09917-135-2	01	1	1304-
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1304-
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1304-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1304-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	1304-
470	CLIP; HARNESS,LICENSE LAMP (D) L=250	5-09707-030-1	04	1	1304-1309
470	CLIP; HARNESS,LICENSE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250	5-09707-030-1	04	1	1310-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41	1-09700-403-0	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6	1-09709-178-0	01	1	1304-

16 16 16 16 16 116 16 16 16 421 48 16 213 51 16 104 16 104 470 162 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250	5-09707-030-1	04	1	1304-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AO) ID=11 L=28	0-95235-055-0	01	1	1304-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1304-
16	CLIP; HARNESS (I) ID=11 L=24	0-95235-045-0	01	1	1304-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (R) ID=16 L=28	0-95235-556-0	01	1	1304-
16	CLIP; HARNESS (G) ID=12 H=24 L=20	1-09700-605-0	01	1	1304-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) SINGAPORE EQUIPMENT(WQ3) (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-
16	CLIP; HARNESS (J) ID=35 L=33	1-09700-945-0	01	1	1304-
16	CLIP; HARNESS (L) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) SINGAPORE EQUIPMENT(WQ3) (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (N) ID=18 L=40	1-09701-111-0	01	1	1304-
16	CLIP; HARNESS (P) ID=16 L=50	1-09701-158-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (D) W/SPONGE RUBBER	1-09709-150-0	01	1	1304-
16	CLIP; HARNESS (E) ID=10 & 15	1-09709-279-1	01	1	1304-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	04	1	1304-1311
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1312-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1304-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS (Q) ID=18 L=48	9-09917-429-0	01	1	1304-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AK) L=175	1-09707-176-1	01	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	01	1	1304-1311
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1312-
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	04	1	1304-1311
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	03	1	1312-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AL) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AL) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AN) ID=11 L=60	0-95235-096-0	02	1	1304-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=60	0-95235-596-0	02	1	1304-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1304-
48	CLIP; FRAME HARNESS (B) ID=13-18 L=22	1-09709-292-0	01	1	1304-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1304-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1304-1410
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13-18 L=18	1-09709-291-0	01	1	1304-1410
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1304-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1304-
213	CLIP; END CROSS HARNESS (C) ID=20 L=50	9-09917-430-0	04	1	1304-1309
213	CLIP; END CROSS HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=20 L=50	9-09917-430-0	04	1	1310-
213	CLIP; END CROSS HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=13-18 L=18	1-09709-291-0	01	1	1304-
213	CLIP; END CROSS HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) ID=14 L=44	9-09917-427-0	02	1	1304-
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	1304-
470	CLIP; HARNESS,LICENSE LAMP (D) L=250	5-09707-030-1	04	1	1304-1309
470	CLIP; HARNESS,LICENSE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250	5-09707-030-1	04	1	1310-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41	1-09700-403-0	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6	1-09709-178-0	01	1	1304-

7 53 334 53 53 53 53 53 211 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1304-
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1304-1404
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1304-
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1304-
53	BRACKET; HARNESS (A)	1-47479-537-0	08	1	1304-
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1304-
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1304-
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1304-
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1304-
53	BRACKET; HARNESS (L)	8-98078-801-0	01	1	1304-
53	BRACKET; HARNESS (D)	8-98102-490-0	01	1	1304-
53	BRACKET; HARNESS (I)	8-98124-778-0	01	1	1304-
53	BRACKET; HARNESS (C)	8-98127-603-1	01	1	1304-
53	BRACKET; HARNESS (B)	8-98178-990-0	01	1	1304-
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) L=95	1-82699-085-0	02	1	1304-
334	BRACKET	1-47479-537-0	01	1	1304-

16 142 142 16 16 16 206 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250	5-09707-030-1	04	1	1304-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AO) ID=11 L=28	0-95235-055-0	01	1	1304-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1304-
16	CLIP; HARNESS (I) ID=11 L=24	0-95235-045-0	01	1	1304-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (R) ID=16 L=28	0-95235-556-0	01	1	1304-
16	CLIP; HARNESS (G) ID=12 H=24 L=20	1-09700-605-0	01	1	1304-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) SINGAPORE EQUIPMENT(WQ3) (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-
16	CLIP; HARNESS (J) ID=35 L=33	1-09700-945-0	01	1	1304-
16	CLIP; HARNESS (L) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) SINGAPORE EQUIPMENT(WQ3) (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (N) ID=18 L=40	1-09701-111-0	01	1	1304-
16	CLIP; HARNESS (P) ID=16 L=50	1-09701-158-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-1309
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1310-
16	CLIP; HARNESS (D) W/SPONGE RUBBER	1-09709-150-0	01	1	1304-
16	CLIP; HARNESS (E) ID=10 & 15	1-09709-279-1	01	1	1304-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	04	1	1304-1311
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1312-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-
16	CLIP; HARNESS (Y) ID=13-18 L=22	1-09709-292-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1304-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS (Q) ID=18 L=48	9-09917-429-0	01	1	1304-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AK) L=175	1-09707-176-1	01	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	01	1	1304-1311
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1312-
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	04	1	1304-1311
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	03	1	1312-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AM) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AM) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AL) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AL) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS SHIFT PATTERN DOUBLE-H<EDZ> (AN) ID=11 L=60	0-95235-096-0	02	1	1304-
16	CLIP; HARNESS SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=60	0-95235-596-0	02	1	1304-
142	CLIP; HARNESS,ENG (A) L=170.3	8-97209-720-0	01	1	1304-
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1304-
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	02	1	1304-
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1304-
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1304-

312 375 335 335 375 600 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
312	BRACKET; CLIP HARNESS L=120	8-97619-440-0	01	1	1304-
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1304-
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82698-167-0	01	1	1304-
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1304-
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1304-
375	BRACKET; AC GEN HARNESS CLIP (C)	8-98229-600-0	01	1	1304-
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1304-

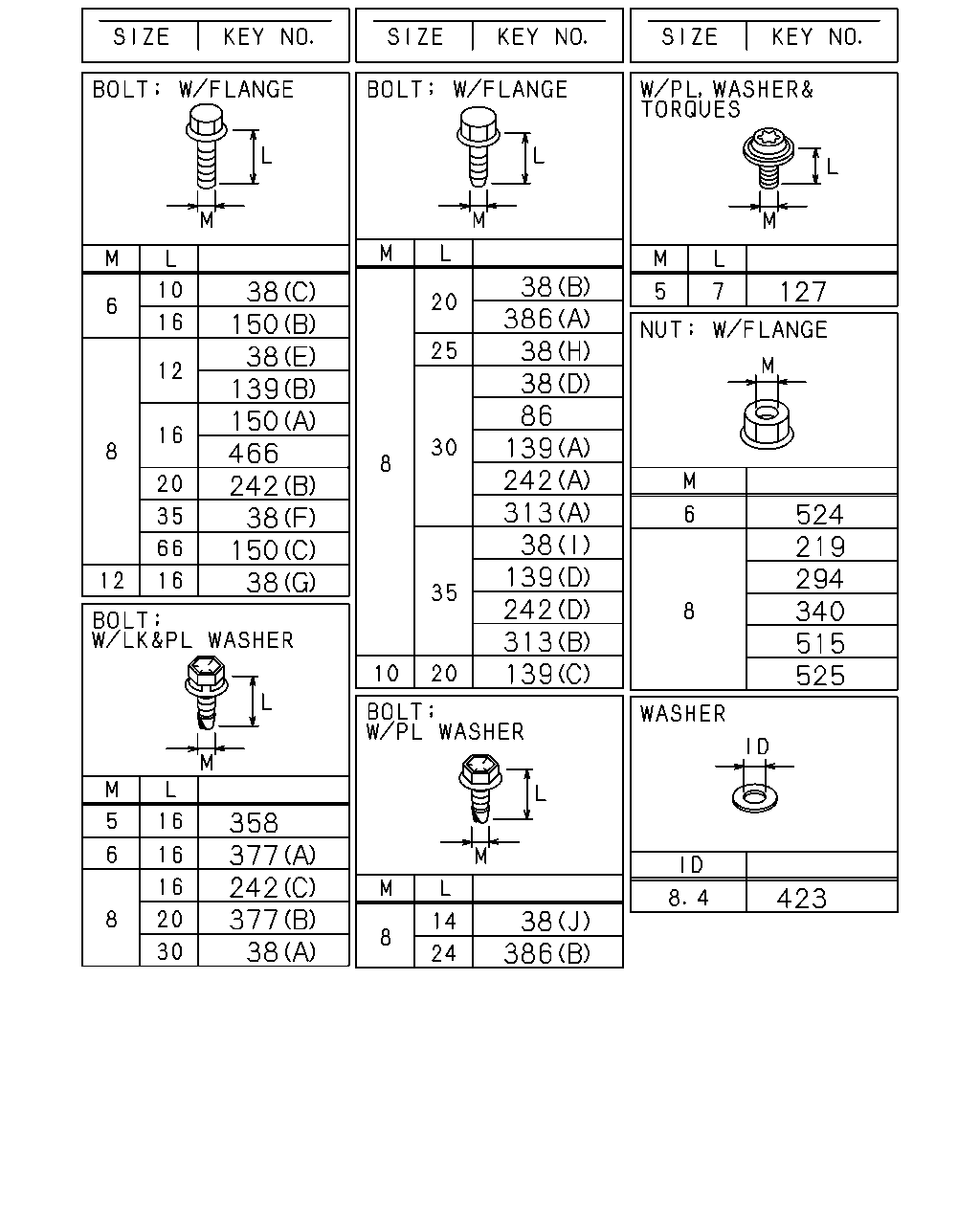

38 150 38 139 150 466 242 38 150 38 358 377 242 377 38 38 386 38 38 86 139 242 313 38 139 242 313 139 38 386 127 524 219 294 340 515 525 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	01	1	1305-
38	BOLT; CLIP,HARNESS (C) M6X10 FLANGE	0-28050-610-0	01	1	1304-
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28050-812-0	02	1	1304-
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	03	1	1304-
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1304-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	08	1	1304-
38	BOLT; CLIP,HARNESS (H) M8X25 FLANGE	0-28650-825-0	03	1	1304-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	05	1	1304-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1304-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1304-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1304-
38	BOLT; CLIP,HARNESS (I) M8X35 FLANGE	0-28650-835-0	02	1	1304-
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	03	1	1304-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1304-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1304-1309
38	BOLT; CLIP,HARNESS (A) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1310-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1304-
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	1304-
139	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	02	1	1304-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	08	1	1304-
139	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1304-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	01	1	1304-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	02	1	1304-
150	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	1304-
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	10	1	1304-
150	BOLT; CLIP (C) M8X66 FLANGE	8-98081-507-0	02	1	1304-
219	NUT M8 FLANGE	0-91180-108-0	08	1	1304-1304
219	NUT M8 FLANGE	0-91180-108-0	07	1	1305-
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-1309
219	NUT M8 FLANGE	0-91180-108-0	02	1	1310-
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1310-
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1304-1309
219	NUT M8 FLANGE	0-91180-108-0	01	1	1304-1309
219	NUT M8 FLANGE	0-91180-108-0	01	1	1304-1309
219	NUT M8 FLANGE	0-91180-108-0	01	1	1310-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1304-
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1304-
242	BOLT; BRKT,HARNESS (D) M8X35 FLANGE	0-28650-835-0	01	1	1304-
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1304-
294	NUT M8 FLANGE	0-91180-108-0	02	1	1304-1304
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-1304
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1305-
294	NUT M8 FLANGE	0-91180-108-0	06	1	1304-1304
294	NUT M8 FLANGE	0-91180-108-0	09	1	1305-
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1304-
294	NUT M8 FLANGE	0-91180-108-0	01	1	1304-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	07	1	1304-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1304-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	03	1	1304-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1304-
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1304-
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1304-
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1304-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1304-
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	1304-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1304-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1304-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
