◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11529 - GXR(RHD)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#117616) — 11 parça

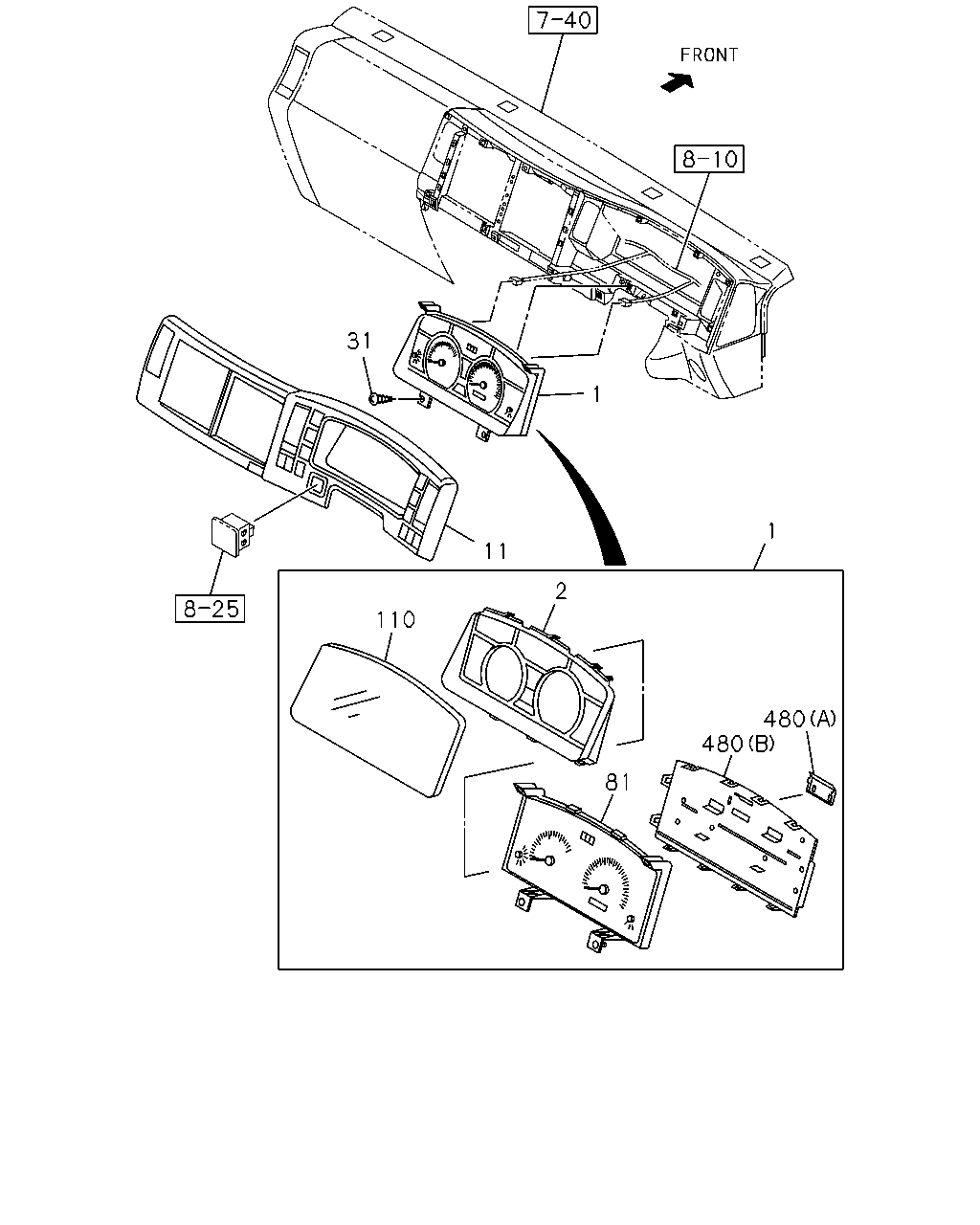

çizim 344463
480 480 81 2 110 11 1 31 1
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98232-913-0 01 1 1304-
1 METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-473-2 01 1 1304-
2 PANEL; CLUSTER
ENGINE OVERRUN BUZZER<SK4> 		8-98054-432-0 01 1 1304-
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1304-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1304-
81 METER SUB ASM
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98232-914-0 01 1 1304-
81 METER SUB ASM
ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-481-0 01 1 1304-
110 GLASS; CLUSTER METER
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1304-
110 GLASS; CLUSTER METER
ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1304-
480 COVER; METER
ENGINE OVERRUN BUZZER<SK4> (B) BLACK 		8-98054-433-0 01 1 1304-
480 COVER; METER
ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1304-
