◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#117615) — 13 parça

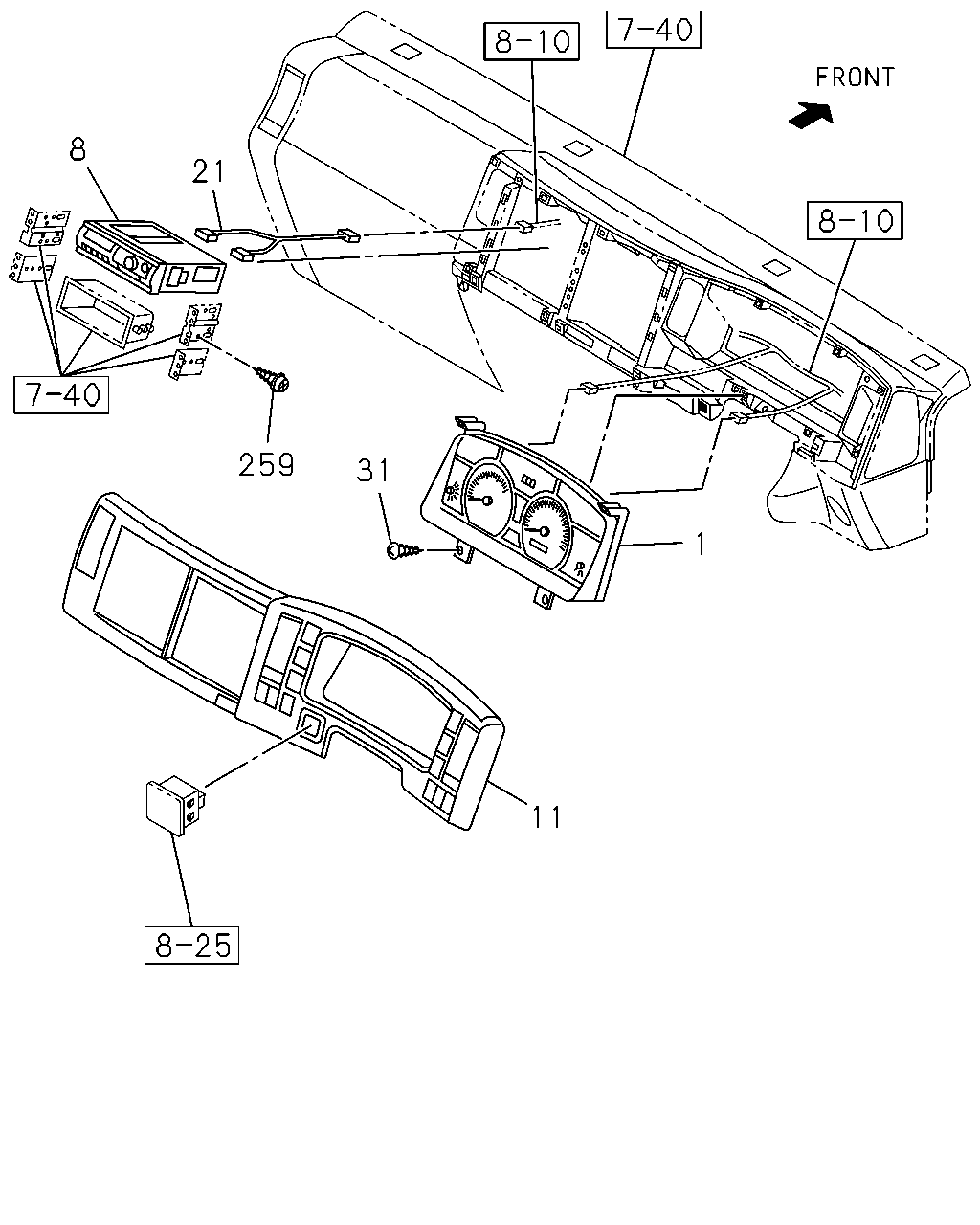

çizim 344464
8 259 11 1 31 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98179-473-2 01 1 1304- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1304- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1304- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1312- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1304- ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1304- ● ●

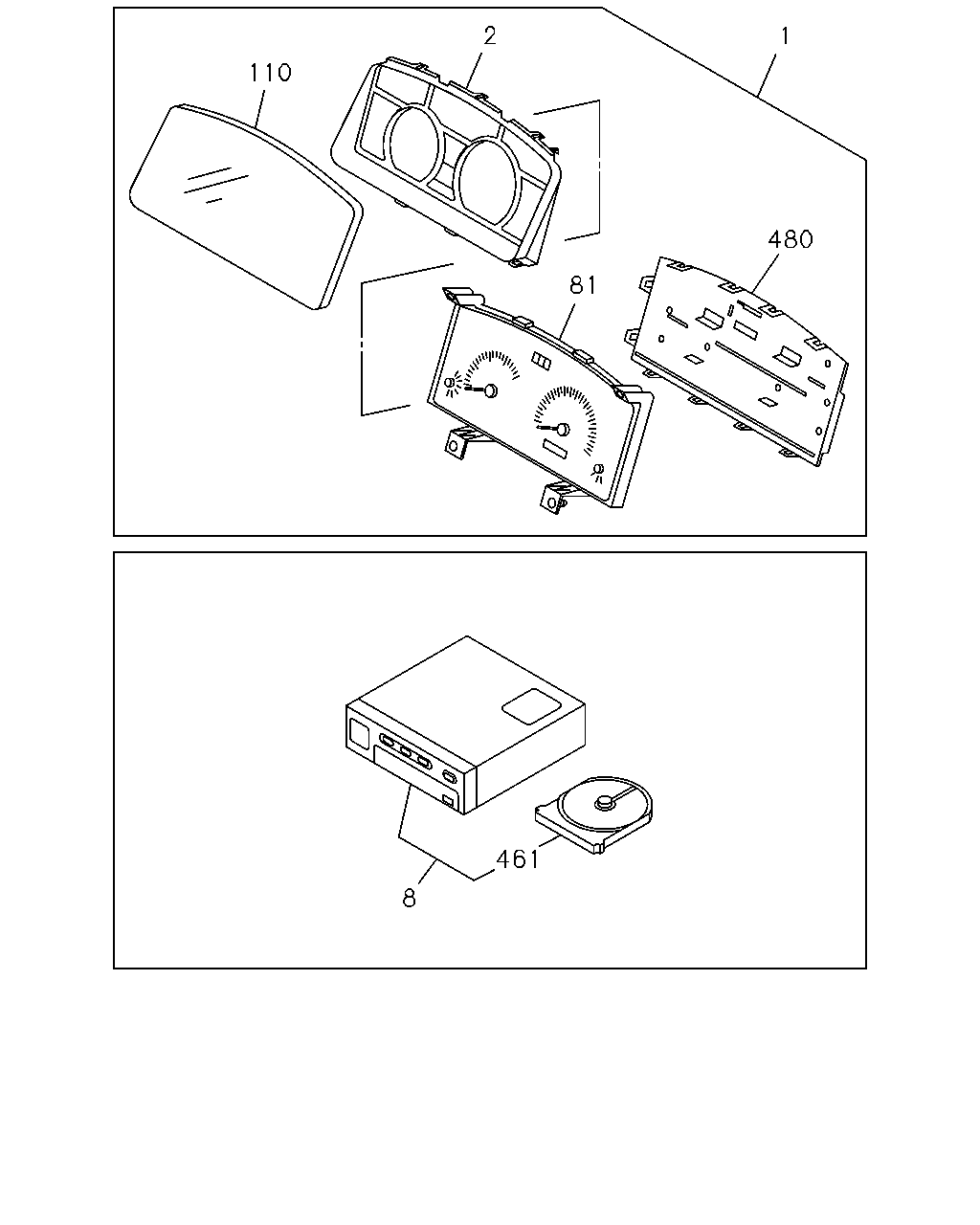

çizim 386054
1 480 81 2 110 461 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98179-473-2 01 1 1304- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1304- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1304- ● ●
81 METER SUB ASM 8-98179-481-0 01 1 1304- ● ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1304- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1304- ● ●
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1304- ● ●
