7-40 — INSTRUMENT PANEL AND BOX (#117611) — 116 parça

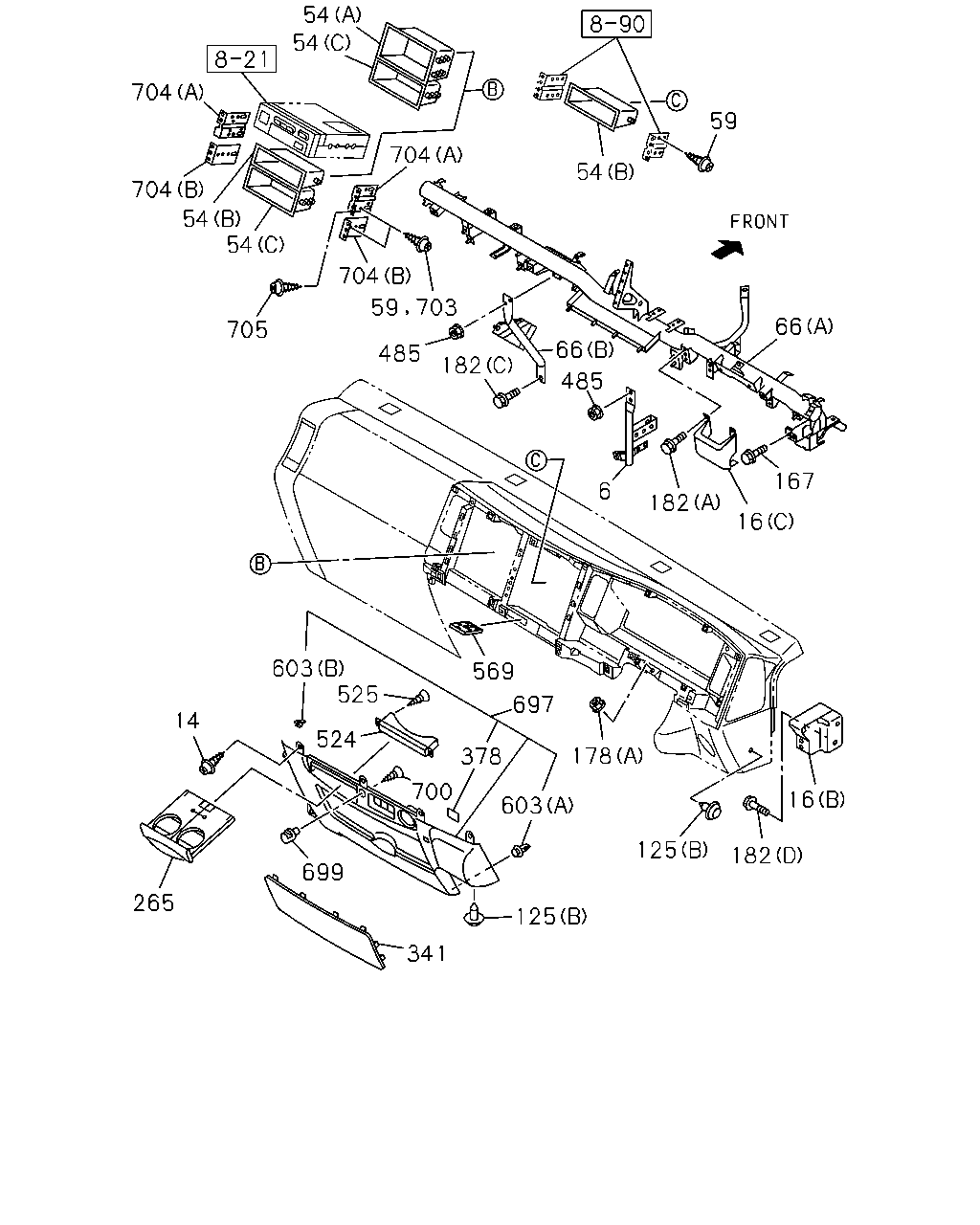

çizim 345182
341 125 699 265 14 603 525 524 700 378 603 182 125 16 178 697 569 16 182 6 485 66 182 167 66 59 54 54 54 704 704 54 54 705 704 704 59 703 485
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1304-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1304-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1304-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1304-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1304-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1304-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1304-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1304-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1304-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1304-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1304-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1304-
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1304-
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1304-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1304-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1304-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1304-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1304-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1304-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1304-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1304-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1304-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1304-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1304-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1304-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1304-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1304-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1304-
569 HOLDER; CARD 8-97410-276-1 01 1 1304-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1304-
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1304-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1304-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1304-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1304-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1304-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1304-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1304-

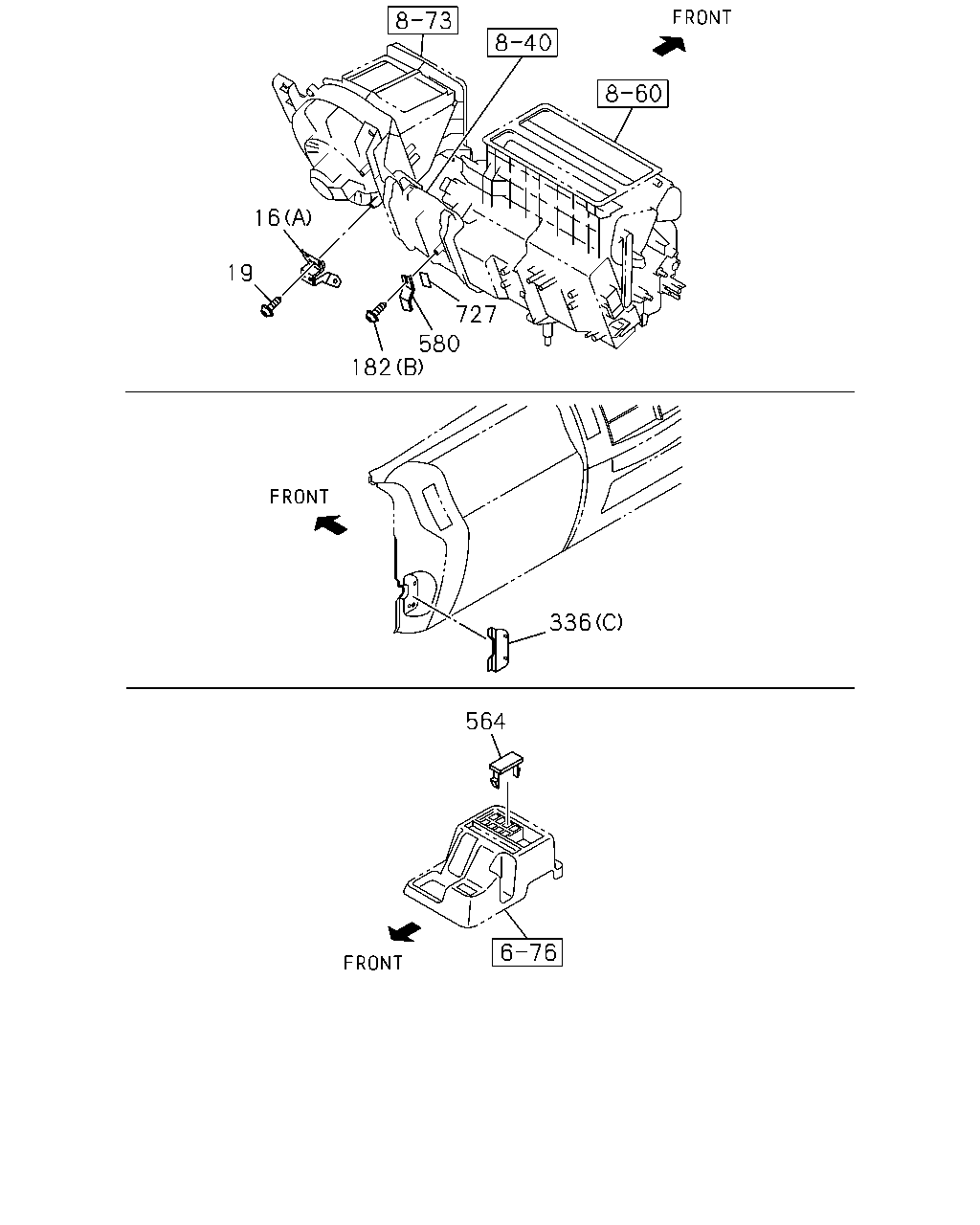

çizim 345665
16 19 727 580 182 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1304-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1304-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1304-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1304-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1304-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1304-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1304-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1304-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1304-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1304-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1304-
564 COVER; SW 8-97043-732-1 06 1 1304-
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98017-528-1 01 1 1304-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1304-

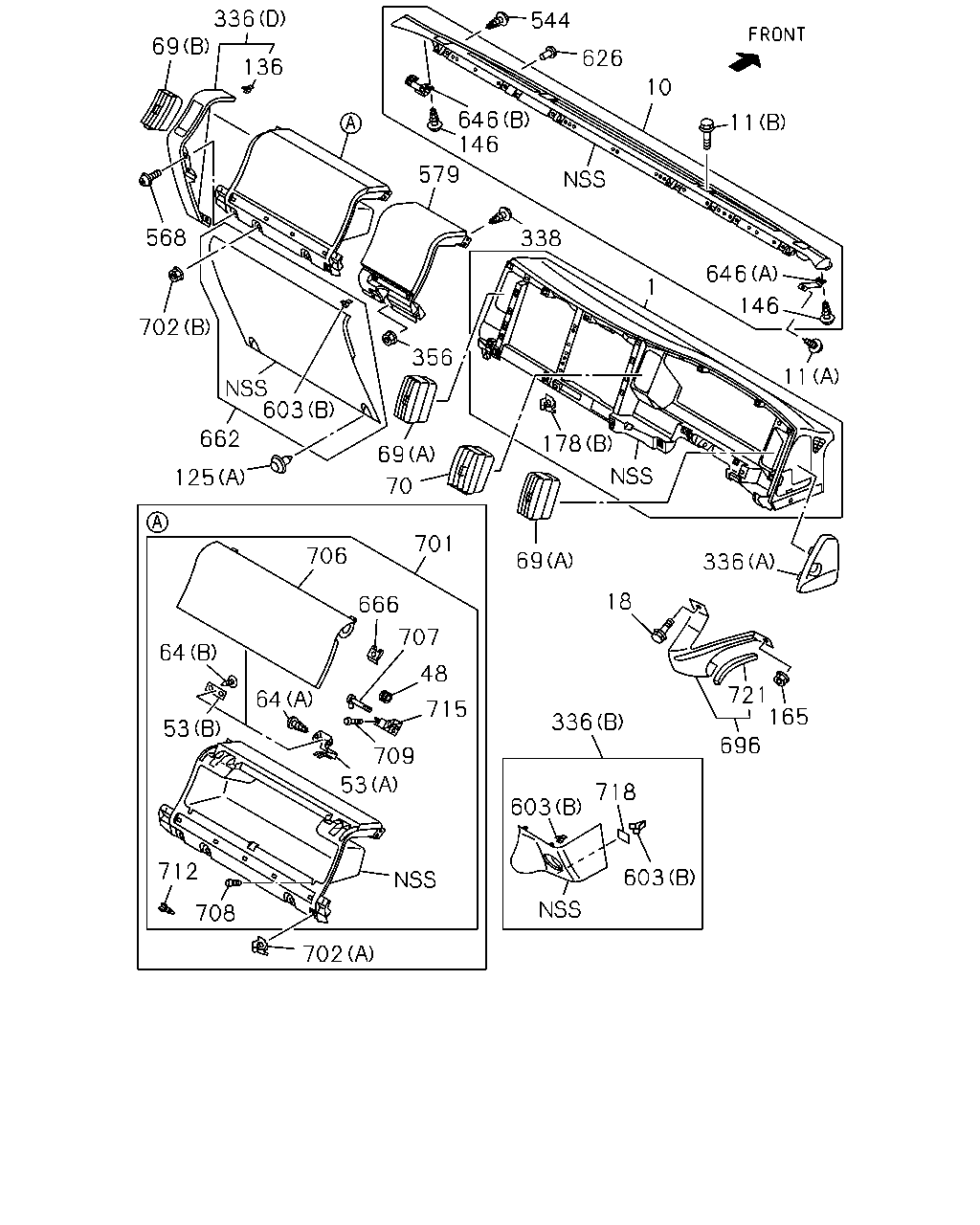

çizim 345839
11 146 646 11 10 626 544 646 146 579 338 1 178 336 69 18 721 165 696 336 718 603 603 701 70 69 356 603 702 568 69 336 136 662 125 706 666 707 48 715 709 53 64 64 53 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1304-
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1304-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1304-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1304-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1304-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1304-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1304-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1304-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1304-1405
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1304-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1304-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1304-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1304-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1304-
136 CLIP; INST COVER 8-98076-254-0 02 1 1304-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1304-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1304-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1304-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1304-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1304-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1304-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1304-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1304-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1304-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1304-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1304-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1304-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1304-
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1304-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1304-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1304-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1304-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1304-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1304-1311
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1304-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1304-1405
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1304-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1304-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1304-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1304-1311
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1304-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1304-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1304-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1304-1311
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1304-1311
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1304-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1304-
