Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#117610) — 517 parça

16 104 162 470 104 421 16 16 116 16 48 16 51 16 16 16 104 16 48 48 48 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

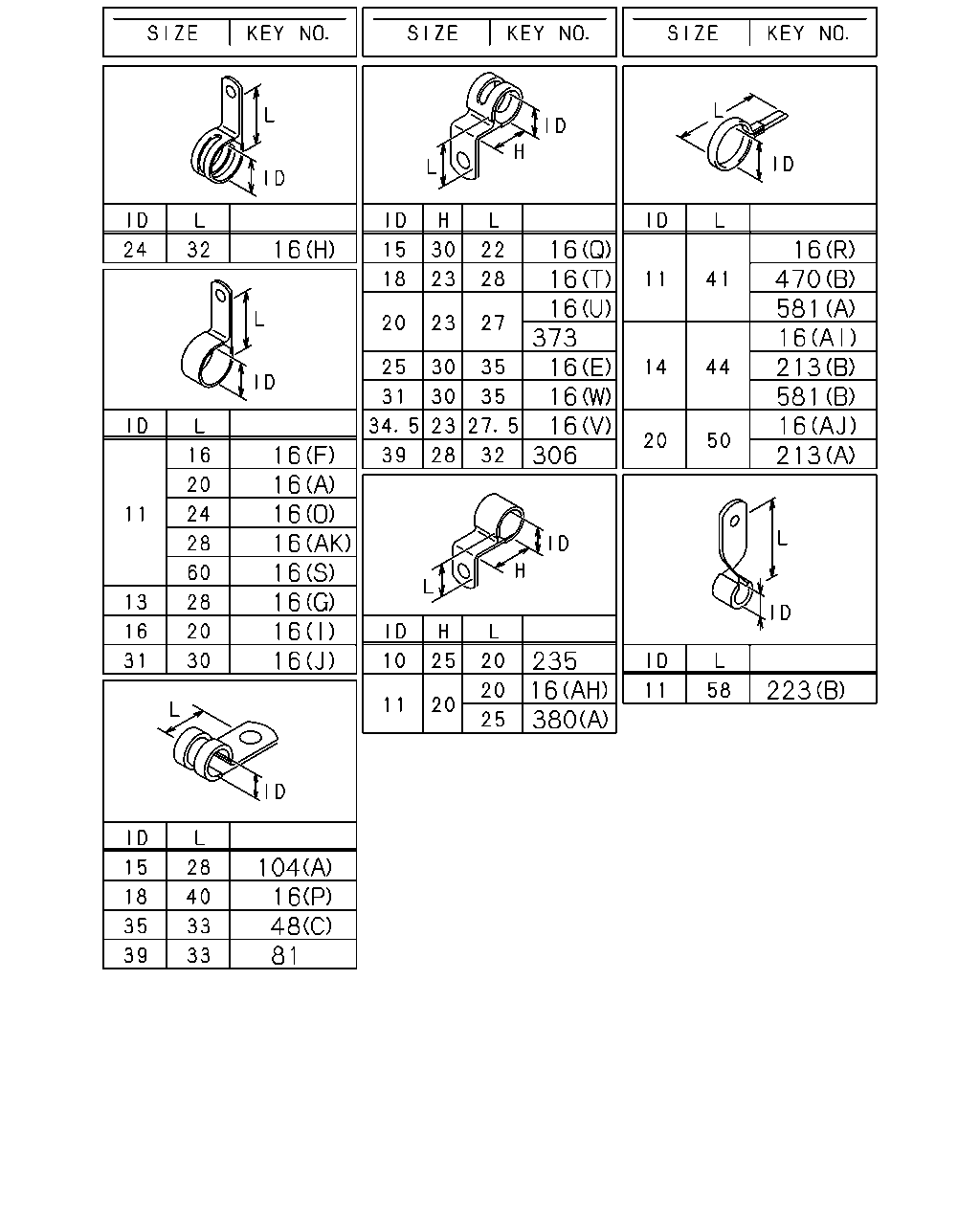

16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (AK) ID=11 L=28	0-95235-055-0	01	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-	●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-		●
16	CLIP; HARNESS FUEL TANK 200L RECTANGULAR<NH6> (E) ID=25 H=30 L=35	1-09700-875-0	01	1	1304-	●
16	CLIP; HARNESS EXC. FUEL TANK 200L RECTANGULAR<NH6> (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-		●
16	CLIP; HARNESS MJT7U M/T(Y4X) (G) ID=13 L=28	0-95235-255-0	01	1	1304-	●
16	CLIP; HARNESS MJT7U M/T(Y4X) (I) ID=16 L=20	0-95235-536-0	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (N) ID=5-12 L=26	1-09709-289-0	01	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	09	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	08	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1309-1309	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	03	1	1309-1311	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AD) L=250	5-09707-030-1	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	07	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=18-24 L=18	1-09709-294-0	16	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	16	1	1304-	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1304-	●	●
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1304-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1304-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1304-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-	●	●
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1304-	●	●
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1304-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1304-	●	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (X) L=350	1-09707-183-0	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (X) L=350	1-09707-183-0	02	1	1304-	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-	●	●

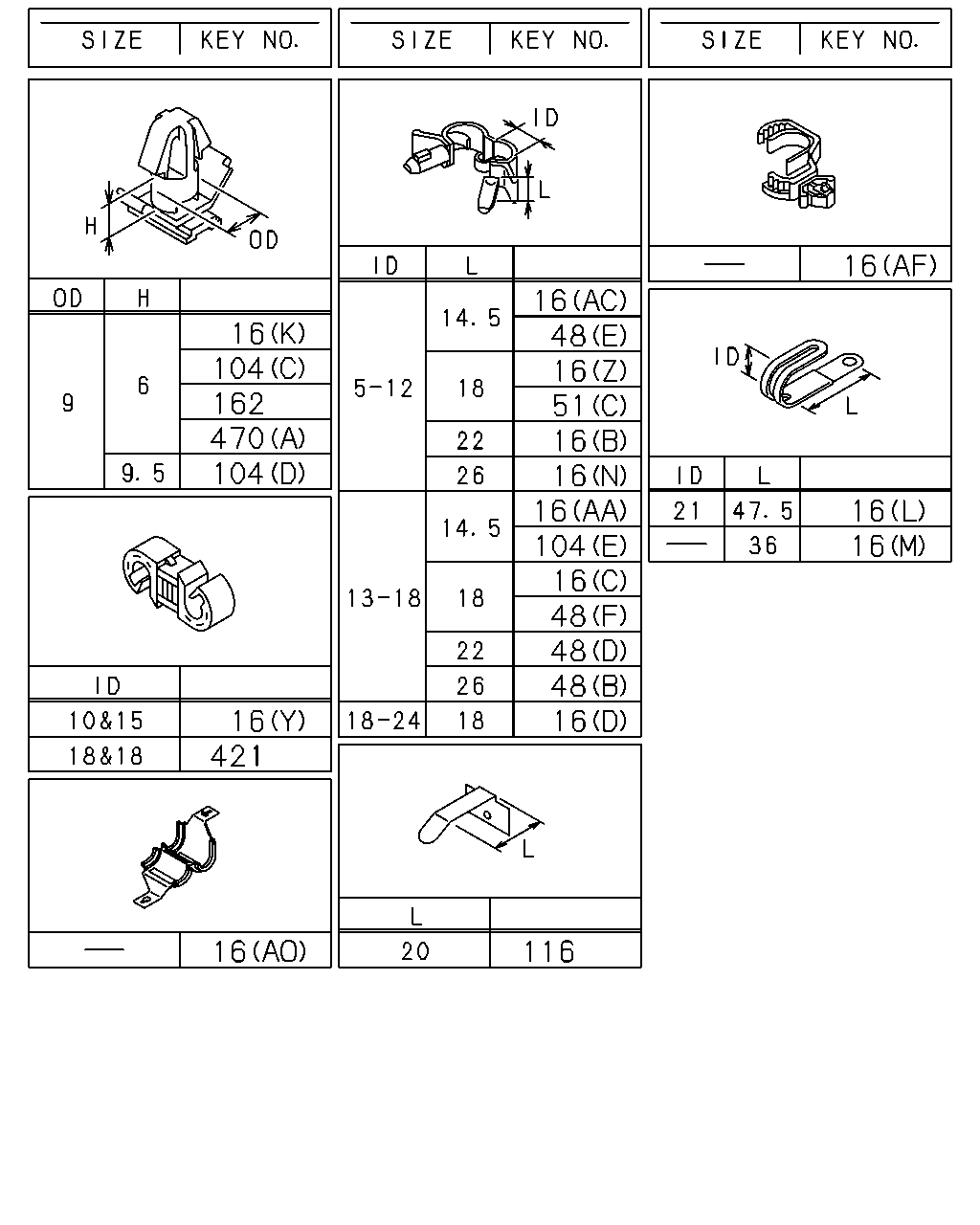

16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1304-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1304-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1304-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1304-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1304-	●	●
16	CLIP; HARNESS (AN) L=40.6	8-97229-357-0	02	1	1304-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1304-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AL) L=250	1-09707-126-0	01	1	1304-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308	●	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308	●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308		●
16	CLIP; HARNESS WHEEL BASE 4700MM(47W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1309-	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1309-	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (S) ID=11 L=60	0-95235-096-0	02	1	1304-	●	●
16	CLIP; HARNESS (AO) W/SPONGE RUBBER	1-09709-150-0	01	1	1304-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1304-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	04	1	1304-1311		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1312-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250	5-09707-030-1	04	1	1304-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AP) L=175	1-09707-176-1	01	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	03	1	1304-		●
48	CLIP; FRAME HARNESS (F) ID=13-18 L=18	1-09709-291-0	01	1	1310-		●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4500MM(45W) (B) ID=13-18 L=26	1-09709-293-0	03	1	1304-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (D) ID=13-18 L=22	1-09709-292-0	03	1	1304-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1304-	●	●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	02	1	1304-		●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18	1-09709-287-0	01	1	1304-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1304-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1304-	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1304-	●	●
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	1304-	●	●
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 4500MM(45W) (D) L=250	5-09707-030-1	02	1	1304-	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1304-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1304-		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1304-1309		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1310-	●	●

1 178 178 178 178 178 530 16 194 14 16 48 51 104 171 194 225 380 425 470 369 538 470 16 14 206 194 16 51 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

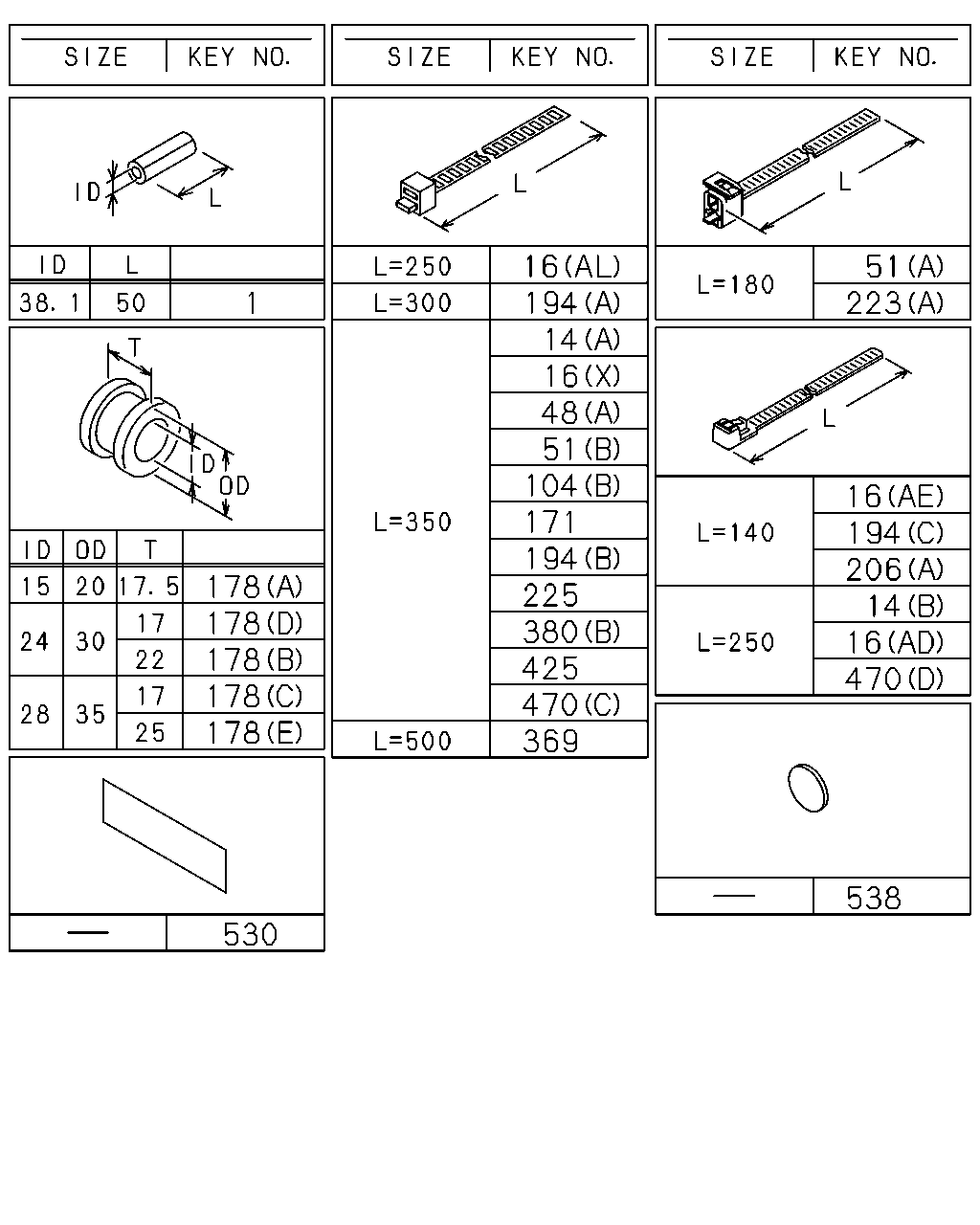

1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50	5-09360-835-0	01	1	1304-	●	●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	02	1	1304-	●
14	CLIP; BAND,HARNESS WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	01	1	1304-1309	●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1304-1309		●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1310-		●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=250	1-09707-126-0	02	1	1304-	●	●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	05	1	1304-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (AK) ID=11 L=28	0-95235-055-0	01	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-	●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-		●
16	CLIP; HARNESS FUEL TANK 200L RECTANGULAR<NH6> (E) ID=25 H=30 L=35	1-09700-875-0	01	1	1304-	●
16	CLIP; HARNESS EXC. FUEL TANK 200L RECTANGULAR<NH6> (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-		●
16	CLIP; HARNESS MJT7U M/T(Y4X) (G) ID=13 L=28	0-95235-255-0	01	1	1304-	●
16	CLIP; HARNESS MJT7U M/T(Y4X) (I) ID=16 L=20	0-95235-536-0	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (N) ID=5-12 L=26	1-09709-289-0	01	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	09	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	08	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1309-1309	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	03	1	1309-1311	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AD) L=250	5-09707-030-1	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	07	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=18-24 L=18	1-09709-294-0	16	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	16	1	1304-	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1304-	●	●
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1304-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1304-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1304-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-	●	●
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1304-	●	●
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1304-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1304-	●	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (X) L=350	1-09707-183-0	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (X) L=350	1-09707-183-0	02	1	1304-	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1304-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1304-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1304-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1304-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1304-	●	●
16	CLIP; HARNESS (AN) L=40.6	8-97229-357-0	02	1	1304-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1304-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AL) L=250	1-09707-126-0	01	1	1304-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308	●	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308	●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308		●
16	CLIP; HARNESS WHEEL BASE 4700MM(47W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1309-	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1309-	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (S) ID=11 L=60	0-95235-096-0	02	1	1304-	●	●
16	CLIP; HARNESS (AO) W/SPONGE RUBBER	1-09709-150-0	01	1	1304-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1304-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	04	1	1304-1311		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1312-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250	5-09707-030-1	04	1	1304-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AP) L=175	1-09707-176-1	01	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	03	1	1304-		●
48	CLIP; FRAME HARNESS (F) ID=13-18 L=18	1-09709-291-0	01	1	1310-		●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4500MM(45W) (B) ID=13-18 L=26	1-09709-293-0	03	1	1304-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (D) ID=13-18 L=22	1-09709-292-0	03	1	1304-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1304-	●	●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	02	1	1304-		●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18	1-09709-287-0	01	1	1304-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1304-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-	●	●
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1304-	●	●
178	GROMMET; HARNESS FUEL TANK 200L RECTANGULAR<NH6> (D) ID=24 OD=30 T=17	9-09956-092-1	01	1	1304-	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	1304-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1304-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1304-	●	●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (E) ID=28 OD=35 T=25	1-09332-011-1	03	1	1304-	●	●
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1304-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1304-	●	●
194	CLIP; BAND (C) L=140	5-09707-031-1	02	1	1304-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1304-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1304-	●	●
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1304-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=58	9-09917-135-2	01	1	1304-		●
225	CLIP; AIR TANK HARNESS WHEEL BASE 4500MM(45W) L=350	1-09707-183-0	01	1	1304-	●
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1304-	●	●
380	CLIP; EARTH HARNESS EXC. FUEL TANK 200L RECTANGULAR<NH6> (B) L=350	1-09707-183-0	02	1	1304-	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	1304-		●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1304-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) L=350	1-09707-183-0	04	1	1304-	●	●
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 4500MM(45W) (D) L=250	5-09707-030-1	02	1	1304-	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1304-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1304-		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1304-1309		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1310-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1304-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1304-	●	●

16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 104 48 81 373 306 235 380 470 581 213 581 213 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (AK) ID=11 L=28	0-95235-055-0	01	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-	●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-		●
16	CLIP; HARNESS FUEL TANK 200L RECTANGULAR<NH6> (E) ID=25 H=30 L=35	1-09700-875-0	01	1	1304-	●
16	CLIP; HARNESS EXC. FUEL TANK 200L RECTANGULAR<NH6> (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-		●
16	CLIP; HARNESS MJT7U M/T(Y4X) (G) ID=13 L=28	0-95235-255-0	01	1	1304-	●
16	CLIP; HARNESS MJT7U M/T(Y4X) (I) ID=16 L=20	0-95235-536-0	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (N) ID=5-12 L=26	1-09709-289-0	01	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	09	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	08	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1309-1309	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	03	1	1309-1311	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AD) L=250	5-09707-030-1	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	07	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=18-24 L=18	1-09709-294-0	16	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	16	1	1304-	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1304-	●	●
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1304-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1304-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1304-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-	●	●
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1304-	●	●
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1304-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1304-	●	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (X) L=350	1-09707-183-0	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (X) L=350	1-09707-183-0	02	1	1304-	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1304-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1304-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1304-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1304-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1304-	●	●
16	CLIP; HARNESS (AN) L=40.6	8-97229-357-0	02	1	1304-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1304-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AL) L=250	1-09707-126-0	01	1	1304-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308	●	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308	●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308		●
16	CLIP; HARNESS WHEEL BASE 4700MM(47W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1309-	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1309-	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (S) ID=11 L=60	0-95235-096-0	02	1	1304-	●	●
16	CLIP; HARNESS (AO) W/SPONGE RUBBER	1-09709-150-0	01	1	1304-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1304-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	04	1	1304-1311		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1312-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250	5-09707-030-1	04	1	1304-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AP) L=175	1-09707-176-1	01	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	03	1	1304-		●
48	CLIP; FRAME HARNESS (F) ID=13-18 L=18	1-09709-291-0	01	1	1310-		●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4500MM(45W) (B) ID=13-18 L=26	1-09709-293-0	03	1	1304-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (D) ID=13-18 L=22	1-09709-292-0	03	1	1304-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1304-	●	●
48	CLIP; FRAME HARNESS (D) ID=13-18 L=22	1-09709-292-0	02	1	1304-		●
81	CLIP; HARNESS FUEL TANK 200L RECTANGULAR<NH6> ID=39 L=33	8-98009-359-0	01	1	1304-	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-	●	●
213	CLIP; END CROSS HARNESS WHEEL BASE 6600MM(66W) (B) ID=14 L=44	9-09917-427-0	03	1	1304-	●
213	CLIP; END CROSS HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) ID=14 L=44	9-09917-427-0	03	1	1304-		●
213	CLIP; END CROSS HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	1304-1309		●
213	CLIP; END CROSS HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=20 L=50	9-09917-430-0	03	1	1310-		●
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	1304-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=58	9-09917-135-2	01	1	1304-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7U M/T(Y4X) ID=10 H=25 L=20	1-09700-519-0	01	1	1304-	●
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1304-	●	●
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1304-	●	●
380	CLIP; EARTH HARNESS EXC. FUEL TANK 200L RECTANGULAR<NH6> (B) L=350	1-09707-183-0	02	1	1304-	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	1304-		●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1304-	●	●
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 4500MM(45W) (D) L=250	5-09707-030-1	02	1	1304-	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1304-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1304-		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1304-1309		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1310-	●	●
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 4500MM(45W) (A) ID=11 L=41	1-09700-403-0	01	1	1304-	●
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=41	1-09700-403-0	03	1	1304-	●
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (B) ID=14 L=44	9-09917-427-0	03	1	1304-	●

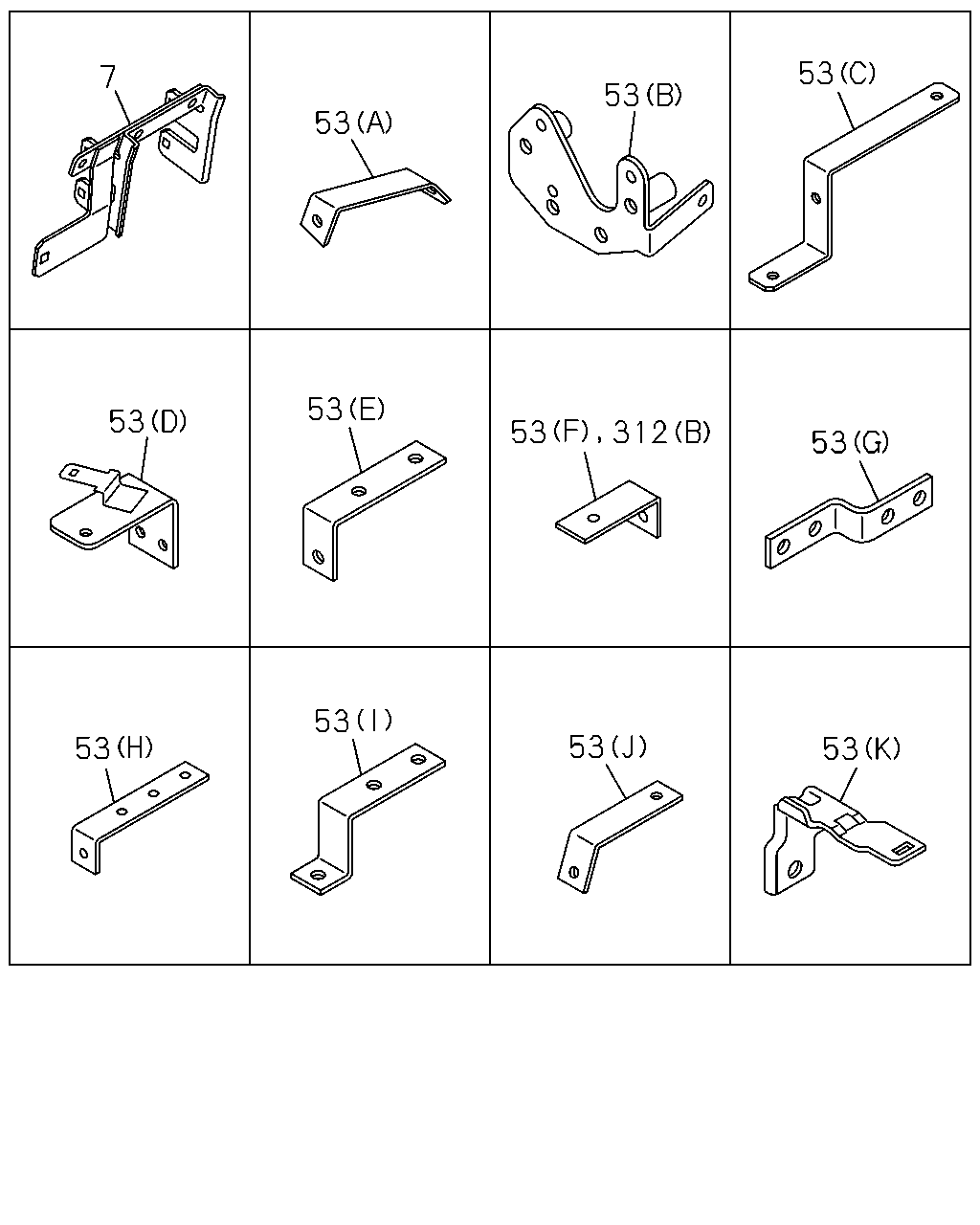

7 53 53 53 53 53 53 312 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1304-	●	●
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1304-1404	●	●
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1304-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1304-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	08	1	1304-	●	●
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1304-	●	●
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1304-	●	●
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1304-	●	●
53	BRACKET; HARNESS (B)	8-97611-413-0	01	1	1304-	●	●
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1304-	●	●
53	BRACKET; HARNESS (C)	8-98078-801-0	01	1	1304-	●	●
53	BRACKET; HARNESS (D)	8-98102-490-0	01	1	1304-	●	●
53	BRACKET; HARNESS (I)	8-98124-778-0	01	1	1304-	●	●
312	BRACKET; CLIP HARNESS (A) L=120	8-97619-440-0	01	1	1304-	●	●
312	BRACKET; CLIP HARNESS (B) L=65	1-47479-064-1	01	1	1304-		●

211 312 375 335 375 375 335 600

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-97621-353-1	01	1	1304-	●	●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-97621-352-1	01	1	1304-	●	●
312	BRACKET; CLIP HARNESS (A) L=120	8-97619-440-0	01	1	1304-	●	●
312	BRACKET; CLIP HARNESS (B) L=65	1-47479-064-1	01	1	1304-		●
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1304-	●	●
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82698-167-0	01	1	1304-	●	●
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1304-	●	●
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1304-	●	●
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1304-	●	●
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1304-	●	●

16 16 206 16 16 142 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (AK) ID=11 L=28	0-95235-055-0	01	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-	●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	01	1	1304-		●
16	CLIP; HARNESS FUEL TANK 200L RECTANGULAR<NH6> (E) ID=25 H=30 L=35	1-09700-875-0	01	1	1304-	●
16	CLIP; HARNESS EXC. FUEL TANK 200L RECTANGULAR<NH6> (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1304-		●
16	CLIP; HARNESS MJT7U M/T(Y4X) (G) ID=13 L=28	0-95235-255-0	01	1	1304-	●
16	CLIP; HARNESS MJT7U M/T(Y4X) (I) ID=16 L=20	0-95235-536-0	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (N) ID=5-12 L=26	1-09709-289-0	01	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	09	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	08	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1309-1309	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1310-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	02	1	1304-1308	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	03	1	1309-1311	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1312-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AD) L=250	5-09707-030-1	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	07	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (D) ID=18-24 L=18	1-09709-294-0	16	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	16	1	1304-	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1304-	●	●
16	CLIP; HARNESS (O) ID=11 L=24	0-95235-045-0	01	1	1304-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1304-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1304-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-	●	●
16	CLIP; HARNESS (P) ID=18 L=40	1-09701-111-0	01	1	1304-	●	●
16	CLIP; HARNESS (Q) ID=15 L=22 H=30	1-09701-215-1	01	1	1304-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1304-	●	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (X) L=350	1-09707-183-0	02	1	1304-	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (X) L=350	1-09707-183-0	02	1	1304-	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1304-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1304-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	01	1	1304-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	02	1	1304-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1304-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1304-	●	●
16	CLIP; HARNESS (AN) L=40.6	8-97229-357-0	02	1	1304-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1304-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1304-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AL) L=250	1-09707-126-0	01	1	1304-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308	●	●
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308	●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308		●
16	CLIP; HARNESS WHEEL BASE 4700MM(47W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-1308		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1309-	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1309-	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (S) ID=11 L=60	0-95235-096-0	02	1	1304-	●	●
16	CLIP; HARNESS (AO) W/SPONGE RUBBER	1-09709-150-0	01	1	1304-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1304-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	04	1	1304-1311		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	1312-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250	5-09707-030-1	04	1	1304-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AP) L=175	1-09707-176-1	01	1	1304-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	03	1	1304-		●
142	CLIP; HARNESS,ENG L=170.3	8-97209-720-0	01	1	1304-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1304-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1304-	●	●

38 127 525 515 340 294 219 524 358 377 242 377 386 38 38 386 490 38 38 86 139 242 313 38 139 313 38 423 38 38 242 466 150 150 139 38 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS GENERATOR 24V90A(K44) (L) M8X10 FLANGE	0-28050-810-0	01	1	1312-	●	●
38	BOLT; CLIP,HARNESS FUEL TANK 400L<SDH> (F) M8X35 FLANGE	0-28050-835-0	01	1	1304-1304	●
38	BOLT; CLIP,HARNESS FUEL TANK 400L<SDH> (F) M8X35 FLANGE	0-28050-835-0	01	1	1305-	●
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	01	1	1305-		●
38	BOLT; CLIP,HARNESS FUEL TANK 200L RECTANGULAR<NH6> (H) M8X35 FLANGE	0-28650-835-0	01	1	1304-	●
38	BOLT; CLIP,HARNESS MJT7U M/T(Y4X) (A) M10X20 FLANGE	0-28751-020-0	01	1	1304-	●
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE	0-28050-610-0	01	1	1304-1311	●	●
38	BOLT; CLIP,HARNESS EXC. GENERATOR 24V90A(K44) (I) M6X10 FLANGE	0-28050-610-0	01	1	1312-	●	●
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	03	1	1304-	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1304-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	08	1	1304-	●	●
38	BOLT; CLIP,HARNESS (K) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
38	BOLT; CLIP,HARNESS FUEL TANK 400L<SDH> (D) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	05	1	1304-	●	●
38	BOLT; CLIP,HARNESS (H) M8X35 FLANGE	0-28650-835-0	02	1	1304-	●	●
38	BOLT; CLIP,HARNESS (C) M8X14 W/PL WASHER	8-98164-837-0	03	1	1304-	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
38	BOLT; CLIP,HARNESS MJT7U M/T(Y4X) (B) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●
38	BOLT; CLIP,HARNESS ZF9S1310 M/T(Y5K) (E) M8X12 FLANGE	0-28050-812-0	02	1	1304-	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (J) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1304-1309		●
38	BOLT; CLIP,HARNESS (J) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1310-		●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1304-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	08	1	1304-	●
139	BOLT; BRKT WHEEL BASE 4500MM(45W) (A) M8X30 FLANGE	0-28650-830-0	05	1	1304-	●
139	BOLT; BRKT WHEEL BASE 4500MM(45W) (C) M8X35 FLANGE	0-28650-835-0	03	1	1304-	●
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●	●
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1304-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1304-	●	●
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1304-1309	●	●
219	NUT FUEL TANK 200L RECTANGULAR<NH6> M8 FLANGE	0-91180-108-0	01	1	1304-1309	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1304-1309		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1304-1309		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1310-	●	●
219	NUT FUEL TANK 200L RECTANGULAR<NH6> M8 FLANGE	0-91180-108-0	01	1	1310-	●
219	NUT M8 FLANGE	0-91180-108-0	08	1	1304-1304	●	●
219	NUT M8 FLANGE	0-91180-108-0	07	1	1305-	●	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-1309	●	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1310-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1310-		●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1304-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1304-	●	●
294	NUT M8 FLANGE	0-91180-108-0	02	1	1304-1304	●	●
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-1304	●	●
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1305-	●	●
294	NUT M8 FLANGE	0-91180-108-0	06	1	1304-1304	●	●
294	NUT M8 FLANGE	0-91180-108-0	09	1	1305-	●	●
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1304-		●
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	07	1	1304-	●	●
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1304-	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	03	1	1304-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1304-	●	●
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1304-	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1304-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1304-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1304-	●	●
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	1304-	●	●
490	BOLT; CLIP,RELAY BOX FUEL TANK 200L RECTANGULAR<NH6> M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1304-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
