Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#11761) — 47 parça
◀

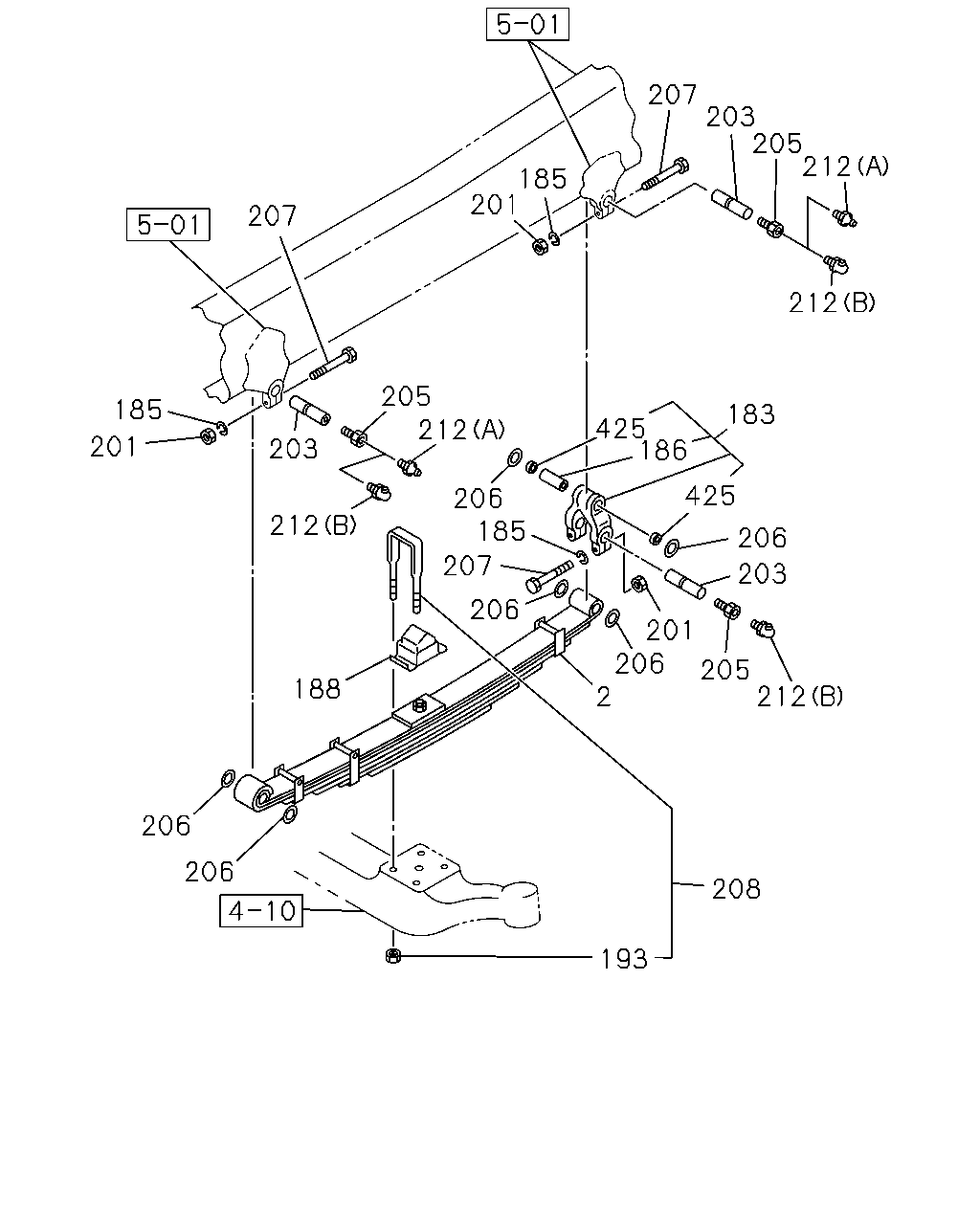

[450A] LEAF SPRING AND OTHER PARTS (23 parça)

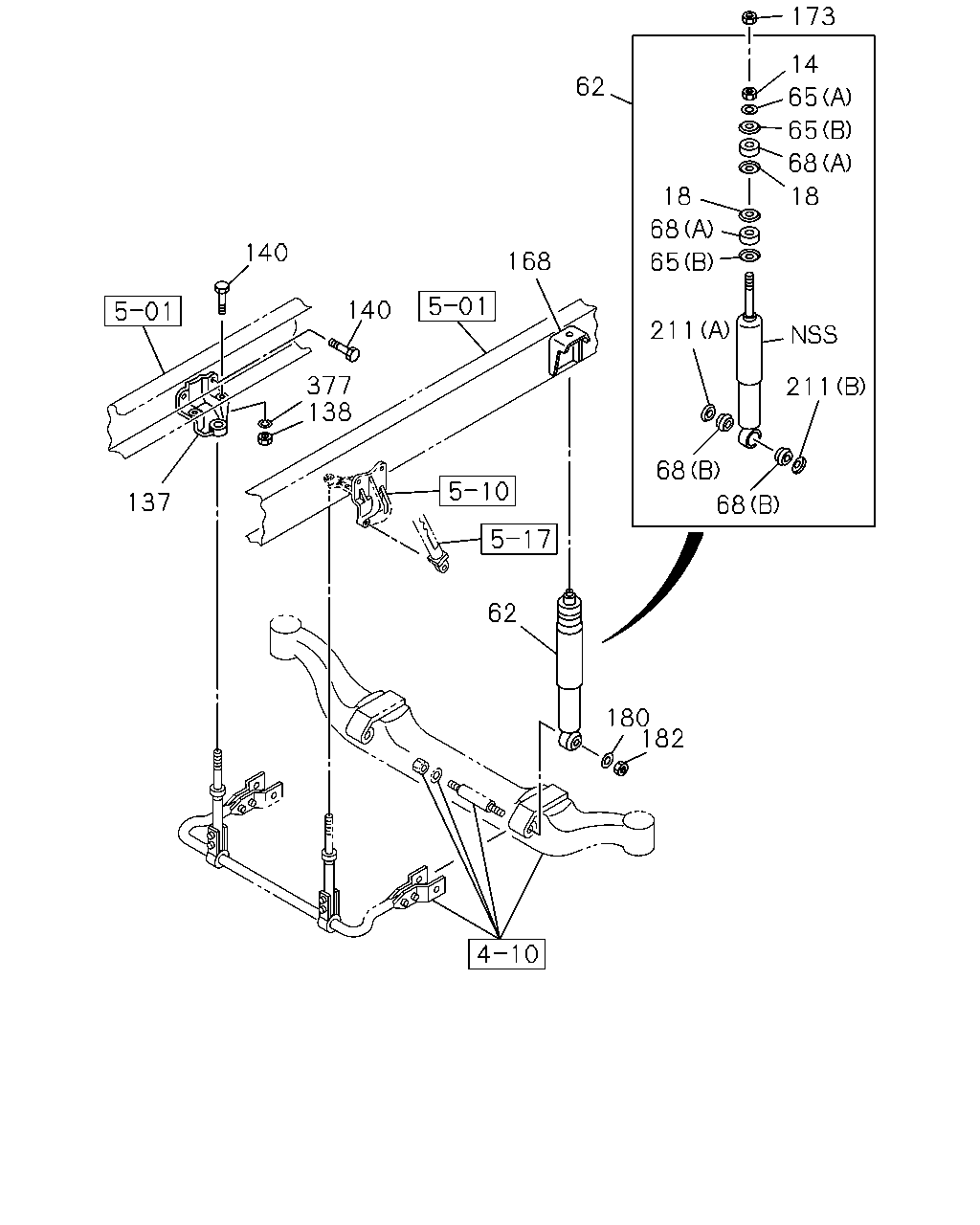

[450A] ABSORBER AND BRACKET (24 parça)
▶
207
203
205
212
185
201
207
212
205
212
185
183
425
186
201
203
425
206
185
212
206
207
203
206
201
206
2
205
212
188
206
206
208
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 4-LEAF
1-51130-801-0
02
1
0106-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 4-LEAF
1-51130-801-0
02
1
0106-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONTSPRING HEAVY DUTY VAR1(F60) 4-LEAF
1-51130-597-0
02
1
0106-
183
SHACKLE; FRT SUSP
1-51162-064-0
02
1
0106-
185
WASHER; LK,PIN
ID=12.2
9-09150-612-0
12
1
0106-0603
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0604-
186
BUSHING; SHACKLE
OD=42
1-51351-036-0
02
1
0106-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-088-0
02
1
0106-
193
NUT; U BOLT
M22
9-09112-822-0
08
1
0106-0512
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0601-
201
NUT; PIN LK
M12
9-99110-512-0
12
1
0106-0512
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0601-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
0106-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0106-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0106-
207
BOLT; SPR TO SHACKLE
M12X80
0-10806-280-0
12
1
0106-0512
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0601-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-269-2
04
1
0106-
212
NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT
9-09031-010-0
02
1
0106-0512
212
NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
0601-
212
NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW
9-09031-210-0
04
1
0106-0512
212
NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW
0-90301-610-0
04
1
0601-
425
SEAL; DUST
1-51177-321-0
04
1
0106-
173
14
62
65
65
68
18
18
68
140
65
140
211
377
138
211
68
137
68
62
180
182
168
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0106-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
0106-
62
ABSORBER ASM; SHOCK,FRT
1-51600-399-0
02
1
0106-0310
62
ABSORBER ASM; SHOCK,FRT
1-51600-415-0
02
1
0311-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
0106-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
0106-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
0106-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0106-
137
BRACKET; STAB BAR TO FRAME
1-51781-111-0
01
1
0106-
138
NUT; BRKT
M14
9-99110-514-0
02
1
0106-0512
138
NUT; BRKT
M14
0-91110-514-0
02
1
0601-
140
BOLT; BRKT
M14X50
9-92061-450-0
04
1
0106-0512
140
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0601-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0106-
173
NUT; S/ABS
M14
9-99111-414-0
02
1
0106-0512
173
NUT; S/ABS
M14
0-91111-514-0
02
1
0601-
180
WASHER; PL,PIN
ID=21
9-09160-520-0
02
1
0106-0605
180
WASHER; PL,PIN
ID=21
0-91610-520-0
02
1
0606-
182
NUT; S/ABS LWR
M20
9-99110-420-0
02
1
0106-0311
182
NUT; S/ABS LWR
M20
9-99110-520-0
02
1
0312-0512
182
NUT; S/ABS LWR
M20
0-91110-520-0
02
1
0601-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0106-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0106-
377
WASHER; LK,BRKT
ID=15
9-09651-069-0
04
1
0106-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
