8-15 — FIXING PARTS; WIRING HARNESS (#117609) — 122 parça

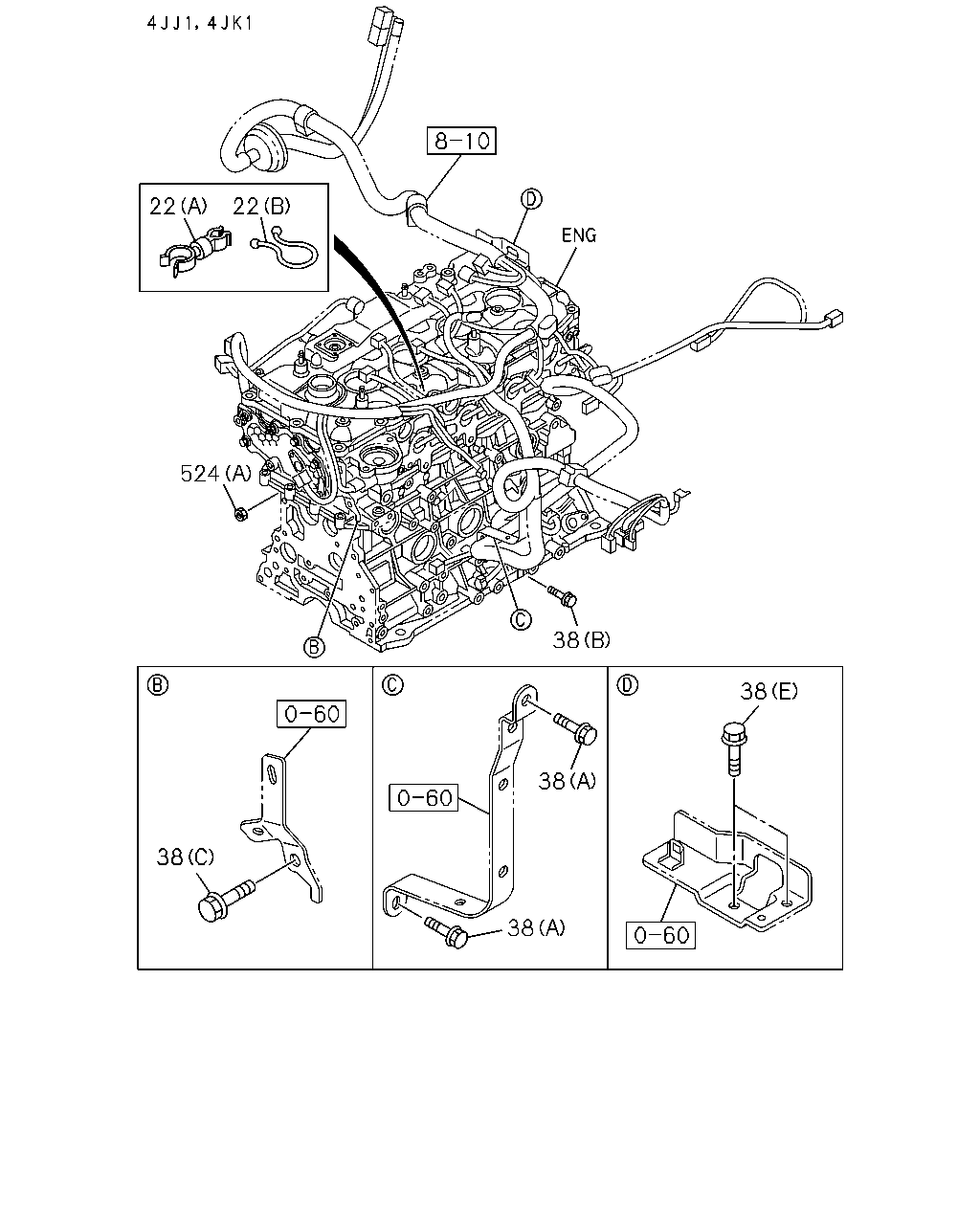

çizim 344507
22 22 524 38 38 38 38 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HEATER & DEFROSTER(C42) 09.663 (B) ID=15 		1-09709-003-0 01 1 1304- ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (A) ID=11.8 & 7.5 		8-98212-982-0 01 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1304- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1304- ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1304-1309 ● ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1310- ● ● ● ●
524 02.559 NUT; HARNESS
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1304- ● ● ● ●

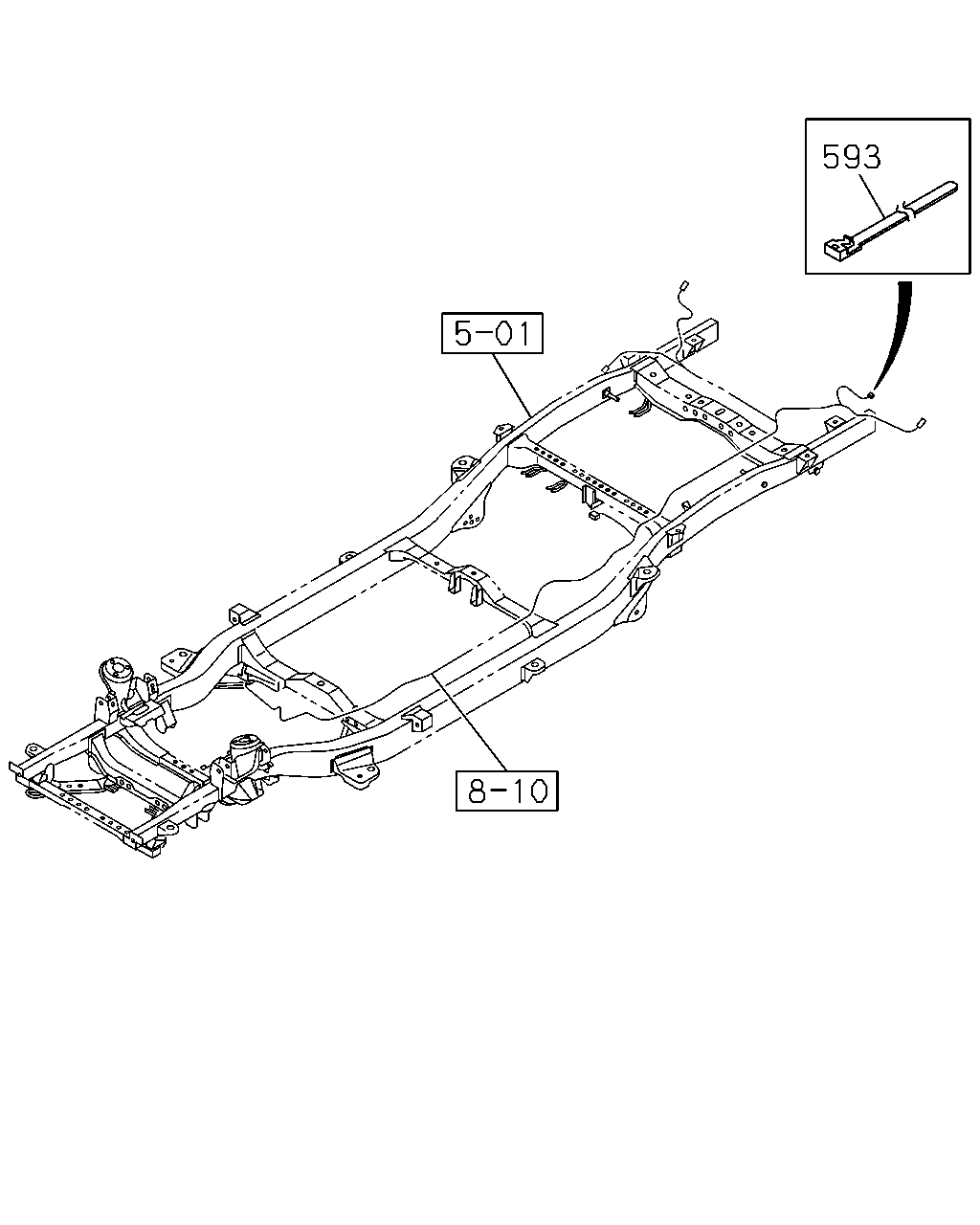

çizim 345849
593
BalonParca AdiParca NoAdetTipApplied Date A B C D
593 02.559 CLIP
REAR BODY DELETE(8HH) L=250 		5-09707-030-1 01 1 1304- ● ● ● ●
çizim 345851
239 178 83 524 38 547
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1304- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1304- ● ●
83 02.483 SCREW; HARNESS
16.549 M5X25 TAPPING W/PL WASHER 		0-74360-525-0 01 1 1304- ● ● ● ●
178 02.559 GROMMET; HARNESS
09.647 		8-97027-381-0 01 1 1304- ● ● ● ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1304-1501 ● ● ● ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M6X14 W/PL WASHER 		8-98164-836-0 03 1 1502- ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1304-1309 ● ● ● ●
524 02.559 NUT; HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1310- ● ● ● ●
524 02.559 NUT; HARNESS
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 1304- ● ● ● ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1304-1501 ● ● ● ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ●

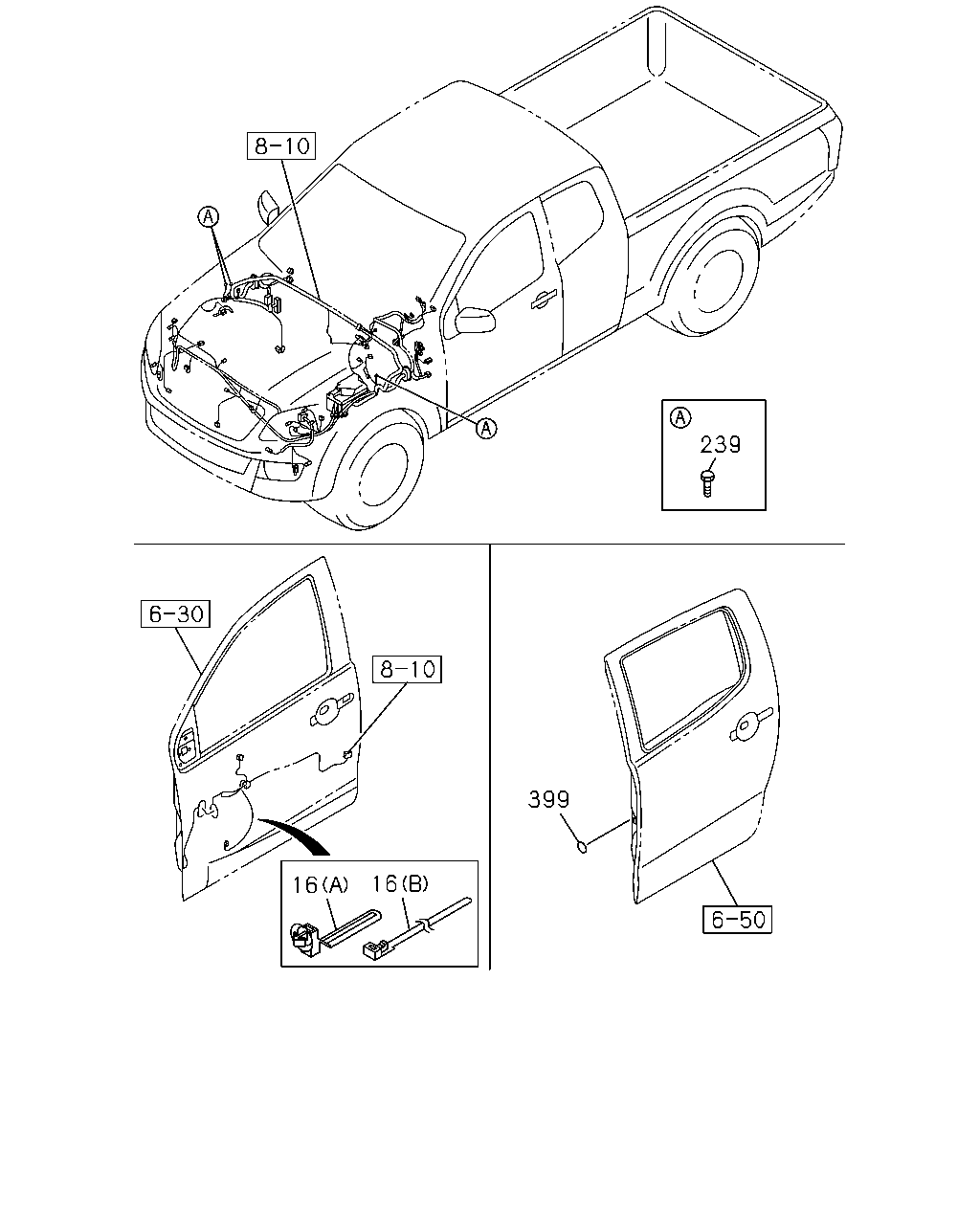

çizim 345866
239 399 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.162 (D) L=140 		5-09707-031-1 01 1 1304- ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 02.313 (C) ID=18 L=44 		8-97367-985-1 02 1 1304- ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 1304-1501 ● ● ● ●
239 02.559 BOLT; GRAND
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M6X14 W/PL WASHER 		8-98164-836-0 03 1 1502- ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> EXC. HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> HIGH MOUNT STOP LAMP<TS6> EXC. REAR DEFOGGER<C49> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1304-1312 ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 1401-1501 ● ●
239 02.559 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ● ● ●
239 02.559 BOLT; GRAND
4JA1-T ENG(LP0) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. REAR DEFOGGER<C49>,HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6>,REMOTE CONT DOOR LOCK W/AN TI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> EXC. HEATER FRT SEAT<KA1> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEATER FRT SEAT<KA1>,HIGH MOUNT STOP LAMP<TS6> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
239 02.559 BOLT; GRAND
FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> M6X14 W/PL WASHER 		8-98164-836-0 02 1 1502- ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> 16.064 OD=44 BLACK 		5-76777-037-0 02 1 1304- ● ●

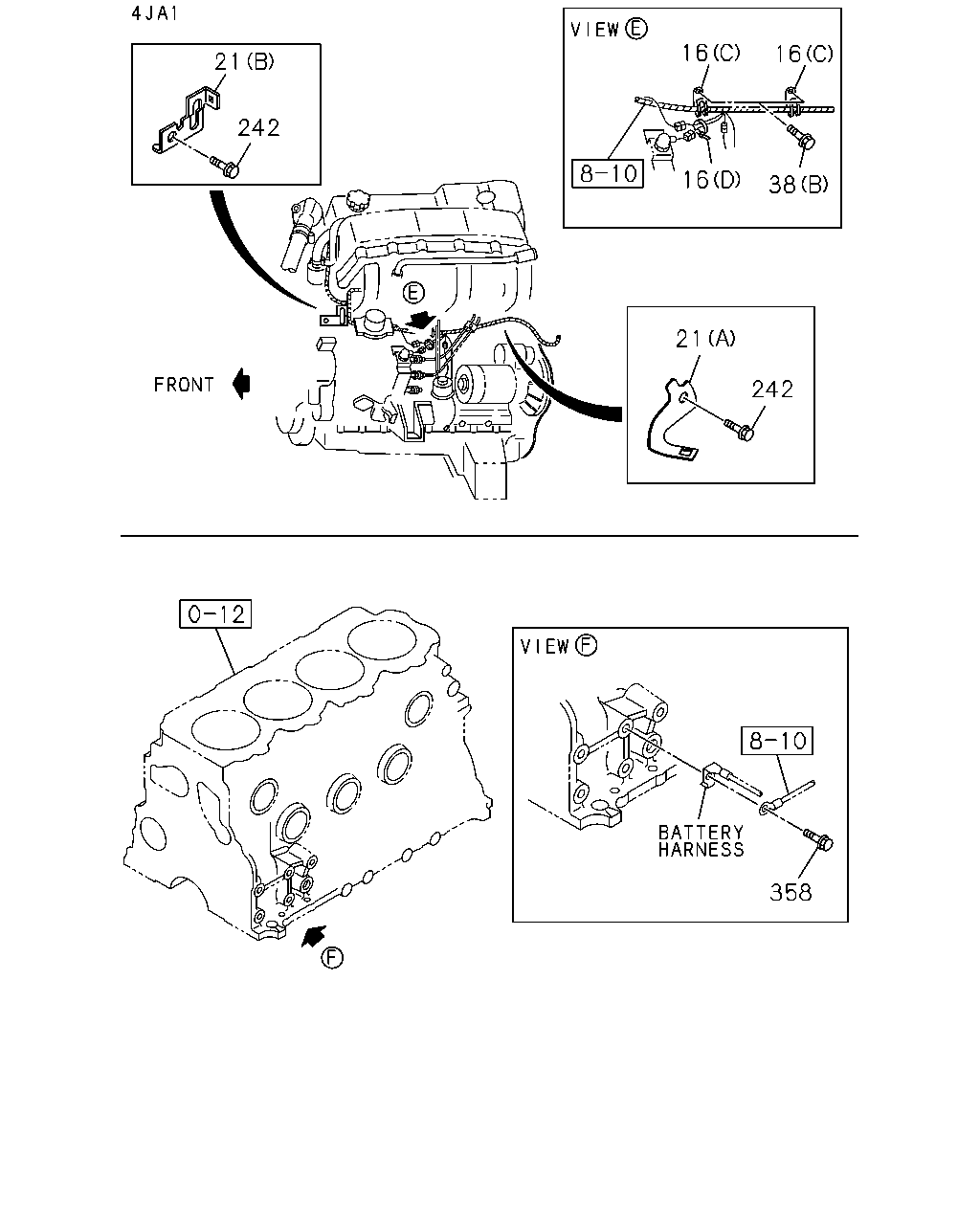

çizim 345872
21 242 16 16 16 38 21 242 358
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 03.162 (D) L=140 		5-09707-031-1 01 1 1304- ● ●
16 02.559 CLIP; HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 02.313 (C) ID=18 L=44 		8-97367-985-1 02 1 1304- ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (A) L=155 		8-97173-307-0 02 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT <7KY> (B) L=140 		8-97378-707-0 03 1 1304- ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97249-918-1 01 1 1304- ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) (A) 		8-98179-923-0 01 1 1304- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 04.338 (E) M8X20 FLANGE 		0-28050-820-0 02 1 1304- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1304- ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 02.343 (D) M6X16 FLANGE 		0-28650-616-0 05 1 1304- ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 02.343 M8X12 FLANGE 		0-28050-812-0 03 1 1304-1503 ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-T ENG(LP0) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1504- ● ●
358 02.480 BOLT; EARTH
4JA1-T ENG(LP0) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1304- ● ●
çizim 345896
459 408
BalonParca AdiParca NoAdetTipApplied Date A B C D
408 02.559 CLIP; TRANS HARNESS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1304- ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 1304- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98050-882-0 01 1 1304- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H(MWQ) 		8-98050-882-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
