Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11530 - FXZ/GXZ(RHD)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#117602) — 74 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

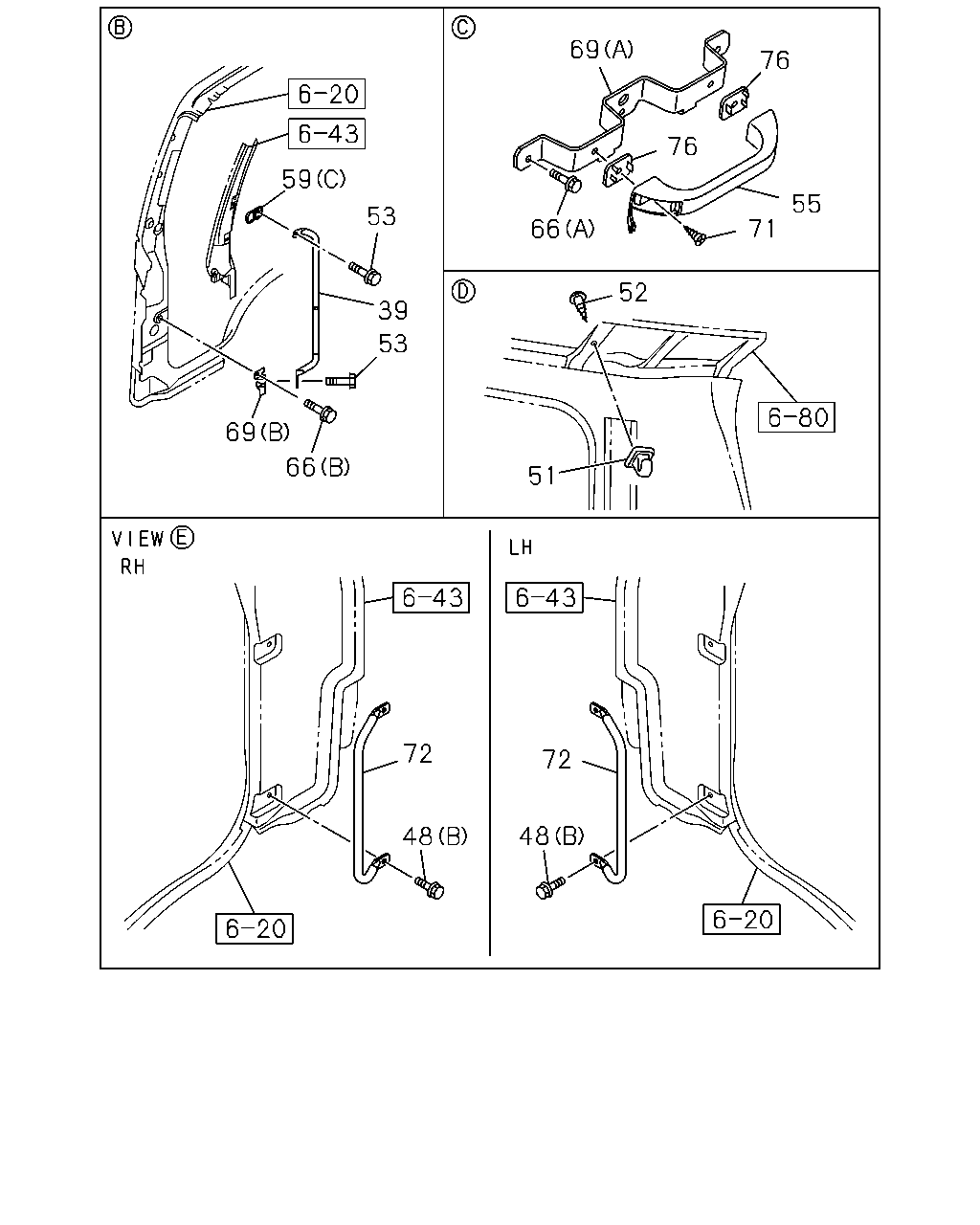

[743A] ASSIST GRIP NO.1 (19 parça)

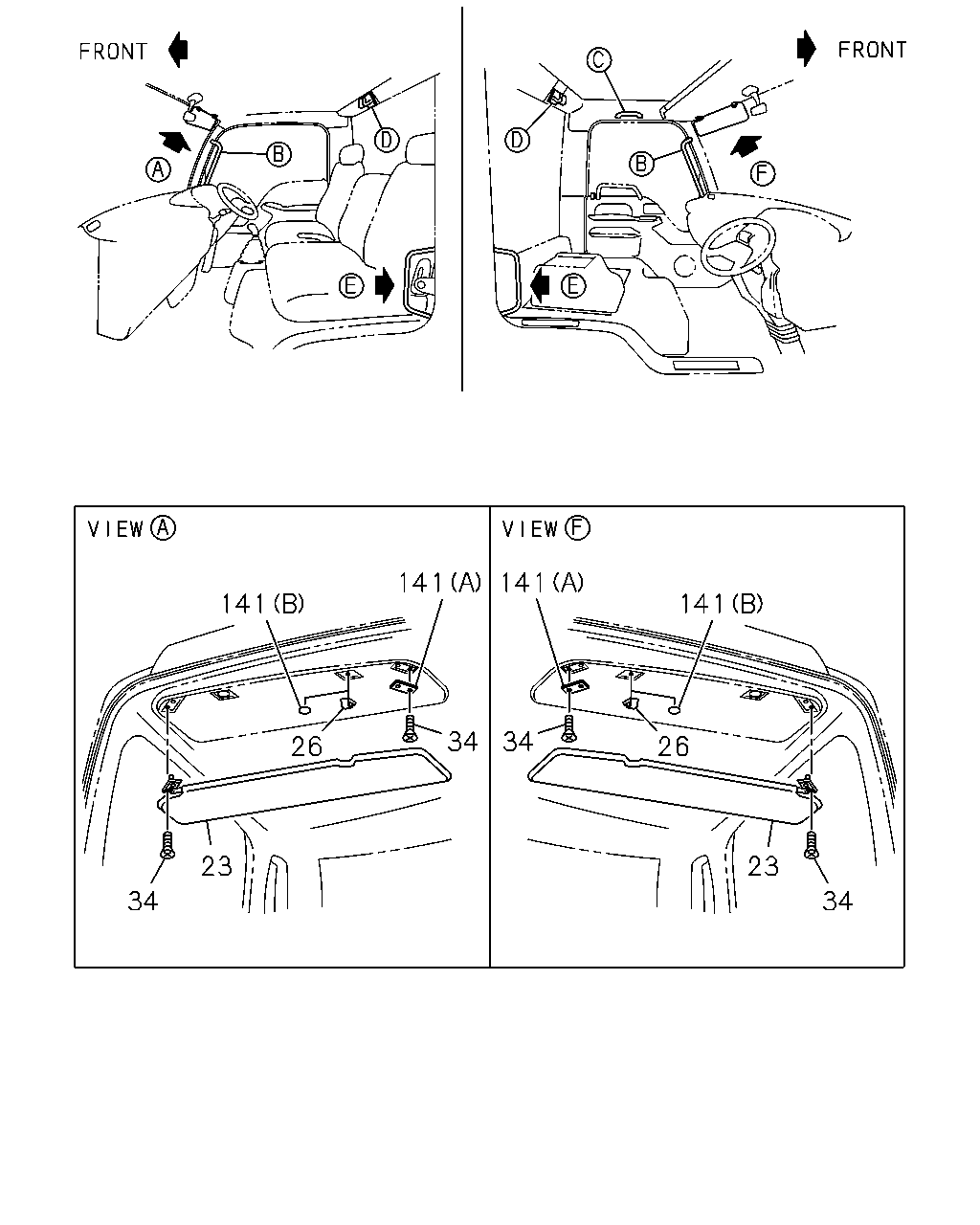

[743A] SUN VISOR (18 parça)
[743A] ASSIST GRIP NO.2 (7 parça)

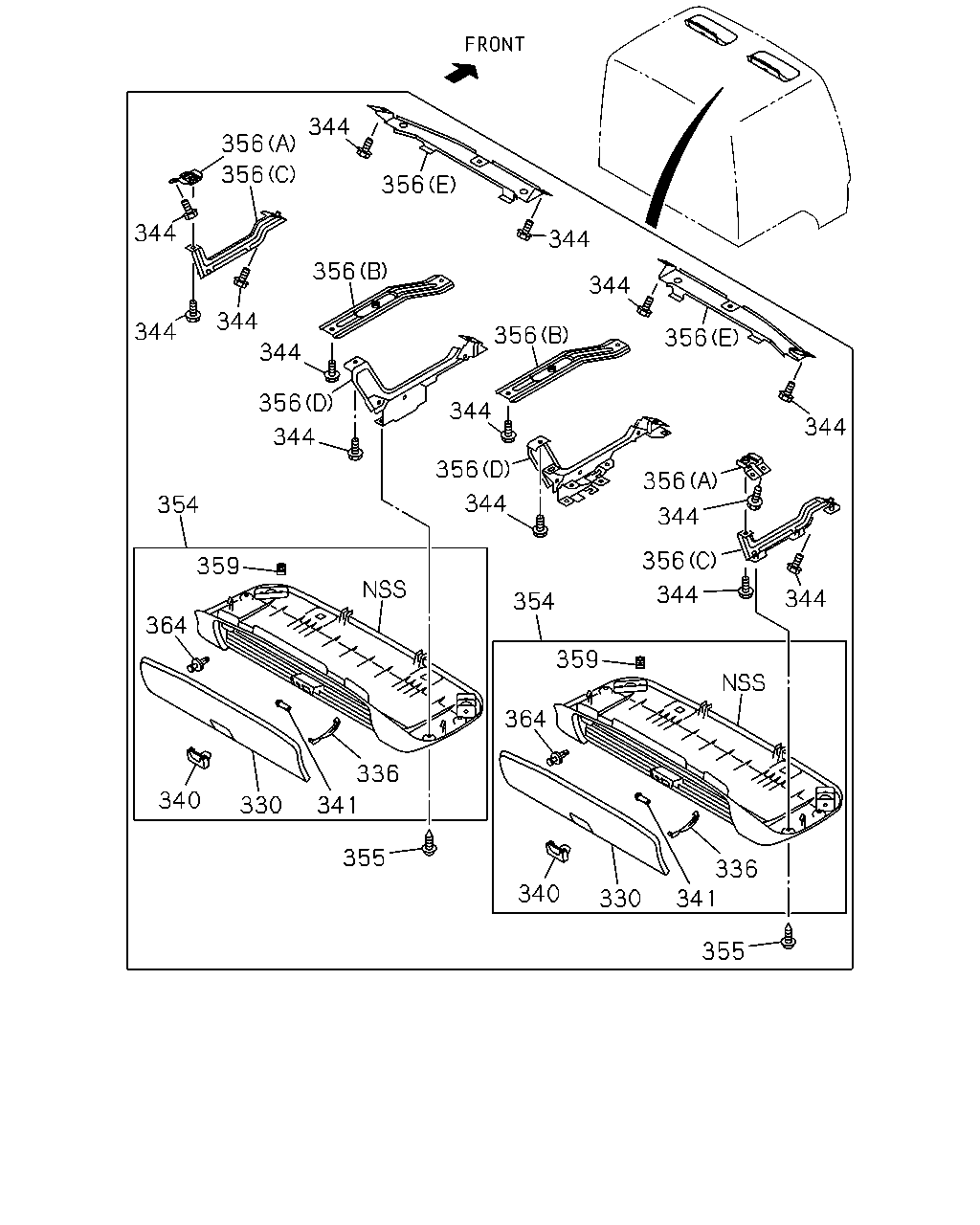

[743A] TRAY;HEADER ROOF (30 parça)
▶
59
39
69
53
53
66
69
76
76
66
71
55
52
51
72
48
72
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-943-2
01
1
1304-
●
●
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-942-2
01
1
1304-
●
●
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1304-
●
●
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1304-
●
●
51
HOOK; COAT HANGER
DARK GRAY
8-97409-845-0
02
1
1304-
●
●
52
SCREW; HOOK
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
1304-
●
●
53
SCREW; ASSIST HANDLE
M8X20 FLANGE
0-28650-820-0
04
1
1304-
●
●
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
1304-
●
●
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1304-
●
●
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1304-
●
●
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1304-
●
●
66
BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE
0-28050-816-0
04
1
1304-
●
●
66
BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE
8-97108-669-0
06
1
1304-
●
●
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
1304-
●
●
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
1304-
●
●
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
1304-
●
●
71
SCREW
M6X28
8-98004-344-0
02
1
1304-
●
●
72
GRIP; ASSIST,CAB ENTRY,BACK
8-97386-939-0
02
1
1304-
●
●
76
SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
1304-
●
●
141
141
34
26
23
34
141
141
34
26
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
SUN VISOR
DARK GRAY
8-97407-373-2
01
1
1304-
●
●
23
SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY
8-97405-170-3
01
1
1304-
●
●
26
HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20> DARK GRAY
8-97405-171-0
02
1
1304-
●
●
26
HOLDER; SUN VISOR
EXC. SUN VISOR PASSENGER<D20> DARK GRAY
8-97405-171-0
01
1
1304-
●
●
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1304-
●
●
34
SCREW; SUN VISOR
EXC. SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
02
1
1304-
●
●
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26
8-98033-674-0
02
1
1304-
●
●
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
02
1
1304-
●
●
34
SCREW; SUN VISOR
SUN VISOR PASSENGER<D20> M6X26
8-98033-674-0
04
1
1304-
●
●
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1402-
●
●
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1304-
●
●
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1304-
●
●
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1304-
●
●
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1304-1401
●
●
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1304-1401
●
●
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. SUN VISOR PASSENGER<D20> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
01
1
1304-1401
●
●
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1402-
●
●
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1402-
●
●
103
48
59
59
59
48
48
59
48
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1304-
●
●
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1304-
●
●
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1304-
●
●
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1304-
●
●
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1304-
●
●
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
1304-
●
●
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
1304-
●
●
344
356
356
356
344
356
344
344
344
344
344
356
356
344
356
356
344
356
344
344
344
356
344
344
354
359
364
340
330
341
355
336
354
359
364
340
336
341
330
355
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1304-
●
●
330
LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-834-1
01
1
1304-
●
●
336
STAY; LID
1-72448-379-3
02
1
1304-
●
●
336
STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG>
1-72448-379-3
02
1
1304-
●
●
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1304-
●
●
340
LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG>
1-72448-376-0
01
1
1304-
●
●
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1304-
●
●
341
HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98025-428-2
02
1
1304-
●
●
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
12
1
1304-
●
●
344
BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE
8-97108-669-0
08
1
1304-
●
●
354
TRAY; HEADER ROOF
DARK GRAY
8-97407-386-5
01
1
1304-1401
●
●
354
TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-386-5
01
1
1304-1401
●
●
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1402-
●
●
354
TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97428-821-0
01
1
1402-
●
●
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1304-
●
●
355
SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1304-
●
●
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-97386-874-1
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98010-059-0
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
(E)
8-98042-016-3
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
(C)
8-98014-088-3
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
(D)
8-98023-257-2
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
(E)
8-98042-015-3
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)
8-98016-871-3
01
1
1304-
●
●
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)
8-98042-009-2
01
1
1304-
●
●
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1304-
●
●
359
HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98041-754-0
04
1
1304-
●
●
364
STOPPER; LID
8-98010-867-1
03
1
1304-
●
●
364
STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98010-867-1
03
1
1304-
●
●
