7-43 — SUN VISOR AND ASSIST GRIP (#117597) — 27 parça

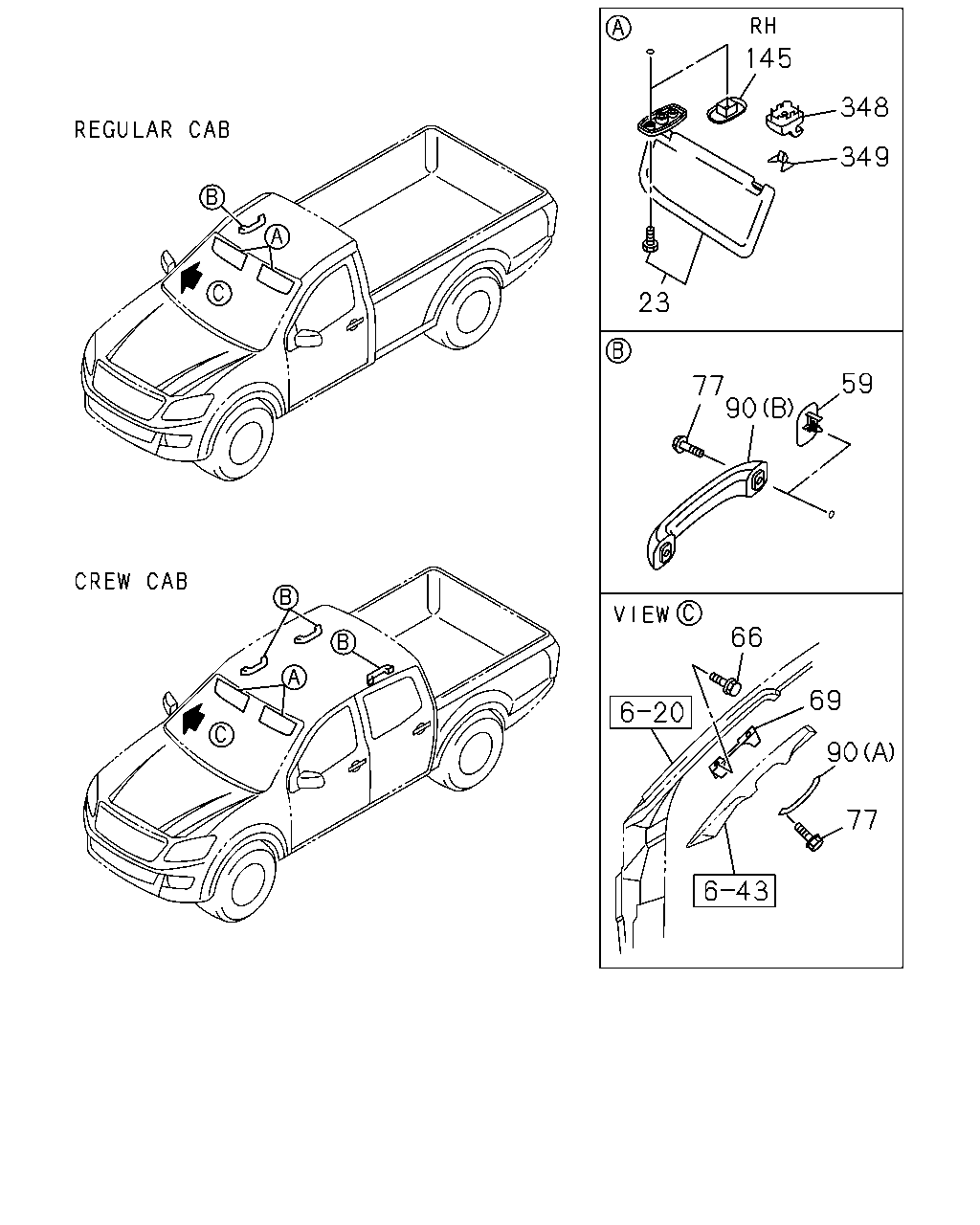

çizim 344171
145 23 349 348 77 59 90 66 69 90 77
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR <D34> GRAY 		8-97417-461-3 01 1 1304- ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER(AK5) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY M IRROR<D34> GRAY 		8-97417-465-2 01 1 1304- ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRROR <D34> GRAY 		8-97417-451-3 01 1 1304- ● ● ● ●
23 16.070 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY M IRROR<D34> GRAY 		8-97416-682-2 01 1 1304- ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR <D34> GRAY 		8-97417-449-2 01 1 1304- ● ●
23 16.070 SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY M IRROR<D34> GRAY 		8-97416-681-2 01 1 1304- ● ●
23 16.070 SUN VISOR
GRAY 		8-97417-453-2 01 1 1304- ● ●
59 16.450 COVER; ASSIST GRIP
GRAY 		8-97416-700-0 02 1 1304- ● ● ● ●
59 16.450 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1304- ● ● ● ●
66 16.450 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE 		8-98050-320-0 04 1 1304- ●
66 16.450 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1304- ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-347-3 01 1 1304- ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-347-3 01 1 1304- ● ●
69 16.450 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-348-3 01 1 1304- ●
69 16.450 BRACKET; ASSIST GRIP 8-98103-348-3 01 1 1304- ● ●
77 16.450 SCREW; ASSIST GRIP
ASSIST HANDLE<E28> M6X25 		0-36230-625-0 02 1 1304- ● ● ● ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1304- ● ● ●
77 16.450 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) M6X25 		0-36230-625-0 04 1 1304- ●
77 16.450 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1304- ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97416-698-4 01 1 1304- ● ● ● ●
90 16.450 GRIP; ASSIST,ROOF
HIGH RIDE SUSPENSION(7YC) (A) GRAY 		8-97416-698-4 02 1 1304- ●
90 16.450 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1304- ● ●
90 16.450 GRIP; ASSIST,ROOF
(B) REAR GRAY 		8-97418-299-1 01 1 1304- ● ●
90 16.450 GRIP; ASSIST,ROOF
(B) REAR GRAY 		8-97418-300-1 01 1 1304- ● ●
145 16.070 PLUG; HOLE
EXC. SUNVISOR PASSENGER SIDE<D20> GRAY 		8-97416-689-1 01 1 1304- ● ● ● ●
348 16.070 RETAINER; SUNSHADE
GRAY 		8-97403-990-0 02 1 1304- ● ● ● ●
349 16.070 CLIP; RETAINER SUNSHADE 8-98039-903-0 02 1 1304- ● ● ● ●
