Isuzu WW
▶
PICKUP
▶
TFR
▶
51474 - TFR/TFS-RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-42 - ASH TRAY
▶

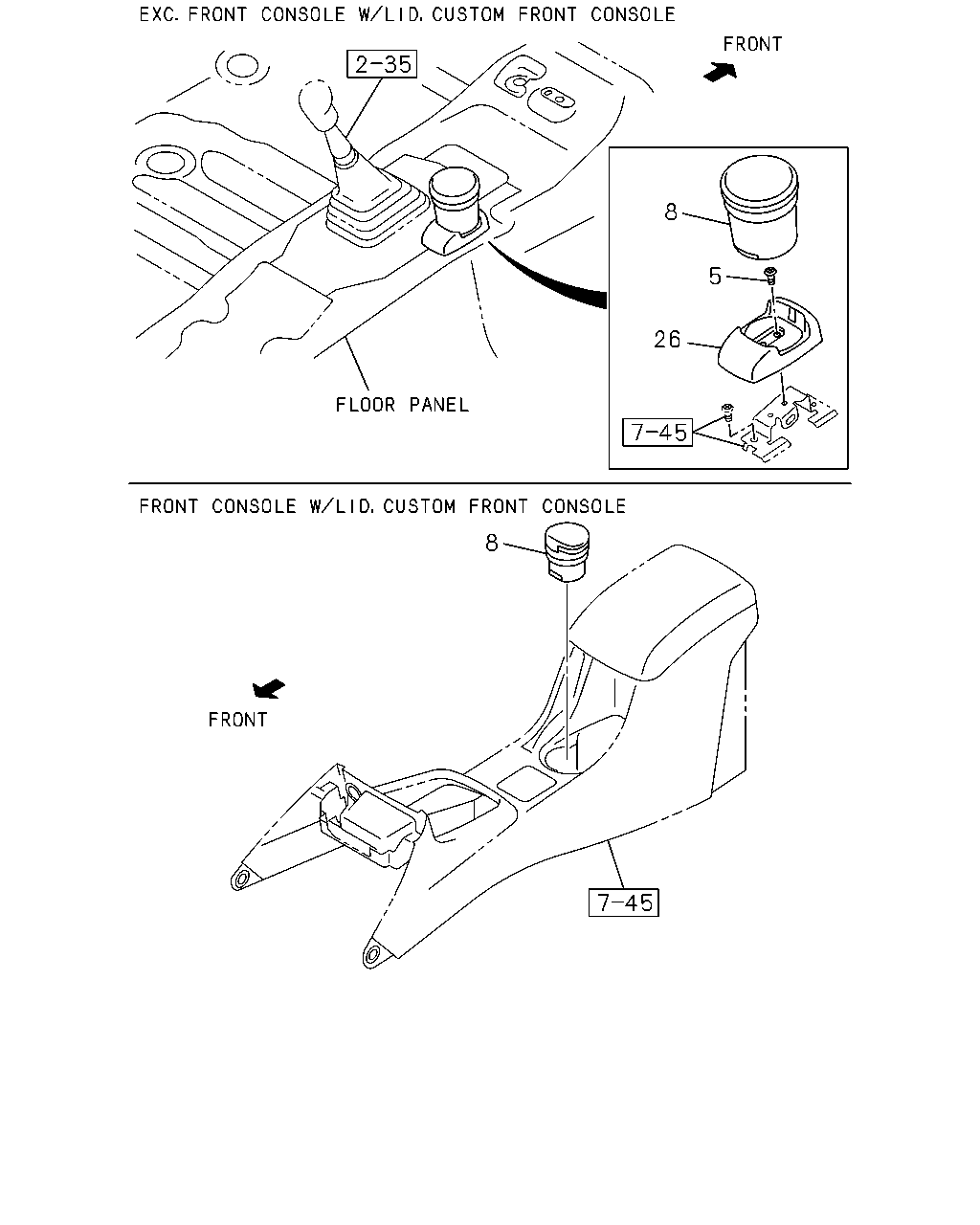

7-42 — ASH TRAY
(#117596) — 7 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
D - TFS5CF
E - TFS5SF
F - TFS5WF
8
5
26
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
5
16.120 SCREW; BRKT,ASH TRAY
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.345 M5X14 TAPPING
8-98184-363-0
02
1
1304-1305
●
●
●
●
●
●
5
16.120 SCREW; BRKT,ASH TRAY
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.345 M5X14 TAPPING
8-98184-363-0
02
1
1306-
●
●
●
●
●
●
8
16.120 TRAY ASM; ASH
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-811-1
01
1
1304-
●
●
●
●
●
●
8
16.120 TRAY ASM; ASH
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-634-2
01
1
1304-1305
●
●
●
●
●
●
8
16.120 TRAY ASM; ASH
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-634-2
01
1
1306-
●
●
●
●
●
●
26
16.120 HOUSING; ASH TRAY
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-632-3
01
1
1304-1305
●
●
●
●
●
●
26
16.120 HOUSING; ASH TRAY
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-632-3
01
1
1306-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
