Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#117583) — 432 parça

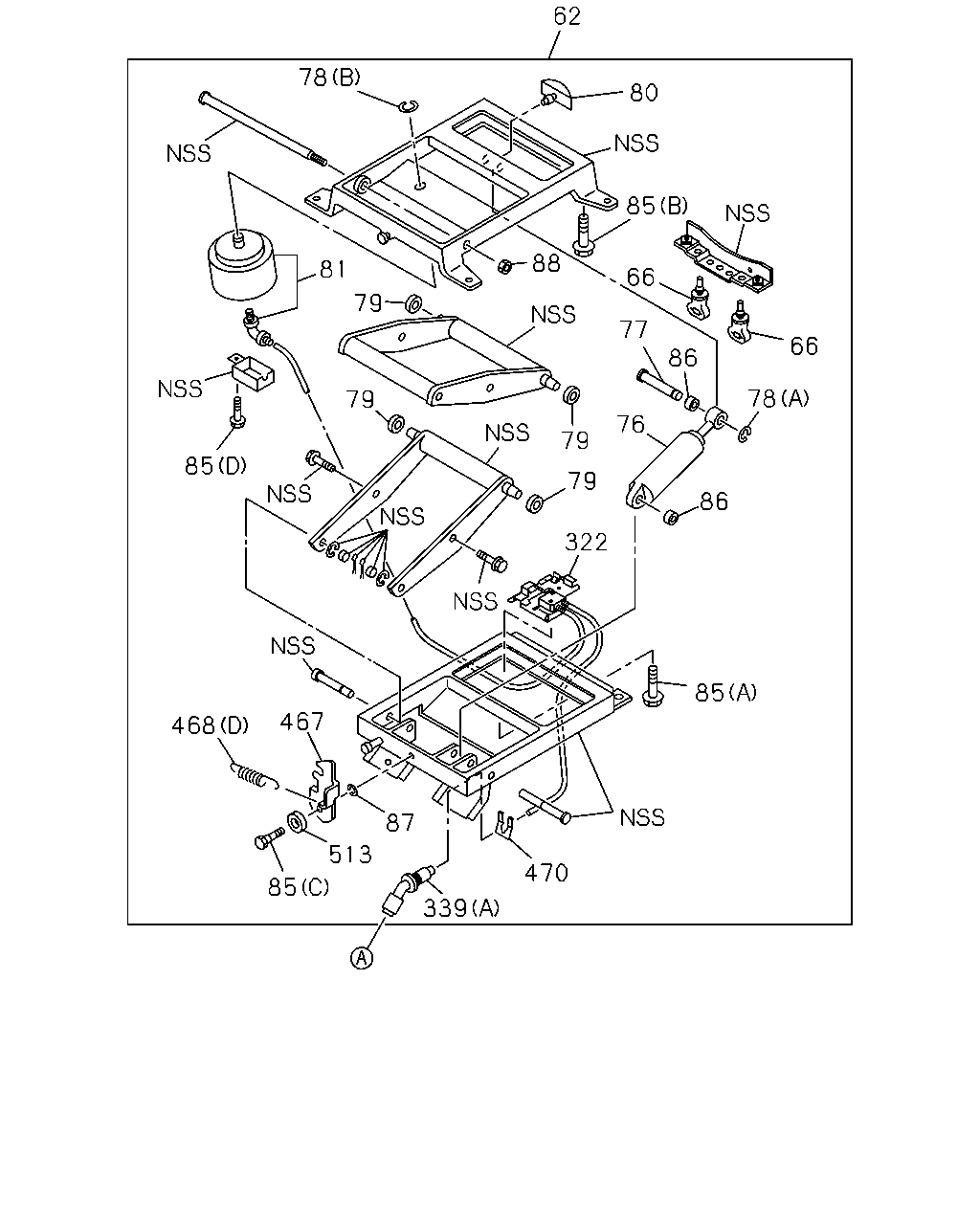

62 80 85 66 66 78 86 77 76 86 85 470 339 513 85 87 467 468 85 79 79 79 88 79 81 78 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-183-8	01	1	1304-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1503-1509
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-448-0	01	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT(A56)	1-75538-145-0	02	1	1304-1502
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-145-0	02	1	1503-1509
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT(A56)	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-139-0	01	1	1304-1502
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-139-0	01	1	1503-1509
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-139-0	01	1	1510-
77	PIN; DAMPER AIR SUSP DRIVER SEAT(A56)	1-75538-138-2	01	1	1304-1502
77	PIN; DAMPER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-138-2	01	1	1503-1509
77	PIN; DAMPER AIR SUSP DRIVER SEAT(A56)	1-75538-138-2	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (A) ID=8	9-09185-408-0	01	1	1304-1502
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) ID=8	9-09185-408-0	01	1	1503-1509
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (B) ID=15	9-09185-415-0	01	1	1304-1502
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) ID=15	9-09185-415-0	01	1	1503-1509
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-159-0	04	1	1304-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-489-0	04	1	1404-1502
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98261-489-0	04	1	1503-1509
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT(A56)	1-09987-123-0	01	1	1304-1502
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-09987-123-0	01	1	1503-1509
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT(A56)	1-09987-123-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56)	1-75538-151-2	01	1	1304-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56)	8-98242-816-0	01	1	1401-1502
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98242-816-0	01	1	1503-1509
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56)	8-98242-816-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1502
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1503-1509
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (C)	1-09980-577-1	01	1	1304-1502
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C)	1-09980-577-1	01	1	1503-1509
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (A) M6X12	1-75538-208-1	02	1	1304-1502
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M6X12	1-75538-208-1	02	1	1503-1509
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1304-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1502
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1503-1509
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT(A56) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1304-1502
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1503-1509
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT(A56) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT(A56) ID=8.2	0-91510-508-0	01	1	1304-1502
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) ID=8.2	0-91510-508-0	01	1	1503-1509
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT(A56) ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) M10	1-75537-273-1	01	1	1304-1502
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M10	1-75537-273-1	01	1	1503-1509
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT(A56)	1-75538-186-3	01	1	1304-1502
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-186-3	01	1	1503-1509
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT(A56)	1-75538-186-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (A)	1-75538-131-3	01	1	1304-1502
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1503-1509
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (B)	8-98014-971-0	01	1	1304-
467	LEVER; LOCK AIR SUSP DRIVER SEAT(A56)	1-75538-134-0	01	1	1304-1502
467	LEVER; LOCK AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-134-0	01	1	1503-1509
467	LEVER; LOCK AIR SUSP DRIVER SEAT(A56)	1-75538-134-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (A)	1-75518-206-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (B)	1-75518-207-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (C)	1-75518-208-0	02	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (D)	1-75538-132-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (D)	1-75538-132-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT(A56)	1-75538-137-0	01	1	1304-1502
470	CLIP; HOSE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-137-0	01	1	1503-1509
470	CLIP; HOSE AIR SUSP DRIVER SEAT(A56)	1-75538-137-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT(A56)	1-75538-133-0	01	1	1304-1502
513	SPACER; LEVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-133-0	01	1	1503-1509
513	SPACER; LEVER AIR SUSP DRIVER SEAT(A56)	1-75538-133-0	01	1	1510-

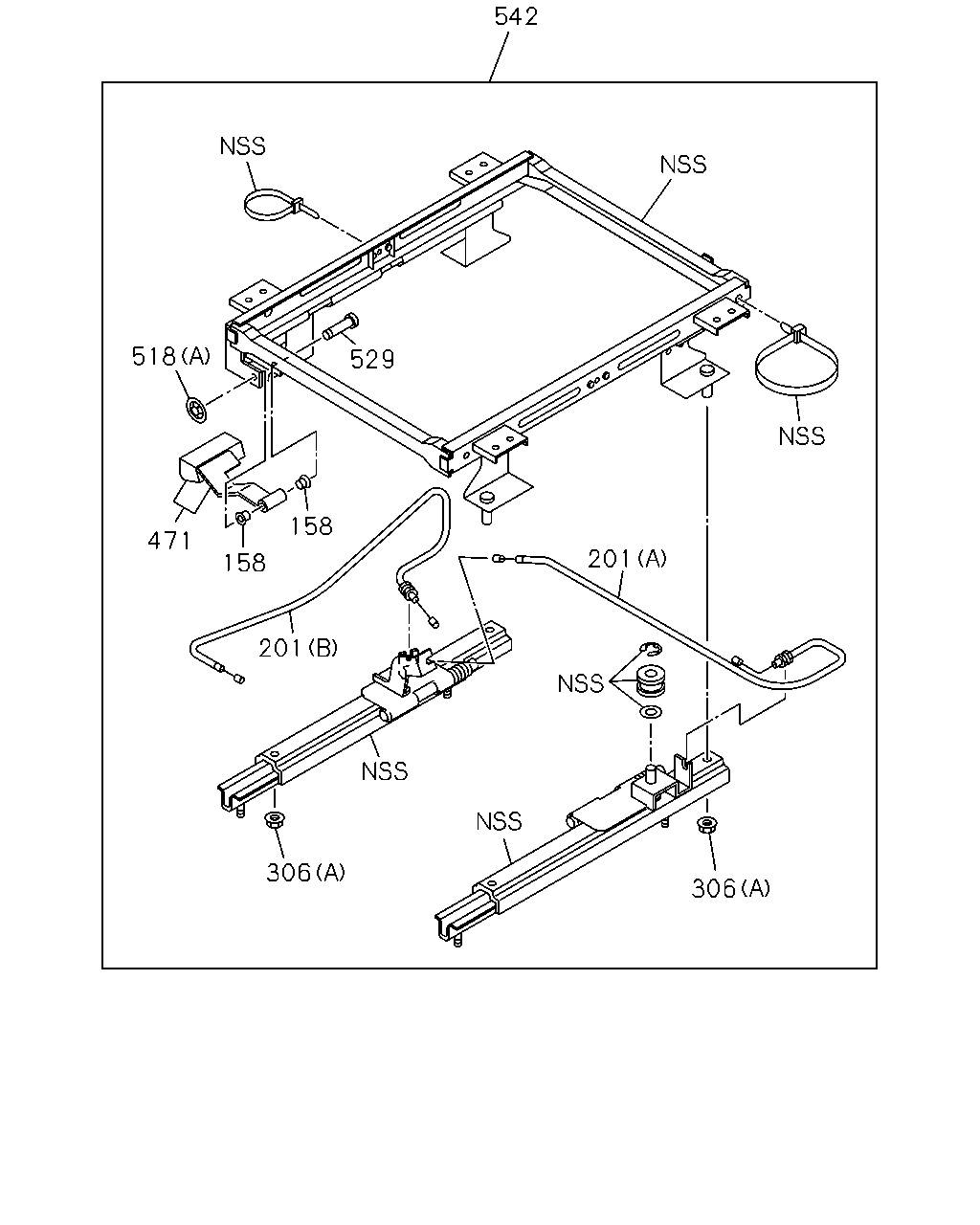

542 518 529 471 158 158 201 201 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1304-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST(TAZ)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1304-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ RIGID SEAT WO/ARM REST(TAZ) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1304-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ RIGID SEAT WO/ARM REST(TAZ) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1304-1502
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1304-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (E) M8 FLANGE	1-75538-207-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	1304-1502
529	PIN; LINK AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK RIGID SEAT WO/ARM REST(TAZ)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98093-310-0	01	1	1304-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98291-653-0	01	1	1503-

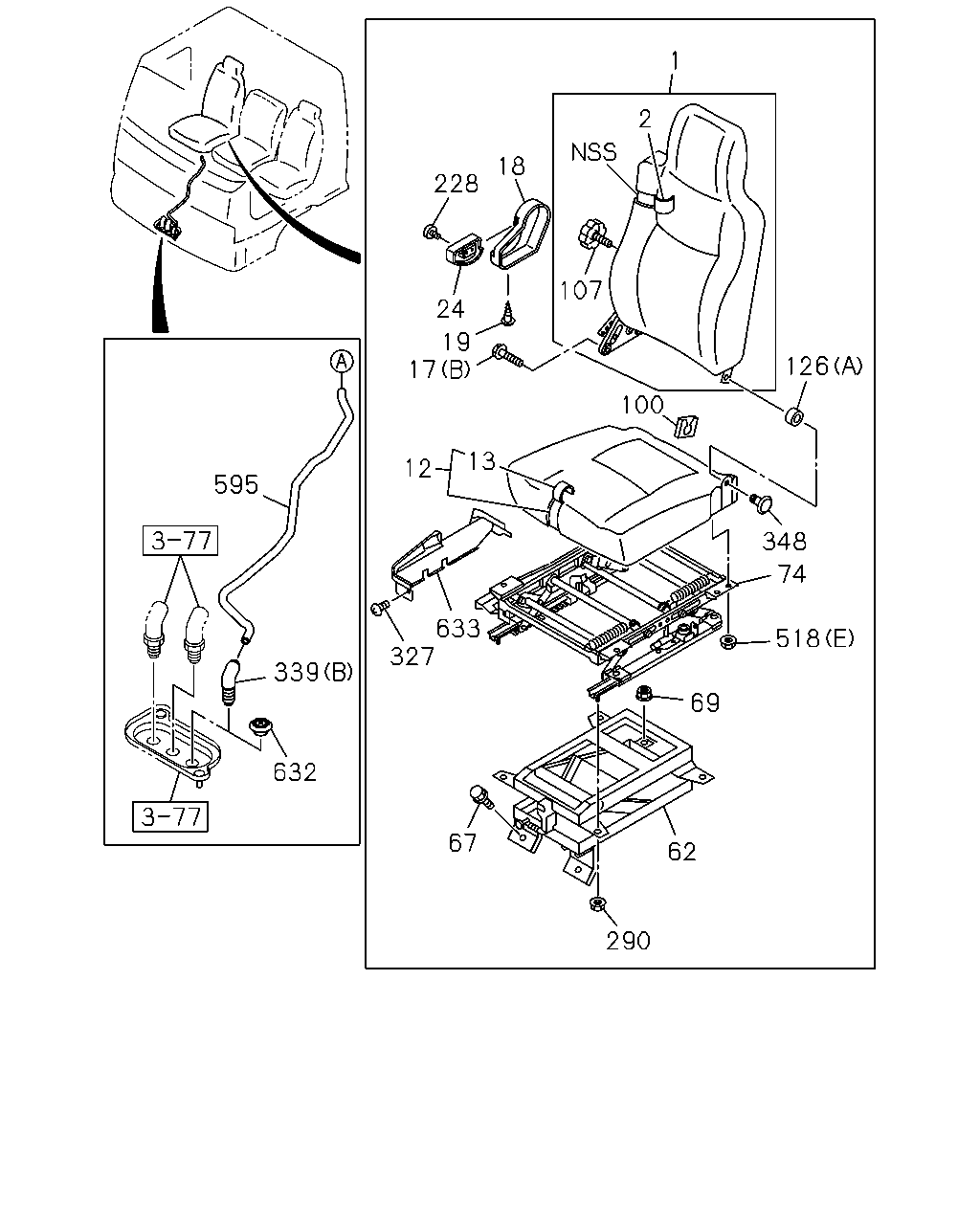

595 339 632 327 67 290 62 69 518 74 100 348 126 1 2 18 228 24 17 12 13 107 19 633

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1304-1512
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1304-1502
1	BACK ASM; SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97409-955-5	01	1	1503-1509
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1304-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1304-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97411-910-2	01	1	1503-1509
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1304-1512
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1304-1502
12	CUSHION; SEAT,FRT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97409-954-2	01	1	1503-1509
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1304-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1304-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97411-909-1	01	1	1503-1509
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1304-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING RIGID SEAT WO/ARM REST(TAZ) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1304-
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1304-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER M5	8-98062-663-0	01	1	1304-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER RIGID SEAT WO/ARM REST(TAZ) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1304-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-183-8	01	1	1304-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1503-1509
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-448-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1304-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1304-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	8-98003-678-0	01	1	1304-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1503-1509
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	8-98291-640-0	01	1	1510-
100	COVER; HINGE	8-98203-070-0	01	1	1304-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE RIGID SEAT WO/ARM REST(TAZ)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1304-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST(TAZ) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1304-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB RIGID SEAT WO/ARM REST(TAZ) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT(A56) M8 FLANGE	1-75538-207-0	04	1	1304-1502
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M8 FLANGE	1-75538-207-0	04	1	1503-1509
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT(A56) M8 FLANGE	1-75538-207-0	04	1	1510-
327	CLIP; COVER AIR SUSP DRIVER SEAT(A56)	1-09987-273-0	01	1	1304-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (A)	1-75538-131-3	01	1	1304-1502
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1503-1509
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (B)	8-98014-971-0	01	1	1304-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (E) M8 FLANGE	1-75538-207-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	1510-
595	TUBE; NYLON AIR SUSP DRIVER SEAT(A56)	8-98067-762-0	01	1	1304-
632	GROMMET RIGID SEAT WO/ARM REST(TAZ) OD=24	8-94119-796-0	01	1	1304-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT(A56) GRAY	8-97409-956-0	01	1	1304-1502
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-956-0	01	1	1503-1509
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT(A56) GRAY	8-97409-956-0	01	1	1510-

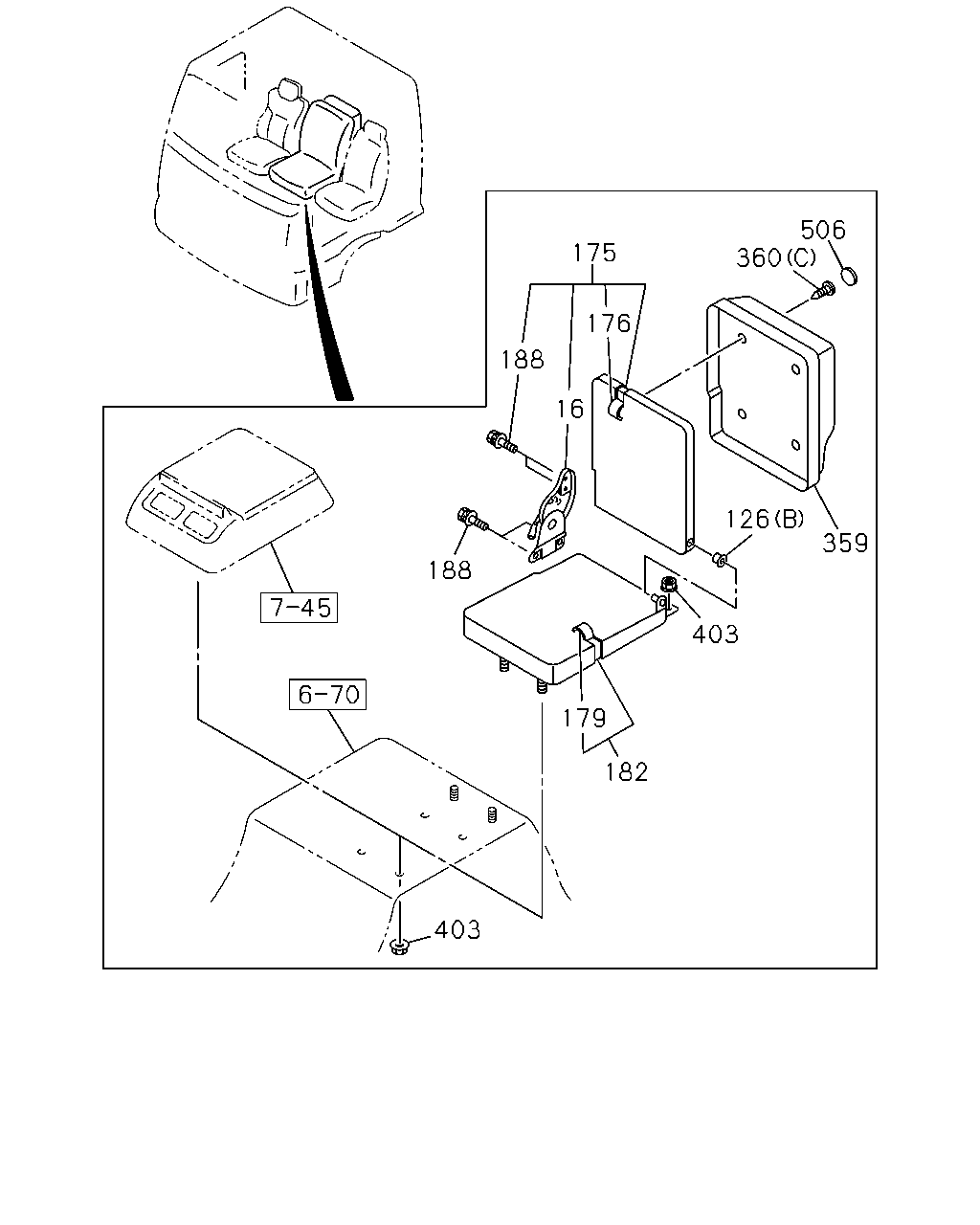

403 182 179 188 403 16 188 126 359 176 175 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1304-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1304-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST(TAZ) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-434-1	01	1	1304-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-975-1	01	1	1304-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-435-1	01	1	1304-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-976-1	01	1	1304-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-432-1	01	1	1304-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-974-1	01	1	1304-
182	CUSHION ASM; CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-430-3	01	1	1304-
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-973-3	01	1	1304-
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1304-
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1304-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1304-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1304-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1304-
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1304-
506	CAP; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97409-980-1	02	1	1304-

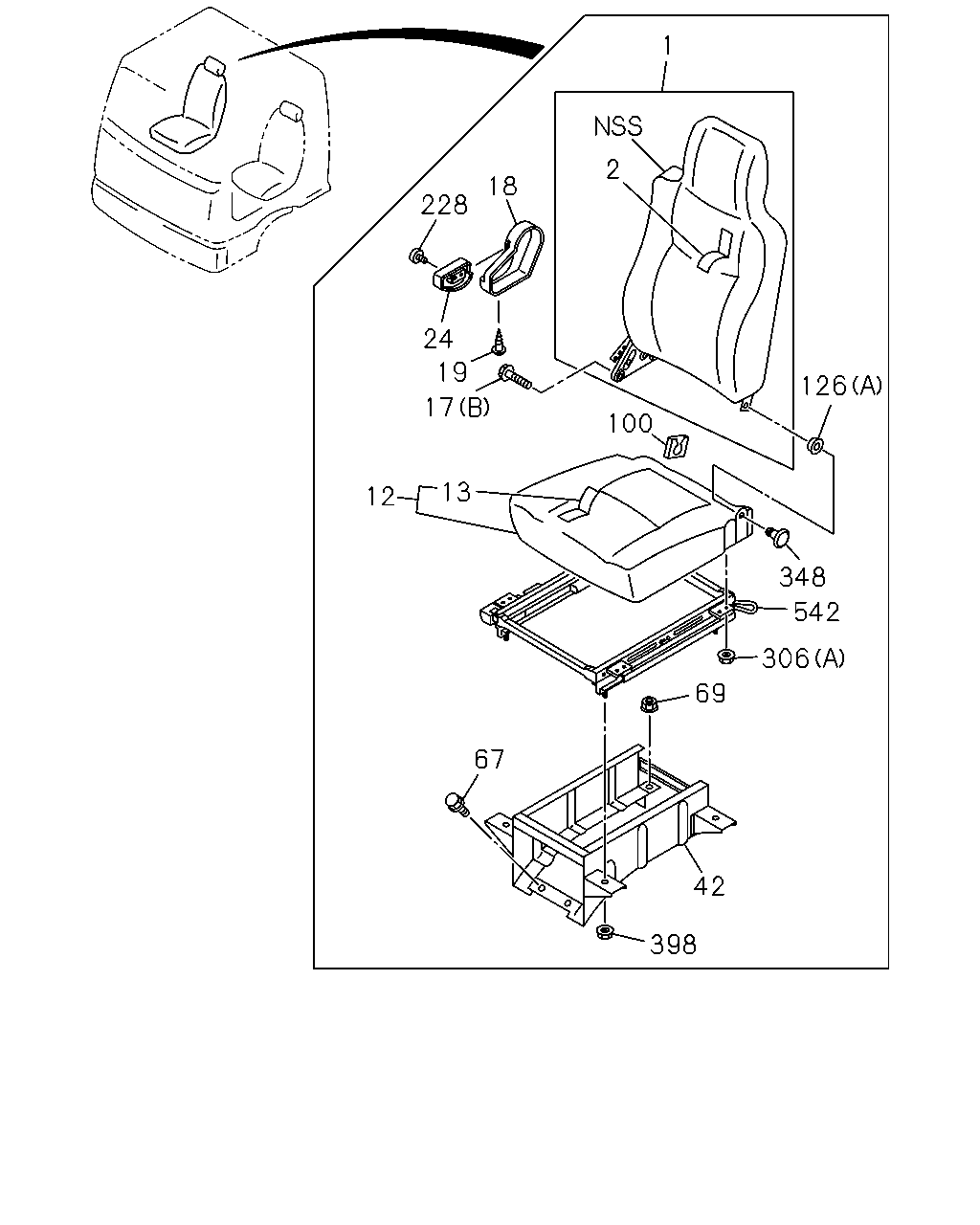

228 18 2 1 126 100 17 12 24 13 67 69 542 19 398 306 42 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1304-1512
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1304-1502
1	BACK ASM; SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97409-955-5	01	1	1503-1509
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1304-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1304-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97411-910-2	01	1	1503-1509
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1304-1512
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1304-1502
12	CUSHION; SEAT,FRT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97409-954-2	01	1	1503-1509
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1304-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1304-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97411-909-1	01	1	1503-1509
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1304-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING RIGID SEAT WO/ARM REST(TAZ) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1304-
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1304-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER M5	8-98062-663-0	01	1	1304-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER RIGID SEAT WO/ARM REST(TAZ) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1304-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1510-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST(TAZ)	1-75558-604-2	01	1	1304-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1304-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1304-
100	COVER; HINGE	8-98203-070-0	01	1	1304-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE RIGID SEAT WO/ARM REST(TAZ)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1304-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING RIGID SEAT WO/ARM REST(TAZ) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1304-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB RIGID SEAT WO/ARM REST(TAZ) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1304-1502
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
398	NUT; STAND RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	04	1	1304-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98093-310-0	01	1	1304-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98291-653-0	01	1	1503-

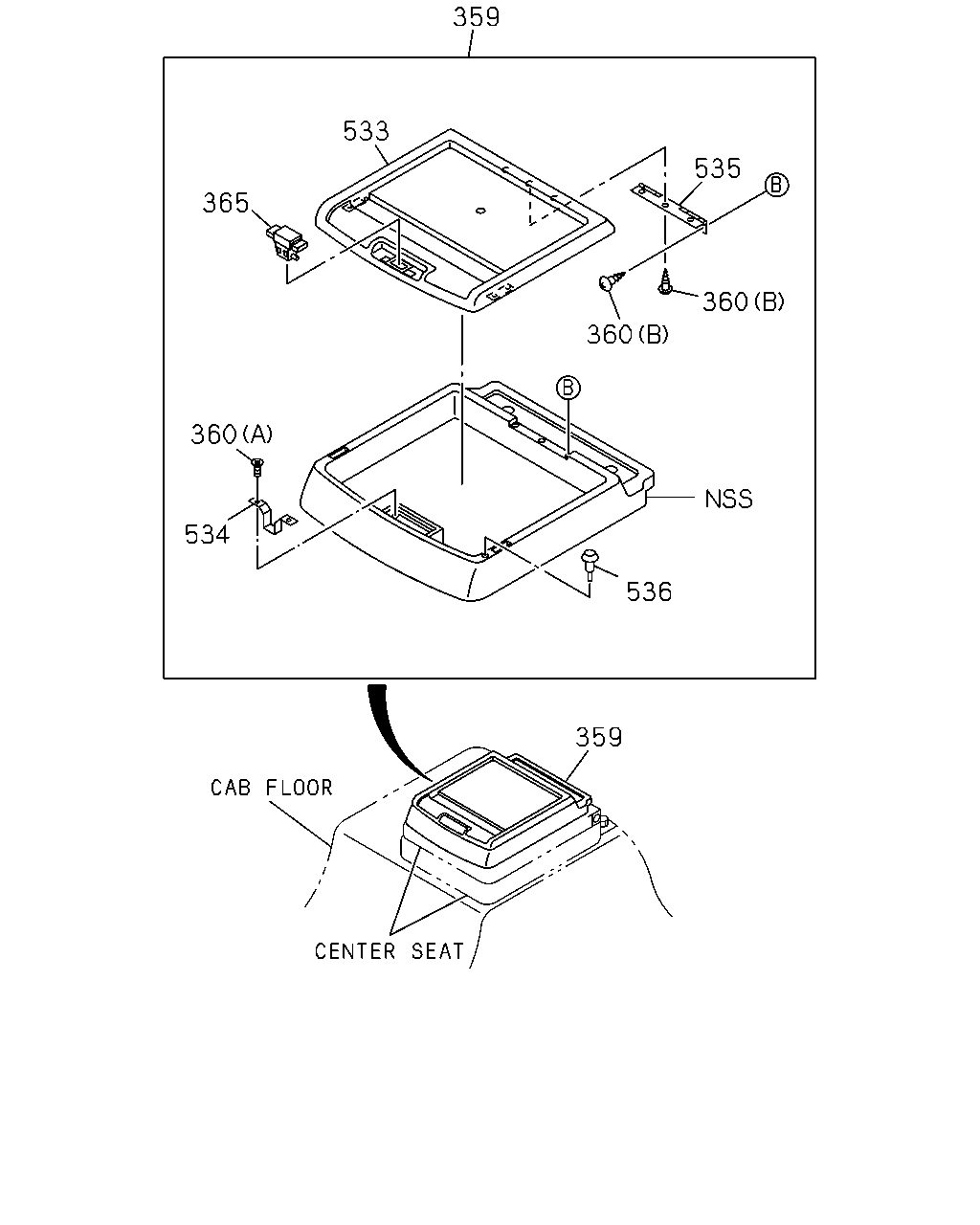

359 536 534 360 360 360 365 533 535 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1304-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1304-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1304-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1304-
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-312-0	01	1	1304-
533	LID; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97417-263-0	01	1	1304-
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1304-
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1304-
536	RUBBER; CUSHION CENTER SEAT(SA1)	1-72538-187-0	02	1	1304-

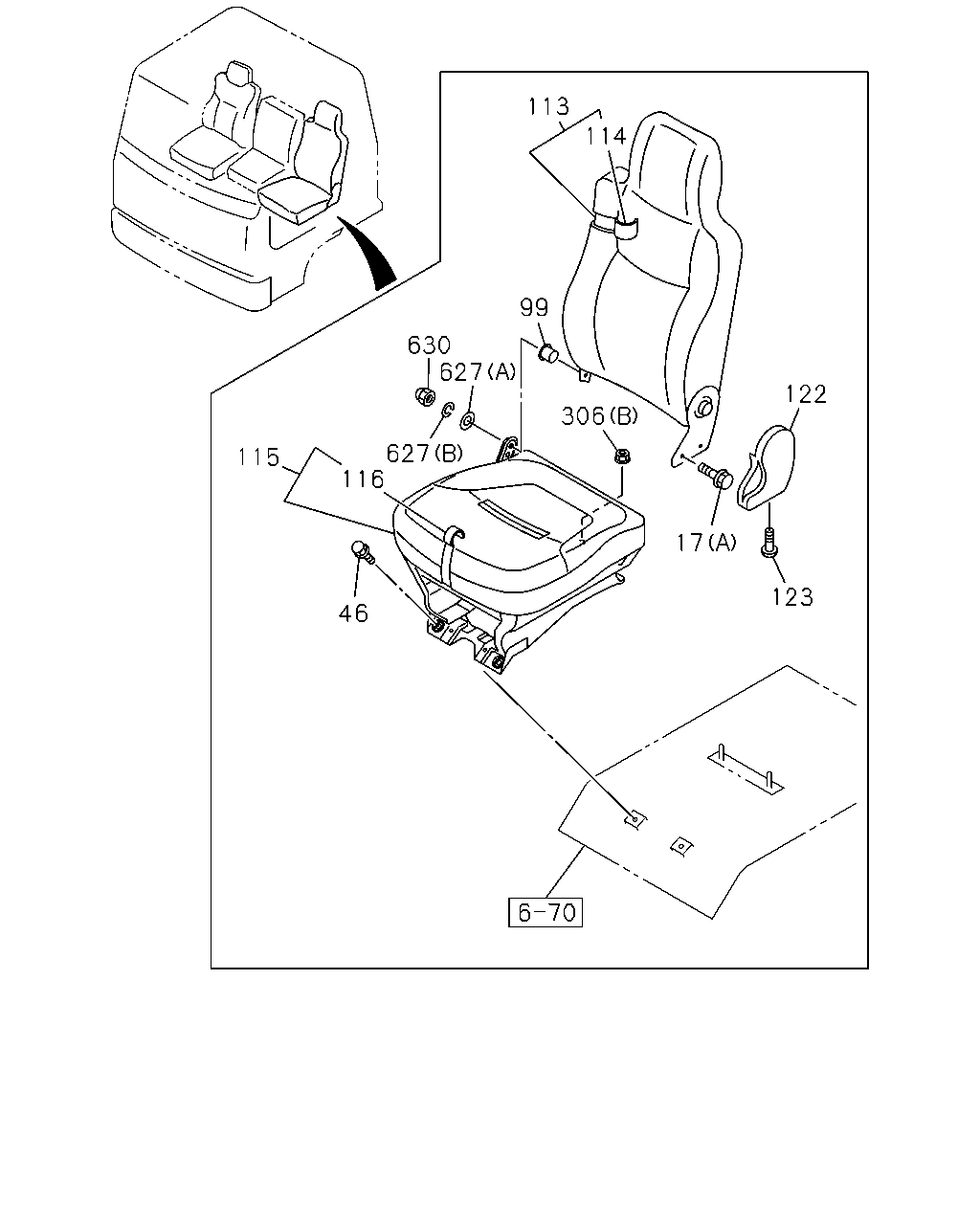

114 113 122 123 17 306 99 627 630 627 116 115 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1304-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING RIGID SEAT WO/ARM REST(TAZ) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1304-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1304-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1304-
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-422-0	01	1	1304-
113	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-966-1	01	1	1304-
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-424-0	01	1	1304-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-916-0	01	1	1304-
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-418-2	01	1	1304-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83) DARK GRAY	8-97409-965-1	01	1	1304-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-420-1	01	1	1304-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-915-0	01	1	1304-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1304-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1304-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1304-1502
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1304-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1304-
630	NUT; CAP M8	8-98063-225-0	01	1	1304-

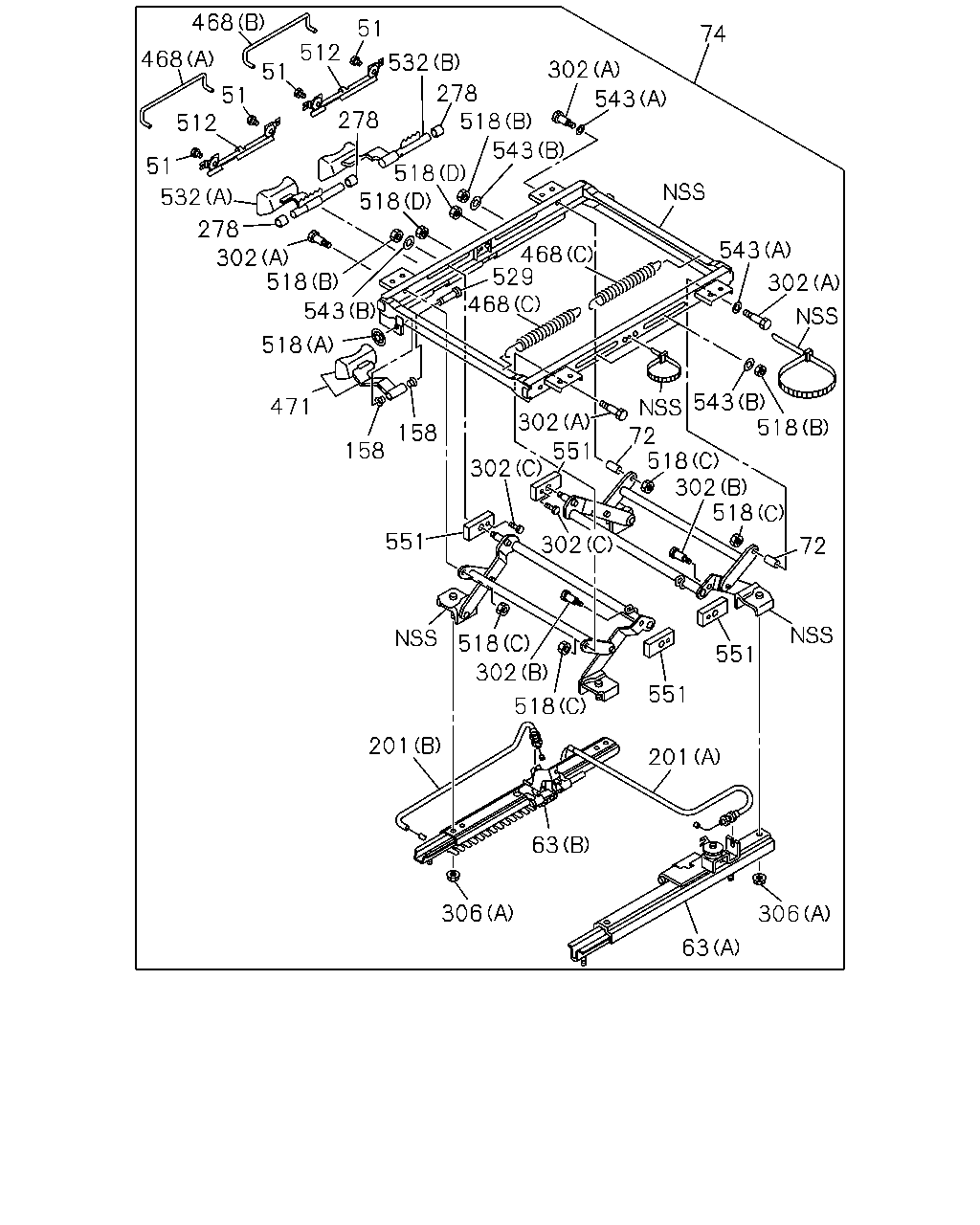

468 51 512 51 51 512 468 278 278 302 74 543 518 518 51 278 532 302 518 543 468 543 302 543 72 302 529 468 518 518 543 471 158 158 551 201 306 63 63 306 201 551 551 518 302 518 302 551 302 518 518 72 518 302 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56)	1-75518-325-1	04	1	1304-1502
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-325-1	04	1	1503-1509
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56)	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) (A)	1-75518-199-1	01	1	1304-1502
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-199-1	01	1	1503-1509
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) (A)	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) (B)	1-75518-323-0	01	1	1304-1502
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-323-0	01	1	1503-1509
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) (B)	1-75518-323-0	01	1	1510-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-334-1	02	1	1304-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98291-668-0	02	1	1503-1509
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56)	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	8-98003-678-0	01	1	1304-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1503-1509
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	8-98291-640-0	01	1	1510-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1304-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM RIGID SEAT WO/ARM REST(TAZ)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1304-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ RIGID SEAT WO/ARM REST(TAZ) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1304-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ RIGID SEAT WO/ARM REST(TAZ) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT(A56)	1-75518-244-0	03	1	1304-1502
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-244-0	03	1	1503-1509
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT(A56)	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (B)	1-75518-266-2	02	1	1304-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-266-2	02	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (A)	1-75518-270-1	04	1	1304-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	8-98291-667-0	04	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (C)	1-75518-336-1	02	1	1304-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C)	1-75518-336-1	02	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (C)	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1304-1502
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (A)	1-75518-206-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (B)	1-75518-207-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (C)	1-75518-208-0	02	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (D)	1-75538-132-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (D)	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1304-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT(A56)	1-75518-243-1	02	1	1304-1502
512	COVER; LEVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-243-1	02	1	1503-1509
512	COVER; LEVER AIR SUSP DRIVER SEAT(A56)	1-75518-243-1	02	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (E) M8 FLANGE	1-75538-207-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	1304-1502
529	PIN; LINK AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK RIGID SEAT WO/ARM REST(TAZ)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) (A)	1-75518-203-0	01	1	1304-1502
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-203-0	01	1	1503-1509
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) (A)	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) (B)	1-75518-204-1	01	1	1304-1502
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-204-1	01	1	1503-1509
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) (B)	1-75518-204-1	01	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (A)	1-75518-335-0	02	1	1304-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1509
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (B) ID=8.4	9-09160-508-0	04	1	1304-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) ID=8.4	9-09160-508-0	04	1	1503-1509
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-265-0	04	1	1304-1502
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-265-0	04	1	1503-1509
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-265-0	04	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
