Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#117581) — 183 parça

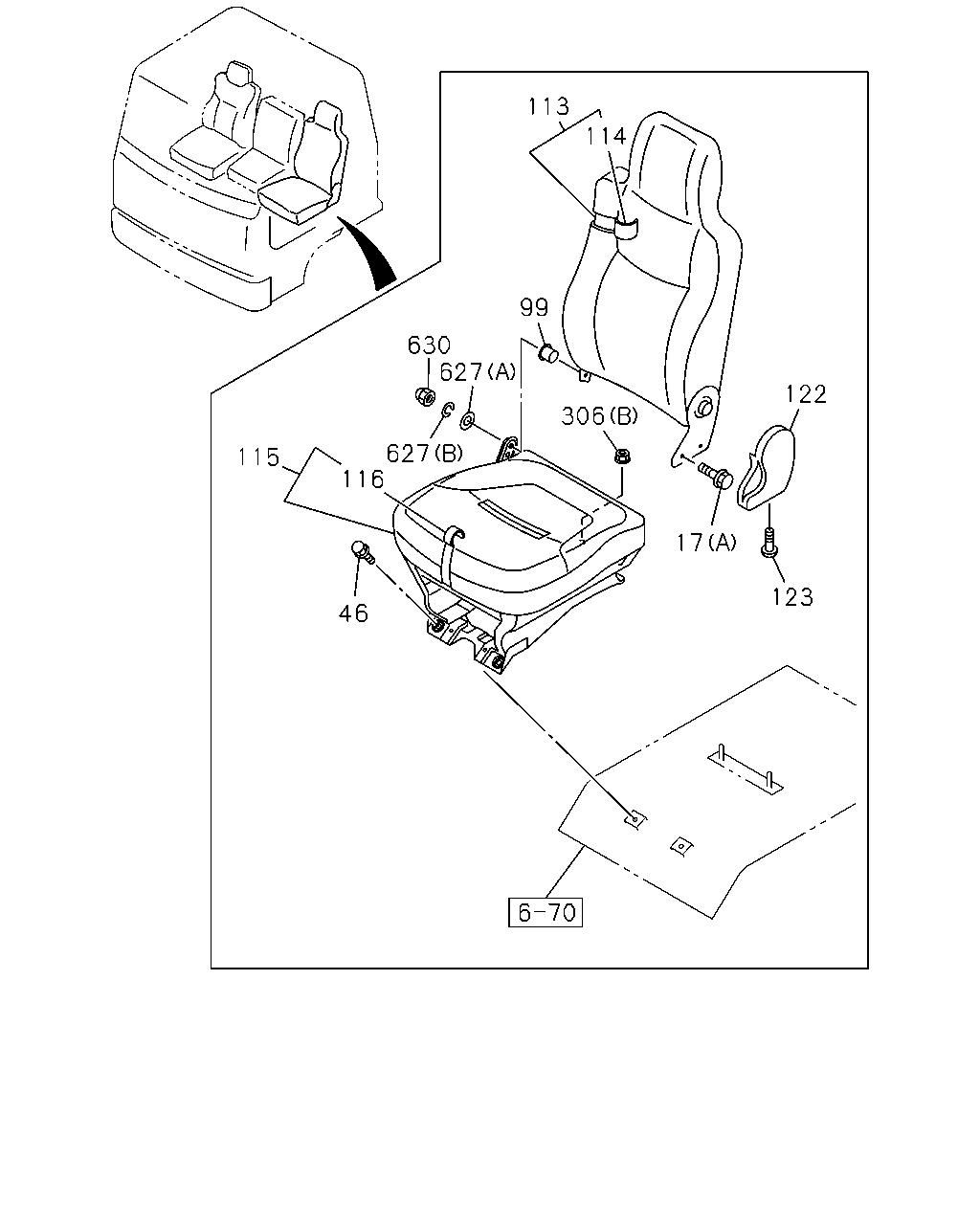

114 113 122 123 17 306 99 627 630 627 116 115 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1304-	●	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1304-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1304-	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1304-	●	●
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-422-0	01	1	1304-	●	●
113	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-966-1	01	1	1304-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-424-0	01	1	1304-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-916-0	01	1	1304-	●	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-418-1	01	1	1304-	●	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83) DARK GRAY	8-97409-965-1	01	1	1304-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-420-0	01	1	1304-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-915-0	01	1	1304-	●	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1304-	●	●
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	1304-	●	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1304-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1304-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1304-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	1304-	●	●

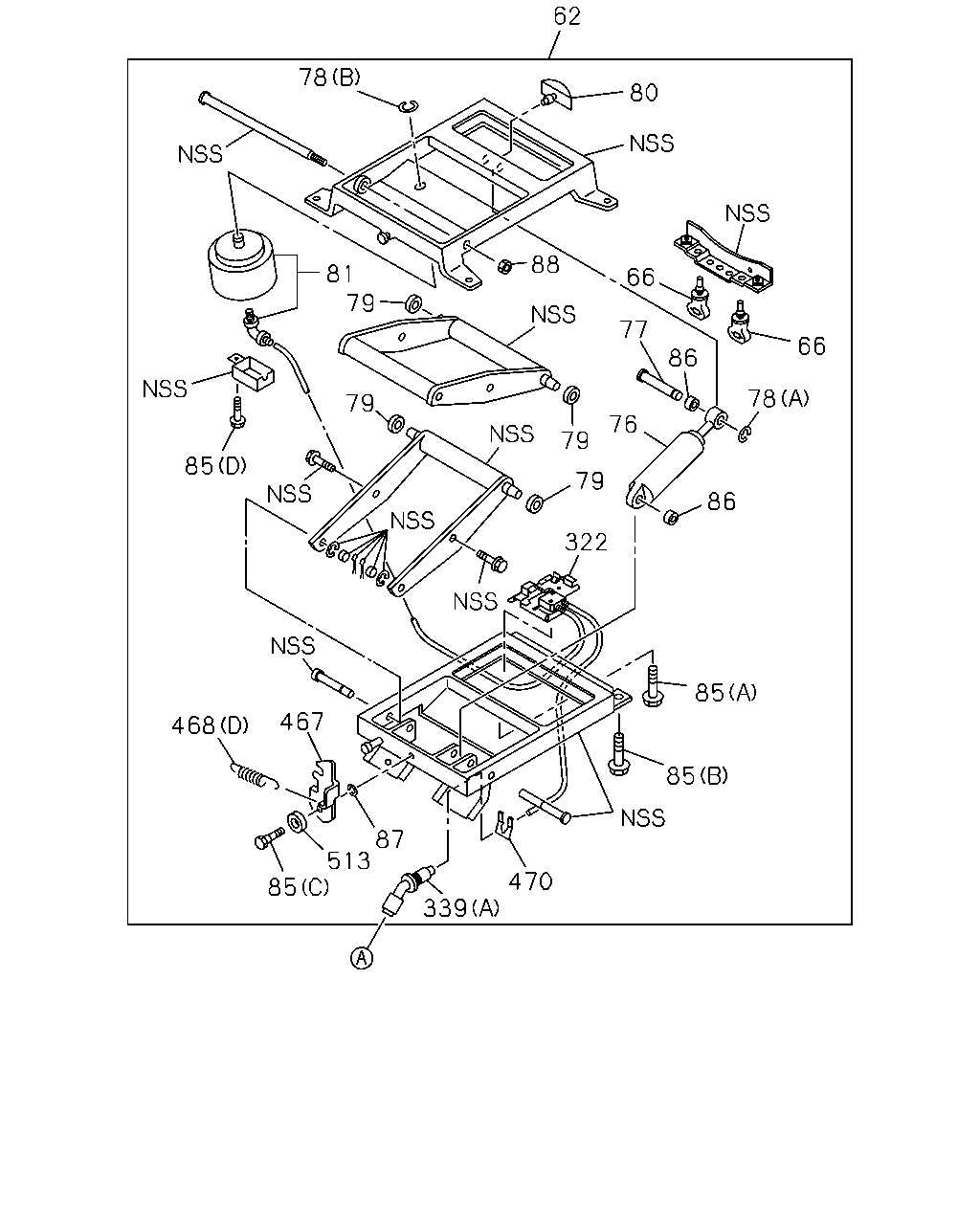

62 80 88 78 81 66 66 78 86 76 77 86 79 79 85 79 79 322 85 85 470 339 85 513 87 467 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-183-8	01	1	1304-1403	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-448-0	01	1	1404-	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT(A56)	1-75538-145-0	02	1	1304-	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-139-0	01	1	1304-	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT(A56)	1-75538-138-2	01	1	1304-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (A) ID=8	9-09185-408-0	01	1	1304-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (B) ID=15	9-09185-415-0	01	1	1304-	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-159-0	04	1	1304-1403	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-489-0	04	1	1404-	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT(A56)	1-09987-123-0	01	1	1304-	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56)	1-75538-151-2	01	1	1304-1312	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56)	8-98242-816-0	01	1	1401-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (C)	1-09980-577-1	01	1	1304-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (A) M6X12	1-75538-208-1	02	1	1304-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1304-1312	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT(A56) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1304-	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT(A56) ID=8.2	0-91510-508-0	01	1	1304-	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) M10	1-75537-273-1	01	1	1304-	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT(A56)	1-75538-186-3	01	1	1304-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (A)	1-75538-131-3	01	1	1304-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (B)	8-98014-971-0	01	1	1304-	●	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT(A56)	1-75538-134-0	01	1	1304-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (A)	1-75518-206-0	01	1	1304-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (B)	1-75518-207-0	01	1	1304-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (C)	1-75518-208-0	02	1	1304-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (D)	1-75538-132-0	01	1	1304-	●	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT(A56)	1-75538-137-0	01	1	1304-	●	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT(A56)	1-75538-133-0	01	1	1304-	●	●

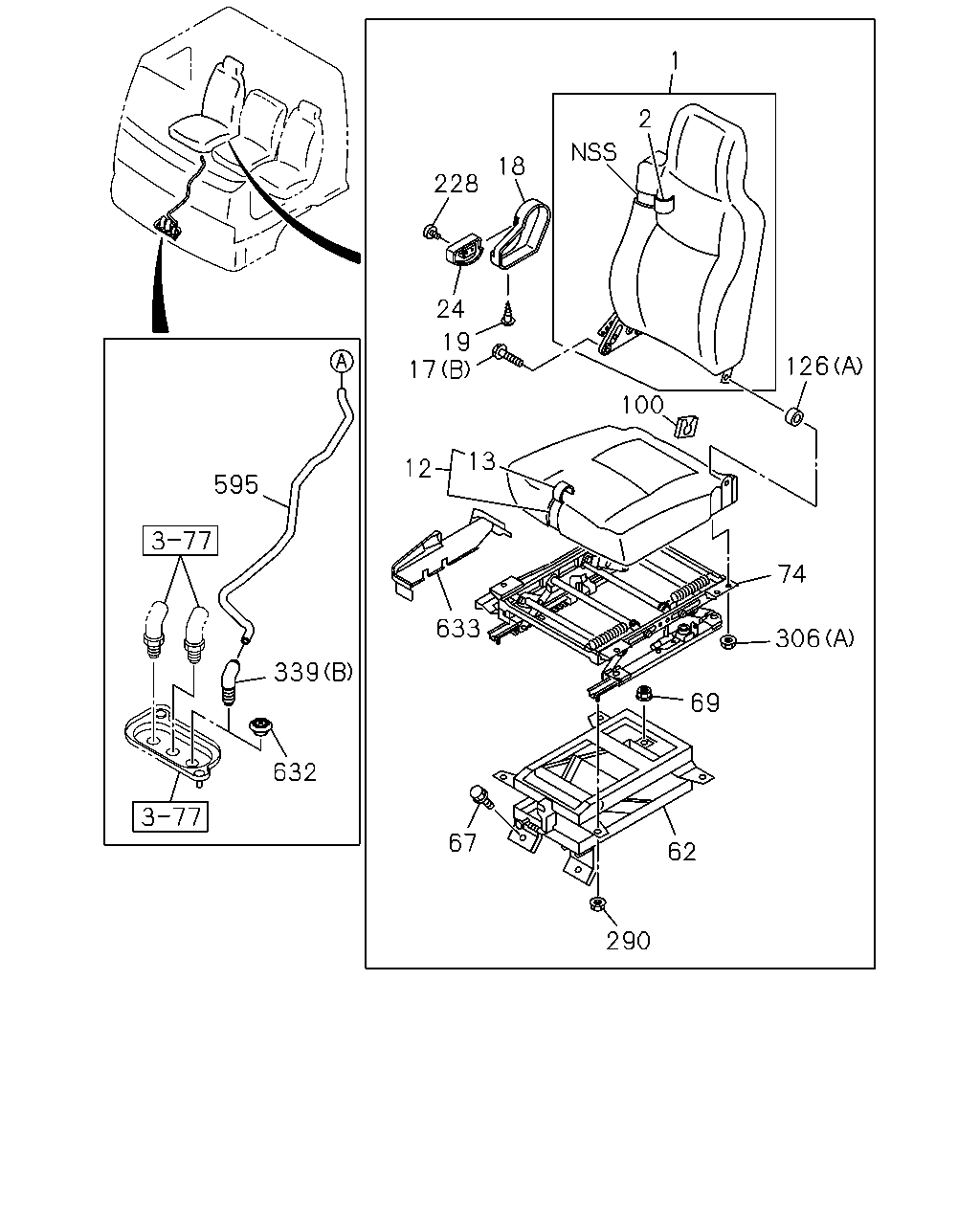

1 126 2 228 18 24 100 74 306 19 17 12 13 595 339 632 633 69 62 290 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1304-	●	●
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1304-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1304-	●	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1304-	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1304-	●	●
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1304-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1304-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1304-	●	●
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1304-	●	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1304-	●	●
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1304-	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	1304-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1304-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-183-8	01	1	1304-1403	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	8-98261-448-0	01	1	1404-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1304-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	8-98003-678-0	01	1	1304-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	8-98291-640-0	01	1	1503-	●	●
100	COVER; HINGE	8-98203-070-0	01	1	1304-	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1304-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1304-	●	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT(A56) M8 FLANGE	1-75538-207-0	04	1	1304-	●	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1304-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (A)	1-75538-131-3	01	1	1304-	●	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (B)	8-98014-971-0	01	1	1304-	●	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT(A56)	8-98067-762-0	01	1	1304-	●	●
632	GROMMET RIGID SEAT WO/ARM REST(TAZ) OD=24	8-94119-796-0	01	1	1304-	●	●
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT(A56) GRAY	8-97409-956-0	01	1	1304-	●	●

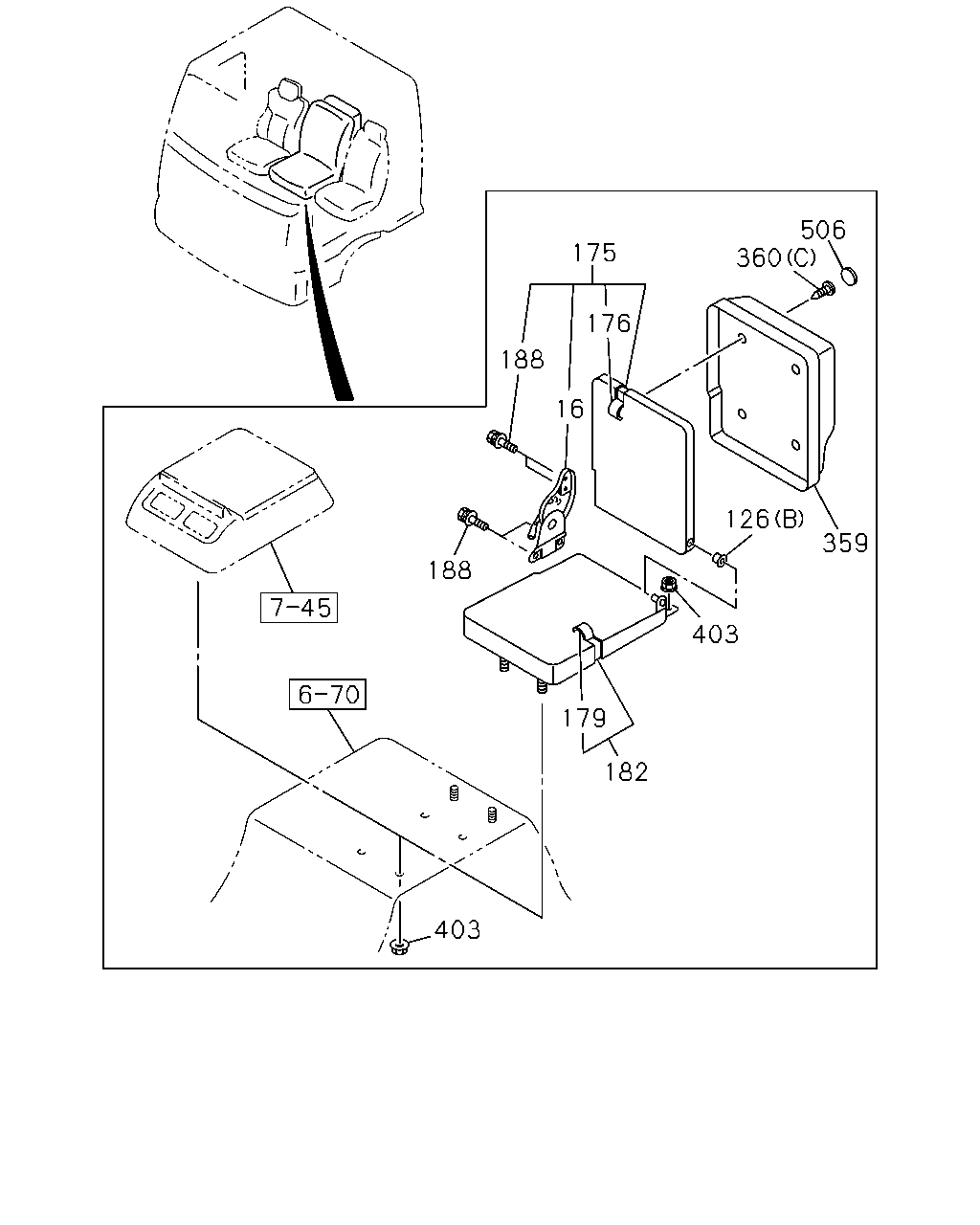

403 182 179 188 403 359 126 16 188 176 175 360 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1304-	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1304-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-	●	●
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-434-1	01	1	1304-	●	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-975-1	01	1	1304-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-435-1	01	1	1304-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-976-1	01	1	1304-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-432-1	01	1	1304-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-974-1	01	1	1304-	●	●
182	CUSHION ASM; CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-430-3	01	1	1304-	●	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-973-3	01	1	1304-	●	●
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1304-	●	●
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1304-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1304-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1304-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1304-	●	●
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1304-	●	●
506	CAP; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97409-980-1	02	1	1304-	●	●

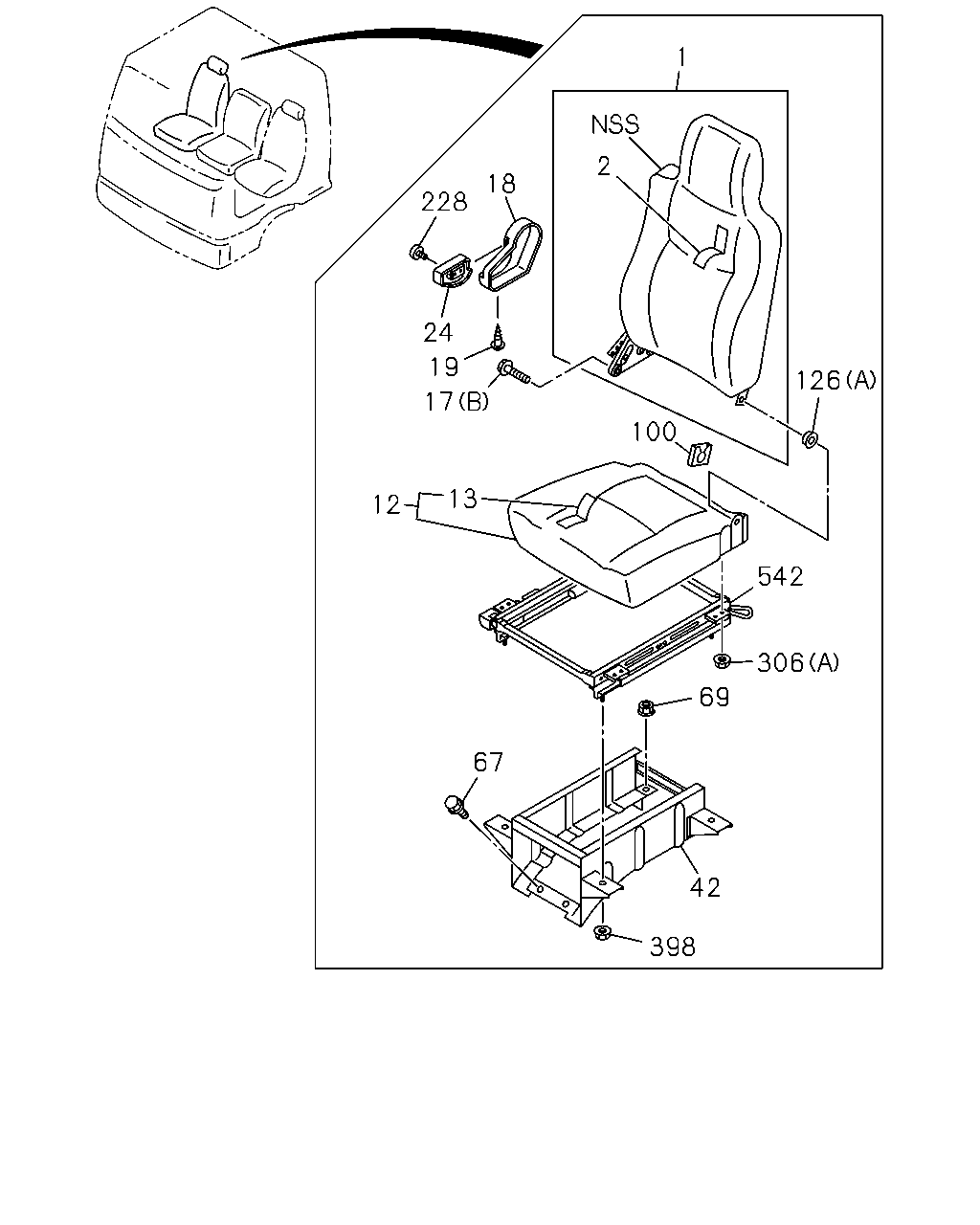

1 2 18 228 24 17 19 13 12 67 69 542 100 126 306 42 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1304-	●	●
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1304-	●	●
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1304-	●	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1304-	●	●
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1304-	●	●
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1304-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1304-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1304-	●	●
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1304-	●	●
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1304-	●	●
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1304-	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	1304-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1304-	●	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST(TAZ)	1-75558-604-2	01	1	1304-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1304-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
100	COVER; HINGE	8-98203-070-0	01	1	1304-	●	●
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1304-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1304-	●	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1304-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-	●	●
398	NUT; STAND RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	04	1	1304-	●	●

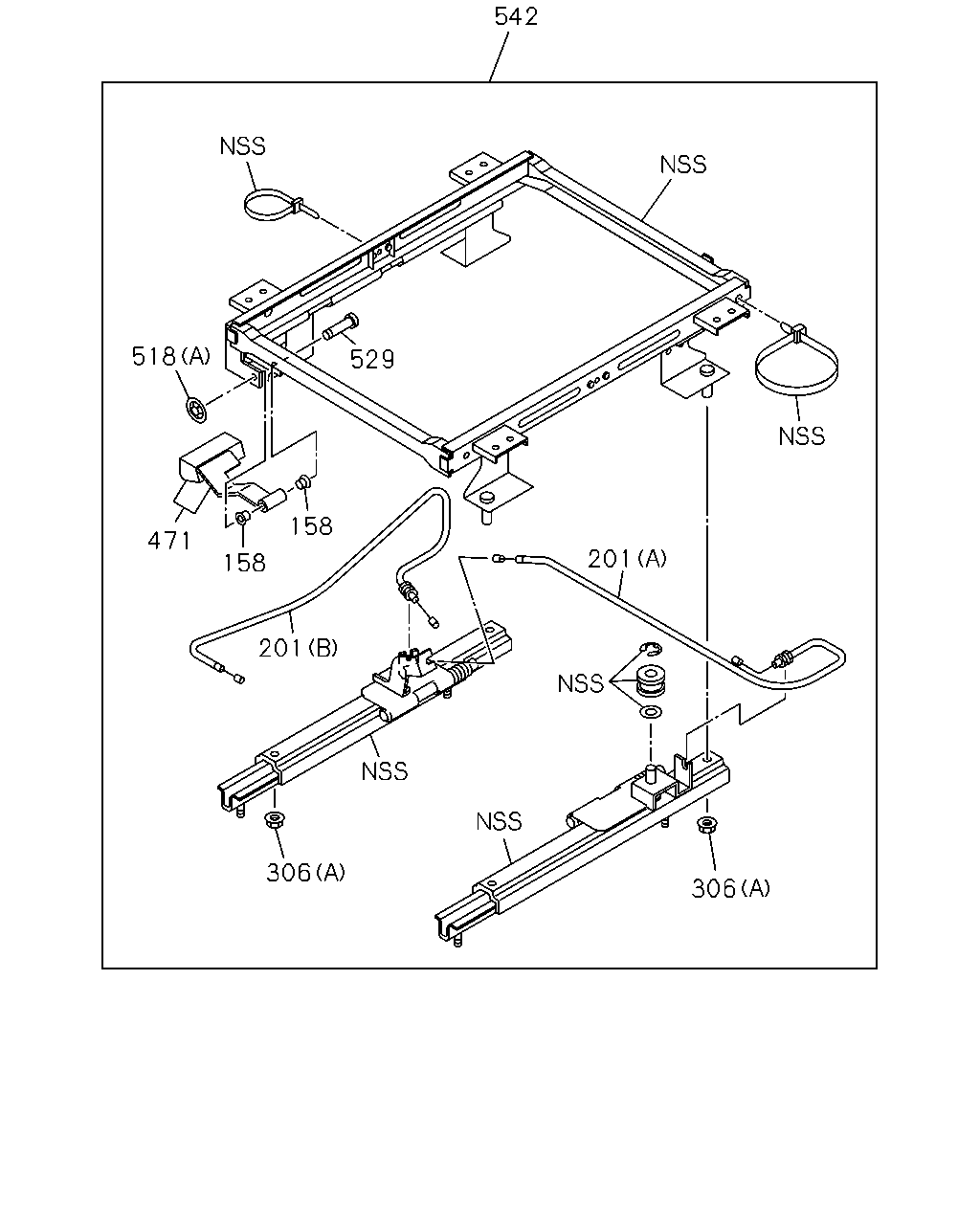

542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98093-310-0	01	1	1304-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98291-653-0	01	1	1503-	●	●

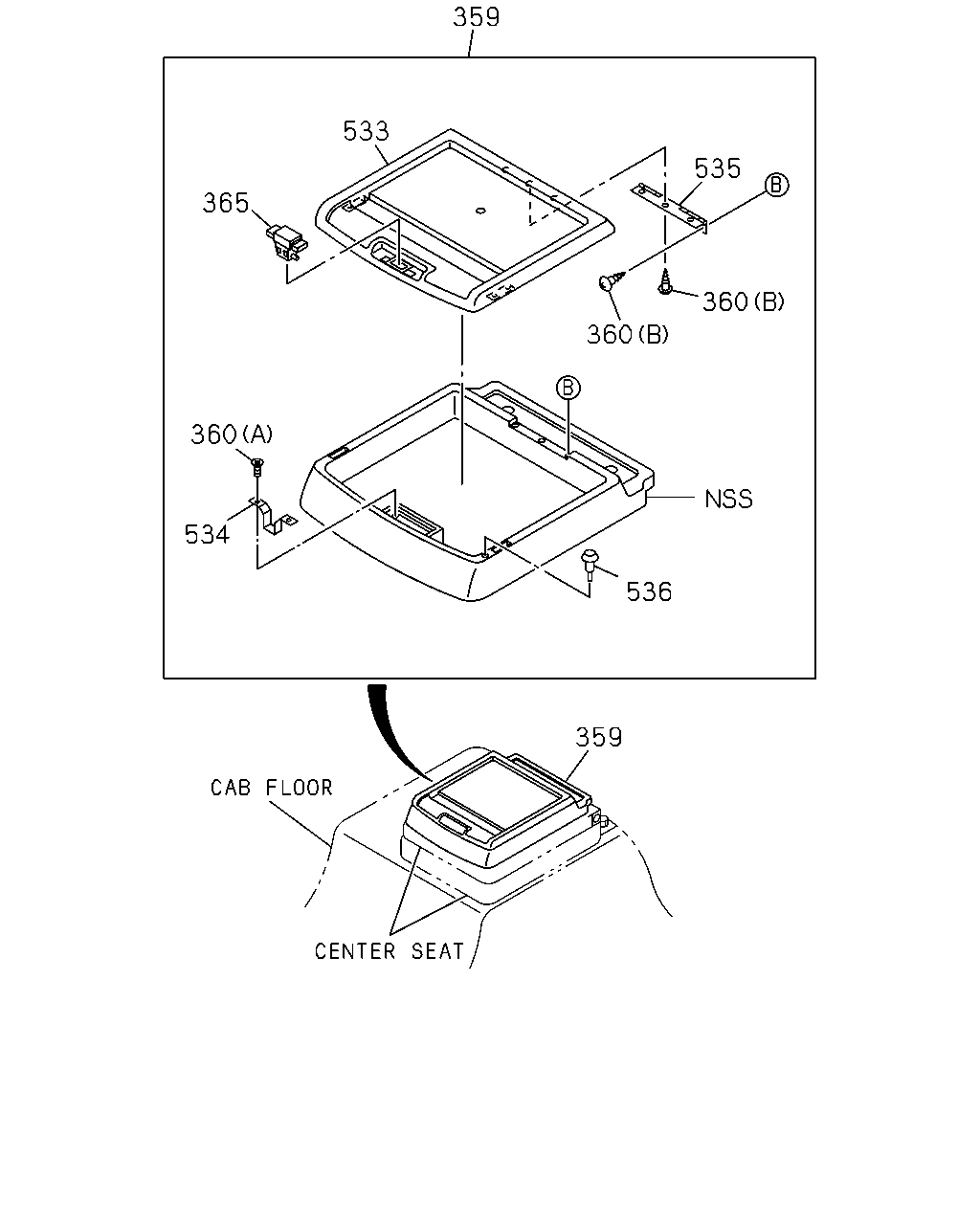

359 536 534 360 360 360 365 535 533 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1304-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1304-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1304-	●	●
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1304-	●	●
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-312-0	01	1	1304-	●	●
533	LID; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97417-263-0	01	1	1304-	●	●
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1304-	●	●
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1304-	●	●
536	RUBBER; CUSHION CENTER SEAT(SA1)	1-72538-187-0	02	1	1304-	●	●

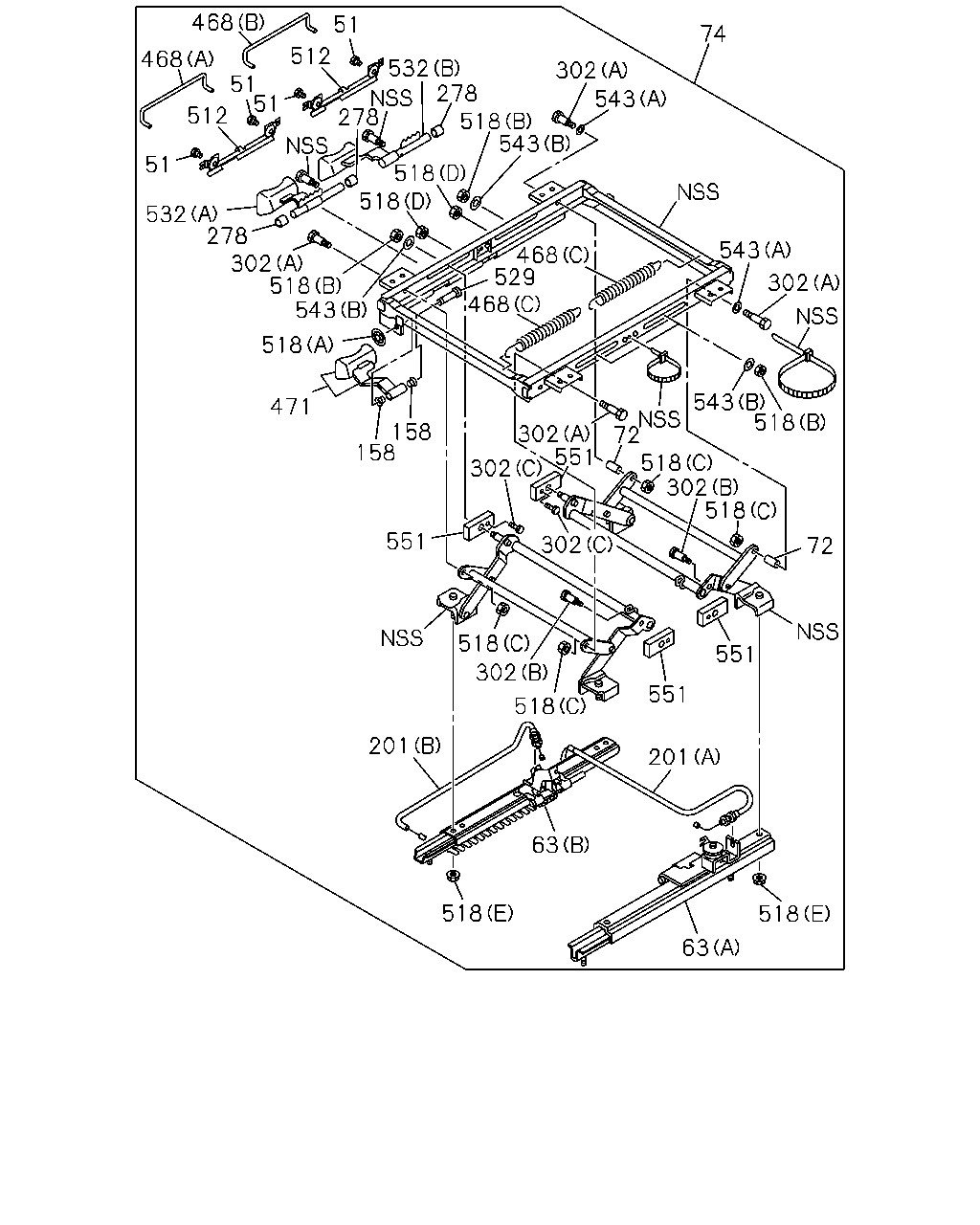

468 468 51 512 51 512 51 51 532 278 532 278 518 518 302 518 278 302 74 543 543 518 543 518 471 158 158 468 529 468 543 543 302 72 518 302 302 551 302 551 302 518 518 551 72 551 518 302 518 201 518 63 201 63 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56)	1-75518-325-1	04	1	1304-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) (A)	1-75518-199-1	01	1	1304-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) (B)	1-75518-323-0	01	1	1304-	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-334-1	02	1	1304-1502	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56)	8-98291-668-0	02	1	1503-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	8-98003-678-0	01	1	1304-1502	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	8-98291-640-0	01	1	1503-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1304-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1304-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1304-	●	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT(A56)	1-75518-244-0	03	1	1304-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (B)	1-75518-266-2	02	1	1304-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (A)	1-75518-270-1	04	1	1304-1502	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (A)	8-98291-667-0	04	1	1503-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (C)	1-75518-336-1	02	1	1304-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (A)	1-75518-206-0	01	1	1304-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (B)	1-75518-207-0	01	1	1304-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (C)	1-75518-208-0	02	1	1304-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (D)	1-75538-132-0	01	1	1304-	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1304-	●	●
512	COVER; LEVER AIR SUSP DRIVER SEAT(A56)	1-75518-243-1	02	1	1304-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1304-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	1304-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (E) M8 FLANGE	1-75538-207-0	04	1	1304-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	1304-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	1304-	●	●
529	PIN; LINK	1-75518-262-0	01	1	1304-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) (A)	1-75518-203-0	01	1	1304-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) (B)	1-75518-204-1	01	1	1304-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (A)	1-75518-335-0	02	1	1304-1502	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (B) ID=8.4	9-09160-508-0	04	1	1304-	●	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-265-0	04	1	1304-	●	●

542 518 529 471 158 158 201 201 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1304-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1304-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1304-	●	●
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) (A) M8 FLANGE	1-75538-207-0	06	1	1304-	●	●
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1304-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1304-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	1304-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (E) M8 FLANGE	1-75538-207-0	04	1	1304-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	1304-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	1304-	●	●
529	PIN; LINK	1-75518-262-0	01	1	1304-	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98093-310-0	01	1	1304-1502	●	●
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST(TAZ)	8-98291-653-0	01	1	1503-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
