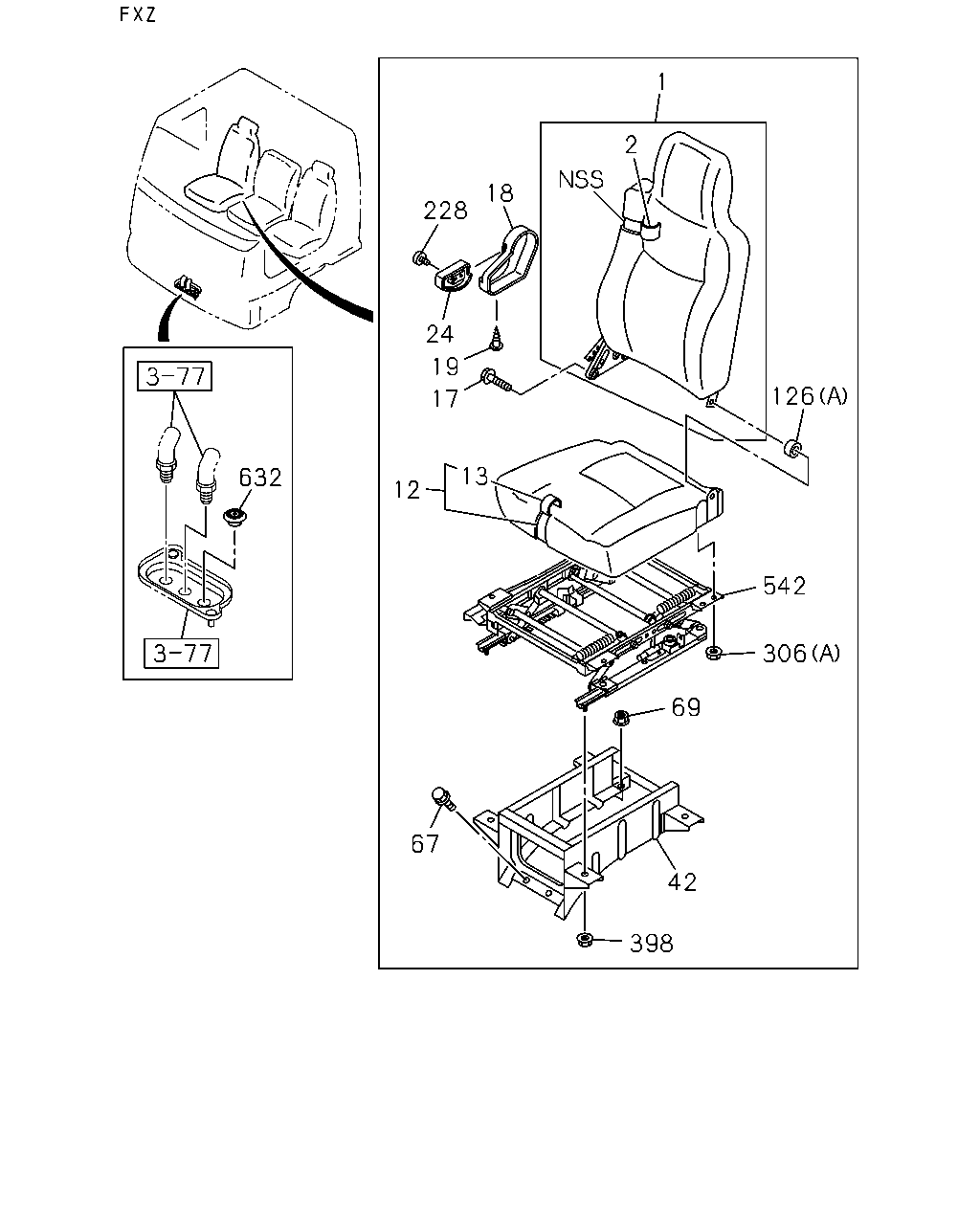

7-50 — FRONT SEAT (#117580) — 187 parça

1 126 542 306 69 42 398 67 13 12 632 228 18 24 2 17 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1302-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> THA	8-97925-322-0	01	1	1302-		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1302-		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1302-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> THA	8-97925-325-0	01	1	1302-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1302-		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1302-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> THA	8-97925-331-0	01	1	1302-		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1302-		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1302-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> THA	8-97925-328-0	01	1	1302-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1302-		●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1302-	●	●
17	BOLT; RECLINING PASSENGER THA	8-98092-334-0	04	1	1302-	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1302-	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1302-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1302-	●	●
42	STAND; DRIVER SEAT THA	1-75558-604-2	01	1	1302-	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> THA	1-75558-604-2	01	1	1302-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	1302-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	1302-	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1302-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1302-	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1302-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1302-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1302-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	1302-		●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	1302-	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	1302-		●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1302-	●
632	GROMMET OD=24	8-94119-796-0	01	1	1302-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1302-		●

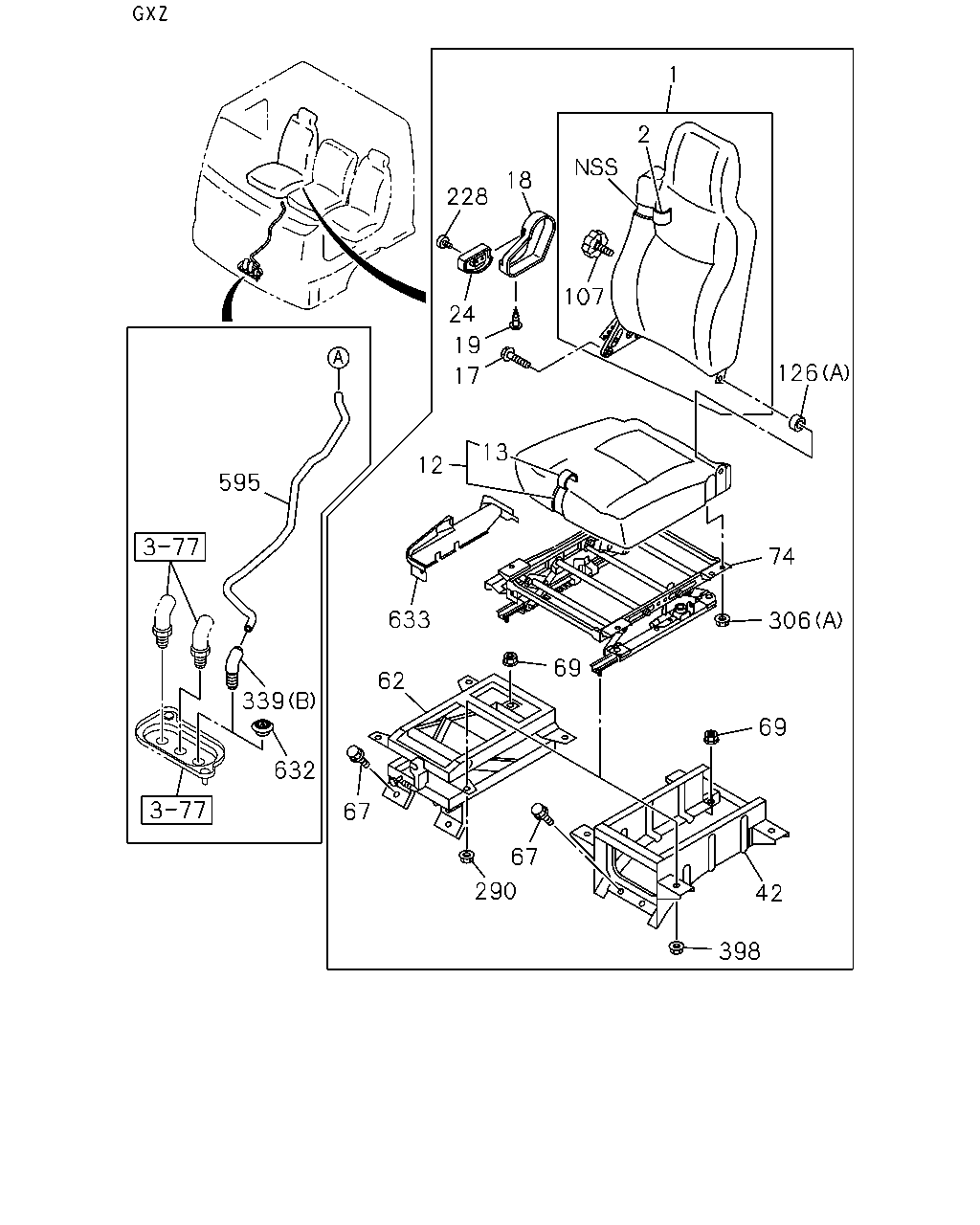

1 2 18 228 24 107 19 17 126 13 12 74 633 69 306 62 69 67 67 290 42 398 595 339 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1302-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> THA	8-97925-322-0	01	1	1302-		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1302-		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1302-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> THA	8-97925-325-0	01	1	1302-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1302-		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1302-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> THA	8-97925-331-0	01	1	1302-		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1302-		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1302-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> THA	8-97925-328-0	01	1	1302-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1302-		●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1302-	●	●
17	BOLT; RECLINING PASSENGER THA	8-98092-334-0	04	1	1302-	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1302-	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1302-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1302-	●	●
42	STAND; DRIVER SEAT THA	1-75558-604-2	01	1	1302-	●
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> THA	1-75558-604-2	01	1	1302-		●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-183-7	01	1	1302-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	1302-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	1302-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98003-678-0	01	1	1302-		●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1302-		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1302-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1302-	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1302-	●	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE THA	1-75538-207-0	04	1	1302-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1302-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1302-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	1302-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1302-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A) THA	1-75538-131-3	01	1	1302-		●
398	NUT; STAND M8 FLANGE THA	1-75538-207-0	04	1	1302-	●
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA	1-75538-207-0	04	1	1302-		●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98067-762-0	01	1	1302-		●
632	GROMMET OD=24	8-94119-796-0	01	1	1302-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1302-		●
633	COVER; ADJ,TILT GRAY THA	8-97409-956-0	01	1	1302-		●

403 182 179 188 403 126 16 188 176 175 506 360 359

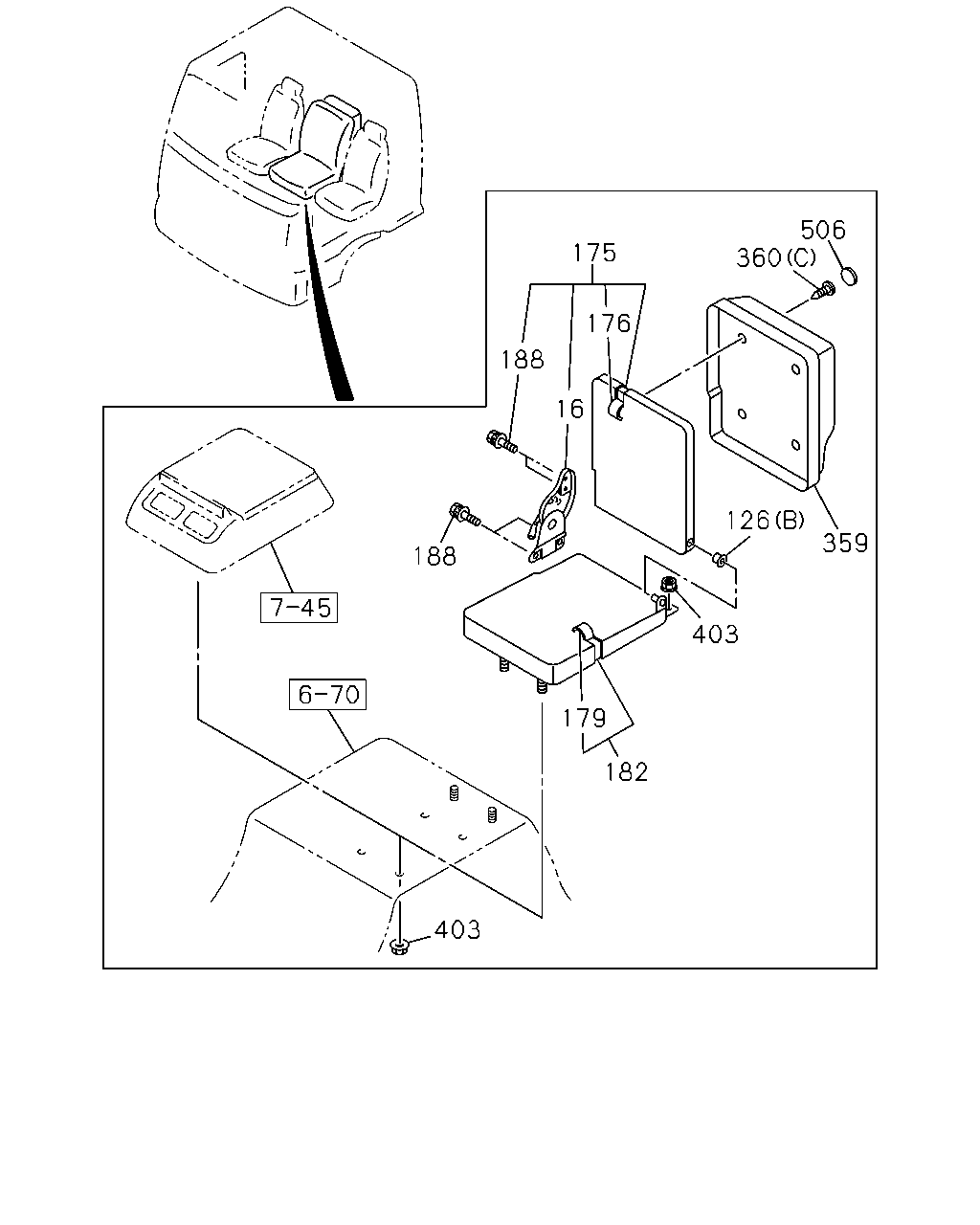

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1> THA	1-75418-062-1	01	1	1302-	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1302-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1302-	●	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> THA	8-97925-314-0	01	1	1302-	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> THA	8-97924-456-1	01	1	1302-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> THA	8-97925-308-0	01	1	1302-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> THA	8-97924-458-0	01	1	1302-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-453-0	01	1	1302-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-454-0	01	1	1302-		●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-451-0	01	1	1302-	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-452-0	01	1	1302-		●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	1302-	●	●
359	BOX; PARCEL CENTER SEAT<SA1> THA	8-97924-469-0	01	1	1302-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1302-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	1302-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1302-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	1302-		●
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE THA	0-91180-108-0	04	1	1302-	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1> THA	8-97924-470-0	04	1	1302-		●

542 518 471 158 158 201 201 529

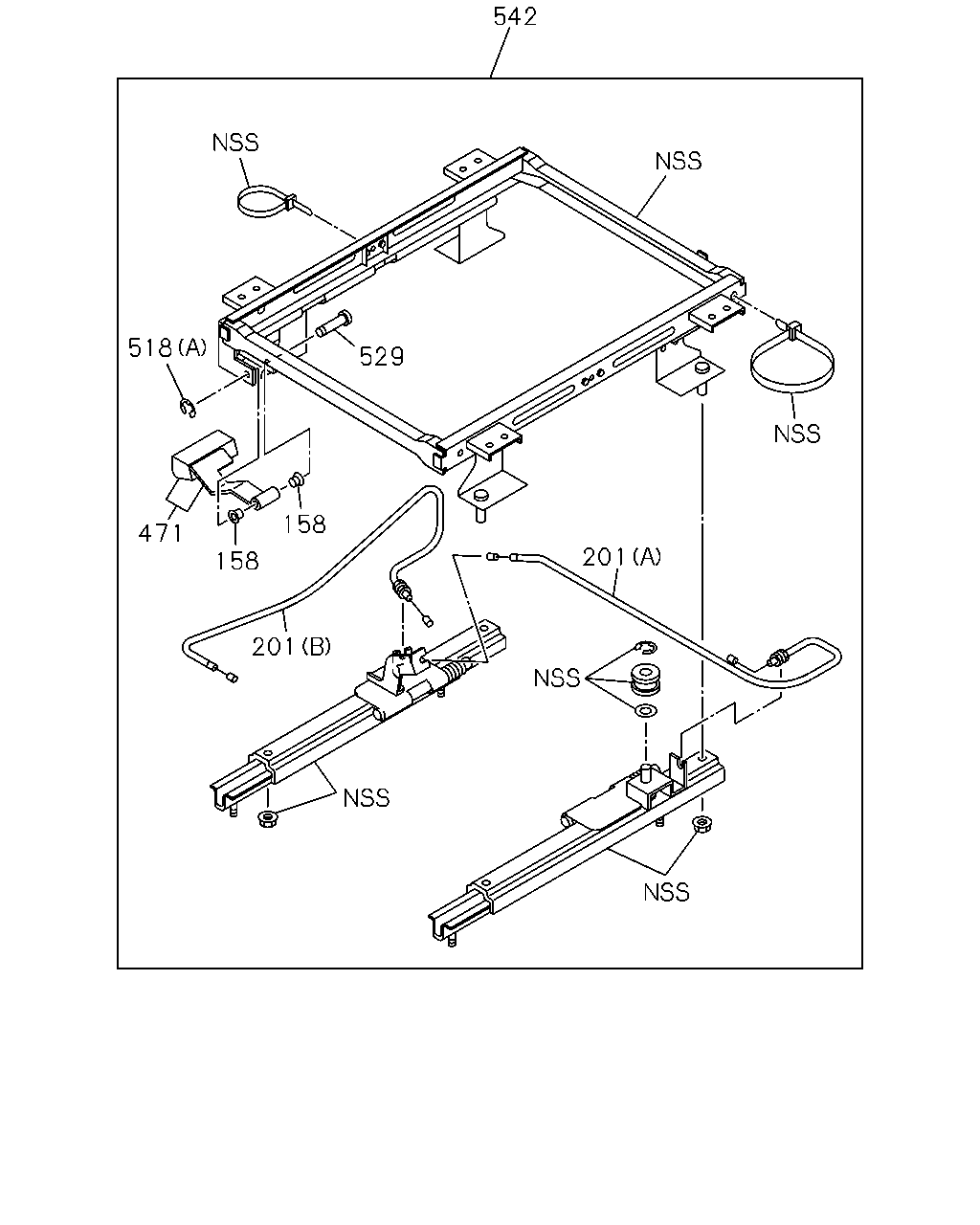

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1302-	●	●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1302-	●	●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1302-	●	●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1302-	●	●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1302-	●	●
518	NUT; TILT ADJ (B) THA	1-75518-264-0	04	1	1302-		●
518	NUT; TILT ADJ (E) M8 FLANGE THA	1-75538-207-0	04	1	1302-		●
518	NUT; TILT ADJ (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1302-		●
518	NUT; TILT ADJ (C) M8 FLANGE THA	8-94152-886-0	04	1	1302-		●
529	PIN; LINK THA	1-75518-262-0	01	1	1302-	●	●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1302-	●

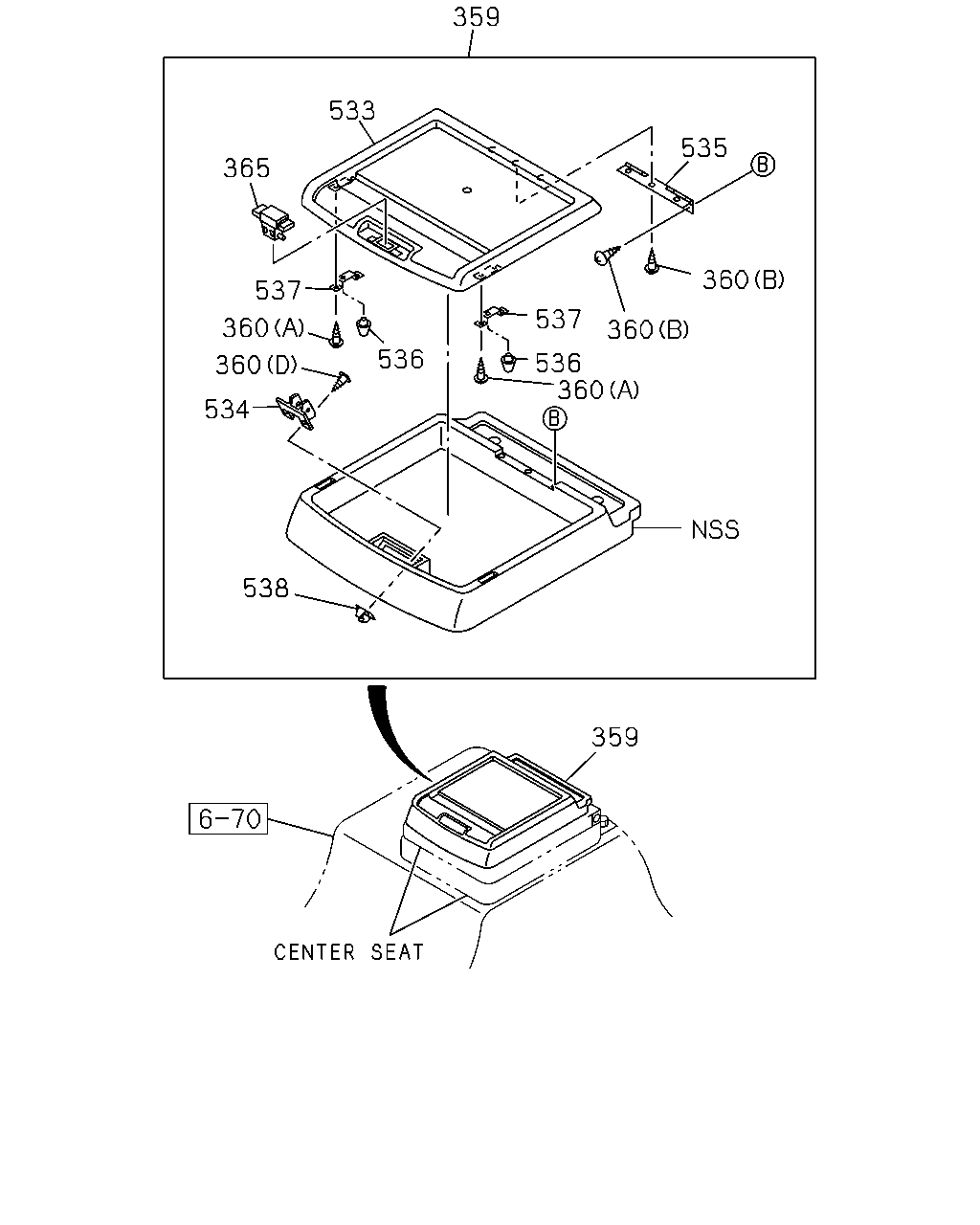

359 538 534 360 360 536 536 360 537 360 537 360 365 535 533 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
359	BOX; PARCEL CENTER SEAT<SA1> THA	8-97924-469-0	01	1	1302-	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1302-	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	1302-	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1302-	●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	1302-	●
365	LOCK ASM; SEAT CENTER SEAT<SA1> THA	8-97924-512-0	01	1	1302-	●
533	LID; PARCEL BOX CENTER SEAT<SA1> THA	8-97924-511-0	01	1	1302-	●
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> THA	8-97913-529-0	01	1	1302-	●
535	HINGE; PARCEL BOX CENTER SEAT<SA1> THA	8-97913-533-0	01	1	1302-	●
536	RUBBER; CUSHION CENTER SEAT<SA1> THA	8-97914-858-0	02	1	1302-	●
537	BRACKET; RUBBER CENTER SEAT<SA1> THA	8-97914-859-0	02	1	1302-	●
538	GROMMET; SCREW CENTER SEAT<SA1> THA	8-97914-867-0	02	1	1302-	●

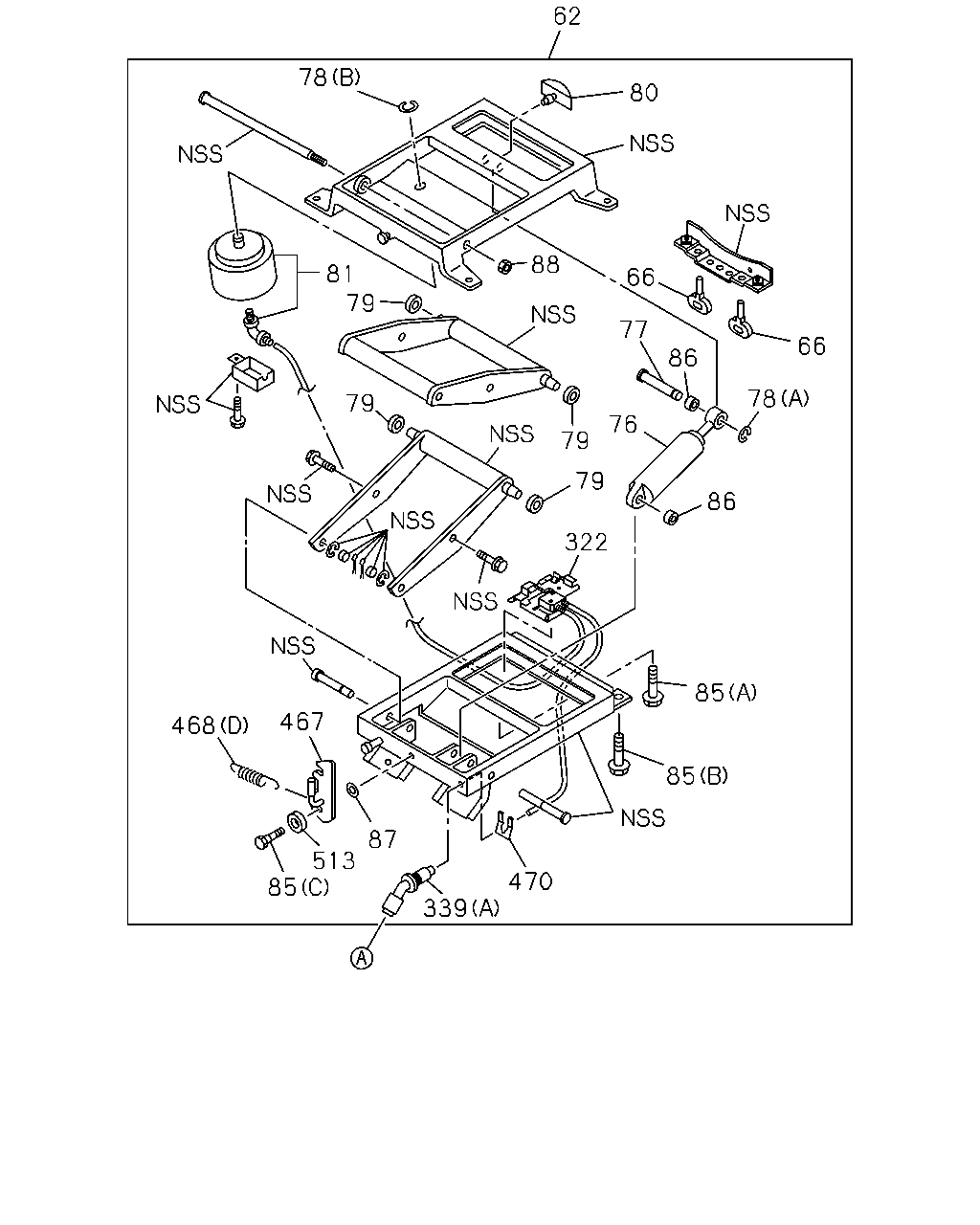

62 78 80 81 88 79 66 66 77 86 78 79 79 76 86 79 322 85 468 467 85 87 470 339 513 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-183-7	01	1	1302-	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> THA	1-75538-145-0	02	1	1302-	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-139-0	01	1	1302-	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> THA	1-75538-138-2	01	1	1302-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8 THA	9-09185-408-0	01	1	1302-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15 THA	9-09185-415-0	01	1	1302-	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-159-0	04	1	1302-	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> THA	1-09987-123-0	01	1	1302-	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> THA	1-75538-151-2	01	1	1302-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C) THA	1-09980-577-0	01	1	1302-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) THA	1-75538-208-0	02	1	1302-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	03	1	1302-	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY THA	1-09983-173-1	02	1	1302-	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1302-	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75537-273-1	01	1	1302-	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> THA	1-75538-186-2	01	1	1302-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1302-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A) THA	1-75538-131-3	01	1	1302-	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> THA	1-75538-134-0	01	1	1302-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D) THA	1-75538-132-0	01	1	1302-	●
468	SPRING; RETURN (A) THA	1-75518-206-0	01	1	1302-	●
468	SPRING; RETURN (B) THA	1-75518-207-0	01	1	1302-	●
468	SPRING; RETURN (C) THA	1-75518-208-0	02	1	1302-	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> THA	1-75538-137-0	01	1	1302-	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> THA	1-75538-133-0	01	1	1302-	●

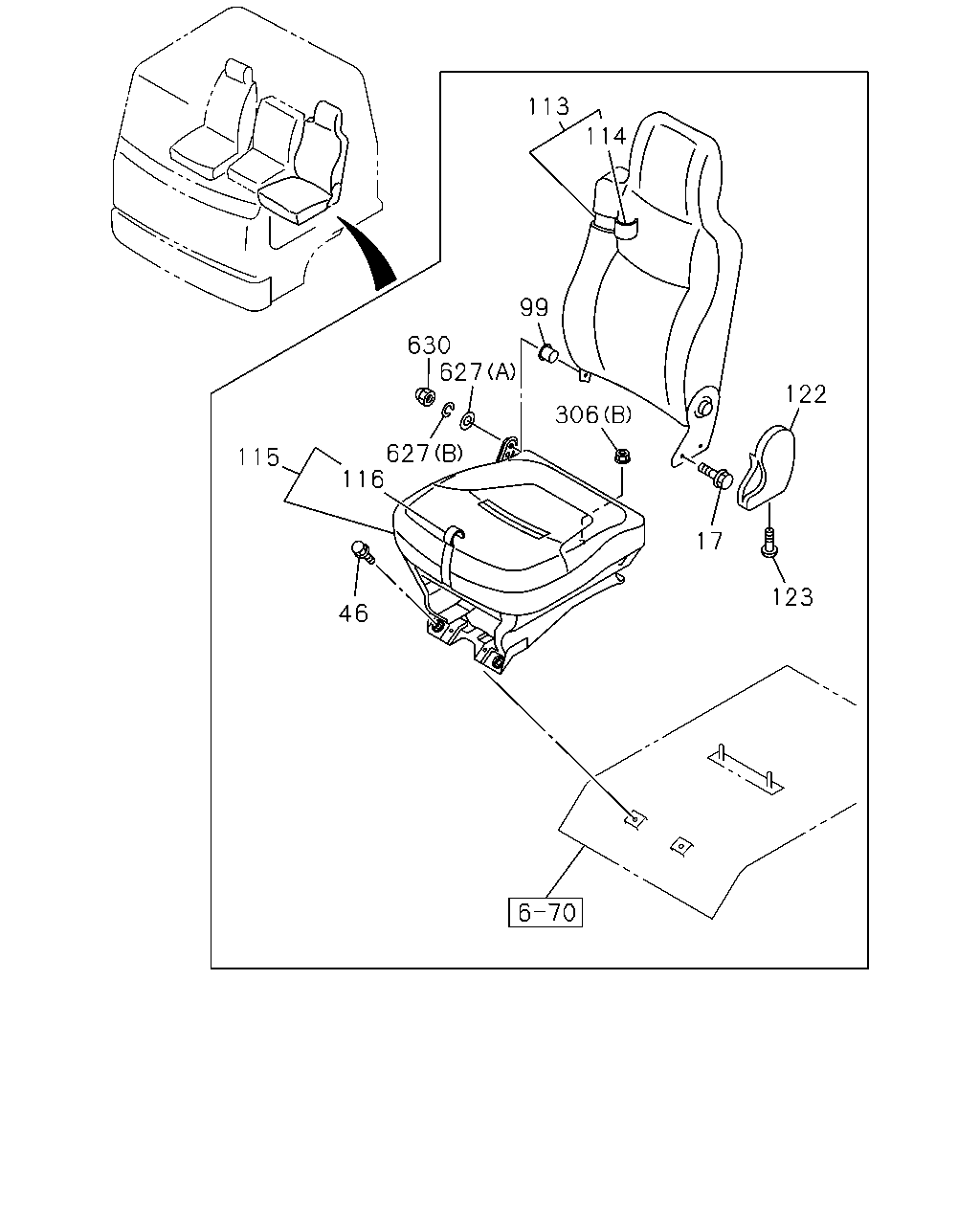

17 46 99 113 114 115 116 122 123 306 627 627 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1302-	●	●
17	BOLT; RECLINING PASSENGER THA	8-98092-334-0	04	1	1302-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE THA	0-28451-020-0	02	1	1302-	●	●
99	BUSHING; SEAT BACK THA	8-98063-219-0	01	1	1302-	●	●
113	BACK ASM; SEAT THA	8-97924-737-0	01	1	1302-	●
113	BACK ASM; SEAT DELUXE SEAT<PQ8> THA	8-97925-324-0	01	1	1302-		●
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97924-761-0	01	1	1302-	●
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT<PQ8> THA	8-97925-327-0	01	1	1302-		●
115	CUSHION ASM; PASSENGER SEAT THA	8-97924-759-0	01	1	1302-	●
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT<PQ8> THA	8-97925-333-0	01	1	1302-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97924-760-0	01	1	1302-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT<PQ8> THA	8-97925-330-0	01	1	1302-		●
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	1302-	●	●
123	SCREW; COVER,RECLINING THA	8-98070-026-0	01	1	1302-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1302-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1302-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	1302-		●
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	1302-	●	●
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	1302-	●	●
630	NUT; CAP M8 THA	8-98063-225-0	01	1	1302-	●	●

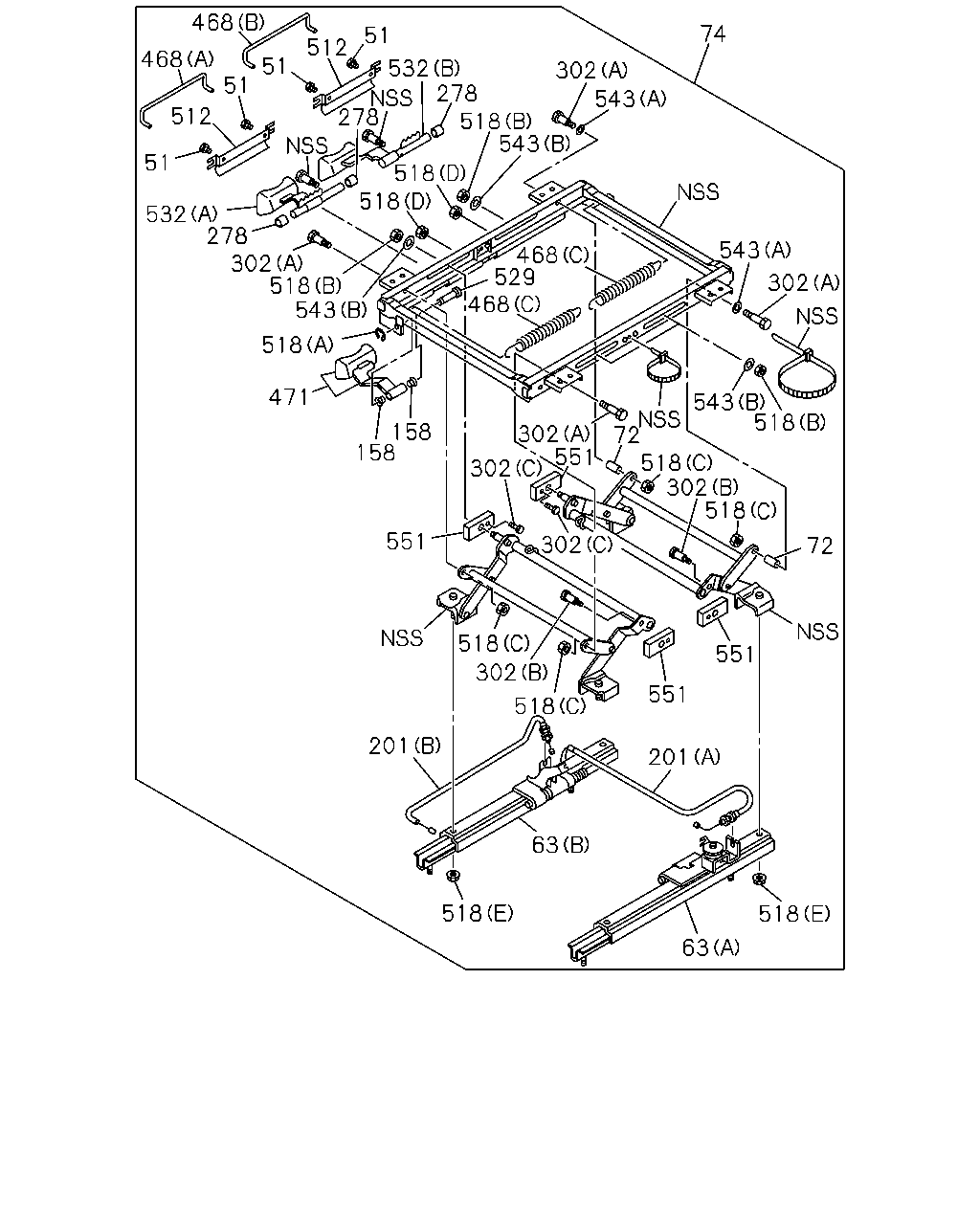

74 543 302 302 518 158 158 551 201 518 63 518 201 63 551 551 518 302 302 518 72 302 518 543 543 518 468 468 302 302 551 72 518 471 518 543 302 278 532 51 512 468 468 51 512 51 51 532 278 518 543 529 518 278 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER THA	1-75518-325-1	04	1	1302-		●
63	ADJUSTER; SEAT SLIDE (A) THA	1-75518-199-1	01	1	1302-		●
63	ADJUSTER; SEAT SLIDE (B) THA	1-75518-323-0	01	1	1302-		●
72	SPACER; SEAT ADJ THA	1-75518-334-1	02	1	1302-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98003-678-0	01	1	1302-		●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1302-	●	●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1302-	●	●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1302-	●	●
278	COLLAR; FRT SEAT THA	1-75518-244-0	03	1	1302-		●
302	BOLT; ADJ,HEIGHT CONT (B) THA	1-75518-266-2	02	1	1302-		●
302	BOLT; ADJ,HEIGHT CONT (A) THA	1-75518-270-1	04	1	1302-		●
302	BOLT; ADJ,HEIGHT CONT (C) THA	1-75518-336-1	02	1	1302-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D) THA	1-75538-132-0	01	1	1302-		●
468	SPRING; RETURN (A) THA	1-75518-206-0	01	1	1302-		●
468	SPRING; RETURN (B) THA	1-75518-207-0	01	1	1302-		●
468	SPRING; RETURN (C) THA	1-75518-208-0	02	1	1302-		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1302-	●	●
512	COVER; LEVER THA	1-75518-243-1	02	1	1302-		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1302-	●	●
518	NUT; TILT ADJ (B) THA	1-75518-264-0	04	1	1302-		●
518	NUT; TILT ADJ (E) M8 FLANGE THA	1-75538-207-0	04	1	1302-		●
518	NUT; TILT ADJ (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1302-		●
518	NUT; TILT ADJ (C) M8 FLANGE THA	8-94152-886-0	04	1	1302-		●
529	PIN; LINK THA	1-75518-262-0	01	1	1302-	●	●
532	LEVER ASM; TILT (A) THA	1-75518-203-0	01	1	1302-		●
532	LEVER ASM; TILT (B) THA	1-75518-204-1	01	1	1302-		●
543	WASHER; HEIGHT ADJUSTER (A) THA	1-75518-335-0	02	1	1302-		●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4 THA	9-09160-508-0	04	1	1302-		●
551	SLIDER; HEIGHT ADJ THA	1-75518-265-0	04	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
