7-45 — CONSOLE BOX (#117578) — 129 parça

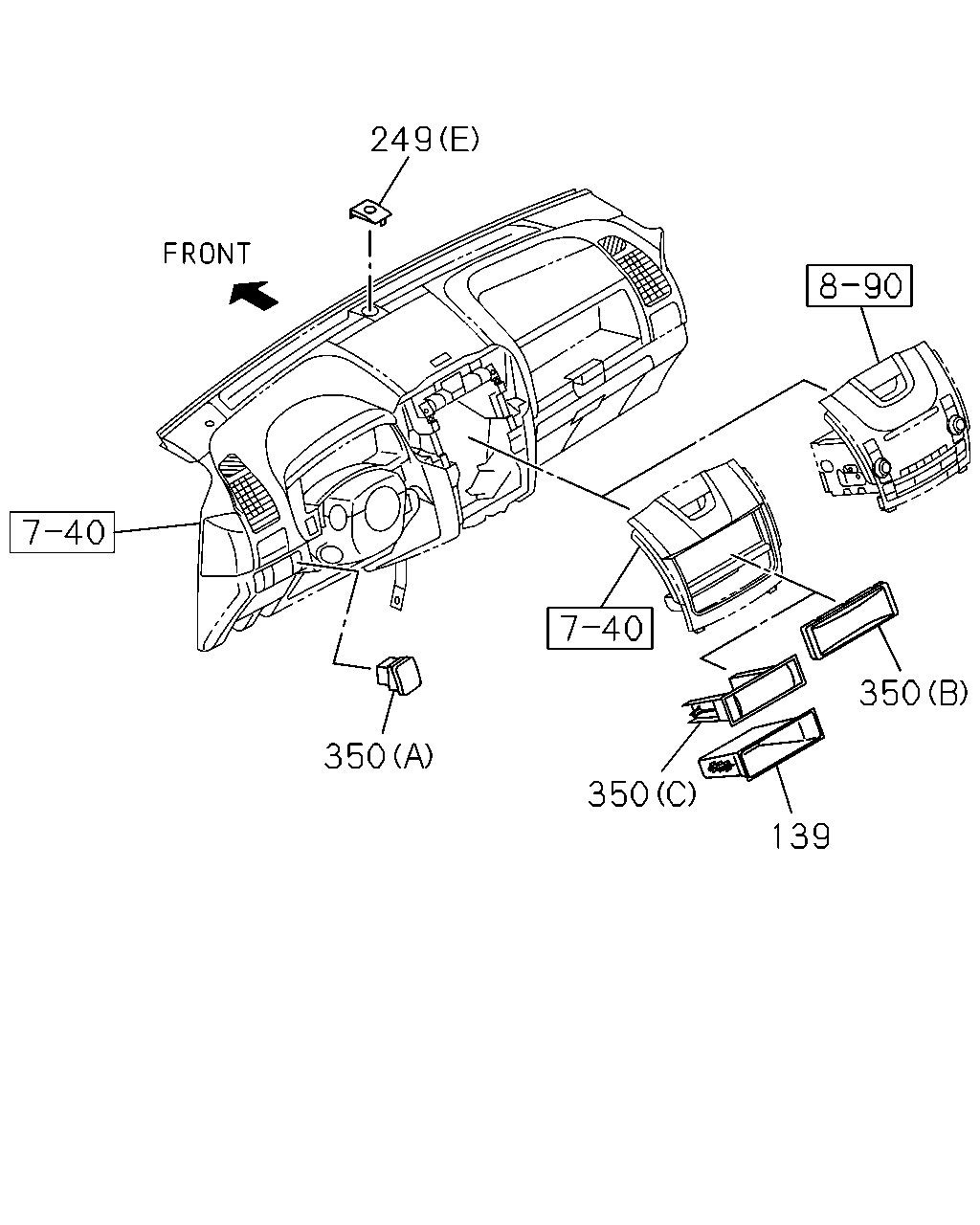

çizim 344134
249 350 350 139 350
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
139 16.650 BOX; CONSOLE,UPR
RADIO DELETE(UL5) BLACK 		8-97416-619-0 01 1 1304- ● ● ● ● ● ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1304- ● ● ● ● ● ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1304- ● ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
(C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR BASIC(RBA) FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-151-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-151-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-151-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1304- ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1304- ●
249 16.674 COVER
(D) BLACK 		8-97416-659-2 01 1 1304- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-153-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-153-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1304- ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (C) BLACK 		8-97416-806-0 01 1 1304- ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97416-807-0 01 1 1304- ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1304- ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1304- ● ● ● ● ● ●

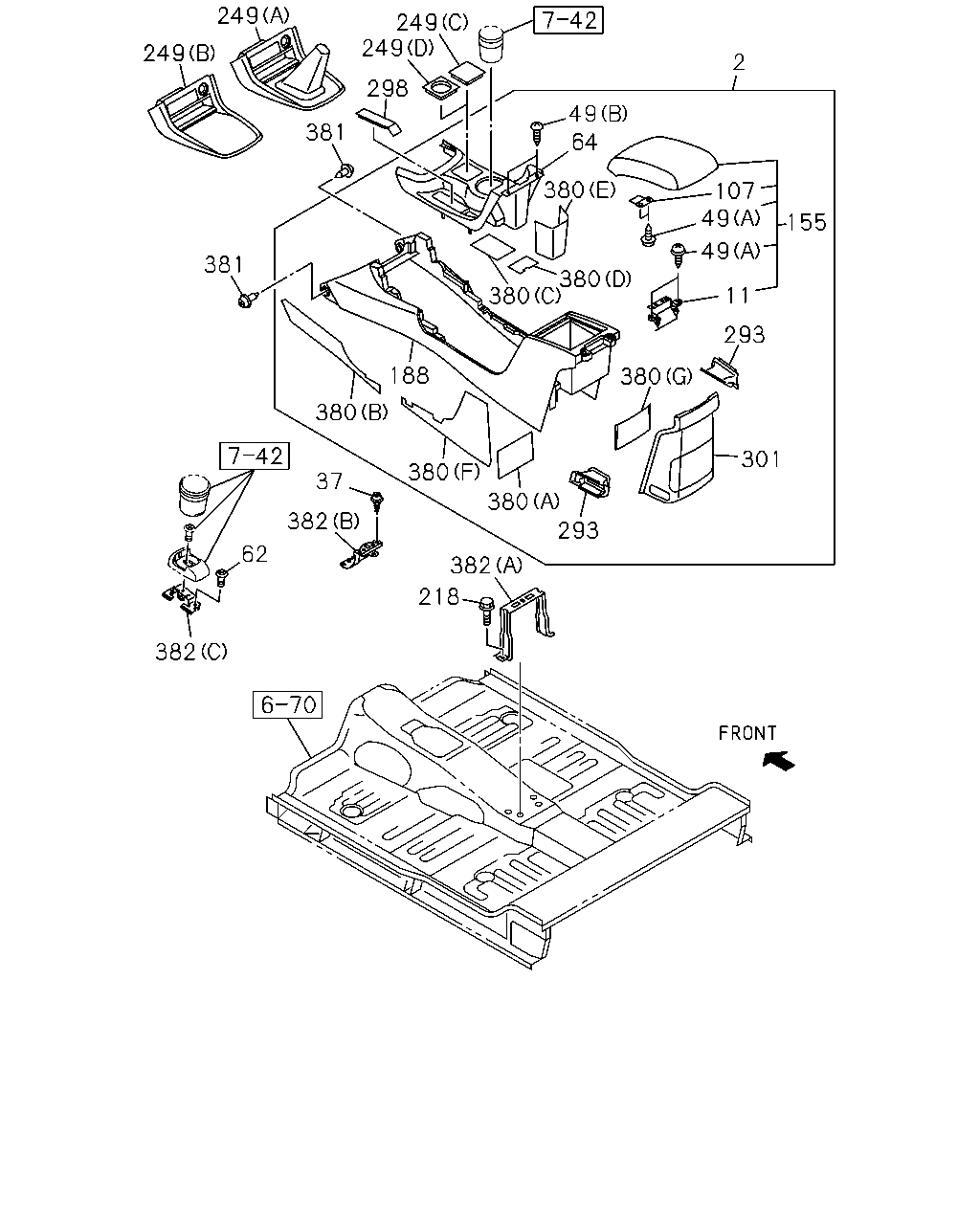

çizim 344157
2 155 301 218 382 382 62 382 37 293 380 380 380 188 380 381 293 11 49 107 49 49 64 380 380 380 249 249 249 381 298 249
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> BLACK 		8-97417-412-7 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
BLACK 		8-97417-412-7 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97417-412-7 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> BLACK 		8-97423-331-1 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97417-410-7 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> BLACK 		8-97423-332-1 01 1 1304- ● ●
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1304- ● ●
11 16.650 HINGE; CONSOLE LID
BLACK 		8-97423-090-0 01 1 1304- ● ●
11 16.650 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1304- ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> 01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1304- ● ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1304- ● ●
37 16.650 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1304- ● ●
49 04.017 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1304- ● ●
49 04.017 SCREW; CONSOLE
16.081 (A) M5X16 		8-98197-847-0 06 1 1304- ● ●
49 04.017 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1304- ● ●
49 04.017 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1304- ● ●
49 04.017 SCREW; CONSOLE
(B) M4X14 		8-98234-823-0 02 1 1304- ● ●
49 04.017 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1304- ● ●
62 16.650 SCREW; BRKT
EXC. FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1304- ● ●
62 16.650 SCREW; BRKT
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1304- ● ●
64 16.650 BEZEL; CENTER CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-093-3 01 1 1304- ● ●
64 16.650 BEZEL; CENTER CONSOLE
BLACK 		8-97423-093-3 01 1 1304- ● ●
64 16.650 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-093-3 01 1 1304- ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1304- ● ●
107 16.650 LOCK; LID,RR CONSOLE
BLACK 		8-97423-089-0 01 1 1304- ● ●
107 16.650 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1304- ● ●
155 16.650 LID; PARCEL BOX
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-094-1 01 1 1304- ● ●
155 16.650 LID; PARCEL BOX
BLACK 		8-97423-094-1 01 1 1304- ● ●
155 16.650 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-094-1 01 1 1304- ● ●
188 16.650 CONSOLE; RR
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1304- ● ●
188 16.650 CONSOLE; RR
BLACK 		8-97423-086-3 01 1 1304- ● ●
188 16.650 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1304- ● ●
218 16.650 BOLT; BRKT
FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1304- ● ●
218 16.650 BOLT; BRKT
M6X12.5 FLANGE 		8-98014-141-0 02 1 1304- ● ●
218 16.650 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1304- ● ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1304- ● ● ● ● ● ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1304- ● ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
(C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR BASIC(RBA) FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-151-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-151-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-151-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1304- ● ●
249 16.674 COVER
M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1304- ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1304- ●
249 16.674 COVER
(D) BLACK 		8-97416-659-2 01 1 1304- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-153-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-153-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1304- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1304- ●
293 16.650 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-786-0 01 1 1304- ● ●
293 16.650 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-787-0 01 1 1304- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1304- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
BLACK 		8-97416-651-2 01 1 1304- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1304- ● ●
301 16.650 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1304- ● ● ● ●
301 16.650 BEZEL; CONSOLE
BLACK 		8-97423-092-2 01 1 1304- ● ●
301 16.650 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK 		8-97423-091-2 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
(A) 		8-98234-827-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
(B) 		8-98234-828-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
(C) 		8-98234-830-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (F) 		8-98234-832-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
(F) 		8-98234-832-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (F) 		8-98234-832-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (D) 		8-98234-834-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
(D) 		8-98234-834-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) 		8-98234-834-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (E) 		8-98234-835-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
(E) 		8-98234-835-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (E) 		8-98234-835-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1304- ● ● ● ●
380 16.650 INSULATOR; CONSOLE
(G) 		8-98234-825-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (G) 		8-98234-824-0 01 1 1304- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1304- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
BLACK 		8-97360-070-0 02 1 1304- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
EXC. FRONT CONSOLE W/LID<D55> (C) 		8-98124-704-1 01 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98124-704-1 01 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
(A) 		8-98102-973-3 01 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
(B) 		8-98112-864-4 01 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1304- ● ●

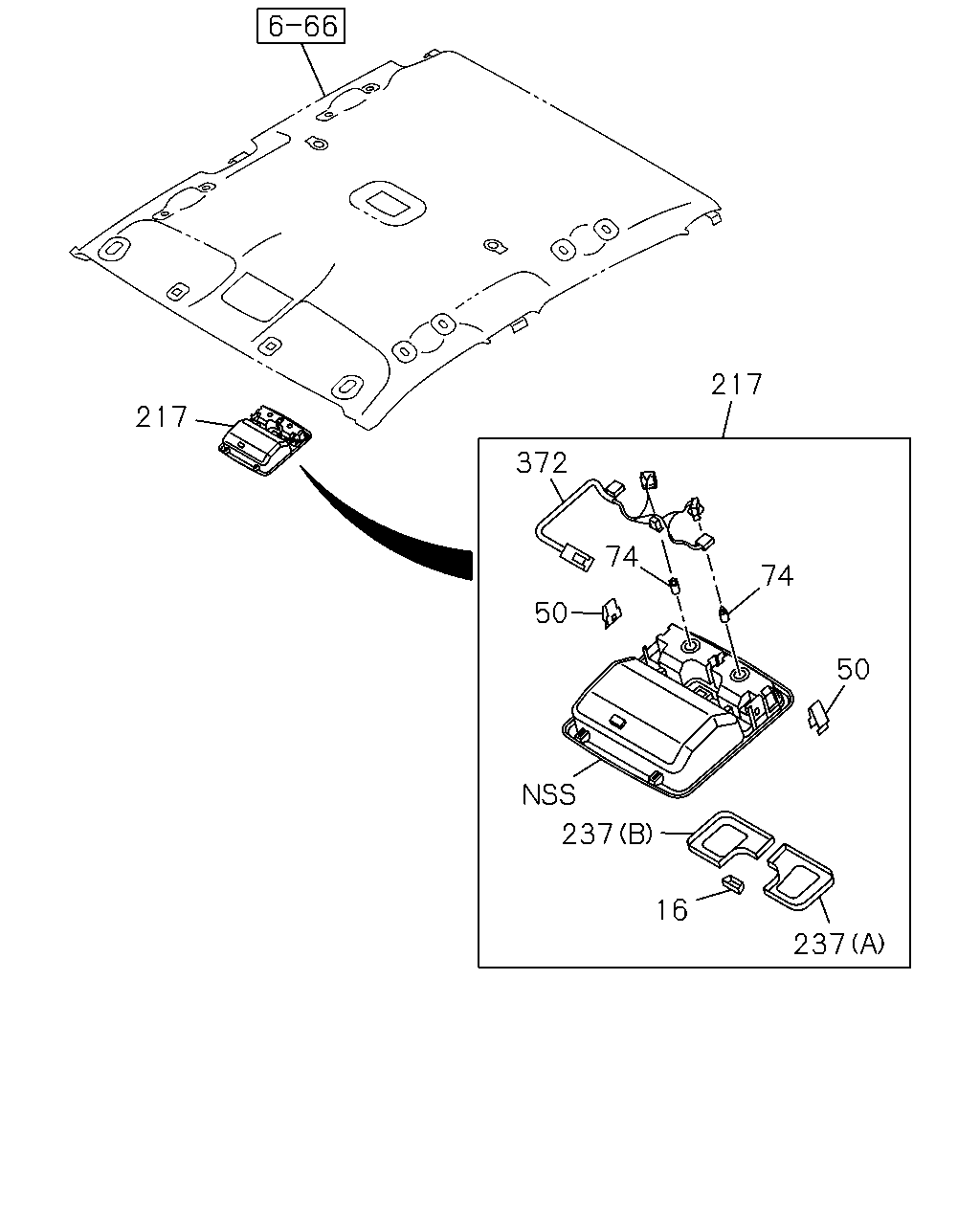

çizim 344195
217 217 74 74 237 50 50 237 16 372
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1304- ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> 		8-98192-891-0 02 1 1304- ● ● ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W 		8-94124-595-0 02 1 1304- ● ● ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1304- ● ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1304- ● ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1304- ● ● ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1304- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
