◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51472 - TFR/TFS MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#117574) — 19 parça

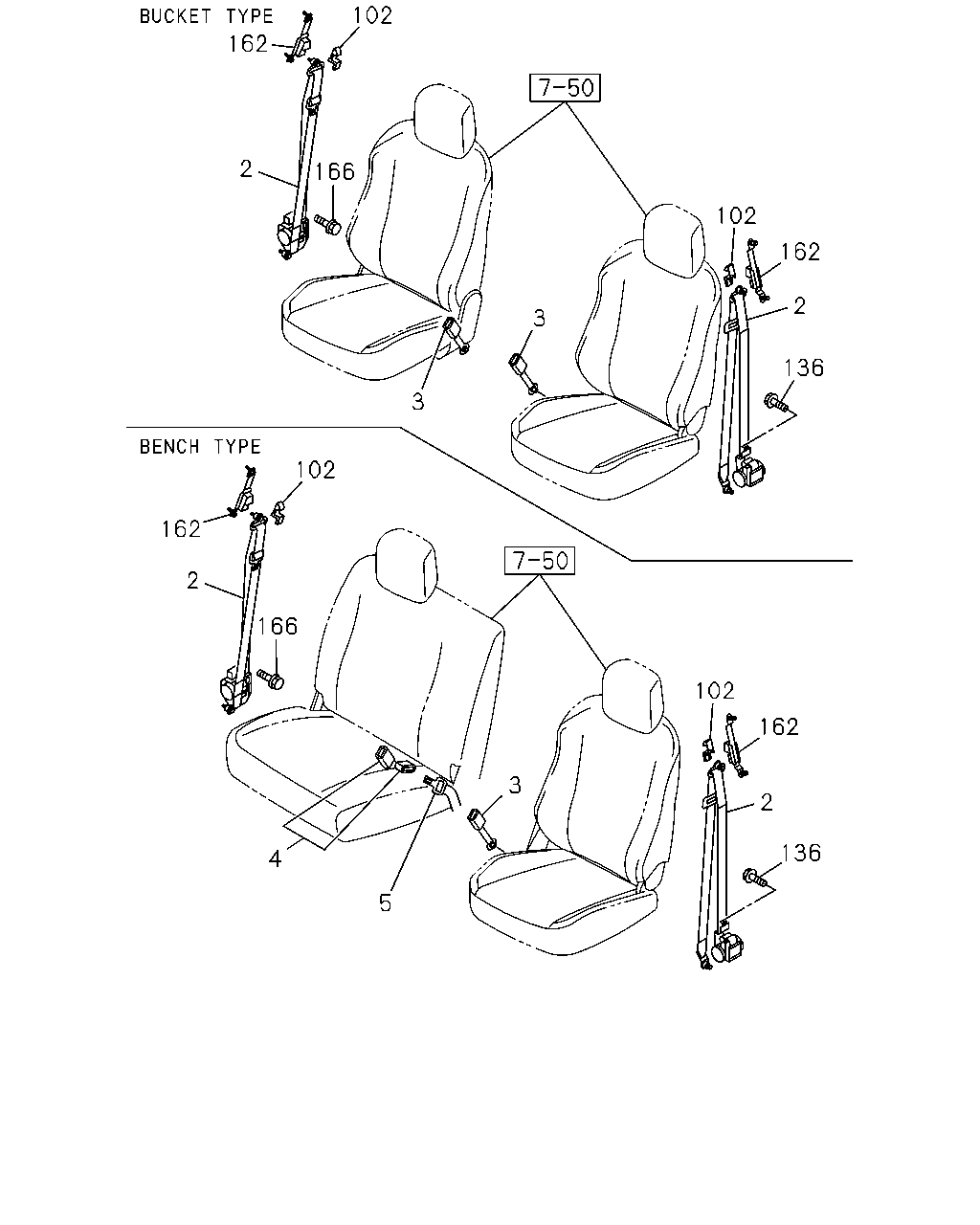

çizim 344077
102 162 2 136 3 3 166 102 162 2 102 162 166 2 4 5 3 102 162 136 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97423-666-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97423-664-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97423-663-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-665-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-661-0 01 1 1304- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97416-837-3 01 1 1304-1311 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97426-632-0 01 1 1312- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97416-839-0 01 1 1304- ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97417-107-1 01 1 1304- ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97423-671-0 01 1 1304- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1304- ● ● ● ●
136 16.714 BOLT; SEAT BELT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1304- ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ● ● ●

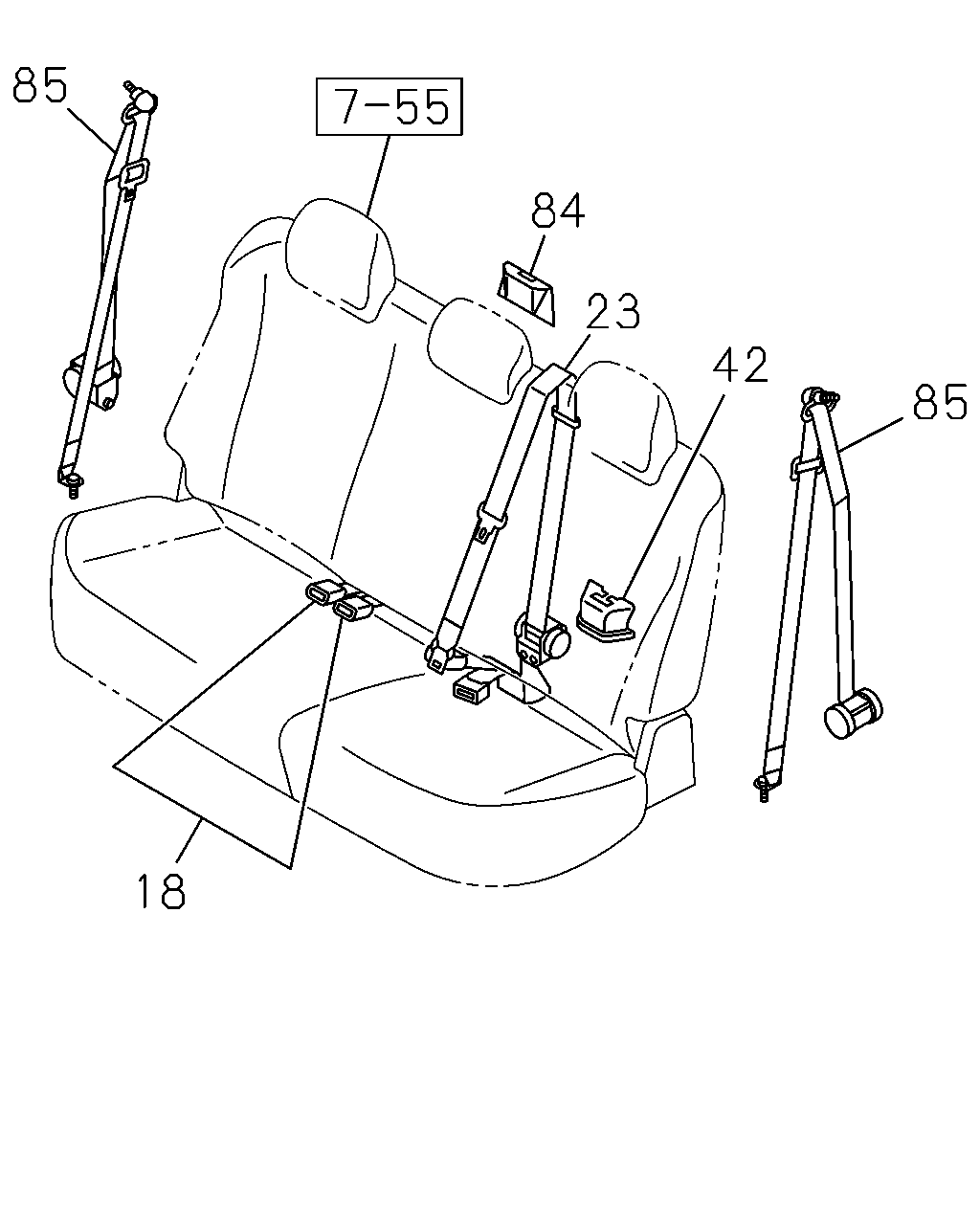

çizim 344147
18 84 23 42 85 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 16.714 BELT; SEAT,RR
BLACK 		8-97416-937-1 01 1 1304- ● ●
23 16.714 BELT; SEAT,CENTER
BLACK 		8-97417-405-3 01 1 1304- ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) BLACK 		8-97417-408-0 01 1 1304- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
BLACK 		8-97417-409-1 01 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
BLACK 		8-97423-669-0 02 1 1304- ● ●
