Sayfa 7-50 - Isuzu EPC

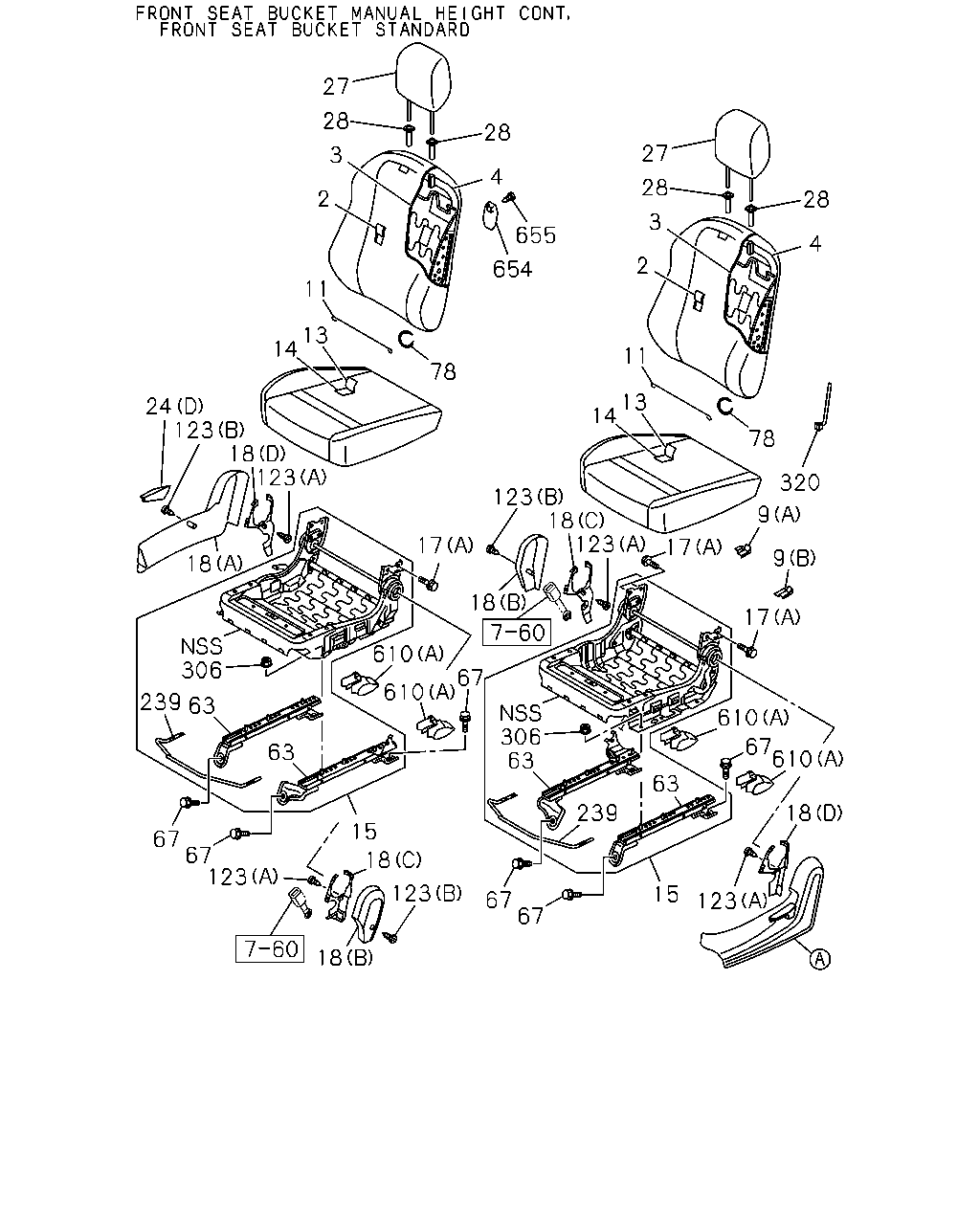

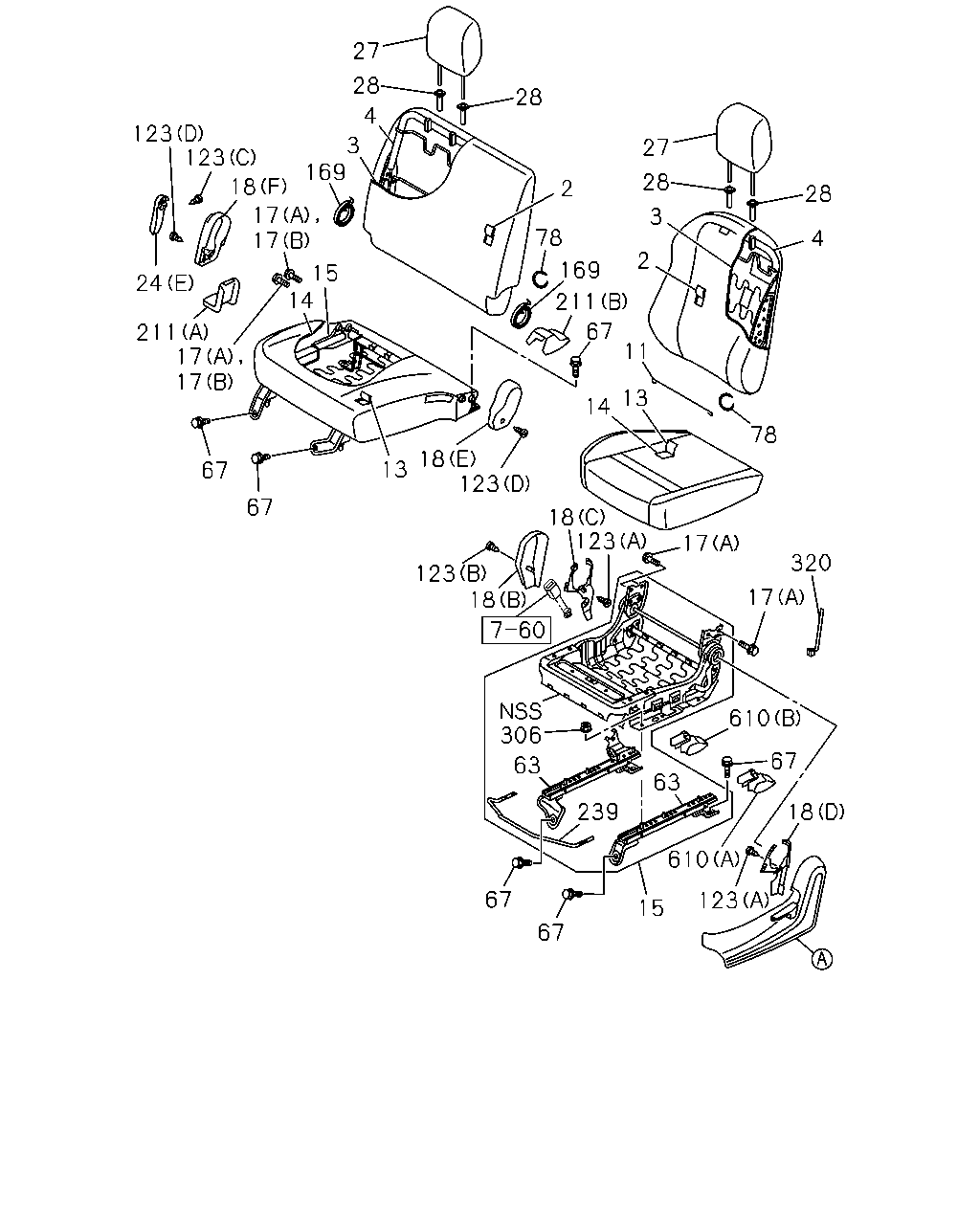

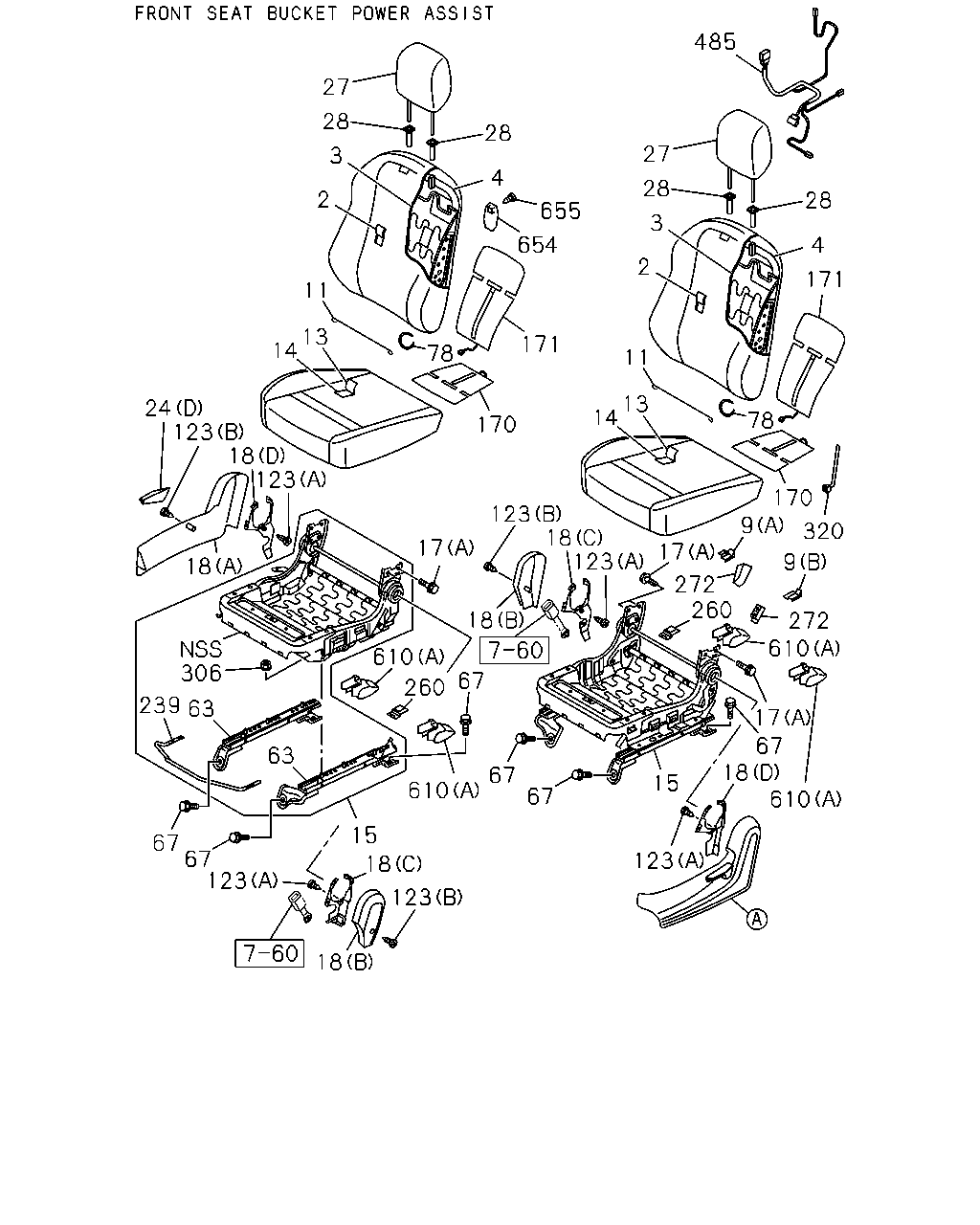

7-50 — FRONT SEAT (#117572) — 525 parça

27 28 3 2 11 13 14 24 123 18 123 18 306 63 239 63 67 67 123 15 18 123 67 67 18 123 15 18 610 67 610 63 239 63 306 610 610 67 17 123 18 123 17 18 78 654 655 4 28 27 28 3 2 11 13 14 28 4 78 320 9 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> DARK BROWN	8-97426-636-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97427-579-1	01	1	1306-1403	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97427-586-1	01	1	1404-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-216-0	01	1	1410-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> DARK BROWN	8-97426-641-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97427-586-1	01	1	1306-1403	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97427-579-1	01	1	1404-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-214-0	01	1	1410-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6> GRAY	8-97423-163-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-174-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-174-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> LIGHT GRAY	8-97423-168-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-177-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-177-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-196-0	01	1	1304-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-196-0	01	1	1304-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-181-0	01	1	1304-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-180-0	01	1	1304-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97423-198-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97423-980-1	01	1	1306-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-192-0	01	1	1410-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-532-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-			●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-			●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-530-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-527-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-526-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-525-0	01	1	1304-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-536-1	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-534-0	01	1	1304-	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER BLACK	8-97424-614-0	01	1	1304-1409	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER	8-98273-209-0	01	1	1410-	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER BLACK	8-97424-616-0	01	1	1304-1409	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER	8-98273-213-0	01	1	1410-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) INNER BLACK	8-97424-603-0	01	1	1304-1409	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) INNER	8-98273-220-0	01	1	1409-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) OUTER BLACK	8-97424-606-0	01	1	1304-1409	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) OUTER	8-98273-218-0	01	1	1409-	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1304-	●	●	●	●
11	16.682 WIRE; SEAT BACK FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6> GRAY	8-97423-164-1	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-182-0	01	1	1304-1312	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-182-0	01	1	1401-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-183-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> LIGHT GRAY	8-97423-169-1	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-188-0	01	1	1304-1312	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-188-0	01	1	1401-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-189-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-199-0	01	1	1304-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-200-0	01	1	1304-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-192-0	01	1	1304-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-193-0	01	1	1304-1312	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-193-0	01	1	1401-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97426-580-0	01	1	1304-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97423-201-0	01	1	1304-1305	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97423-983-0	01	1	1306-1409	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-262-0	01	1	1410-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97426-617-0	01	1	1304-1305	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97427-596-0	01	1	1306-1409	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-278-0	01	1	1410-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-566-0	01	1	1304-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1304-			●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-558-0	01	1	1304-			●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>	8-98187-558-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-562-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-563-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-560-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-559-0	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-282-0	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98231-280-1	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98231-281-1	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-568-2	01	1	1304-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-574-0	01	1	1304-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1>	8-98187-567-2	01	1	1304-	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (B)	8-98220-046-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A)	8-98220-045-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1308-	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1308-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.717 (E)	8-98220-111-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.717 (F)	8-98220-112-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-092-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (B) BLACK	8-97424-579-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (E) BLACK	8-97424-502-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM VINYL<8LJ> GRAY	8-97424-497-0	01	1	1304-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM VINYL<8LJ> GRAY	8-97424-497-0	01	1	1304-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-519-0	01	1	1304-			●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-519-0	01	1	1304-			●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97424-519-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97424-519-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> DARK BROWN	8-97424-635-0	01	1	1304-1305	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> DARK BROWN	8-97424-635-0	01	1	1304-1305	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97424-639-0	01	1	1306-1409	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97424-639-0	01	1	1306-1409	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1304-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98220-097-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> INNER	8-98220-096-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-186-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-187-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98231-283-1	01	1	1304-	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT SPLIT BENCH<AM6> M12X27.5 W/PL WASHER	8-98050-319-0	07	1	1304-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET STANDARD<A50> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1304-			●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.724	8-98220-068-0	14	1	1304-	●	●	●	●
78	16.680 RING; SNAP FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-			●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-			●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> 16.724	8-98220-068-0	17	1	1304-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1304-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1304-1403			●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1404-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1404-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (C) M6X20	8-98220-083-0	01	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (D) M4X18	8-98220-084-0	02	1	1304-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1304-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1304-	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1304-	●	●	●	●
306	16.682 NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1304-	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1304-	●	●	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT SPLIT BENCH<AM6> (A) BLACK	8-97416-785-4	01	1	1304-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT SPLIT BENCH<AM6> (B) BLACK	8-97417-509-3	01	1	1304-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97416-785-4	04	1	1304-	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97424-637-0	01	1	1304-1403	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97424-637-0	01	1	1404-	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> BLACK	8-97424-637-0	01	1	1304-1403	●	●
655	16.716 BOLT; HOOK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> M5X15	8-98224-171-0	01	1	1304-	●	●

27 28 2 3 28 4 654 655 171 11 13 14 170 123 17 78 11 13 14 24 18 123 123 18 306 239 63 63 27 485 28 2 3 28 4 171 78 170 9 9 17 272 260 272 610 17 67 18 610 15 67 67 610 260 610 67 18 18 123 15 18 123 123 123 67 67 320 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> DARK BROWN	8-97426-636-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97427-579-1	01	1	1306-1403	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97427-586-1	01	1	1404-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-216-0	01	1	1410-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> DARK BROWN	8-97426-641-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97427-586-1	01	1	1306-1403	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97427-579-1	01	1	1404-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-214-0	01	1	1410-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6> GRAY	8-97423-163-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-174-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-174-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> LIGHT GRAY	8-97423-168-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-177-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-177-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-196-0	01	1	1304-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-196-0	01	1	1304-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-181-0	01	1	1304-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-180-0	01	1	1304-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97423-198-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97423-980-1	01	1	1306-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-192-0	01	1	1410-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-532-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-			●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-			●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-530-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-527-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-526-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-525-0	01	1	1304-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-536-1	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-534-0	01	1	1304-	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER BLACK	8-97424-614-0	01	1	1304-1409	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) INNER	8-98273-209-0	01	1	1410-	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER BLACK	8-97424-616-0	01	1	1304-1409	●	●
9	16.682 COVER; SIDE SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) OUTER	8-98273-213-0	01	1	1410-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) INNER BLACK	8-97424-603-0	01	1	1304-1409	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) INNER	8-98273-220-0	01	1	1409-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) OUTER BLACK	8-97424-606-0	01	1	1304-1409	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) OUTER	8-98273-218-0	01	1	1409-	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1304-	●	●	●	●
11	16.682 WIRE; SEAT BACK FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6> GRAY	8-97423-164-1	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-182-0	01	1	1304-1312	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-182-0	01	1	1401-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-183-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> LIGHT GRAY	8-97423-169-1	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-188-0	01	1	1304-1312	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-188-0	01	1	1401-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-189-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-199-0	01	1	1304-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-200-0	01	1	1304-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-192-0	01	1	1304-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-193-0	01	1	1304-1312	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-193-0	01	1	1401-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97426-580-0	01	1	1304-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97423-201-0	01	1	1304-1305	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97423-983-0	01	1	1306-1409	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-262-0	01	1	1410-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97426-617-0	01	1	1304-1305	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97427-596-0	01	1	1306-1409	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-278-0	01	1	1410-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-566-0	01	1	1304-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1304-			●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-558-0	01	1	1304-			●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>	8-98187-558-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-562-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-563-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-560-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-559-0	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-282-0	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98231-280-1	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98231-281-1	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-568-2	01	1	1304-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-574-0	01	1	1304-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1>	8-98187-567-2	01	1	1304-	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (B)	8-98220-046-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A)	8-98220-045-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1308-	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1308-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.717 (E)	8-98220-111-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.717 (F)	8-98220-112-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-092-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (B) BLACK	8-97424-579-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (E) BLACK	8-97424-502-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM VINYL<8LJ> GRAY	8-97424-497-0	01	1	1304-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM VINYL<8LJ> GRAY	8-97424-497-0	01	1	1304-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-519-0	01	1	1304-			●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-519-0	01	1	1304-			●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97424-519-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97424-519-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> DARK BROWN	8-97424-635-0	01	1	1304-1305	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> DARK BROWN	8-97424-635-0	01	1	1304-1305	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97424-639-0	01	1	1306-1409	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97424-639-0	01	1	1306-1409	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1304-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98220-097-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> INNER	8-98220-096-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-186-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-187-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98231-283-1	01	1	1304-	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT SPLIT BENCH<AM6> M12X27.5 W/PL WASHER	8-98050-319-0	07	1	1304-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET STANDARD<A50> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1304-			●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.724	8-98220-068-0	14	1	1304-	●	●	●	●
78	16.680 RING; SNAP FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-			●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-			●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> 16.724	8-98220-068-0	17	1	1304-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1304-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1304-1403			●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1404-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1404-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (C) M6X20	8-98220-083-0	01	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (D) M4X18	8-98220-084-0	02	1	1304-	●	●	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-219-0	01	1	1304-	●	●
170	16.716 HEATER ASM; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-218-0	01	1	1304-	●	●
171	16.720 HEATER ASM; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-159-0	01	1	1304-	●	●
171	16.720 HEATER ASM; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-159-0	01	1	1304-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1304-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1304-	●	●	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98224-267-0	02	1	1304-	●	●
260	16.682 CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-267-0	01	1	1304-	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> OUTER BLACK	8-97424-618-0	01	1	1304-1409	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> OUTER	8-98273-215-0	01	1	1410-	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> INNER BLACK	8-97424-619-0	01	1	1304-1409	●	●
272	16.682 COVER; SEAT RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> INNER	8-98273-216-0	01	1	1410-	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1304-	●	●	●	●
306	16.682 NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1304-	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1304-	●	●	●	●
485	16.682 HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> 16.716	8-98231-310-0	01	1	1304-	●	●
485	16.682 HARNESS; FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1>	8-98231-308-0	01	1	1304-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT SPLIT BENCH<AM6> (A) BLACK	8-97416-785-4	01	1	1304-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT SPLIT BENCH<AM6> (B) BLACK	8-97417-509-3	01	1	1304-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97416-785-4	04	1	1304-	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97424-637-0	01	1	1304-1403	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97424-637-0	01	1	1404-	●	●
654	16.716 HOOK; STOPPER SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> BLACK	8-97424-637-0	01	1	1304-1403	●	●
655	16.716 BOLT; HOOK SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> M5X15	8-98224-171-0	01	1	1304-	●	●

20 228 228 24 123 24 228 18 18 24 123 24 24 18 327 486 601

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.717 (E)	8-98220-111-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.717 (F)	8-98220-112-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-092-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (B) BLACK	8-97424-579-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1304-	●	●
20	16.682 CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97424-600-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (E) BLACK	8-97424-502-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1304-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1304-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1304-1403			●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1404-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1404-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (C) M6X20	8-98220-083-0	01	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (D) M4X18	8-98220-084-0	02	1	1304-	●	●	●	●
228	16.714 SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M5X10	8-98224-268-0	03	1	1304-	●	●
327	16.682 CLIP; COVER SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-264-0	01	1	1304-1307	●	●
486	16.682 SWITCH; POWER SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98224-263-0	01	1	1304-	●	●
601	16.682 SCREW; SWITCH SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> M4X12	8-98224-269-0	02	1	1304-	●	●

123 123 18 17 17 15 14 24 211 17 17 67 67 13 18 123 123 18 306 63 67 67 239 15 610 63 610 67 18 123 17 320 17 123 18 14 13 11 67 211 169 78 2 28 27 28 4 3 169 27 28 2 3 28 4 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> DARK BROWN	8-97426-636-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97427-579-1	01	1	1306-1403	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97427-586-1	01	1	1404-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> BLACK	8-97465-216-0	01	1	1410-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> DARK BROWN	8-97426-641-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97427-586-1	01	1	1306-1403	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97427-579-1	01	1	1404-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. HEATER FRT SEAT<KA1> BLACK	8-97465-214-0	01	1	1410-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6> GRAY	8-97423-163-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-174-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-174-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> LIGHT GRAY	8-97423-168-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-177-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-177-0	01	1	1304-	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-196-0	01	1	1304-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-196-0	01	1	1304-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-181-0	01	1	1304-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-180-0	01	1	1304-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97423-198-0	01	1	1304-1305	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97423-980-1	01	1	1306-1409	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-192-0	01	1	1410-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-532-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-	●	●	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-			●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-524-0	01	1	1304-			●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-530-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-527-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-526-0	01	1	1304-	●	●
3	16.720 PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-525-0	01	1	1304-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-536-1	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-533-0	01	1	1304-	●	●
4	16.720 FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98187-534-0	01	1	1304-	●	●
11	16.682 WIRE; SEAT BACK	8-98220-094-0	01	1	1304-	●	●	●	●
11	16.682 WIRE; SEAT BACK FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50>	8-98220-094-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6> GRAY	8-97423-164-1	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-182-0	01	1	1304-1312	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-182-0	01	1	1401-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM VINYL<8LJ> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> GRAY	8-97423-183-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> LIGHT GRAY	8-97423-169-1	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-188-0	01	1	1304-1312	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-188-0	01	1	1401-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> LIGHT GRAY	8-97423-189-0	01	1	1304-	●	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-199-0	01	1	1304-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-200-0	01	1	1304-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-192-0	01	1	1304-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-193-0	01	1	1304-1312	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97423-193-0	01	1	1401-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97426-580-0	01	1	1304-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97423-201-0	01	1	1304-1305	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97423-983-0	01	1	1306-1409	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-262-0	01	1	1410-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> DARK BROWN	8-97426-617-0	01	1	1304-1305	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97427-596-0	01	1	1306-1409	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> BLACK	8-97465-278-0	01	1	1410-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-566-0	01	1	1304-	●	●	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1304-			●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50>	8-98187-557-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98187-558-0	01	1	1304-			●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>	8-98187-558-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-562-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-563-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-560-0	01	1	1304-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-559-0	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98231-282-0	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1>	8-98231-280-1	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98231-281-1	01	1	1304-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50>	8-98187-568-2	01	1	1304-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98187-574-0	01	1	1304-	●	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1>	8-98187-567-2	01	1	1304-	●	●	●	●
17	16.682 BOLT; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (B)	8-98220-046-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A)	8-98220-045-0	04	1	1304-1307	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1308-	●	●	●	●
17	16.682 BOLT; RECLINING (A)	8-98220-045-0	04	1	1308-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.717 (E)	8-98220-111-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.717 (F)	8-98220-112-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-515-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-516-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-092-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97424-090-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (B) BLACK	8-97424-579-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-582-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (C) BLACK	8-97424-585-0	01	1	1304-	●	●	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-098-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (D) BLACK	8-97424-608-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (C) BLACK	8-97424-610-0	01	1	1304-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-096-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (E) BLACK	8-97424-502-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-518-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (D) BLACK	8-97424-591-0	01	1	1304-	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) BLACK	8-97424-611-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (B) BLACK	8-97424-612-0	01	1	1304-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-597-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM VINYL<8LJ> GRAY	8-97424-497-0	01	1	1304-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM VINYL<8LJ> GRAY	8-97424-497-0	01	1	1304-	●	●	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-519-0	01	1	1304-			●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-519-0	01	1	1304-			●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97424-519-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY	8-97424-519-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> DARK BROWN	8-97424-635-0	01	1	1304-1305	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> DARK BROWN	8-97424-635-0	01	1	1304-1305	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97424-639-0	01	1	1306-1409	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97424-639-0	01	1	1306-1409	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1304-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-645-0	01	1	1304-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-499-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1304-	●	●	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-500-0	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98220-097-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> INNER	8-98220-096-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> OUTER	8-98224-186-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> INNER	8-98224-187-1	01	1	1304-	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98231-283-1	01	1	1304-	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT SPLIT BENCH<AM6> M12X27.5 W/PL WASHER	8-98050-319-0	07	1	1304-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET STANDARD<A50> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1304-			●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> 16.724	8-98220-068-0	14	1	1304-	●	●	●	●
78	16.680 RING; SNAP FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-			●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-			●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> HEATER FRT SEAT<KA1> 16.724	8-98220-068-0	12	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> 16.724	8-98220-068-0	17	1	1304-	●	●
78	16.680 RING; SNAP SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> EXC. HEATER FRT SEAT<KA1> 16.724	8-98220-068-0	17	1	1304-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1304-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1304-1403			●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) M4X8	8-98220-085-0	02	1	1304-1403	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1404-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) M4X8	8-98220-085-0	02	1	1404-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> (B) M4X10	8-98220-086-0	03	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (C) M6X20	8-98220-083-0	01	1	1304-	●	●	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6> (D) M4X18	8-98220-084-0	02	1	1304-	●	●	●	●
169	16.686 SPRING; LOCK,SEAT BACK SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT SPLIT BENCH<AM6>	8-98220-090-0	02	1	1304-1409	●	●	●	●
211	16.717 COVER; FRT SEAT FRONT SEAT SPLIT BENCH<AM6> (A) BLACK	8-97417-510-1	01	1	1304-	●	●
211	16.717 COVER; FRT SEAT FRONT SEAT SPLIT BENCH<AM6> (B) BLACK	8-97417-511-2	01	1	1304-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1304-	●	●	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>	8-98220-104-0	01	1	1304-	●	●	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1304-	●	●	●	●
306	16.682 NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M8 FLANGE	8-98220-087-0	07	1	1304-	●	●	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1304-	●	●	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT SPLIT BENCH<AM6> (A) BLACK	8-97416-785-4	01	1	1304-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT SPLIT BENCH<AM6> (B) BLACK	8-97417-509-3	01	1	1304-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>, FRONT SEAT BUCKET STANDARD<A50> (A) BLACK	8-97416-785-4	04	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
