◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXR ▶ 11529 - GXR(RHD)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#117570) — 71 parça
çizim 342773
235 101 210 106 51 107 27 210 16 207 42 30 42 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1304-
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1304-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1304-1402
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1304-
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 1304-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98180-779-0 01 1 1304-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98184-197-0 01 1 1304-
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1304-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 1304-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1304-
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1304-
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1304-

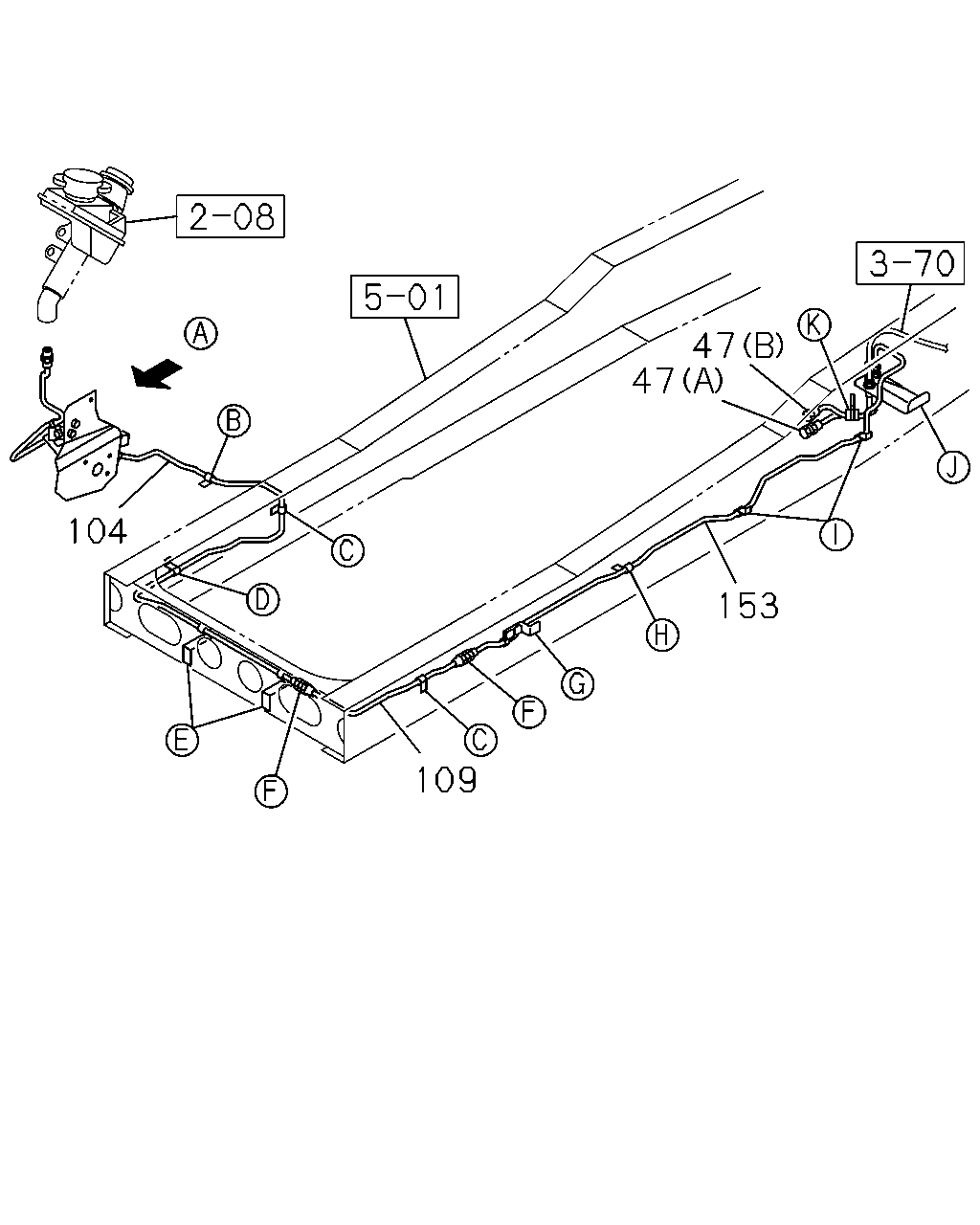

çizim 345050
47 47 153 109 104
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(A) L=580 		1-09363-692-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
(B) L=620 		8-98072-333-0 01 1 1304-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1783 SERVICED BY L=1800 		1-47428-768-0 01 1 1304-
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 1304-
153 PIPE ASM; CLU,UNION TO FLEX
L=1485 SERVICED BY L=1550 		1-47428-766-0 01 1 1304-

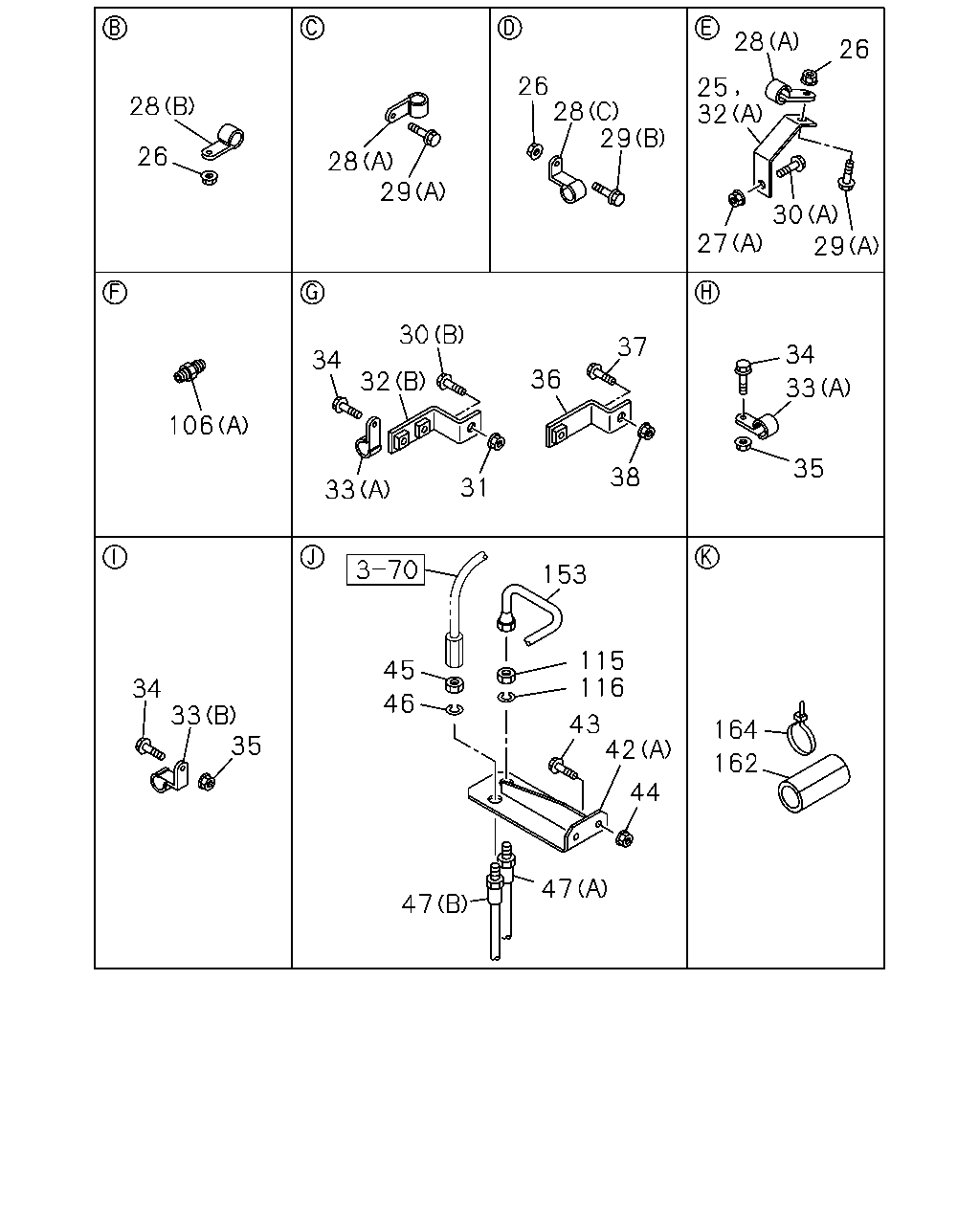

çizim 345524
28 26 28 29 26 28 29 28 25 32 26 30 27 29 30 34 32 36 37 34 33 35 164 162 42 43 116 115 153 45 46 47 106 34 33 35 33 31 38 47 44
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE 8-98123-057-0 01 1 1304-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 1304-
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1304-
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 1304-
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 1304-
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 1304-
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1304-
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1304-
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304-
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1304-
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-057-0 01 1 1304-
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1304-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1304-
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1304-
34 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1304-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1304-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1304-
36 BRACKET; CLIP
L=80 H=20 		1-82699-304-0 01 1 1304-
37 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304-
38 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1304-1402
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1304-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1304-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1304-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1304-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
(A) L=580 		1-09363-692-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
(B) L=620 		8-98072-333-0 01 1 1304-
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1304-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1304-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1304-
153 PIPE ASM; CLU,UNION TO FLEX
L=1485 SERVICED BY L=1550 		1-47428-766-0 01 1 1304-
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 1304-
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1304-
