4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#117569) — 80 parça

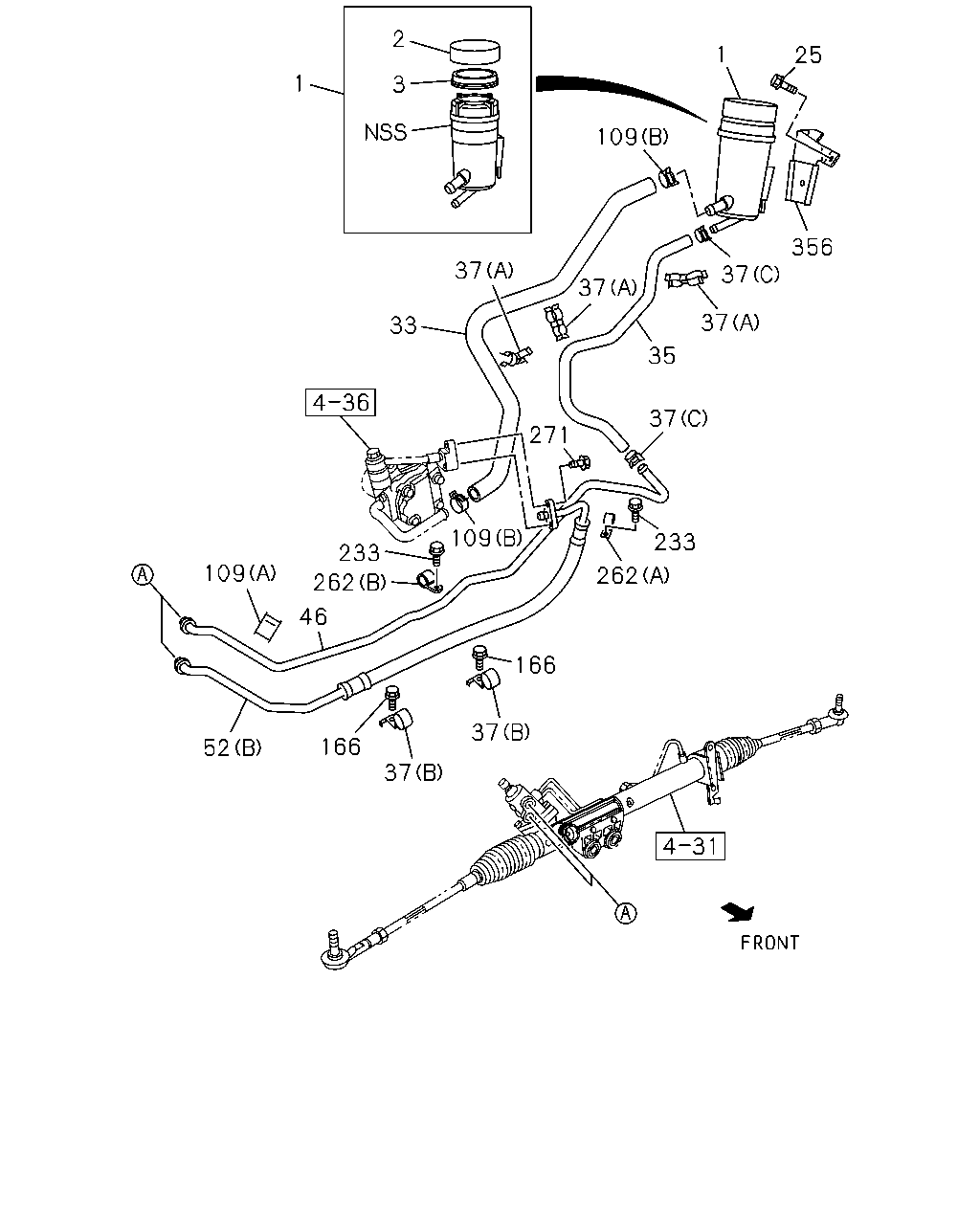

25 1 356 37 109 37 37 35 37 37 271 33 233 262 109 233 262 46 109 166 37 37 166 52 3 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1304-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1304-	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1304-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1304-	●			●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1304-		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1304-		●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1304-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1304-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1304-	●			●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1304-		●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1304-	●			●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1304-		●	●
37	01.762 CLIP; HOSE,P/S AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1304-	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97946-149-2	01	1	1304-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-149-2	01	1	1304-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-97946-151-2	01	1	1304-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97946-151-2	01	1	1304-				●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC)	8-98209-390-0	01	1	1304-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) L=1017	8-98179-941-0	01	1	1304-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (B)	8-97946-143-0	01	1	1304-	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-143-0	01	1	1304-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (B)	8-97946-145-0	01	1	1304-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (B)	8-97946-145-0	01	1	1304-				●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) (A)	8-98209-389-0	01	1	1304-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97946-159-0	01	1	1304-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=10X2 H=22	8-94252-455-2	01	1	1304-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1304-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (C)	8-98203-619-0	01	1	1304-		●	●
166	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●			●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-		●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1304-	●			●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1304-		●	●
262	06.672 CLIP; P/S PIPE 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1304-	●			●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1304-		●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1304-		●	●
271	06.672 BOLT; P/S OIL PIPE FIX 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●			●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-		●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1304-	●	●	●	●	●	●

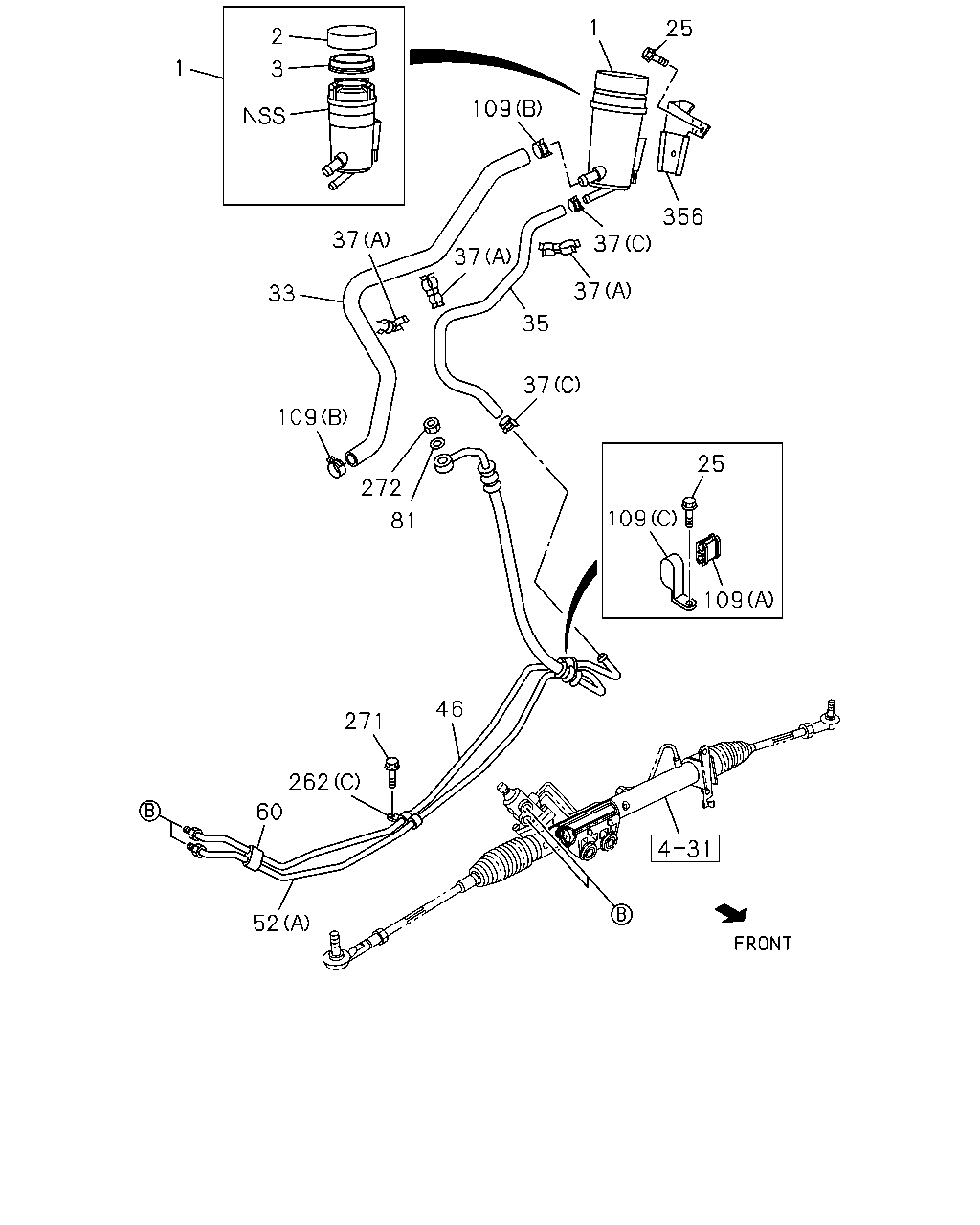

1 2 3 37 109 1 25 356 37 37 35 37 33 37 109 272 81 25 109 109 46 271 262 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1304-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1304-	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1304-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1304-	●			●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1304-		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1304-		●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1304-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1304-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1304-	●			●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1304-		●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1304-	●			●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1304-		●	●
37	01.762 CLIP; HOSE,P/S AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1304-	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97946-149-2	01	1	1304-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-149-2	01	1	1304-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-97946-151-2	01	1	1304-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97946-151-2	01	1	1304-				●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC)	8-98209-390-0	01	1	1304-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) L=1017	8-98179-941-0	01	1	1304-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (B)	8-97946-143-0	01	1	1304-	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-143-0	01	1	1304-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) (B)	8-97946-145-0	01	1	1304-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV (B)	8-97946-145-0	01	1	1304-				●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) (A)	8-98209-389-0	01	1	1304-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97946-159-0	01	1	1304-		●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-T ENG(LP0) ID=10X2 H=22	8-94252-455-2	01	1	1304-		●	●
81	06.672 WASHER; LK,FLEX HOSE 4JA1-T ENG(LP0) 07.347 ID=12.2	0-91510-812-0	01	1	1304-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=10X2 H=22	8-94252-455-2	01	1	1304-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1304-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (C)	8-98203-619-0	01	1	1304-		●	●
262	06.672 CLIP; P/S PIPE 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1304-	●			●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1304-		●	●
262	06.672 CLIP; P/S PIPE 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1304-	●			●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1304-		●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1304-		●	●
271	06.672 BOLT; P/S OIL PIPE FIX 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●			●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-		●	●
272	06.672 NUT; P/S OIL PIPE FIX 4JA1-T ENG(LP0) 04.439 M12	0-91111-512-0	01	1	1304-		●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1304-	●	●	●	●	●	●
