Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#117545) — 357 parça

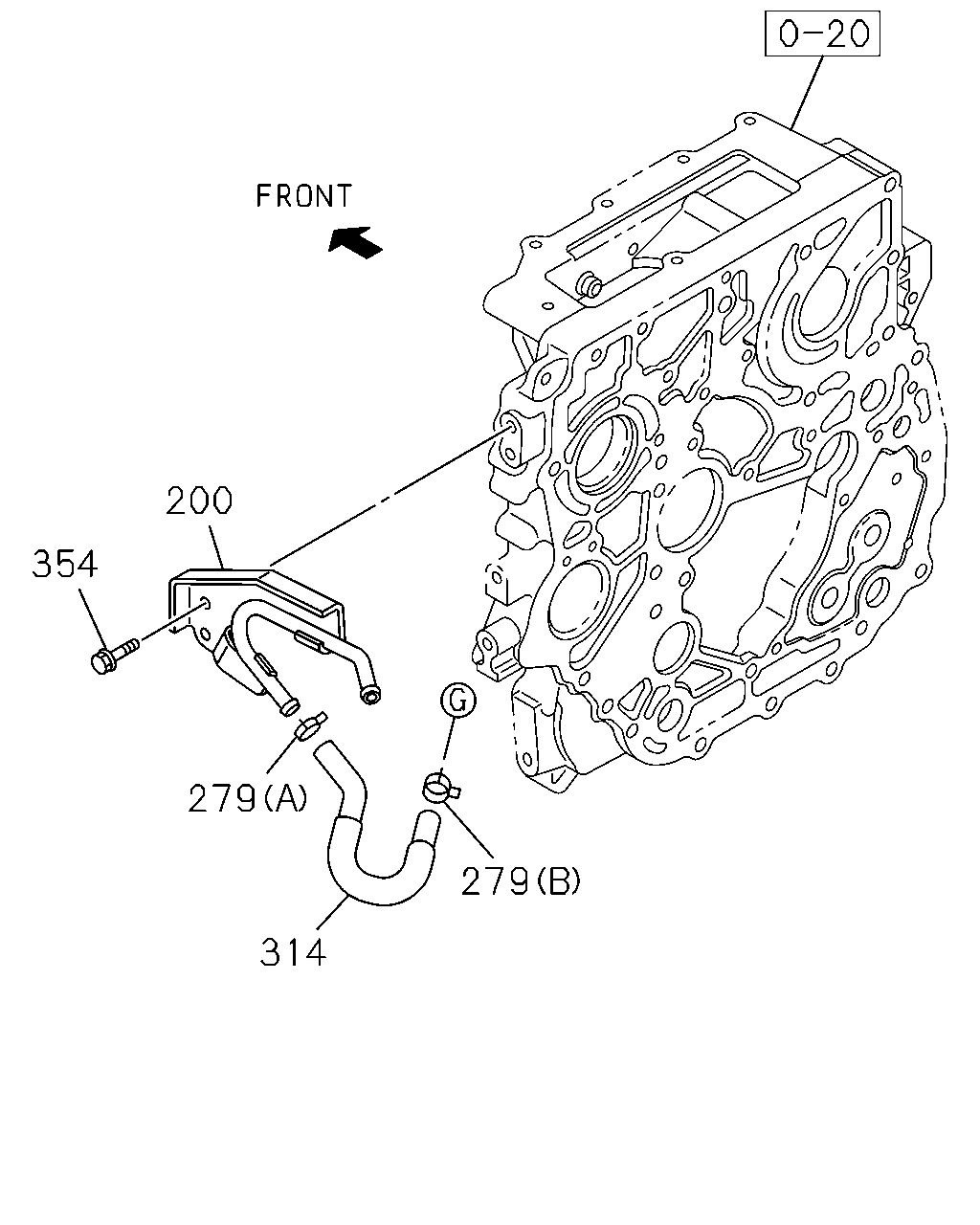

200 354 279 314 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
200	03.330 PIPE; FUEL FEED	8-98132-088-0	01	1	1304-	●	●	●
279	03.162 CLIP; FUEL HOSE (B) ID=17.8	8-97944-611-0	01	1	1304-	●	●	●
279	03.162 CLIP; FUEL HOSE 01.762 (A) ID=16	8-98030-682-0	01	1	1304-	●	●	●
314	03.163 HOSE; INLET,FUEL	8-98175-561-0	01	1	1304-	●	●	●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●	●	●

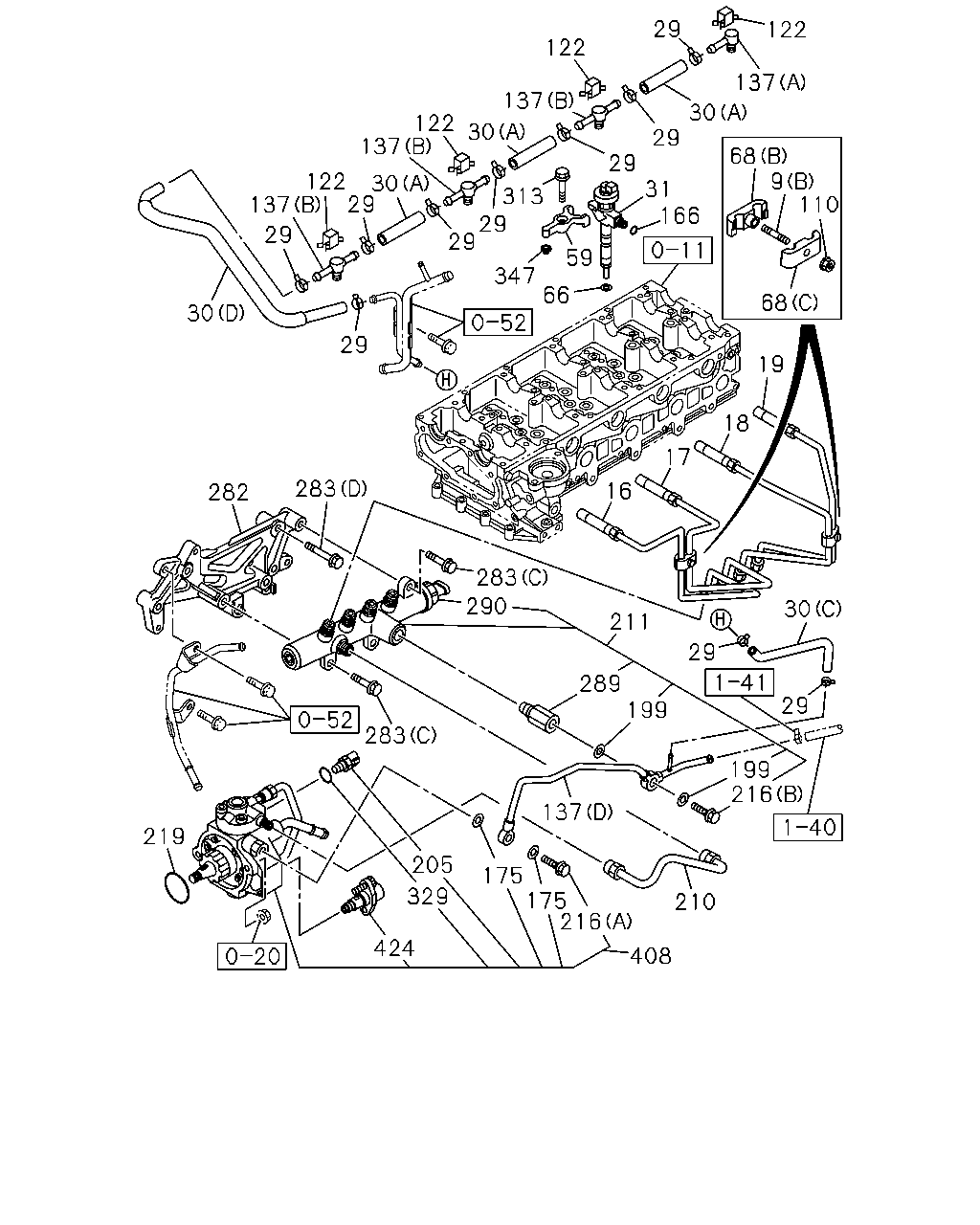

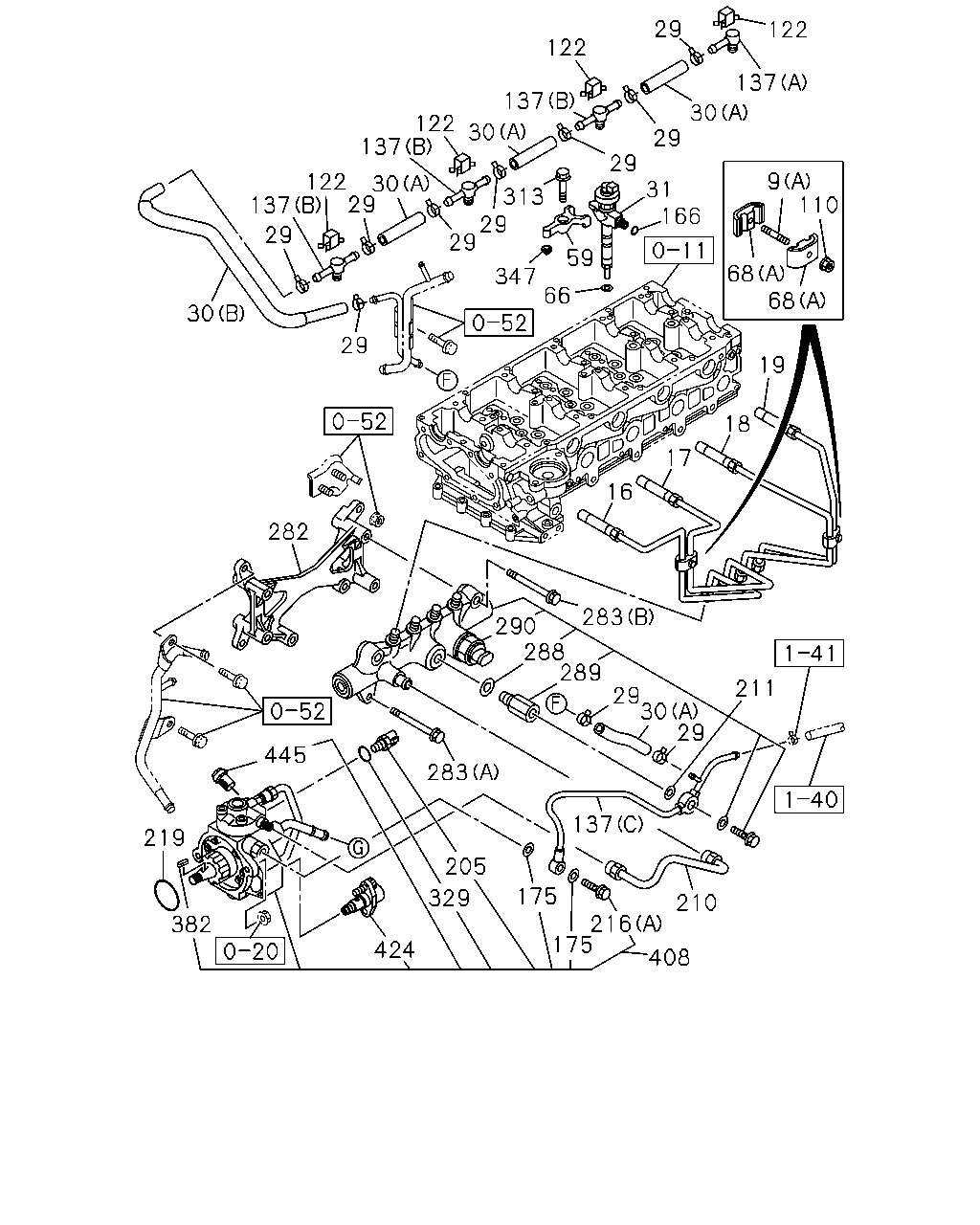

30 29 283 282 283 290 283 205 329 424 219 137 175 175 216 408 210 216 29 199 199 289 211 16 29 30 17 18 19 68 29 137 137 31 166 29 29 30 122 29 122 137 59 66 347 29 29 313 30 122 137 29 30 122 68 9 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	03.340 STUD; CLIP 00.413 (B) M6X30 L=38	0-41010-630-0	02	1	1304-				●
9	03.340 STUD; CLIP 03.162 (A) M6X25 L=36	8-97214-234-1	02	1	1304-	●	●	●
16	03.330 PIPE; INJ NO.1	8-97373-733-0	01	1	1304-					●
16	03.330 PIPE; INJ NO.1	8-98158-729-0	01	1	1304-				●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1304-	●	●	●
17	03.330 PIPE; INJ NO.2	8-97365-210-0	01	1	1304-					●
17	03.330 PIPE; INJ NO.2	8-98158-730-0	01	1	1304-				●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1304-	●	●	●
18	03.330 PIPE; INJ NO.3	8-97373-734-0	01	1	1304-					●
18	03.330 PIPE; INJ NO.3	8-98158-731-0	01	1	1304-				●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1304-	●	●	●
19	03.330 PIPE; INJ NO.4	8-97373-735-0	01	1	1304-					●
19	03.330 PIPE; INJ NO.4	8-98158-732-0	01	1	1304-				●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1304-	●	●	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1304-					●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	1304-	●	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=320	8-98135-263-1	01	1	1304-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98179-014-0	01	1	1304-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-98189-998-0	01	1	1304-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	03	1	1304-	●	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	01	1	1304-	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98168-394-0	01	1	1304-	●	●	●
31	03.332 NOZZLE ASM; INJ COOLER W/FRESH AIR(C65)	8-98106-694-1	04	1	1304-		●
31	03.332 NOZZLE ASM; INJ	8-97382-946-0	04	1	1304-					●
31	03.332 NOZZLE ASM; INJ	8-98159-583-1	04	1	1304-1311				●
31	03.332 NOZZLE ASM; INJ	8-98260-109-0	04	1	1312-				●
31	03.332 NOZZLE ASM; INJ HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98119-228-3	04	1	1304-		●	●
31	03.332 NOZZLE ASM; INJ	8-98203-849-0	04	1	1304-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1304-					●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1304-	●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1304-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98181-540-0	04	1	1304-	●	●	●	●
68	03.162 CLIP; INJ PIPE 03.634 (D)	1-09701-240-0	04	1	1304-					●
68	03.162 CLIP; INJ PIPE (E)	8-98227-926-0	01	1	1304-					●
68	03.162 CLIP; INJ PIPE (C) ID=7 & 7 L=22	8-97330-118-3	02	1	1304-				●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	02	1	1304-				●
68	03.162 CLIP; INJ PIPE (A)	8-97213-481-0	04	1	1304-	●	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●	●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	1304-	●	●	●	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98158-737-1	01	1	1304-				●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98211-775-0	03	1	1304-	●	●	●	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98211-776-0	01	1	1304-	●	●	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98132-085-0	01	1	1304-	●	●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1304-	●	●	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1304-1505	●	●	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE	1-15619-508-0	02	1	1506-	●	●	●	●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	1304-				●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1304-	●	●	●	●
210	03.330 PIPE; INJ,C/R	8-98158-733-0	01	1	1304-				●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	1304-	●	●	●
211	03.331 RAIL ASM; COMMON	8-98151-214-0	01	1	1304-				●
211	03.331 RAIL ASM; COMMON	8-98132-055-1	01	1	1304-	●	●	●
216	03.162 BOLT; EYE (B)	8-98043-033-0	01	1	1304-				●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1304-1409	●	●	●	●
216	03.162 BOLT; EYE (A)	8-98209-777-0	01	1	1410-	●	●	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1304-	●	●	●	●
282	03.163 BRACKET; COMMON RAIL	8-98158-715-2	01	1	1304-				●
282	03.163 BRACKET; COMMON RAIL	8-98132-056-0	01	1	1304-	●	●	●
283	03.330 BOLT; COMMON RAIL (C) M8X25 FLANGE	8-98174-080-0	03	1	1304-				●
283	03.330 BOLT; COMMON RAIL (D) M8X40 FLANGE	8-98174-180-0	04	1	1304-				●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	1304-	●	●	●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	1304-	●	●	●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1304-				●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1304-	●	●	●
290	03.331 SENSOR; PRESS	8-98178-706-0	01	1	1304-				●
290	03.331 SENSOR; PRESS	8-98181-616-0	01	1	1304-	●	●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-98095-575-0	04	1	1304-	●	●	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1304-1409	●	●	●	●
347	03.332 PIN	8-98165-035-0	04	1	1304-	●	●	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98151-213-2	01	1	1304-				●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98155-988-3	01	1	1304-	●	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-455-1	01	1	1304-	●	●	●	●

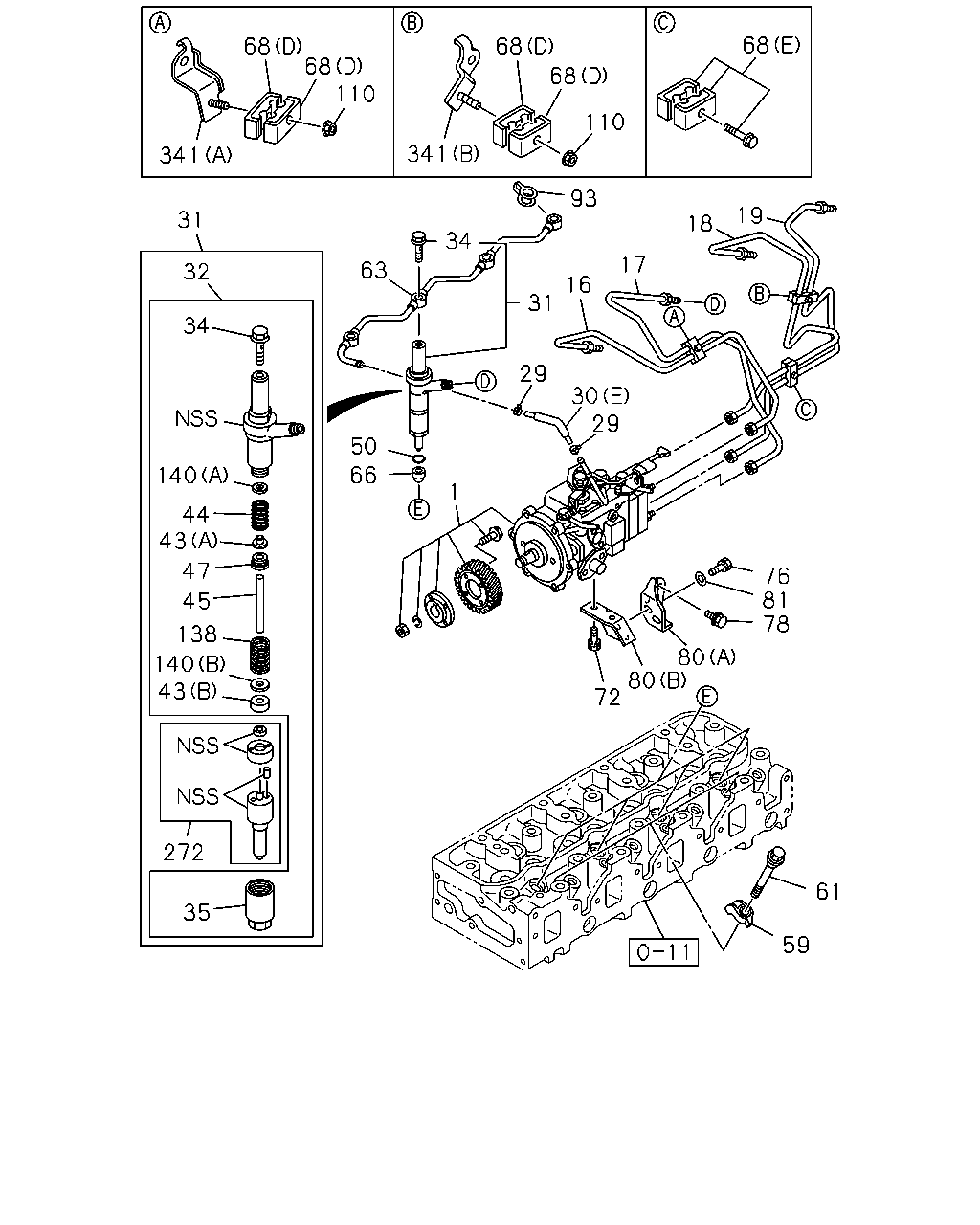

68 341 68 110 68 341 110 68 68 31 34 63 50 66 29 31 16 93 17 18 19 30 29 76 81 72 80 80 78 59 61 35 272 43 140 138 45 47 43 44 140 34 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2>	8-98002-138-0	01	1	1304-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75>	8-97350-394-3	01	1	1304-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. HIGH ALTITUDE COMPENSATOR<EE2>	8-97350-398-3	01	1	1304-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) HIGH ALTITUDE COMPENSATOR<EE2> EURO2 SPECIFICATION<NT2>	8-98002-137-1	01	1	1304-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>	8-97350-393-4	01	1	1304-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. HIGH ALTITUDE COMPENSATOR<EE2>	8-97350-396-4	01	1	1304-					●
16	03.330 PIPE; INJ NO.1	8-97373-733-0	01	1	1304-					●
16	03.330 PIPE; INJ NO.1	8-98158-729-0	01	1	1304-				●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1304-	●	●	●
17	03.330 PIPE; INJ NO.2	8-97365-210-0	01	1	1304-					●
17	03.330 PIPE; INJ NO.2	8-98158-730-0	01	1	1304-				●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1304-	●	●	●
18	03.330 PIPE; INJ NO.3	8-97373-734-0	01	1	1304-					●
18	03.330 PIPE; INJ NO.3	8-98158-731-0	01	1	1304-				●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1304-	●	●	●
19	03.330 PIPE; INJ NO.4	8-97373-735-0	01	1	1304-					●
19	03.330 PIPE; INJ NO.4	8-98158-732-0	01	1	1304-				●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1304-	●	●	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1304-					●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	1304-	●	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=320	8-98135-263-1	01	1	1304-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98179-014-0	01	1	1304-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-98189-998-0	01	1	1304-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	03	1	1304-	●	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	01	1	1304-	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98168-394-0	01	1	1304-	●	●	●
31	03.332 NOZZLE ASM; INJ COOLER W/FRESH AIR(C65)	8-98106-694-1	04	1	1304-		●
31	03.332 NOZZLE ASM; INJ	8-97382-946-0	04	1	1304-					●
31	03.332 NOZZLE ASM; INJ	8-98159-583-1	04	1	1304-1311				●
31	03.332 NOZZLE ASM; INJ	8-98260-109-0	04	1	1312-				●
31	03.332 NOZZLE ASM; INJ HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98119-228-3	04	1	1304-		●	●
31	03.332 NOZZLE ASM; INJ	8-98203-849-0	04	1	1304-	●
32	03.332 HOLDER ASM; NOZZLE	8-97217-835-0	04	1	1304-					●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	1304-					●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	1304-					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97361-697-0	04	1	1304-					●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	1304-					●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	1304-					●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	1304-					●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97287-402-2	04	1	1304-					●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1304-					●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1304-	●	●	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	1304-					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	1304-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1304-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98181-540-0	04	1	1304-	●	●	●	●
68	03.162 CLIP; INJ PIPE 03.634 (D)	1-09701-240-0	04	1	1304-					●
68	03.162 CLIP; INJ PIPE (E)	8-98227-926-0	01	1	1304-					●
68	03.162 CLIP; INJ PIPE (C) ID=7 & 7 L=22	8-97330-118-3	02	1	1304-				●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	02	1	1304-				●
68	03.162 CLIP; INJ PIPE (A)	8-97213-481-0	04	1	1304-	●	●	●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	1304-					●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	1304-					●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1304-					●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	1304-					●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	1304-					●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1304-					●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	1304-					●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●	●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	1304-					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	1304-					●
272	03.332 NOZZLE KIT; INJ	8-97362-572-0	04	1	1304-					●
341	03.330 BRACKET; CLIP,INJ PIPE (B)	8-97333-806-1	01	1	1304-					●
341	03.330 BRACKET; CLIP,INJ PIPE (A)	8-97365-211-1	01	1	1304-					●

29 122 122 137 30 122 137 122 30 29 137 29 30 282 445 219 382 424 329 205 283 175 175 216 408 210 137 29 30 29 211 289 288 290 283 16 17 18 19 29 29 29 313 347 59 66 29 29 30 31 137 9 166 110 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	03.340 STUD; CLIP 00.413 (B) M6X30 L=38	0-41010-630-0	02	1	1304-				●
9	03.340 STUD; CLIP 03.162 (A) M6X25 L=36	8-97214-234-1	02	1	1304-	●	●	●
16	03.330 PIPE; INJ NO.1	8-97373-733-0	01	1	1304-					●
16	03.330 PIPE; INJ NO.1	8-98158-729-0	01	1	1304-				●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	1304-	●	●	●
17	03.330 PIPE; INJ NO.2	8-97365-210-0	01	1	1304-					●
17	03.330 PIPE; INJ NO.2	8-98158-730-0	01	1	1304-				●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	1304-	●	●	●
18	03.330 PIPE; INJ NO.3	8-97373-734-0	01	1	1304-					●
18	03.330 PIPE; INJ NO.3	8-98158-731-0	01	1	1304-				●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	1304-	●	●	●
19	03.330 PIPE; INJ NO.4	8-97373-735-0	01	1	1304-					●
19	03.330 PIPE; INJ NO.4	8-98158-732-0	01	1	1304-				●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	1304-	●	●	●
29	03.162 CLIP; HOSE 03.163 ID=11	8-97173-219-0	02	1	1304-					●
29	03.162 CLIP; HOSE ID=10.5	8-97944-126-0	10	1	1304-	●	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=320	8-98135-263-1	01	1	1304-					●
30	03.163 HOSE; RUBBER,FUEL LEAK (C)	8-98179-014-0	01	1	1304-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-98189-998-0	01	1	1304-				●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	03	1	1304-	●	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=96	8-98053-693-0	01	1	1304-	●	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (B)	8-98168-394-0	01	1	1304-	●	●	●
31	03.332 NOZZLE ASM; INJ COOLER W/FRESH AIR(C65)	8-98106-694-1	04	1	1304-		●
31	03.332 NOZZLE ASM; INJ	8-97382-946-0	04	1	1304-					●
31	03.332 NOZZLE ASM; INJ	8-98159-583-1	04	1	1304-1311				●
31	03.332 NOZZLE ASM; INJ	8-98260-109-0	04	1	1312-				●
31	03.332 NOZZLE ASM; INJ HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98119-228-3	04	1	1304-		●	●
31	03.332 NOZZLE ASM; INJ	8-98203-849-0	04	1	1304-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	1304-					●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1304-	●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	1304-					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-98181-540-0	04	1	1304-	●	●	●	●
68	03.162 CLIP; INJ PIPE 03.634 (D)	1-09701-240-0	04	1	1304-					●
68	03.162 CLIP; INJ PIPE (E)	8-98227-926-0	01	1	1304-					●
68	03.162 CLIP; INJ PIPE (C) ID=7 & 7 L=22	8-97330-118-3	02	1	1304-				●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	02	1	1304-				●
68	03.162 CLIP; INJ PIPE (A)	8-97213-481-0	04	1	1304-	●	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●	●	●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	1304-	●	●	●	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98158-737-1	01	1	1304-				●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98211-775-0	03	1	1304-	●	●	●	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98211-776-0	01	1	1304-	●	●	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98132-085-0	01	1	1304-	●	●	●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1304-	●	●	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1304-1505	●	●	●	●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE	1-15619-508-0	02	1	1506-	●	●	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1304-	●	●	●	●
210	03.330 PIPE; INJ,C/R	8-98158-733-0	01	1	1304-				●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	1304-	●	●	●
211	03.331 RAIL ASM; COMMON	8-98151-214-0	01	1	1304-				●
211	03.331 RAIL ASM; COMMON	8-98132-055-1	01	1	1304-	●	●	●
216	03.162 BOLT; EYE (B)	8-98043-033-0	01	1	1304-				●
216	03.162 BOLT; EYE 03.280 (A)	9-88130-088-0	01	1	1304-1409	●	●	●	●
216	03.162 BOLT; EYE (A)	8-98209-777-0	01	1	1410-	●	●	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1304-	●	●	●	●
282	03.163 BRACKET; COMMON RAIL	8-98158-715-2	01	1	1304-				●
282	03.163 BRACKET; COMMON RAIL	8-98132-056-0	01	1	1304-	●	●	●
283	03.330 BOLT; COMMON RAIL (C) M8X25 FLANGE	8-98174-080-0	03	1	1304-				●
283	03.330 BOLT; COMMON RAIL (D) M8X40 FLANGE	8-98174-180-0	04	1	1304-				●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	1304-	●	●	●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	1304-	●	●	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1304-	●	●	●
289	03.331 LIMITER; FUEL PRESS	8-98138-695-0	01	1	1304-				●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1304-	●	●	●
290	03.331 SENSOR; PRESS	8-98178-706-0	01	1	1304-				●
290	03.331 SENSOR; PRESS	8-98181-616-0	01	1	1304-	●	●	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-98095-575-0	04	1	1304-	●	●	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1304-1409	●	●	●	●
347	03.332 PIN	8-98165-035-0	04	1	1304-	●	●	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1304-1409	●	●	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1410-	●	●	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98151-213-2	01	1	1304-				●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98155-988-3	01	1	1304-	●	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-455-1	01	1	1304-	●	●	●	●
445	03.330 SCREW; FILTER,INLET	8-98209-778-0	01	1	1304-1409	●	●	●
445	03.330 SCREW; FILTER,INLET	8-98209-778-0	01	1	1410-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
