Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#117544) — 212 parça

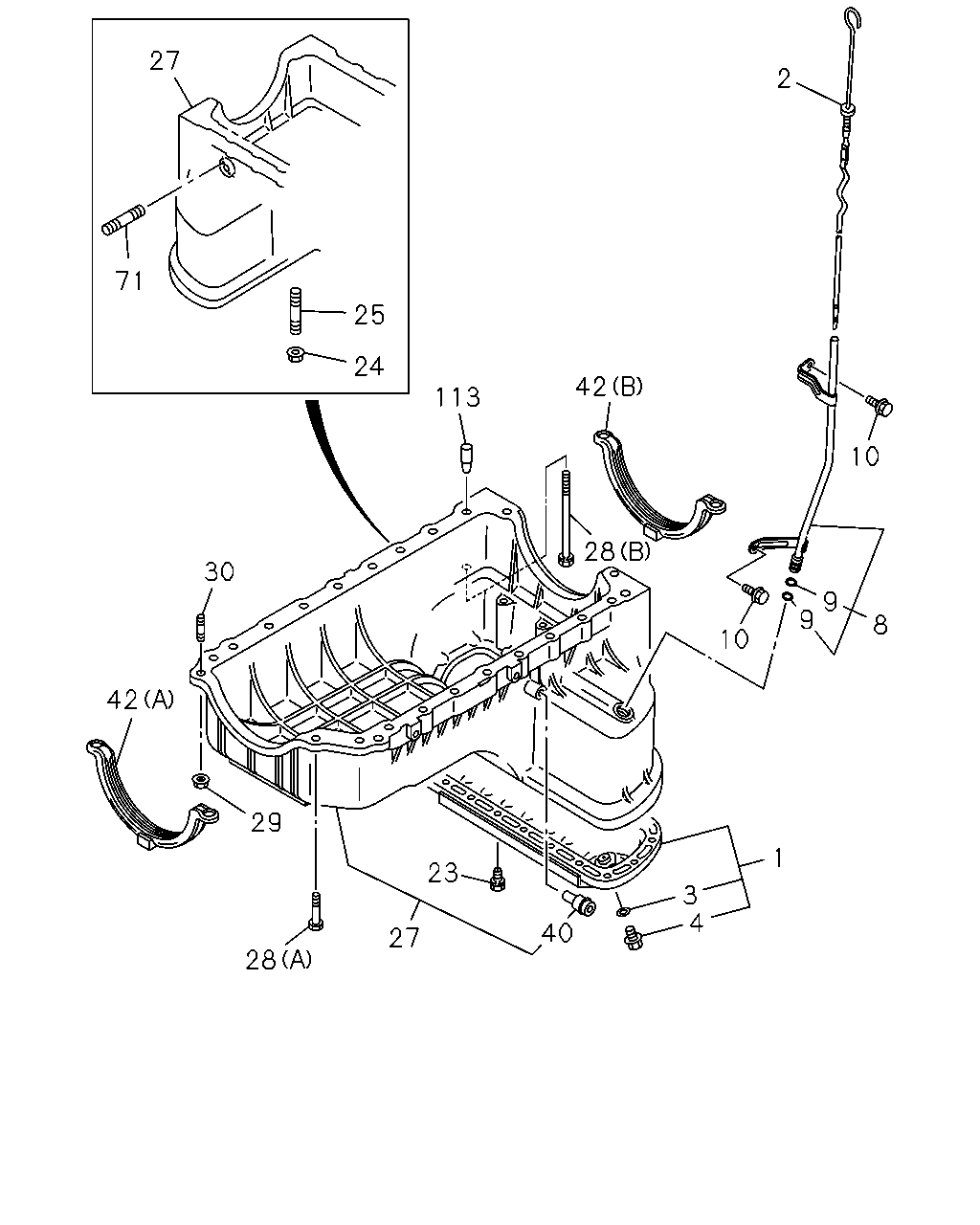

2 10 8 9 9 10 1 3 4 28 42 113 23 40 27 28 29 42 30 25 24 71 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97248-860-2	01	1	1304-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98156-371-0	01	1	1304-		●	●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98132-001-2	01	1	1304-		●	●	●	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-458-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98254-458-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-459-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98254-459-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL	8-98206-801-1	01	1	1304-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98160-124-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-124-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98160-125-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-125-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98132-527-2	01	1	1304-		●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98132-528-2	01	1	1304-		●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1304-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1304-	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1304-		●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98206-113-1	01	1	1304-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98151-195-3	01	1	1304-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98132-019-2	01	1	1304-		●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1304-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1304-		●	●	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-		●	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	1304-	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97329-622-0	02	1	1304-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1304-		●	●	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	1304-	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1304-		●	●	●	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	1304-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-086-0	01	1	1304-		●	●	●
27	01.426 CRANKCASE 4X2(TFB***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-137-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-138-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-085-0	01	1	1304-		●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL (B) M8X120 FLANGE	0-28055-812-0	01	1	1304-	●
28	01.780 BOLT; CRANKCASE TO C/BL (A) M8X32 W/LK WASHER	0-50540-832-0	19	1	1304-	●
29	01.426 NUT; CRANKCASE 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●
30	01.780 STUD; CRANKCASE M8X35 L=47	0-41010-835-0	02	1	1304-	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	1304-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97120-933-0	01	1	1304-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97123-342-0	01	1	1304-	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	0-41010-818-0	02	1	1304-	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1304-	●
113	01.453 PIN; STRAIGHT A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) 08.939 OD=10 L=32	9-08161-032-0	02	1	1304-		●		●	●

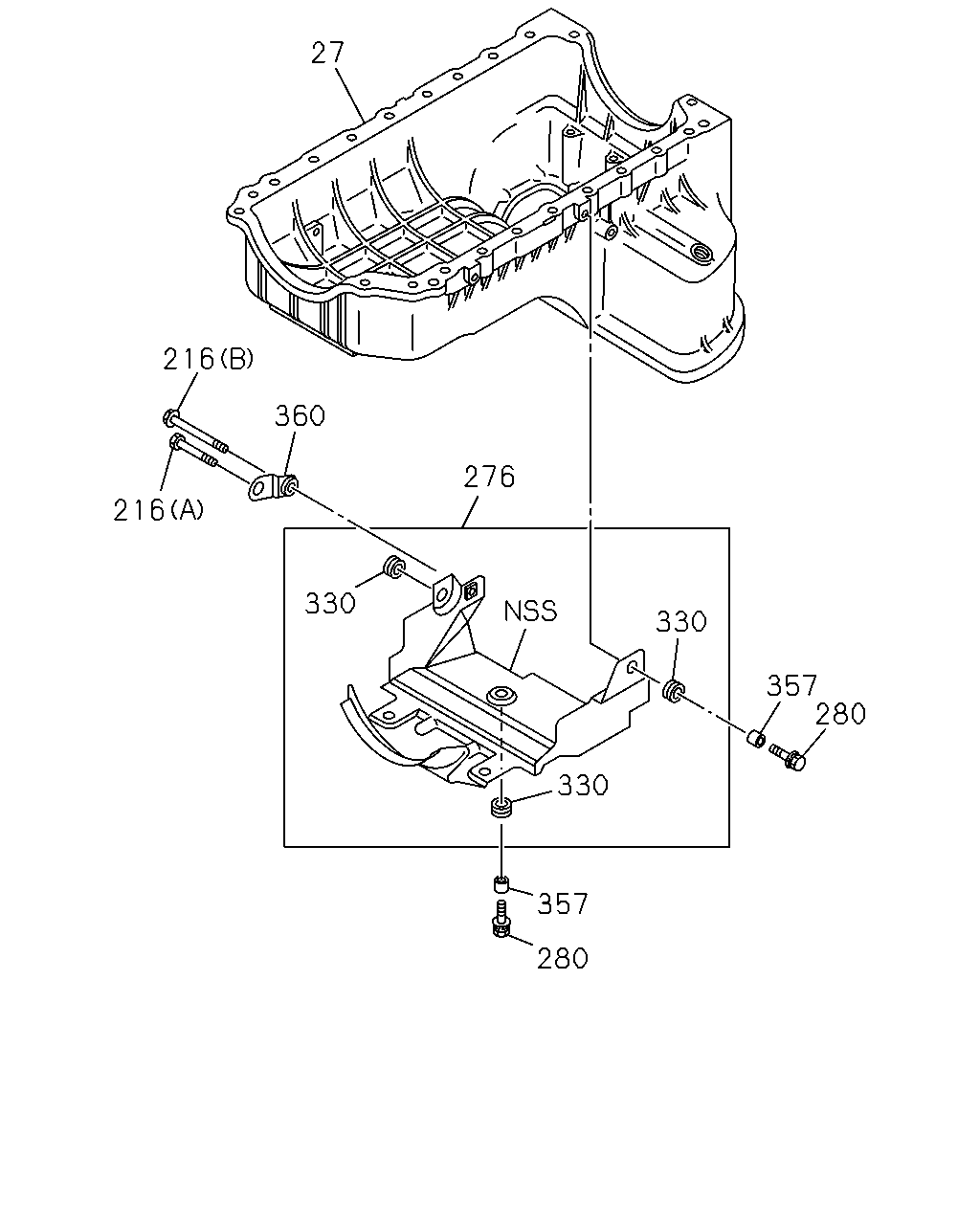

276 330 357 280 357 280 330 330 360 216 216 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
27	01.426 CRANKCASE	8-97358-796-0	01	1	1304-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-086-0	01	1	1304-		●	●	●
27	01.426 CRANKCASE 4X2(TFB***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-137-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-138-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-085-0	01	1	1304-		●	●	●
216	01.429 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1304-	●
216	01.429 BOLT; BRKT 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	1304-	●
276	01.516 COVER; CRANKCASE	8-97373-085-2	01	1	1304-	●
280	01.430 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	1304-	●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.413 OD=21.8	8-97325-051-0	03	1	1411-	●
357	01.516 BUSHING; COVER	8-97371-498-0	03	1	1304-	●
360	01.750 BRACKET; CRANK CASE	8-97329-650-1	01	1	1304-	●

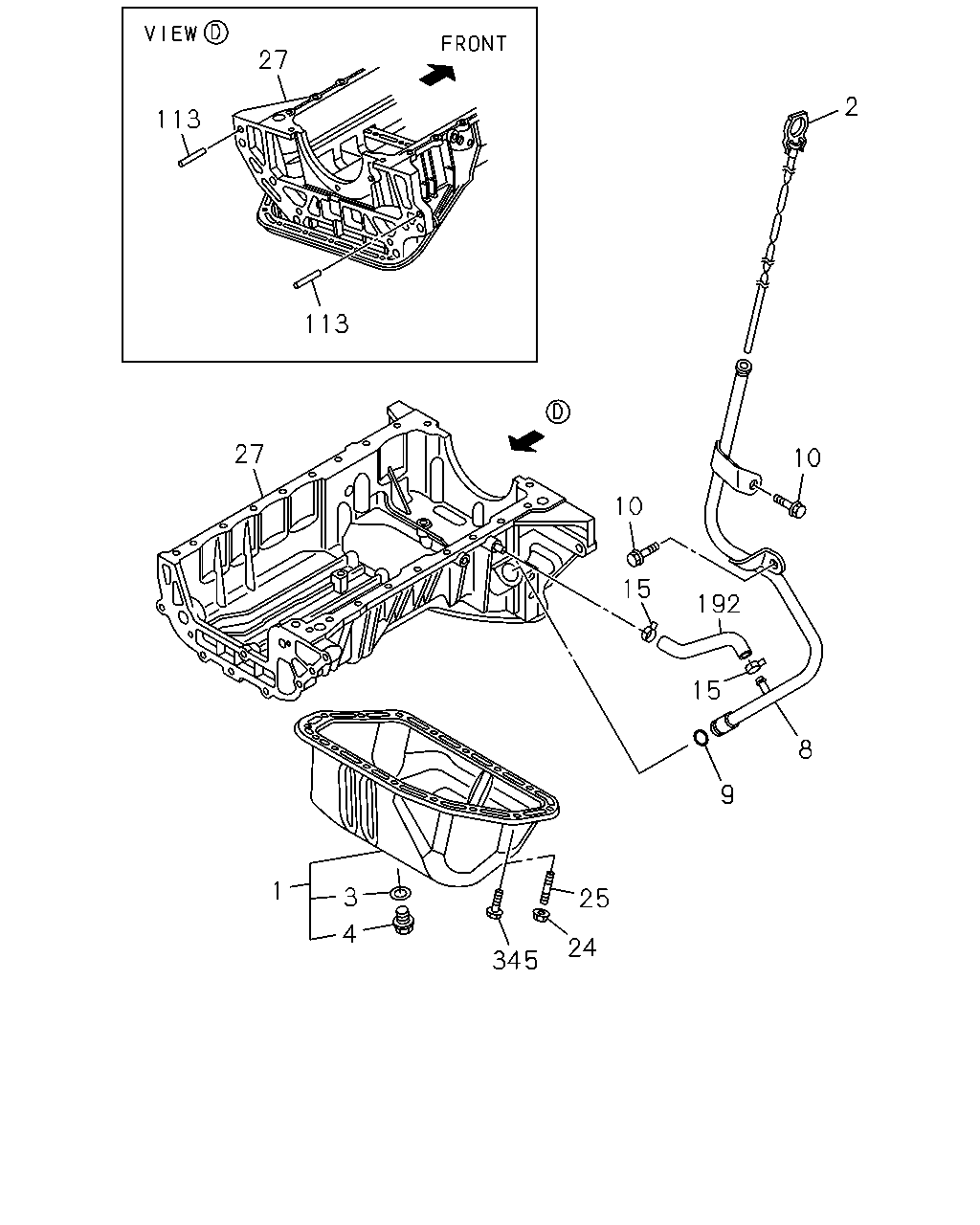

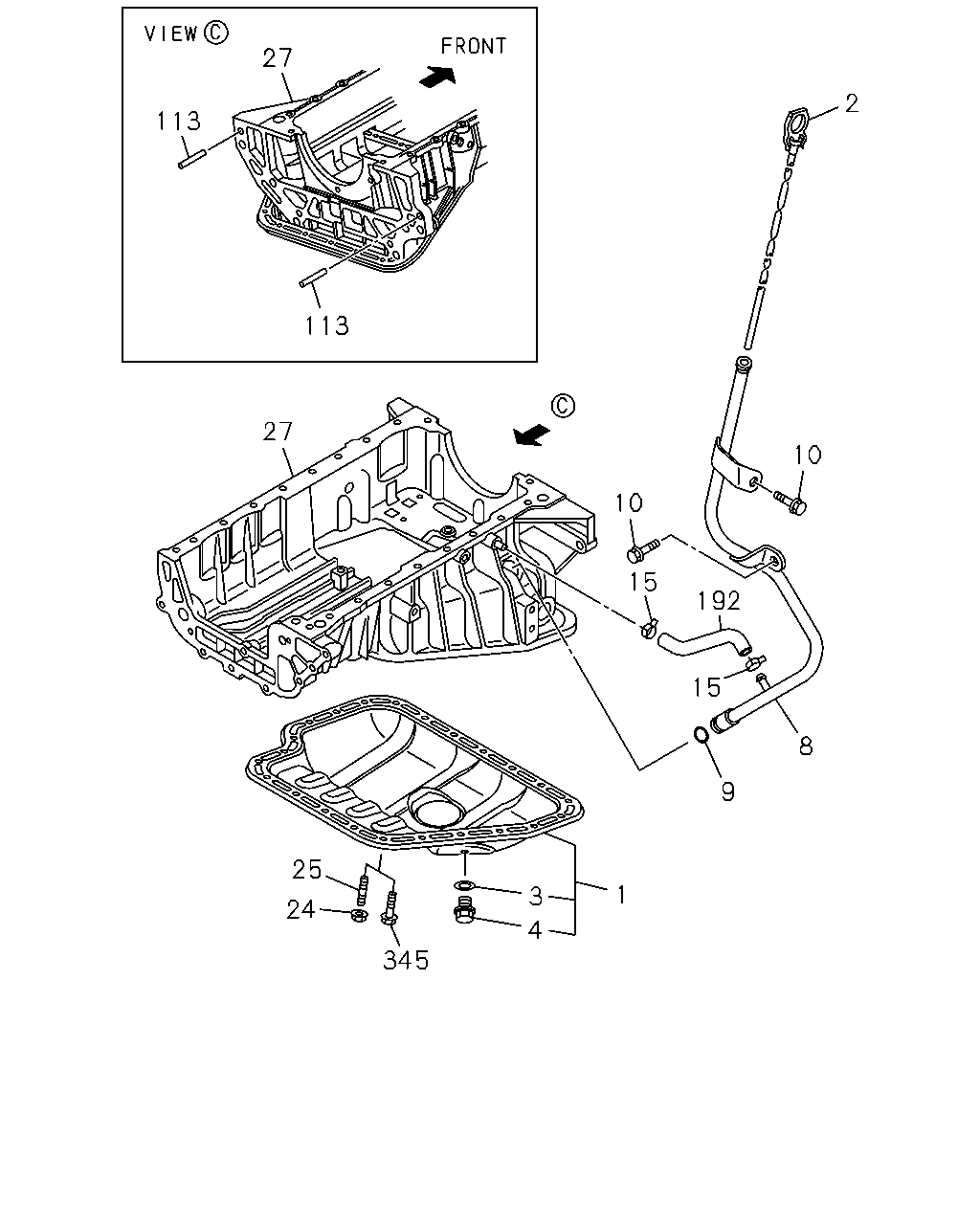

8 9 10 192 15 15 1 4 345 3 24 25 27 113 113 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97248-860-2	01	1	1304-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98156-371-0	01	1	1304-		●	●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98132-001-2	01	1	1304-		●	●	●	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-458-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98254-458-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-459-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98254-459-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL	8-98206-801-1	01	1	1304-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98160-124-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-124-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98160-125-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-125-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98132-527-2	01	1	1304-		●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98132-528-2	01	1	1304-		●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1304-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1304-	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1304-		●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98206-113-1	01	1	1304-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98151-195-3	01	1	1304-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98132-019-2	01	1	1304-		●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1304-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1304-		●	●	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-		●	●	●
15	01.516 CLIP; GUIDE TUBE 03.145 ID=8	8-94107-762-0	02	1	1304-		●	●	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97329-622-0	02	1	1304-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1304-		●	●	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	1304-	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1304-		●	●	●	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	1304-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-086-0	01	1	1304-		●	●	●
27	01.426 CRANKCASE 4X2(TFB***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-137-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-138-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-085-0	01	1	1304-		●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1304-	●
113	01.453 PIN; STRAIGHT A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) 08.939 OD=10 L=32	9-08161-032-0	02	1	1304-		●		●	●
192	01.516 HOSE; GUIDE TUBE	8-98211-985-0	01	1	1304-		●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(TFB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1304-		●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(TFS***) 02.343 M8X12 FLANGE	0-28050-812-0	14	1	1304-		●	●	●	●

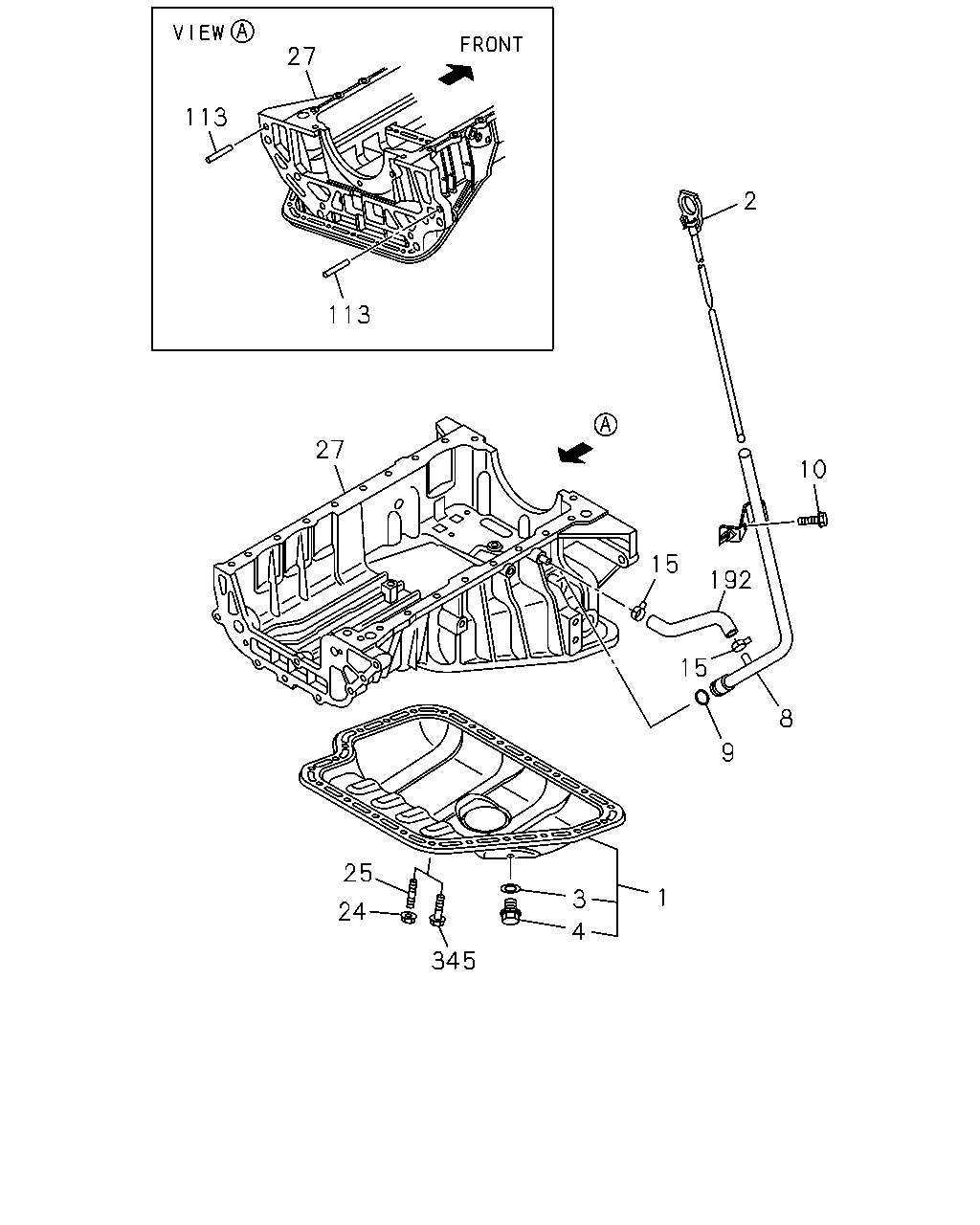

345 24 9 8 25 4 3 1 15 192 15 10 10 2 113 27 113 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97248-860-2	01	1	1304-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98156-371-0	01	1	1304-		●	●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98132-001-2	01	1	1304-		●	●	●	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-458-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98254-458-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-459-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98254-459-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL	8-98206-801-1	01	1	1304-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98160-124-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-124-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98160-125-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-125-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98132-527-2	01	1	1304-		●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98132-528-2	01	1	1304-		●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1304-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1304-	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1304-		●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98206-113-1	01	1	1304-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98151-195-3	01	1	1304-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98132-019-2	01	1	1304-		●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1304-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1304-		●	●	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-		●	●	●
15	01.516 CLIP; GUIDE TUBE 03.145 ID=8	8-94107-762-0	02	1	1304-		●	●	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97329-622-0	02	1	1304-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1304-		●	●	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	1304-	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1304-		●	●	●	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	1304-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-086-0	01	1	1304-		●	●	●
27	01.426 CRANKCASE 4X2(TFB***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-137-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-138-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-085-0	01	1	1304-		●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1304-	●
113	01.453 PIN; STRAIGHT A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) 08.939 OD=10 L=32	9-08161-032-0	02	1	1304-		●		●	●
192	01.516 HOSE; GUIDE TUBE	8-98211-985-0	01	1	1304-		●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(TFB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1304-		●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(TFS***) 02.343 M8X12 FLANGE	0-28050-812-0	14	1	1304-		●	●	●	●

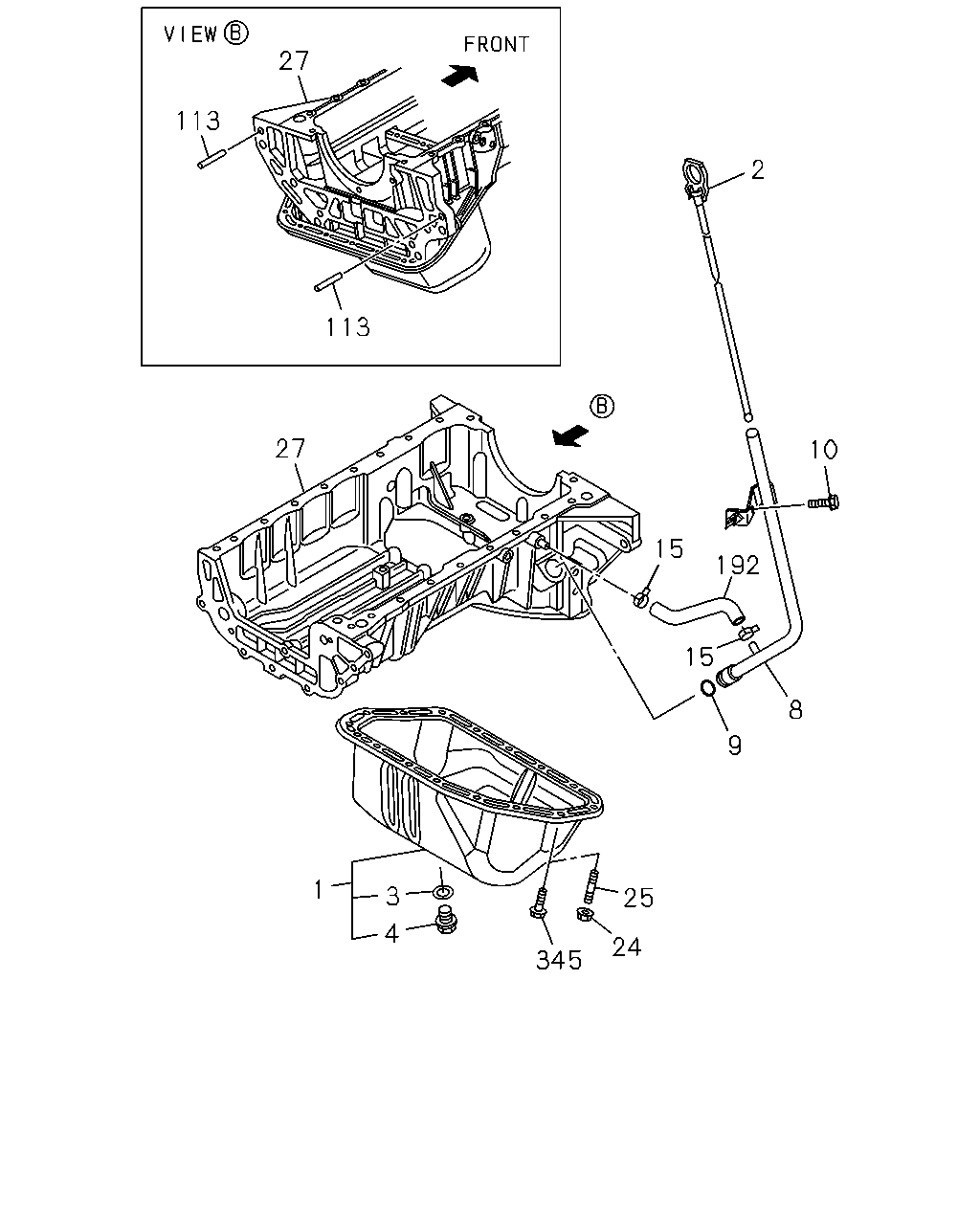

9 15 192 8 10 2 10 15 113 27 25 345 4 1 3 113 27 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97248-860-2	01	1	1304-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98156-371-0	01	1	1304-		●	●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98132-001-2	01	1	1304-		●	●	●	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-458-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98254-458-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-459-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98254-459-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL	8-98206-801-1	01	1	1304-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98160-124-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-124-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98160-125-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-125-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98132-527-2	01	1	1304-		●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98132-528-2	01	1	1304-		●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1304-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1304-	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1304-		●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98206-113-1	01	1	1304-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98151-195-3	01	1	1304-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98132-019-2	01	1	1304-		●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1304-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1304-		●	●	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-		●	●	●
15	01.516 CLIP; GUIDE TUBE 03.145 ID=8	8-94107-762-0	02	1	1304-		●	●	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97329-622-0	02	1	1304-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1304-		●	●	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	1304-	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1304-		●	●	●	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	1304-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-086-0	01	1	1304-		●	●	●
27	01.426 CRANKCASE 4X2(TFB***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-137-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-138-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-085-0	01	1	1304-		●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1304-	●
113	01.453 PIN; STRAIGHT A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) 08.939 OD=10 L=32	9-08161-032-0	02	1	1304-		●		●	●
192	01.516 HOSE; GUIDE TUBE	8-98211-985-0	01	1	1304-		●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(TFB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1304-		●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(TFS***) 02.343 M8X12 FLANGE	0-28050-812-0	14	1	1304-		●	●	●	●

8 25 24 345 4 1 3 15 192 10 2 15 27 113 113 27 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.426 PAN ASM; OIL	8-97248-860-2	01	1	1304-	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-98156-371-0	01	1	1304-		●	●	●	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-98132-001-2	01	1	1304-		●	●	●	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-458-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98254-458-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EGR SYSTEM W/WIDE RANGE TEMP SENSOR FO R IUPR<8PW>	8-98254-459-1	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98254-459-2	01	1	1309-					●
2	01.516 GAUGE; OIL LEVEL	8-98206-801-1	01	1	1304-	●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98160-124-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-124-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98160-125-2	01	1	1304-1308					●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***) EXC. EGR SYSTEM W/WIDE RANGE TEMP SENS OR FOR IUPR<8PW>	8-98160-125-2	01	1	1309-1309					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-98132-527-2	01	1	1304-		●	●	●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-98132-528-2	01	1	1304-		●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1304-	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1304-	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	1304-		●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98206-113-1	01	1	1304-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98151-195-3	01	1	1304-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-98132-019-2	01	1	1304-		●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1304-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8	8-98034-629-0	01	1	1304-		●	●	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1304-	●				●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-		●	●	●
15	01.516 CLIP; GUIDE TUBE 03.145 ID=8	8-94107-762-0	02	1	1304-		●	●	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97329-622-0	02	1	1304-	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1304-		●	●	●	●
25	01.453 STUD; OIL PAN M6X12 L=21	0-41010-612-0	02	1	1304-	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1304-		●	●	●	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	1304-	●
27	01.426 CRANKCASE 4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-086-0	01	1	1304-		●	●	●
27	01.426 CRANKCASE 4X2(TFB***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-137-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU)	8-98195-138-0	01	1	1304-		●		●	●
27	01.426 CRANKCASE 4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ)	8-98203-085-0	01	1	1304-		●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1304-	●
113	01.453 PIN; STRAIGHT A/T 5 SPEED-AISIN(MA1),M/T AISIN 6 SPEED(RNU) 08.939 OD=10 L=32	9-08161-032-0	02	1	1304-		●		●	●
192	01.516 HOSE; GUIDE TUBE	8-98211-985-0	01	1	1304-		●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X2(TFB***) 02.343 M8X12 FLANGE	0-28050-812-0	21	1	1304-		●	●	●	●
345	01.516 BOLT; SENSOR,OIL LEVEL 4X4(TFS***) 02.343 M8X12 FLANGE	0-28050-812-0	14	1	1304-		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
