Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#117541) — 30 parça
◀
[826A] INST PANEL SIDE NO.2 (15 parça)
[826A] FRAME SIDE (2 parça)
[826A] INST PANEL SIDE NO.1 (8 parça)
[826A] CAB SIDE (5 parça)
▶
695
158
263
608
609
264
608
69
608
68
756
68
757

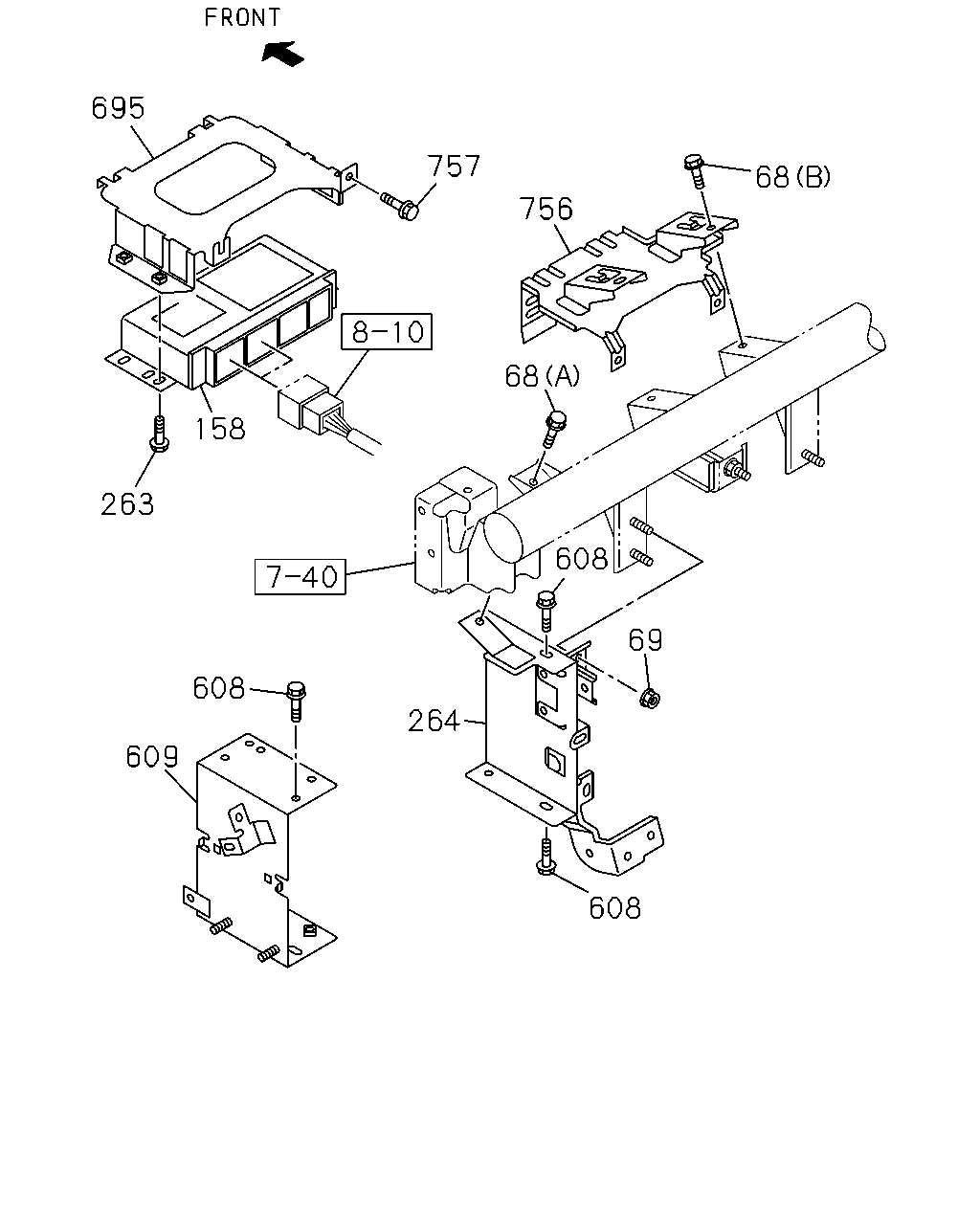

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1304-
68
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1304-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1304-
158
CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA)
8-98220-159-0
01
1
1304-
263
BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE
0-28650-616-0
04
1
1304-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1304-
608
BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE
0-28650-616-0
05
1
1304-
608
BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE
0-28650-616-0
05
1
1304-
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA)
8-98095-337-0
01
1
1304-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA)
8-98095-337-0
01
1
1304-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA)
8-98169-737-1
01
1
1309-
609
BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA)
8-98169-737-1
01
1
1309-
695
BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA)
8-98045-016-1
01
1
1304-
756
BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA)
8-98056-411-3
01
1
1304-
757
BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE
0-28650-616-0
02
1
1304-
726
497
726
497

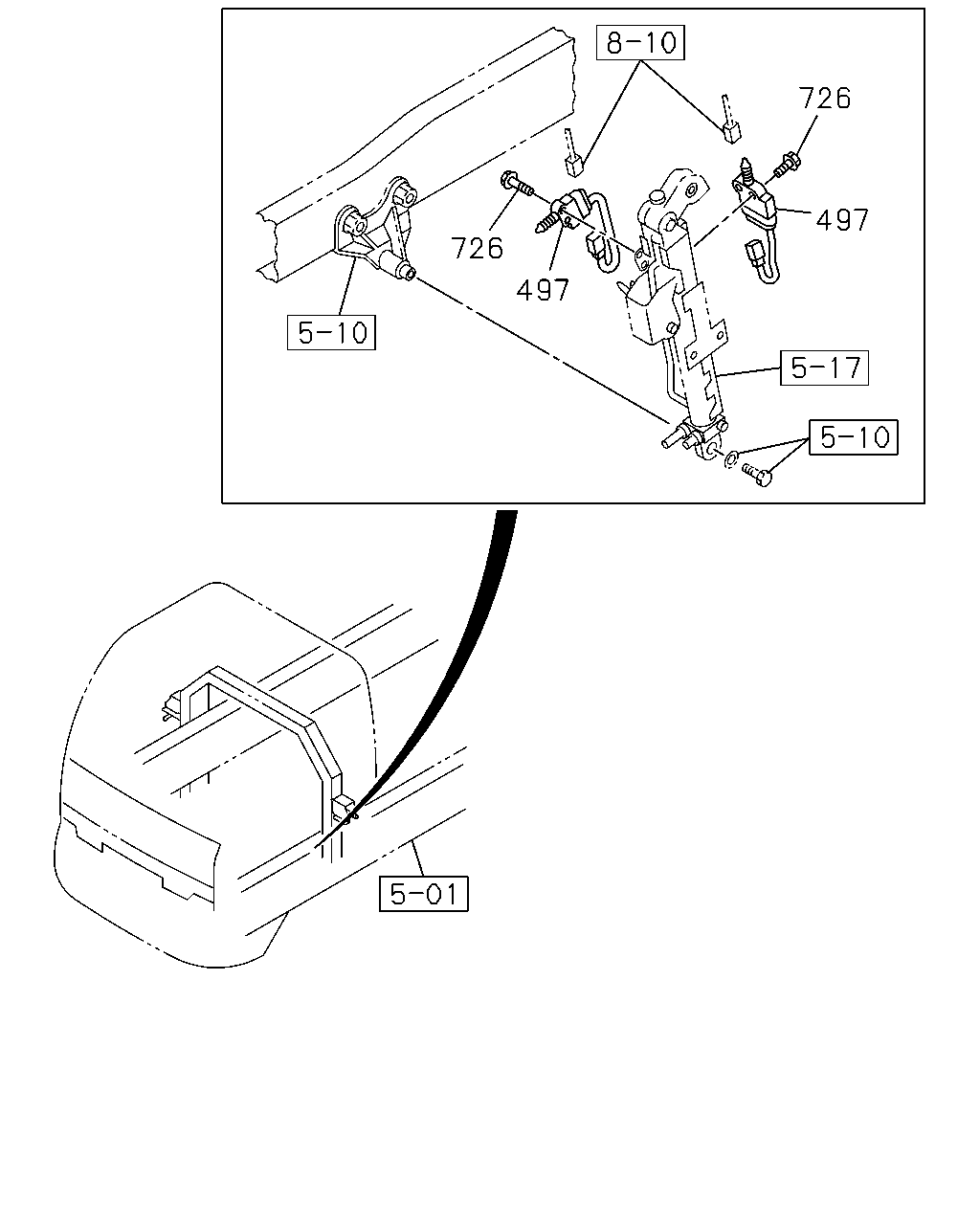

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
497
SWITCH; CAB TILT
STAMP NO
1-82380-172-1
02
1
1304-
726
BOLT; SW,CAB TILT
M6X25 FLANGE
0-28050-625-0
04
1
1304-
21
437
657
758
452
485
1

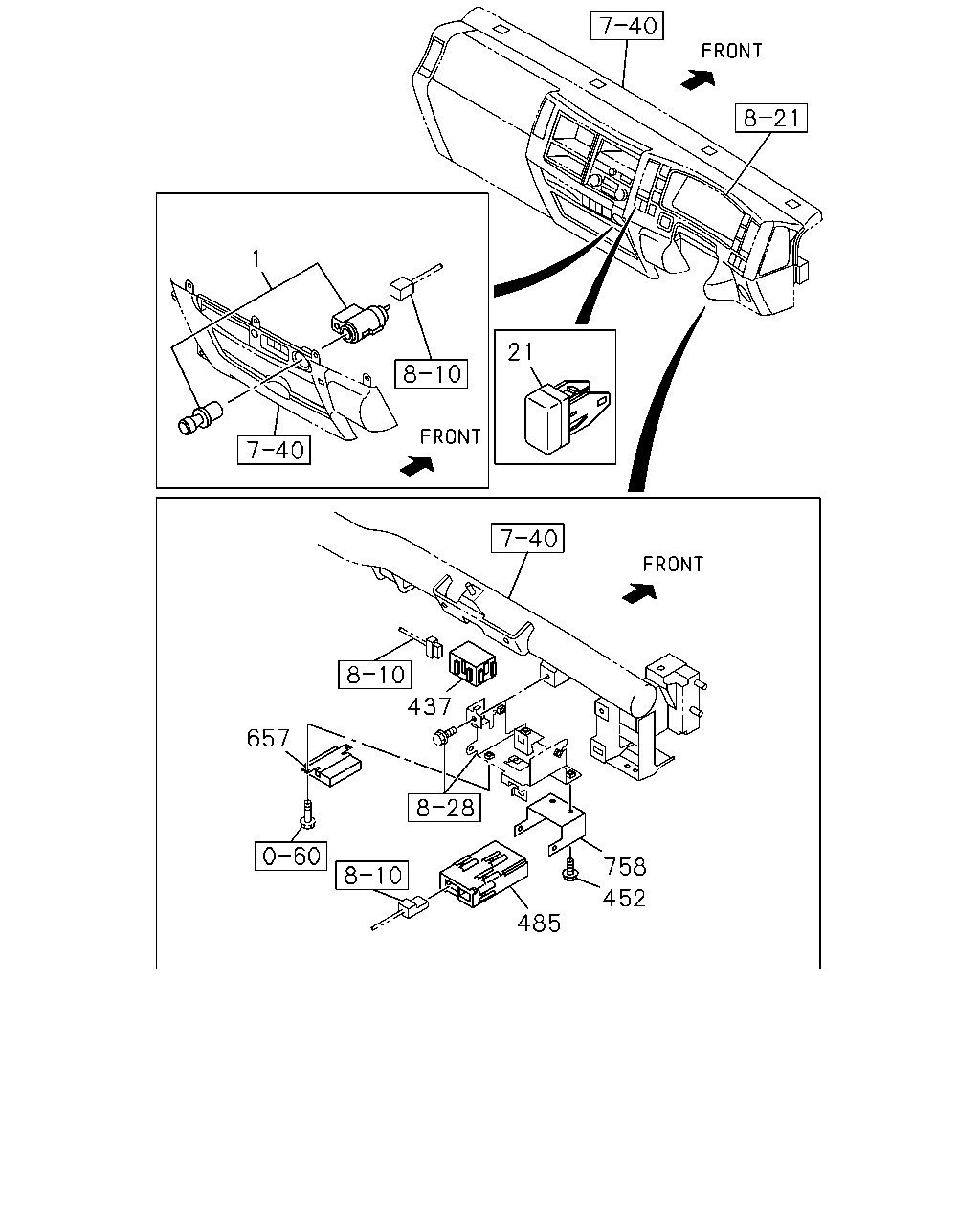

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1304-
21
COVER; HOLE
8-98025-954-1
01
1
1304-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1304-
452
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
02
1
1304-
485
CONTROL UNIT; SPEED SENSOR
1-80190-063-0
01
1
1304-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1304-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-0
01
1
1402-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1304-
221
491
373
380

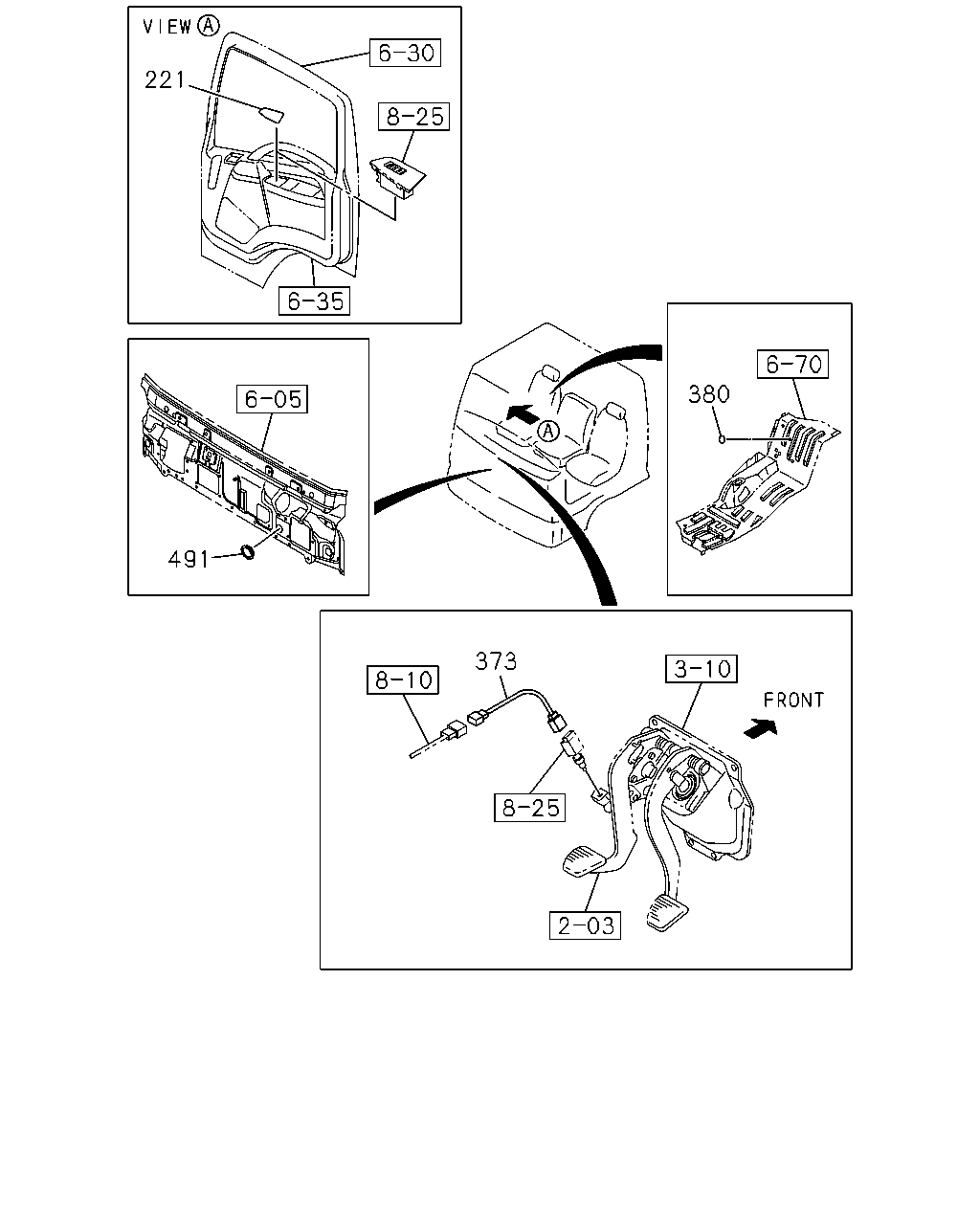

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1304-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1304-
373
HARNESS; CLU SWITCH
8-98059-419-2
01
1
1304-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1304-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1304-
