Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11493 - FXZ/GXZ(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#117534) — 105 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[326A] COMPONENT AND REPAIR KIT;ALL MODEL (26 parça)
[326A] TRAILER CONT AND DOUBLE CHECK VALVE (16 parça)
[326A] FIXING;FXZ (12 parça)
[326A] FIXING;GXZ (23 parça)
[326A] COMPONENT AND REPAIR KIT;GXZ (26 parça)
[326A] JUMPER CABLE AND HANGER (1 parça)
[326A] REPAIR KIT;TRAILER CONT (1 parça)
▶

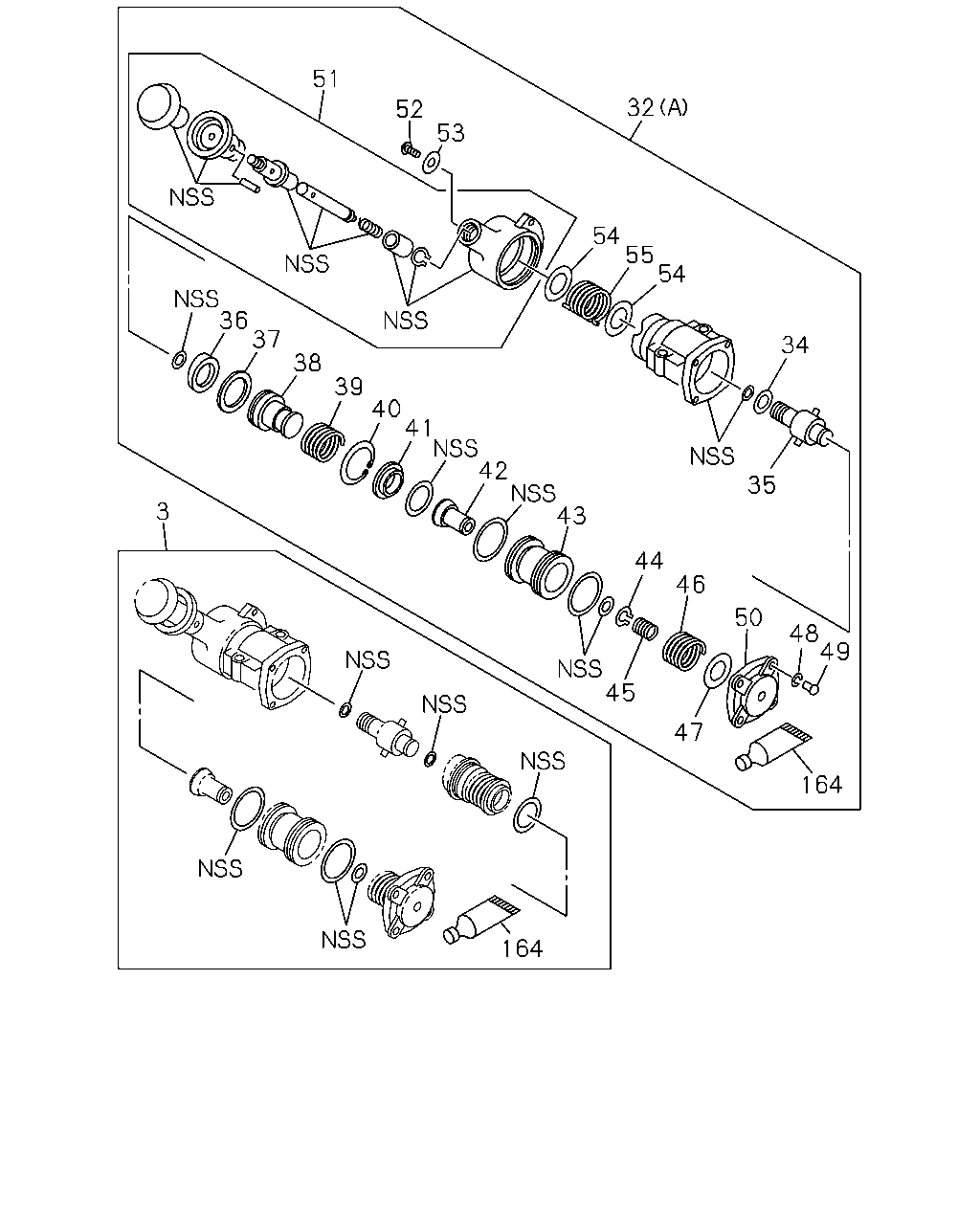

51
52
53
32
54
55
54
34
35
36
37
38
39
40
41
42
43
44
46
50
48
49
164
47
45
3
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
1302-
●
●
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
1302-
●
●
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
1302-
●
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1302-
●
●
35
HOLDER; CAM
1-48469-054-0
01
1
1302-
●
●
36
RING; CAM
1-48469-056-0
01
1
1302-
●
●
37
GUIDE; CAM RING
1-48469-058-0
01
1
1302-
●
●
38
SEAT; EXH VLV
1-48469-057-0
01
1
1302-
●
●
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1302-
●
●
40
RING; SNAP
1-48469-067-0
01
1
1302-
●
●
41
SEAT; FEED VLV
1-48469-066-0
01
1
1302-
●
●
42
VALVE; FEED
1-48469-065-0
01
1
1302-
●
●
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1302-
●
●
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1302-
●
●
45
SPRING; FEED VLV
1-48469-070-0
01
1
1302-
●
●
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1302-
●
●
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1302-
●
●
48
WASHER; COVER
1-48469-091-0
04
1
1302-
●
●
49
SCREW; COVER
1-48469-092-0
04
1
1302-
●
●
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
1302-
●
●
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1302-
●
●
52
SCREW; HANDLE
1-48469-062-0
01
1
1302-
●
●
53
WASHER; HANDLE
1-48469-061-0
01
1
1302-
●
●
54
SEAT; SPRING
1-48469-082-0
02
1
1302-
●
●
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1302-
●
●
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1302-
●
●

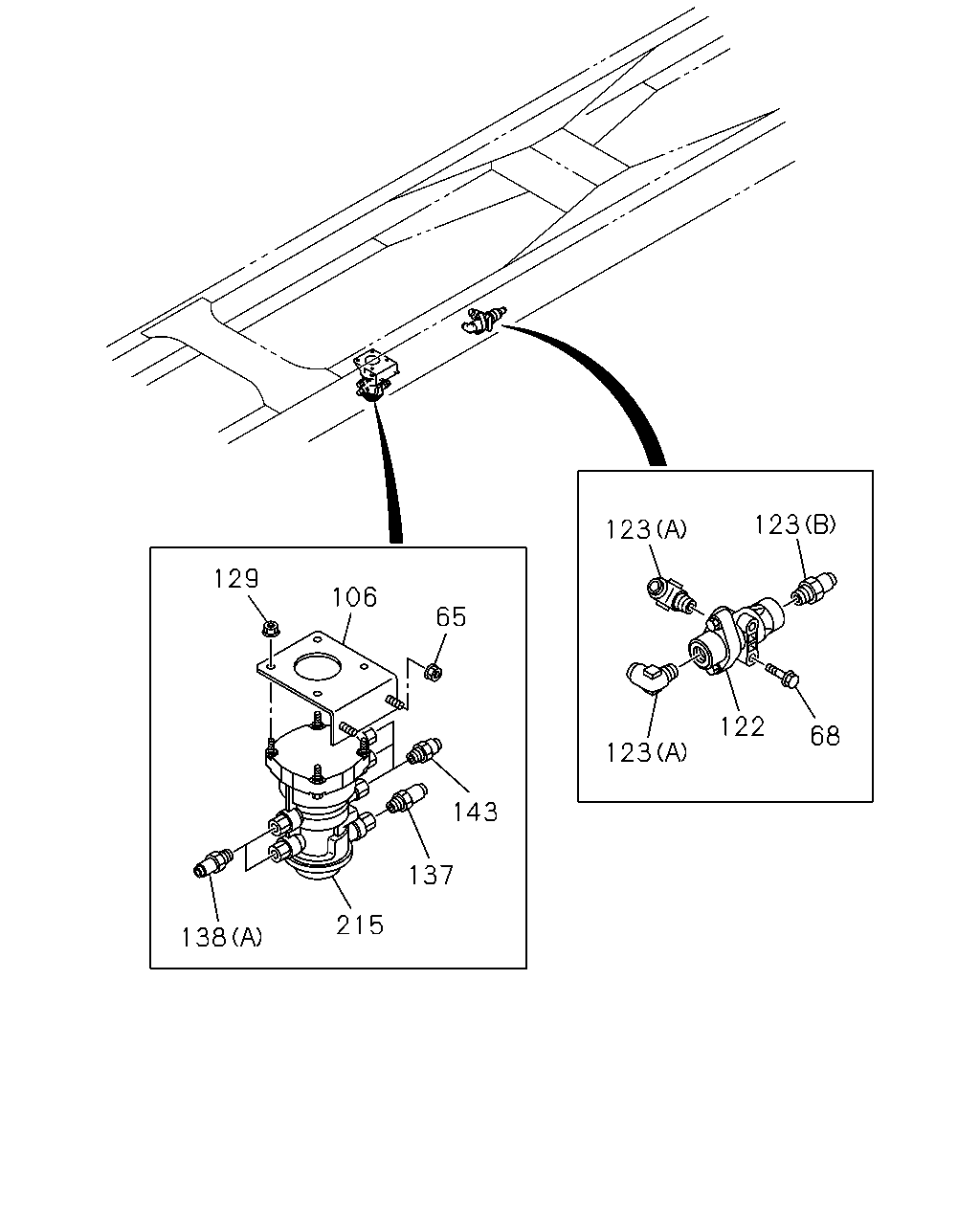

123
123
68
122
123
143
65
106
129
137
215
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
NUT; RELAY VLV
M8 FLANGE THA
0-91180-108-0
02
1
1302-
●
68
BOLT; DOUBLE CHECK VLV
M8X16 FLANGE THA
0-28050-816-0
02
1
1302-
●
106
BRACKET; VLV
THA
8-97618-638-0
01
1
1302-
●
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
1302-
●
123
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1302-
●
123
CONNECTOR; DBL CHECK VLV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1302-
●
129
NUT; VLV
M8 FLANGE THA
0-91180-108-0
06
1
1302-
●
137
CONNECTOR; SUPPLY
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1302-
●
138
CONNECTOR; DELIVERY
(D)
1-09650-240-1
01
1
1302-
●
138
CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1302-
●
138
CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1302-
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
02
1
1302-
●
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1302-
●
138
CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1302-
●
143
CONNECTOR; CONT
DIN8 & R3/8 STRAIGHT
1-09660-964-0
03
1
1302-
●
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
1302-
●

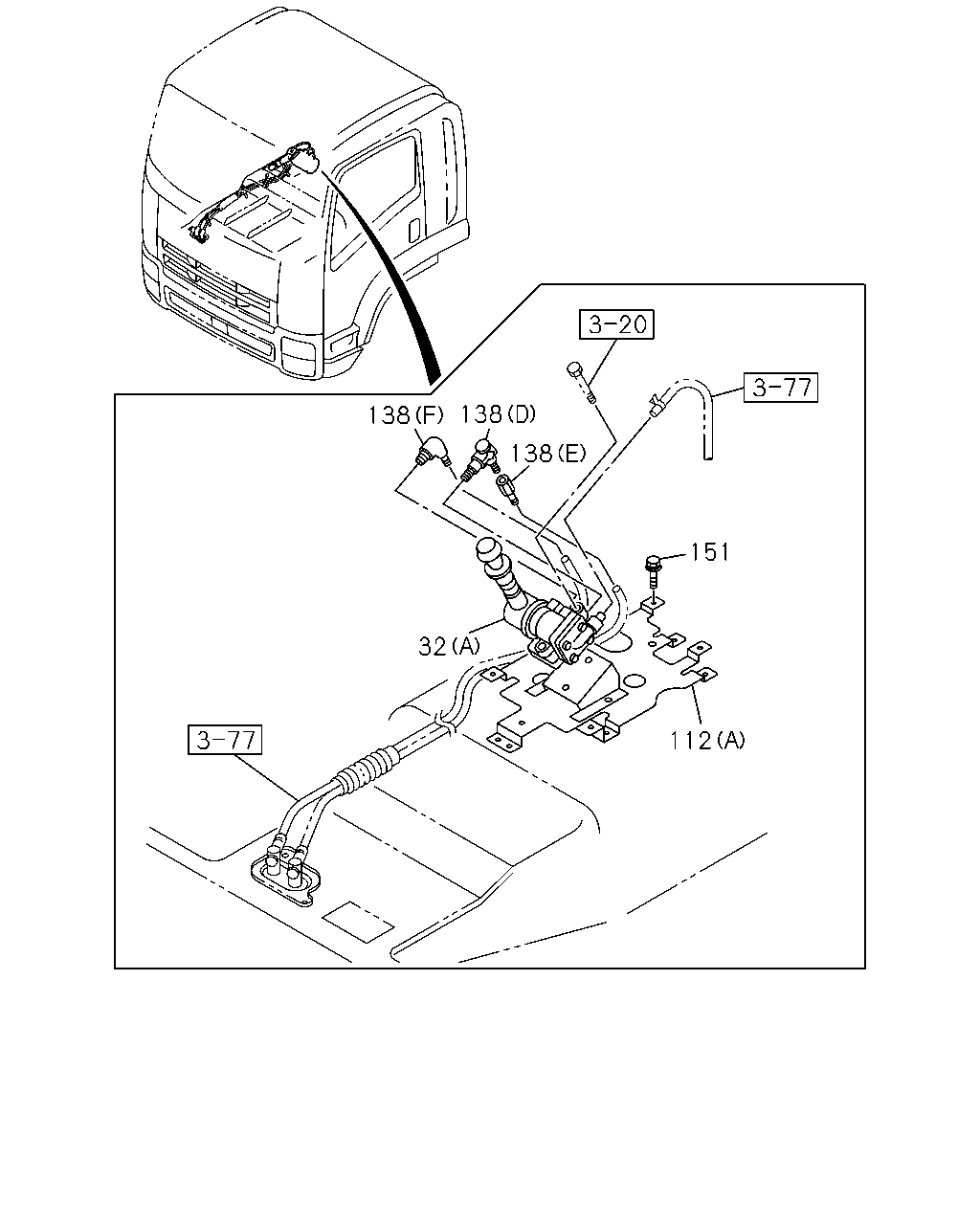

138
138
138
151
32
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
1302-
●
●
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
1302-
●
112
BRACKET; CONT VLV
(A)
1-73908-054-7
01
1
1302-
●
112
BRACKET; CONT VLV
(C) THA
1-73908-268-0
01
1
1302-
●
112
BRACKET; CONT VLV
(B)
8-98049-855-2
01
1
1302-
●
138
CONNECTOR; DELIVERY
(D)
1-09650-240-1
01
1
1302-
●
138
CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1302-
●
138
CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1302-
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
02
1
1302-
●
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1302-
●
138
CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1302-
●
151
BOLT; VLV BRKT
M6X16 THA
0-52000-616-0
04
1
1302-
●
●

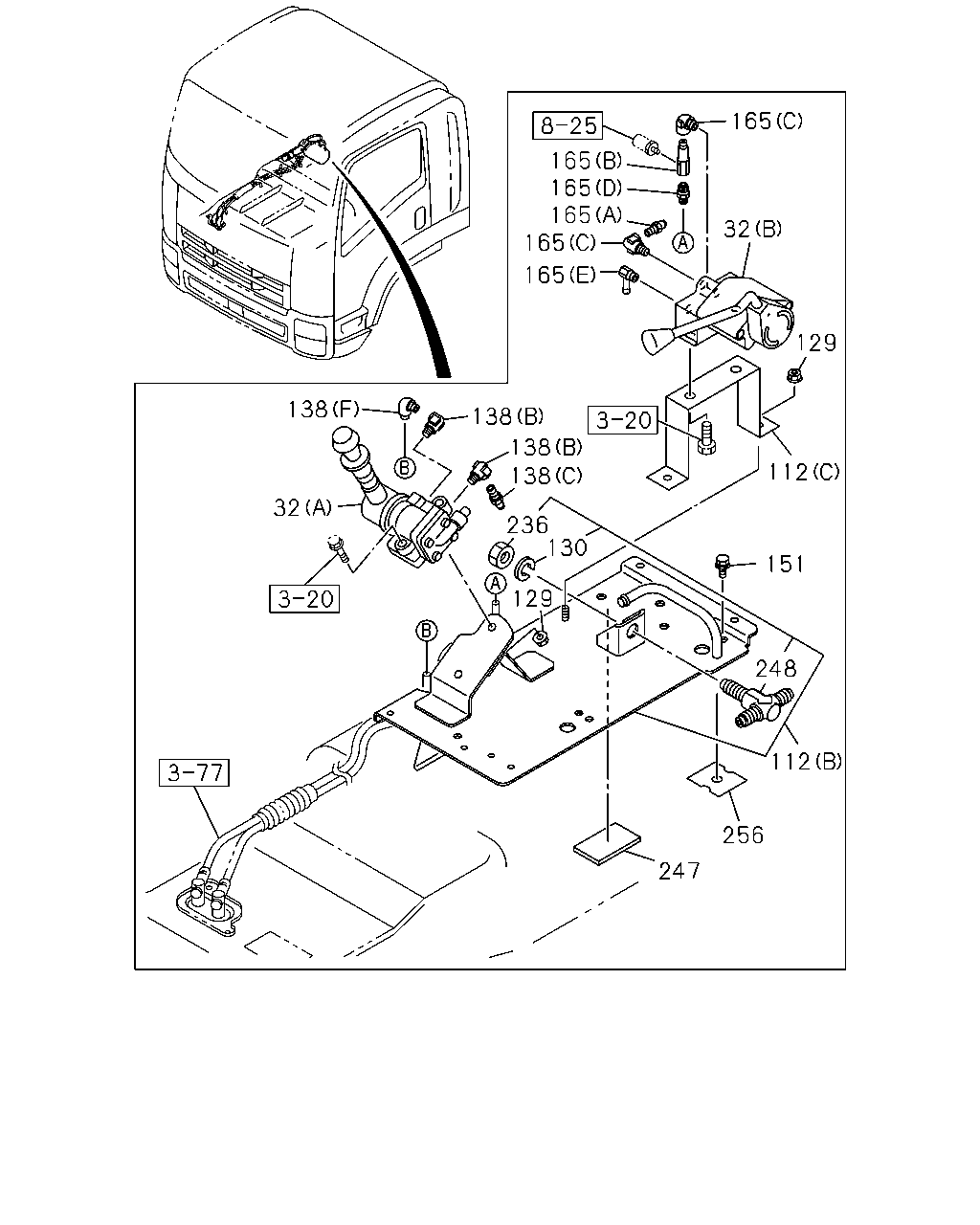

165
165
32
165
165
165
165
138
138
32
138
236
130
138
129
112
151
248
112
256
247
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
1302-
●
●
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
1302-
●
112
BRACKET; CONT VLV
(A)
1-73908-054-7
01
1
1302-
●
112
BRACKET; CONT VLV
(C) THA
1-73908-268-0
01
1
1302-
●
112
BRACKET; CONT VLV
(B)
8-98049-855-2
01
1
1302-
●
129
NUT; VLV
M8 FLANGE THA
0-91180-108-0
06
1
1302-
●
130
WASHER; LK,VLV
ID=16.2
0-91510-816-0
01
1
1302-
●
138
CONNECTOR; DELIVERY
(D)
1-09650-240-1
01
1
1302-
●
138
CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1302-
●
138
CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1302-
●
●
138
CONNECTOR; DELIVERY
(B) PT1/4 2WAY
1-09660-693-0
02
1
1302-
●
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1302-
●
138
CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1302-
●
151
BOLT; VLV BRKT
M6X16 THA
0-52000-616-0
04
1
1302-
●
●
165
CONNECTOR; HAND BRK VLV
(A)
1-09650-352-1
01
1
1302-
●
165
CONNECTOR; HAND BRK VLV
(B)
1-09660-335-1
01
1
1302-
●
165
CONNECTOR; HAND BRK VLV
(C) PT1/4 2WAY
1-09660-693-0
02
1
1302-
●
165
CONNECTOR; HAND BRK VLV
(D) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1302-
●
165
CONNECTOR; HAND BRK VLV
(E) THA
8-97062-077-1
01
1
1302-
●
236
NUT
M16 THA
0-91111-516-0
01
1
1302-
●
247
SEAL; HOSE
100X40
1-72498-022-1
01
1
1302-
●
248
UNION
M16 3WAY
0-92148-610-0
01
1
1302-
●
256
SEAL
1-79996-382-0
01
1
1302-
●

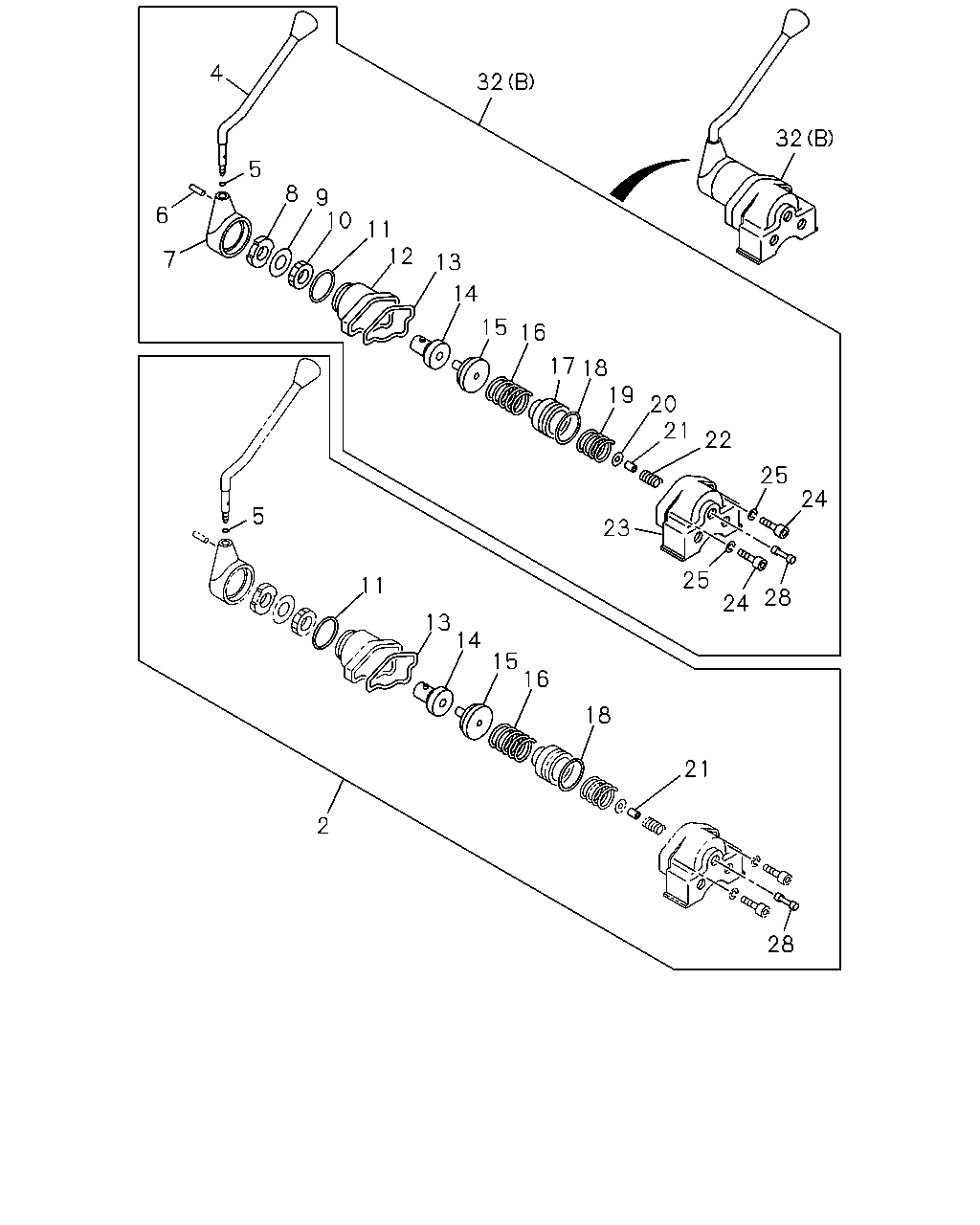

32
32
4
5
10
8
9
12
15
19
13
16
20
17
18
22
21
24
25
11
6
5
11
13
14
15
16
18
21
2
28
23
25
24
28
7
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; HAND BRK VLV
1-85576-180-0
01
1
1302-
●
4
HANDLE ASM; BRK VLV
1-48119-144-0
01
1
1302-
●
5
GASKET; HANDLE
1-48119-128-0
01
1
1302-
●
6
PIN; SPR
1-48119-143-0
01
1
1302-
●
7
HEAD; BRK VLV
1-48119-131-1
01
1
1302-
●
8
STOPPER; BRK VLV
1-48119-136-0
01
1
1302-
●
9
WASHER; LK,ADJ
1-48119-123-0
01
1
1302-
●
10
RING; ADJ
1-48119-122-0
01
1
1302-
●
11
GASKET; HD TO COVER
1-48119-130-0
01
1
1302-
●
12
COVER; BRK VLV
1-48129-097-1
01
1
1302-
●
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
1302-
●
14
FOLLOWER; CAM
1-48129-109-0
01
1
1302-
●
15
CAM; FOLLOWER
1-48129-110-0
01
1
1302-
●
16
SPRING; GRUDUATING
1-48129-101-0
01
1
1302-
●
17
PISTON; SPR
1-48129-095-0
01
1
1302-
●
18
GASKET; BODY
1-48129-096-0
01
1
1302-
●
19
SPRING; PISTON
1-48129-094-0
01
1
1302-
●
20
GUIDE; VLV
1-48129-090-0
01
1
1302-
●
21
VALVE; IN & EXH
1-48121-017-0
01
1
1302-
●
22
SPRING; VLV
1-48123-024-0
01
1
1302-
●
23
BODY; BRK VLV
1-48111-060-1
01
1
1302-
●
24
BOLT; EXH VLV
1-48129-092-0
02
1
1302-
●
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
1302-
●
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
1302-
●
32
VALVE; BRK,HAND CONT
(A)
1-48460-306-0
01
1
1302-
●
●
32
VALVE; BRK,HAND CONT
(B)
1-48100-674-0
01
1
1302-
●
203
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
203
CABLE; JUMPER
REAR BODY MAKER<XN4> L=5500
8-98107-178-0
01
1
1302-
●
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

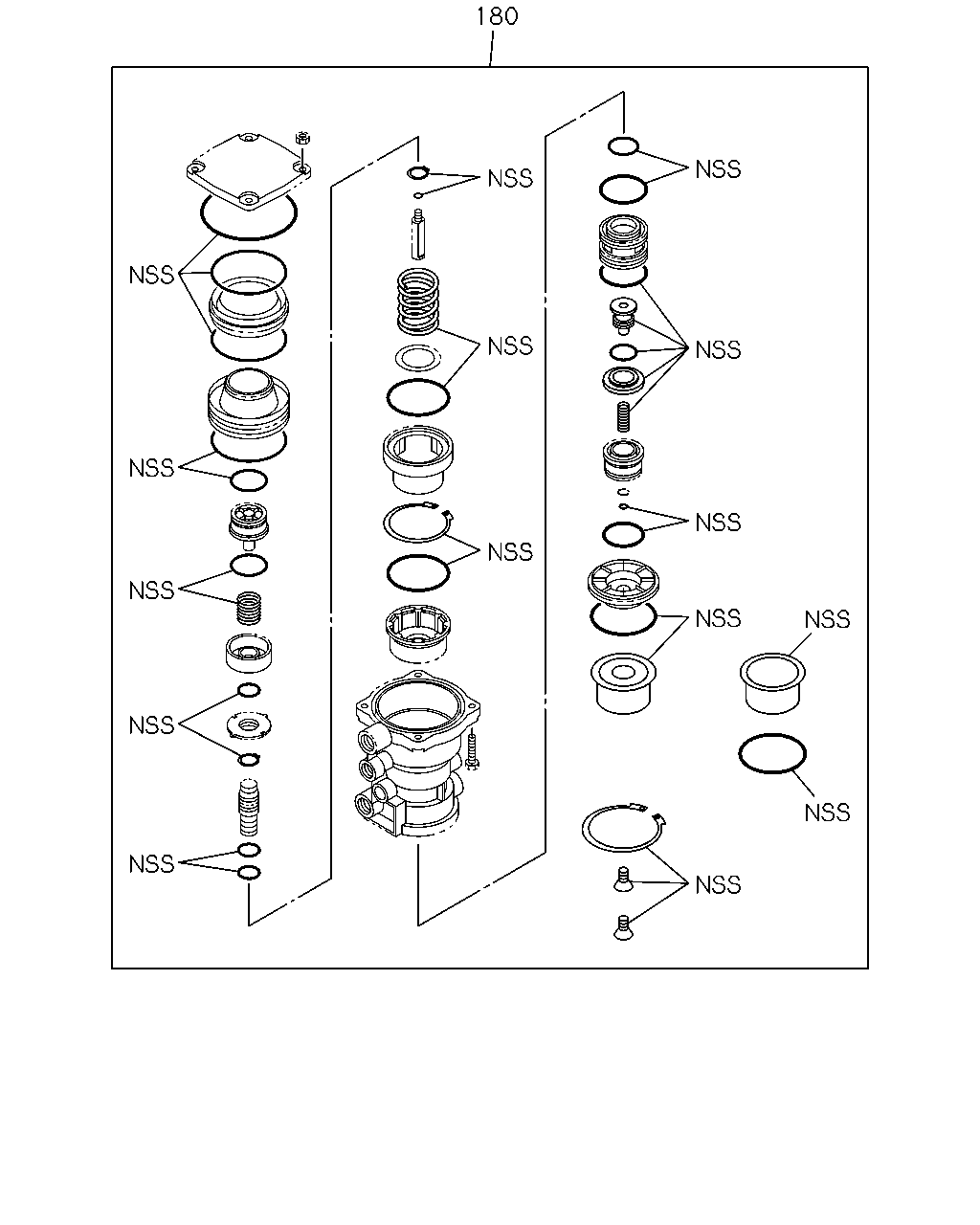

180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
1302-
●
