◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11493 - FXZ/GXZ(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#117517) — 175 parça

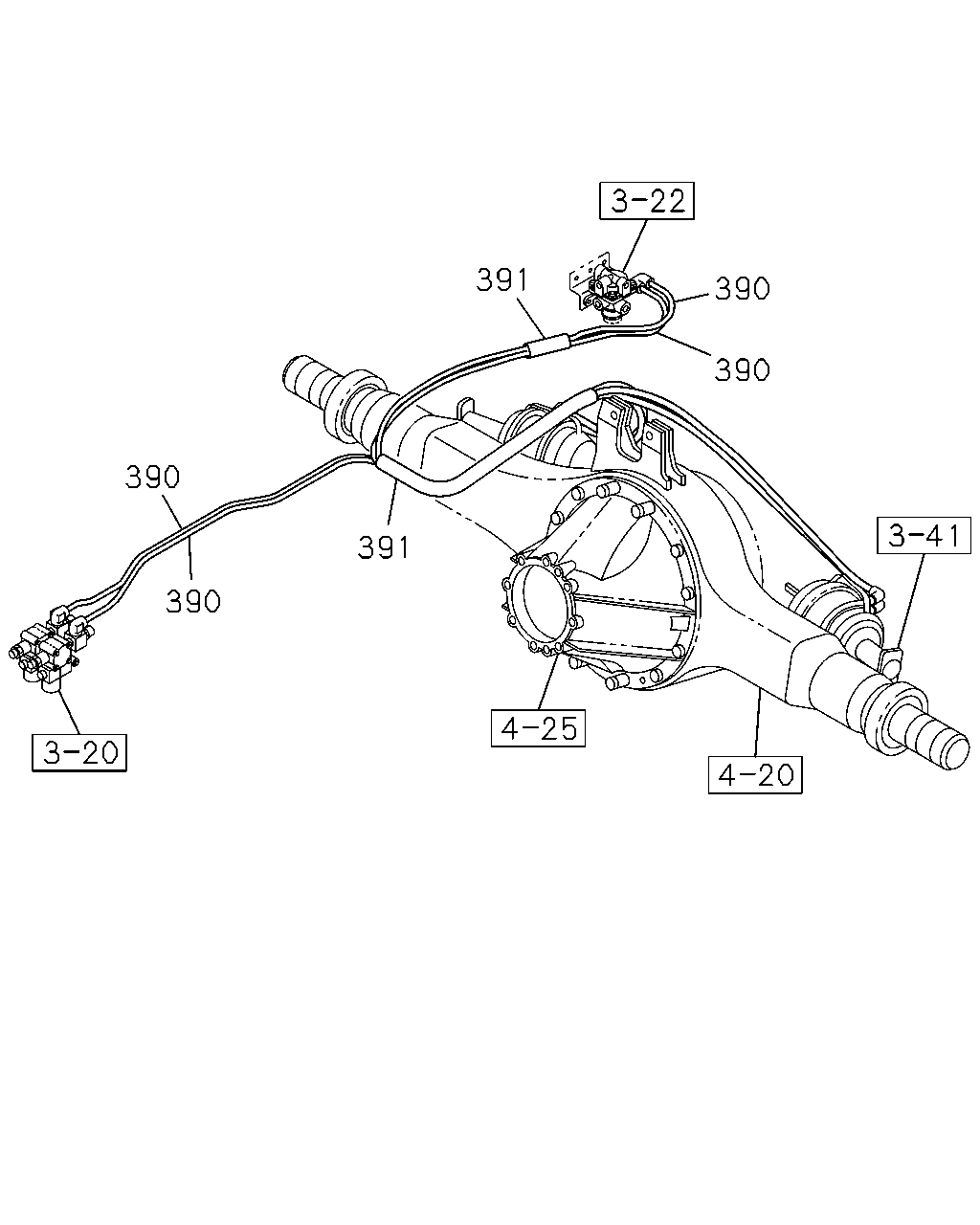

çizim 343247
390 391 390 390 391 390
BalonParca AdiParca NoAdetTipApplied Date A B
390 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 04 1 1302- ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 04 1 1302- ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 01 1 1302- ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM<BFA> SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 01 1 1302- ●

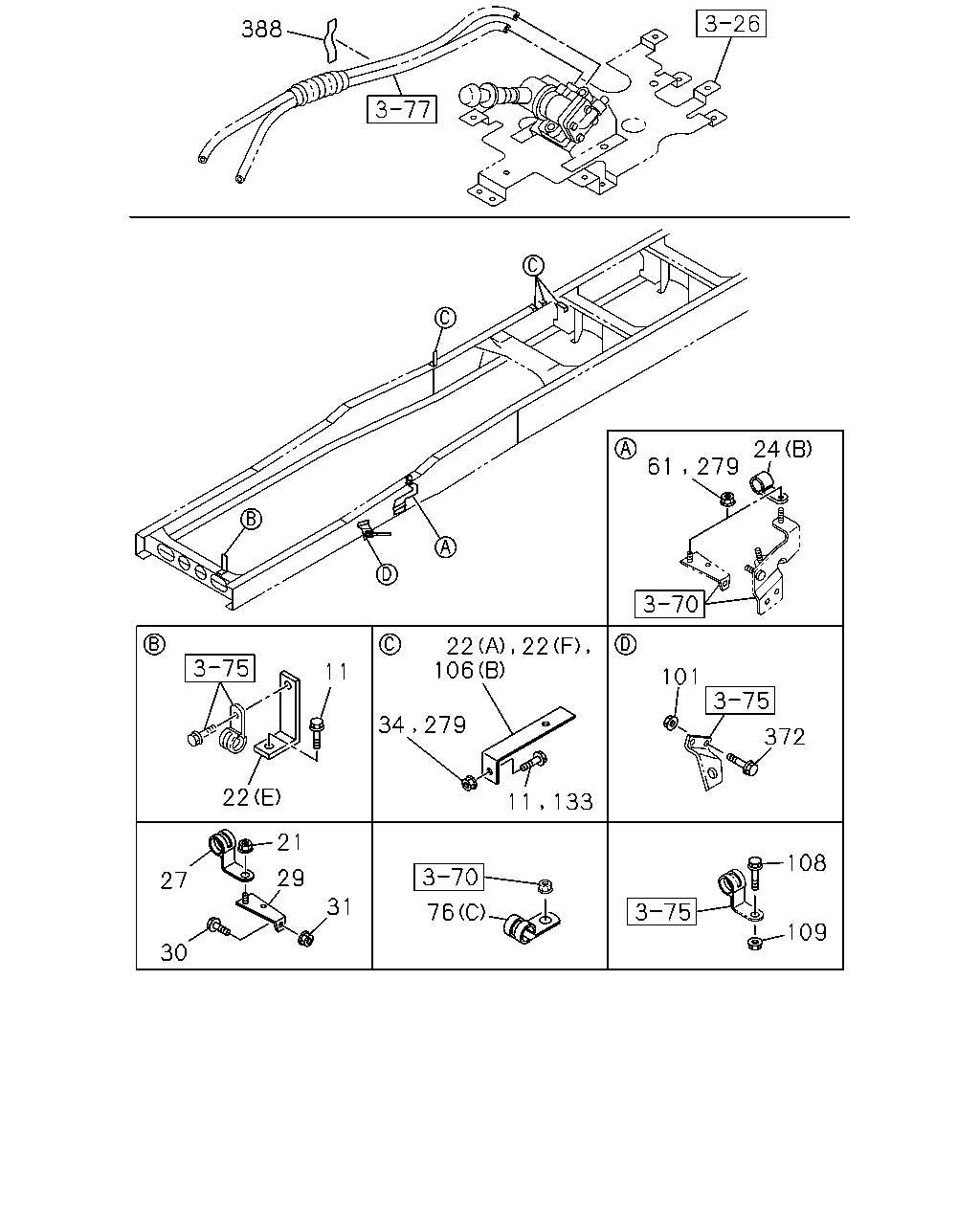

çizim 343334
388 24 61 279 11 22 22 22 106 34 279 11 133 101 372 27 30 31 29 21 76 108 109
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
WHEEL BASE 5300MM<53W> M8X30 FLANGE THA 		0-28650-830-0 02 1 1302- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 05 1 1302- ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1302- ● ●
21 NUT; CLIP
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 01 1 1302- ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1302- ● ●
22 BRACKET; CLIP
(E) THA 		1-34656-009-0 01 1 1302- ●
22 BRACKET; CLIP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (D) 		1-47471-274-0 01 1 1302- ●
22 BRACKET; CLIP
(D) 		1-47471-274-0 01 1 1302- ●
22 BRACKET; CLIP
WHEEL BASE 5300MM<53W> (B) L=150 		1-47471-217-0 02 1 1302- ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1302- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1302- ● ●
22 BRACKET; CLIP
(F) L=95 		1-82699-085-0 01 1 1302- ● ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1302- ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 1302- ●
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 1302- ●
24 CLIP; PIPE
ENGINE REAR PTO<SV1> (B) ID=25 L=50 		1-09701-019-0 02 1 1302- ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO<SV1> (B) ID=25 L=50 		1-09701-019-0 03 1 1302- ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1302- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1302- ● ●
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1302- ● ●
29 BRACKET; CLIP,AIR PIPE 8-97609-096-0 01 1 1302- ● ●
30 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ● ●
31 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1302- ● ●
34 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1302- ● ●
61 NUT; CLIP FIX
ENGINE REAR PTO<SV1> M8 FLANGE THA 		0-91180-108-0 02 1 1302- ●
61 NUT; CLIP FIX
EXC. ENGINE REAR PTO<SV1> M8 FLANGE THA 		0-91180-108-0 03 1 1302- ●
61 NUT; CLIP FIX
M8 FLANGE THA 		0-91180-108-0 03 1 1302- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 1302- ● ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1302- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1302- ● ●
101 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 1302- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 04 1 1302- ●
106 BRACKET; TUBE CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 		1-47477-645-2 04 1 1302- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4700MM<47W> (C) 		1-47477-571-3 01 1 1302- ●
106 BRACKET; TUBE CLIP
(C) 		1-47477-571-3 01 1 1302- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (E) L=60 H=30 		1-47477-716-1 01 1 1302- ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1302- ● ●
106 BRACKET; TUBE CLIP
(F) L=55 B=25 		1-47478-439-0 01 1 1302- ● ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-554-0 01 1 1302- ● ●
106 BRACKET; TUBE CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 		1-47477-645-2 06 1 1302- ●
108 BOLT; TUBE CLIP
M8X25 FLANGE THA 		0-28650-825-0 02 1 1302- ● ●
108 BOLT; TUBE CLIP
M8X35 FLANGE THA 		0-28650-835-0 03 1 1302- ● ●
109 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1302- ● ●
133 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 01 1 1302- ● ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1302- ● ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1302- ●
133 BOLT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 03 1 1302- ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1302- ● ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 04 1 1302- ● ●
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 05 1 1302- ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 08 1 1302- ●
279 NUT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 08 1 1302- ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1302- ● ●
279 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 10 1 1302- ●
372 BOLT; CLIP BRKT
WHEEL BASE 5300MM<53W> M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1302- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1302- ● ●

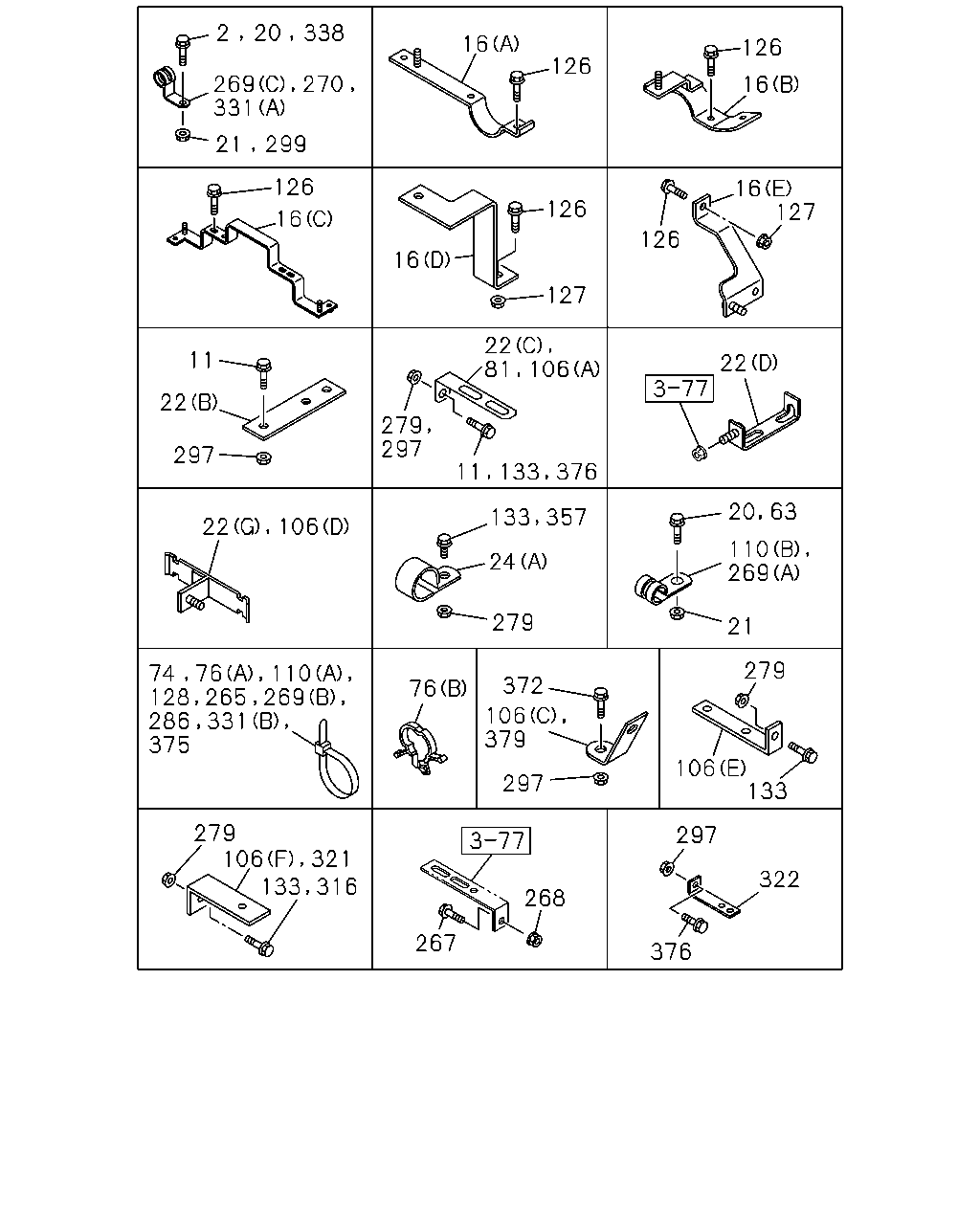

çizim 345726
2 20 338 269 270 331 16 21 299 126 126 16 126 16 16 126 127 126 16 127 11 22 297 22 279 81 106 297 133 376 22 106 133 357 24 279 11 22 20 63 110 21 269 74 110 76 269 265 128 331 286 375 76 372 106 379 297 279 106 133 279 106 321 133 316 267 268 297 322 376
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 03 1 1302- ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 5300MM<53W> M8X30 FLANGE THA 		0-28650-830-0 02 1 1302- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 05 1 1302- ●
16 BRACKET; PIPE CLIP
(A) THA 		1-47479-856-0 02 1 1302- ● ●
16 BRACKET; PIPE CLIP
(B) THA 		1-47479-857-0 02 1 1302- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1302- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1302- ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1302- ● ●
20 BOLT; CLIP
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
20 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
20 BOLT; CLIP
MJT7U M/T<Y4X> M8X25 FLANGE THA 		0-28650-825-0 02 1 1302- ●
20 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1302- ● ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1302- ● ●
21 NUT; CLIP
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 01 1 1302- ●
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1302- ● ●
22 BRACKET; CLIP
(E) THA 		1-34656-009-0 01 1 1302- ●
22 BRACKET; CLIP
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (D) 		1-47471-274-0 01 1 1302- ●
22 BRACKET; CLIP
(D) 		1-47471-274-0 01 1 1302- ●
22 BRACKET; CLIP
WHEEL BASE 5300MM<53W> (B) L=150 		1-47471-217-0 02 1 1302- ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1302- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1302- ● ●
22 BRACKET; CLIP
(F) L=95 		1-82699-085-0 01 1 1302- ● ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1302- ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 1302- ●
22 BRACKET; CLIP
(G) 		1-47479-554-0 01 1 1302- ●
24 CLIP; PIPE
ENGINE REAR PTO<SV1> (B) ID=25 L=50 		1-09701-019-0 02 1 1302- ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO<SV1> (B) ID=25 L=50 		1-09701-019-0 03 1 1302- ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1302- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1302- ● ●
63 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1302- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> L=350 		1-09707-183-0 06 1 1302- ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1302- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 1302- ● ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1302- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1302- ● ●
81 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 1302- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 04 1 1302- ●
106 BRACKET; TUBE CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 		1-47477-645-2 04 1 1302- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4700MM<47W> (C) 		1-47477-571-3 01 1 1302- ●
106 BRACKET; TUBE CLIP
(C) 		1-47477-571-3 01 1 1302- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (E) L=60 H=30 		1-47477-716-1 01 1 1302- ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1302- ● ●
106 BRACKET; TUBE CLIP
(F) L=55 B=25 		1-47478-439-0 01 1 1302- ● ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-554-0 01 1 1302- ● ●
106 BRACKET; TUBE CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) L=100 H=30 		1-47477-645-2 06 1 1302- ●
110 CLIP; BAND,NYLON TUBE
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (B) ID=19 L=20 		0-95235-836-0 02 1 1302- ●
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1302- ●
110 CLIP; BAND,NYLON TUBE
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (A) L=350 		1-09707-183-0 09 1 1302- ●
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 		1-09707-183-0 09 1 1302- ●
110 CLIP; BAND,NYLON TUBE
MJT7U M/T<Y4X> (B) ID=19 L=28 		0-95235-856-0 02 1 1302- ●
110 CLIP; BAND,NYLON TUBE
MJT7U M/T<Y4X> (A) L=350 		1-09707-183-0 18 1 1302- ●
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 		1-09707-183-0 10 1 1302- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE THA 		0-28050-812-0 04 1 1302- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1302- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE THA 		0-28650-835-0 02 1 1302- ● ●
127 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1302- ● ●
128 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> L=350 		1-09707-183-0 04 1 1302- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 1302- ●
128 CLIP; NYLON TUBE
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> L=350 		1-09707-183-0 07 1 1302- ●
133 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 01 1 1302- ● ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1302- ● ●
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1302- ●
133 BOLT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 03 1 1302- ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 01 1 1302- ● ●
133 BOLT; BRKT
M8X35 FLANGE THA 		0-28650-835-0 04 1 1302- ● ●
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 05 1 1302- ●
265 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1302- ●
267 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
268 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1302- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=23 L=27 		1-09700-946-0 01 1 1302- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=21 L=30 H=40 		1-09700-991-1 02 1 1302- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 1302- ●
269 CLIP; BAND,NYLON TUBE
MJT7U M/T<Y4X> (B) L=350 		1-09707-183-0 01 1 1302- ●
269 CLIP; BAND,NYLON TUBE
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> (B) L=350 		1-09707-183-0 12 1 1302- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 05 1 1302- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1302- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1302- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 1302- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 1302- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 1302- ●
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (B) L=350 		1-09707-183-0 21 1 1302- ●
269 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=350 		1-09707-183-0 19 1 1302- ●
270 CLIP; NYLON TUBE
ID=16 H=25 L=25 		1-09701-162-0 03 1 1302- ● ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 08 1 1302- ●
279 NUT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 08 1 1302- ●
279 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1302- ● ●
279 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 10 1 1302- ●
286 CLIP; NYLON TUBE
WHEEL BASE 5300MM<53W> L=350 		1-09707-183-0 02 1 1302- ●
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1302- ●
297 NUT; BRKT
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 01 1 1302- ●
297 NUT; BRKT
WHEEL BASE 5300MM<53W> M8 FLANGE THA 		0-91180-108-0 01 1 1302- ●
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1302- ●
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1302- ● ●
299 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1302- ● ●
316 BOLT; CLIP
MJT7U M/T<Y4X> M8X20 FLANGE THA 		0-28650-820-0 02 1 1302- ●
321 BRACKET; CLIP
MJT7U M/T<Y4X> L=105 B=25 		1-47476-161-0 02 1 1302- ●
322 BRACKET; CLIP
MJT7U M/T<Y4X> L=95 		1-82698-557-0 01 1 1302- ●
331 CLIP; NYLON TUBE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 1302- ● ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1302- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1302- ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE THA 		0-28050-810-0 02 1 1302- ●
357 BOLT; CLIP FIX
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X10 FLANGE THA 		0-28050-810-0 02 1 1302- ●
357 BOLT; CLIP FIX
ANTILOCK BRAKE SYSTEM<BFA> M8X10 FLANGE THA 		0-28050-810-0 01 1 1302- ●
372 BOLT; CLIP BRKT
WHEEL BASE 5300MM<53W> M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1302- ● ●
375 CLIP; AIR PIPE
MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350 		1-09707-183-0 01 1 1302- ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1302- ●
376 BOLT; BRKT
MJT7U M/T<Y4X> M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
376 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1302- ●
379 BRACKET; NYLON TUBE
WHEEL BASE 5300MM<53W> 		1-47477-571-3 01 1 1302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
