Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#117512) — 54 parça

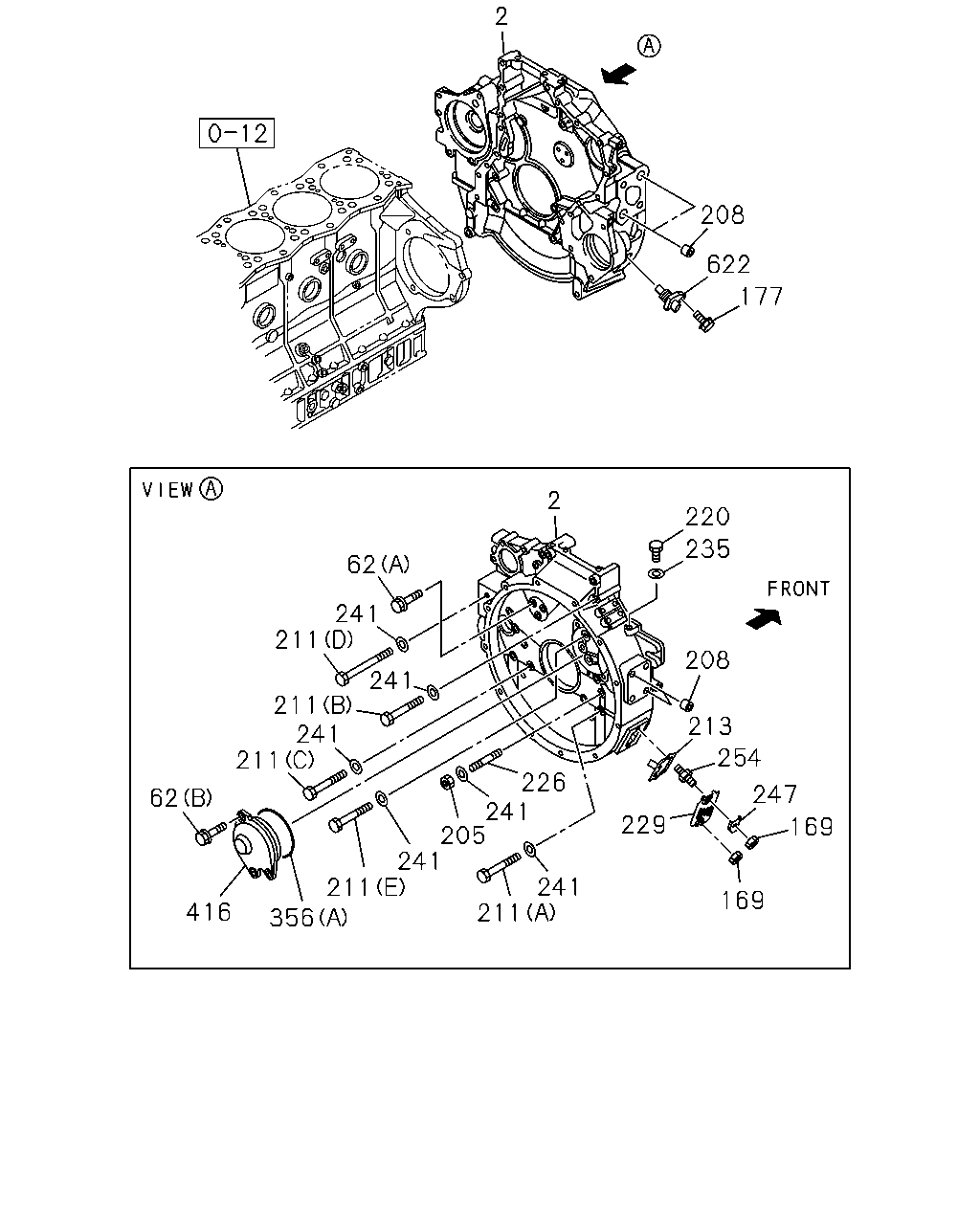

2 208 622 177 2 220 235 208 213 254 247 169 169 229 226 241 241 211 241 205 62 241 211 211 241 241 211 62 416 211 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL	8-98079-891-1	01	1	1204-1305
2	HOUSING; FLYWHEEL	8-98221-370-0	01	1	1306-
62	BOLT; COVER (B) M8X16 FLANGE THA	0-28050-816-0	03	1	1204-
62	BOLT; COVER (A) M8X14 FLANGE THA	0-28080-814-0	03	1	1204-
169	NUT; COVER M8 FLANGE THA	0-91180-108-0	02	1	1204-
177	BOLT; SENSOR M6X16 FLANGE THA	0-28650-616-0	01	1	1204-
205	NUT; HSG M12 THA	0-91110-512-0	01	1	1204-
208	DOWEL; ENG FOOT OD=26 L=12	1-11229-016-0	04	1	1204-
211	BOLT; HSG (A) M12X60	0-16856-260-0	09	1	1204-
211	BOLT; HSG (B) M12X90	0-16856-290-0	01	1	1204-
211	BOLT; HSG (E) M12X25	0-23801-225-0	02	1	1204-
211	BOLT; HSG (D) M12X160	8-97388-159-0	01	1	1204-
211	BOLT; HSG (C) M12X75	9-01666-275-0	05	1	1204-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	1204-
220	PLUG; GEAR CHECK HOLE M16X12	0-92002-416-0	01	1	1204-
226	STUD; HSG M12X60 L=78	0-44011-260-0	01	1	1204-
229	COVER; TIMING CHECK HOLE	1-11349-131-0	01	1	1204-
235	GASKET; PLUG GEAR CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24 THA	9-09571-416-0	01	1	1204-
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	1204-
247	WASHER; LK,POINTER,FLYWHEEL HSG	1-11349-127-0	01	1	1204-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	1204-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-422-0	01	1	1204-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=139.6	1-09623-464-0	01	1	1204-1405
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=137	8-98280-698-0	01	1	1406-
416	COVER; IDLE GEAR	8-97603-341-0	01	1	1204-
622	SENSOR; ENG SPD & TDC	8-94390-279-0	01	1	1204-

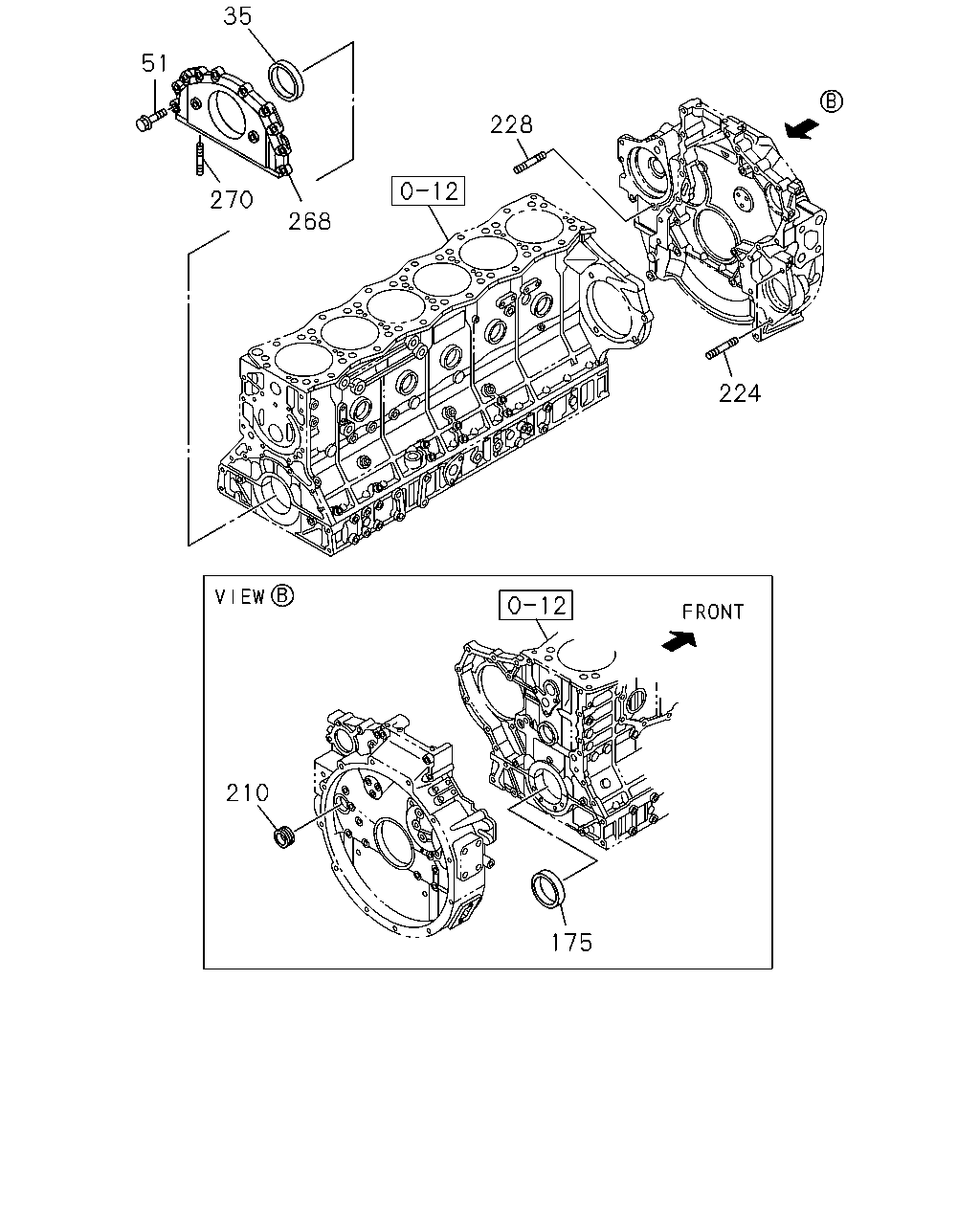

35 51 270 228 224 175 210 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	1204-
51	BOLT; GEAR CASE COVER M10X60 FLANGE	0-28151-060-0	11	1	1204-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	1204-
210	GROMMET; HSG	9-09575-799-0	01	1	1204-
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	1204-
228	STUD; AIR CMPR M12X40 L=58	9-94411-240-0	01	1	1204-
268	COVER; FRT	8-98141-609-0	01	1	1204-1211
268	COVER; FRT	8-98224-092-0	01	1	1212-
270	STUD; FRT COVER M8X35 L=46	9-09630-034-1	06	1	1204-1211
270	STUD; FRT COVER M8X35 L=49	8-98225-099-0	06	1	1212-

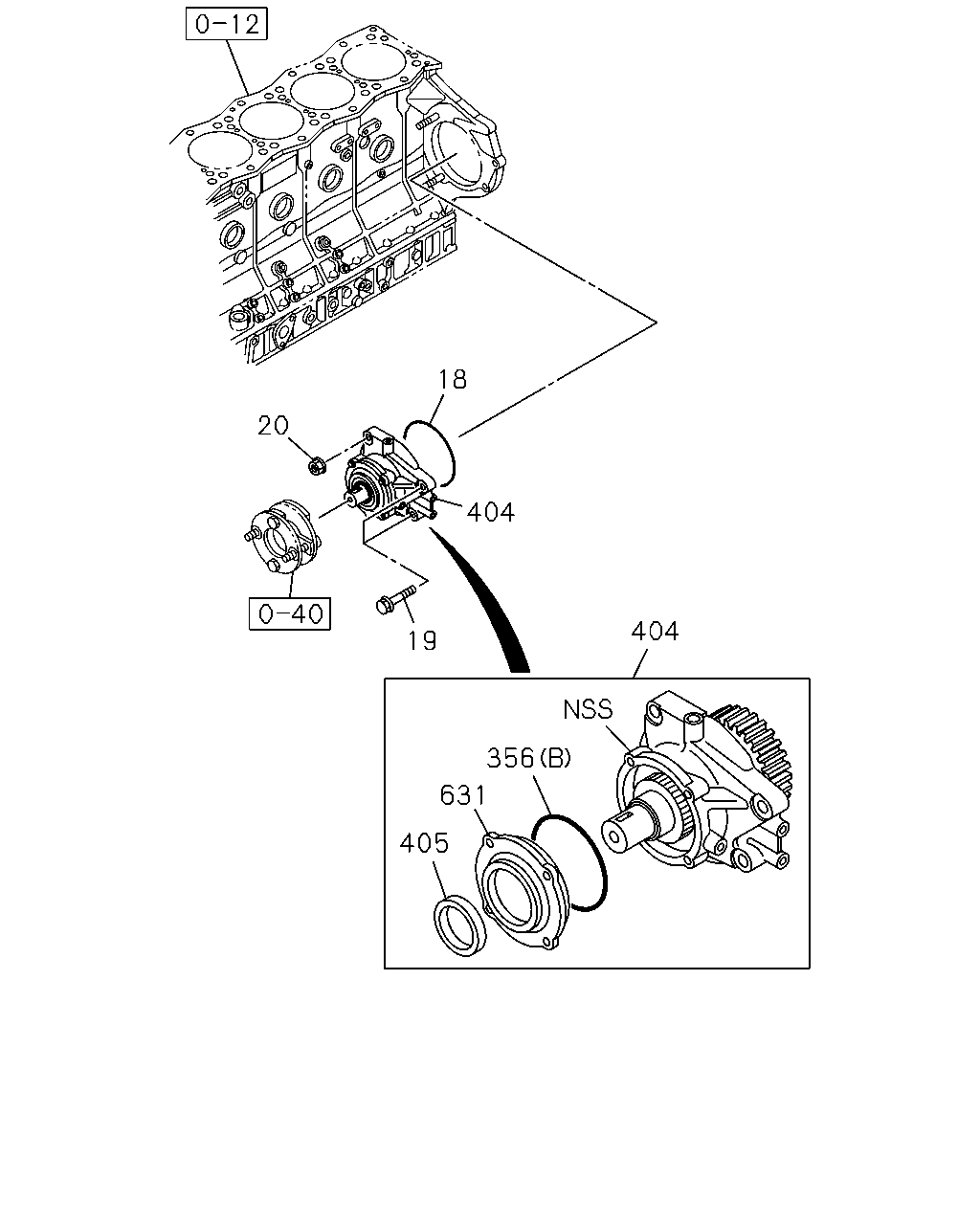

404 356 631 405 19 20 18 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	1204-
19	BOLT; BRG CASE M12X40 FLANGE THA	0-28151-240-0	02	1	1204-
20	NUT; BRG CASE M12 FLANGE THA	0-91180-112-0	02	1	1204-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-422-0	01	1	1204-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=139.6	1-09623-464-0	01	1	1204-1405
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=137	8-98280-698-0	01	1	1406-
404	CASE ASM; BRG,INJ PUMP	8-98184-327-3	01	1	1204-1305
404	CASE ASM; BRG,INJ PUMP	8-98239-289-0	01	1	1306-1310
404	CASE ASM; BRG,INJ PUMP	8-98239-287-0	01	1	1311-
405	SEAL; OIL,BRG CASE	8-98156-970-0	01	1	1204-1305
405	SEAL; OIL,BRG CASE	8-98238-366-0	01	1	1306-
631	COVER; BEARING	8-98127-511-2	01	1	1204-

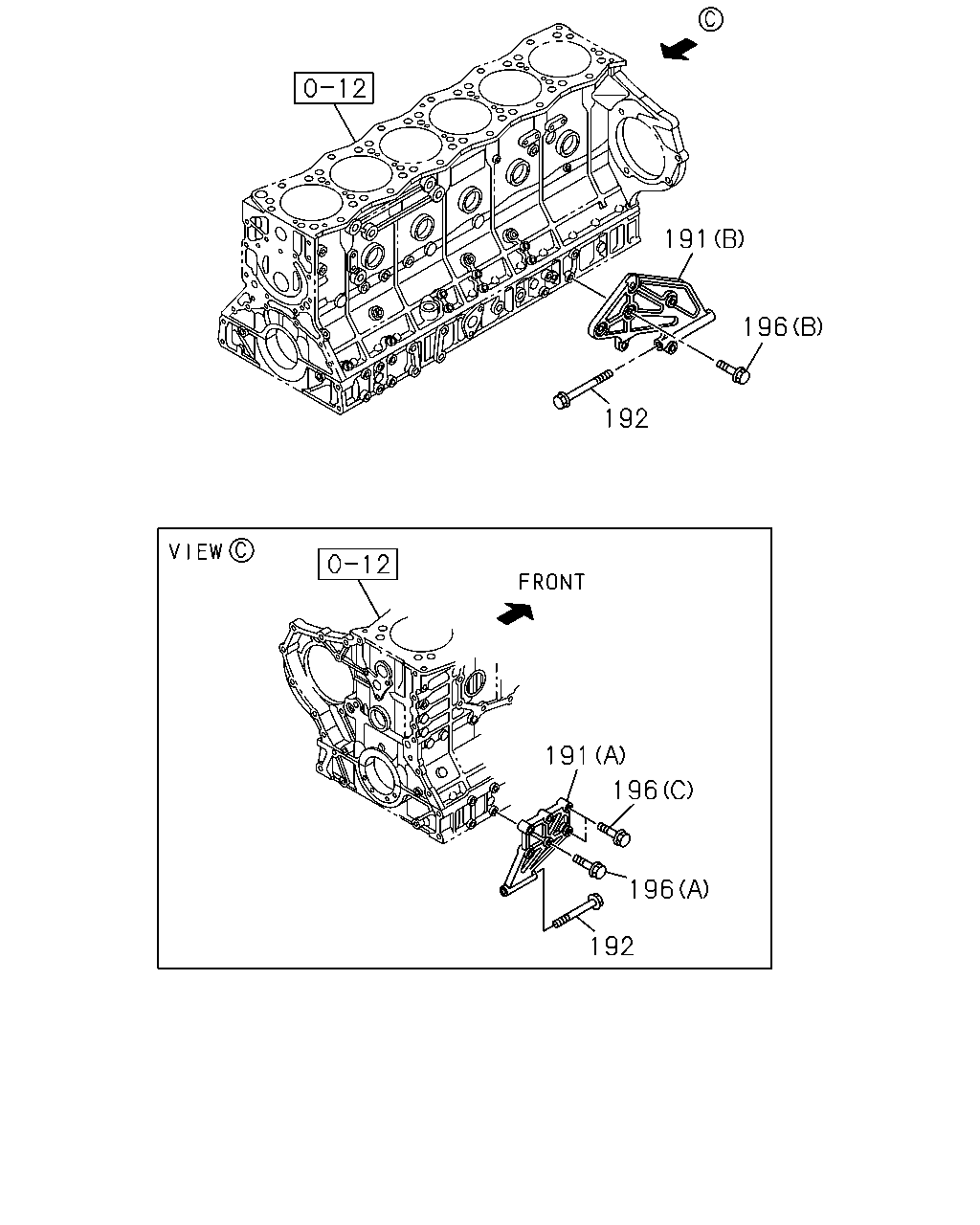

191 192 196 191 196 196 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
191	STAY; FLYWHEEL HSG (A)	8-97606-941-1	01	1	1204-1305
191	STAY; FLYWHEEL HSG (B)	8-97606-942-2	01	1	1204-1305
192	BOLT; STAY TO HSG M14X150 FLANGE	0-28956-415-0	02	1	1204-1305
196	BOLT; STAY TO C/BL (A) M10X70 FLANGE	0-28151-070-0	04	1	1204-1305
196	BOLT; STAY TO C/BL (B) M10X30 FLANGE	0-28751-030-0	03	1	1204-1305
196	BOLT; STAY TO C/BL (C) M10X40 FLANGE	0-28751-040-0	02	1	1204-1305
