Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#117502) — 117 parça

19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

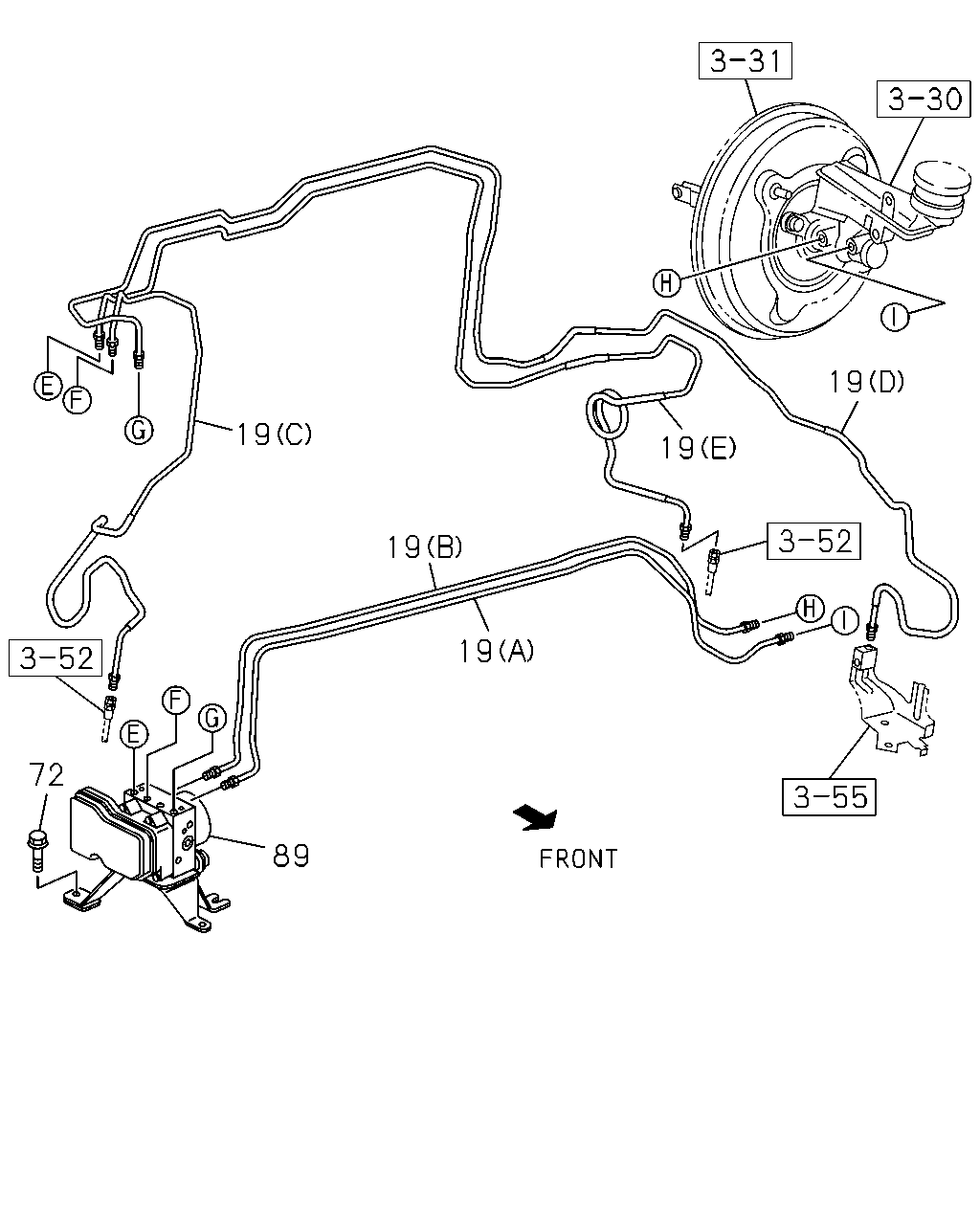

19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98159-943-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98099-751-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-756-1	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98099-757-1	01	1	1304-	●	●	●	●

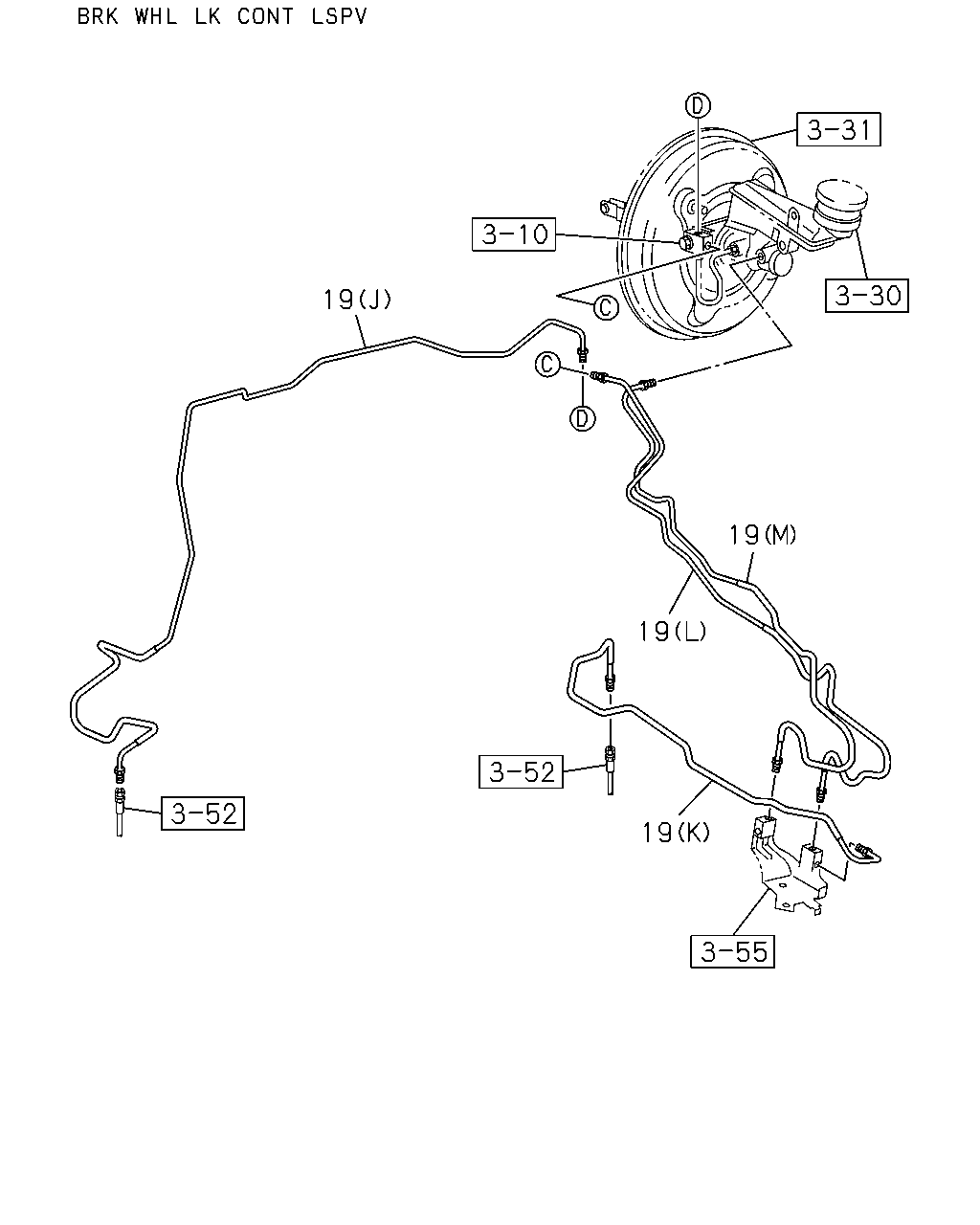

19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-766-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L)	8-98099-768-3	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M)	8-98099-769-1	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98118-384-2	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J)	8-98099-771-4	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F)	8-98186-107-2	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98196-385-0	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J)	8-98196-379-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F)	8-98196-376-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H)	8-98185-884-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I)	8-98185-886-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G)	8-98186-105-0	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E)	8-98159-941-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98159-941-1	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-98202-432-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98202-432-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-776-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-776-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J)	8-98100-764-2	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J)	8-98100-764-2	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G)	8-98185-881-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G)	8-98185-881-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F)	8-98185-885-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F)	8-98185-885-1	01	1	1304-			●	●

19 19 19 19 19 89 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98159-943-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98099-751-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-756-1	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98099-757-1	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-766-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L)	8-98099-768-3	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M)	8-98099-769-1	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98118-384-2	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J)	8-98099-771-4	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F)	8-98186-107-2	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98196-385-0	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J)	8-98196-379-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F)	8-98196-376-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H)	8-98185-884-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I)	8-98185-886-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G)	8-98186-105-0	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E)	8-98159-941-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98159-941-1	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-98202-432-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98202-432-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-776-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-776-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J)	8-98100-764-2	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J)	8-98100-764-2	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G)	8-98185-881-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G)	8-98185-881-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F)	8-98185-885-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F)	8-98185-885-1	01	1	1304-			●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	1304-	●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98232-467-0	01	1	1304-1508		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98285-166-0	01	1	1509-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98232-469-0	01	1	1304-1508			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98285-168-0	01	1	1509-			●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98232-468-0	01	1	1304-1508	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98285-167-0	01	1	1509-	●	●

116 129 184 96 184 129 107 184 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

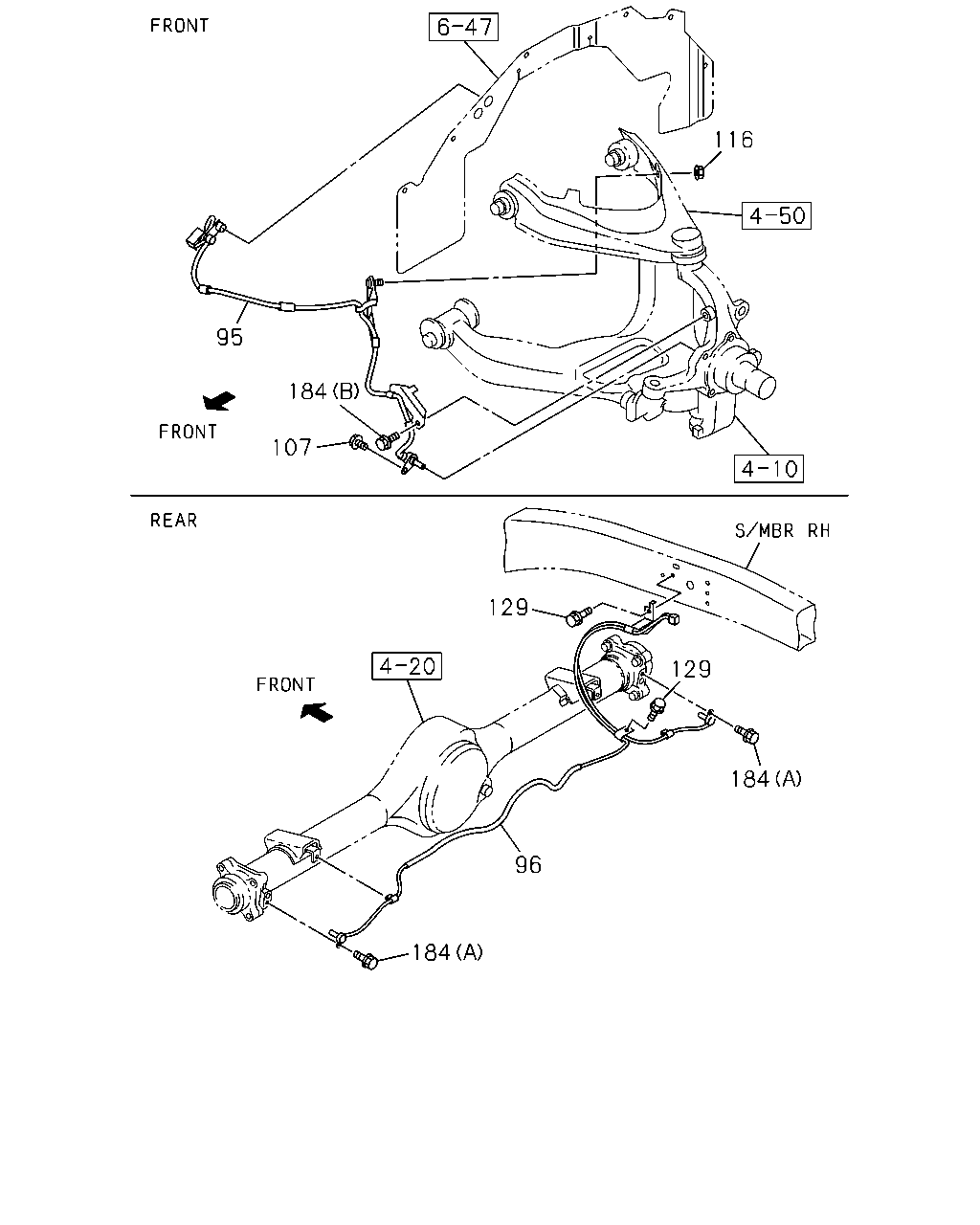

95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-117-1	01	1	1304-1509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98292-430-0	01	1	1510-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-118-1	01	1	1304-1509	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98292-431-0	01	1	1510-	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98052-119-1	01	1	1304-1509		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98052-119-1	01	1	1304-1509			●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98292-432-0	01	1	1510-		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98292-432-0	01	1	1510-			●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98052-120-1	01	1	1304-1509		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98052-120-1	01	1	1304-1509			●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98292-433-0	01	1	1510-		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98292-433-0	01	1	1510-			●	●
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-98052-121-1	01	1	1304-	●	●
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC)	8-98052-122-1	01	1	1304-		●
96	04.710 SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98052-122-1	01	1	1304-			●	●
107	04.710 BOLT; WHEEL SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1304-1509	●	●	●	●
107	04.710 BOLT; WHEEL SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●	●	●
116	04.686 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●	●	●
129	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1304-1509	●	●	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●	●	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●

19 19 19 19 13 13 104 11 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

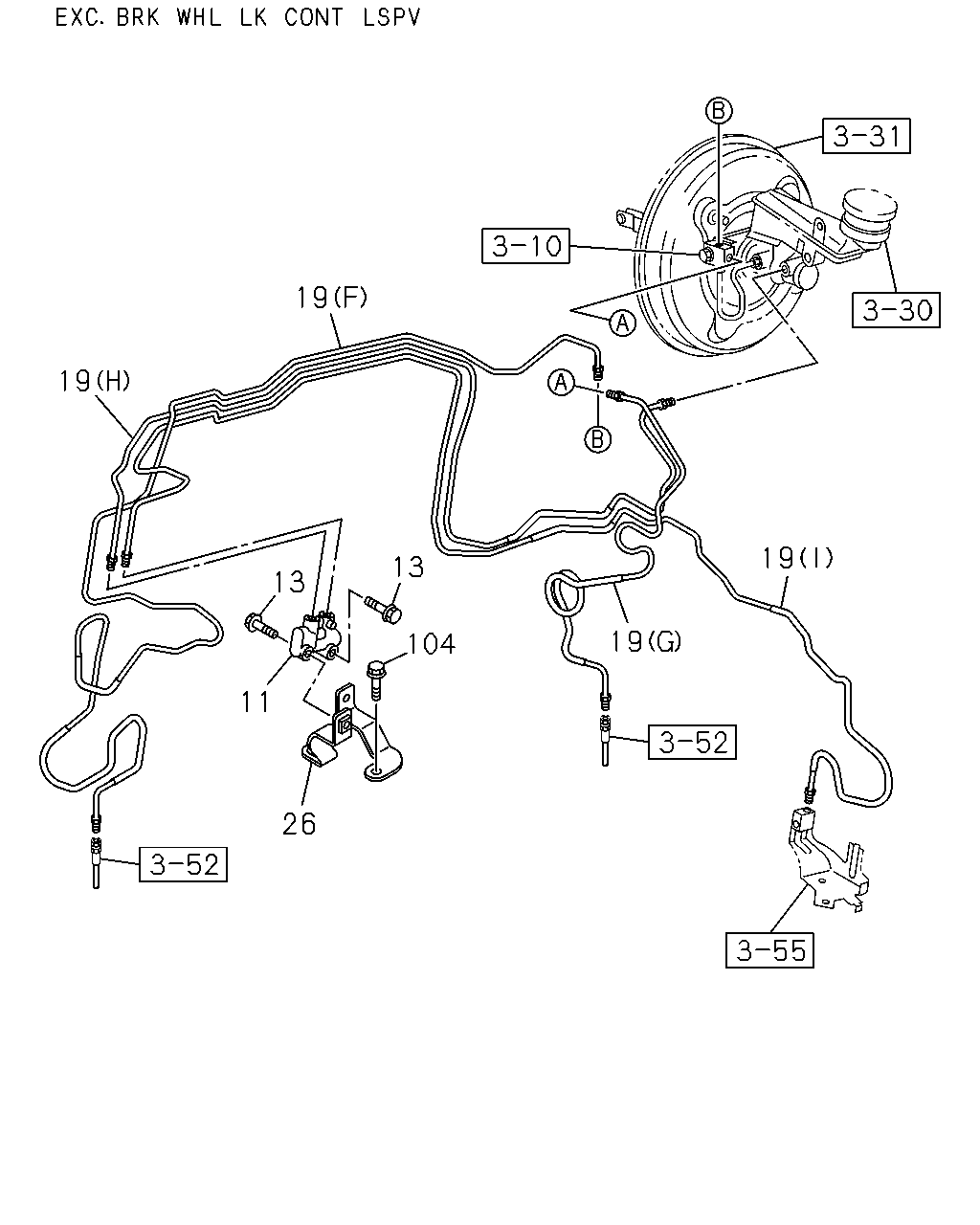

11	04.686 VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-97333-079-0	01	1	1304-	●	●	●	●
13	04.686 BOLT; VLV TO BRKT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> M8X45 FLANGE	0-29260-845-0	02	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-98159-943-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98099-751-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-756-1	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98099-757-1	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-766-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L)	8-98099-768-3	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M)	8-98099-769-1	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98118-384-2	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J)	8-98099-771-4	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F)	8-98186-107-2	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-98196-385-0	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (J)	8-98196-379-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSI ON(7YC) (F)	8-98196-376-1	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (H)	8-98185-884-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (I)	8-98185-886-0	01	1	1304-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (G)	8-98186-105-0	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (E)	8-98159-941-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98159-941-1	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-98202-432-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98202-432-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-776-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K)	8-98099-776-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J)	8-98100-764-2	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J)	8-98100-764-2	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G)	8-98185-881-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (G)	8-98185-881-0	01	1	1304-			●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F)	8-98185-885-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (F)	8-98185-885-1	01	1	1304-			●	●
26	04.730 BRACKET; PROPORTIONING VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>	8-98194-685-0	01	1	1304-	●	●	●	●
104	04.730 BOLT; BRKT TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●
