4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#117490) — 58 parça

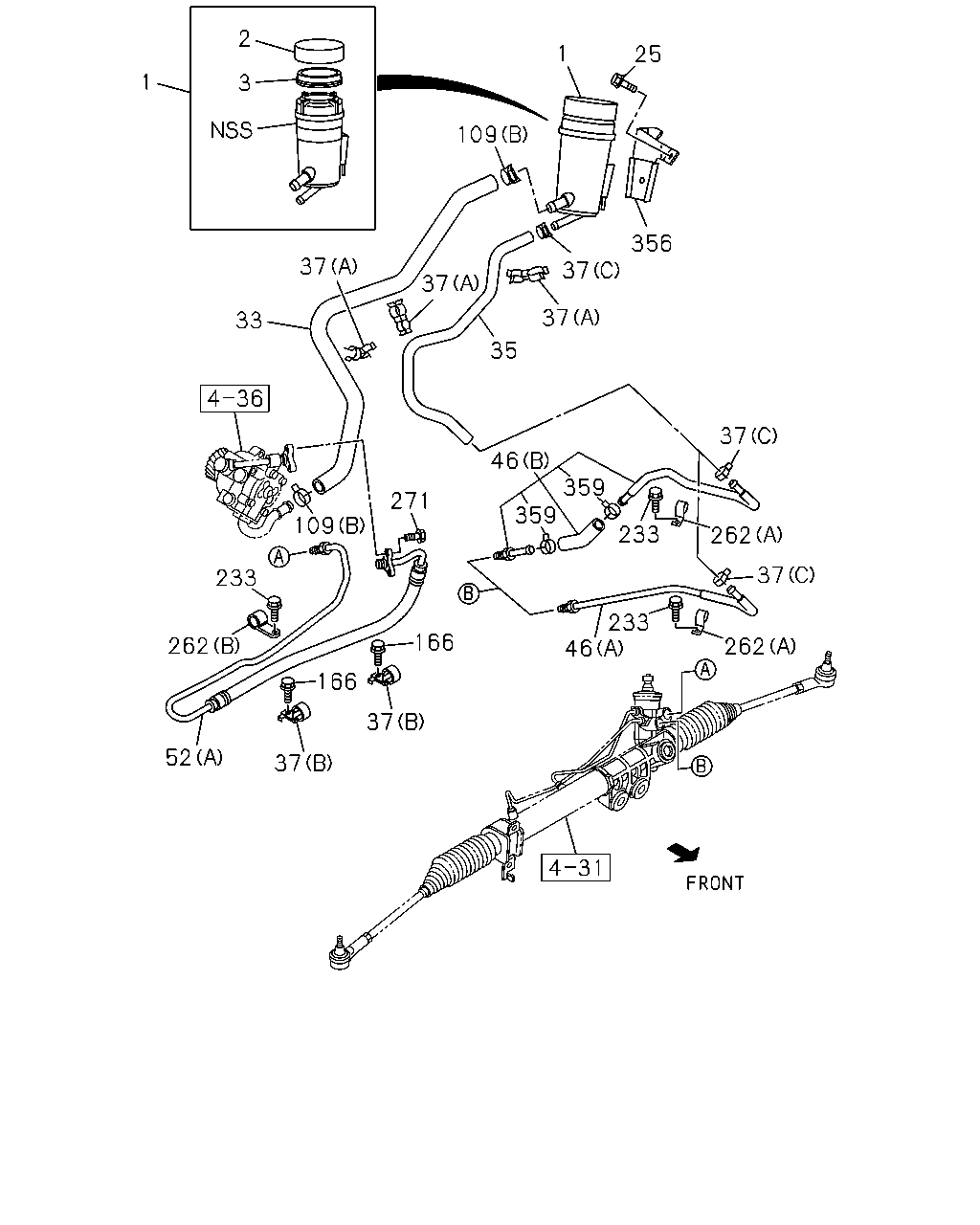

2 1 3 1 25 356 37 37 35 37 37 33 37 46 359 359 233 262 37 233 262 46 271 109 166 37 166 37 52 262 233 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1304-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1304-	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1304-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)	8-97946-138-2	01	1	1304-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1304-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1304-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1304-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=21.5 L=21	8-98211-907-0	02	1	1304-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1304-	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1304-	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1304-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) (C) L=1407	8-98179-942-0	01	1	1304-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-152-1	01	1	1304-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97946-152-1	01	1	1304-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97946-144-0	01	1	1304-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) (B)	8-98203-618-0	01	1	1304-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1304-		●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1304-			●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (A)	8-98203-619-0	01	1	1304-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1304-	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1304-	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1304-	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1304-	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1304-	●	●	●	●
359	06.672 CLAMP; HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. HIGH RIDE SUSPENSION(7YC) 01.762 ID=16	8-98030-682-0	02	1	1304-	●	●

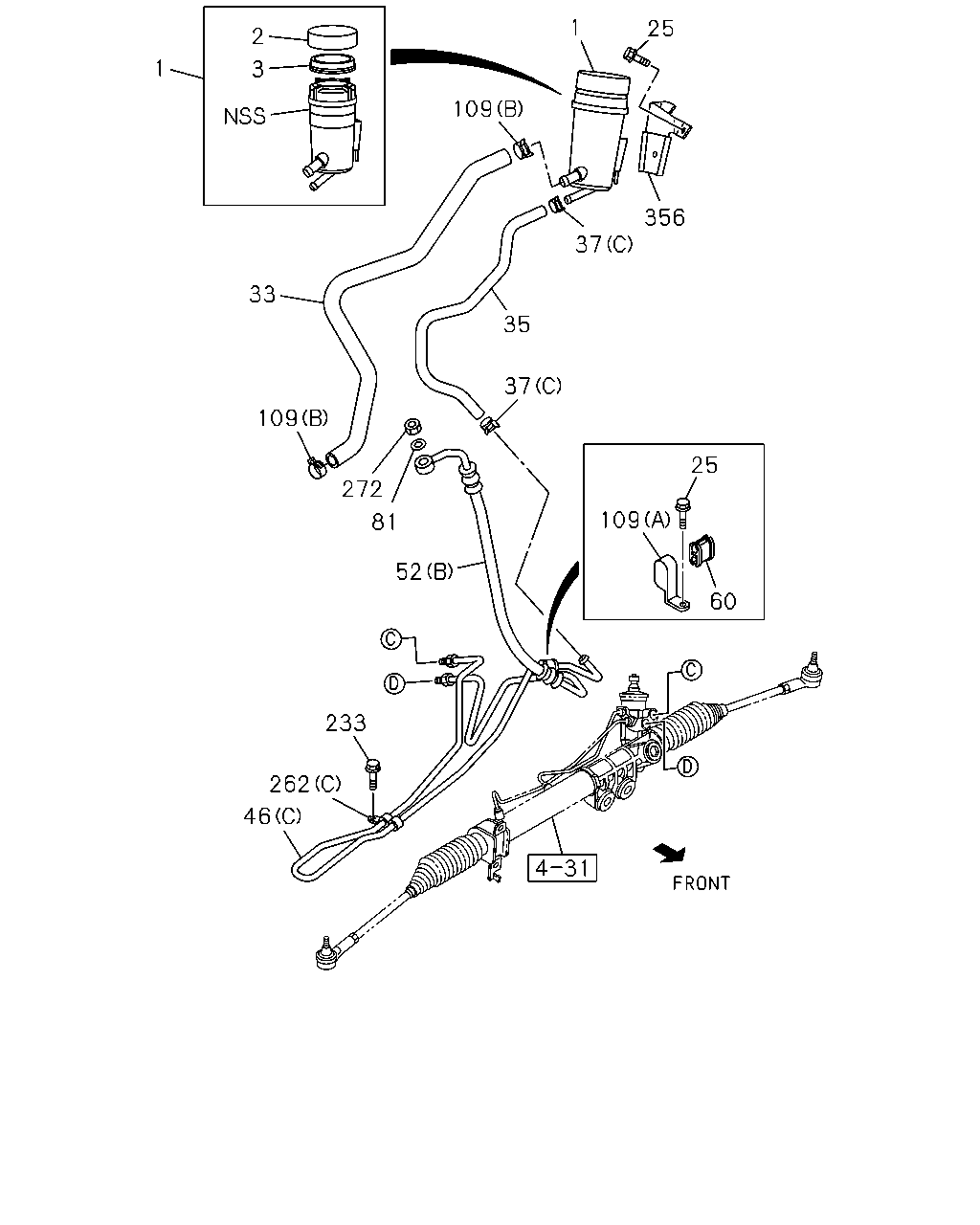

1 2 3 109 37 356 25 1 35 37 272 109 33 81 52 233 262 46 60 109 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1304-	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1304-	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1304-	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ)	8-97946-138-2	01	1	1304-	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1304-	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1304-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1304-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) (B) ID=21.5 L=21	8-98211-907-0	02	1	1304-	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1304-	●	●	●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1304-	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98187-282-1	01	1	1304-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) (C) L=1407	8-98179-942-0	01	1	1304-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-152-1	01	1	1304-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97946-152-1	01	1	1304-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97946-144-0	01	1	1304-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) (B)	8-98203-618-0	01	1	1304-	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) HIGH RIDE SUSPENSION(7YC) (A)	8-97946-146-0	01	1	1304-		●
52	06.673 HOSE; FLEX,P/S CONT VLV (A)	8-97946-146-0	01	1	1304-			●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-T ENG(LP0) ID=10X2 H=22	8-94252-455-2	01	1	1304-	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JA1-T ENG(LP0) 07.347 ID=12.2	0-91510-812-0	01	1	1304-	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (A)	8-98203-619-0	01	1	1304-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1304-	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1304-	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1304-	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1304-	●	●
272	06.672 NUT; P/S OIL PIPE FIX 4JA1-T ENG(LP0) 04.439 M12	0-91111-512-0	01	1	1304-	●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1304-	●	●	●	●
