4-01 — PROPELLER SHAFT (#11749) — 56 parça

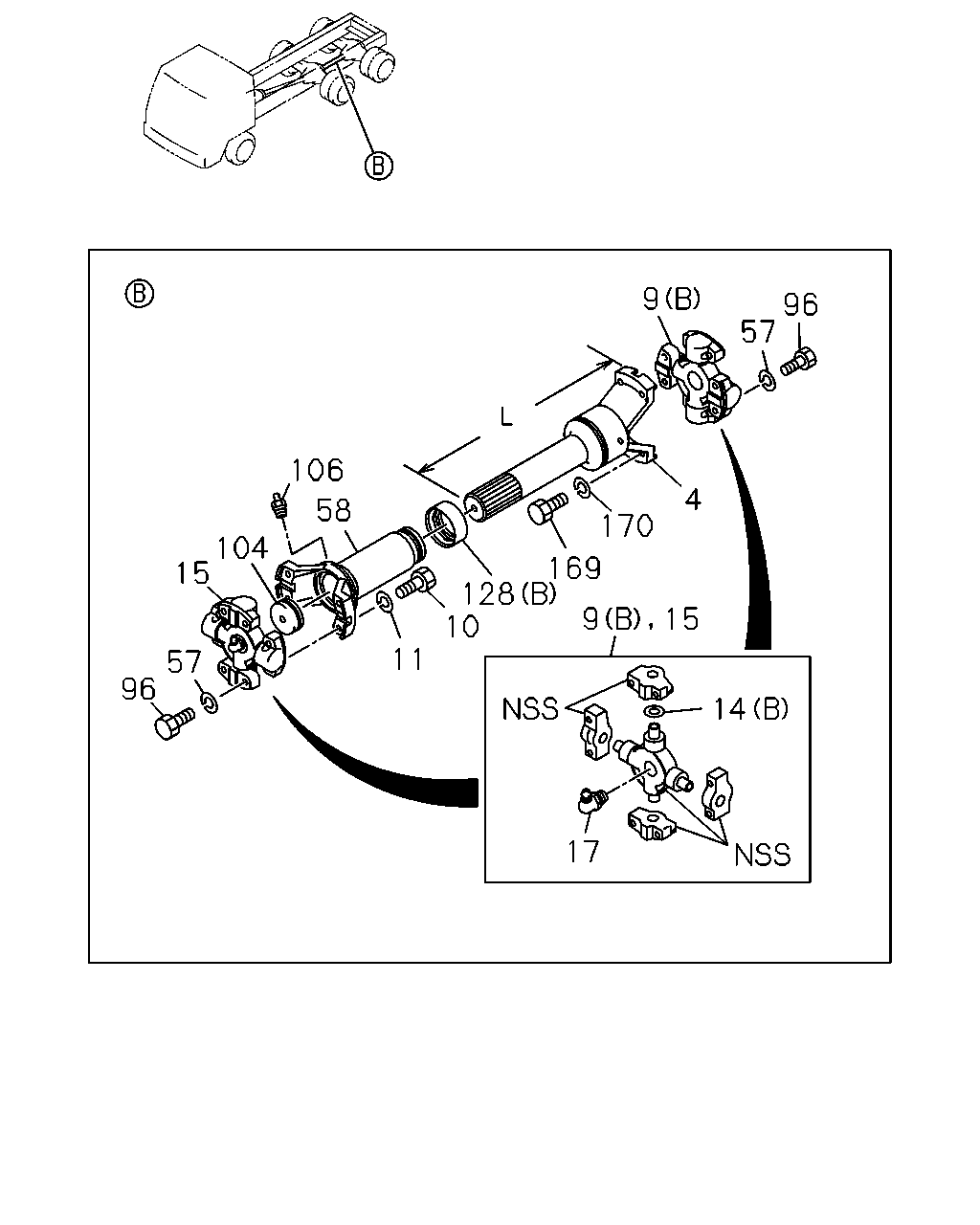

çizim 78362
9 96 57 106 58 4 170 169 128 10 104 15 9 15 11 57 96 14 17
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; PROP
RR TIRE 12.00-20<98X> L=418 		1-37171-129-3 01 1 0106-
4 SHAFT; PROP
EXC. RR TIRE 12.00-20<98X> L=348 		1-37171-127-2 01 1 0106-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0106-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0106-
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0106-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0106-0603
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 AR 1 0106-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0106-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0106-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 68 		9-09031-110-0 AR 1 0106-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 		0-90301-510-0 02 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 		0-90301-510-0 02 1 0601-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0106-0603
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0106-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0106-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0106-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0106-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0106-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0106-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0106-0312
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401-
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0106-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0106-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0106-0603
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0604-

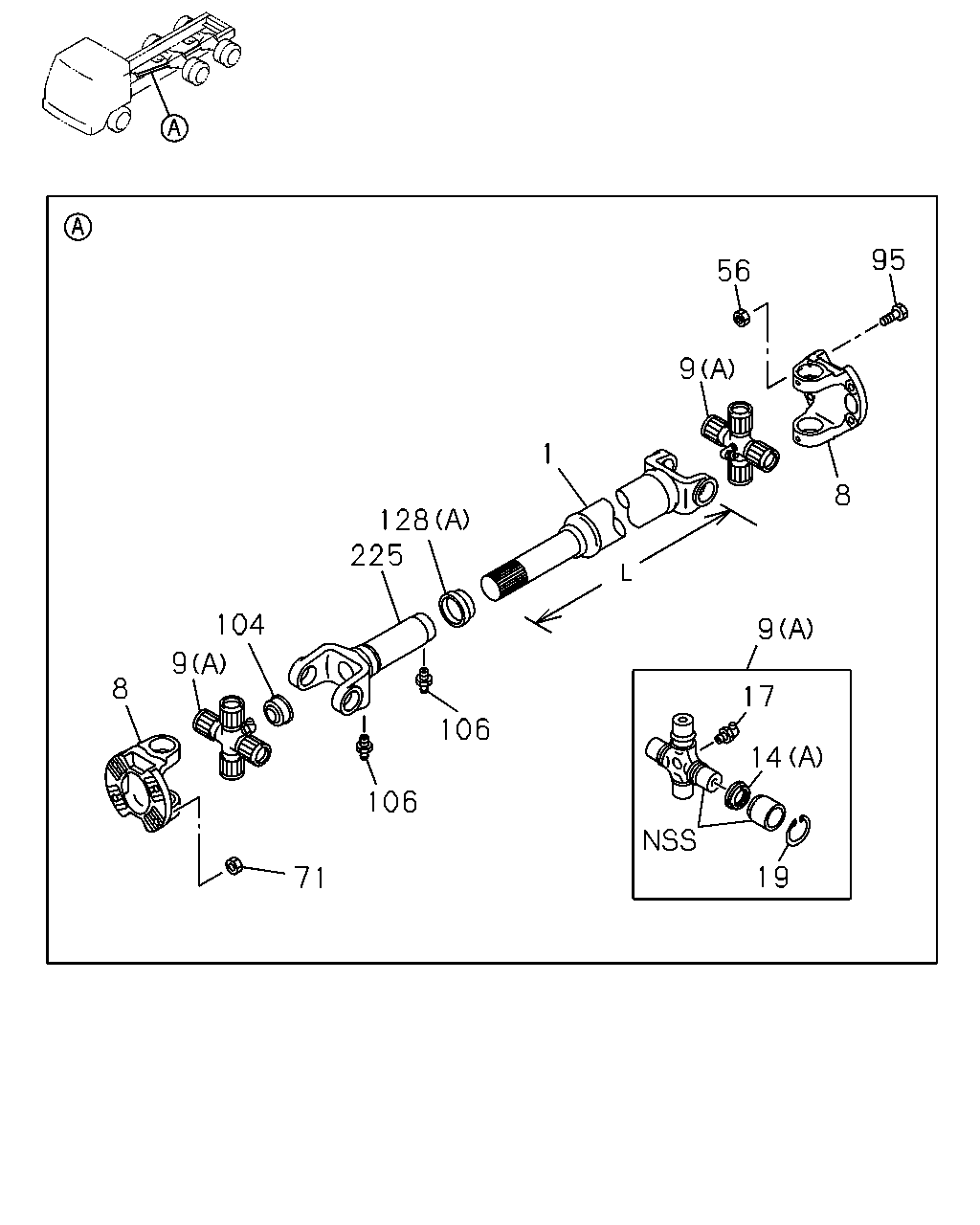

çizim 78494
95 56 9 1 8 128 225 104 9 9 8 17 106 14 106 19 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
FULLER M/T<X9B> RR TIRE 12.00-20<98X> L=900 		1-37124-770-1 01 1 0106-
1 SHAFT; PROP
FULLER M/T<X9B> EXC. RR TIRE 12.00-20<98X> L=940 		1-37124-771-1 01 1 0106-
1 SHAFT; PROP
TRANSMISSION-ZF 16S221 OD(Y1U) RR TIRE 12.00-20<98X> L=750 		1-37124-769-1 01 1 0106-
1 SHAFT; PROP
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. RR TIRE 12.00-20<98X> L=795 		1-37124-912-0 01 1 0106-
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0106-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0106-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0106-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 AR 1 0106-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0106-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 68 		9-09031-110-0 AR 1 0106-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 		0-90301-510-0 02 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 		0-90301-510-0 02 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 AR 1 0106-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 AR 1 0106-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0106-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0106-
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0106-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0106-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0106-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0106-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0106-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0106-0312
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401-
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0106-
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0106-
