Isuzu WW
▶
TRUCKS
▶
FVR
▶
11527 - FVR(MALAYSIA) 280PS
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶

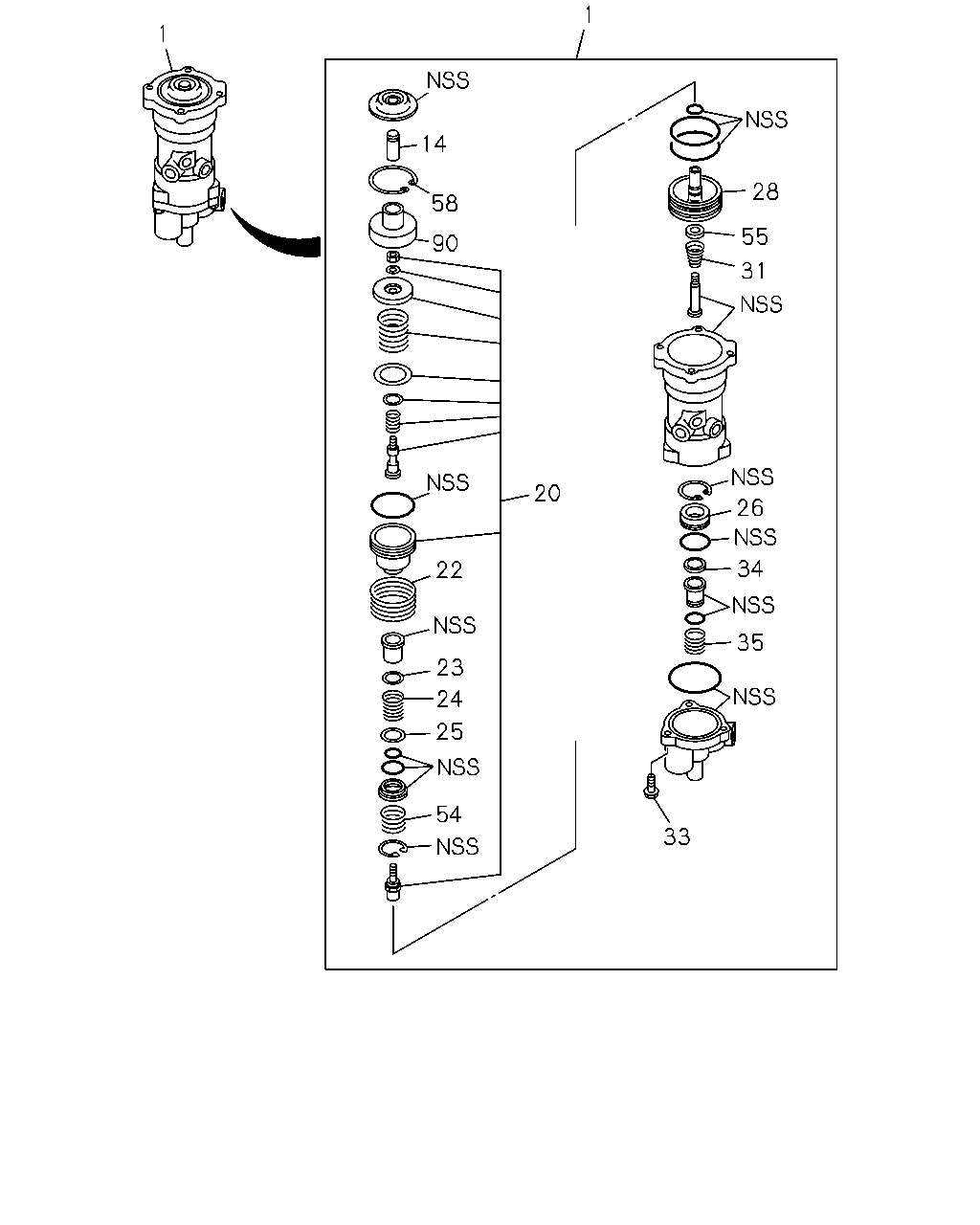

3-34 — BRAKE VALVE; AIR
(#117482) — 19 parça
◀
[334A] REPAIR KIT (2 parça)
[334A] COMPONENT (17 parça)
▶
58
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
8-98222-820-0
01
1
1304-
58
RING; RET,EXH,BRK VLV
1-48219-198-0
01
1
1304-
1
1
14
58
90
20
22
23
24
25
54
28
55
31
26
34
35
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
8-98222-788-0
01
1
1304-
14
PLUNGER; BRK VLV
1-48119-641-0
01
1
1304-
20
PISTON; UPR,BRK VLV
1-48119-651-0
01
1
1304-
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
1304-
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
1304-
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
1304-
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
1304-
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
1304-
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
1304-
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
1304-
33
BOLT; BODY,BRK VLV
1-48119-213-0
03
1
1304-
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
1304-
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
1304-
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
1304-
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
1304-
58
RING; RET,EXH,BRK VLV
1-48219-198-0
01
1
1304-
90
GUIDE; PLUNGER
1-48119-642-0
01
1
1304-
