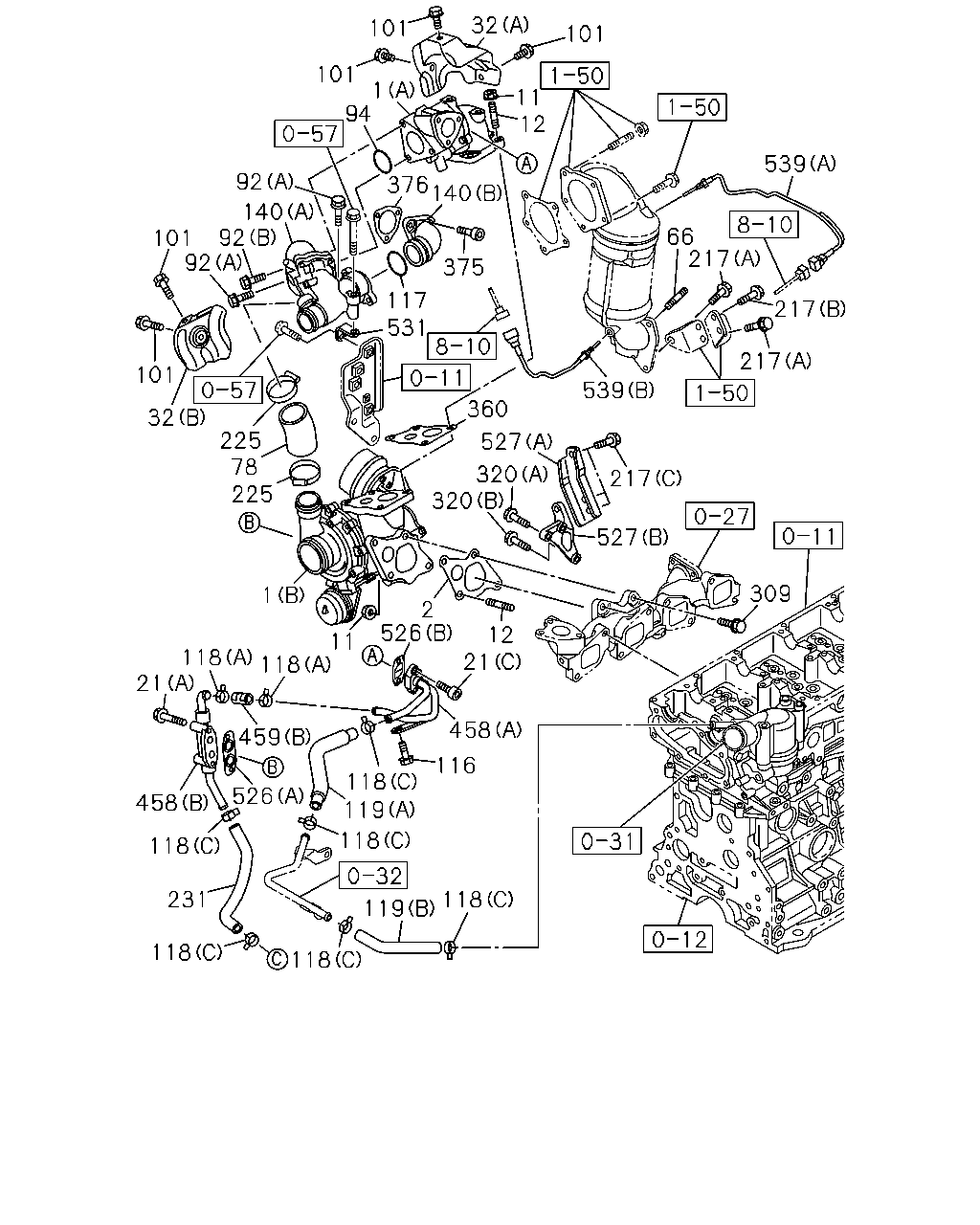

1 |
03.342 TURBOCHARGER ASM
(A)
|
8-98150-687-2 |
01 |
1 |
1304- |
| |
1 |
03.342 TURBOCHARGER ASM
(B)
|
8-98150-688-3 |
01 |
1 |
1304- |
| |
2 |
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-98151-215-0 |
01 |
1 |
1304- |
| |
11 |
03.342 NUT; TURBOCHARGER
M10 FLANGE
|
8-97309-942-0 |
06 |
1 |
1304- |
| |
12 |
03.342 STUD; TURBOCHARGER
M10X28.5 L=41.5
|
8-97378-063-0 |
06 |
1 |
1304- |
| |
21 |
03.358 BOLT; PIPE
04.866
(A)
M6X40 FLANGE
|
0-28050-640-0 |
02 |
1 |
1304- |
| |
21 |
03.358 BOLT; PIPE
02.343
(B)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1304- |
| |
21 |
03.358 BOLT; PIPE
00.724
(C)
M6X16 HEX SOCKET
|
0-58330-616-0 |
02 |
1 |
1304- |
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
(A)
|
8-98159-563-1 |
01 |
1 |
1304- |
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
(B)
|
8-98159-564-2 |
01 |
1 |
1304- |
| |
66 |
03.342 STUD; EXH PIPE
M10X25 L=40
|
8-98184-286-0 |
03 |
1 |
1304- |
| |
78 |
03.342 HOSE; INL PIPE,TURBOCHARGER
|
8-98179-013-1 |
01 |
1 |
1304- |
| |
92 |
03.417 BOLT; INL PIPE
03.275
(A)
M8X25 FLANGE
|
0-28050-825-0 |
02 |
1 |
1304- |
| |
92 |
03.417 BOLT; INL PIPE
04.686
(B)
M8X60 FLANGE
|
0-28050-860-0 |
01 |
1 |
1304- |
| |
94 |
01.531 GASKET; INL PIPE
03.162
ID=49.7
|
1-09623-541-0 |
01 |
1 |
1304- |
| |
101 |
03.602 BOLT; HEAT PROTECTOR
02.343
M8X12 FLANGE
|
0-28050-812-0 |
05 |
1 |
1304- |
| |
116 |
03.342 BOLT; WATER PIPE
09.242
M6X16 FLANGE
|
0-28050-616-0 |
01 |
1 |
1304- |
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
01.724
ID=47.7
|
1-09623-465-0 |
01 |
1 |
1304- |
| |
118 |
03.342 CLIP; WATER HOSE
(A)
ID=12.8
|
8-97944-125-0 |
02 |
1 |
1304- |
| |
118 |
03.342 CLIP; WATER HOSE
08.846
(B)
ID=20.8
|
8-97944-127-0 |
04 |
1 |
1304- |
| |
118 |
03.342 CLIP; WATER HOSE
(C)
ID=15.1
|
8-98179-581-0 |
06 |
1 |
1304- |
| |
118 |
03.342 CLIP; WATER HOSE
(D)
ID=26.2
|
8-98202-540-0 |
02 |
1 |
1304- |
| |
119 |
03.342 HOSE; WATER,TURBOCHARGER
(A)
|
8-98159-560-1 |
01 |
1 |
1304- |
| |
119 |
03.342 HOSE; WATER,TURBOCHARGER
(B)
|
8-98179-510-0 |
01 |
1 |
1304- |
| |
140 |
03.417 PIPE; AIR PIPE
(A)
|
8-98151-283-0 |
01 |
1 |
1304- |
| |
140 |
03.417 PIPE; AIR PIPE
(B)
|
8-98162-352-0 |
01 |
1 |
1304- |
| |
217 |
03.417 BOLT; BRKT
06.509
(A)
M12X30 FLANGE
|
0-28661-230-0 |
03 |
1 |
1304- |
| |
217 |
03.417 BOLT; BRKT
00.004
(B)
M12X35 FLANGE
|
0-28661-235-0 |
02 |
1 |
1304- |
| |
217 |
03.417 BOLT; BRKT
(C)
M10X25 FLANGE
|
8-98189-923-0 |
03 |
1 |
1304- |
| |
225 |
03.616 CLIP; CONN HOSE
03.407
ID=60-65
|
8-98096-418-0 |
02 |
1 |
1304- |
| |
231 |
03.342 HOSE; RUBBER,TURBOCHARGER OUT
|
8-98164-651-1 |
01 |
1 |
1304- |
| |
309 |
03.342 BOLT; TURBOCHARGER
M10X30 FLANGE
|
8-98173-443-0 |
02 |
1 |
1304- |
| |
320 |
03.342 BOLT; BRKT,TURBOCHARGER
03.403
(A)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
1304- |
| |
320 |
03.342 BOLT; BRKT,TURBOCHARGER
02.277
(B)
M10X35 FLANGE
|
0-28651-035-0 |
01 |
1 |
1304- |
| |
360 |
03.342 GASKET; ADAPTER TO TURBOCHARGER
|
8-98151-216-0 |
01 |
1 |
1304- |
| |
375 |
03.342 BOLT; FLANGE
01.428
M6X25 HEX SOCKET
|
0-58330-625-0 |
03 |
1 |
1304- |
| |
376 |
03.342 GASKET; FLANGE CONNECTOR
|
8-98089-661-0 |
01 |
1 |
1304- |
| |
458 |
03.373 PIPE; WATER,TURBOCHARGER
(A)
|
8-98151-200-0 |
01 |
1 |
1304- |
| |
458 |
03.373 PIPE; WATER,TURBOCHARGER
(B)
|
8-98151-201-0 |
01 |
1 |
1304- |
| |

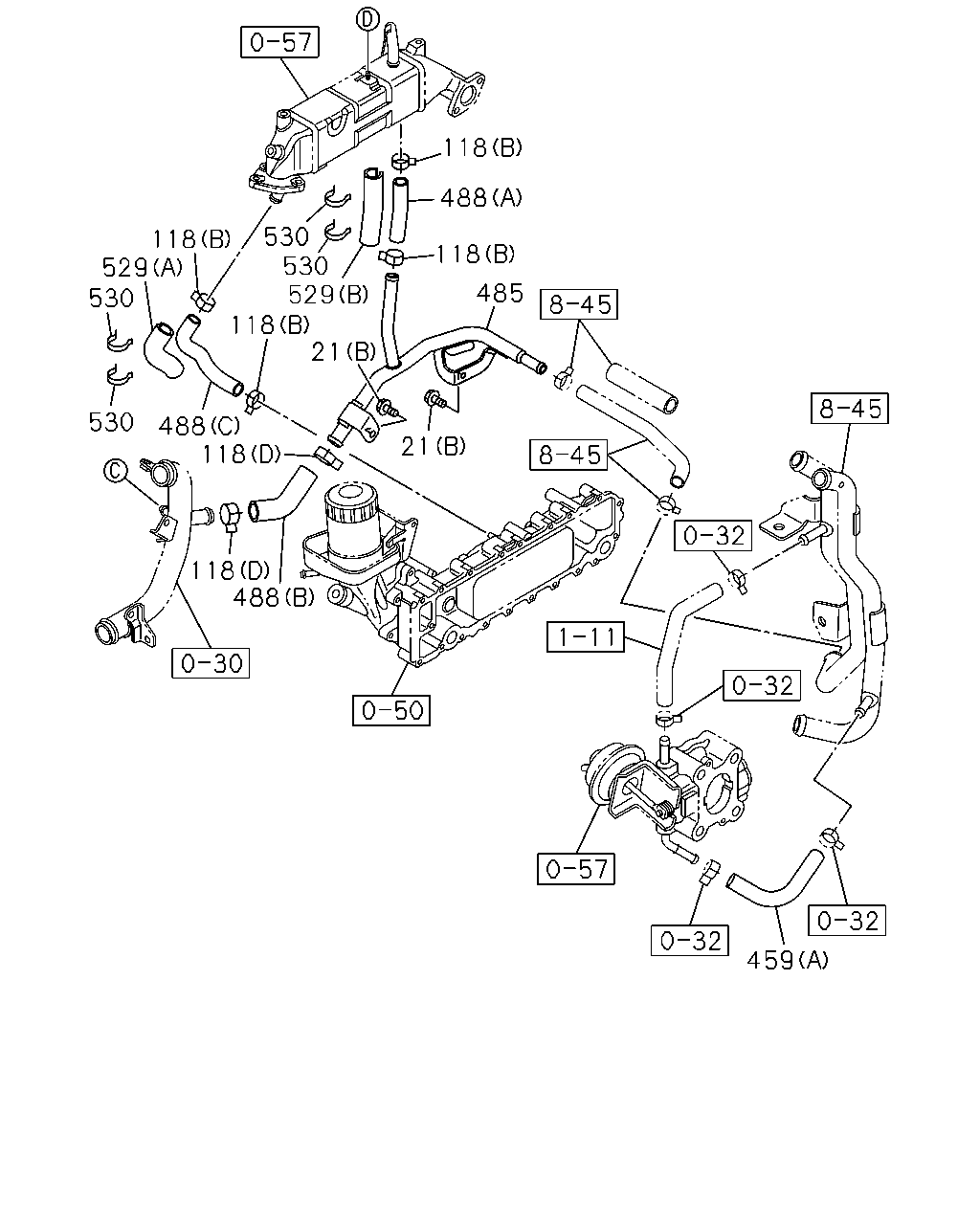

459 |
03.341 HOSE; WATER
(A)
L=100
SERVICED BY L=3000
|
0-03657-300-0 |
01 |
1 |
1304- |
| |
459 |
03.341 HOSE; WATER
(B)
|
8-98159-561-0 |
01 |
1 |
1304- |
| |
526 |
03.342 GASKET; PLATE
01.519
(A)
|
8-97352-985-0 |
01 |
1 |
1304- |
| |
526 |
03.342 GASKET; PLATE
(B)
|
8-98178-929-1 |
01 |
1 |
1304- |
| |
527 |
03.373 BRACKET; TURBOCHARGER
(A)
|
8-98151-382-0 |
01 |
1 |
1304- |
| |
527 |
03.373 BRACKET; TURBOCHARGER
(B)
|
8-98182-781-0 |
01 |
1 |
1304- |
| |
531 |
03.616 BRACKET; DUCT
|
8-98158-725-0 |
01 |
1 |
1304- |
| |
539 |
03.337 SENSOR; TURBOCHARGER
(A)
|
8-98031-605-1 |
01 |
1 |
1304- |
| |
539 |
03.337 SENSOR; TURBOCHARGER
(B)
|
8-98199-353-0 |
01 |
1 |
1304- |
