3-80 — BRAKE PIPING; TRAILER (#11747) — 42 parça

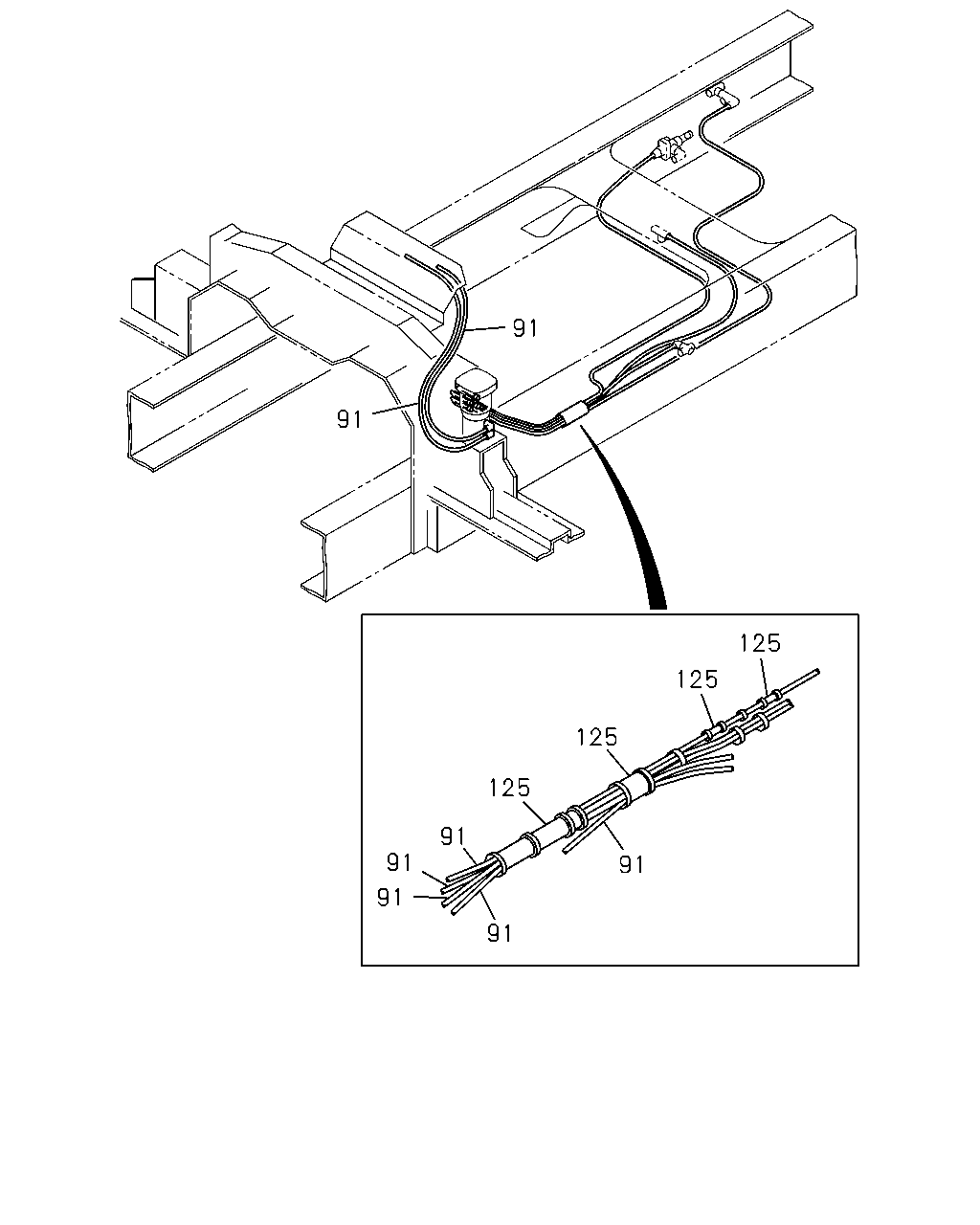

çizim 20811
91 91 125 125 125 125 91 91 91 91 91
BalonParca AdiParca NoAdetTipApplied Date
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-0304
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0305-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-0304
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0106-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0106-0304
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0305-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0305-
çizim 75958
79 79 75 65 157 61 157 61 126 32 31 148 91 32 31 148 14 91
BalonParca AdiParca NoAdetTipApplied Date
14 CONNECTOR; AIR PIPE
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
31 NUT; UNION
M16 		9-99111-416-0 02 1 0106-0512
31 NUT; UNION
M16 		0-91111-516-0 02 1 0601-
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 0106-0603
32 WASHER; LK,UNION
ID=16.2 		0-91510-516-0 02 1 0604-
61 UNION; NYLON TUBE 1-09650-222-1 02 1 0106-
65 HOSE; AIR 1-49212-518-0 01 1 0106-
75 HOSE; FLEX,TRAILER EMERGENCY 1-49212-518-0 01 1 0106-
79 COUPLING; AIR,TRAILER
(A) 		1-47478-210-0 01 1 0106-
79 COUPLING; AIR,TRAILER
(B) 		1-47478-211-0 01 1 0106-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-0304
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0305-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0106-
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
126 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0106-
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 02 1 0106-
157 ADAPTER 1-09660-078-0 02 1 0106-

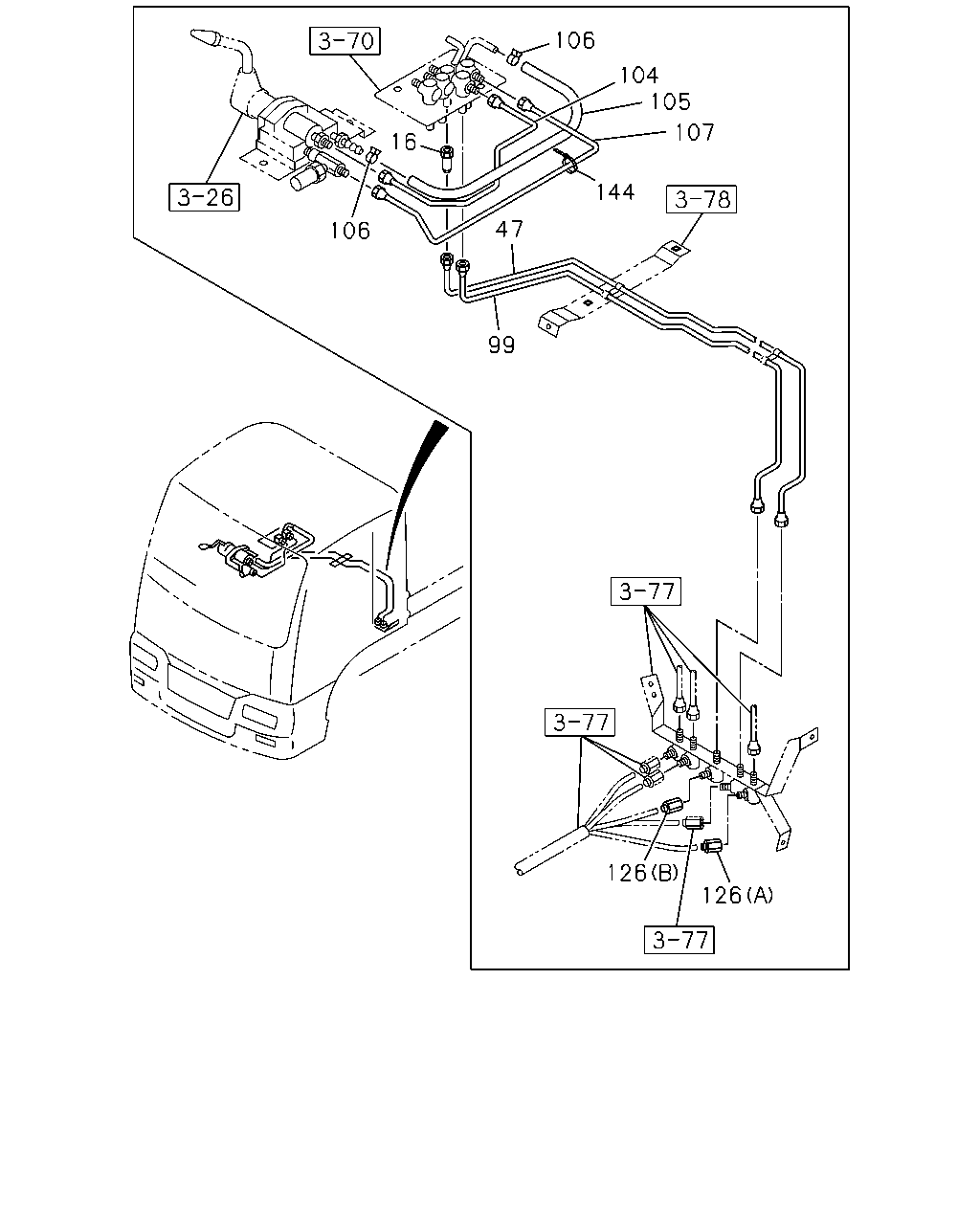

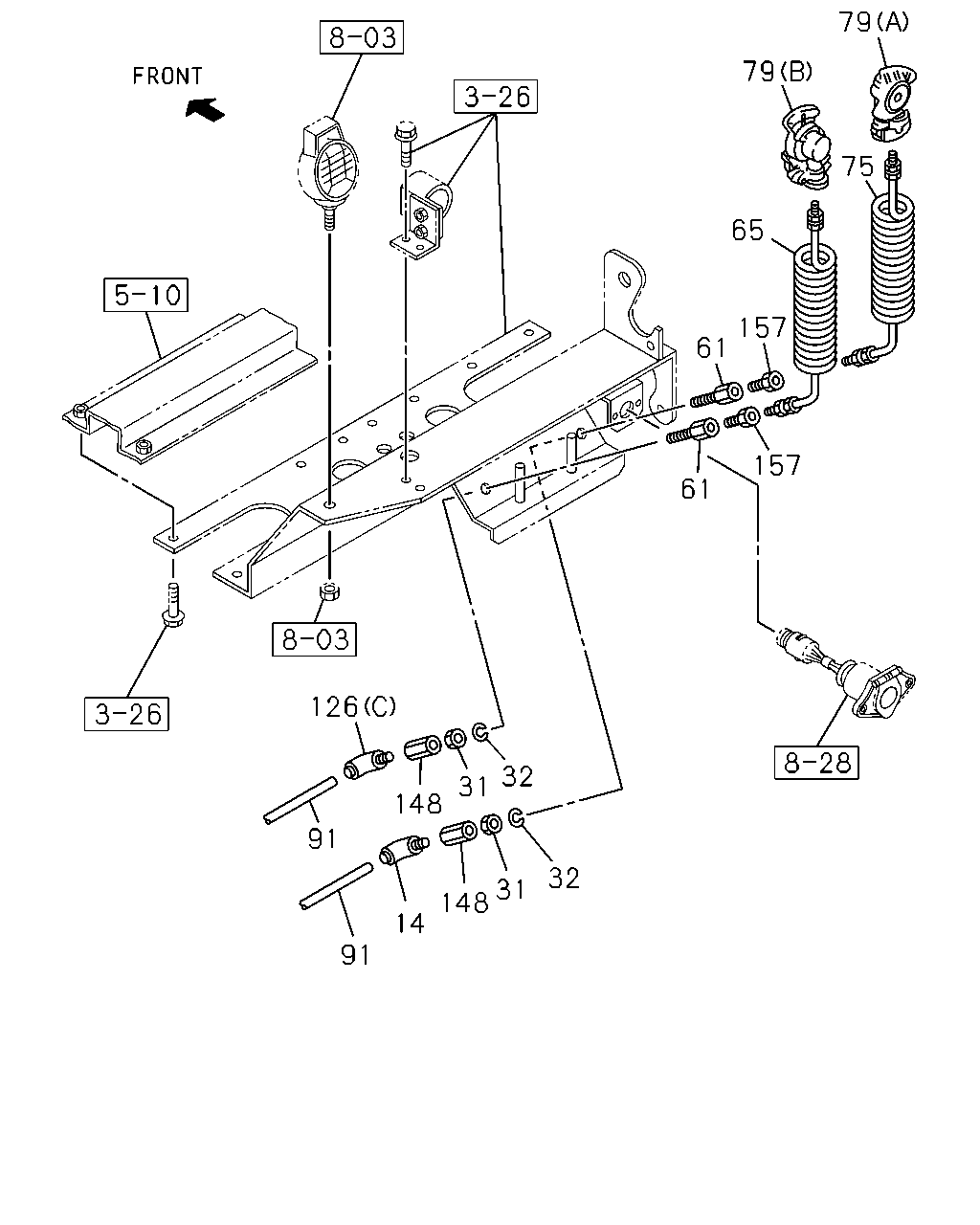

çizim 78891
106 104 105 107 16 144 47 106 99 126 126
BalonParca AdiParca NoAdetTipApplied Date
16 UNION; AIR PIPE 1-09654-258-1 01 1 0106-
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 0106-
99 PIPE; AIR,JOINT TO JOINT
L=1551 		1-49121-054-0 01 1 0106-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-295-0 01 1 0106-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0106-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-296-0 01 1 0106-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0106-
126 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
126 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
144 CLIP; BAND
L=140 		5-09707-031-1 01 1 0112-
