◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#11746) — 251 parça

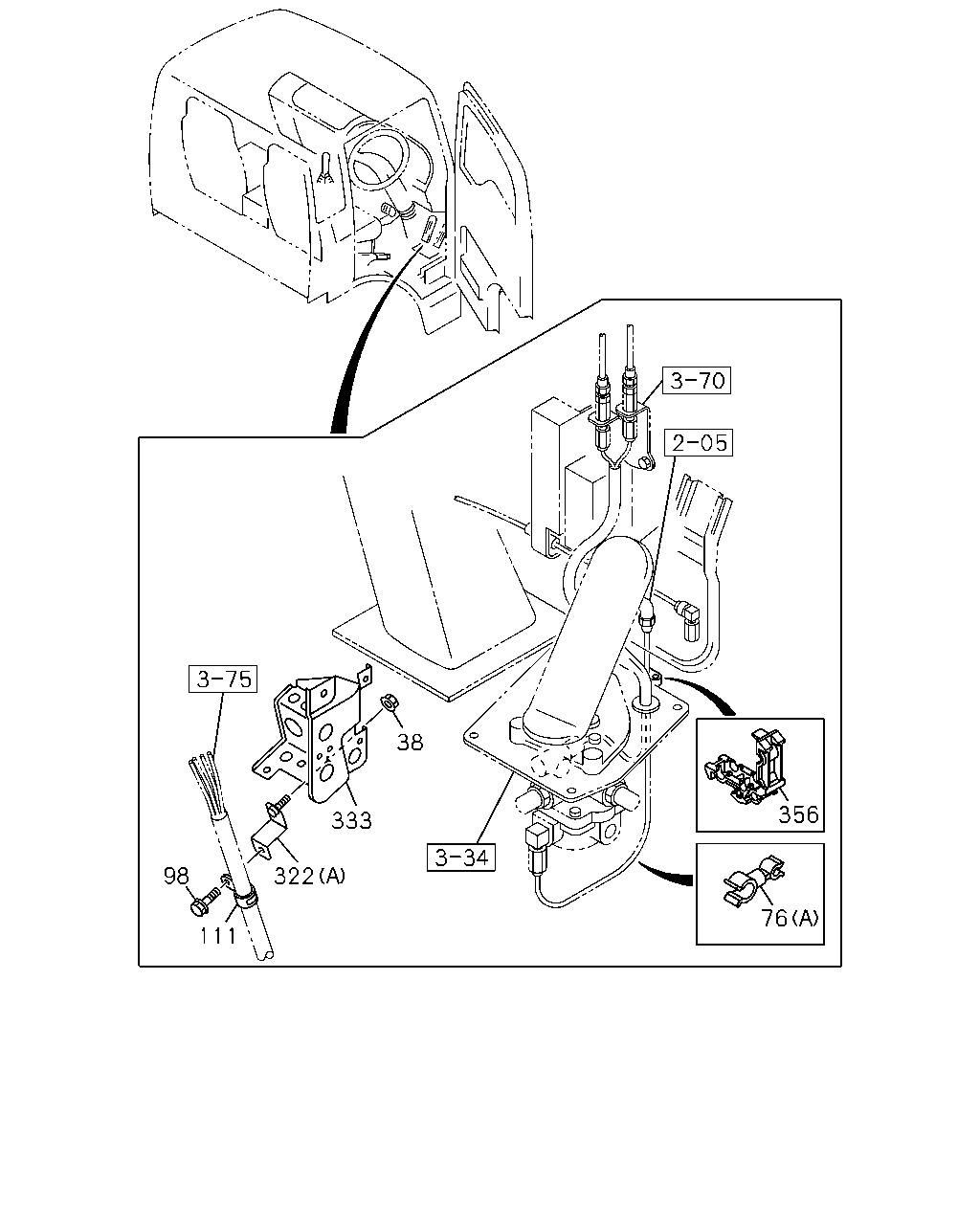

çizim 20961
38 356 333 322 98 76 111
BalonParca AdiParca NoAdetTipApplied Date
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
76 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 07 1 0106-
76 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0106-
76 CLIP; NYLON TUBE
(A) ID=6 & 8.3 		8-94167-742-0 02 1 0106-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
111 CLIP; AIR PIPE
ID=35 L=33 		1-09700-945-0 01 1 0106-
322 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 0106-
322 BRACKET; CLIP
(A) 		1-79996-360-0 01 1 0106-0601
322 BRACKET; CLIP
(A) 		1-79996-659-1 01 1 0602-
333 BRACKET; BRK AIR PIPE 1-79997-360-6 01 1 0106-
356 CLIP; AIR PIPE
TRANSMISSION-ZF 16S221 OD(Y1U) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK 		8-94222-876-0 01 1 0106-
356 CLIP; AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK 		8-94222-876-0 01 1 0106-
çizim 24347
376 367 322 375 357
BalonParca AdiParca NoAdetTipApplied Date
322 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 0106-
322 BRACKET; CLIP
(A) 		1-79996-360-0 01 1 0106-0601
322 BRACKET; CLIP
(A) 		1-79996-659-1 01 1 0602-
357 BOLT; CLIP FIX
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0512
357 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
367 BRACKET ASM 1-42119-080-0 01 1 0106-
375 CLIP; AIR PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0106-
375 CLIP; AIR PIPE
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 0106-
375 CLIP; AIR PIPE
(A) ID=7 L=16 		9-09524-625-0 01 1 0106-0202
375 CLIP; AIR PIPE
(A) ID=7 L=16 		9-09524-625-0 02 1 0203-0606
375 CLIP; AIR PIPE
(A) ID=7 L=16 		0-95234-625-0 02 1 0607-
376 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0106-0512
376 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-0206
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0207-

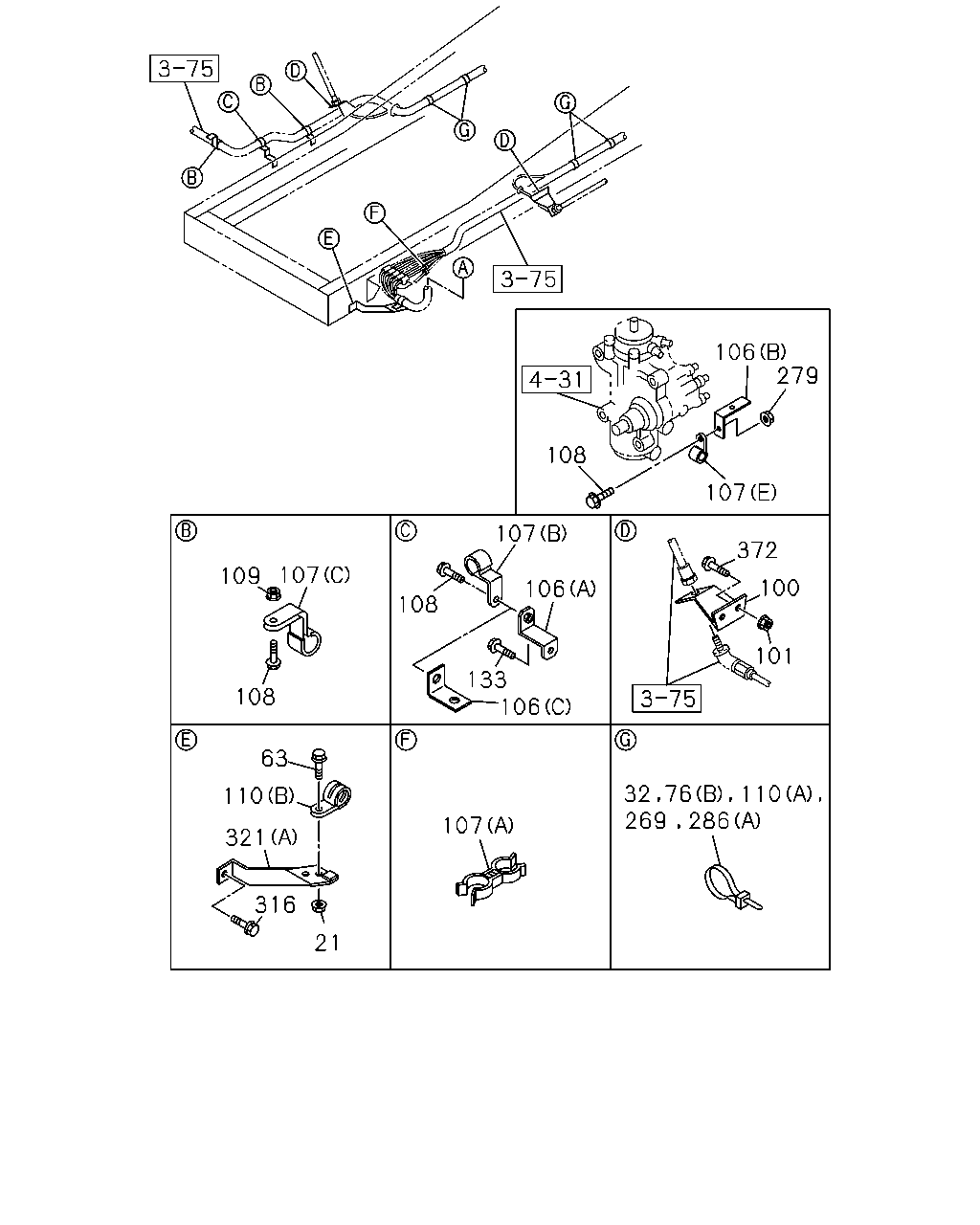

çizim 76166
106 279 108 107 107 372 100 106 108 101 133 106 108 63 110 110 107 321 316 21 109 107 32 76 269 286
BalonParca AdiParca NoAdetTipApplied Date
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
32 CLIP; BAND,RUBBER SLEEVE
ZF M/T<X9E> L=250 		1-09707-126-0 01 1 0305-
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
76 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 07 1 0106-
76 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0106-
76 CLIP; NYLON TUBE
(A) ID=6 & 8.3 		8-94167-742-0 02 1 0106-
100 BRACKET; PIPE CLIP 1-47477-770-0 01 1 0106-
100 BRACKET; PIPE CLIP 1-47477-365-0 01 1 0106-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0106-0602
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
106 BRACKET; TUBE CLIP
(B) L=85 		1-47476-758-0 01 1 0108-
106 BRACKET; TUBE CLIP
(A) 		1-47476-200-0 01 1 0106-0111
106 BRACKET; TUBE CLIP
(C) 		1-47477-694-0 01 1 0112-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (C) ID=31 H=30 L=35 		1-09700-994-0 01 1 0205-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (C) ID=39 H=28 L=32 		1-09701-263-0 02 1 0106-0204
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (C) ID=39 H=28 L=32 		1-09701-263-0 01 1 0205-
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (E) ID=35 L=35 		1-09700-895-0 01 1 0108-
107 CLIP; NYLON TUBE
ZF M/T<X9E> (E) ID=35 L=35 		1-09700-895-0 01 1 0108-
107 CLIP; NYLON TUBE
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) ID=29 L=35 		5-09700-293-1 01 1 0108-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (C) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0106-
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (D) ID=35 H=45 L=33 		1-09701-047-0 03 1 0106-0107
107 CLIP; NYLON TUBE
ZF M/T<X9E> (D) ID=35 H=45 L=33 		1-09701-047-0 03 1 0106-0107
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (D) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
ZF M/T<X9E> (D) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (A) ID=11.8 & 7.5 		1-09709-182-0 01 1 0106-
107 CLIP; NYLON TUBE
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 0106-0107
107 CLIP; NYLON TUBE
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0108-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0205-0512
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0106-0107
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 04 1 0108-0204
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 03 1 0205-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28050-825-0 03 1 0601-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0204
109 NUT; TUBE CLIP
FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0106-0204
109 NUT; TUBE CLIP
FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0205-0602
109 NUT; TUBE CLIP
FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE 		0-91180-108-0 01 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0106-0204
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0205-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0205-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
110 CLIP; BAND,NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=35 L=33 		1-09700-945-0 01 1 0106-
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 24 1 0106-0204
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 21 1 0205-
110 CLIP; BAND,NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=28 L=40 		1-09701-261-0 01 1 0106-
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 20 1 0106-0204
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 25 1 0205-
110 CLIP; BAND,NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140 		5-09707-031-1 02 1 0106-0111
110 CLIP; BAND,NYLON TUBE
(A) L=140 		5-09707-031-1 01 1 0112-
133 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
133 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 0106-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0106-0204
133 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0205-0512
133 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 20 1 0106-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0108-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
286 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ZF M/T<X9E> (B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0106-
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (B) ID=18 L=28 H=30 		1-09701-110-0 01 1 0106-
286 CLIP; NYLON TUBE
ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0106-
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (A) L=250 		1-09707-126-0 02 1 0106-
286 CLIP; NYLON TUBE
ZF M/T<X9E> (A) L=250 		1-09707-126-0 05 1 0106-
316 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0108-0512
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
316 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0106-0512
316 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601-
321 BRACKET; CLIP
(B) L=45 B=20 		1-47477-716-1 01 1 0108-
321 BRACKET; CLIP
(C) 		1-47477-472-1 01 1 0106-
321 BRACKET; CLIP
(B) L=100 		1-47477-645-2 02 1 0106-
321 BRACKET; CLIP
(A) 		1-47477-810-0 01 1 0106-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0106-0512
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
372 BOLT; CLIP BRKT
AIR DRYER<PS7> M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512
372 BOLT; CLIP BRKT
AIR DRYER<PS7> M8X30 FLANGE 		0-28650-830-0 01 1 0601-

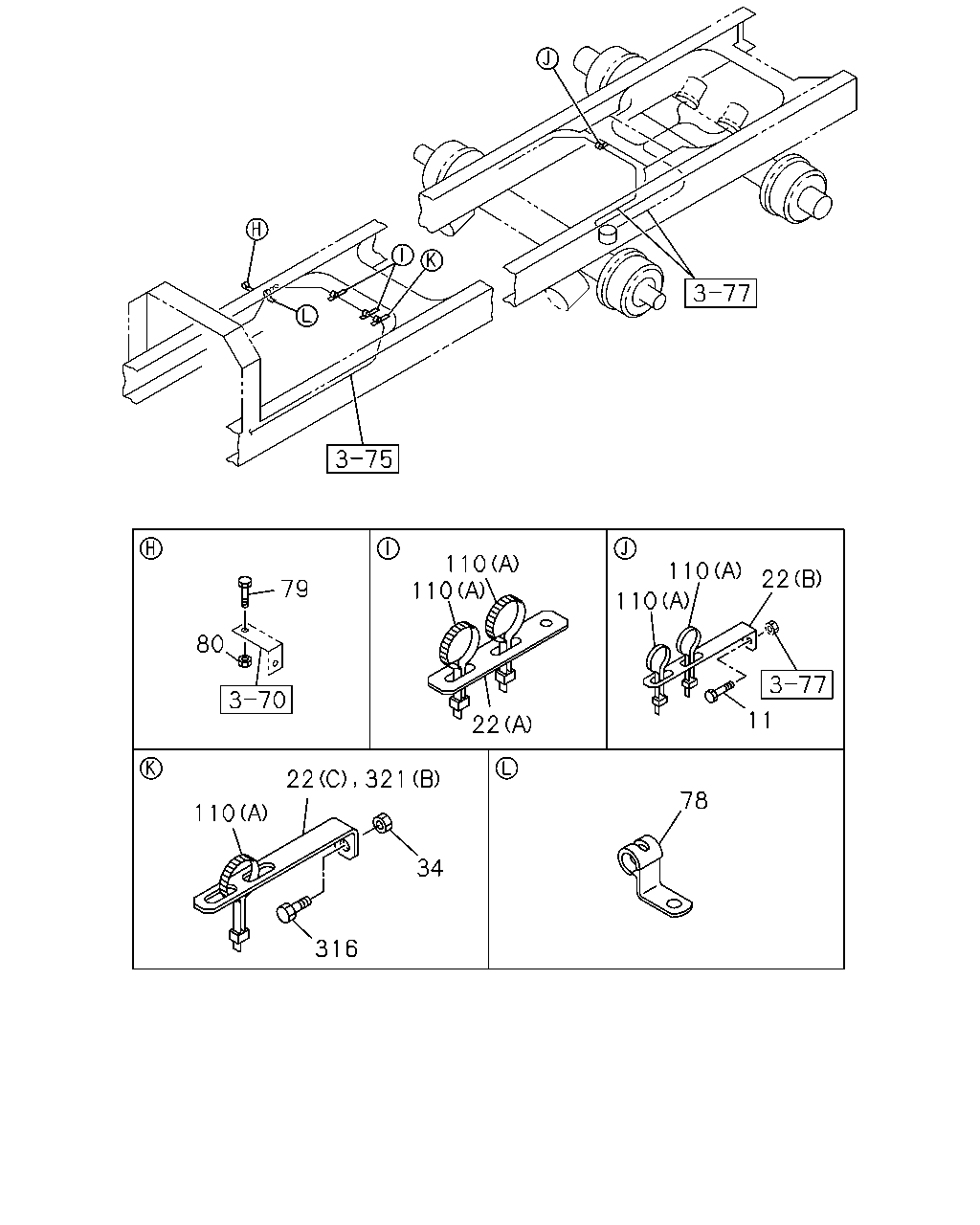

çizim 76255
110 110 110 22 79 110 80 11 22 78 110 34 316 22 321
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0202-0512
11 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
22 BRACKET; CLIP
(B) L=150 		1-47477-629-2 02 1 0202-
22 BRACKET; CLIP
(B) L=150 		1-47477-629-2 01 1 0106-
22 BRACKET; CLIP
(C) L=225 		1-47477-646-3 01 1 0106-
22 BRACKET; CLIP
(A) L=130 		1-47477-975-1 02 1 0106-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0108-0602
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
78 CLIP; AIR PIPE
AIR DRYER<PS7> ID=15 H=24 L=20 		1-09700-606-0 01 1 0106-0112
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0201-
79 BOLT; PIPE CLIP
AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112
79 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0201-0512
79 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
80 NUT; CLIP,AIR PIPE
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0106-0112
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0201-0602
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
110 CLIP; BAND,NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=35 L=33 		1-09700-945-0 01 1 0106-
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 24 1 0106-0204
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 21 1 0205-
110 CLIP; BAND,NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=28 L=40 		1-09701-261-0 01 1 0106-
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 20 1 0106-0204
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 25 1 0205-
110 CLIP; BAND,NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140 		5-09707-031-1 02 1 0106-0111
110 CLIP; BAND,NYLON TUBE
(A) L=140 		5-09707-031-1 01 1 0112-
316 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0108-0512
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
316 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0106-0512
316 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601-
321 BRACKET; CLIP
(B) L=45 B=20 		1-47477-716-1 01 1 0108-
321 BRACKET; CLIP
(C) 		1-47477-472-1 01 1 0106-
321 BRACKET; CLIP
(B) L=100 		1-47477-645-2 02 1 0106-
321 BRACKET; CLIP
(A) 		1-47477-810-0 01 1 0106-

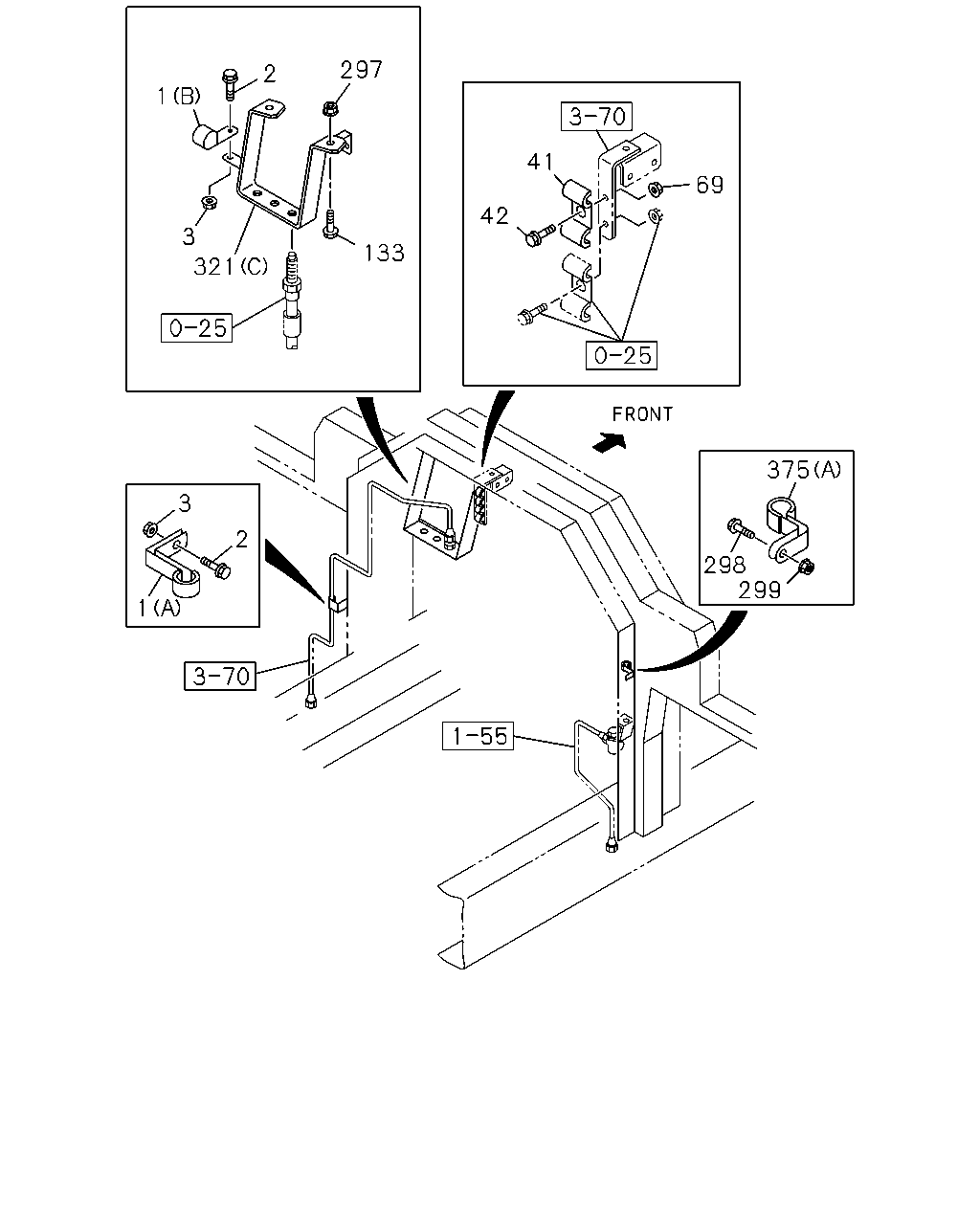

çizim 76998
297 2 1 41 69 42 3 133 321 375 3 2 298 299 1
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0106-
1 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 01 1 0106-0606
1 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 01 1 0607-
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
41 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0106-
42 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
42 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
69 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0106-0602
69 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
133 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
133 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 0106-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0106-0204
133 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0205-0512
133 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
298 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512
298 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
321 BRACKET; CLIP
(B) L=45 B=20 		1-47477-716-1 01 1 0108-
321 BRACKET; CLIP
(C) 		1-47477-472-1 01 1 0106-
321 BRACKET; CLIP
(B) L=100 		1-47477-645-2 02 1 0106-
321 BRACKET; CLIP
(A) 		1-47477-810-0 01 1 0106-
375 CLIP; AIR PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0106-
375 CLIP; AIR PIPE
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 0106-
375 CLIP; AIR PIPE
(A) ID=7 L=16 		9-09524-625-0 01 1 0106-0202
375 CLIP; AIR PIPE
(A) ID=7 L=16 		9-09524-625-0 02 1 0203-0606
375 CLIP; AIR PIPE
(A) ID=7 L=16 		0-95234-625-0 02 1 0607-

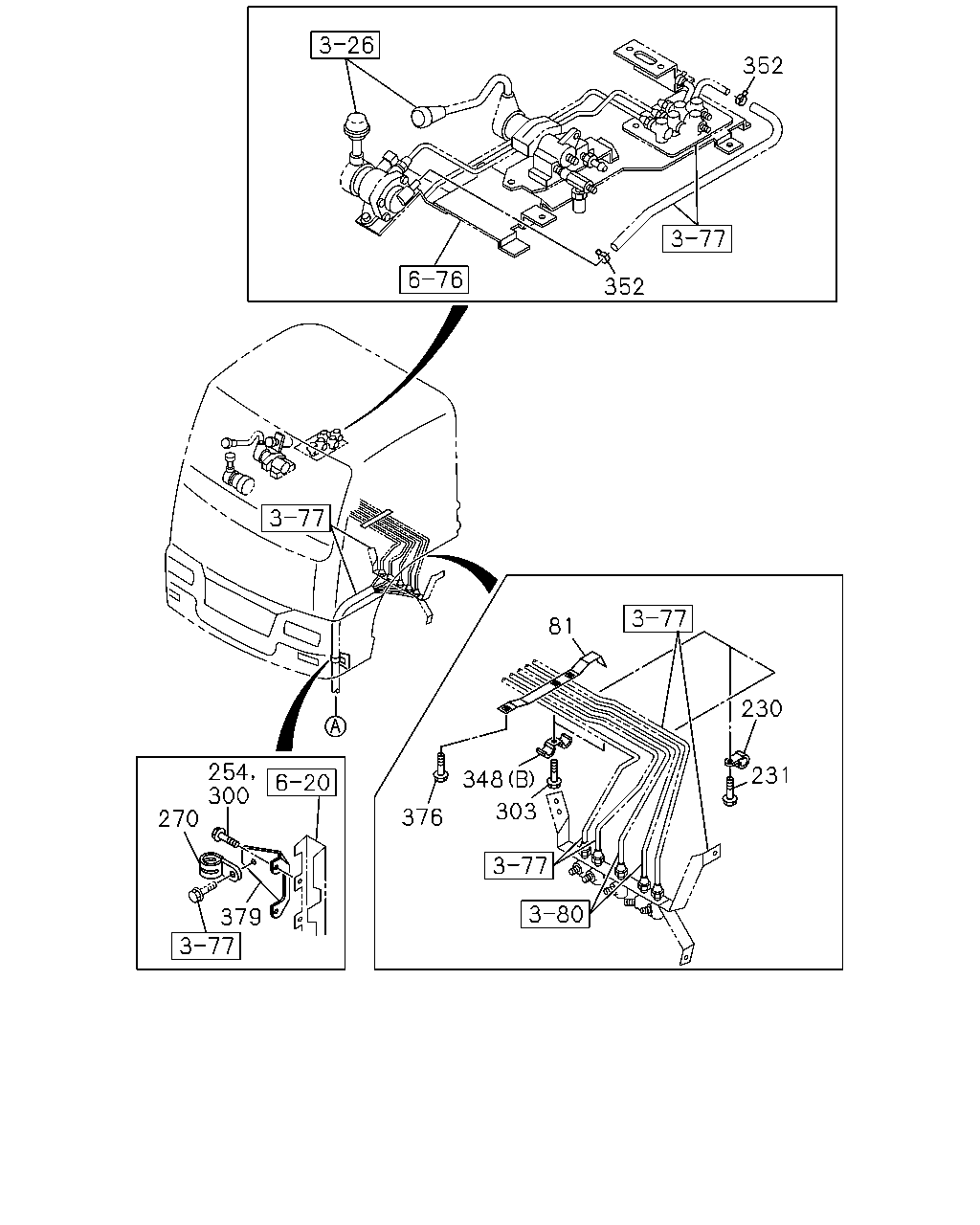

çizim 78531
352 352 81 230 254 300 270 231 348 303 376 379
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP 1-47477-483-0 01 1 0106-
230 CLIP; PIPE,AIR
ID=9 L=16 		9-09524-822-0 02 1 0106-0606
230 CLIP; PIPE,AIR
ID=9 L=16 		0-95234-822-0 02 1 0607-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
254 BOLT; PIPE CLIP
M8X20 W/LK&PL WASHER 		8-94279-208-0 05 1 0106-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 05 1 0205-0205
254 BOLT; PIPE CLIP
M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 0106-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
270 CLIP; NYLON TUBE
ID=35 L=33 		1-09700-945-0 02 1 0106-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0206-
300 BOLT; TUBE CLIP
M8X20 W/LK&PL WASHER 		8-94279-208-0 03 1 0206-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
348 CLIP; AIR PIPE
(B) ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0106-
348 CLIP; AIR PIPE
(A) ID=13X2 L=16 		9-09535-225-0 02 1 0106-0606
348 CLIP; AIR PIPE
(A) ID=13X2 L=16 		0-95325-225-0 02 1 0607-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0106-
376 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 0106-0512
376 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-0206
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0207-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0106-
çizim 80772
39 266 319 294 370 375 295 107 369 27 286 348 319 371 372
BalonParca AdiParca NoAdetTipApplied Date
27 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0106-
39 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=15 H=24 L=20 		1-09700-606-0 01 1 0201-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (C) ID=31 H=30 L=35 		1-09700-994-0 01 1 0205-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (C) ID=39 H=28 L=32 		1-09701-263-0 02 1 0106-0204
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (C) ID=39 H=28 L=32 		1-09701-263-0 01 1 0205-
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (E) ID=35 L=35 		1-09700-895-0 01 1 0108-
107 CLIP; NYLON TUBE
ZF M/T<X9E> (E) ID=35 L=35 		1-09700-895-0 01 1 0108-
107 CLIP; NYLON TUBE
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) ID=29 L=35 		5-09700-293-1 01 1 0108-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (C) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0106-
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (D) ID=35 H=45 L=33 		1-09701-047-0 03 1 0106-0107
107 CLIP; NYLON TUBE
ZF M/T<X9E> (D) ID=35 H=45 L=33 		1-09701-047-0 03 1 0106-0107
107 CLIP; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FULLER M/T<X9B> (D) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
ZF M/T<X9E> (D) ID=35 H=45 L=33 		1-09701-047-0 02 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (A) ID=11.8 & 7.5 		1-09709-182-0 01 1 0106-
107 CLIP; NYLON TUBE
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 0106-0107
107 CLIP; NYLON TUBE
FULLER M/T<X9B> EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0108-
266 CLIP; NYLON TUBE
AIR DRYER<PS7> ID=18 H=23 L=28 		1-09700-860-0 01 1 0106-0201
266 CLIP; NYLON TUBE
AIR DRYER<PS7> ID=21 L=30 H=40 		1-09700-991-1 01 1 0202-
286 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ZF M/T<X9E> (B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0106-
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (B) ID=18 L=28 H=30 		1-09701-110-0 01 1 0106-
286 CLIP; NYLON TUBE
ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0106-
286 CLIP; NYLON TUBE
FULLER M/T<X9B> (A) L=250 		1-09707-126-0 02 1 0106-
286 CLIP; NYLON TUBE
ZF M/T<X9E> (A) L=250 		1-09707-126-0 05 1 0106-
294 NUT; CLIP,AIR PIPE
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0106-0602
294 NUT; CLIP,AIR PIPE
AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603-
295 NUT; CLIP,AIR PIPE
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0106-0112
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0201-0602
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
319 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0106-
319 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-47478-462-0 01 1 0106-
348 CLIP; AIR PIPE
(B) ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0106-
348 CLIP; AIR PIPE
(A) ID=13X2 L=16 		9-09535-225-0 02 1 0106-0606
348 CLIP; AIR PIPE
(A) ID=13X2 L=16 		0-95325-225-0 02 1 0607-
369 CLIP; AIR PIPE
AIR DRYER<PS7> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0106-
370 BRACKET; PIPE CLIP
AIR DRYER<PS7> 		1-47477-669-1 01 1 0106-
371 BOLT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0201-0512
371 BOLT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0106-0512
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
372 BOLT; CLIP BRKT
AIR DRYER<PS7> M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512
372 BOLT; CLIP BRKT
AIR DRYER<PS7> M8X30 FLANGE 		0-28650-830-0 01 1 0601-
375 CLIP; AIR PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0106-
375 CLIP; AIR PIPE
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 0106-
375 CLIP; AIR PIPE
(A) ID=7 L=16 		9-09524-625-0 01 1 0106-0202
375 CLIP; AIR PIPE
(A) ID=7 L=16 		9-09524-625-0 02 1 0203-0606
375 CLIP; AIR PIPE
(A) ID=7 L=16 		0-95234-625-0 02 1 0607-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
