3-77 — BRAKE PIPING; AIR,REAR (#11745) — 141 parça

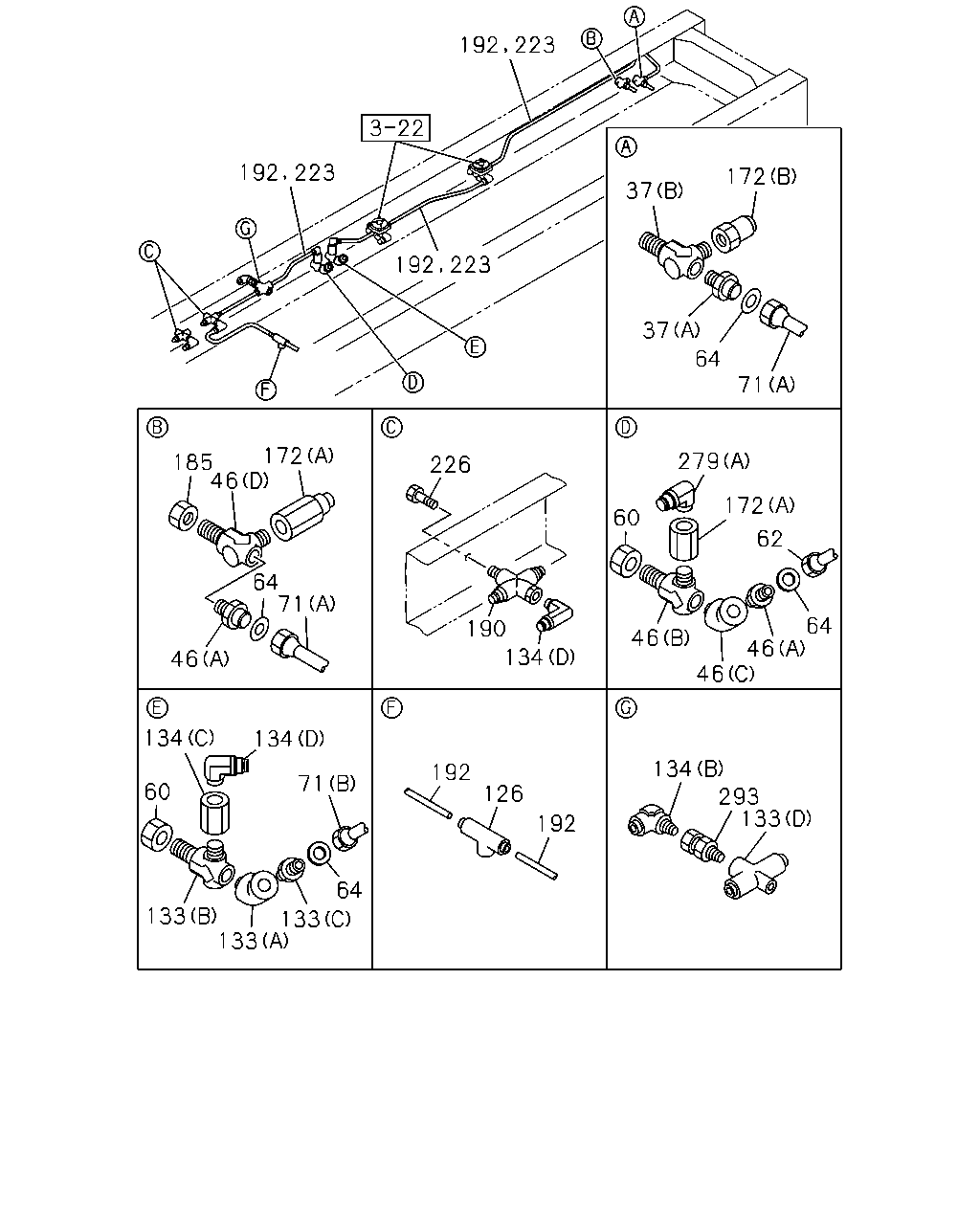

çizim 21509
172 37 37 64 71 172 185 46 279 226 172 60 62 64 71 64 190 46 46 46 134 46 134 134 134 293 133 192 71 60 126 192 64 133 133 133 192 223 192 223 192 223
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0106-0109
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0110-
37 UNION; AIR PIPE
(B) 		1-09650-251-1 01 1 0106-0109
37 UNION; AIR PIPE
(B) 		1-09650-251-1 02 1 0110-
46 NIPPLE; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0106-0109
46 NIPPLE; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0110-
46 NIPPLE; AIR PIPE
(B) 		1-09650-251-1 01 1 0106-
46 NIPPLE; AIR PIPE
(D) M14X35 		1-09650-272-2 01 1 0106-0109
46 NIPPLE; AIR PIPE
(C) 		1-09664-209-0 01 1 0106-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 04 1 0106-0512
60 NUT; NIPPLE,AIR PIPE
M20 		0-91111-520-0 04 1 0601-
62 HOSE; FLEX,FWD RR
L=630 		0-07909-630-0 01 1 0106-0607
62 HOSE; FLEX,FWD RR
L=630 		0-57909-630-0 01 1 0608-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 08 1 0106-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 02 1 0106-0607
71 HOSE; FLEX,RWD RR
(A) L=550 		0-57909-550-0 02 1 0608-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0106-0607
71 HOSE; FLEX,RWD RR
(B) L=630 		0-57909-630-0 01 1 0608-
126 UNION; NYLON TUBE 1-09661-133-0 01 1 0106-
133 UNION; NIPPLE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0106-
133 UNION; NIPPLE
(B) 		1-09650-251-1 01 1 0106-
133 UNION; NIPPLE
(D) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0106-
133 UNION; NIPPLE
(C) 		1-09664-209-0 01 1 0106-
134 CONNECTOR
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0110-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0106-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0106-0109
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0110-0110
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0110-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0110-0110
134 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0111-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0109
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0110-
172 ADAPTER; UNION
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0106-
172 ADAPTER; UNION
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0106-
185 NUT; NIPPLE
M20 		9-99111-420-0 01 1 0106-0512
185 NUT; NIPPLE
M20 		0-91111-520-0 01 1 0601-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0106-0109
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0106-0109
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0110-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0110-0512
226 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 0106-
279 UNION; AIR PIPE
(C) M14X35 		1-09650-272-2 01 1 0106-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0106-
279 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
293 VALVE; CHECK 1-48320-013-2 01 1 0106-

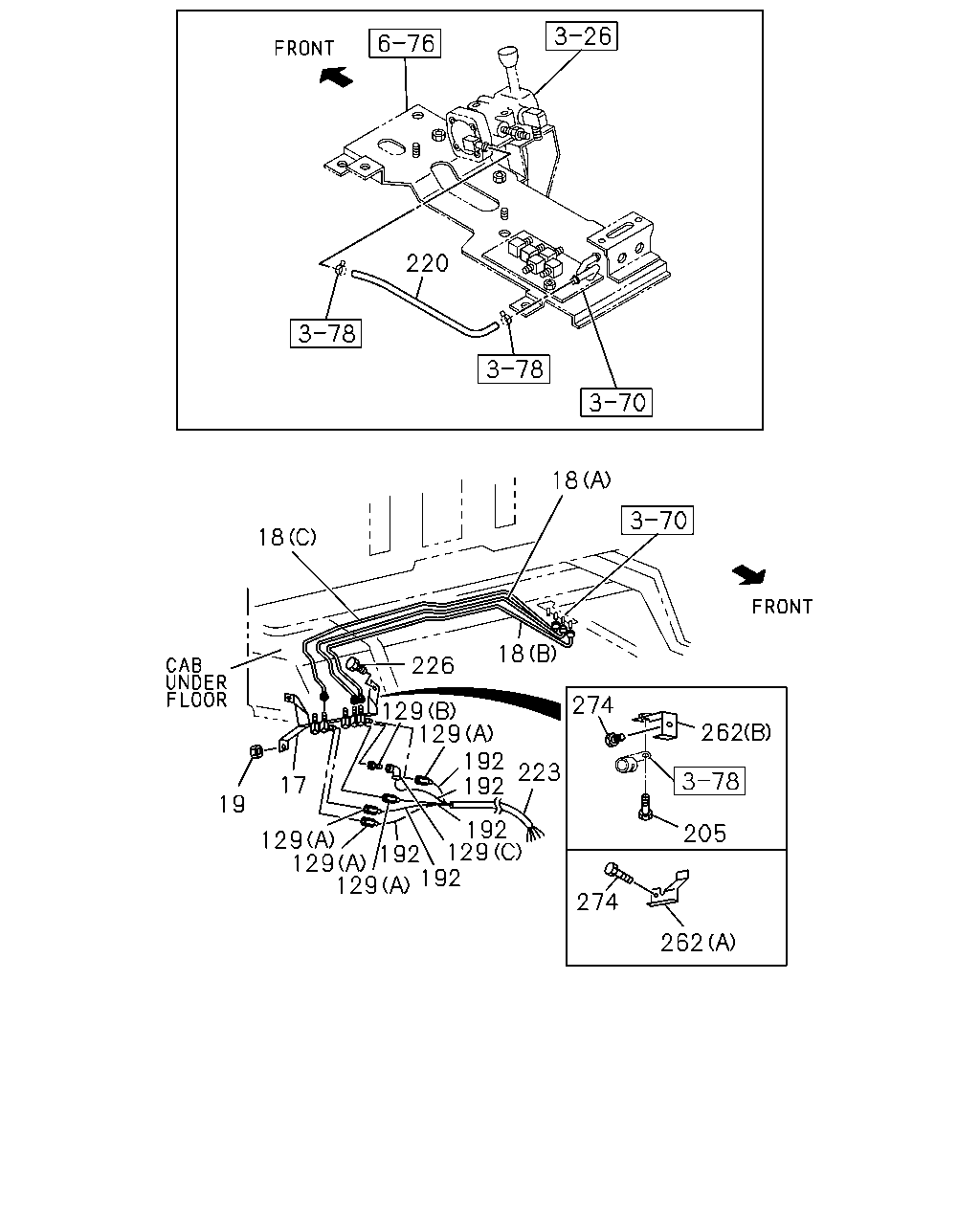

çizim 76079
220 18 18 226 129 129 192 223 192 18 274 262 17 19 192 129 192 129 129 192 129 205 274 262
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE 1-47470-453-2 01 1 0106-
18 PIPE; AIR,UNION TO UNION
(A) L=1800 		1-49121-052-0 01 1 0106-
18 PIPE; AIR,UNION TO UNION
(B) L=1854 		1-49121-053-0 01 1 0106-
18 PIPE; AIR,UNION TO UNION
(C) L=1982 		1-49121-055-1 01 1 0106-
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0106-0512
19 NUT; PIPE UNION
M8 		0-91110-508-0 01 1 0601-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 0106-0203
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0204-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0106
129 CONNECTOR; NYLON TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
(C) DIN12 ID=15.4 ELBOW 		1-09661-079-0 01 1 0106-0106
129 CONNECTOR; NYLON TUBE
FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-
129 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (C) DIN12 ID=15.4 ELBOW 		1-09661-079-1 01 1 0107-
129 CONNECTOR; NYLON TUBE
(B) 		1-09661-083-0 01 1 0106-0106
129 CONNECTOR; NYLON TUBE
FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) 		1-09661-083-0 01 1 0107-
129 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) 		1-09661-083-0 01 1 0107-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0107-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0106-0512
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
220 HOSE; VINYL,EXH,PARKING BRK VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0106
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0106
220 HOSE; VINYL,EXH,PARKING BRK VLV
FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
220 HOSE; VINYL,EXH,PARKING BRK VLV
ZF M/T<X9E> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0107-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106-0109
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0110-0512
226 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
226 BOLT; UNION
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 0106-
262 BRACKET
(B) 		1-79996-143-0 01 1 0106-
262 BRACKET
(A) 		1-79996-144-0 01 1 0106-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0512
274 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0106-

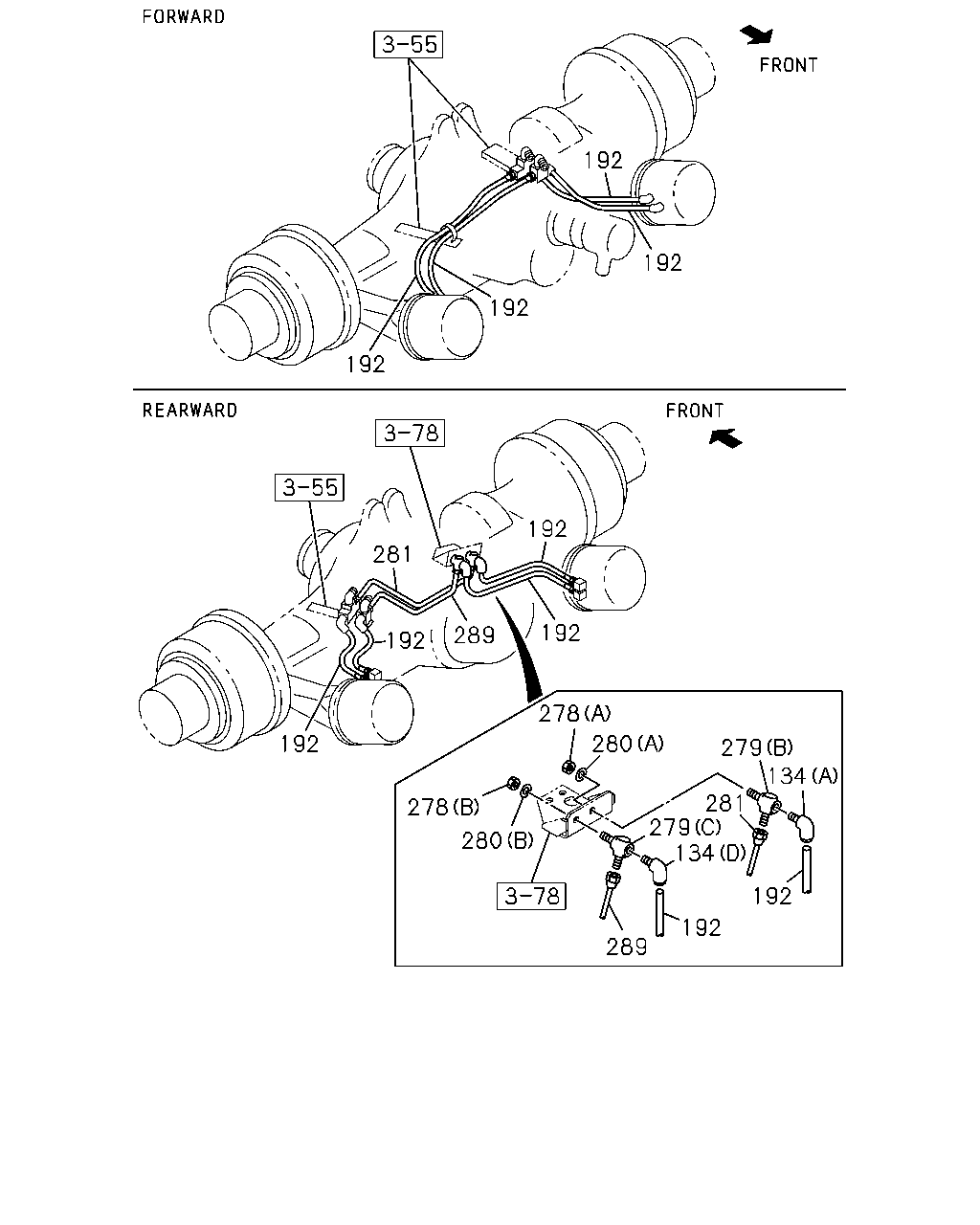

çizim 78863
192 192 192 192 192 281 192 289 192 278 280 192 279 134 278 280 281 279 134 192 192 289
BalonParca AdiParca NoAdetTipApplied Date
134 CONNECTOR
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0110-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0106-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0106-0109
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0110-0110
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0110-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0110-0110
134 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0111-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0109
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-0109
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0110-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0107-
278 NUT; UNION
(A) M16 		9-99111-416-0 01 1 0106-0512
278 NUT; UNION
(A) M16 		0-91111-516-0 01 1 0601-
278 NUT; UNION
(B) M20 		9-99111-420-0 01 1 0106-0512
278 NUT; UNION
(B) M20 		0-91111-520-0 01 1 0601-
279 UNION; AIR PIPE
(C) M14X35 		1-09650-272-2 01 1 0106-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0106-
279 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
280 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0106-0603
280 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 0604-
280 WASHER; LK
(B) ID=20.2 		9-09150-520-0 01 1 0106-0603
280 WASHER; LK
(B) ID=20.2 		0-91510-520-0 01 1 0604-
281 PIPE; AIR,EMERGENCY 1-49117-109-0 01 1 0106-
289 PIPE; AIR,MODULATOR TO RELAY VLV 1-49117-108-0 01 1 0106-
