Isuzu WW
▶
PICKUP
▶
TFR
▶
51474 - TFR/TFS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#117449) — 62 parça
Tümü
A - 4JK1-TCY ENG
B - 4JJ1-TCS ENG
C - 4JK1-TCS ENG
D - 4JK1-TCX ENG
E - 4JJ1-TCX ENG
F - 4JA1-T ENG
◀

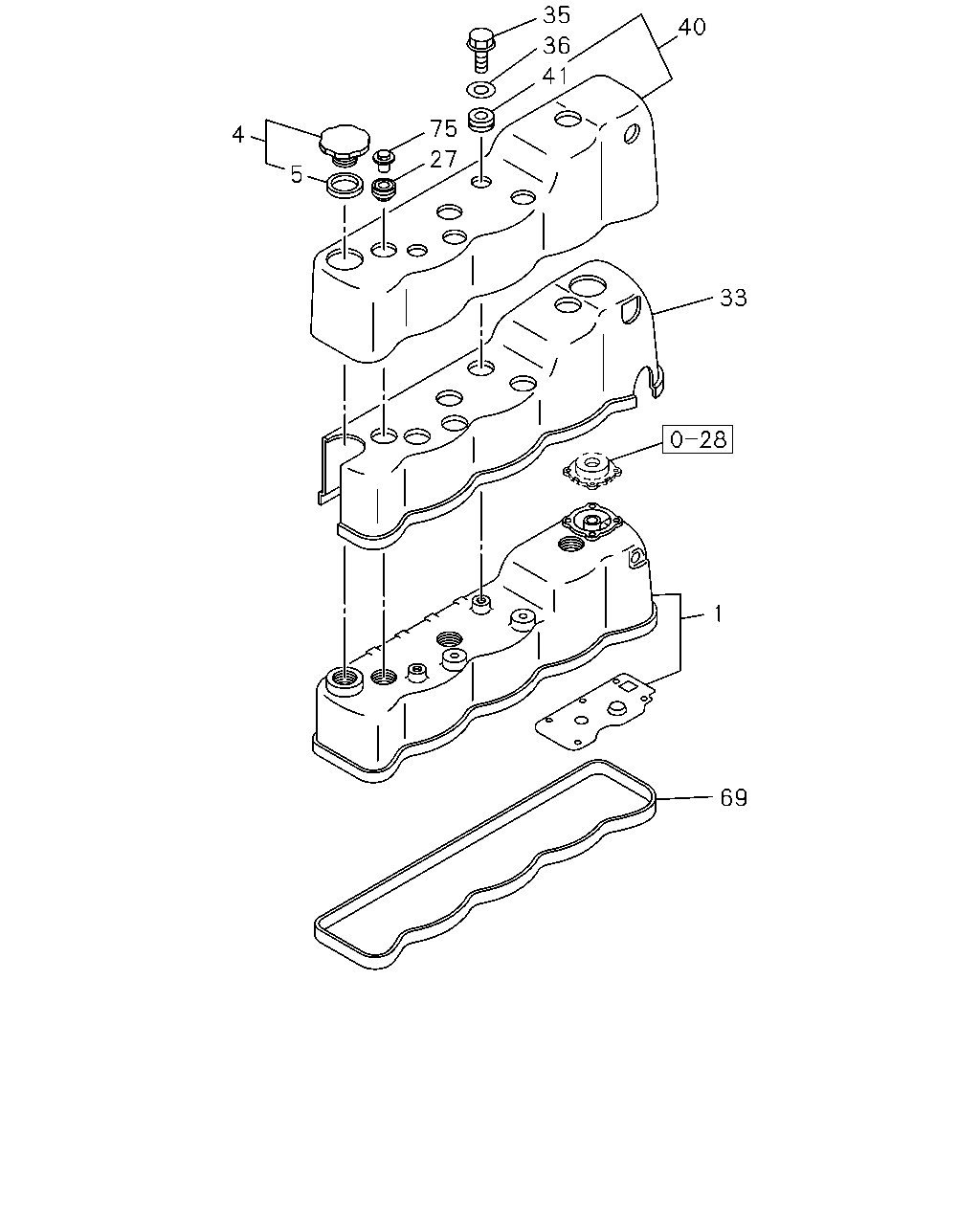

[010A] 4JA1 (16 parça)

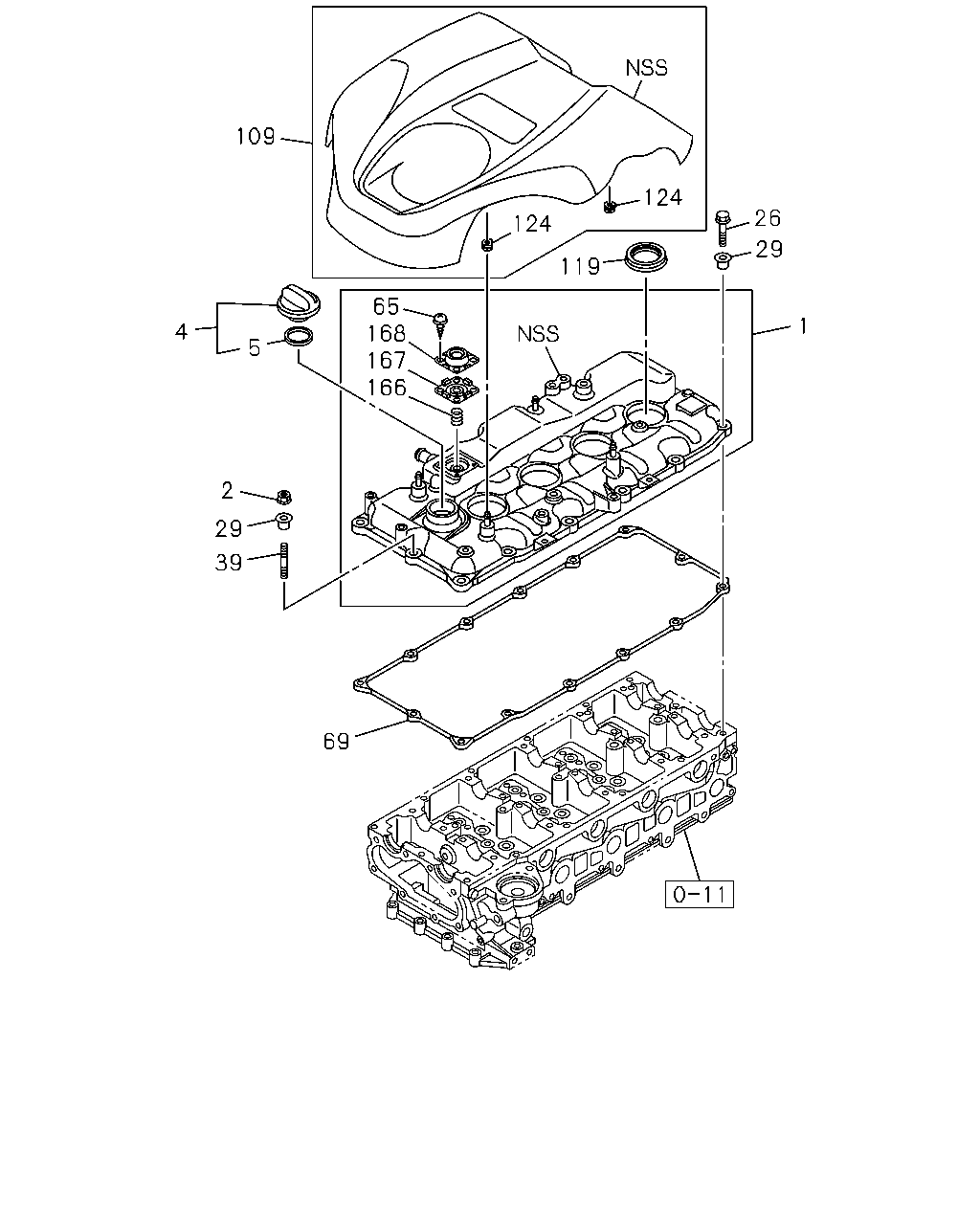

[010A] 4JJ1,4JK1-TCS,4JK1-TCX (23 parça)

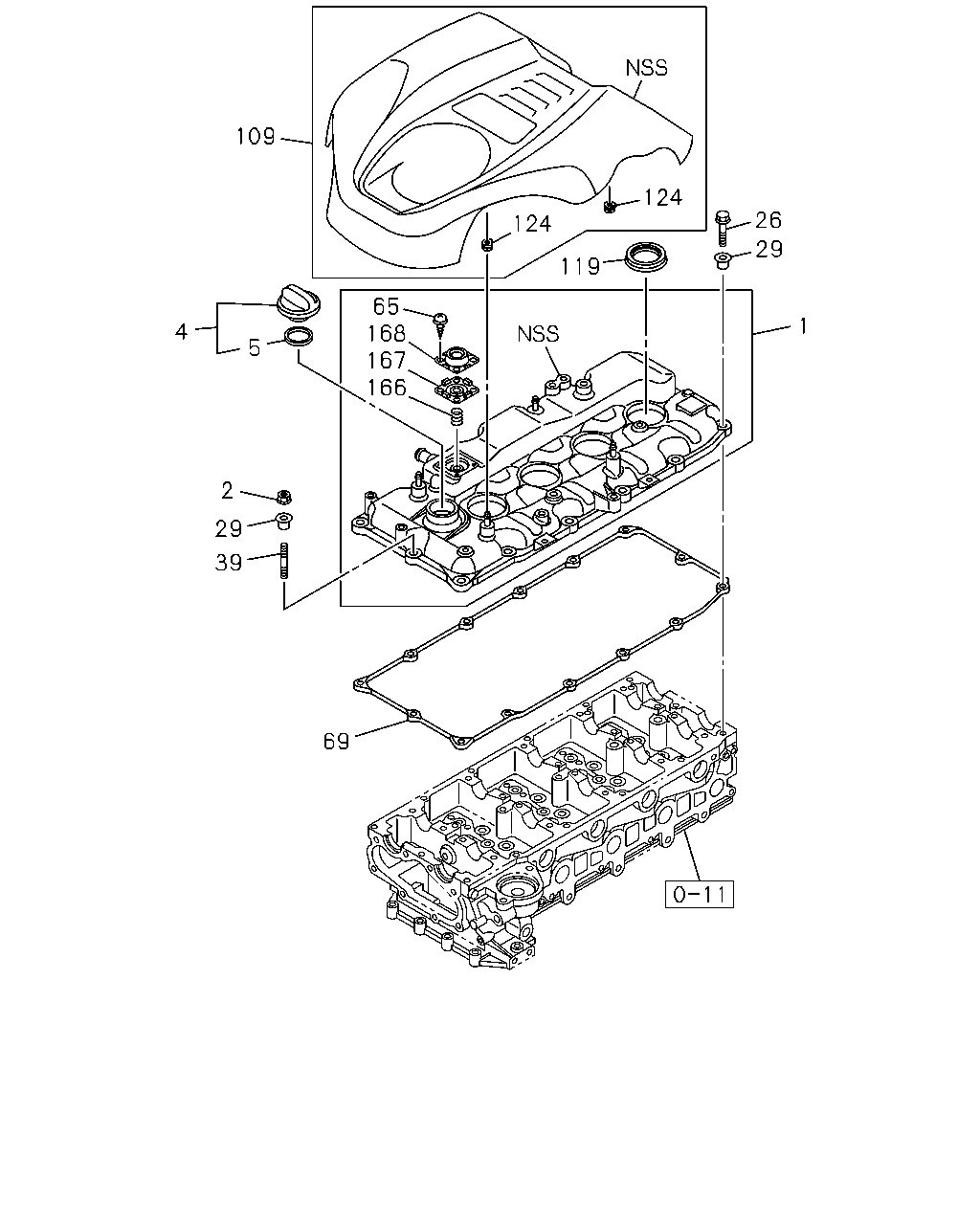

[010A] 4JK1-TCY (23 parça)
▶
69
1
33
40
35
41
36
27
75
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
00.386 COVER; CYL HD
8-98228-567-0
01
1
1304-
●
1
00.386 COVER; CYL HD
8-98136-060-5
01
1
1304-
●
●
●
●
1
00.386 COVER; CYL HD
8-94433-742-2
01
1
1304-
●
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1304-
●
4
01.758 CAP; OIL FILLER
8-98026-084-0
01
1
1304-
●
●
●
●
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1304-
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-97918-298-0
01
1
1304-
●
●
●
●
●
27
00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5
8-97263-801-1
03
1
1304-
●
33
00.386 RUBBER; SPACE,CYL HD COVER
8-97365-746-0
01
1
1304-
●
35
00.293 BOLT; NOISE SHIELD COVER
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1304-
●
36
00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6
9-09651-112-0
02
1
1304-
●
40
00.386 COVER
8-97043-018-0
01
1
1304-
●
41
00.413 GROMMET; HD COVER,OUTER
8-94256-959-0
02
1
1304-
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD)
8-97349-416-1
01
1
1304-
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD)
8-97945-338-0
01
1
1304-
●
●
●
●
●
75
00.413 NUT; CAP,HD COVER
M8 OD=19
8-94158-108-0
03
1
1304-
●
1
29
26
124
124
65
166
167
168
119
109
4
5
2
39
29
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
00.386 COVER; CYL HD
8-98228-567-0
01
1
1304-
●
1
00.386 COVER; CYL HD
8-98136-060-5
01
1
1304-
●
●
●
●
1
00.386 COVER; CYL HD
8-94433-742-2
01
1
1304-
●
2
00.413 NUT; COVER,HD
01.540 M6 FLANGE
0-91180-206-0
01
1
1304-
●
●
●
●
●
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1304-
●
4
01.758 CAP; OIL FILLER
8-98026-084-0
01
1
1304-
●
●
●
●
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1304-
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-97918-298-0
01
1
1304-
●
●
●
●
●
26
08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE
0-28650-630-0
13
1
1304-
●
●
●
●
●
29
00.413 RUBBER; MTG,HD COVER
8-97361-811-1
14
1
1304-
●
●
●
●
●
39
00.413 STUD; COVER,HD
M6X30 L=38
0-41010-630-0
01
1
1304-
●
●
●
●
●
65
00.413 SCREW; ADAPTER
M5X10 W/LK WASHER
8-97366-592-0
04
1
1304-
●
●
●
●
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD)
8-97349-416-1
01
1
1304-
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD)
8-97945-338-0
01
1
1304-
●
●
●
●
●
109
00.386 COVER; ENG
ENG SIGHT SHIELD<8LQ>
8-98147-402-0
01
1
1304-
●
●
●
●
109
00.386 COVER; ENG
8-98178-310-0
01
1
1304-1403
●
109
00.386 COVER; ENG
ENG SIGHT SHIELD<8LQ>
8-98178-310-0
01
1
1404-
●
119
00.386 COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1304-
●
●
●
●
●
124
00.413 RUBBER; MTG,COVER
8-98269-869-0
04
1
1304-
●
●
●
●
●
166
00.283 SPRING; VENTILATOR
00.423
8-97365-998-0
01
1
1304-
●
●
●
●
●
167
00.283 DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1304-1304
●
167
00.283 DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1304-
●
●
●
●
●
168
00.283 COVER; VENTILATOR
00.269
8-97365-992-0
01
1
1304-
●
●
●
●
●
69
39
2
29
5
4
166
167
168
65
119
1
29
26
124
124
109
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
00.386 COVER; CYL HD
8-98228-567-0
01
1
1304-
●
1
00.386 COVER; CYL HD
8-98136-060-5
01
1
1304-
●
●
●
●
1
00.386 COVER; CYL HD
8-94433-742-2
01
1
1304-
●
2
00.413 NUT; COVER,HD
01.540 M6 FLANGE
0-91180-206-0
01
1
1304-
●
●
●
●
●
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1304-
●
4
01.758 CAP; OIL FILLER
8-98026-084-0
01
1
1304-
●
●
●
●
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1304-
●
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-97918-298-0
01
1
1304-
●
●
●
●
●
26
08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE
0-28650-630-0
13
1
1304-
●
●
●
●
●
29
00.413 RUBBER; MTG,HD COVER
8-97361-811-1
14
1
1304-
●
●
●
●
●
39
00.413 STUD; COVER,HD
M6X30 L=38
0-41010-630-0
01
1
1304-
●
●
●
●
●
65
00.413 SCREW; ADAPTER
M5X10 W/LK WASHER
8-97366-592-0
04
1
1304-
●
●
●
●
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD)
8-97349-416-1
01
1
1304-
●
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD)
8-97945-338-0
01
1
1304-
●
●
●
●
●
109
00.386 COVER; ENG
ENG SIGHT SHIELD<8LQ>
8-98147-402-0
01
1
1304-
●
●
●
●
109
00.386 COVER; ENG
8-98178-310-0
01
1
1304-1403
●
109
00.386 COVER; ENG
ENG SIGHT SHIELD<8LQ>
8-98178-310-0
01
1
1404-
●
119
00.386 COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1304-
●
●
●
●
●
124
00.413 RUBBER; MTG,COVER
8-98269-869-0
04
1
1304-
●
●
●
●
●
166
00.283 SPRING; VENTILATOR
00.423
8-97365-998-0
01
1
1304-
●
●
●
●
●
167
00.283 DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1304-1304
●
167
00.283 DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1304-
●
●
●
●
●
168
00.283 COVER; VENTILATOR
00.269
8-97365-992-0
01
1
1304-
●
●
●
●
●
