Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#117446) — 321 parça

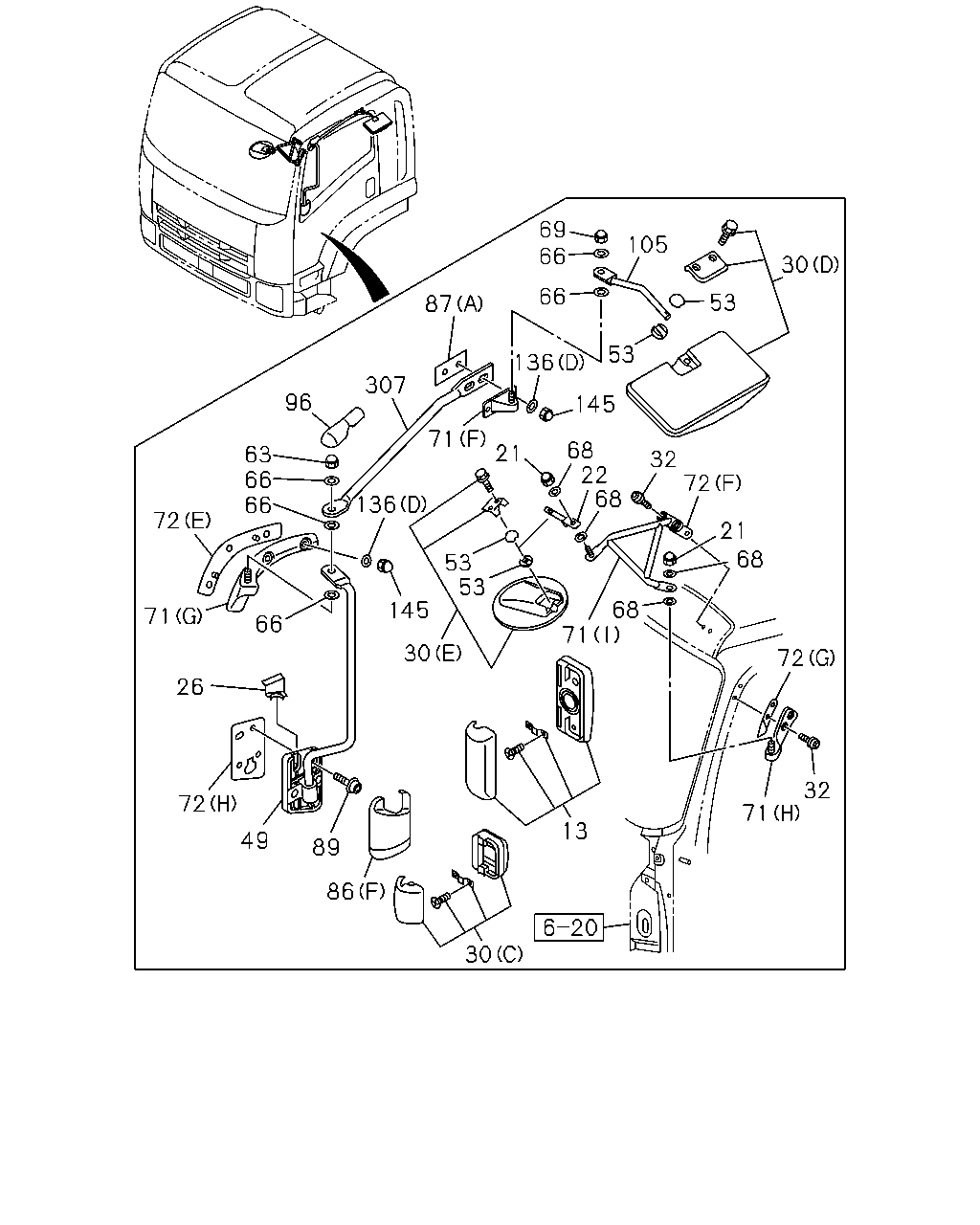

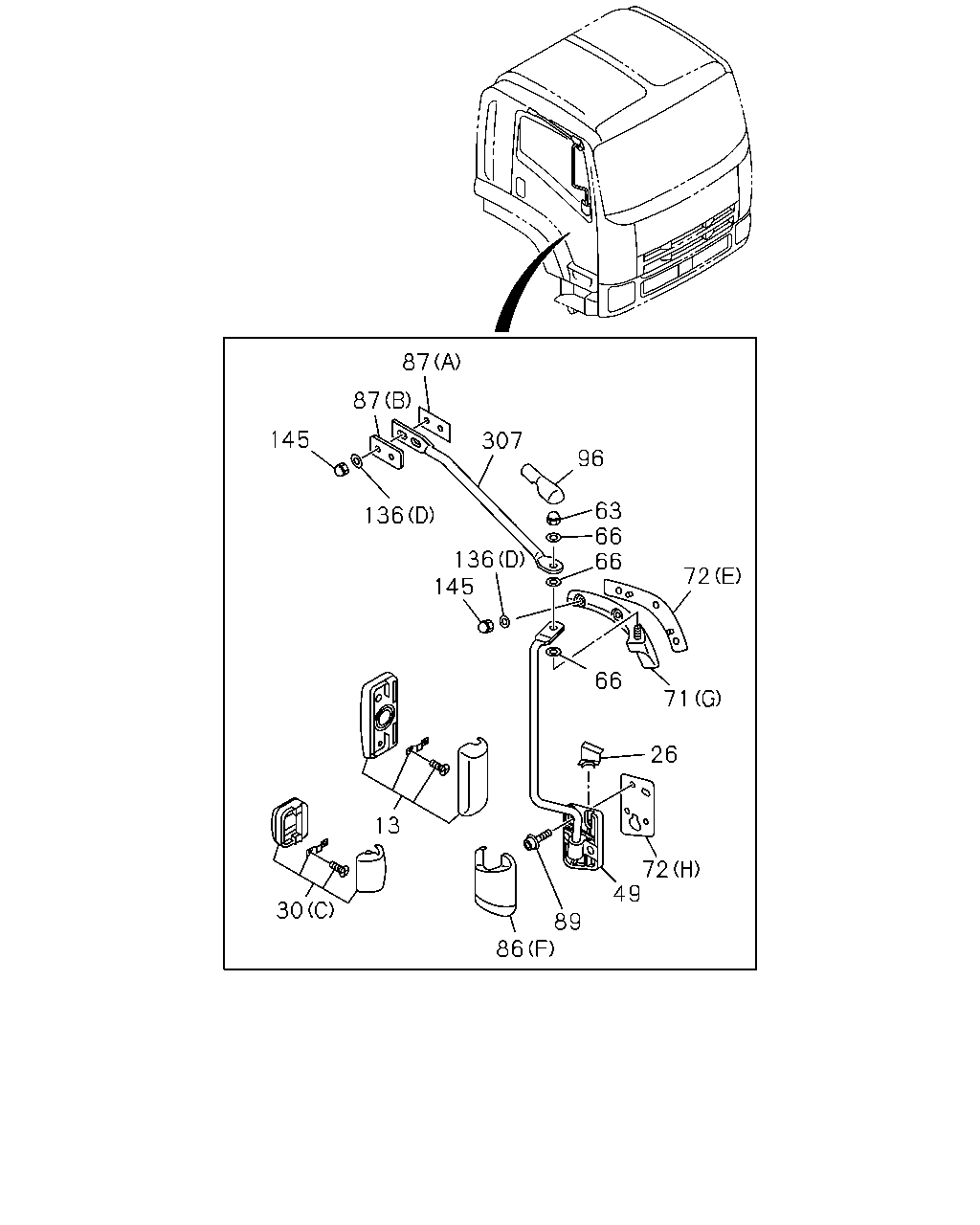

13 53 53 71 26 25 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1304-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1304-	●	●
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98045-690-0	01	1	1304-	●	●
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98108-511-0	01	1	1304-	●	●
25	SCREW; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6X40	1-71707-223-0	04	1	1304-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-805-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-806-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-222-0	01	1	1304-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-221-0	01	1	1304-	●	●
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	04	1	1304-	●	●
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	04	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	1-71798-484-1	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-793-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-794-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-224-0	04	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-022-1	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98201-957-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-021-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-543-1	01	1	1304-	●	●

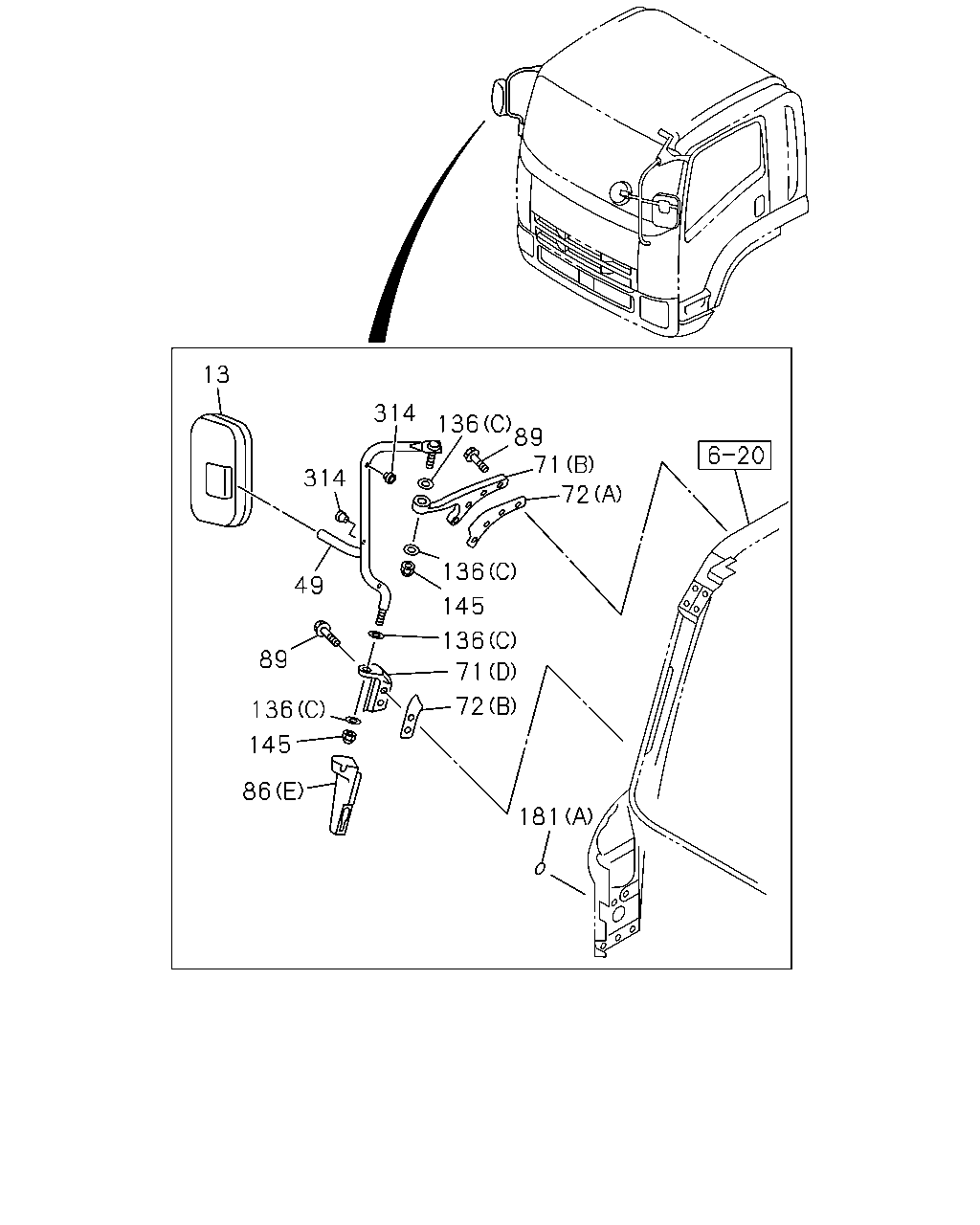

13 314 314 136 71 89 72 181 136 145 136 71 72 49 89 136 145 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1304-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1304-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1310-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1310-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1304-1402	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-749-0	01	1	1403-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1304-1502	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	1-71798-484-1	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-793-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-794-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-224-0	04	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-022-1	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98201-957-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-021-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-543-1	01	1	1304-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1304-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1310-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1310-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1304-	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1310-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1304-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1304-	●	●
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1304-	●	●
314	BUFFER; STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94314-317-0	02	1	1304-	●	●

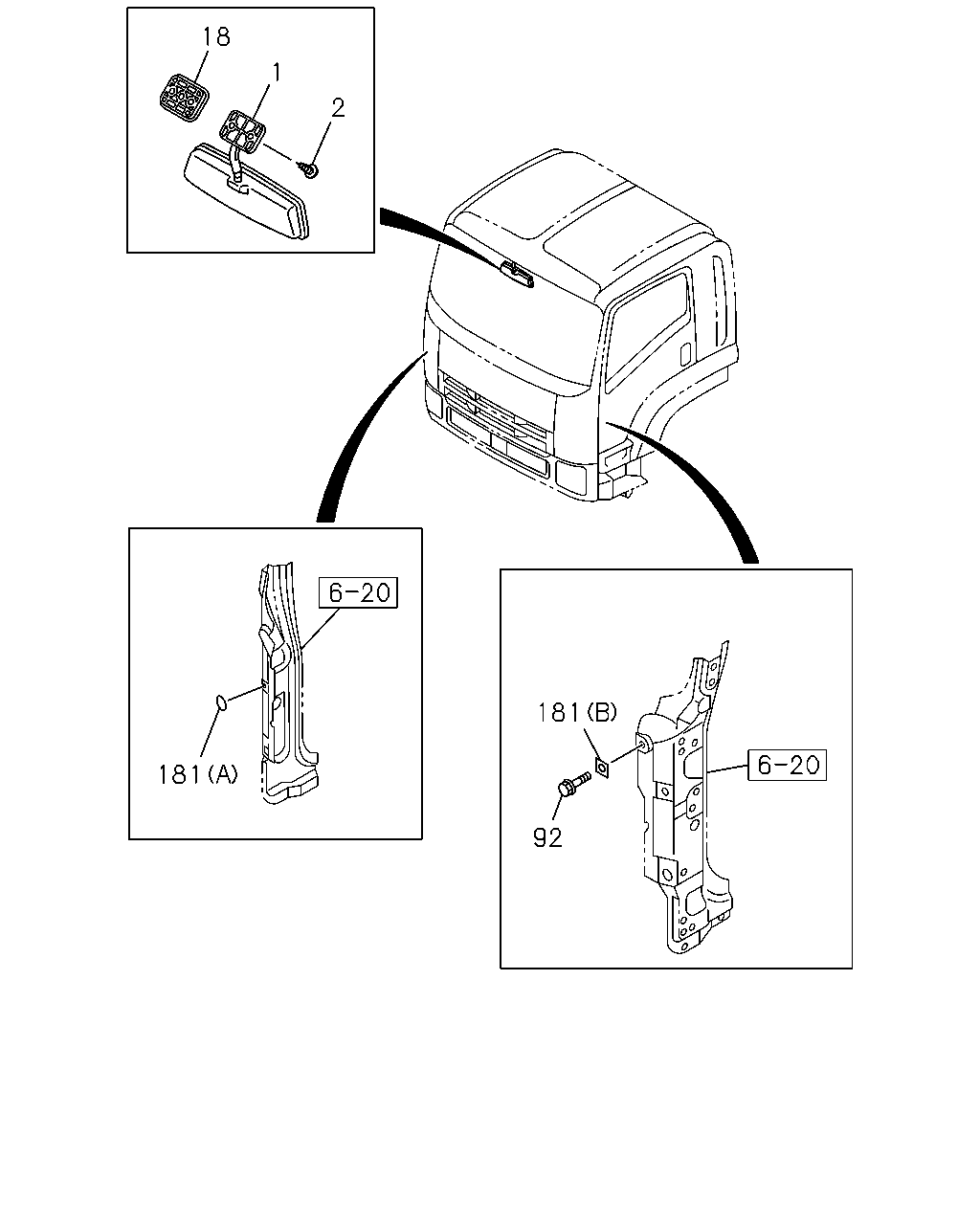

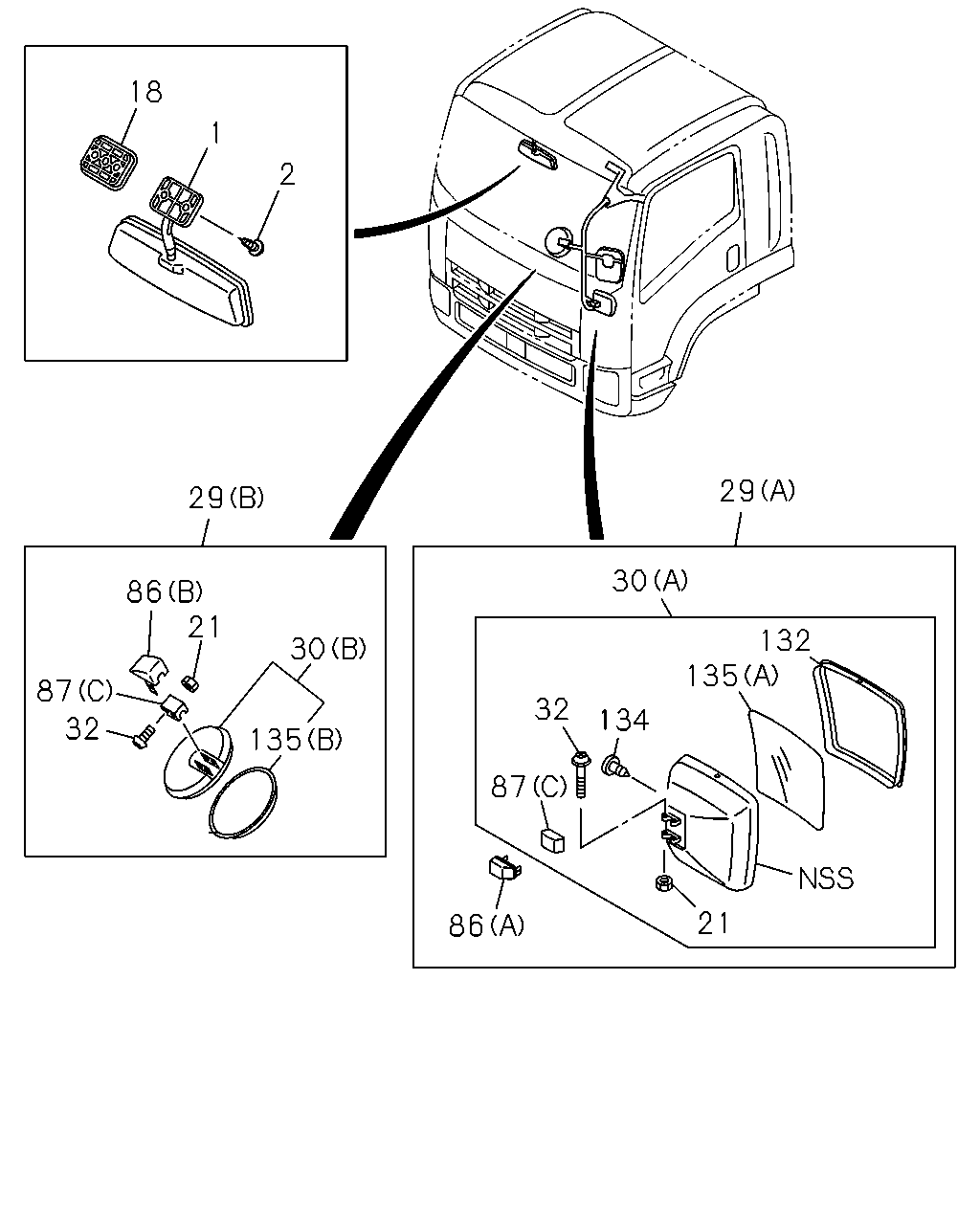

1 18 2 29 86 21 30 87 32 135 86 87 134 32 30 29 132 135 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1304-	●	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1304-	●	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1304-	●	●
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1310-	●	●
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5	1-09984-124-0	04	1	1304-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-421-1	01	1	1304-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1304-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98043-061-0	02	1	1310-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98043-065-0	01	1	1310-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98055-994-0	01	1	1310-1504	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98309-725-0	01	1	1505-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1304-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-592-1	01	1	1304-	●	●
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	04	1	1310-	●	●
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER	1-71737-797-0	04	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1304-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1310-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1310-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1304-	●	●
132	RING; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71737-935-0	01	1	1304-	●	●
134	CLIP; MIRROR LENS MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71737-936-0	01	1	1304-	●	●
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71737-929-0	01	1	1304-	●	●
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-838-0	01	1	1304-	●	●

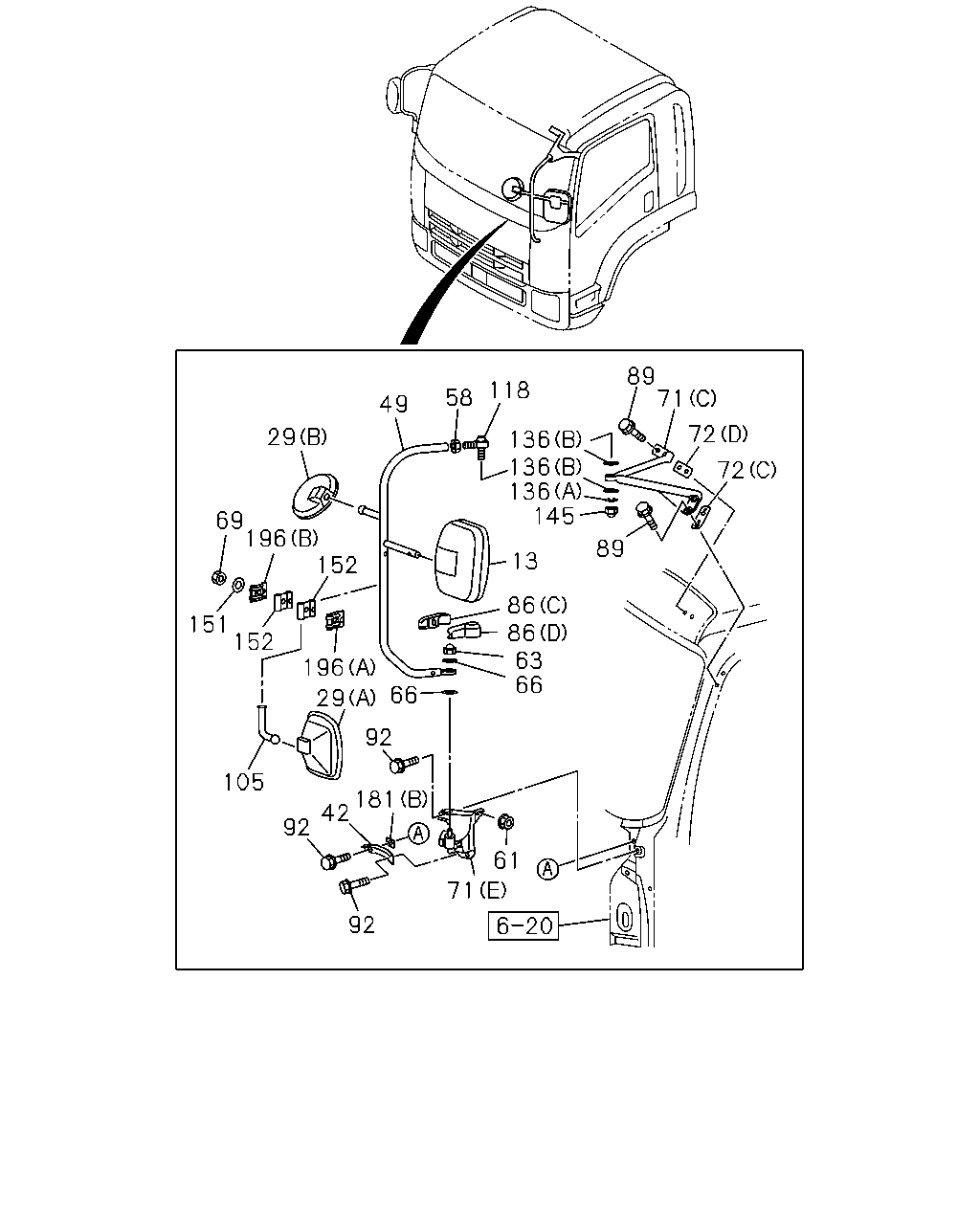

89 71 72 72 89 145 136 136 136 118 58 49 29 69 196 152 13 86 63 66 66 196 152 151 105 42 92 29 181 92 92 71 61 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1304-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1304-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-421-1	01	1	1304-	●	●
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1304-	●	●
42	ATTACHMENT; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98070-643-0	01	1	1304-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1310-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1310-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1304-1402	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-749-0	01	1	1403-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1304-1502	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-	●	●
58	NUT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M12	8-98061-883-0	01	1	1304-	●	●
61	NUT; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1310-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1304-	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1310-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1304-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1304-	●	●
69	NUT; CAP MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	01	1	1304-1309	●	●
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	1-71798-484-1	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-793-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-794-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-224-0	04	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-022-1	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98201-957-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-021-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-543-1	01	1	1304-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1304-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1310-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1304-	●	●
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1310-	●	●
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1304-	●	●
105	STAY; SUB UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-109-2	01	1	1310-	●	●
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98041-571-2	01	1	1304-1402	●	●
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-761-0	01	1	1403-	●	●
118	JOINT ASM; BALL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71798-356-2	01	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1310-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1304-	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1310-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1304-	●	●
151	WASHER; PL,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 T=2.0	1-09985-183-0	01	1	1304-	●	●
152	SHEET; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71798-445-1	02	1	1304-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1304-	●	●
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1304-	●	●
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-442-2	01	1	1304-	●	●
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-444-2	01	1	1304-	●	●

30 53 105 69 66 66 87 136 145 53 32 72 21 68 72 32 71 13 30 86 89 49 72 26 71 72 66 66 63 96 136 145 30 71 53 53 71 307 21 68 22 68 68 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1304-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1304-	●	●
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1310-	●	●
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5	1-09984-124-0	04	1	1304-	●	●
22	STAY; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98092-493-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-805-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-806-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-222-0	01	1	1304-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-221-0	01	1	1304-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98043-061-0	02	1	1310-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98043-065-0	01	1	1310-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98055-994-0	01	1	1310-1504	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98309-725-0	01	1	1505-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1304-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-592-1	01	1	1304-	●	●
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	04	1	1310-	●	●
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER	1-71737-797-0	04	1	1304-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1310-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1310-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1304-1402	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-749-0	01	1	1403-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1304-1502	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-	●	●
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	04	1	1304-	●	●
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	04	1	1310-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1310-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1304-	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1310-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1304-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1304-	●	●
68	WASHER; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1310-	●	●
69	NUT; CAP MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	01	1	1304-1309	●	●
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	1-71798-484-1	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-793-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-794-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-224-0	04	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-022-1	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98201-957-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-021-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-543-1	01	1	1304-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1304-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1310-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1310-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1304-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1310-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1304-	●	●
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1310-	●	●
105	STAY; SUB UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-109-2	01	1	1310-	●	●
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98041-571-2	01	1	1304-1402	●	●
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-761-0	01	1	1403-	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1310-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1304-	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1310-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1304-	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1310-	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1310-	●	●

87 87 145 307 136 136 145 96 63 66 66 72 71 66 26 72 49 89 86 13 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1310-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1304-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1304-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-805-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-806-0	01	1	1310-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-222-0	01	1	1304-	●	●
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-221-0	01	1	1304-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98043-061-0	02	1	1310-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98043-065-0	01	1	1310-	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98055-994-0	01	1	1310-1504	●	●
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98309-725-0	01	1	1505-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1304-	●	●
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-592-1	01	1	1304-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1310-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1310-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1304-1402	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-749-0	01	1	1403-	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1304-1502	●	●
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-	●	●
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1310-	●	●
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1304-	●	●
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	1310-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER	0-91610-614-0	01	1	1304-	●	●
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98201-756-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	1-71798-484-1	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-793-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-794-2	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98060-240-0	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98092-492-3	01	1	1310-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71707-224-0	04	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-022-1	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98201-957-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-021-0	01	1	1304-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-543-1	01	1	1304-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-796-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98031-797-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98060-245-1	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98064-776-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1310-	●	●
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1310-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1304-	●	●
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1310-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-545-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-546-1	01	1	1304-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-541-1	01	1	1304-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98063-786-0	02	1	1310-	●	●
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-789-0	01	1	1310-	●	●
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	1-71737-646-2	02	1	1304-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1310-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1304-	●	●
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1310-	●	●
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1310-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1304-	●	●
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1304-	●	●
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1310-	●	●
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1304-	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1310-	●	●
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1310-	●	●

18 1 2 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1304-	●	●
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1304-	●	●
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1304-	●	●
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1310-	●	●
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1304-	●	●
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1304-	●	●
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
