Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#117444) — 288 parça

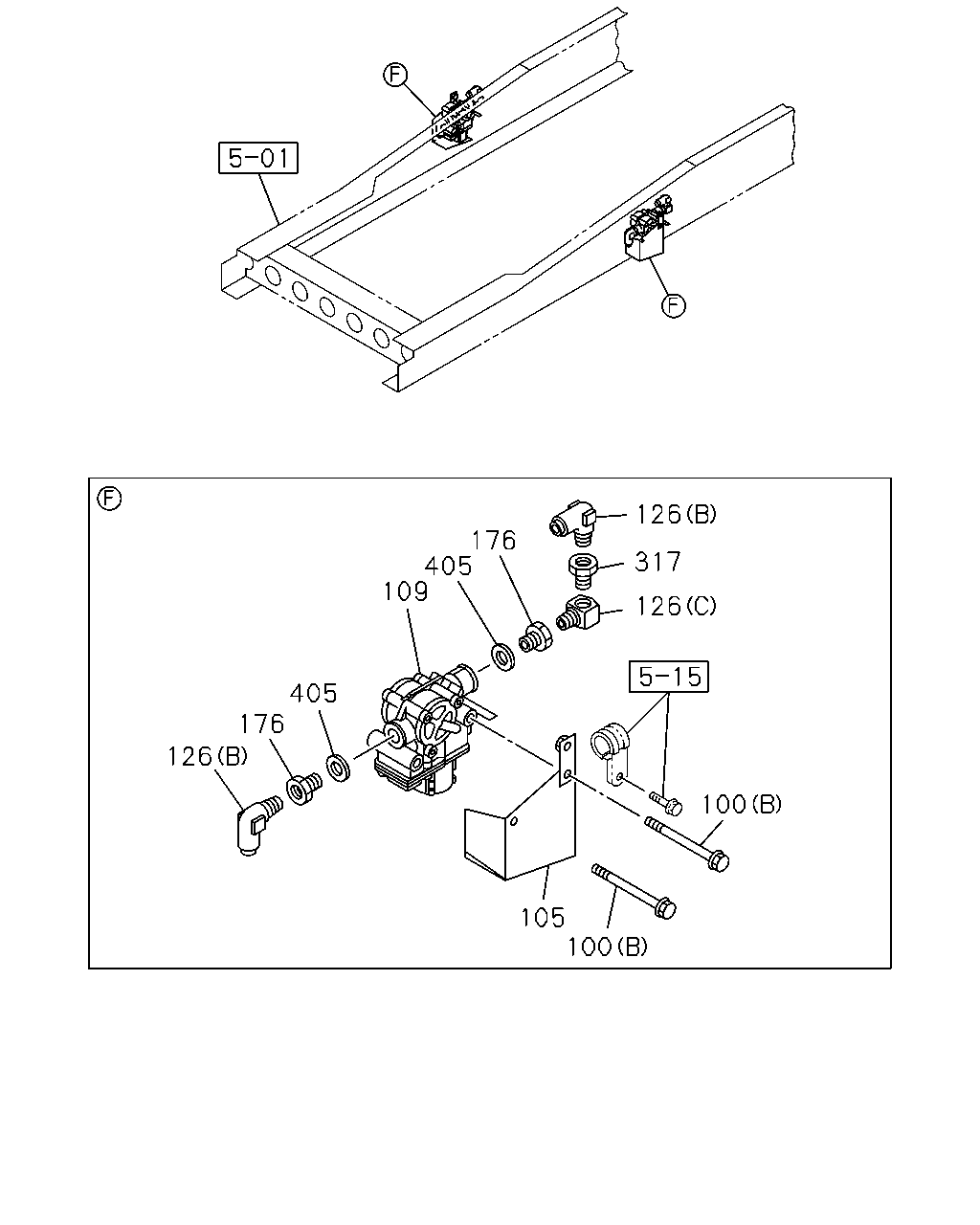

176 126 405 317 109 126 405 176 126 100 100 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	1302-	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) M8X140 FLANGE	0-28055-814-0	02	1	1302-	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (C) M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM<BFA>	8-98061-815-0	01	1	1302-	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM<BFA>	8-98081-578-0	01	1	1302-	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	1302-	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4700MM<47W> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
126	CONNECTOR; ELBOW WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW	1-09660-696-0	02	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1302-	●
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	06	1	1302-	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> PT3/8	1-09664-210-0	01	1	1302-	●
405	GASKET ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	04	1	1302-	●

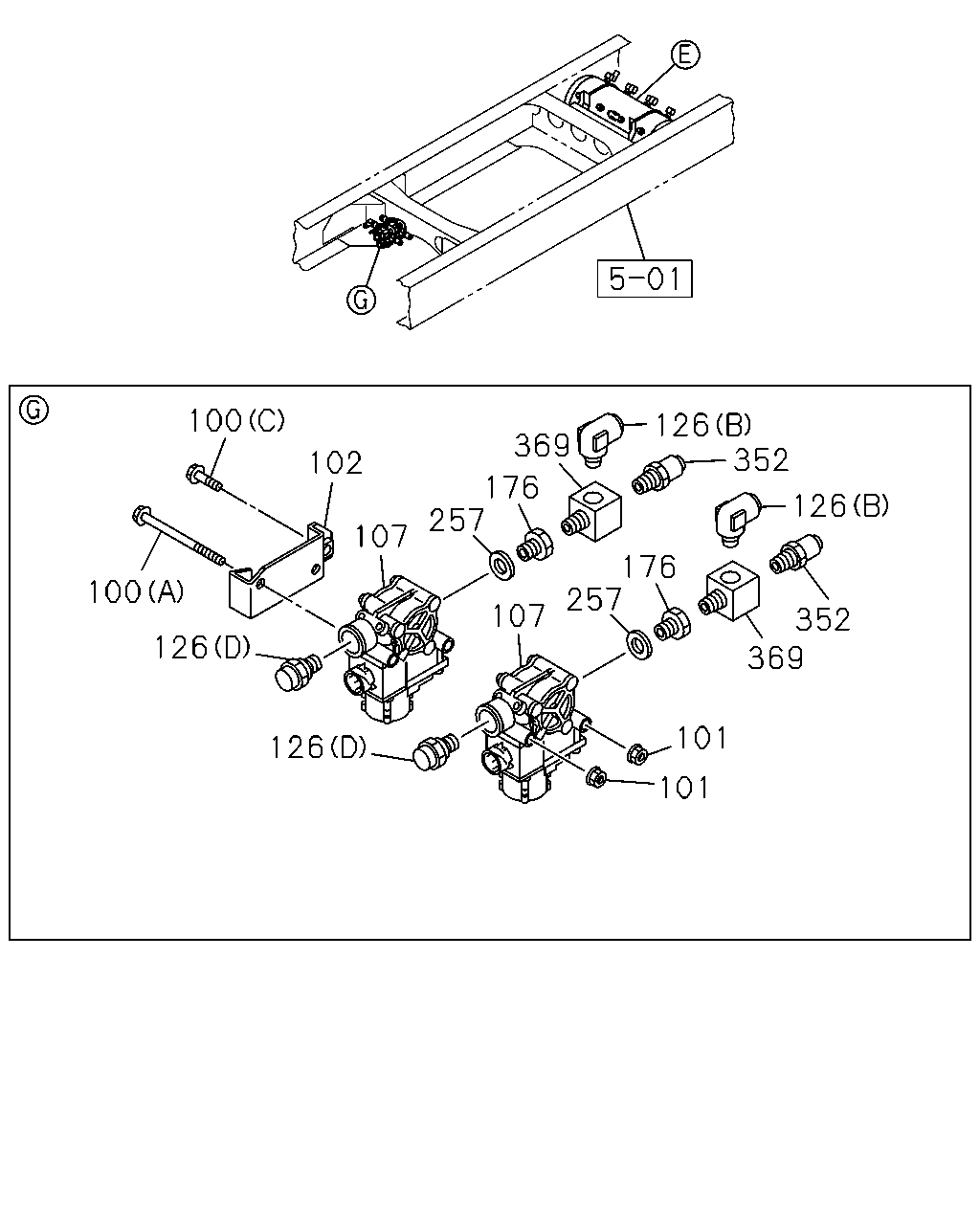

100 100 126 126 101 101 369 352 126 352 126 369 176 176 257 107 257 107 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	1302-	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) M8X140 FLANGE	0-28055-814-0	02	1	1302-	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (C) M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	02	1	1302-	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> THA	8-98131-043-0	01	1	1302-	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	1302-	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4700MM<47W> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
126	CONNECTOR; ELBOW WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW	1-09660-696-0	02	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1302-	●
176	ADAPTER ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	06	1	1302-	●
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	02	1	1302-	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM<BFA> DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1302-	●
369	CONNECTOR; 3WAY ANTILOCK BRAKE SYSTEM<BFA> PT3/8 3WAY	1-09661-300-0	02	1	1302-	●

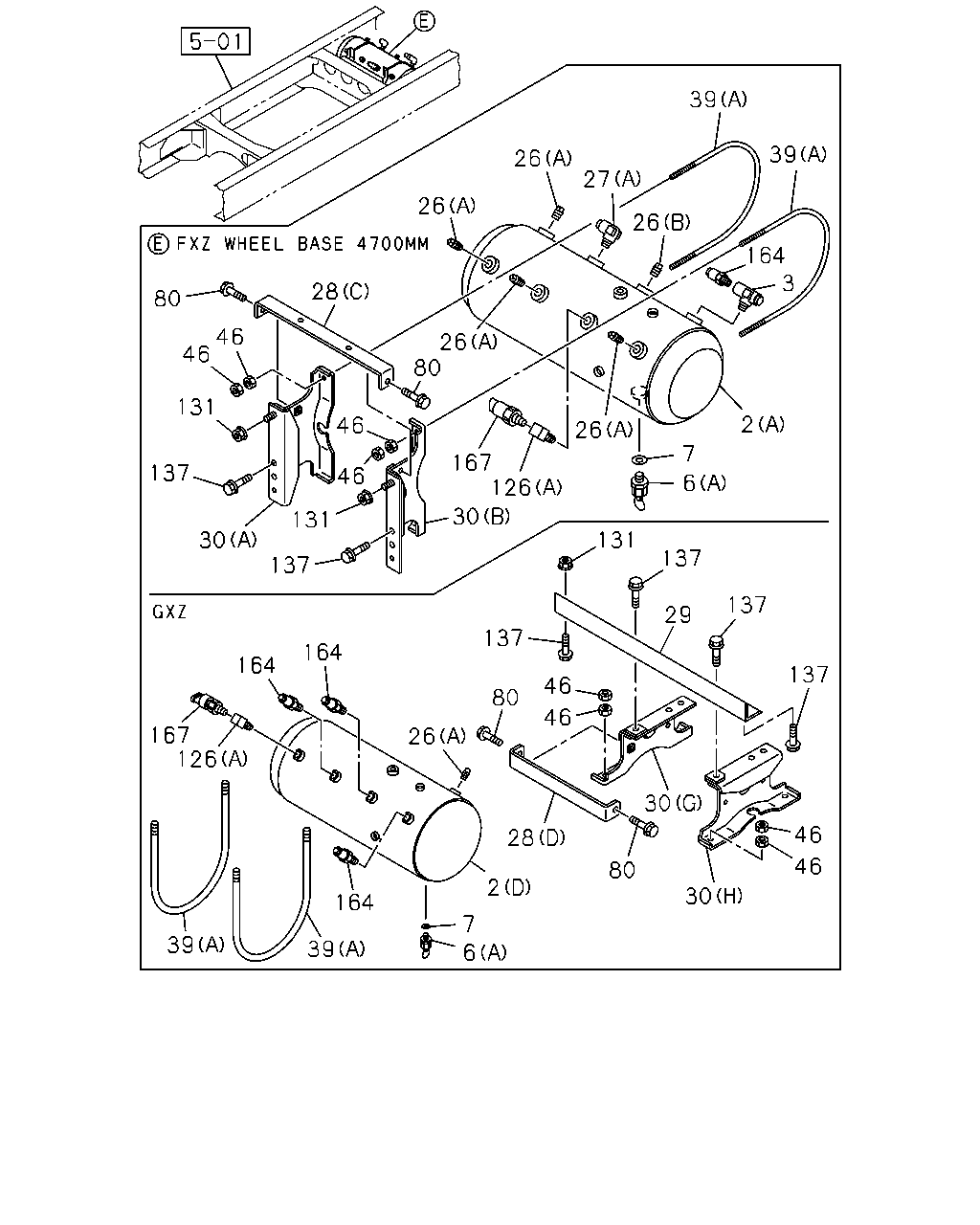

80 67 82 30 30 6 7 37 37 46 46 46 46 39 39 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR WHEEL BASE 4700MM<47W> (A)	8-98187-713-0	01	1	1302-		●
2	TANK; AIR WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B)	8-98207-596-0	01	1	1302-		●
2	TANK; AIR WHEEL BASE 5300MM<53W> (C)	8-98207-597-0	01	1	1302-		●
2	TANK; AIR (C)	8-98207-597-0	01	1	1302-	●
2	TANK; AIR (D)	8-98207-594-0	01	1	1302-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5300MM<53W> (B)	1-48312-017-0	01	1	1302-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1302-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5300MM<53W> ID=14	1-09630-145-0	01	1	1302-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1302-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-		●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5300MM<53W> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4700MM<47W> (A)	8-97618-390-1	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4700MM<47W> (B)	8-97618-391-1	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C)	8-97618-393-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D)	8-97618-394-0	02	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5300MM<53W> (E) THA	8-98099-710-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB (E) THA	8-98099-710-0	01	1	1302-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5300MM<53W> (F) THA	8-98099-711-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB (F) THA	8-98099-711-0	01	1	1302-	●
30	BRACKET; AIR TANK,SUB (G) THA	8-97619-246-2	01	1	1302-	●
30	BRACKET; AIR TANK,SUB (H) THA	8-97619-247-2	01	1	1302-	●
37	BOLT; AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) M10X20 FLANGE THA	0-28651-020-0	08	1	1302-		●
37	BOLT; AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) M10X40 FLANGE THA	0-28651-040-0	04	1	1302-		●
37	BOLT; AIR TANK WHEEL BASE 5300MM<53W> (B) M12X40 FLANGE	0-28651-240-0	04	1	1302-		●
37	BOLT; AIR TANK (C) M12X35 FLANGE THA	0-28651-235-0	04	1	1302-	●
39	U-BOLT; AIR TANK WHEEL BASE 5300MM<53W> (B)	1-48317-289-0	02	1	1302-		●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1302-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1302-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1302-	●	●
46	NUT; U-BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> M8	0-91110-508-0	08	1	1302-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1302-	●	●
46	NUT; U-BOLT WHEEL BASE 5300MM<53W> M8	0-91110-508-0	16	1	1302-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1302-	●
67	STAY; SUB TANK WHEEL BASE 5300MM<53W>	8-98099-781-0	01	1	1302-		●
67	STAY; SUB TANK	8-98099-781-0	01	1	1302-	●
80	BOLT; BRKT WHEEL BASE 4700MM<47W> M8X20 FLANGE THA	0-28650-820-0	02	1	1302-		●
80	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	02	1	1302-	●
80	BOLT; BRKT WHEEL BASE 5300MM<53W> M8X25 FLANGE THA	0-28650-825-0	02	1	1302-		●
80	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●
80	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●	●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	02	1	1302-		●
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE THA	0-91180-108-0	02	1	1302-	●

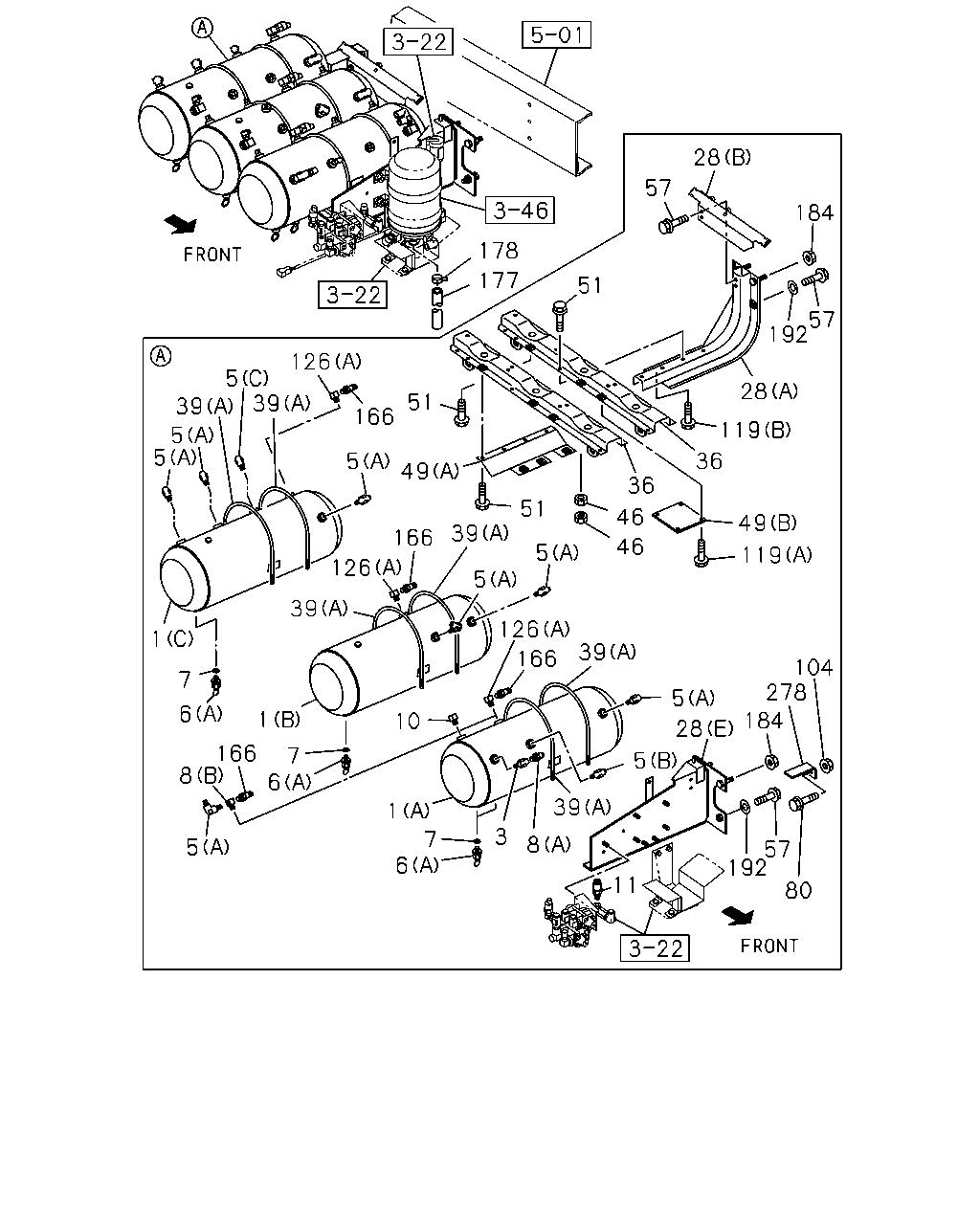

178 177 28 57 184 57 192 28 36 119 49 119 36 46 46 51 5 39 51 49 51 166 5 166 126 5 126 166 39 5 28 104 278 184 5 39 8 3 126 5 39 39 5 5 5 7 39 6 1 166 7 8 6 5 10 1 6 11 192 57 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	8-98207-593-0	01	1	1302-	●	●
1	TANK ASM; AIR (C)	8-98207-594-0	01	1	1302-	●	●
1	TANK ASM; AIR (B)	8-98207-595-0	01	1	1302-	●	●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1302-	●	●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1302-		●
5	UNION; AIR TANK WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-		●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-	●	●
5	UNION; AIR TANK WHEEL BASE 5300MM<53W> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1302-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1302-	●	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5300MM<53W> (B)	1-48312-017-0	01	1	1302-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1302-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5300MM<53W> ID=14	1-09630-145-0	01	1	1302-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1302-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5300MM<53W> (B)	1-09656-708-0	01	1	1302-		●
8	CONNECTOR; AIR TANK (B)	1-09656-708-0	01	1	1302-	●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-	●	●
10	PLUG; AIR TANK PT3/8	9-09204-517-0	01	1	1302-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1302-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4700MM<47W> (C)	8-97621-120-1	01	1	1302-		●
28	BRACKET; AIR TANK (A) THA	8-97618-088-1	01	1	1302-	●	●
28	BRACKET; AIR TANK (E) THA	8-98093-562-1	01	1	1302-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1302-	●	●
28	BRACKET; AIR TANK (D) THA	8-98085-710-0	01	1	1302-	●
36	STAY; MAIN TANK THA	8-97618-091-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 5300MM<53W> (B)	1-48317-289-0	02	1	1302-		●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1302-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1302-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1302-	●	●
46	NUT; U-BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> M8	0-91110-508-0	08	1	1302-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1302-	●	●
46	NUT; U-BOLT WHEEL BASE 5300MM<53W> M8	0-91110-508-0	16	1	1302-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1302-	●
49	BRACKET; AIR TANK (B)	8-97620-997-0	01	1	1302-	●	●
49	BRACKET; AIR TANK (A) THA	8-98110-683-0	01	1	1302-	●	●
51	BOLT; STAY TO BRKT M8X20 FLANGE THA	0-28650-820-0	10	1	1302-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1302-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1302-	●	●
80	BOLT; BRKT WHEEL BASE 4700MM<47W> M8X20 FLANGE THA	0-28650-820-0	02	1	1302-		●
80	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	02	1	1302-	●
80	BOLT; BRKT WHEEL BASE 5300MM<53W> M8X25 FLANGE THA	0-28650-825-0	02	1	1302-		●
80	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●
80	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●	●
104	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1302-	●	●
119	BOLT; STAY (A) M8X20 FLANGE THA	0-28650-820-0	04	1	1302-	●	●
119	BOLT; STAY (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1302-	●	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4700MM<47W> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
126	CONNECTOR; ELBOW WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW	1-09660-696-0	02	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1302-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1302-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1302-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1302-	●	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1302-	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1302-	●	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1302-	●	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1302-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1302-	●	●

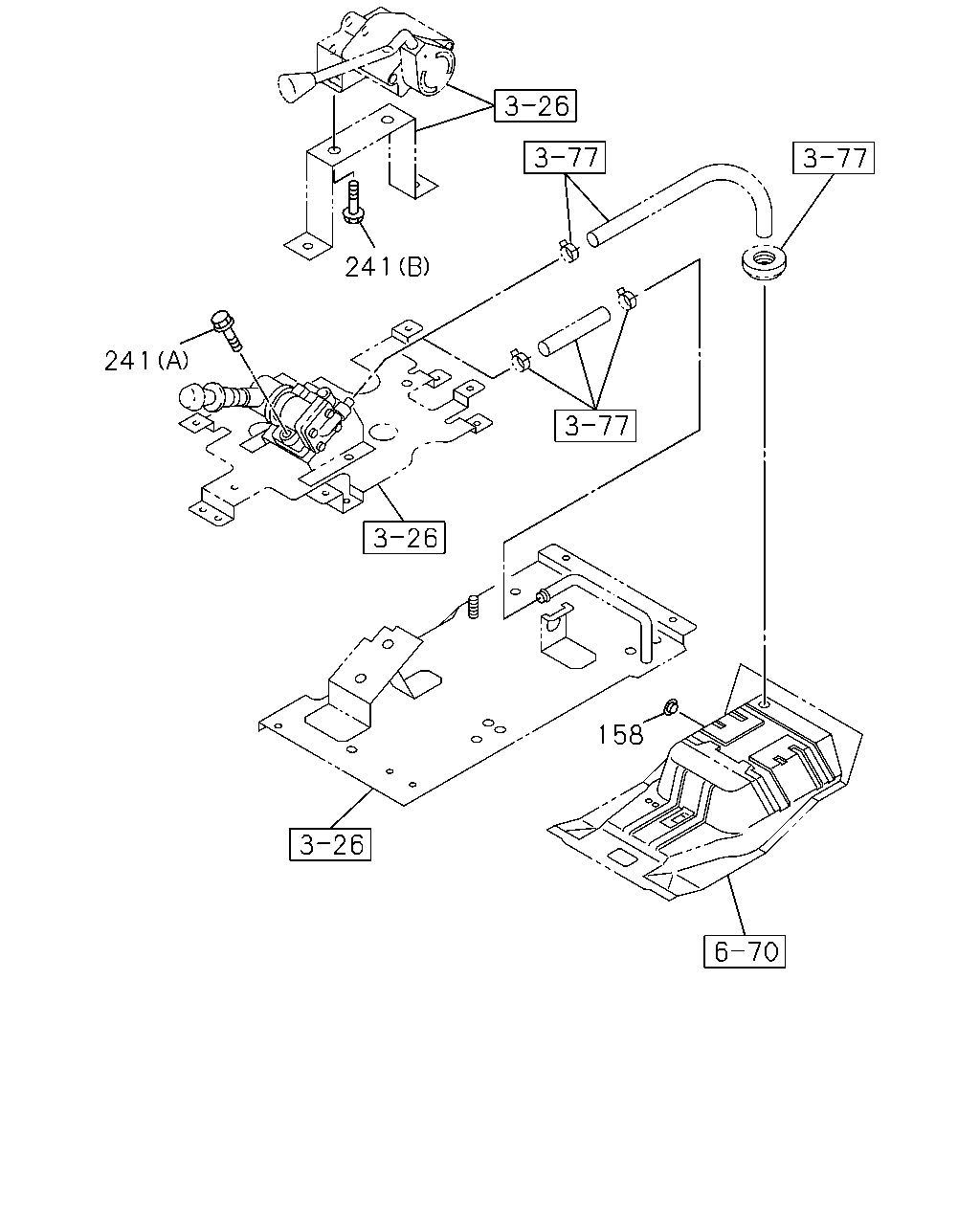

241 241 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1302-		●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1302-	●	●
241	BOLT; SET,CONT VLV (B) M10X20 FLANGE THA	0-28051-020-0	02	1	1302-	●

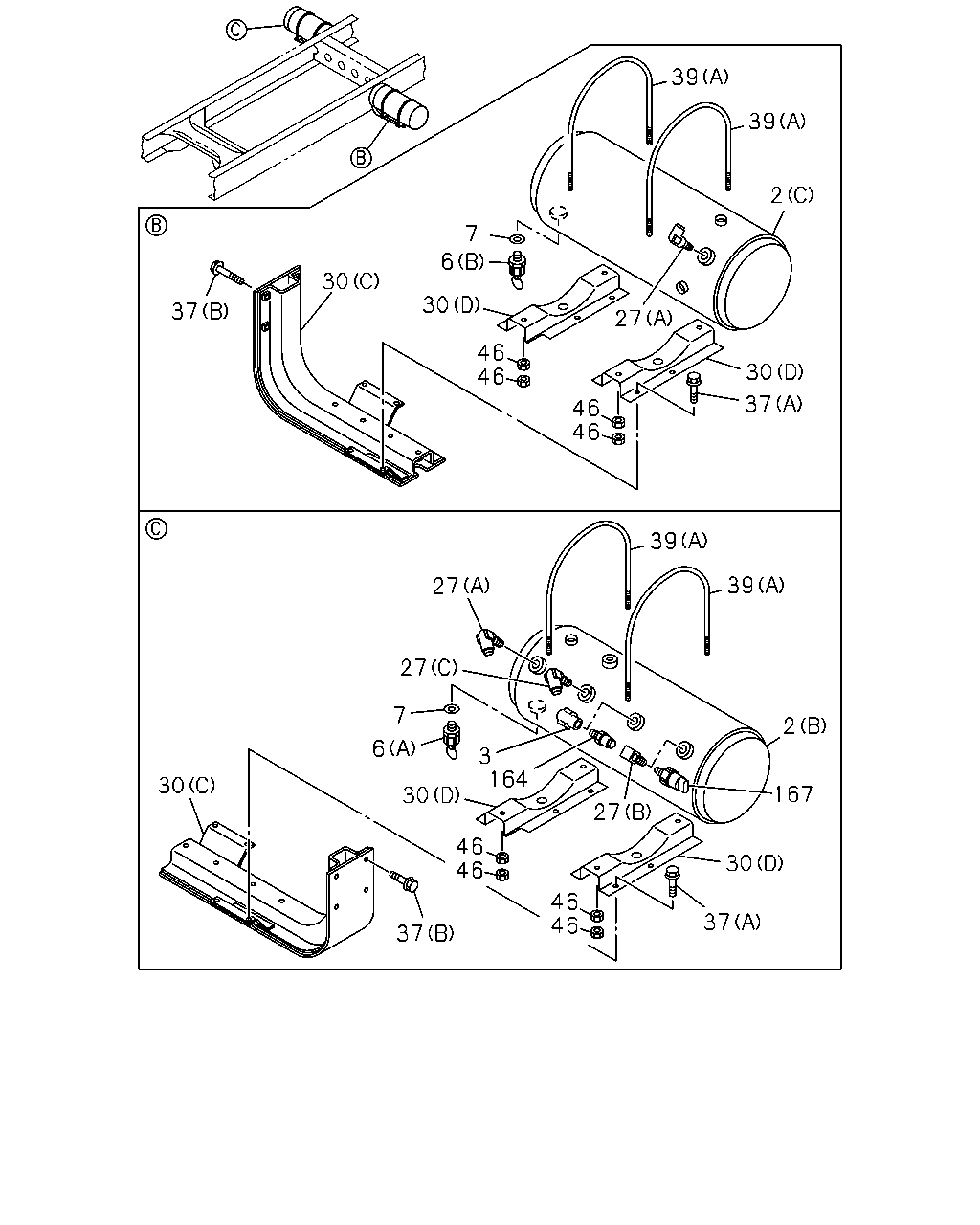

37 30 7 6 30 46 46 46 46 30 37 27 2 39 39 39 39 27 27 7 6 30 30 37 46 46 164 3 27 46 46 30 37 167 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR WHEEL BASE 4700MM<47W> (A)	8-98187-713-0	01	1	1302-		●
2	TANK; AIR WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B)	8-98207-596-0	01	1	1302-		●
2	TANK; AIR WHEEL BASE 5300MM<53W> (C)	8-98207-597-0	01	1	1302-		●
2	TANK; AIR (C)	8-98207-597-0	01	1	1302-	●
2	TANK; AIR (D)	8-98207-594-0	01	1	1302-	●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1302-	●	●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1302-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5300MM<53W> (B)	1-48312-017-0	01	1	1302-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1302-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5300MM<53W> ID=14	1-09630-145-0	01	1	1302-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1302-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-		●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5300MM<53W> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4700MM<47W> (A)	8-97618-390-1	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4700MM<47W> (B)	8-97618-391-1	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C)	8-97618-393-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D)	8-97618-394-0	02	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5300MM<53W> (E) THA	8-98099-710-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB (E) THA	8-98099-710-0	01	1	1302-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5300MM<53W> (F) THA	8-98099-711-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB (F) THA	8-98099-711-0	01	1	1302-	●
30	BRACKET; AIR TANK,SUB (G) THA	8-97619-246-2	01	1	1302-	●
30	BRACKET; AIR TANK,SUB (H) THA	8-97619-247-2	01	1	1302-	●
37	BOLT; AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) M10X20 FLANGE THA	0-28651-020-0	08	1	1302-		●
37	BOLT; AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) M10X40 FLANGE THA	0-28651-040-0	04	1	1302-		●
37	BOLT; AIR TANK WHEEL BASE 5300MM<53W> (B) M12X40 FLANGE	0-28651-240-0	04	1	1302-		●
37	BOLT; AIR TANK (C) M12X35 FLANGE THA	0-28651-235-0	04	1	1302-	●
39	U-BOLT; AIR TANK WHEEL BASE 5300MM<53W> (B)	1-48317-289-0	02	1	1302-		●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1302-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1302-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1302-	●	●
46	NUT; U-BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> M8	0-91110-508-0	08	1	1302-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1302-	●	●
46	NUT; U-BOLT WHEEL BASE 5300MM<53W> M8	0-91110-508-0	16	1	1302-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1302-	●
164	CONNECTOR; SUB AIR TANK DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-		●
164	CONNECTOR; SUB AIR TANK DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1302-	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1302-	●	●

137 137 137 131 137 46 46 30 80 30 28 2 7 6 39 39 126 167 164 164 26 29 80 46 46 137 131 46 46 167 30 126 26 6 7 2 3 164 26 27 26 26 28 46 46 80 131 137 30 26 80 39 39 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR WHEEL BASE 4700MM<47W> (A)	8-98187-713-0	01	1	1302-		●
2	TANK; AIR WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B)	8-98207-596-0	01	1	1302-		●
2	TANK; AIR WHEEL BASE 5300MM<53W> (C)	8-98207-597-0	01	1	1302-		●
2	TANK; AIR (C)	8-98207-597-0	01	1	1302-	●
2	TANK; AIR (D)	8-98207-594-0	01	1	1302-	●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1302-	●	●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1302-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5300MM<53W> (B)	1-48312-017-0	01	1	1302-		●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1302-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1302-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5300MM<53W> ID=14	1-09630-145-0	01	1	1302-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1302-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1302-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4700MM<47W> (A) PT3/8	9-09204-517-0	04	1	1302-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4700MM<47W> (B) PT1/4	9-99204-513-0	01	1	1302-		●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	01	1	1302-	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-		●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 5300MM<53W> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-		●
28	BRACKET; AIR TANK WHEEL BASE 4700MM<47W> (C)	8-97621-120-1	01	1	1302-		●
28	BRACKET; AIR TANK (A) THA	8-97618-088-1	01	1	1302-	●	●
28	BRACKET; AIR TANK (E) THA	8-98093-562-1	01	1	1302-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1302-	●	●
28	BRACKET; AIR TANK (D) THA	8-98085-710-0	01	1	1302-	●
29	BRACKET; AIR TANK THA	8-97619-245-1	01	1	1302-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4700MM<47W> (A)	8-97618-390-1	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4700MM<47W> (B)	8-97618-391-1	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C)	8-97618-393-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D)	8-97618-394-0	02	1	1302-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5300MM<53W> (E) THA	8-98099-710-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB (E) THA	8-98099-710-0	01	1	1302-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 5300MM<53W> (F) THA	8-98099-711-0	01	1	1302-		●
30	BRACKET; AIR TANK,SUB (F) THA	8-98099-711-0	01	1	1302-	●
30	BRACKET; AIR TANK,SUB (G) THA	8-97619-246-2	01	1	1302-	●
30	BRACKET; AIR TANK,SUB (H) THA	8-97619-247-2	01	1	1302-	●
39	U-BOLT; AIR TANK WHEEL BASE 5300MM<53W> (B)	1-48317-289-0	02	1	1302-		●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1302-	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1302-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1302-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1302-	●	●
46	NUT; U-BOLT WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> M8	0-91110-508-0	08	1	1302-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1302-	●	●
46	NUT; U-BOLT WHEEL BASE 5300MM<53W> M8	0-91110-508-0	16	1	1302-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1302-	●
80	BOLT; BRKT WHEEL BASE 4700MM<47W> M8X20 FLANGE THA	0-28650-820-0	02	1	1302-		●
80	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	02	1	1302-	●
80	BOLT; BRKT WHEEL BASE 5300MM<53W> M8X25 FLANGE THA	0-28650-825-0	02	1	1302-		●
80	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1302-	●
80	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4700MM<47W> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
126	CONNECTOR; ELBOW WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-		●
126	CONNECTOR; ELBOW (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (C) PT3/8 ELBOW	1-09660-696-0	02	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (D) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1302-	●
131	NUT; BRKT FIX WHEEL BASE 4700MM<47W> M12 FLANGE THA	0-91180-212-0	02	1	1302-		●
131	NUT; BRKT FIX M12 FLANGE THA	0-91180-212-0	01	1	1302-	●
137	BOLT; BRKT WHEEL BASE 4700MM<47W> M12X30 FLANGE THA	0-28651-230-0	02	1	1302-		●
137	BOLT; BRKT M12X35 FLANGE THA	0-28651-235-0	06	1	1302-	●
164	CONNECTOR; SUB AIR TANK DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-		●
164	CONNECTOR; SUB AIR TANK DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1302-	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
