Isuzu WW
▶
TRUCKS
▶
GXR
▶
11529 - GXR(RHD)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#117442) — 60 parça
◀
[060A] CYLINDER HEAD SIDE (12 parça)
[060A] STARTER CUTOFF RELAY,RESISTOR,CONT UNI (14 parça)
[060A] SLEEVE (10 parça)
[060A] BRACKET AND OTHER PARTS (12 parça)
[060A] STARTER AND GENERATOR (7 parça)
[060A] CAB FRONT HARNESS CLIP (3 parça)
[060A] RELAY (2 parça)
▶

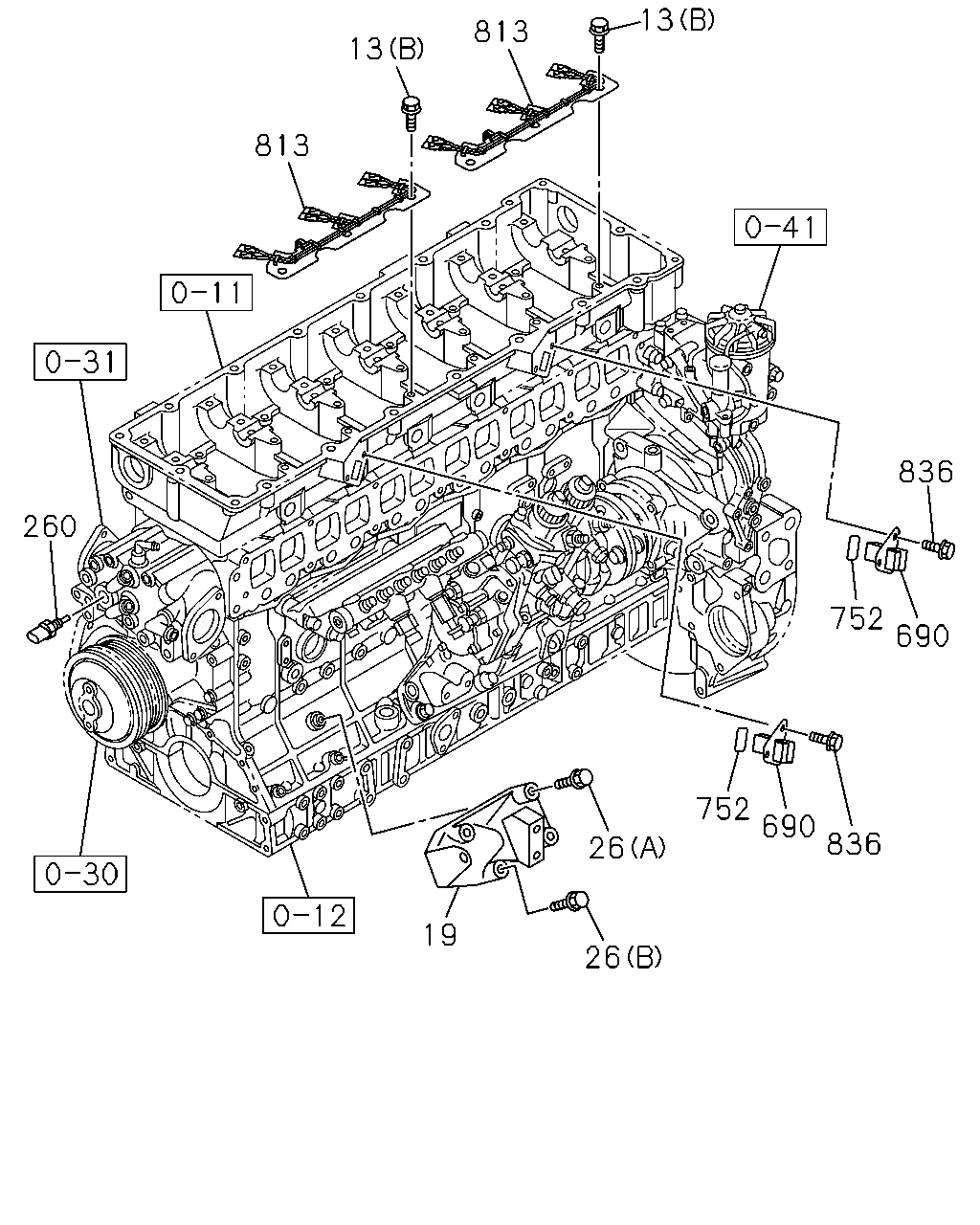

13
813
813
13
260
19
26
26
752
690
836
752
690
836
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; BRKT
(C) M8X20 FLANGE
0-28050-820-0
04
1
1304-
13
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
06
1
1304-
13
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1304-
19
BRACKET; GEN
8-97605-943-0
01
1
1304-
26
BOLT; GEN BRKT
(A) M12X50 FLANGE
0-28151-250-0
03
1
1304-
26
BOLT; GEN BRKT
(B) M12X70 FLANGE
0-28151-270-0
01
1
1304-
260
SENSOR; WATER TEMP
MITSUBISHI
8-98023-883-0
01
1
1304-1406
260
SENSOR; WATER TEMP
NISHIDA
8-98260-257-0
01
1
1407-
690
CONNECTOR
8-94390-858-1
02
1
1304-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
1304-
813
HARNESS; INJECTOR
8-97603-762-1
02
1
1304-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
04
1
1304-

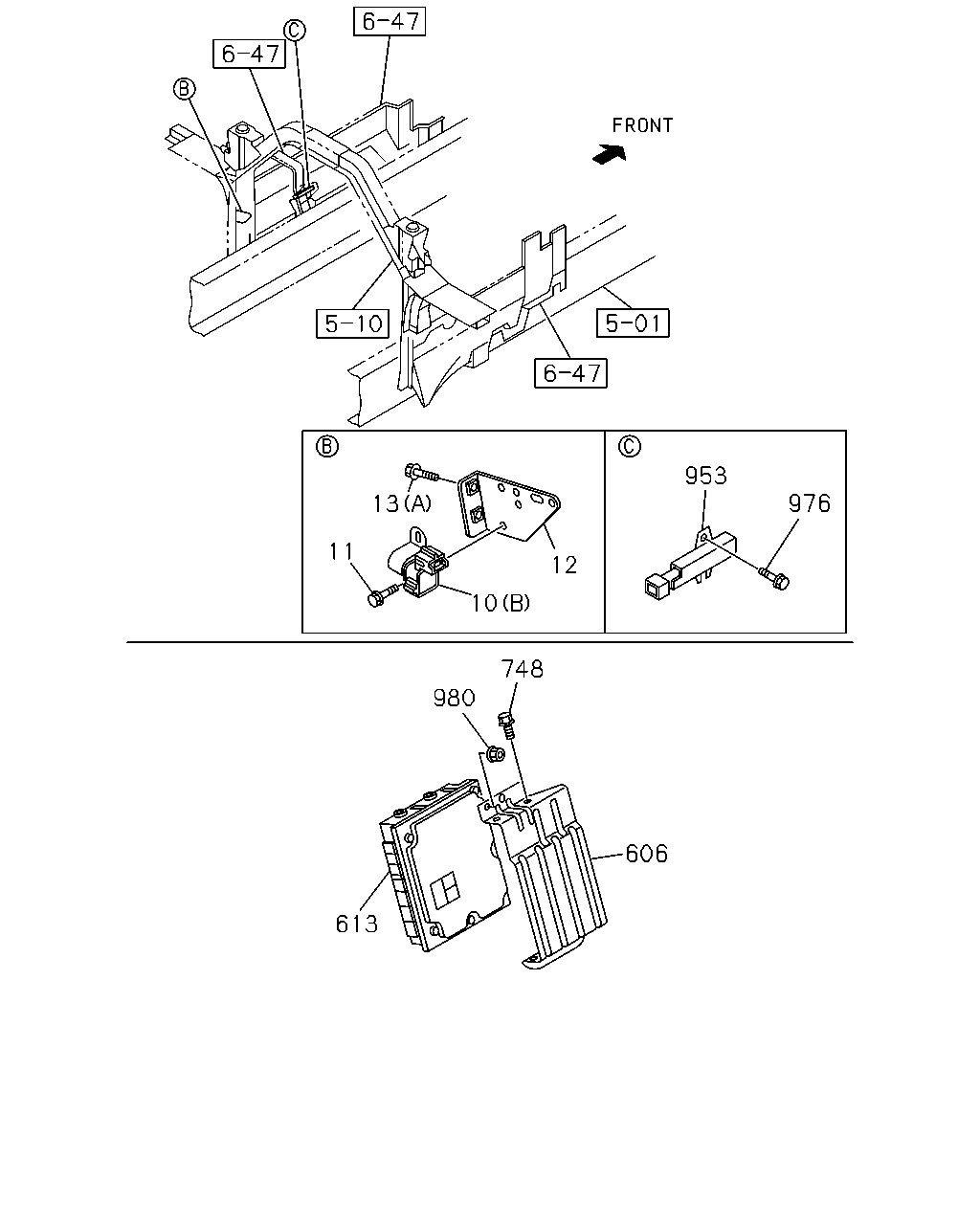

606
748
980
613
11
13
10
953
976
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1305-
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1304-
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28650-825-0
02
1
1304-
12
BRACKET; STARTER RELAY
8-97620-875-2
01
1
1304-
13
BOLT; BRKT
(C) M8X20 FLANGE
0-28050-820-0
04
1
1304-
13
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
06
1
1304-
13
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1304-
606
BRACKET; CONT UNIT
8-98168-567-0
01
1
1304-
613
CONTROL UNIT; ENG
HONG KONG EQUIPMENT(PQ1)
8-97636-971-2
01
1
1304-
613
CONTROL UNIT; ENG
SINGAPORE EQUIPMENT(WQ3)
8-97645-589-0
01
1
1304-
748
BOLT; CONT UNIT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1304-
953
RESISTOR; CONT UNIT
8-97357-613-0
01
1
1304-
976
BOLT; RESISTOR
M6X20 FLANGE
0-28650-620-0
02
1
1304-
980
NUT; CONT UNIT
M8 FLANGE
0-91180-108-0
04
1
1304-

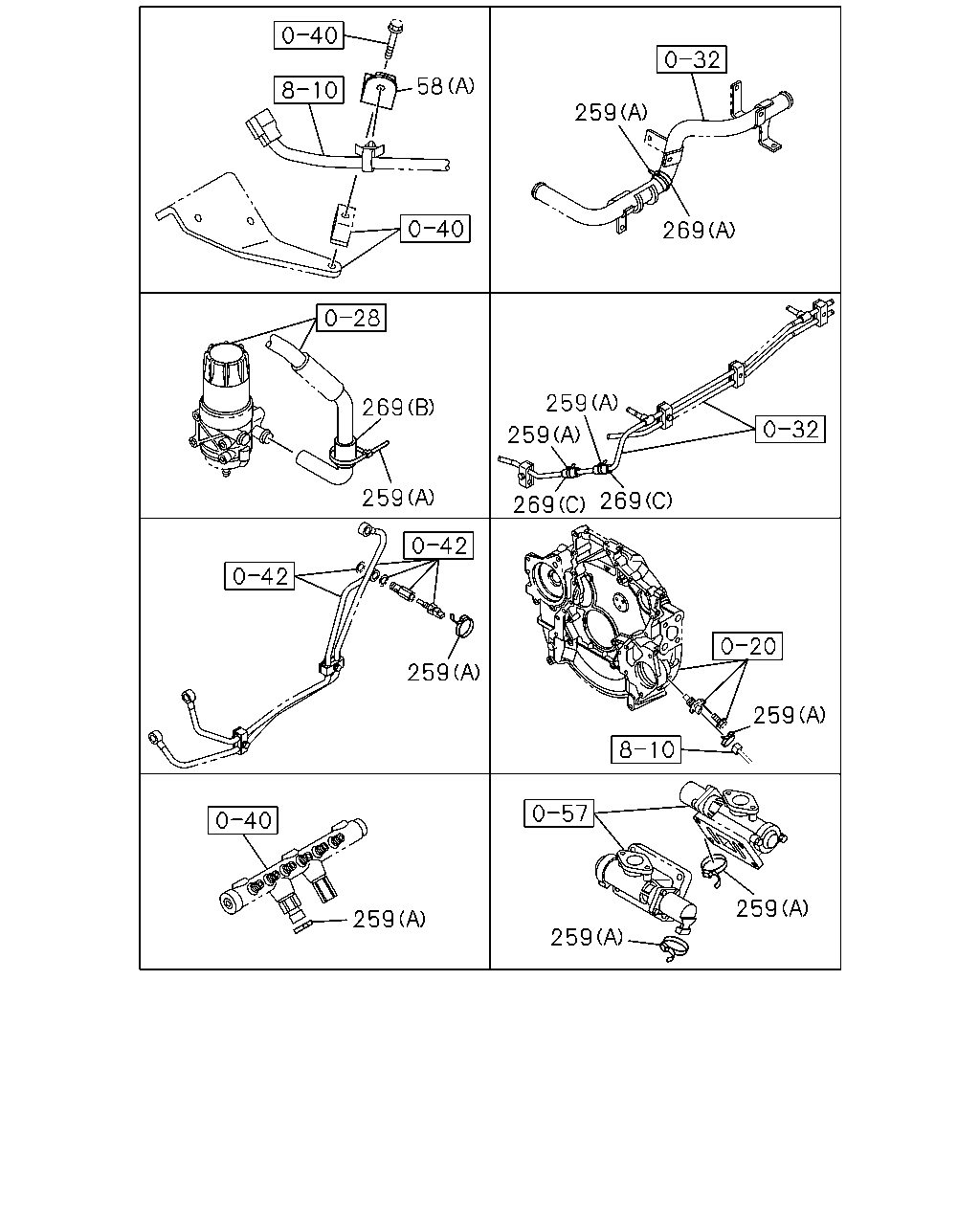

58
259
269
259
259
269
269
259
259
259
259
259
259
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
58
BRACKET; CLIP
(B)
8-97625-412-0
02
1
1304-
58
BRACKET; CLIP
(D)
8-97628-321-1
01
1
1304-
58
BRACKET; CLIP
(C)
8-97633-824-1
01
1
1304-
58
BRACKET; CLIP
(A)
8-97633-825-1
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251
8-97619-917-0
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
(C) L=109.5
8-97807-385-0
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
(A) L=250
8-98216-430-0
09
1
1304-
269
SLEEVE; RUBBER,CABLE
(A) ID=17 OD=21 L=40
1-09337-012-0
01
1
1304-
269
SLEEVE; RUBBER,CABLE
(B) ID=32 OD=36 L=50
1-09337-023-0
01
1
1304-
269
SLEEVE; RUBBER,CABLE
(C) ID=10 OD=14 L=30
9-09956-682-0
02
1
1304-

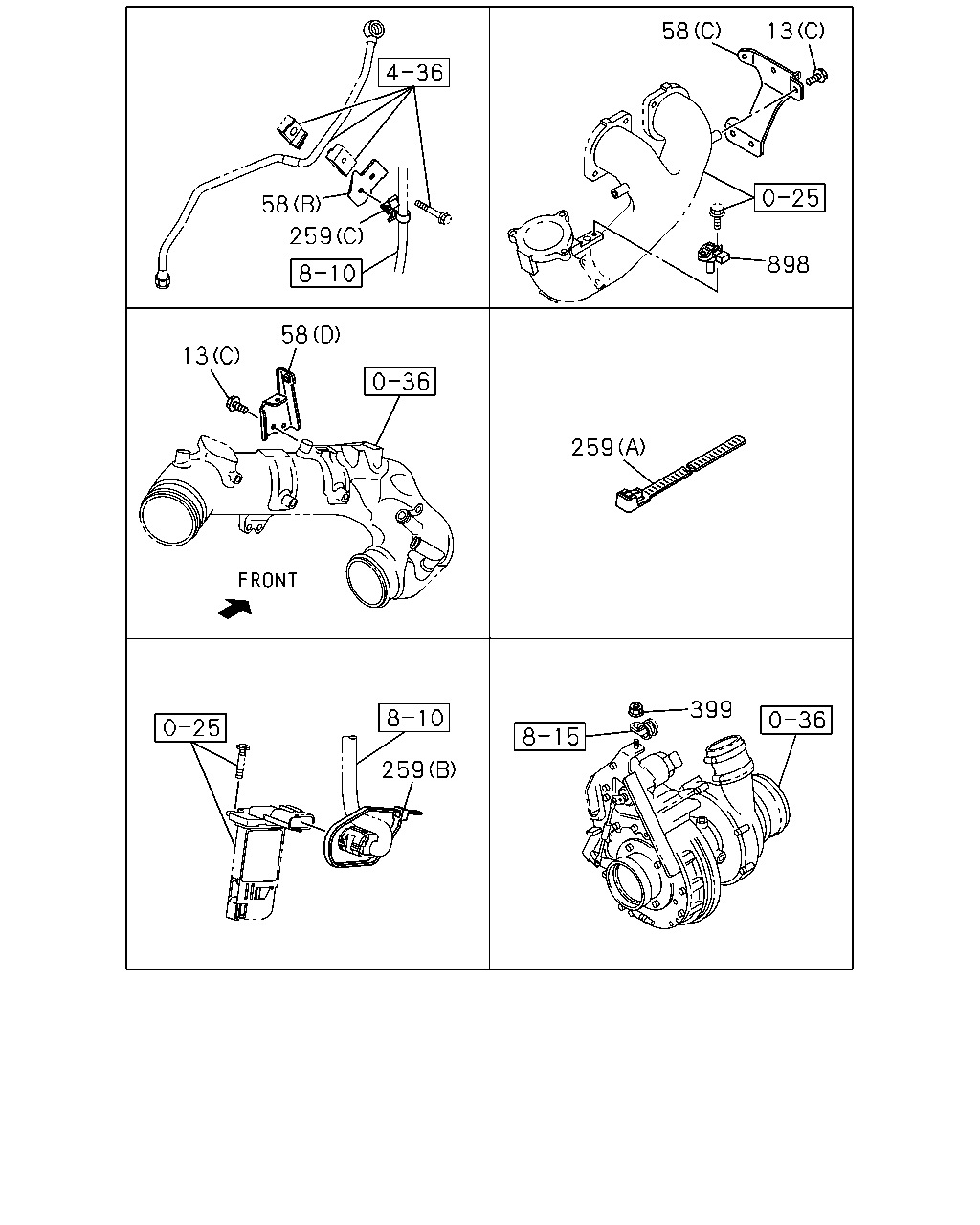

58
259
58
13
898
259
399
259
13
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; BRKT
(C) M8X20 FLANGE
0-28050-820-0
04
1
1304-
13
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
06
1
1304-
13
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1304-
58
BRACKET; CLIP
(B)
8-97625-412-0
02
1
1304-
58
BRACKET; CLIP
(D)
8-97628-321-1
01
1
1304-
58
BRACKET; CLIP
(C)
8-97633-824-1
01
1
1304-
58
BRACKET; CLIP
(A)
8-97633-825-1
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
(B) L=251
8-97619-917-0
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
(C) L=109.5
8-97807-385-0
01
1
1304-
259
CLIP; BAND,HARNESS TO OIL PIPE
(A) L=250
8-98216-430-0
09
1
1304-
399
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1304-
898
SENSOR; BOOST
8-98009-418-0
01
1
1304-

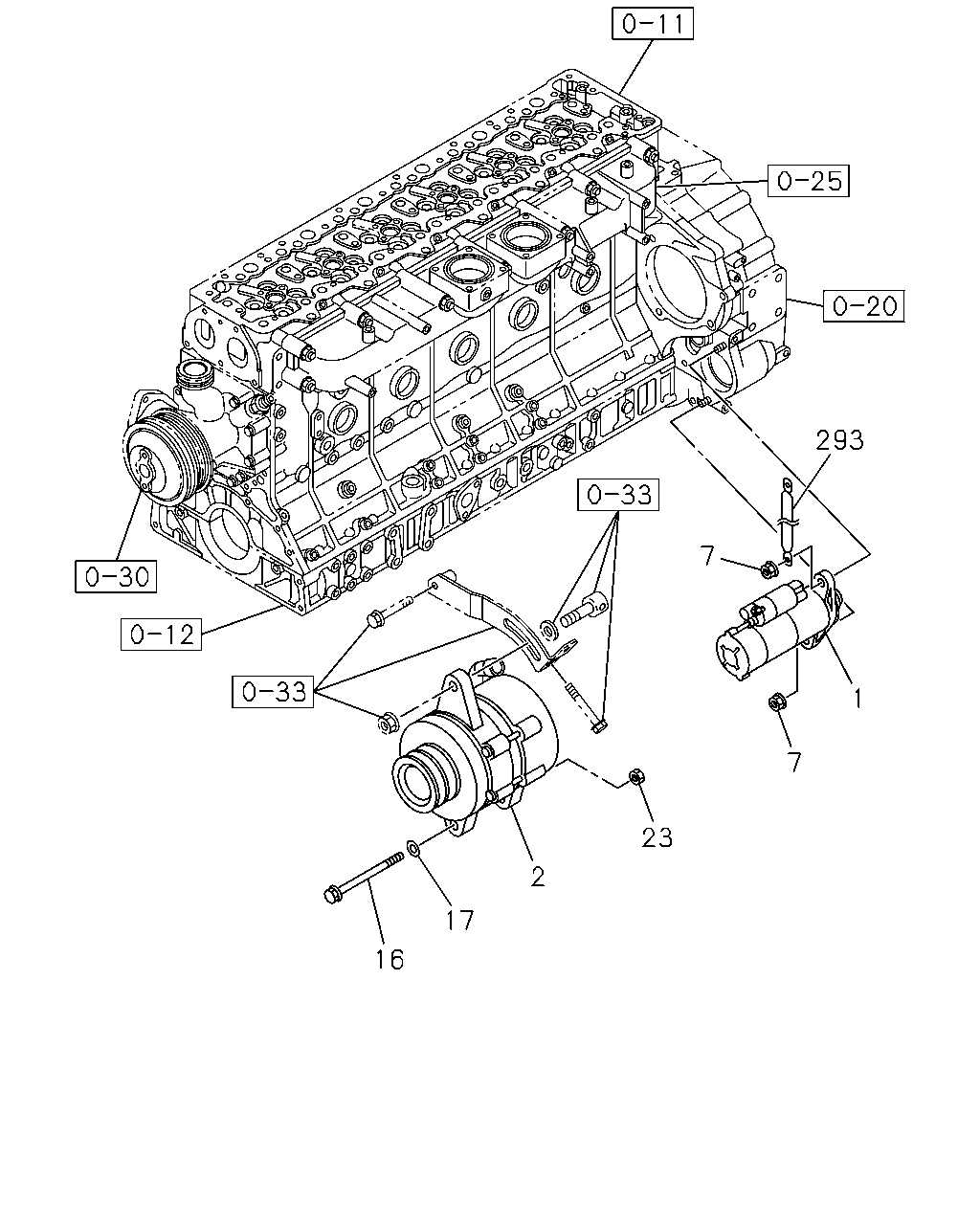

293
7
7
1
23
2
17
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT.
8-98222-203-2
01
1
1304-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO
8-98169-360-2
01
1
1304-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
02
1
1304-
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
1304-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
1304-
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
1304-
293
CABLE; STARTER EARTH
8-97633-822-0
01
1
1304-
441
428
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
ID=32 L=35
1-09701-244-0
03
1
1304-
441
BOLT; HARNESS TO FRAME
M8X20 FLANGE
0-28650-820-0
01
1
1304-
441
BOLT; HARNESS TO FRAME
M8X35 FLANGE
0-28650-835-0
02
1
1304-
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
1305-
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1304-
