◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51477 - TFR/TFS(EUROPE)-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#117441) — 25 parça

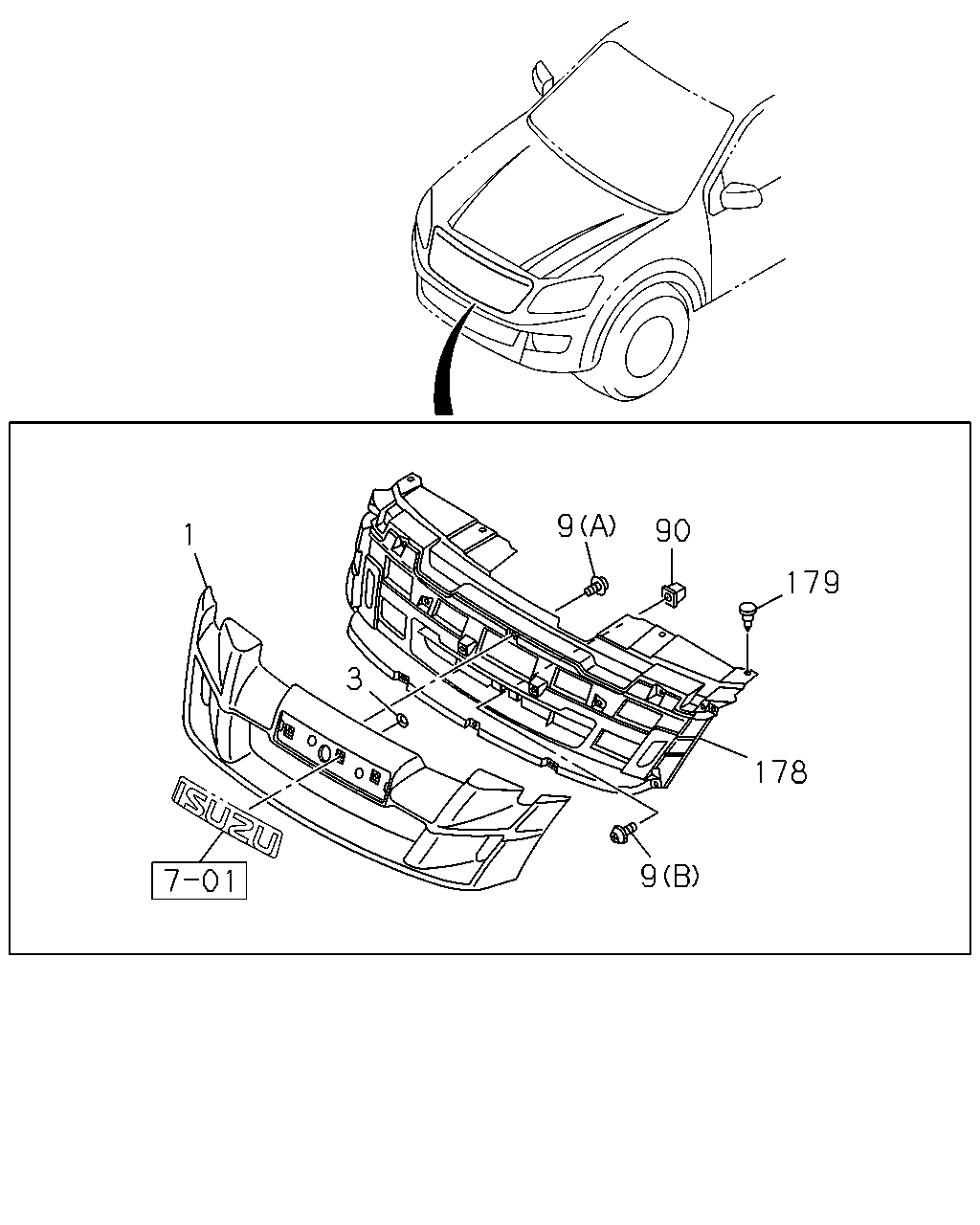

çizim 343679
1 3 9 90 179 178 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1304- ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98193-869-0 01 1 1304- ● ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> ,BRIGHT RAD GRILLE<V22> 		8-98193-867-0 01 1 1304- ● ● ● ●
1 01.266 GRILLE; RAD 8-98193-867-0 01 1 1304- ● ●
3 01.269 CLIP; GRILLE 8-98211-687-0 03 1 1304- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1304- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1304- ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1304- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD 8-98193-871-0 01 1 1304- ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 04 1 1304- ● ● ● ● ● ●

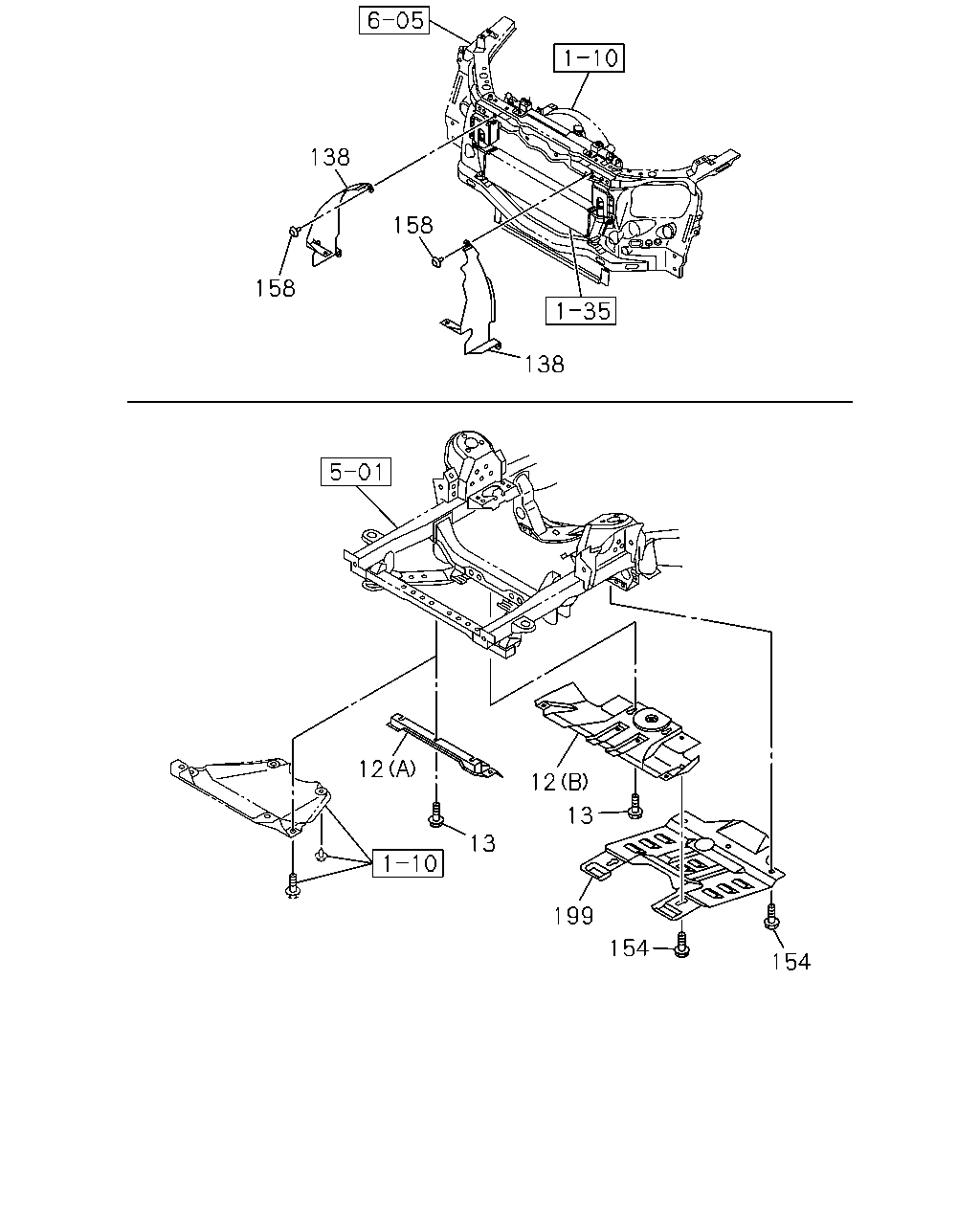

çizim 343713
138 158 138 158 12 12 13 199 154 154 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1304- ● ● ●
12 01.274 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1304- ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98102-133-3 01 1 1304-1307 ● ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-98102-133-3 01 1 1304-1307 ● ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1308- ● ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-98229-406-0 01 1 1308- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1304- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1304- ● ● ●
138 01.266 GUIDE; AIR 8-98137-586-1 01 1 1304- ● ● ● ● ● ●
138 01.266 GUIDE; AIR 8-98137-587-1 01 1 1304- ● ● ● ● ● ●
154 01.267 BOLT; COVER
01.428 M10X28 W/PL WASHER 		8-98186-487-0 04 1 1304-1307 ● ● ●
154 01.267 BOLT; COVER
01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1308- ● ● ●
158 01.269 CLIP; PROTECTOR
08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1304- ● ● ● ● ● ●
199 01.274 PLATE; OIL PAN
01.426 		8-98131-898-1 01 1 1304-1307 ● ● ●
199 01.274 PLATE; OIL PAN
01.426 		8-98229-404-0 01 1 1308- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
